Always there to help you GC3800 series User manual

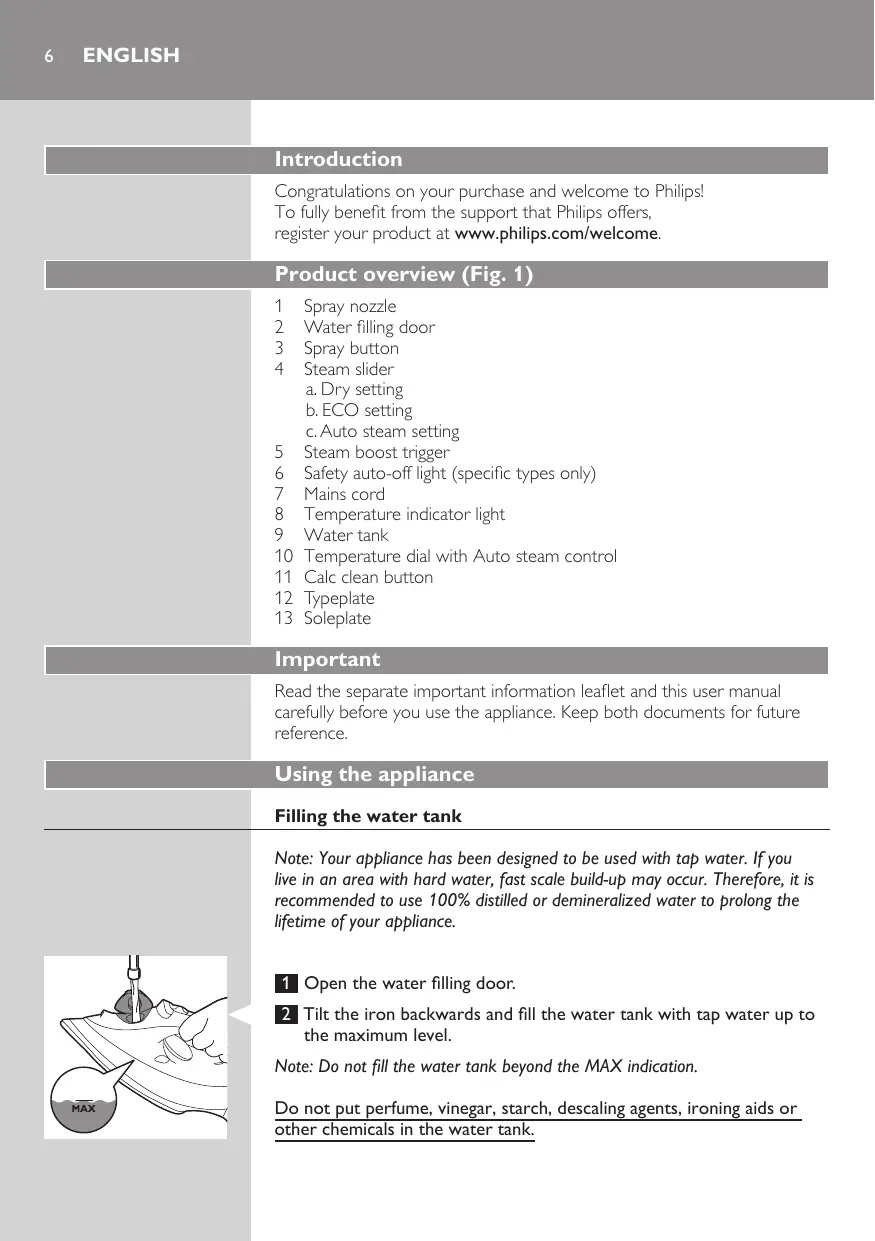

GC3800 series Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Spray nozzle Water filling door Spray button Steam slider a. Dry setting b. ECO setting c. Auto steam setting Steam boost trigger Safety auto-off light (specific types only) Mains cord Temperature indicator light Water tank Temperature dial with Auto steam control Calc clean button Typeplate Soleplate Important Read the separate important information leaflet and this user manual carefully before you use the appliance. Keep both documents for future reference. Using the appliance Filling the water tank Note: Your appliance has been designed to be used with tap water. If you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use 100% distilled or demineralized water to prolong the lifetime of your appliance. 1 Open the water filling door. 2 Tilt the iron backwards and fill the water tank with tap water up to the maximum level. Note: Do not fill the water tank beyond the MAX indication. Do not put perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank. English 3 Close the water filling door ( ‘click’). Temperature and steam setting Table 1:

Warning: Do not use steam or steam boost at low temperature, as indicated

in the below table. Otherwise, hot water may leak from the iron. Fabric type Temperature setting Auto steam control Steam boost Linen MAX Yes Cotton

Automatically adjusted to the optimal amount Wool

Synthetic fabric (e.g. acrylic, nylon, polyamide, polyester)

1 Consult table 1 to set the temperature dial to the appropriate setting for your garment. 2 Select Auto steam setting in the steam slider. This iron is equipped with Auto steam control. According to the temperature you select, the iron automatically provides the optimal amount of steam for the best result. 3 Put the iron on its heel and plug it in. The temperature light goes on to indicate that the iron is heating up. 4 When the temperature light goes out, the iron has reached the correct temperature and you could start ironing.

English Features Spray funtion -- Press the spray button to moisten the article to be ironed. This helps to remove stubborn creases. Steam boost function -- Press and release the steam boost trigger for a powerful boost of steam to remove stubborn creases. Ironing with extra steam -- For extra steam during ironing, press and hold the steam boost trigger. Vertical steam -- You can use the steam boost function when you hold the iron in vertical position for removing creases form hanging clothes, curtains etc. Eco steam setting / Dry ironing -- In stead of Auto steam, you could choose ECO setting in the steam slider to save energy, yet to achieve satisfactory ironing results. -- To iron without steam, select dry setting in the steam slider. English

Safety auto-off (specific types only) The safety auto-off function automatically switches off the iron if it has not been used for 30 seconds resting on its soleplate or 8 minutes resting on its backplate. The auto-off light will light up. -- To let the iron heat up again, pick up the iron or move it slightly. The auto-off light goes out. Cleaning and maintenance Cleaning 1 Unplug the iron and let it cool down. 2 Pour any remaining water out of the water tank from the water filling door. 3 Wipe flakes and any other deposit off the soleplate with a damp cloth and a non-abrasive (liquid) cleaning agent. To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate. Calc-clean function IMPORTANT: Use Calc-clean function every 1 month to prolong the life of your iron. If water in your area is very hard, or you see scales coming out from the soleplate during ironing, use this function more frequently. 1 Make sure the iron is unplugged and the steam slider is set to dry setting. 2 Fill the water tank to the MAX indication. Do not pour vinegar or other descaling agents into the water tank. 3 Plug in the iron and set the temperature dial to MAX. 4 Unplug the iron when the temperature light goes out. 5 Hold the iron over the sink. Keep pushing the calc clean button and gently shake the iron forth and back until all water in the water tank has been used up. Scales is flushed out, steam and boiling water also come out of the soleplate. Note: Repeat steps 2 to 5 if the water that comes out of the iron still contains scale particles.

English 6 Plug in the iron and let the iron heat up to dry the soleplate. 7 Unplug the iron when the temperature indicator light goes out. 8 Move the iron gently over a piece of cloth to remove any water stains on the soleplate. Storage 1 Unplug the iron and empty the water tank. Let it cool down in a safe place. 2 Wind the mains cord around the backplate of the iron and store it on its heel. Troubleshooting This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). Problem Possible cause You have used the steam The steam boost function does not boost function too often within a very short period. work properly (water leaks out of the soleplate). Solution Wait for a few seconds before you use the steam boost function again. You have used the steam boost function at a too low temperature. Set an ironing temperature at which the steam boost function can be used (●●● to MAX). Flakes and impurities come out of the soleplate during ironing. Scales are formed inside the soleplate. Use the Calc-clean funtion (see chaper ‘Cleaning and maintenance’, section ‘Calc-clean function’). Water leaks from the water filling door. You have overfilled the water tank. Do not fill the water tank beyond the MAX indication. Pour excess water out of the water tank. Français

Specifications are subject to change without notice © 2014 Koninklijke Philips N.V. All rights reserved.
