USER MANUAL TurboTwister 59770 HAMILTON BEACH

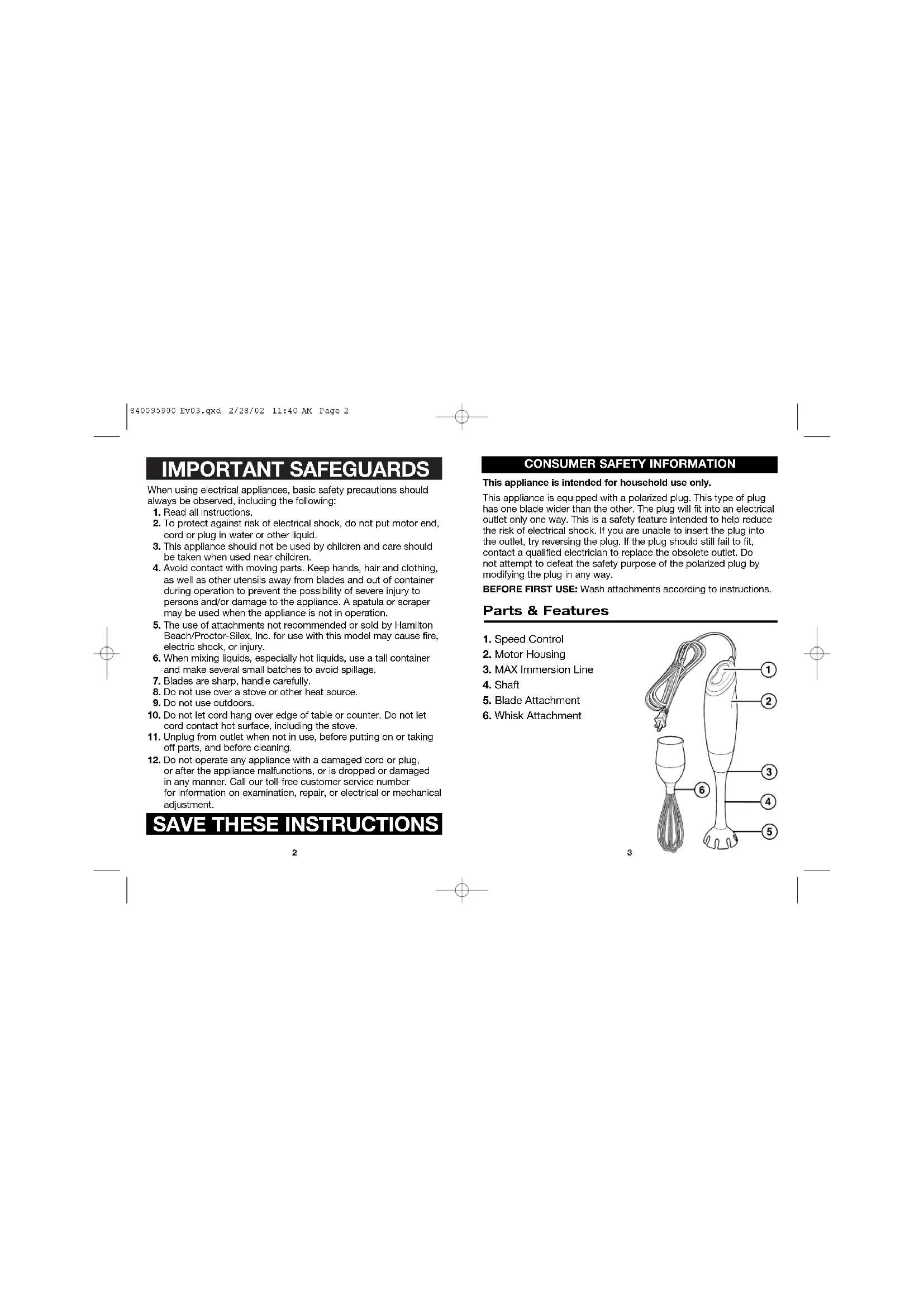

Français .......................... 7 Canada : 1-800-267-2826 840095900 Ev03.qxd 2/28/02 11:40 AM Page 1 Digitally signed by A. Creerycn=A. Creery, c=USDate: 2002.03.01 11:30:26 -05'00'Reason: I am approving this document4.25x5.5"; 12 pg.; English/French; black ink; no bleed; map.3 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be observed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put motor end,

cord or plug in water or other liquid.

3. This appliance should not be used by children and care should

be taken when used near children.

4. Avoid contact with moving parts. Keep hands, hair and clothing,

as well as other utensils away from blades and out of container during operation to prevent the possibility of severe injury to persons and/or damage to the appliance. A spatula or scraper may be used when the appliance is not in operation.

5. The use of attachments not recommended or sold by Hamilton

Beach/Proctor-Silex, Inc. for use with this model may cause fire, electric shock, or injury.

6. When mixing liquids, especially hot liquids, use a tall container

and make several small batches to avoid spillage.

7. Blades are sharp, handle carefully.

8. Do not use over a stove or other heat source.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter. Do not let

cord contact hot surface, including the stove.

11. Unplug from outlet when not in use, before putting on or taking

off parts, and before cleaning.

12. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions, or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment.

SAVE THESE INSTRUCTIONS

This appliance is intended for household use only. This appliance is equipped with a polarized plug. This type of plug has one blade wider than the other. The plug will fit into an electrical outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way. BEFORE FIRST USE: Wash attachments according to instructions.

1. Place food in a tall, deep container for mixing. For best

results, solid foods should be no larger than 1-inch chunks.

2. Attach blade or whisk attachment to motor housing.

3. Plug into outlet.

4. Grasp unit in hand. Push fingertip control. Slowly move the

blade through the food; up, down and sideways.

5. Do not immerse mixing stick past the MAX Immersion line.

6. Unplug from outlet when not in use.

• For thorough blending, move blade up and down in mixture until smooth.

• To achieve best blending results use deep, tall containers.

• For easy cleanup, unplug mixing stick and rinse attachments under running water immediately after using. wWARNING To reduce risk of personal injury and/or damage to your mixing stick:

• Never wash attachments or other parts in a dishwasher.

• Always inspect attachments before each use.

• Do not use cracked, bent or damaged attachments.

• To use the mixing stick in a saucepan, be sure to remove the pan from the stove as the mixing stick is not designed for use over a heat source.

• To puree foods, a certain amount of liquid is needed. Add cooking liquid, broth, juice, milk, or cream, until desired consistency is reached.

• This appliance is not intended to chop ice. Add ice to beverage after blending. Helpful Hints (continued) FOOD Baby Food Cake Mixes Eggs Frozen Juice Concentrate Gravy or Sauces Instant Pudding Milk Shakes Pancake Mix Powdered Drink Mixes Whipping Cream Egg Whites SPEED

Blending Guide ATTACHMENT Blade Blade Whisk Blade Whisk Whisk Blade Whisk Blade Whisk Whisk 840095900 Ev03.qxd 2/28/02 11:40 AM Page 46 LIMITED WARRANTY This product is warranted to be free from defects in material and workmanship for a period of two (2) years for Hamilton Beach Portfolio products or one (1) year for Hamilton Beach products from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product: glass parts, glass containers, cutter/strainer, blades, and/or agitators. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

2. Remove attachment from motor housing. Wash attachment

in hot, soapy water. Rinse then dry.

3. Never hold motor portion of mixing stick under running

water. Never immerse unit past MAX Immersion line. Simply wipe clean with a damp cloth. 840095900 Ev03.qxd 2/28/02 11:40 AM Page 67
