USER MANUAL 49LH541V LG

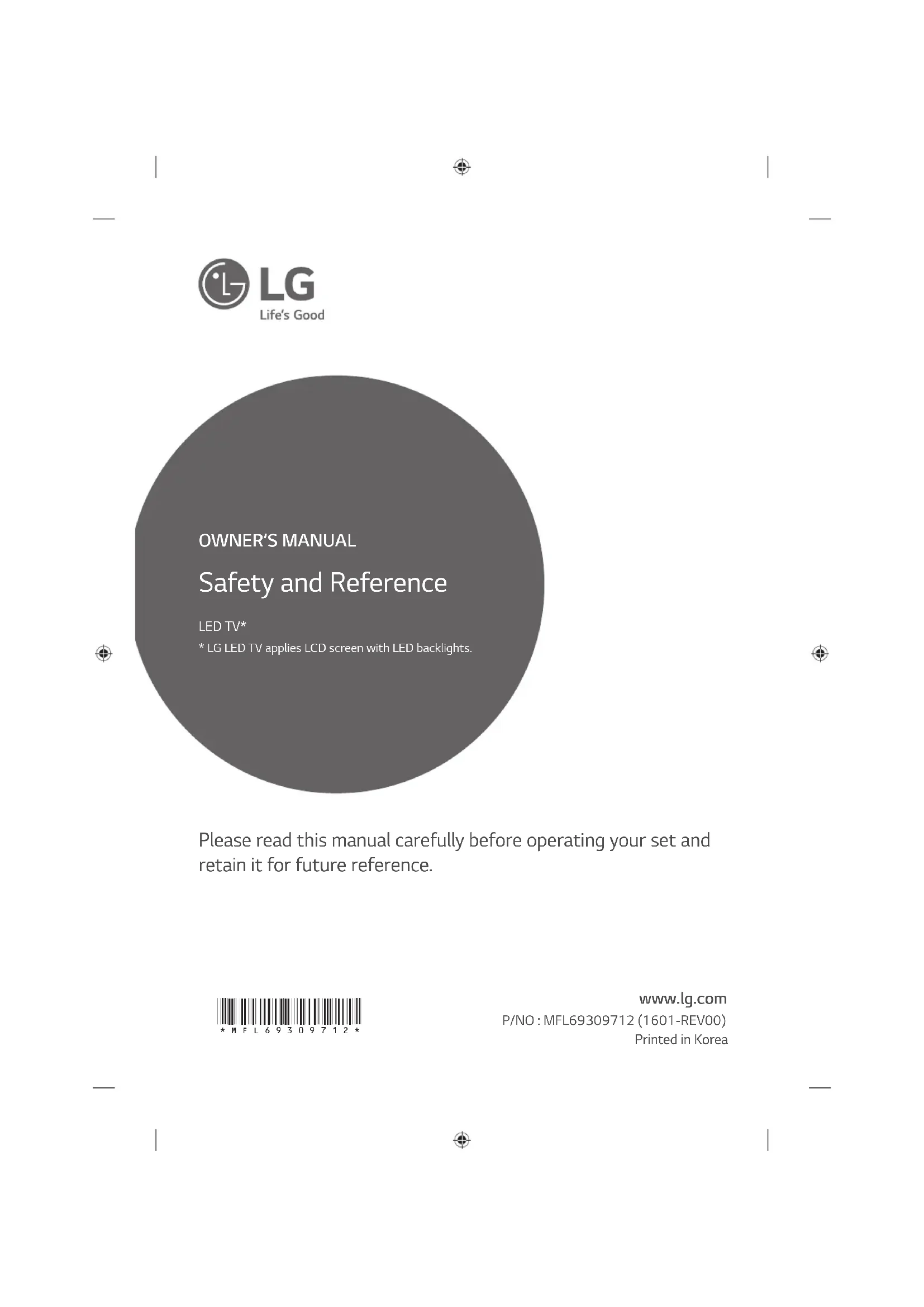

Please read this manual carefully before operating your set and retain it for future reference. www.lg.com Safety and Reference

LED TV** LG LED TV applies LCD screen with LED backlights. *MFL69309712* P/NO : MFL69309712 (1601-REV00)Printed in Korea2 ENGLISH Safety instructions Please read these safety precautions carefully before using the product. WARNING Do not place the TV and/or remote control in the following environments: tA location exposed to direct sunlight tAn area with high humidity such as a bathroom tNear any heat source such as stoves and other devices that produce heat tNear kitchen counters or humidi ers where they can easily be exposed to steam or oil tAn area exposed to rain or wind tNear containers of water such as vases Otherwise, this may result in re, electric shock, malfunction or product deformation. Do not place the product where it might be exposed to dust. This may cause a re hazard. Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use. Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust o . You may be electrocuted due to excess moisture. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Insert power cable plug completely into wall socket otherwise if not secured completely into socket, re ignition may break out. Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a re or an electric shock hazard. Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in re or electric shock. Bend antenna cable between inside and outside building to prevent rain from owing in. This may cause water damaged inside the Product and could give an electric shock. When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / re hazard. Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in re due to over-heating.ENGLISH

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. Desiccant Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suocation. Keep it out of the reach of children. Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury. Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries. Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model) Do not put or store inammable substances near the product. There is a danger of combustion/explosion or re due to careless handling of the inammable substances. Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inammable objects such as paper and matches. Children must pay particular attention. Electrical shock, re or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre. Do not spray water on the product or scrub with an inammable substance (thinner or benzene). Fire or electric shock accident can occur. Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged. Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted. Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a re or a burn by a spark. Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.4 ENGLISH If any of the following occur, unplug the product immediately and contact your local service centre. tThe product has been impacted by shock tThe product has been damaged tForeign objects have entered the product tThe product produced smoke or a strange smell This may result in re or electric shock. Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause re hazard and insulation deterioration can cause electric leakage/shock/re. Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus. Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall. If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or re. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in re, electric shock, malfunction or product deformation. Never Disassemble the AC adapter or power cord. This may result in re or electric shock. Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter. CAUTION Install the product where no radio wave occurs. There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock. Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or ip over, which may cause injury or damage to the product. If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury. If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), x it carefully so as not to drop. Only use the attachments / accessories specied by the manufacturer.ENGLISH

When installing the antenna, consult with a qualied service technician. If not installed by a qualied technician, this may create a re hazard or an electric shock hazard. We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision. Only use the specied type of battery. This could cause damage to the remote control. Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open replace and electric heaters. Do not place non-rechargeable batteries in charging device. Make sure there are no objects between the remote control and its sensor. Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, uorescent lighting. If this occurs turn o lighting or darken viewing area. When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product. Do not turn the product On/O by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock. Please follow the installation instructions below to prevent the product from overheating. tThe distance between the product and the wall should be more than 10cm. tDo not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard). tDo not install the product on a carpet or cushion. tMake sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in re. Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not aect the operation or performance of the product. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Prevent dust collecting on the power plug pins or outlet. This may cause a re hazard.6 ENGLISH Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may causedamage to screen. Avoid touching the screen or holding your nger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen. When cleaning the product and its components, unplug the power rst and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in re, electric shock or product damage (deformation, corrosion or breakage). As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn o this unit by SWITCH. When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous. When moving the product, make sure you turn the power o rst. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a re hazard or cause electric shock. When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If the product feels cold to the touch, there may be a small “icker” when it is turned on. This is normal, there is nothing wrong with product. The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1ppm on the panel. This does not indicate a malfunction and does not aect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.ENGLISH

You may nd dierent brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction. Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a xed image on the TV screen for a long period of time. Generated sound “Cracking” noise: A cracking noise that occurs when watching or turning o the TV is generated by plastic thermal contraction due to tempera- ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not aect the performance and reliability of the product. Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction. Preparing NOTE tImage shown may dier from your TV. tYour TV’s OSD (On Screen Display) may dier slightly from that shown in this manual. tThe available menus and options may dier from the input source or product model that you are using. tNew features may be added to this TV in the future. tThe items supplied with your product may vary depending on the model. tProduct specications or contents of this manual may be changed without prior notice due to upgrade of product functions. tFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not t into your TV’s USB port.

18 mm tUse a certied cable with the HDMI logo attached. tIf you do not use a certied HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) - High-Speed HDMI

Basic functions Power On (Press)Power O (Press and hold) Volume ControlProgrammes Control1 If the Menu button is on the screen, pressing and holding the button will let you exit the Menu. Adjusting the menu When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons. Turns the power o. Clears on-screen displays and returns to TV viewing.Changes the input source.Accesses the settings menu. Mounting on a table 1 Lift and tilt the TV into its upright position on a table. tLeave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm10 cm10 cm 10 cm 2 Connect the power cord to a wall outlet. CAUTIONtDo not place the TV near or on sources of heat, as this may result in re or other damage. Securing the TV to a wall (This feature is not available for all models.)1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. tIf there are bolts inserted at the eye-bolts position, remove the bolts rst.2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the at surface. CAUTIONtMake sure that children do not climb on or hang on the TV. NOTEtUse a platform or cabinet that is strong and large enough to support the TV securely.tBrackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.10 ENGLISH Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel. LG recommends that wall mounting be performed by a qualied professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing xed wall mounts. 10 cm 10 cm 10 cm 10 cm Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase (Wall mounting bracket) Model 32/43LH51** 32/43LH52** 43LH54** 49LH51** 49LH52** 49LH54** VESA (A x B) (mm) 200 x 200 300 x 300 Standard screw M6 M6 Number of screws 4 4 Wall mount bracket LSW240B MSW240 LSW350B MSW240 Model 55LH54** VESA (A x B) (mm) 400 x 400 Standard screw M6 Number of screws 4 Wall mount bracket LSW440B MSW240

CAUTION tRemove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. NOTE tWhen installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from accumulating dust and dirt. (Only when the item of the following form is provided) Provided item Adhesive label Connections (notications) Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. NOTE tThe external device connection may dier from the model. tConnect external devices to the TV regardless of the order of the TV port. tIf you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device. tRefer to the external equipment’s manual for operating instructions. tIf you connect a gaming device to the TV, use the cable supplied with the gaming device. tIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. tIn PC mode, some resolution settings may not work properly depending on the graphics card.ENGLISH

Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). tUse a signal splitter to use more than 2 TVs. tIf the image quality is poor, install a signal amplier properly to improve the image quality. tIf the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. tAn antenna cable and converter are not supplied. tSupported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC Adapter connection (Depending on model) CAUTION tPlease be sure to connect the TV to the AC-DC power adapter before connecting the TV’s power plug to a wall power outlet. Satellite dish connection (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω). CI module connection (Depending on model) View the encrypted (pay) services in digital TV mode. tCheck if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot. tIf the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator. Euro scart connection (Depending on model) Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable. Output Type Current input mode AV1 (TV Out

Digital TV Digital TV Analogue TV, AV Analogue TVComponent HDMI 1 TV Out : Outputs Analogue TV or Digital TV signals. tAny Euro scart cable used must be signal shielded. Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided. NOTE tSupported HDMI Audio format : Dolby Digital (32 KHz, 44.1 KHz, 48 KHz), PCM (32 KHz, 44.1 KHz, 48 KHz, 96 KHz, 192 KHz) (Depending on model)12 ENGLISH Remote control %FQFOEJOHPONPEFM 5IFEFTDSJQUJPOTJOUIJTNBOVBMBSFCBTFEPOUIFCVUUPOTPOUIFSFNPUF

3FE(SFFO:FMMPX#MVFENGLISH

Licenses Supported licenses may dier by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This DivX Certied® device has passed rigorous testing to ensure it plays DivX® video. To play purchased DivX movies, rst register your device at vod.divx. com. Find your registration code in the DivX VOD section of your device setup menu. DivX Certied® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certied® and associated logos are trademarks of DivX, LLC and are used under license. Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents]. Open source software notice information To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource. lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This oer is valid for three (3) years from the date on which you purchased the product. Settings Automatically Setting Up Programme (Settings) Programmes Auto Tuning Automatically tunes the programmes. tIf Input Source is not connected properly, programme registration may not work.

Auto Tuning only nds programmes that are currently broadcasting. tIf Lock System is turned on, a pop-up window will appear asking for password. To select Picture Mode (Settings) Picture Picture Mode Settings Picture Mode Select the picture mode optimized for the viewing environment or the programme.

Vivid : Heightens contrast, brightness and sharpness to display vivid images. tStandard : Displays images in standard levels of contrast, brightness and sharpness. tEco / APS : [Depending on model] The Energy Saver feature changes settings on the TV to reduce power consumption. tCinema / Game : Displays the optimum picture for movie, game. tSports : [Depending on model] Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.

Expert 1, 2 : Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This is the adjustment menu provided for ISF-certied picture tuning professionals. (ISF logo can only be used on ISF-certied TVs.) ISFccc: Imaging Science Foundation Certied Calibration Control tDepending on input signal, available range of picture modes may dier. t Expert mode is for picture tuning professionals to control and ne-tune using a specic image. For normal images, the eects may not be dramatic. tThe ISF function is only available on some models.14 ENGLISH Fine-tuning Picture Mode (Settings) Picture Picture Mode Settings This feature allows you to adjust the selected picture mode in detail.

Backlight : Controls the level of screen brightness by adjusting the backlight. The closer to 100, the brighter the screen. tContrast : Adjusts the contrast of the bright and dark areas of the picture. The closer to 100, the higher the contrast. tBrightness : Adjusts the overall screen brightness. The closer to 100, the brighter the screen. tSharpness : Adjusts the sharpness of the image. The closer to 50, the sharper and clearer the image. tColour : Tones down or up the colours displayed on the screen. The closer to 100, the deeper the colour. tTint : Adjusts the colour balance between red and green displayed on the screen. The closer to Red 50, the more red the colour will be. The closer to Green 50, the more green the colour will be. tColour Temperature : Adjusts the colour temperature from cold to warm. tDepending on input signal or other picture settings, the range of detailed items for adjustment may dier. To set advanced controls (Settings) Picture Picture Mode Settings Advanced Controls / Expert Controls Calibrates the screen for each picture mode; or adjusts picture settings for a special screen.

Dynamic Contrast : Adjusts the contrast to the optimal level according to the brightness of the image. tDynamic Colour : Adjusts colours to make the image appear in more natural colours. tPreferred Colour : Adjust the colours of skin, grass and sky to your personal preferences. tGamma : Sets the gradation curve according to the output of picture signal in relation to the input signal. tColour Gamut : Selects the range of colours that can be expressed. tEdge Enhancer : Shows clearer and distinctive yet natural edges of the video. tColour Filter : Filters a specic colour spectrum in RGB colours to ne-tune colour saturation and hue accurately. tWhite Balance : Adjusts the overall tone of the screen as desired. tColour Management System : This is a system that experts use when they adjust colour with a test pattern. They can select from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without aecting other colours. For normal images, adjustments may not result in noticeable colour changes. tDepending on input signal or other picture settings, the range of detailed items for adjustment may dier. To set additional picture options (Settings) Picture Picture Mode Settings Picture Options Adjusts detailed setting for images.

Noise Reduction : Eliminates noise in the picture. tMPEG Noise Reduction : Eliminates noise generated while creating digital picture signals. tBlack Level : Adjusts the brightness and contrast of the screen to suit the black level of the input picture by using the blackness (black level) of the screen. tReal Cinema : Optimizes the screen for movie viewing. tMotion Eye Care : Automatically adjusts brightness and reduces image blur based on image data to reduce eyestrain. tDepending on input signal or other picture settings, the range of detailed items for adjustment may dier. Resetting picture settings (Settings) Picture Picture Mode Settings Picture Reset Resets picture settings that the user customizes. Each picture mode is reset. Select the picture mode you wish to reset. To use Energy Saving feature (Settings) Picture Energy Saving Reduces power consumption by adjusting screen brightness.

Auto : [Depending on model] The TV sensor detects the ambient lighting and automatically adjusts the screen brightness. tOff : Turns o the Energy Saving mode.

Minimum / Medium / Maximum : Applies the pre-set Energy Saving mode. tScreen Off : Screen is turned o and only sound is played. Press any button except Power button on the remote control to turn the screen back on. To use Eye Comfort Mode feature (Settings) Picture Eye Comfort Mode If you turn this option on, colour temperature will be automatically adjusted to reduce eye strain.

Selecting Sound Mode (Settings) Sound Sound Mode Settings Sound Mode Adjusts TV audio to an optimal level based on a selected sound mode.

Standard : Optimizes the sound for all types of content. tClear Voice : Boosts voice clarity from the TV. tMusic : [Depending on model] Optimizes the sound for music. tCinema : Optimizes the sound for cinemas. tSports : [Depending on model] Optimizes the sound for sports. tGame : Optimizes the sound for gameplay. Adjusting audio balance (Settings) Sound Sound Mode Settings Balance Adjust the volume of the left and right speakers. Using the Sound Eect function (Settings) Sound Sound Mode Settings The user can select various sound eects.

Virtual Surround : Enjoy an immersive soundscape with the virtual multi-channel surround sound eect.

Equalizer : Set the desired sound by adjusting the equalizer directly. tReset : Reset the sound eect settings. tThis is only available if Sound Mode is set to Standard. To synchronize audio and video (Settings) Sound AV Sync Adjustment [Depending on model] Synchronizes video and audio directly when they do not match. If you set AV Sync Adjustment to On, you can adjust the sound output (TV speakers or External Speaker) to the screen image. tIf you select the Bypass, Outputs the broadcast signals or the sound from external devices without any audio delay. The audio may be output before the video because of the time the TV takes to process the video input. To use SIMPLINK [Depending on model] SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu. 1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI output terminal using an HDMI cable. t[Depending on model] For home theatre units with a SIMPLINK function, connect HDMI terminals as above, and use an optical cable to connect Optical Digital Audio Out from the TV to Optical Digital Audio In of the SIMPLINK device. 2 Select (Settings) General SIMPLINK. SIMPLINK menu window appears. 3 In SIMPLINK Setting window, set SIMPLINK function to On. 4 Congure the Auto Power Sync settings to On or Off. tYou can also set the SIMPLINK in (HOME) Inputs SIMPLINK. In SIMPLINK menu window, selects the device you want to control. tThis function is only compatible with devices with the SIMPLINK logo. tTo use the SIMPLINK function, you need to use a high-speed HDMI® cable (with CEC (Consumer Electronics Control) feature added). High-speed HDMI® cables have the No. 13 pin connected for information exchange between devices. tIf you switch to another input, the SIMPLINK device will stop. tIf a third-party device with the HDMI-CEC function is also used, the SIMPLINK device may not work normally. t[Depending on model] If you select or play media from a the device with a home theatre function, the HT Speaker(Speaker) is automatically connected. Be sure to connect with an optical cable (sold separately) to use the HT Speaker(Speaker) function.16 ENGLISH SIMPLINK function description

Direct Play : Plays the multimedia device on the TV instantly. tControlling devices with the TV remote control : Manages the multimedia device with the TV remote control. tMain Power Off : If Auto Power Sync is set to On in the SIMPLINK settings and turn o your TV, the devices connected to your TV via SIMPLINK will also be turned o. tMain Power On : If Auto Power Sync is set to On in the SIMPLINK settings, turning on a SIMPLINK-linked device will turn the TV on. tSpeaker : [Depending on model] Select speaker either on the home theatre unit or the TV. To set password (Settings) Safety Set Password Sets or changes the TV password. tThe initial password is set to ‘0000’. tWhen France is selected for Country, password is not ‘0000’ but ‘1234’. tWhen France is selected for Country, password cannot be set to ‘0000’. To return Reset to Initial Settings (Settings) General Reset to Initial Settings All stored information is deleted and TV settings are reset. The TV turns itself o and back on, and all settings are reset. tWhen Lock System is in place, a pop-up window appears and asks for password. tDo not turn o the power during initialization. To remove the USB device Select the connected USB HDD from (HOME) Inputs and select the Eject button to disconnect the USB HDD storage device. When you see a message that the USB device has been removed, separate the device from the TV. tOnce a USB device has been selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it. Using a USB storage device - warning tIf the USB storage device has a built-in auto recognition program or uses its own driver, it may not work. tSome USB storage devices may not work or may work incorrectly. tUse only USB storage devices formatted with the Windows FAT32 or NTFS File System. tFor external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than 500 mA. tIt is recommended that you use USB memory sticks of 32 GB or less and USB HDDs of 2 TB or less. tIf a USB HDD with power-saving function does not work properly, turn the power o and on. For more information, refer to the user manual of the USB HDD. tData in the USB storage device can be damaged, so be sure to back up important les to other devices. Data maintenance is the user’s responsibility and the manufacturer is not responsible for data loss. My Media supporting le tMaximum data transfer rate : 20 Mbps (Mega bit per second) tExternal supported subtitle formats : *.srt (SubRip), *.smi (SAMI), *.sub (SubViewer, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)), *.ass/*.ssa (SubStation Alpha), *.txt (TMplayer), *.psb (PowerDivX) tInternal supported subtitle formats: *.dat/*.mpg/*.mpeg/*. vob (DVD Subtitle), *.ts/*.tp/*.m2ts (DVB Subtitle), *.mp4 (DVD Subtitle, UTF-8 Plain Text), *.mkv (ASS, SSA, UTF-8 Plain Text, Universal Subtitle Format, VobSub, DVD Subtitle), *.divx/*.avi (XSUB

Supported Video Formats t.BYJNVNY!Q0OMZ.PUJPO+1&(Y!Q tBTGXNW

<4VQQPSU>-1$. <#JUEFQUI>CJUCJUCJU Supported Photo Formats t$BUFHPSZ%KQFHKQHKQF <"WBJMBCMFöMFUZQF> 40'#BTFMJOF

t#.1BOE1/(GPSNBUöMFTNBZCFTMPXFSUPEJTQMBZUIBO+1&(18 ENGLISH To see web manual To obtain detailed User Guide information, please visit www.lg.com. External control device setup To obtain the external control device setup information, please visit www.lg.com. Troubleshooting Cannot control the TV with the remote control. tCheck the remote control sensor on the product and try again. tCheck if there is any obstacle between the product and the remote control. tCheck if the batteries are still working and properly installed ( to , to ). No image display and no sound is produced. tCheck if the product is turned on. tCheck if the power cord is connected to a wall outlet. tCheck if there is a problem in the wall outlet by connecting other products. The TV turns o suddenly. tCheck the power control settings. The power supply may be interrupted. tCheck if the Auto Power Off (Depending on model) / Sleep Timer / Timer Power Off is activated in the Timers settings. tIf there is no signal while the TV is on, the TV will turn o automatically after 15 minutes of inactivity. When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed. tTurn the TV o/on using the remote control. tReconnect the HDMI cable. tRestart the PC with the TV on.Bitte lesen Sie dieses Handbuch aufmerksam durch, bevor Sie Ihr Gerät zum ersten Mal verwenden und bewahren Sie es zur späteren Verwendung auf. www.lg.com Sicherheitshinweise und Referenzen BENUTZERHANDBUCH LED TV*

USBJUFNFOUEFMFOUSÏFWJEÏPQBSMFUÏMÏWJTFVS

"OUFTEFMFWBOUBSPNPWFSMB57MFBMBJOGPSNBDJØOTJHVJFOUFQBSB

BMJNFOUBDJØOZMPTEFNÈTDBCMFT

t"MTPTUFOFSMB57MBQBOUBMMBEFCFSÓBPSJFOUBSTFIBDJBFMMBEP DPOUSBSJPBMRVFTFFODVFOUSBVTUFEQBSBFWJUBSEB×BSMB t4VKFUFDPOöSNF[BMBQBSUFTVQFSJPSFJOGFSJPSEFMNBSDPEFMB57

"TFHÞSFTFEFOPTVKFUBSMB57QPSMB[POBUSBOTQBSFOUFMB[POBEFM

NBSDPQPSRVFQPESÓBEPCMBSTFPEFGPSNBSTFZEB×BSMBQBOUBMMB

QJSBUFBEPTOÍPFTUÍPBCSBOHJEPTQFMBHBSBOUJB

t"MHVOTNPEFMPTJODMVFNVNBQFMÓDVMBöOBOPFDSÍFFTUBOÍPEFWF TFSSFNPWJEB t"PöYBSB57OPTVQPSUFDPMPRVFPFDSÍWJSBEPQBSBCBJYPTPCSF VNBNFTBBMNPGBEBEBPVVNBTVQFSGÓDJFQMBOBEFGPSNBB QSPUFHFSPFDSÍDPOUSBSJTDPT t$FSUJöRVFTFEFRVFPTQBSBGVTPTFTUÍPDPSSFDUBNFOUFJOTFSJEPTF

EFWJEBNFOUFBQFSUBEPT4FOÍPGPSFNEFWJEBNFOUFBQFSUBEPT

GBCSJLBOUHFCSVJLUXFSLUIFU4*.1-*/,BQQBSBBUNPHFMJKLOJFUPQ

: Except for 32LH51**, 32LH52** Component port connecting information Component ports on the TV Y P

Video output ports on DVD player Y P

(Only 50 Hz / 60 Hz)Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL
