USER MANUAL GBXR1080 GE

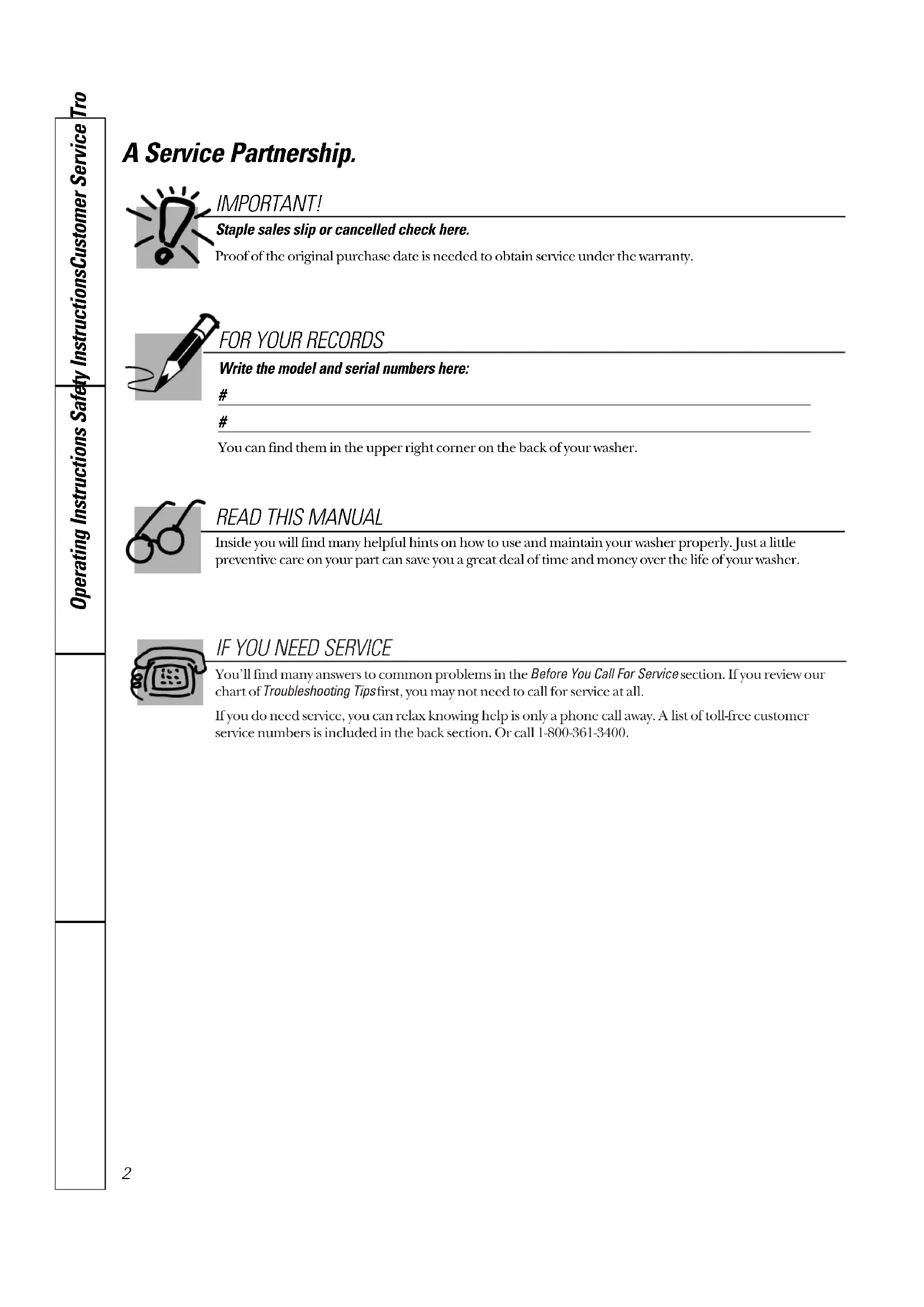

Write the model and serial numbers here:

You can find them in the upper right corner on the back of your washer.Inside you will find many helpful hints on how to use and maintain your washer properly. Just a littlepreventive care on your part can save you a great deal of time and money over the life of your washer.

IMPORTANT! Staple sales slip or cancelled check here. Proof of the original purchase date is needed to obtain service under the warranty.

Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips■ Install or store where it will not be exposed totemperatures below freezing or exposed to the weather.■ Properly ground washer to conform with all governingcodes and ordinances. Follow details in InstallationInstructions. IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fireor explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning onall hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliancewhich is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape.Since the gas is flammable, do not smoke or use an open flame or appliance during this process. PROPER INSTALLATION This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by calling, toll-free1-800-361-3400. Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions ■ Keep the area underneath and around yourappliances free of combustible materials such as lint, paper, rags, chemicals, etc.■ Close supervision is necessary if this appliance is usedby or near children. Do not allow children to play on,with, or inside this or any other appliance.

■ Never reach into washer while it is moving. Wait until the machine has completely stopped beforeopening the lid.■ Do not mix chlorine bleach with ammonia or acidssuch as vinegar and/or rust remover. Mixingdifferent chemicals can produce a toxic gas whichmay cause death.■ Do not wash or dry articles that have been cleaned in,washed in, soaked in, or spotted with combustible orexplosive substances (such as wax, oil, paint, gasoline,degreasers, dry-cleaning solvents, kerosene, etc.) whichmay ignite or explode. Do not add these substances tothe wash water. Do not use or place these substancesaround your washer or dryer during operation. The laundry process can reduce the flame retardancyof fabrics. To avoid such a result, carefully follow thegarment manufacturer’s wash and care instructions. ■ To minimize the possibility of electric shock, unplugthis appliance from the power supply or disconnectthe washer at the household distribution panel byremoving the fuse or switching off the circuit breakerbefore attempting any maintenance or cleaning.NOTE: Turning the Cycle Selector knob to an offposition does NOT disconnect the appliance from the power supply.■ Never attempt to operate this appliance if it is damaged,malfunctioning, partially disassembled, or has missingor broken parts, including a damaged cord or plug.

WHEN USING THE WASHER

■ Turn off water faucets to relieve pressure on hosesand valves and to minimize leakage if a break orrupture should occur. Check the condition of the fill hoses; they should be replaced after 5 years.■ Before discarding a washer, or removing it fromservice, remove the washer lid to prevent childrenfrom hiding inside.■ Do not attempt to repair or replace any part of thisappliance unless specifically recommended in thisOwner’s Manual, or in published user-repairinstructions that you understand and have the skillsto carry out.■ Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Use thisapplianceonly for itsintendedpurpose asdescribed inthis Owner’sManual.Model GBXR1080 Find your washer control panel. Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips You can locate your model number behind the top edge of the control panel.

5Load Size The water level should just cover the clothes. Adjust the load size accordingly. Loosely load clothesno higher than the top row of holes in the washer tub. Wash/Spin Speed The agitator moves clothes around for a cleaner wash; the basket spins later in the cycle to releasewater from the load. The Wash/Spin Speed dial sets the speed of both the agitator and the basket. With Normal wash speed, the agitator moves faster. Use for cottons, denims and play clothes. WithDelicate wash speed, the agitator moves slower. Use for delicate and knit items.The Normal spin speed is for durable items. The Delicate spin speed is for delicate items likesweaters and lingerie. Clothes will be less dry than when using Normal spin speed. Temperature Select the water temperature for the wash and rinse cycles. Always follow fabric manufacturer’s carelabel or instructions when laundering. Follow the water temperature guide on the washer lid. Wash Cycle The wash cycle controls the length of the washing process. The chart below will help you match thewash cycle setting with your clothing.COTTONS For heavy to lightly soiled cottons, household linens, work and play clothes.EASY CARE For wrinkle-free and permanent press items, and knits. HANDWASH For items labeled handwashable with light soils. Provides period of agitation and soak during wash and rinse. DELICATE For lingerie and special-care fabrics with light to normal soil. Provides periods of agitation and soak during wash and rinse.SUPER For heavily soiled and heavy-duty fabrics. This cycle provides a longer agitation. PREWASH For heavily soiled clothes or for clothes with a care label that recommends prewashing before wearing. QUICKWASH For lightly soiled items that are needed in a hurry.QUICK RINSE For quickly rinsing chlorine, perspiration, stains, etc. out of clothes. 15 MIN/30 MIN For heavily soiled clothes. Begins with a brief agitation, soaks for a specified period of time, then moves AUTO SOAK through the rest of the cycle automatically.

About the control settings.The Agitator Cap or Fabric Softener Dispenser (on some models) The agitator cap fits into the top of theagitator. If it accidentally comes off, simplyput it back on.The fabric softener dispenser automaticallyreleases liquid fabric softener at the propertime during the cycle. Do not stop the washer during the first spin.This will cause the dispenser to empty too soon.To use, follow these steps:Make sure dispenser is securely attachedto agitator.Use only liquid fabric softener. Pourinto dispenser, using amountrecommended on package.Never pour fabric softener directly onclothes. It may stain them.Add water to dispenser until it reachesthe maximum fill line.

Do not pour anything into the agitator ifthe agitator cap or dispenser is removed. About washer features. NOTE: Not all features are available on all washer models. Liquid Bleach Dispenser (on some models) The dispenser dilutes liquid chlorine bleach before it reaches into your wash load.Check clothing care labels for special instructions.Measure liquid bleach carefully, following instructions on the bottle. Never pour undiluted liquid chlorine bleach directly onto clothes or into the wash basket. Do not pour powdered bleach into bleach dispenser.Before starting the washer, pour measured amount of bleach directly into bleachdispenser. Avoid splashing or over-filling dispenser. If you prefer to use powderedbleach, add it into the wash basket with your detergent. Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing canproduce a toxic gas which may cause death.

Cleaning the Fabric Softener Dispenser (on some models) Remove the dispenser from the top of the agitator.Separate the dispenser cup from the cover by grasping the top and pushing down onthe inside of the cup with your fingers. Dispenser cup will pop free from the cover.To clean the dispenser, soak both the dispenser cup and the dispenser cover in thefollowing solution: 1 US gallon (3.8 liters) warm water 1/4 cup (60 ml) heavy duty liquid detergent 1 cup (240 ml) bleachIf necessary, loosen build-up with a clean, soft cloth after soaking. Do not use a stiffbrush; you may roughen the surface of the dispenser.Rinse and reassemble dispenser. Place dispenser back on the agitator.

Separate for cleaning. Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions

2nd Rinse Option (on some models) When you use extra detergent or bleach to clean heavily soiled clothes, you may want to usethe 2nd Rinse option. It provides a second deep cold rinse.(appearance and features may vary)Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips

Loading and using the washer. Always follow fabric manufacturer’s care label when laundering. Sorting Wash Loads Proper Use of Detergent Add detergent as the wash basket fills with water,before you load clothes. Using too much detergentcan be a common cause of laundry problems.Today’s detergents are formulated to be effectivewithout highly visible sudsing. Be sure to carefullyread and follow manufacturer’s recommendationsfor how much detergent to use in your wash. Youcan use less detergent if you have soft water, a smaller load, or a lightly soiled load. Loading the Washer Load dry items loosely, no higher than the toprow of holes in the washer tub. When loading wet items make sure you set the load/water levelhigh enough to allow the items to move freely.Water level should just cover the clothes. To additems after washer has started, push in Cycle Dial and submerge additional items next to theagitator. Close the lid and pull Cycle Dial out to restart.

Do not wrap long items like sheets and pants around the agitator.

Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

Water will fill and pump out of the washer and the timer will advance with the lid up, but as a safety precaution the washer will not agitate or spin. Sort by color (whites, lights, colors), soil level, fabric type (sturdy cottons, easy care, delicates), and whether the fabric produces lint (terry cloth,chenille), or collects lint (velveteen, corduroy).Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions

Care and Cleaning of the Washer Wash Basket: Leave the lid open after washing toallow moisture to evaporate. If you want to clean thebasket use a clean soft cloth dampened with liquiddetergent, then rinse. (Do not use harsh or grittycleaners.)Fill Hoses: Hoses connecting washer to faucet shouldbe replaced every 5 years.Lint Filter: The lint filter is located under the agitator.It is self-cleaning and requires no maintenance.Exterior: Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharpobjects.Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. For information on how to keep the tub stationary when moving the washer write to: Manager, Consumer Relations, Camco Inc., 1 Factory Lane, Suite 310, Moncton, N.B. E1C 9M3.Long Vacations: Be sure water supply is shut off atfaucets. Drain all water from hoses if weather will be below freezing. Fabric Care Labels Machine wash cycle NormalPermanent Press/wrinkle resistantGentle/delicateHand washDo not wash Do not wring Water temperature Hot (50°C/120°F) Warm (40°C/105°F)Cold/cool(30°C/85°F) Tumble dry Dry NormalPermanent Press/wrinkle resistantGentle/delicateDo not tumble dryDo not dry(used withdo not wash) Heat setting High Medium Low No heat/air Special instructions Line dry/hang to dryDrip dryDry flatIn the shade Bleach symbols Any bleach(when needed)Only non-chlorine bleach(when needed)Do not bleach Below are fabric care label “symbols” that affect the clothing you will be laundering. WASH LABELS DRY LABELS BLEACH LABELS10 Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips Loading and using the washer. Always follow fabric manufacturer’s care label when laundering. STAIN White and Bleachable Fabrics Other Washable Fabrics Adhesives Rub with ice or immerse in • Same as white and bleachable fabrics. (chewing gum, etc.)very cold water. Use dull toolto carefully scrape off as muchadhesive or gum as possible.Rub the stain with undilutedliquid detergent. Rinse well,then wash as usual. Antiperspirants, Apply undiluted liquid detergent. • Same as white and bleachable fabrics except use deodorants Rinse. If stain remains, use the non-chlorine bleach. Bleach Solution; launder. Blood Soak in cold water, then launder • Sponge or soak in cool water, then launder. in warm water. If stain remains,use the Bleach Solution; launder. Chocolate, cream, Soak in cold water. Use the • Same as white and bleachable fabrics except use ice cream and milk Bleach Solution; launder. non-chlorine bleach. Coffee and tea Without cream: Use the Bleach • Sponge with warm water. If stain remains, apply warm Solution; launder. glycerine (available at drug stores), let stand 30 minutesand rinse well. Wash as usual.With cream: Soak in cold water,then use the Bleach Solution;launder. Cosmetics, crayon Use the Bleach Solution; • Rub the stain with undiluted liquid detergent. launder. Rinse well, then wash as usual. Removing Specific Stains Bleach Solution: To remove stains on white orbleachable fabrics, try soaking the stained area in acontainer for five minutes in the following solutionand then launder in the washer:

1/4 cup (60 ml) chlorine bleach The invisible stain When They Become Visible:

• Rub the stain with undiluted liquid detergent.• Let stand 30 minutes.• Rewash using the hottest water that is safe for the fabric. Preventing These Stains:
• Increase the amount of detergent used.• Increase water temperature.• Wash synthetics often.Foods on synthetic clothes maycause stains which are virtuallyinvisible when you put theclothes in the washer. If thesestains are not completelyremoved in the wash, they maypick up dirt from other clothesin the washer and appear afterthe clothes are dried.11 Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions STAIN White and Bleachable Fabrics Other Washable Fabrics Grass, mildew, scorch Apply undiluted liquid detergent; • Sponge with warm water. Apply undiluted liquid launder. (Treat mildew spots detergent; launder. Bleach with non-chlorine bleach;while they are fresh, before mold launder. Old mildew cannot be removed. Scorch canhas a chance to weaken fabric.) seldom be removed.If either type stain remains,use the Bleach Solution; launder.(Severe scorch stains can seldombe removed.) Ink, ballpoint Fresh stains: Place stain face • Same as white and bleachable fabrics except launder down on an absorbent towel using non-chlorine bleach.and use a spray cleaner.Rinse well, then wash as usual.Old stains: Use the BleachSolution; launder. Juices, wine, Soak stain in cool water. • Sponge with warm water. Bleach remaining stain with food coloring If stain remains, use the non-chlorine bleach. Bleach Solution; launder. Perspiration Apply undiluted liquid detergent • Launder in warm water. Rinse well. Bleach with and launder in warm water. non-chlorine bleach. If color has changed you maybe able to restore it by treatingwith ammonia or vinegar.

Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can produce a toxic gas which may cause death.Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips

Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. WATER Possible Causes What To Do Too many suds Type of detergent • Switch to a lower sudsing detergent brand and follow instructions on package.Very soft water • Try less detergent. Too much detergent. • Measure your detergent carefully. Use less soap if you have soft water, a smaller load, or a lightly soiled load. Water leaks Fill hoses or drain hose is • Make sure hose connections are tight at faucets and make improperly connected sure end of drain hose is correctly inserted in and securedto drain facility. Household drain may • Check household plumbing. You may need to call a be clogged plumber. Constant water pressure • Tighten hoses at the faucets and turn the water off after to the fill hoses at the each use.water source• Check condition of the fill hoses; they should be replacedafter 5 years. Using too much detergent • Use less detergent. Use less soap if you have soft water, in washer a smaller load, or a lightly soiled load. Water temperature Control is not set properly • Check water temperature control (on some models) is incorrect or Cycle knob and adjust. Water supply is turned off • Turn both hot and cold faucets fully on and make sure or improperly connected hoses are connected to correct faucets.Water valve screens are •Turn off the water source and disconnect the water fill stopped uphoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on. House water heater is • Make sure house water heater is delivering water not set properly at 120°F.–140°F.(48°C.–60°C.). Water won’t drain Drain hose is kinked or • Straighten drain hose and make sure washer is not improperly connected sitting on it.• Top of drain outlet should be less than 8 ft. (2.5 m) above floor.Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions

PERFORMANCE Possible Causes What To Do Colored spots Incorrect use of fabric • Check fabric softener package for instructions and softener follow directions for using dispenser.

• Pretreat stain and rewash. Dye transfer • Sort whites or lightly colored items from dark colors. Grayed or yellowed Not enough detergent • Use more detergent (especially with larger loads). clothes Hard water • Use a water conditioner like Calgon brand or install a water softener. Water is not hot enough • Make sure water heater is delivering water at 120°F.–140°F. (48°C.–60°C.). Washer is overloaded • Select load size to match clothes load. Detergent is not • Add detergent as wash basket fills with water before dissolving you load clothes. Dye transfer • Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated. Lint or residue on Clothes are air or line dried • If you do not dry your clothes with a clothes dryer, clothes your clothes may retain more lint. Incorrect sorting • Separate lint producers from lint collectors. Washing too long • Wash small loads for a shorter time than larger loads. Detergent not dissolving • Add detergent as wash basket fills with water, before you load clothes.

• Try a liquid detergent.

• Use warmer water temperature. Overloading • Load clothes no higher than the top row of holes in the washer tub.

• Make sure load size selector matches clothes load size. Incorrect use of fabric softener • Check fabric softener package for instructions and follow directions for using dispenser. OPERATION Possible Causes What To Do Washer pauses in cycle The washer normally pauses between washing steps Washer won’t operate Washer is unplugged • Make sure cord is plugged securely into a working outlet. Water supply is turned off • Turn both hot and cold faucets fully on. Controls are not set • Check controls and make sure Cycle knob is pulled out properly to

position. Lid is open

safety feature • Close lid and reset cycle, to the beginning if necessary. prevents agitation and spinning when lid is up Circuit breaker/fuse is • Check house circuit breakers/fuses. Replace fuses or tripped/blown reset breaker. Washer should have separate outlet.14 Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips Before you call for service… OTHER Possible Causes What To Do Labels on the exterior Occasionally the adhesive • Use a hair dryer set at the lowest heat setting, directing of the washer will not used on the labels does the air at the label for a short amount of time. This will peel off cleanly not release cleanly release the adhesive easily, without damaging the surface of the washer. NOISE Possible Causes What To Do Washer is noisy Washer is uneven • To level the front of the washer, adjust the front leveling legs by rotating the individual leg in the proper direction for up or down. To level back of washer, lift back of machine 4″ (11 cm) and set down. Washer load is • Push the Cycle knob in to stop the washer, open the lid unbalanced and redistribute the load evenly. Close the lid and restart. Shipping rod is still assembled • To remove shipping rod from washer, pull yellow tag and in unit attached rod from the bottom right hand side of washer. Washer is sitting too close

Pull washer away from the wall; about 4″ (11 cm) is to wall (causes knocking needed. during cycle) (con) PERFORMANCE Possible Causes What To Do Pilling Result of normal wear on • While this is not caused by the washer, you can slow the poly-cotton blends and pilling process by washing garments inside out. fuzzy fabrics Snags, holes, tears, rips Pins, snaps, hooks, sharp • Fasten snaps, hooks, buttons, and zippers. or excessive wear buttons, belt buckles,

• Remove loose items like pins, objects in pockets zippers, and sharp objects and sharp buttons. left in pockets

• Turn knits (which snag easily) inside out. Undiluted chlorine bleach • Check bleach package instructions for proper amount.

• Never add undiluted bleach to wash or allow clothes to come in contact with undiluted bleach. Chemicals like hair bleach • Rinse items that may have chemicals on them before or dye, permanent wave washing. solution Wrinkling Improper sorting • Avoid mixing heavy items (like work clothes) with light items (like blouses).

• Try a fabric softener. Overloading or • Load your washer so clothes have enough room incorrect water level to move freely. Incorrect wash and • Match Cycle selection to the type of fabric you are dry cycles washing (especially for easy care loads). Repeated washing in • Wash in warm or cold water. water that is too hot15 Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions Washer Warranty All warranty service provided by our Factory Service Centers or an authorized technician. For service, call 1-800-361-3400. What Is Not Covered: One Year Any partof the washer which fails due to a defect in materials or workmanship. During this full From the date of the one-year warranty, we will also provide, free of charge, all labor and in-home service to replace the original purchasedefective part.Five Years The suspension rod and spring assembly,if any of these parts should fail due to a defect in materials From the date of theor workmanship. We will also replace the washer lid and cover if they should rust under normaloriginal purchaseoperating conditions. During this additional four-year limited warranty, you will be responsible for any labor or in-home service costs. Ten Years The transmission, washer basket and washer tub,if any of these parts should fail due to a defect in From the date of thematerials or workmanship. During this additional nine-year limited warranty,you will be responsible original purchasefor any labor or in-home service costs. For The Period Of: We Will Replace: ■ Service trips to your home to teach you how to use theproduct.Read your Owner’s Manual.If you then have any questionsabout operating the product, please contact your dealeror our Consumer Affairs office at the address below.Manager, Consumer RelationsCamco Inc.1 Factory Lane, Suite 310Moncton, N.B. E1C 9M3■ Improper installation.If you have an installation problem, contact yourdealer or installer. You are responsible for providingadequate electrical, exhausting and other connectingfacilities. Replacement of house fuses or resettingof circuitbreakers.■ Failure of the product if it is misused, or used forother than the intended purpose or usedcommercially. Damage to product caused by accident, fire, floods oracts of God.WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.Warrantor: CAMCO INC.16 Operating Instructions Safety InstructionsCustomer Service Troubleshooting Tips Service Telephone Numbers. Questions? If you have any questions about your appliance, write to:Manager, Consumer Relations, Camco Inc., 1 Factory Lane, Suite 310, Moncton, N.B., E1C 9M3. Or call, 1-800-361-3400. In-Home Repair Service 1-800-361-3400 Expert repair service is only a phone call away. Service Contracts 1-800-461-3636 Purchase a Camco service contract while your warranty is still in effect and you’ll receive a substantial discount. Camco will still be there after your warranty expires. Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Please consult your yellow pages for your local Camco number. Service Satisfaction If you are not satisfied with the service you received: First, contact the people who serviced your appliance. Next, if you are still not pleased, write all the details—including your phone number—to: Director, Consumer Relations, Camco Inc., 1 Factory Lane, Suite 310, Moncton, N.B.,E1C 9M3.GBSR1080 GBXR1080 GCXR2100 GJSR2130 GJXR2130 GKSR2100 GNSR2140 GUSR2130 Laveuses 175D1807P312 49-90046 7-00 JR Mesures de sécurité . . . . . . . . . . 3 Directives de fonctionnement Chargement et utilisation de la laveuse . . . . . . . . . . . . . . .8–11Les caractéristiques . . . . . . . . . . . .7Les tableaux de commande et leurs réglages . . . . . . . . . . . . .4–6Tache . . . . . . . . . . . . . . . . . . .10, 11 Conseils de dépannage Avant d’appeler un réparateur . . . . . . . . . . . . .12–14 Service à la clientèle Garantie . . . . . . . . . . . . . . . . . . . . 15Numéros de service . . . . . . . . . . .16 Manuel d’utilisation GE AppliancesUn partenariat de service. À CONSERVER SOIGNEUSEMENT Transcrivez les numéros de modèle et de série ici.
