USER MANUAL WDT910SSYM WHIRLPOOL

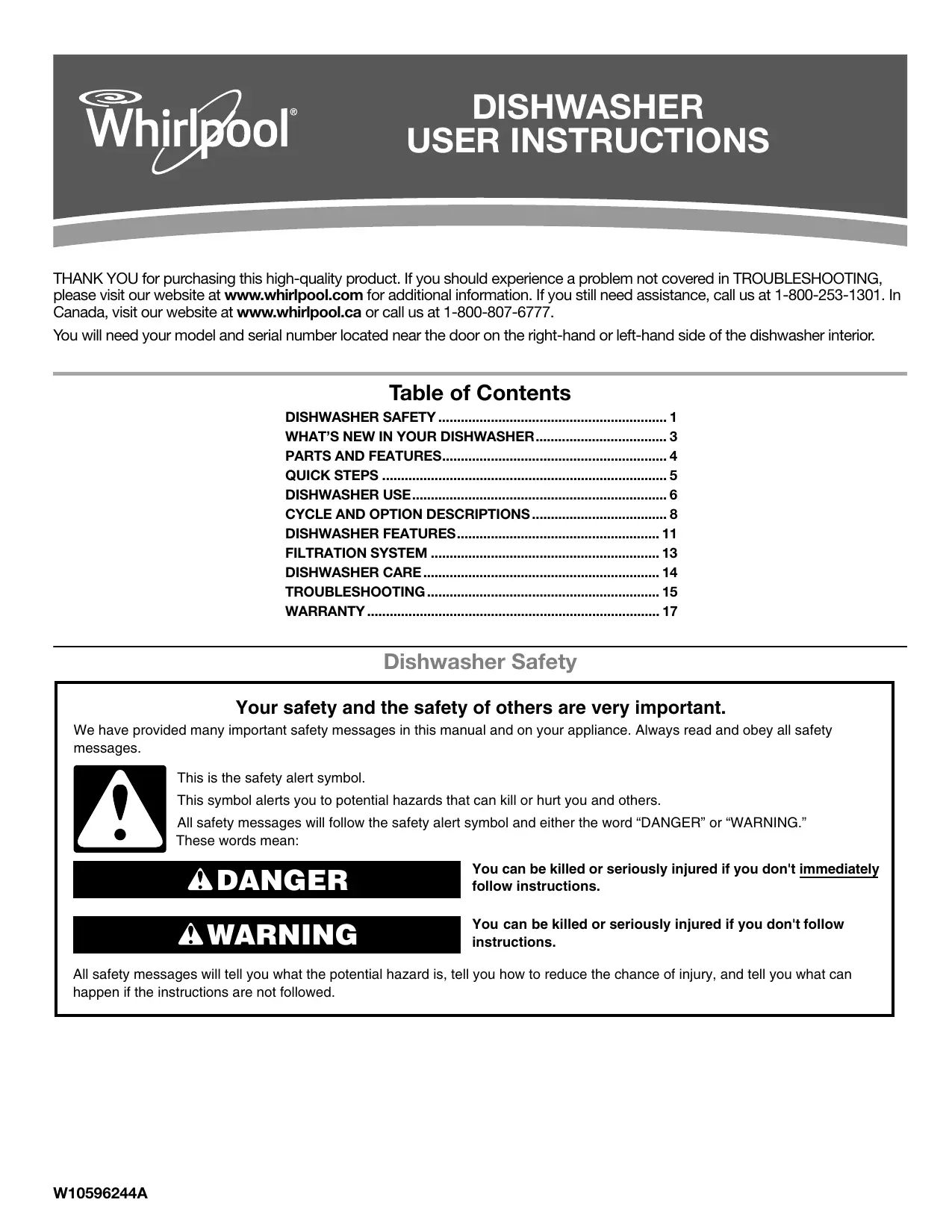

DISHWASHER USER INSTRUCTIONS THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301. In

Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777. You will need your model and serial number located near the door on the right-hand or left-hand side of the dishwasher interior.

Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER WARNING You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

W10596244A IMPORTANT SAFETY INSTRUCTIONS WARNING: When using the dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.

Use the dishwasher only for its intended function. Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children. When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal; and 2) Load sharp knives with the handles up to reduce the risk of cut-type injuries. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations. Do not touch the heating element during or immediately after use. Do not operate the dishwasher unless all enclosure panels are properly in place.

Do not tamper with controls.

Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher. To reduce the risk of injury, do not allow children to play in or on the dishwasher. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS GROUNDING INSTRUCTIONS

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipmentgrounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher: The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS WARNING Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

What’s New in Your Dishwasher

Energy Congratulations on purchasing your water and energy efficient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and pauses for exceptional cleaning. Several models contain an optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. The first cycle using the sensor will run longer to calibrate the optical sensor.

Rinse Aid Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy efficient dishwashers use less water and energy, so they depend on the water “sheeting” action of rinse aid for total optimal performance.

The United States has passed a restriction limiting the amount of phosphorus (phosphates) in the household dishwasher detergents to no more than 0.5%, where previous detergents contained 8.7%. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in ecoconscious awareness. With these recent changes it is recommended to use tablets and packs for convenience and improved performance.

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Maintenance of your filters regularly will sustain peak cleaning performance. We suggest you clean both your upper and lower filter and rinse under running water at least once a month.

L O C PU K Parts and Features

POWERSCOUR™ (on some models) powerful jets target water toward pots, pans, or casserole dishes loaded in the back of the dishwasher to clean stubborn messes.

Model and serial number label Lower spray arm has pressurized sprays that provide effective cleaning.

Overfill protection float Rinse aid dispenser reduces spotting and improves drying.

Resource Efficient Wash System removes soil from water and improves cleaning action.

TOP RACK Fold down tines

Prepare and load dishwasher.

Unload and clean the filter.

Spin the spray arms. They should turn freely.

Add detergent and rinse aid.

For models with controls on top of the door, select wash cycle, option and press START/RESUME before closing the door.

Push door firmly closed. The door latches automatically. Select the wash cycle, options and press START/RESUME or press START/RESUME to repeat the same cycle and options as in the previous wash cycle.

See “Recommended Time

Interval to Clean Your Filter,” in the “Filtration System” section for the recommended cleaning schedule.

Select a cycle and option (cycles and options vary by model).

Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food, bones, toothpicks and other hard items from the dishes. Remove labels from containers before washing.

NOTE: If you do not plan to run a wash cycle soon, run a rinse cycle. Do not use detergent.

Use automatic dishwasher detergent only. Add powder, liquid or tablet detergent just before starting a cycle.

Fresh automatic dishwasher detergent results in better cleaning.

Store tightly closed detergent container in a cool, dry place.

Make sure nothing keeps spray arm(s) from spinning freely. It is important for the water spray to reach all soiled surfaces.

Make sure that when the dishwasher door is closed no items are blocking the detergent dispenser.

Items should be loaded with soiled surfaces facing down and inward to the spray as shown in the graphics above. This will improve cleaning and drying results.

Avoid overlapping items like bowls or plates that may trap food.

Place plastics, small plates and glasses in the upper rack.

Wash only items marked “dishwasher safe.”

To avoid thumping/clattering noises during operation: Load dishes so they do not touch one another. Make sure lightweight load items are secured in the racks.

When loading silverware, always place sharp items pointing down and avoid “nesting” as shown. If your silverware does not fit into the designated slots, flip the covers up and mix silverware types to keep them separated.

Use suggested loading patterns, as shown, to better clean your silverware.

Use the slots in the covers to keep your silverware separated for optimum wash. (See illustration.)

For optimum performance, tablet detergent is recommended.

B MAIN WASH PREWASH C A. Cover latch

B. Main wash section C. Pre-wash section

The amount of detergent to use depends on:

How much soil remains on the items - Heavily soiled loads require more detergent. The hardness of the water - If you use too little in hard water, dishes won't be clean. If you use too much in soft water, glassware will etch. Soft to Medium Water (0-6 grains per U.S. gallon) [typical water softener water and some city water] Medium to Hard Water (7-12 grains per U.S. gallon) [well water and some city water] ■ Depending on your water hardness, fill the Main Wash section of the dispenser as shown. Fill the Pre-Wash section to the level shown, for heavily soiled items. NOTE: Fill amounts shown Hard Water are for standard powdered Hard Water Soft Water Soft Water detergent. Follow instructions on the package Main Wash Pre-Wash when using other dishwasher detergent. ■

Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid your dishes and dishwasher interior will have excessive moisture. The heat dry option will not perform as well without rinse aid.

Rinse aid keeps water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes after the final rinse.

Select a Cycle (cycles vary by model)

To add rinse aid, turn the dispenser cap to “Refill” and lift off. Pour rinse aid into the opening until the indicator level is at “Full.” Replace the dispenser cap and turn to “Lock.”

Make sure cap is fully locked.

See “Cycle and Option Descriptions” charts in the following section.

Heavier cycles and options affect cycle length.

NOTE: For most water conditions, the factory setting will give good results.

Check water hardness level to ensure no rings or spots on your dishware before adding rinse aid or adjusting the factory setting.

If you have hard water or notice rings or spots, try a higher setting.

Turn the arrow adjuster inside the dispenser by either using your fingers or -inserting a flat-blade screwdriver into ll fi the center of the arrow and turning.

See “Cycle and Option Descriptions” charts in the following section.

You can customize your cycles by pressing the options desired.

Select Options (options vary by model)

Start or Resume a Cycle ■

Run hot water at the sink nearest your dishwasher until the water is hot. Turn off water. For best dishwashing results, water should be 120ºF (49ºC) as it enters the dishwasher.

For models with controls on top of the door, select wash cycle, option and press START/RESUME before closing the door. Push door firmly closed.

The door latches automatically. Select the wash cycle, options and press STAR/RESUME or press START/RESUME to repeat the same cycle and options as in the previous wash cycle.

You can add an item anytime at the beginning of the cycle.

Open the door slowly and add the item. Close the door firmly. Press START/RESUME.

Cycle and Option Descriptions

This information covers several different models. Your dishwasher may not have all the cycles and options described.

You can customize your cycle by selecting an option. See option selections. If you change your mind, press the option again to turn off the option, or select a different option. You can change an option anytime before the selected option begins. At each stage of the wash cycle, you may hear noises that you are not used to hearing in your previous dishwasher. Each cycle will provide a series of pauses and water sprays throughout the wash cycle, this is normal and will provide optimal cleaning performance. *Maximum wash times depend on water temperature, heavy soil condition, dish load size and options selected.

CYCLE SELECTIONS CYCLES ESTIMATED WASH TIME (HH:MM)

*Maximum (with options selected)

The most advanced and versatile cycle.

This cycle senses load size, soil amount, and toughness of soil, to adjust the cycle for optimal cleaning using only the amount of water and energy needed.

Use for hard-to-clean, heavily soiled pots, pans, casseroles, and tableware.

This cycle combines tough wash action, longer wash time and higher wash temperatures to remove the tough soils.

Use for loads with normal amounts of food soil.

This cycle is recommended to completely wash a full load of normally soiled dishes.

Selecting this cycle will default to the options recommended for normal amounts of food soil. The energy label is based on this cycle.

Use for lightly soiled items, china and crystal.

The most water and energy efficient cycle. Using less water and energy, while maintaining good wash performance.

For fast results, 1-Hour Wash will clean dishes using slightly more water and energy.

Select the Heat Dry option to provide best dry performance.

Use for loads with heavy amounts of food soil. It is a longer cycle therefore is ideal to run overnight.

Longer cycle developed to run overnight to save energy. This cycle has a longer soak time before the main wash begins.

IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat and water as needed.

OPTION SELECTIONS OPTIONS Pans, casseroles, etc., with tough food soil.

Activates the POWERSCOUR™ spray jets and provides intensified water spray to the back of the lower level rack.

May add heat and time to the cycle.

Sensor, Heavy or Normal cycle

Loads containing tough, baked-on food.

Increases the target water temperature during the wash portions of the cycle.

Adds heat, wash time and water to the cycle.

Sensor, Heavy or Normal cycle

To sanitize your dishes and glassware in accordance with

NSF/ANSI Standard 184 for Residential Dishwashers.

Raises the water temperature in the final rinse to approximately

155°F (68°C). This high temperature rinse sanitizes your dishes and glassware in accordance with NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. The Sanitize or Sani Rinse option adds heat and time to the cycle.

Sensor, Heavy or Normal cycle. Only these sanitization cycles have been designed to meet the NSF/ANSI requirements.

For best drying results, dry dishes with heat.

High Dry provides the optimum dry performance. Eco Dry provides energy savings and good dry performance.

Turn off (air dry) when loads contain plastic dinnerware that may be sensitive to high temperatures.

High Dry with the use of rinse aid will provide the best drying performance.

To run your dish washer at a later time or during offpeak hours.

Delays the start of a cycle up to 8 hours (on models with

2-4-8 Hour Delay). Select a wash cycle and options. Press Delay until reaching the desired hours for the delay to start. Press START/RESUME. Close the door firmly.

Smaller loads slightly soiled.

Uses less energy and time to clean small loads.

Sensor, Heavy or Normal cycle

OPTION SELECTIONS OPTIONS PURPOSE DESCRIPTIONS USE WITH:

To avoid unintended use of your dishwasher, or cycle and option changes during a cycle.

To turn on Lock, press and hold Control Lock for at least

3 seconds. To turn off Lock, press and hold Control Lock for at least 3 seconds. When Control Lock is lit, all buttons are disabled. If you press any pad while your dishwasher is locked, the light flashes 3 times. The dishwasher door can be opened while the controls are locked.

Press to start or resume a wash cycle

If the door is opened during a cycle or the power is interrupted, the Start/Resume indicator flashes. The cycle will not resume until the door is closed and Start/Resume is pressed.

Press to cancel wash cycle

Close the door firmly. The dishwasher starts a 2-minute drain (if needed). Let the dishwasher drain completely.

To follow the progress of your dishwasher cycle

Clean indicator glows when a cycle is finished.

If you select the Sani Rinse option, when the Sani Rinse cycle is finished, the “Sanitized” indicator glows. If your dishwasher did not properly sanitize your dishes, the light flashes at the end of the cycle. This can happen if the cycle is interrupted, or the water could not be heated to the required temperature. The light goes off when you open and close the door or press CANCEL.

Your Whirlpool dishwasher may have some or all of these features.

POWERSCOUR™ Wash Area

The POWERSCOUR™ wash area is located at the back of the lower level rack.

NOTE: You must select the POWERSCOUR™ wash option to use this feature. Make sure items do not interfere with the water feed tube, spray arms, or POWERSCOUR™ spray jets.

Fold down the extra shelf on the lefthand or right-hand side of the top rack to hold additional cups, stemware or long items such as utensils and spatulas.

Load pans, casserole dishes, etc. in the back of the lower dish rack with the soiled surfaces facing the POWERSCOUR™ spray jets.

Only one row of items may face the POWERSCOUR™ spray jets. Stacking, overlapping or nesting items will keep the

POWERSCOUR™ spray jets from contacting all of the surfaces.

ANYWARE™ PLUS silverware basket

The ANYWARE™ PLUS silverware basket can be hung on the door, the bottom rack, or placed inside the bottom rack.

The row of tines on the left-hand and right-hand sides of the upper or in the back of lower rack can be adjusted to make room for a variety of dishes. To adjust the fold-down tines: 1. Grasp the tip of the tine that is in the tine holder. 2. Gently push the tine out of the holder. 3. Lay the tines down, toward the center of the rack.

To open the ANYWARE™ PLUS silverware basket: To unlock, grasp the front panel, pull up and rotate 90° as shown. Make sure the front panel is up all the way before rotating. To unlock and rotate the front panel, grasp the front panel as shown and pull it up and out. NOTE: Be sure the front panel of the silverware basket is completely locked into place before pulling out the bottom rack and before closing the dishwasher door. To remove the basket from the door: 1. Grasp the silverware basket by the handle. Slide it toward the top of the door. 2. Lift the basket off the holding buttons. To replace the basket in the door: 1. Set the silverware basket on the holding buttons. 2. Slide the basket toward the bottom of the door until is locks into place.

The light item clips hold lightweight plastic items such as cups, lids, or bowls in place during washing.

To move a clip: 1. Pull the clip up and off the tine. 2. Reposition the clip on another tine.

Sliding lowerrack tines that move left or right to fit your dishes. You can use this feature to fit larger items like cereal bowls and others.

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. Raise the top rack to accommodate items up to 9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11" (28 cm) in both the top and bottom racks. To raise the rack, press both rack adjusters and lift the rack until it is in the Up position and level. To lower the rack, press both rack adjusters and slide the rack back to its lower position. NOTE: The top rack must be level.

The removable top rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack. IMPORTANT: Remove dishes prior to removing the top rack from dishwasher. To remove the rack 1. To gain access to the track stops, pull the upper rack forward about halfway out of the tub. 2. To open, flip the track stop toward the outside of the tub. 3. After opening both track stops, pull top rack out of the rails. 4. Close track stops and slide the tracks back into the dishwasher.

1. Gently pull tracks forward in dishwasher until they stop. Open track stops. 2. Place the back wheels on each side of the rack into the track slot and roll them back into the tracks, but do not push the rack all the way into the tub. 3. Insert front rack wheels on each side of the rack into the track slots. 4. Slide rack into the dishwasher. The stops will automatically close when rack enters dishwasher.

Standard Rack Adjuster

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. Raise the top rack to accommodate items up to 9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11" (28 cm) in both the top and bottom racks. 1. To raise, remove rack and slide lower wheels into the rails as directed in “Removable Top Rack” section. 2. To lower, remove rack and slide upper wheels into the rails as directed in “Removable Top Rack” section.

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require maintenance to sustain peak cleaning performance. The triple filter system consists of 2 parts, an upper filter assembly and a lower filter. ■

The upper filter assembly keeps oversized items and foreign objects, along with very fine food particles, out of the pump.

The lower filter keeps food from being recirculated onto your dishware.

The filters may need to be cleaned when: ■ Visible objects or soils are on the Upper Filter Assembly. ■

There is degradation in cleaning performance (that is, soils still present on dishes).

Dishes feel gritty to the touch.

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency. ■

RECOMMENDED TIME INTERVAL TO CLEAN YOUR FILTER Number of Loads

If you only scrape before loading*

If you scrape and rinse before loading

If you wash before loading

*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

If you have hard water (above 15 grains), clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see

“Troubleshooting” section.

IMPORTANT: Do not use wire brush, scouring pad, etc. as they may damage the filters.

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Filter Removal Instructions

1. Turn the Upper Filter

Assembly ¼ turn counterclockwise and lift out. 2. Separate the upper filter assembly by gently pulling apart. 3. Clean the filters as shown.

O CK To remove Upper Filter Assembly

Filter Reinstallation Instructions

3. Slowly rotate the filter clockwise until it drops into place.

Continue to rotate until the filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place. NOTE: The Upper Filter Assembly arrow does not have to align with the arrow in the Lower Filter as long as the filter is locked.

1. Noting the previous illustrations, place the

Lower Filter under the Locating Tabs in the bottom of the dishwasher so the round opening for the Upper Filter Assembly lines up with the round opening in the bottom of the tub. 2. Insert the Upper Filter Assembly into the circular opening in the Lower Filter.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the filters properly installed. Be sure the Lower

Filter is securely in place and the Upper Filter Assembly is locked into place. If the Upper Filter Assembly turns freely, it is not locked into place.

& TUR N U NL OCK To replace Upper Filter Assembly

CLEANING THE DISHWASHER Cleaning the exterior Clean the exterior of the dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended - Stainless Steel Cleaner and Polish Part Number 31464.

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

Cleaning the interior

Clean the interior of the dishwasher, with a paste of powdered dishwasher detergent and water or use liquid dishwasher detergent on a damp sponge to clean the cooled-down interior. A white vinegar rinse may remove white spots and film. Vinegar is an acid, and using it too often could damage your dishwasher. Put 2 cups (500 mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

To Reduce Risk of Property Damage During Vacation or

Extended Time Without Use ■

When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.

When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Dishwasher Maintenance Procedure

Removal of Hard Water / Filming: Recommended use of a monthly maintenance product such as affresh®† Dishwasher Cleaner Part Number W10282479. ■

Load your dishwasher (preferably with dishes affected by filming/hard water).

Place tablet in main wash compartment of detergent dispenser.

Select cycle/option best for heavily soiled dishes and start dishwasher.

NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use.

†® affresh is a registered trademark of Whirlpool, U.S.A.

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call. In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca

Dishwasher is not operating properly

Dishwasher does not run or stops during a cycle

It is normal for certain cycles to repeatedly pause for several seconds during the main wash. Is the door closed tightly and latched? Is the right cycle selected? Is there power to the dishwasher? Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Has the motor stopped due to an overload? The motor automatically resets itself within a few minutes. If it does not restart, call for service. Is the water shutoff valve (if installed) turned on? The Clean light is flashing Check the following: ■

Is the overfill protection float able to move up and down freely? Press down to release.

Be sure the water supply is turned on to the dishwasher.

(This is very important following the new installation of your dishwasher.)

Check for suds in the dishwasher. If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill with water.

Suds can come from: 1. Using the incorrect type of detergent, such as laundry detergent, hand soap, or dish detergent for hand washing dishes. 2. Forgetting to replace the rinse aid dispenser cap after filling (or refilling) the rinse aid. 3. Using an excessive amount of dishwasher detergent.

Dishwasher will not fill

Is the overfill protection float able to move up and down freely? Press down to release. Dishwasher seems to run too long Try the 1 Hour Wash cycle. Is the water supplied to the dishwasher hot enough? The dishwasher runs longer while heating water. Is the dishwasher cycle time within the cycle times? See cycle sections wash times. A delay automatically occurs in some wash and rinse cycles until the water reaches the proper temperature. This dishwasher is equipped with an optical sensor wash that detects water temperature, soil and detergent amount. Wash cycles are adjusted based on the load sensing. IMPORTANT: The very first wash cycle after installation in your home will be adjusted to include an additional 2 rinses. This cycle must not be interrupted for proper sensor adjustment. If this adjustment cycle is canceled or stopped before the Clean light comes on at the end of the cycle, the next wash cycle will repeat this sensor adjustment. Water remains in the dishwasher Is the cycle complete? Was the disposer knockout plug removed during installation? (See “Install the drain hose” section in the Installation Instructions.)

Detergent remains in the covered section of the dispenser

Is the cycle complete? Check for items such as cookie sheets, cutting boards, or large containers that may be blocking the detergent dispenser from opening properly. Be sure the cycle has finished (green light is on). If it has not finished, you will need to resume the cycle by pressing START/ RESUME and closing the door within 3 seconds. Is the detergent lump-free? Replace detergent if necessary. White residue on the front of the access panel Was too much detergent used? Is the brand of detergent making excess foam? Try a different brand to reduce foaming and eliminate buildup. Odor in the dishwasher Are dishes washed only every 2 or 3 days? Check and clean your filters regularly. See the table in “Filtration System” section for “Recommended Time Interval to Clean Your Filter.” Does the dishwasher have a new plastic smell? Run a vinegar rinse as described in “Dishwasher Care.” To avoid odor, use affresh™ dishwasher and disposal cleaner tablet once a month or as needed for a fresher dishwasher as described in “Dishwasher Care.” Condensation on the kitchen counter (built-in models) Is the dishwasher aligned with the countertop? Moisture from the vent in the dishwasher console can form on the counter. Refer to the Installation Instructions for more information. Bottom rack does not fully slide into the dishwasher Check to see if items loaded for POWERSCOUR™ wash option have shifted. Reload to keep items from interfering with spray jets or spray arm.

Dishes do not dry completely

Dishes do not dry completely

Did you use a rinse aid? Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid your dishes and dishwasher interior will have excessive moisture. The heat dry option will not perform as well without rinse aid.

Did you load your dishwasher to allow proper water drainage? Do not overload. Use a liquid rinse aid to speed drying. Are the plastics wet? Plastics often need towel drying. Is the rinse aid dispenser empty? Did you use an air-dry or energy-saving dry option? Use a heated drying option for dryer dishes. Excess moisture on racks and dishwasher interior Check the rinse aid indicator to see that there is rinse aid in the dispenser.

Spots and stains on dishes

Spotting and filming on dishes

Is your water hard, or is there a high mineral content in your water? Conditioning the final rinse water with a liquid rinse aid helps eliminate spotting and filming. Keep the rinse aid dispenser filled. Always use a high-temp option. If your water hardness is 13 grains or above, it is strongly recommended that you install a home water softener. If you do not wish to drink softened water, have the softener installed onto your hot water supply.

Is the water temperature too low? For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher.

Did you use the correct amount of effective detergent? Use recommended dishwasher detergents only. Do not use less than 1 tbs (15 g) per load. Detergent must be fresh to be effective. Heavy soil and/or hard water generally require extra detergent. Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes. By using these tablets and packs, over time this will start to reduce or eliminate white film. Also, by using a rinse aid you can minimize repeat buildup of white film. Is the home water pressure high enough for proper dishwasher filling? Home water pressure should be 20 to 120 psi (138 to 828 kPa) for proper dishwasher fill. If you have questions about your water pressure, call a licensed, qualified plumber. NOTE: To remove spots and film from glassware, remove all silverware and metal items and run a vinegar rinse as described in “Dishwasher Care.” ■

Silica film or etching (silica film is a milky, rainbow-colored deposit; etching is a cloudy film)

Sometimes there is a water/chemical reaction with certain types of glassware. This is usually caused by some combination of soft or softened water, alkaline washing solutions, insufficient rinsing, overloading the dishwasher, and the heat of drying. It might not be possible to avoid the problem, except by hand washing. To slow this process use a minimum amount of detergent but not less than 1 tbs (15 g) per load. Use a liquid rinse aid and underload the dishwasher to allow thorough rinsing. Silica film and etching are permanent and cannot be removed. Do not use heated drying.

White spots on cookware with nonstick finish

Has the dishwasher detergent removed cookware seasoning? Reseason cookware after washing it in the dishwasher. Brown stains on dishes and dishwasher interior Does your water have high iron content? Rewash dishes using 1-3 tsp (5-15 mL) of citric acid crystals added to the covered section of the detergent dispenser. Do not use detergent. Follow with a Normal wash cycle with detergent. If treatment is needed more often than every other month, the installation of an iron removal unit is suggested.

Black or gray marks on dishes

Are aluminum items rubbing dishes during washing? Disposable aluminum items can break down in the dishwasher and cause marking. Hand wash these items. Remove aluminum markings by using a mild abrasive cleaner.

Dishwasher Stops and starts

Numerous starts and stops

It is normal to hear numerous starts and stops during throughout your entire cycle. These Starts and stops are needed to provide optimal cleaning performance and energy savings.

Depending on cycle selected

Depending on the cycle selected and the soil level sensed by the “Optical Water Sensor” (In some models) you will experience more starts and stops throughout the entire cycle.

Dishes are not completely clean

Food soil left on the dishes

Is the dishwasher loaded correctly? Check and clean your filters regularly. See the table in “Filtration System” section for “Recommended Time Interval to Clean Your Filter.” Did you choose the cycle that describes the most difficult soil in your dishwasher? If you have some items with heavier soils, use a heavier cycle. Is the water temperature too low? For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Did you use the correct amount of fresh detergent? Use recommended dishwasher detergents only. Do not use less than 1 tbs (15 g) per load. Detergent must be fresh to be effective. Heavy soil and/or hard water generally require extra detergent. Is detergent caked in dispenser? Use fresh detergent only. Do not allow detergent to sit for several hours in a wet dispenser. Clean dispenser when caked detergent is present. Is the pump or spray arm clogged by labels from bottles and cans? Is the home water pressure high enough for proper dishwasher filling? Home water pressure should be 20 to 120 psi (138 to 828 kPa) for proper dishwasher fill. If you have questions about your water pressure, call a licensed, qualified plumber. Are high suds slowing the wash arm? Do not use soap or laundry detergents. Use recommended dishwasher detergents only.

Dishes in the POWERSCOUR™ wash area are not clean

Are the dishes loaded to face the POWERSCOUR™ spray jets? Load soiled dish surfaces to face the back of the dishwasher toward the POWERSCOUR™ spray jets. Tilt the dishes toward the back so water can drain from surfaces, and the lower spray arm can wash the item from below. NOTE: Loaded items may shift when dish racks are pushed into the dishwasher. Make sure dishes do not interfere with the spray arms, water feed tube, or POWERSCOUR™ spray jets. Are items loaded so they do not overlap? Load items only one row deep without any overlap so that the POWERSCOUR™ spray jets can reach all surfaces.

Orange stains on plastic dishes or dishwasher interior

Are large amounts of tomato-based foods on dishes placed in the dishwasher? It may be necessary to use a stain removal product to remove stains from your dishwasher. Stains will not affect dishwasher performance.

Surging sounds can occur periodically throughout the cycle while the dishwasher is draining

Normal water valve hissing may be heard periodically, during the water fill. Snapping sound A normal snap sound may be heard when the detergent dispenser opens during the cycle, and when the door is opened at the end of the cycle.

Grinding, grating, crunching or buzzing sounds

A hard object has entered the wash module (on some models). When the object is ground up, the sound should stop. If the noise persists after a complete cycle, call for service.

Dishes are damaged during a cycle

Did you load the dishwasher properly? Load the dishes and glasses so they are stable and do not strike together from washing action. Minimize chipping by moving the rack in and out slowly. NOTE: Antiques, feather-edged crystal, and similar types of china and glassware might be too delicate for automatic dishwashing. Wash by hand.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY This limited warranty does not cover: 1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase. 6. Any food loss due to refrigerator or freezer product failures. 7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty. 8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance. 9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. 11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance. The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies.

For additional product information or to view FAQs (Frequently Asked Questions), in U.S.A., visit www.whirlpool.com

In Canada, visit www.whirlpool.ca If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may contact Whirlpool at the number below. Have your complete model number ready. You can find your model number and serial number on the label located near the door on the right-hand or left-hand side of the dishwasher interior. For assistance or service in the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below: In the U.S.A.: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence.

Whirlpool Brand Home Appliances Customer eXperience Centre 200 – 6750 Century Ave. Mississauga ON L5N 0B7

Please keep these User Instructions and model number information for future reference.

/™ ©2013 Whirlpool. All rights reserved.

Puntas regulables EZ Hard Water

B MAIN WASH PREWASH C CONSERVEZ CES INSTRUCTIONS CONSERVEZ CES INSTRUCTIONS Hard Water

B MAIN WASH PREWASH C SÉLECTION D'OPTIONS OPTIONS SÉLECTION D'OPTIONS OPTIONS OBJECTIF DESCRIPTIONS
