USER MANUAL 60UF675 LG

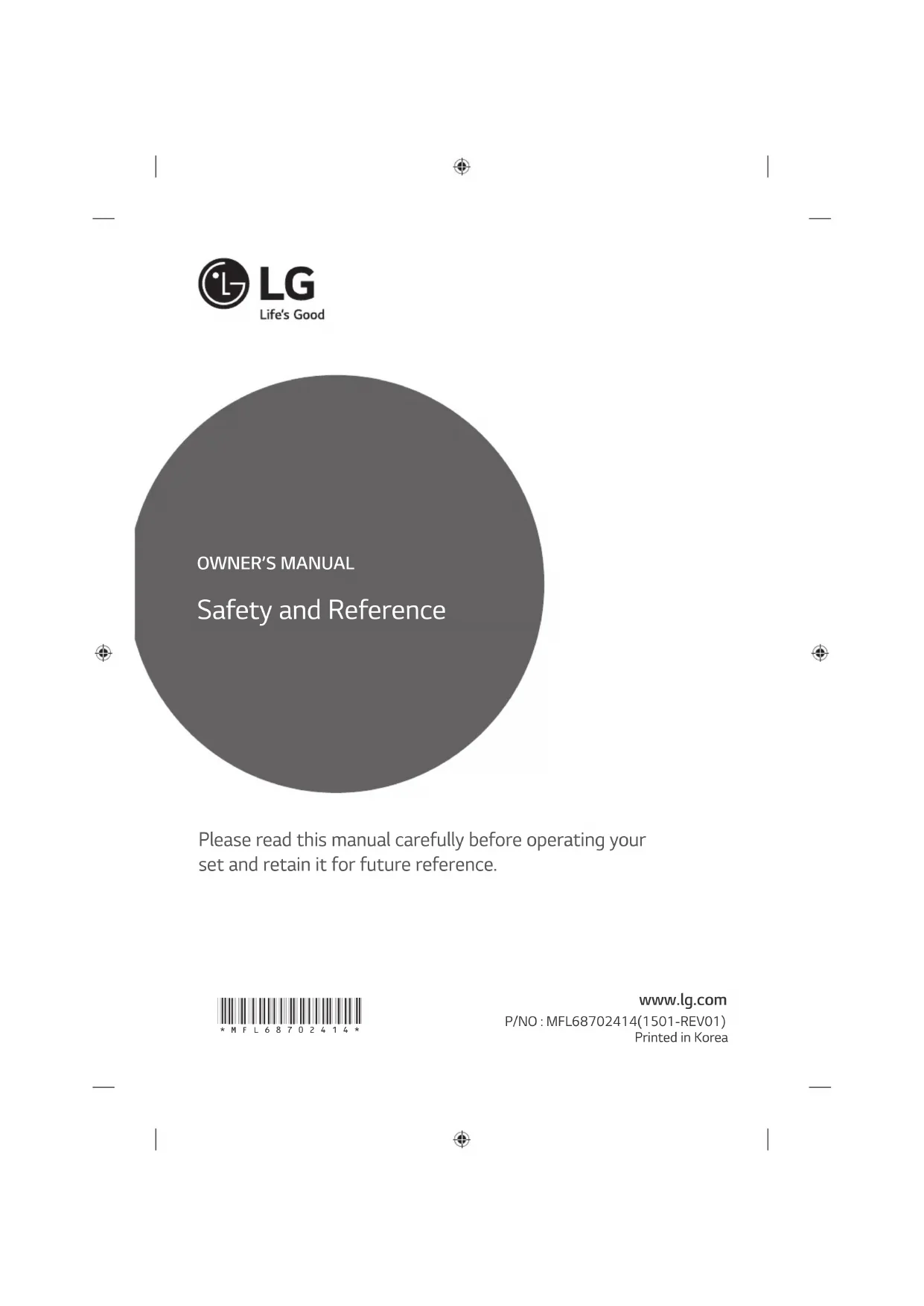

*MFL68702414* Please read this manual carefully before operating your set and retain it for future reference. Safety and Reference

www.lg.com P/NO : MFL68702414(1501-REV01)Printed in Korea2 ENGLISH Safety instructions Please read these safety precautions carefully before using the product. WARNING Do not place the TV and/or remote control in the following environments: tA location exposed to direct sunlight tAn area with high humidity such as a bathroom tNear any heat source such as stoves and other devices that produce heat tNear kitchen counters or humidiers where they can easily be exposed to steam or oil tAn area exposed to rain or wind tNear containers of water such as vases Otherwise, this may result in re, electric shock, malfunction or product deformation. Do not place the product where it might be exposed to dust. This may cause a re hazard. Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.This plug must remain readily attached and operable when TV is in use. Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust o. You may be electrocuted due to excess moisture. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Insert power cable plug completely into wall socket otherwise if not secured completely into socket, re ignition may break out. Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a re or an electric shock hazard. Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in re or electric shock. Bend antenna cable between inside and outside building to prevent rain from owing in. This may cause water damaged inside the Product and could give an electric shock. When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / re hazard.ENGLISH

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in re due to over-heating. Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. Desiccant Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suocation. Keep it out of the reach of children. Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury. Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries. Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model) Do not put or store inammable substances near the product. There is a danger of combustion/explosion or re due to careless handling of the inammable substances. Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inammable objects such as paper and matches. Children must pay particular attention. Electrical shock, re or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre. Do not spray water on the product or scrub with an inammable substance (thinner or benzene). Fire or electric shock accident can occur. Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged. Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted. Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a re or a burn by a spark.4 ENGLISH Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair. If any of the following occur, unplug the product immediately and contact your local service centre. tThe product has been impacted by shock tThe product has been damaged tForeign objects have entered the product tThe product produced smoke or a strange smell This may result in re or electric shock. Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause re hazard and insulation deterioration can cause electric leakage/shock/re. Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus. Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall. CAUTION Install the product where no radio wave occurs. There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock. Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or ip over, which may cause injury or damage to the product. If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury. If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), x it carefully so as not to drop. Only use the attachments / accessories specied by the manufacturer. When installing the antenna, consult with a qualied service technician. If not installed by a qualied technician, this may create a re hazard or an electric shock hazard.ENGLISH

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision. Only use the specied type of battery. This could cause damage to the remote control. Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open replace and electric heaters. Do not place non-rechargeable batteries in charging device. Make sure there are no objects between the remote control and its sensor. Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, uorescent lighting. If this occurs turn o lighting or darken viewing area. When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product. Do not turn the product On/O by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock. Please follow the installation instructions below to prevent the product from overheating. tThe distance between the product and the wall should be more than 10cm. tDo not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard). tDo not install the product on a carpet or cushion. tMake sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in re. Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not aect the operation or performance of the product. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Prevent dust collecting on the power plug pins or outlet. This may cause a re hazard. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.6 ENGLISH Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may causedamage to screen. Avoid touching the screen or holding your nger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen. When cleaning the product and its components, unplug the power rst and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in re, electric shock or product damage (deformation, corrosion or breakage). As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn o this unit by SWITCH. When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous. When moving the product, make sure you turn the power o rst. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a re hazard or cause electric shock. When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury. Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If the product feels cold to the touch, there may be a small “icker” when it is turned on. This is normal, there is nothing wrong with product. The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1ppm on the panel. This does not indicate a malfunction and does not aect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.ENGLISH

You may nd dierent brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• LG LED TVs are LCD TVs with LED backlighting. Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a xed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund. Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning o the TV is generated by plastic thermal contraction due to tempera- ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not aect the performance and reliability of the product. Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction. Viewing 3D imaging (Only 3D models) WARNING Viewing Environment tViewing Time - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness tSome users may experience a seizure or other abnormal symptoms when they are exposed to a ashing light or particular pattern from 3D contents. tDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc. t3D Contents are not recommended to those who suer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced. tIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult. tIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents. Symptoms which require discontinuation or refraining from watching 3D contents tDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking. tWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides. - Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.8 ENGLISH CAUTION Viewing Environment tViewing Distance - Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV. Viewing Age tInfants/Children - Usage/ Viewing 3D contents for children under the age of 6 are prohibited. - Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents. - Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image. tTeenagers - Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired. tElderly - The elderly may perceive less 3D eect compared to the young. Do not sit closer to the TV than the recommended distance. Cautions when using the 3D glasses tMake sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. tDo not use 3D glasses instead of your normal glasses, sunglasses or protective goggles. tUsing modied 3D glasses may cause eye strain or image distortion. tDo not keep your 3D glasses in extremely high or low temperatures. It will cause deformation. tThe 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals. Preparing NOTE tImage shown may dier from your TV. tYour TV’s OSD (On Screen Display) may dier slightly from that shown in this manual. tThe available menus and options may dier from the input source or product model that you are using. tNew features may be added to this TV in the future. tThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned o if it will not be watched for some time, as this will reduce energy consumption. tThe energy consumed during use can be signicantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. tThe items supplied with your product may vary depending on the model. tProduct specications or contents of this manual may be changed without prior notice due to upgrade of product functions. tFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not t into your TV’s USB port.

18 mm tUse a certied cable with the HDMI logo attached. tIf you do not use a certied HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) - High-Speed HDMI

cable with Ethernet CAUTION tDo not use any unapproved items to ensure the safety and product life span. tAny damage or injuries caused by using unapproved items are not covered by the warranty. tSome models have a thin lm attached on to the screen and this must not be removed.ENGLISH

Separate purchase Separate purchase items can be changed or modied for quality improvement without any notication. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies. (Depending on model) AG-F*** Cinema 3D glasses AG-F***DP Dual play glasses LG Audio Device Maintenance Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. tMake sure to turn the power o and disconnect the power cord and all other cables rst. tWhen the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet and stand To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. tAvoid touching the screen at all times, as this may result in damage to the screen. tDo not push, rub, or hit the screen surface with your ngernail or a sharp object, as this may result in scratches and image distortions. tDo not use any chemicals as this may damage the product. tDo not spray liquid onto the surface. If water enters the TV, it may result in re, electric shock, or malfunction. Power cord Remove the accumulated dust or dirt on the power cord regularly. Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. tIt is recommended to move the TV in the box or packing material that the TV originally came in. tBefore moving or lifting the TV, disconnect the power cord and all cables. tWhen holding the TV, the screen should face away from you to avoid damage. tHold the top and bottom of the TV frame rmly. Make sure not to hold the transparent part, speaker, or speaker grill area. tWhen transporting a large TV, there should be at least 2 people. tWhen transporting the TV by hand, hold the TV as shown in the following illustration. tWhen transporting the TV, do not expose the TV to jolts or excessive vibration. tWhen transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right. tDo not apply excessive pressure to cause exing /bending of frame chassis as it may damage screen. tWhen handling the TV, be careful not to damage the protruding joystick button. CAUTION tAvoid touching the screen at all times, as this may result in damage to the screen. tDo not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.10 ENGLISH Using the joystick button (Image shown may dier from your TV.) You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right. Joystick Button Basic Functions Power On When the TV is turned o, place your nger on the joystick button and press it once and release it. Power O When the TV is turned on, place your nger on the joystick button and press it once for a few seconds and release it. (However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.) Volume Control If you place your nger over the joystick button and move it left or right, you can adjust the volume level you want. Programmes Control If you place your nger over the joystick button and move it up or down, you can scrolls through the saved programmes you want. Adjusting the Menu When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right. Turns the power o. Clears on-screen displays and returns to TV viewing. Changes the input source. Accesses the main menu. NOTE tWhen your nger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button rst, you may not be able to adjust the volume level and saved programmes. Mounting on a table (Depending on model) 1 Lift and tilt the TV into its upright position on a table. tLeave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm10 cm10 cm 10 cm 2 Connect the power cord to a wall outlet. CAUTION tDo not place the TV near or on sources of heat, as this may result in re or other damage. Using the kensington security system (This feature is not available for all models.) tImage shown may dier from your TV. The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www. kensington.com. Connect the Kensington security system cable between the TV and a table.ENGLISH

Securing the TV to a wall (This feature is not available for all models.) 1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. tIf there are bolts inserted at the eye-bolts position, remove the bolts rst. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the at surface. CAUTION tMake sure that children do not climb on or hang on the TV. NOTE tUse a platform or cabinet that is strong and large enough to support the TV securely. tBrackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer. Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel. LG recommends that wall mounting be performed by a qualied professional installer. We recommend the use of LG’s wall mount bracket. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. 10 cm10 cm10 cm10 cm Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase(Wall Mounting Bracket) Model 32/39LF56** 32LF55** 32LF62** 40/43UF67** 40/43LF57** 43LF54** 49/55UF67** 49LF54** VESA (A x B) 200 x 200 300 x 300 Standard screw M6 M6 Number of screws 4 4 Wall mount bracket LSW240B MSW240 LSW350B MSW240 Model 60/65UF67** 42/47/50/55LF56** 42/49/55LF55** 42/49/55LF62** VESA (A x B) 300 x 300 400 x 400 Standard screw M6 M6 Number of screws 4 4 Wall mount bracket LSW350B LSW440B MSW240 Model 60LF56** VESA (A x B) 400 x 400 Standard screw M6 Number of screws 4 Wall mount bracket LSW440B

B12 ENGLISH CAUTION tDisconnect the power rst, and then move or install the TV. Otherwise electric shock may occur. tRemove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. tIf you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualied personnel. tDo not over tighten the screws as this may cause damage to the TV and void your warranty. tUse the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. NOTE tUse the screws that are listed on the VESA standard screw specications. tThe wall mount kit includes an installation manual and necessary parts. tThe wall mount bracket is not provided. You can obtain additional accessories from your local dealer. tThe length of screws may dier depending on the wall mount. Make sure to use the proper length. tFor more information, refer to the manual supplied with the wall mount. tWhen installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from accumulating dust and dirt. (Only when the label is provided) Provided Item Adhesive label tWhen attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided) Provided Item Wall Mount Spacer Connections (notications) Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. NOTE tThe external device connection may dier from the model. tConnect external devices to the TV regardless of the order of the TV port. tIf you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device. tRefer to the external equipment’s manual for operating instructions. tIf you connect a gaming device to the TV, use the cable supplied with the gaming device. tIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. tIn PC mode, some resolution settings may not work properly depending on the graphics card. tIf Ultra HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s performance. (Only UF67**) Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). tUse a signal splitter to use more than 2 TVs. tIf the image quality is poor, install a signal amplier properly to improve the image quality. tIf the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. tAn antenna cable and converter are not supplied. tSupported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC tThis TV cannot receive Ultra HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been conrmed. (Only UF67**)ENGLISH

Satellite dish connection (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω). HDMI ULTRA HD deep colour settings (Only UF67**) tSETTINGS PICTURE HDMI ULTRA HD Deep Colour HDMI (1/2) ULTRA HD Deep Colour - On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0) - Off : Support 4K @ 50/60 Hz (4:2:0) tAll HDMI ports support the HDCP 2.2. t4K Source is only supported in HDMI input. t4K signal and content are not available in the RF/USB input. tAll HDMI input ports support 4K @ 50/60 Hz (For details on the supported specications, refer to the table below.) for high- denition video. Picture or sound may not be supported depending on the specications of the external device connected. In that case, change the settings for HDMI ULTRA HD Deep Colour. 4K @ 50/60 Hz Support Format Resolution Frame rate (Hz) Colour Depth / Chroma Sampling 8 bit 10 bit 12 bit 3840 x 2160p 4096 x 2160p

YCbCr 4:2:0 YCbCr 4:2:0 YCbCr 4:2:2 YCbCr 4:4:4 - - RGB 4:4:4 - - CI module connection (Depending on model) View the encrypted (pay) services in digital TV mode. tCheck if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot. tIf the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator. Euro Scart connection (Depending on model) Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable. Output Type Current input mode AV1 (TV Out

Digital TV Digital TV Analogue TV, AV Analogue TVComponent HDMI 1 TV Out : Outputs Analogue TV or Digital TV signals. tAny Euro scart cable used must be signal shielded. tWhen watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable. (Only 3D models) Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided. Remote control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. CAUTION tDo not mix old and new batteries, as this may damage the remote control. tThe remote control will not be included for all sales market. Make sure to point the remote control toward the remote control sensor on the TV.14 ENGLISH

Shows programme guide. (Depending on model)

Selects an AV mode. (Depending on model) Changes the input source. Number buttons Enters numbers. Accesses the saved programme list. Returns to the previously viewed programme.

Accesses your favourite programme list.

Shows programme guide. (Depending on model)

Used for viewing 3D video. (Depending on model) Mutes all sounds. Adjusts the volume level. Scrolls through the saved programmes. Moves to the previous or next screen.

Teletext buttons ( ) These buttons are used for teletext. Views the information of the current programme and screen. Accesses the main menus. Accesses the Quick menus. Navigation buttons (up/down/left/right) Scrolls through menus or options. Selects menus or options and conrms your input. Returns to the previous level. Clears on-screen displays and returns to TV viewing.

Coloured buttons These access special functions in some menus.

Licenses Supported licenses may dier by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This DivX Certied® device has passed rigorous testing to ensure it plays DivX® video. To play purchased DivX movies, rst register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu. DivX Certied® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certied® and associated logos are trademarks of DivX, LLC and are used under license. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274. (Only UF67**) For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. Open source software notice information To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource. lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This oer is valid for three (3) years from the date on which you purchased the product. Settings Automatically Setting Up Programme SETTINGS SETUP Auto Tuning Automatically tunes the programmes. tIf Input Source is not connected properly, programme registration may not work. tAuto Tuning only nds programmes that are currently broadcasting. tIf Lock System is turned on, a pop-up window will appear asking for password. To select Picture Mode SETTINGS PICTURE Picture Mode Select the picture mode optimized for the viewing environment or the programme.

Vivid : Heightens contrast, brightness and sharpness to display vivid images. tStandard : Displays images in standard levels of contrast, brightness and sharpness. tEco/APS : [Depending on model] The Energy Saver feature changes settings on the TV to reduce power consumption. tCinema/Game : Displays the optimum picture for movie, game. tSport : [Depending on model] Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.16 ENGLISH t Expert 1, 2 : Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This is the adjustment menu provided for ISF-certied picture tuning professionals. (ISF logo can only be used on ISF-certied TVs.) ISFccc: Imaging Science Foundation Certied Calibration Control tDepending on input signal, available range of picture modes may dier. t Expert mode is for picture tuning professionals to control and ne-tune using a specic image. For normal images, the eects may not be dramatic. tThe ISF function is only available on some models. To set advanced control SETTINGS PICTURE Picture Mode Advanced Control / Expert Control Calibrates the screen for each picture mode; or adjusts picture settings for a special screen. First select a Picture Mode of your choice. tDynamic Contrast : Adjusts the contrast to the optimal level according to the brightness of the image. tDynamic Colour : Adjusts colours to make the image appear in more natural colours. tSkin Colour : Sets Skin colour spectrum separately to implement the skin colour as dened by the user. tSky Colour : Sky colour is set separately. tGrass Colour : Natural colour spectrum (meadows, hills, etc.) can be separately set. tGamma : Sets the gradation curve according to the output of picture signal in relation to the input signal. tColour Gamut : Selects the range of colours that can be expressed. tEdge Enhancer : Shows clearer and distinctive yet natural edges of the video. tExpert Pattern : [Depending on model] Patterns used for expert adjustment. tColour Filter : Filters a specic colour spectrum in RGB colours to ne-tune colour saturation and hue accurately. tColour Temperature : Adjusts the overall tone of the screen as desired. In Expert mode, detailed ne-tuning can be set via Gamma method, etc. tColour Management System : This is a system that experts use when they adjust colour with a test pattern. They can select from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without aecting other colours. For normal images, adjustments may not result in noticeable colour changes. tSuper Resolution : [Depending on model] Adjusts the resolution to make dim and blurred images clearer. tDepending on input signal or other picture settings, the range of detailed items for adjustment may dier. To set additional picture options SETTINGS PICTURE Picture Mode Picture Option [Depending on model] Adjusts detailed setting for images. tNoise Reduction : Eliminates noise in the picture. tMPEG Noise Reduction : Eliminates noise generated while creating digital picture signals. tBlack Level : Adjusts the brightness and contrast of the screen to suit the black level of the input picture by using the blackness (black level) of the screen. tReal Cinema : Optimizes the screen for movie viewing. tMotion Eye Care / Smart Energy Saving : [Depending on model] Saves power consumption by adjusting the brightness corresponding to the movement of the image on the screen. tLED Local Dimming : [Depending on model] Brightens bright areas and darkens dark areas of the image for maximum contrast and minimum blur while reducing power consumption. - Off : Disables the LED Local Dimming function. - Low/Medium/High : Changes the contrast ratio. tTruMotion : [Depending on model] Optimizes the image quality of fast-moving pictures. - Off : Turns o the TruMotion. - Smooth : Softens fast-moving pictures. - Clear : Makes fast-moving pictures clearer. - User : Sets De-Judder/De-Blur manually. De-Judder: Adjusts juddering on the screen. De-Blur: Reduces the blurring eects of motion. Auto means Juddering and blurring range that depend on input video status is controlled by TruMotion mode. tDepending on input signal or other picture settings, the range of detailed items for adjustment may dier. To use Energy Saving feature SETTINGS PICTURE Energy Saving Reduces power consumption by adjusting screen brightness. tAuto : [Depending on model] The TV sensor detects the ambient lighting and automatically adjusts the screen brightness. tOff : Turns o the Energy Saving mode. tMinimum / Medium / Maximum : Applies the pre-set Energy Saving mode. tScreen Off : Screen is turned o and only sound is played. Press any button except Power button on the remote control to turn the screen back on.ENGLISH

To use HDMI ULTRA HD Deep Colour SETTINGS PICTURE HDMI ULTRA HD Deep Colour HDMI (1/2) ULTRA HD Deep Colour [Depending on model] HDMI port provides ULTRA HD Deep Colour, HDMI port provides ULTRA HD Deep Colour for a clearer picture. tOn : ULTRA HD Deep Colour enabled tOff : ULTRA HD Deep Colour disabled To use TV speaker SETTINGS AUDIO Sound Out TV Speaker / Internal TV Speaker [Depending on model] Sound is output through the TV speaker. To use External Speaker SETTINGS AUDIO Sound Out External Speaker (Optical) / Audio Out (Optical) [Depending on model] Sound is output through the speaker connected to the optical port. tSimpLink is supported. To use Digital Sound Out SETTINGS AUDIO Sound Out External Speaker (Optical) / Audio Out (Optical) / Internal TV Speaker + Audio Out (Optical) Digital Sound Out [Depending on model] Sets up Digital Sound Out. Item Audio Input Digital Audio Ouput Auto MPEG Dolby Digital Dolby Digital Plus HE-AAC DTS PCM Dolby Digital Dolby Digital Dolby Digital DTS PCM All PCM To connect and use LG audio device SETTINGS AUDIO Sound Out LG Sound Sync (Optical) [Depending on model] Connect LG audio device with the logo to the optical digital audio output port. LG audio device allows you to enjoy rich powerful sound easily. To use Headphone SETTINGS AUDIO Sound Out Headphone [Depending on model] Sound is output through the headphone connected to the earphone/ headphone port. To synchronize audio and video SETTINGS AUDIO AV Sync. Adjust [Depending on model] Synchronizes video and audio directly when they do not match. tIf you set AV Sync. Adjust to ON, you can adjust the sound output (TV speakers or SPDIF) to the screen image. To use SIMPLINK [Depending on model] SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu.18 ENGLISH 1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI output terminal using an HDMI cable. t[Depending on model] For home theatre units with a SIMPLINK function, connect HDMI terminals as above, and use an optical cable to connect Optical Digital Audio Out from the TV to Optical Digital Audio In of the SIMPLINK device. 2 Select INPUT(OPTION) SIMPLINK. SIMPLINK menu window appears. 3 In SIMPLINK Setting window, set SIMPLINK function to ON. 4 In SIMPLINK menu window, selects the device you want to control. tThis function is only compatible with devices with the SIMPLINK logo. tTo use the SIMPLINK function, you need to use a high-speed HDMI® cable (with CEC (Consumer Electronics Control) feature added). High-speed HDMI® cables have the No. 13 pin connected for information exchange between devices. tIf you switch to another input, the SIMPLINK device will stop. tIf a third-party device with the HDMI-CEC function is also used, the SIMPLINK device may not work normally. t[Depending on model] If you select or play media from a the device with a home theatre function, the HT Speaker(Speaker) is automatically connected. Be sure to connect with an optical cable (sold separately) to use the HT Speaker(Speaker) function. SIMPLINK function description

Direct Play : Plays the multimedia device on the TV instantly.

Select multimedia device : Selects the desired device via the SIMPLINK menu to control it from the TV screen instantly.

Disc playback : Manages the multimedia device with the TV remote control. tPower off all devices : When you power o the TV, all connected devices are turned o.

Sync Power on : When the equipment with SIMPLINK function connected HDMI terminal starts to play, the TV will automatically turn on.

Speaker : [Depending on model] Select speaker either on the home theatre unit or the TV. To set password SETTINGS LOCK Set Password Sets or changes the TV password. The initial password is set to ‘0000’. tWhen France is selected for Country, password is not ‘0000’ but ‘1234’. tWhen France is selected for Country, password cannot be set to ‘0000’. To return Factory Reset SETTINGS OPTION Factory Reset All stored information is deleted and TV settings are reset. The TV turns itself o and back on, and all settings are reset. tWhen Lock System is in place, a pop-up window appears and asks for password. tDo not turn o the power during initialization. To remove the USB device Q.MENU USB Device Select a USB storage device that you want to remove. When you see a message that the USB device has been removed, separate the device from the TV. tOnce a USB device has been selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it. Using a USB storage device - warning tIf the USB storage device has a built-in auto recognition program or uses its own driver, it may not work. tSome USB storage devices may not work or may work incorrectly. tUse only USB storage devices formatted with the Windows FAT32 or NTFS File System. tFor external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than 500 mA. tIt is recommended that you use USB memory sticks of 32 GB or less and USB HDDs of 2 TB or less.ENGLISH

tIf a USB HDD with power-saving function does not work properly, turn the power o and on. For more information, refer to the user manual of the USB HDD. tData in the USB storage device can be damaged, so be sure to back up important les to other devices. Data maintenance is the user’s responsibility and the manufacturer is not responsible for data loss. My Media supporting le tMaximum data transfer rate : 20 Mbps (Mega bit per second) tExternal supported subtitle formats : *.srt (SubRip), *.smi (SAMI), *.sub (SubViewer, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)), *.ass/*.ssa (SubStation Alpha), *.txt (TMplayer), *.psb (PowerDivX) tInternal supported subtitle formats: *.dat/*.mpg/*.mpeg/*. vob (DVD Subtitle), *.ts/*.tp/*.m2ts/ (DVB Subtitle), *.mp4 (DVD Subtitle, UTF-8 Plain Text), *.mkv (ASS, SSA, UTF-8 Plain Text, Universal Subtitle Format, VobSub, DVD Subtitle), *.divx/*.avi (XSUB

[Video] Sorenson H.263, H.264/AVC [Audio] MP3, AAC, HE-AAC t*rm, *rmvb [Video] RV30, RV40 [Audio] Dolby Digital, AAC, HE-AAC, RA6(Cook) t3gp, 3gp2 [Video] H.264/AVC, MPEG-4 Part2 [Audio] AAC, AMR(NB/WB) t*DTS / *rm / *rmvb : Depending on model Supported Audio Formats tFile type : mp3 [Bit rate] 32 Kbps - 320 Kbps [Sample freq.] 16 kHz - 48 kHz [Support] MPEG1, MPEG2, Layer2, Layer3 tFile Type : AAC [Bit rate] Free Format [Sample freq.] 8 kHz ~ 48 kHz [Support] ADIF, ADTS tFile Type : M4A [Bit rate] Free Format [Sample freq.] 8 kHz ~ 48 kHz [Support] MPEG-4 tFile Type : WMA [Bit rate] 128 Kbps ~ 320 Kbps [Sample freq.] 8 kHz ~ 48 kHz [Support] WMA7, WMA8, WMA9 Standard tFile Type : WMA 10 Pro [Bit rate] ~ 768 Kbps [Channel / Sample freq.] M0 : up to 2 Channel @ 48 kHz (Except LBR mode), M1 : up to 5.1 Channel @ 48 kHz, M2 : up to 5.1 Channel @ 96 kHz [Support] WMA 10 Pro tFile Type : OGG [Bit rate] Free Format [Sample freq.] ~ 48 kHz [Support] OGG Vorvis20 ENGLISH Supported Photo Formats tCategory : 2D (jpeg, jpg, jpe), 3D (jps) [Available le type] SOF0: Baseline, SOF1 : Extend Sequential, SOF2 : Progressive [Photo size] Minimum : 64 x 64, Maximum : Normal Type: 15360 (W) x 8640 (H), Progressive Type : 1920 (W) x 1440 (H) tCategory : BMP [Photo size] Minimum : 64 x 64, Maximum : 9600 x 6400 tCategory : PNG [Available le type] Interlace, Non-Interlace [Photo size] Minimum : 64 x 64, Maximum : Interlace : 1200 x 800, Non-Interlace : 9600 x 6400 tCategory : MPO (3D) [Photo size] 4:3 Size : 3648 x 2736 / 2592 x 1944 / 2048 x 1536, 3:2 Size : 3648 x 2432 tBMP and PNG format les may be slower to display than JPEG. tThe 3D function may dier depending on the model. To see web manual To obtain detailed User Guide information, please visit www.lg.com. External control device setup To obtain the external control device setup information, please visit www.lg.com. Troubleshooting Cannot control the TV with the remote control. tCheck the remote control sensor on the product and try again. tCheck if there is any obstacle between the product and the remote control. tCheck if the batteries are still working and properly installed (

JMQSPEPUUPFJMTVPQBOOFMMP$JÛQPUSFCCFDPNQPSUBSFJMSJTDIJP

BODPSBJOGBTFEJTWJMVQQPBEFTFNQJPQPTTPOPQSPWBSFBUPDDBSF

JMMJWFMMPEJMVNJOPTJUËEFMMJNNBHJOF*OUBMNPEPTJSJEVDPOPBODIF

EJUPTVMQVMTBOUFKPZTUJDLQSFNFSF VOBWPMUBRVJOEJSJMBTDJBSFJM QVMTBOUF 4QFHOJNFOUP

$POTFOUFEJTQFHOFSFJM57

(ACCENSIONE)$POTFOUFEJBDDFOEFSFPTQFHOFSFMB57

$POTFOUFEJTFMF[JPOBSFJMQSPHSBNNB3BEJP57

P%57 $POTFOUFEJWJTVBMJ[[BSFJTPUUPUJUPMJQSFGFSJUJJOPEBMJUË EJHJUBMF

-FMJDFO[FTVQQPSUBUFQPTTPOPWBSJBSFEBVONPEFMMPBMMBMUSP1FS

VMUFSJPSJJOGPSNB[JPOJTVMMFMJDFO[FWJTJUBSFJMTJUPwww.lg.com.

1SPEPUUPTVMJDFO[BEJ%PMCZ-BCPSBUPSJFT

%PMCZFJMTJNCPMPEFMMBEPQQJB%TPOPNBSDIJEJ%PMCZ-BCPSBUPSJFT

MBGVO[JPOF&OFSHZ4BWFS3JTQBSNJPFOFSHFUJDPDPOTFOUFEJ

JMTFOTPSFEFM57SJMFWBMJMMVNJOB[JPOFEFMMBNCJFOUFFSFHPMB

1FSMFVOJUËIPNFUIFBUSFDIFEJTQPOHPOPEFMMBGVO[JPOF

GVO[JPOBDPSSFUUBNFOUFEJTBUUJWBSFFSJBUUJWBSFMBMJNFOUB[JPOF1FS

WPCTPUUPUJUPMJ%7%UTUQNUTTPUUPUJUPMJ%7#NQ

Programme coverage VHF, UHF C-Band, Ku-Band VHF, UHF VHF: E2 to E12, UHF : E21to E69, CATV: S1 to S20, HYPER: S21 to S47 Maximum number of storable programmes 6,000 1,500 External antenna impedance 75 Ω

• Only DVB-T2/C/S2 support models. 3D supported mode (Only 3D models) Video, which is input as below media contents is switched into the 3D screen automatically. The method for 3D digital broadcast may dier depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images. Input Signal Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Playable 3D video format HDMI 720p 1280 x 720

Side by Side(half), Top and Bottom

Side by Side(half), Top and Bottom

Side by Side(half), Top and Bottom

Side by Side(half), Top and Bottom, Single frame sequential

Video output ports on DVD player Y P

(Only 50 Hz / 60 Hz)S-3 Regulatory LG Recycling Policy (Only EU) LG Electronics oers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment. For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/environment/take-back- recycling Energy Saving Energy eciency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched: tTurning the television o at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday, tPutting the television into standby mode, will reduce energy consumption, but will still draw some power, tReducing the brightness of the screen will reduce energy use. Disposal of waste batteries (Applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualied service sta only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local authority, your household waste disposal service or the shop where you purchased the product. Isolator (Only Sweden, Norway) t“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a re hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)” t“Utrustning som är kopplad till skyddsjord via jordat vägguttag och/eller via annan utrustning och samtidigt är kopplad till kabel-TV nät kan i vissa fall medföra risk för brand. För att undvika detta skall vid anslutning av utrustningen till kabel-TV nät galvanisk isolator nnas mellan utrustningen och kabel-TV nätet.” t“Utstyr som er koplet til beskyttelsesjord via nettplugg og/eller via annet jordtilkoplet utstyr - og er tilkoplet et kabel-TV nett, kan forårsake brannfare. For å unngå dette skal det ved tilkopling av utstyret til kabel-TV nettet installeres en galvanisk isolator mellom utstyret og kabel-TV nettet.”S-4 EU ecolabel (Only EU ecolabel applied model) Better for the environment... tHigh Energy Eciency tReduced CO2 emissions tDesigned to facilitate repair and recycling ... better for you. EU Ecolabel : PL/22/004 LGE announced the ‘LG Declaration for a Cleaner Environment ‘in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertaike Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specically develop our products to embrace the Concept of environment- friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features. The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu Restriction of Hazardous Substances (Only Ukraine) Обмеження України на наявність небезпечних речовин tThe equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment. tУстаткування відповідає вимогам технічного регламенту щодо обмеженного використання небезпечних речовин в електричному і електронному обладнанні. Packing Information (Only Russia, Kazakhstan, Belarus)
