USER MANUAL DW80H9930US SAMSUNG

imagine the possibilities Thank you for purchasing this Samsung product. DW80H997 Series

DW80H993 Series DW80H9950-00149A-04_EN_141224.indd 1 DD68-00149C-04English - 2

SETTING UP YOUR DISHWASHER

6 Unpacking your dishwasher

7 Meeting installation requirements

USING YOUR DISHWASHER

15 Adjusting the angle of the plate supports

16 Adjusting the height of the upper rack

16 Loading the lower rack

17 Loading the upper rack

(cutlery) rack (for some

CLEANING AND MAINTAINING YOUR DISHWASHER

22 Cleaning the exterior

22 Cleaning the interior

22 Cleaning the nozzles

23 Cleaning the fi lter

23 Storing your dishwasher

29 Helping the environment

DW80H9950-00149A-04_EN_141224.indd Sec9:2DW80H9950-00149A-04_EN_141224.indd Sec9:2 2014-12-24  6:04:172014-12-24  6:04:17English - 3 safety information

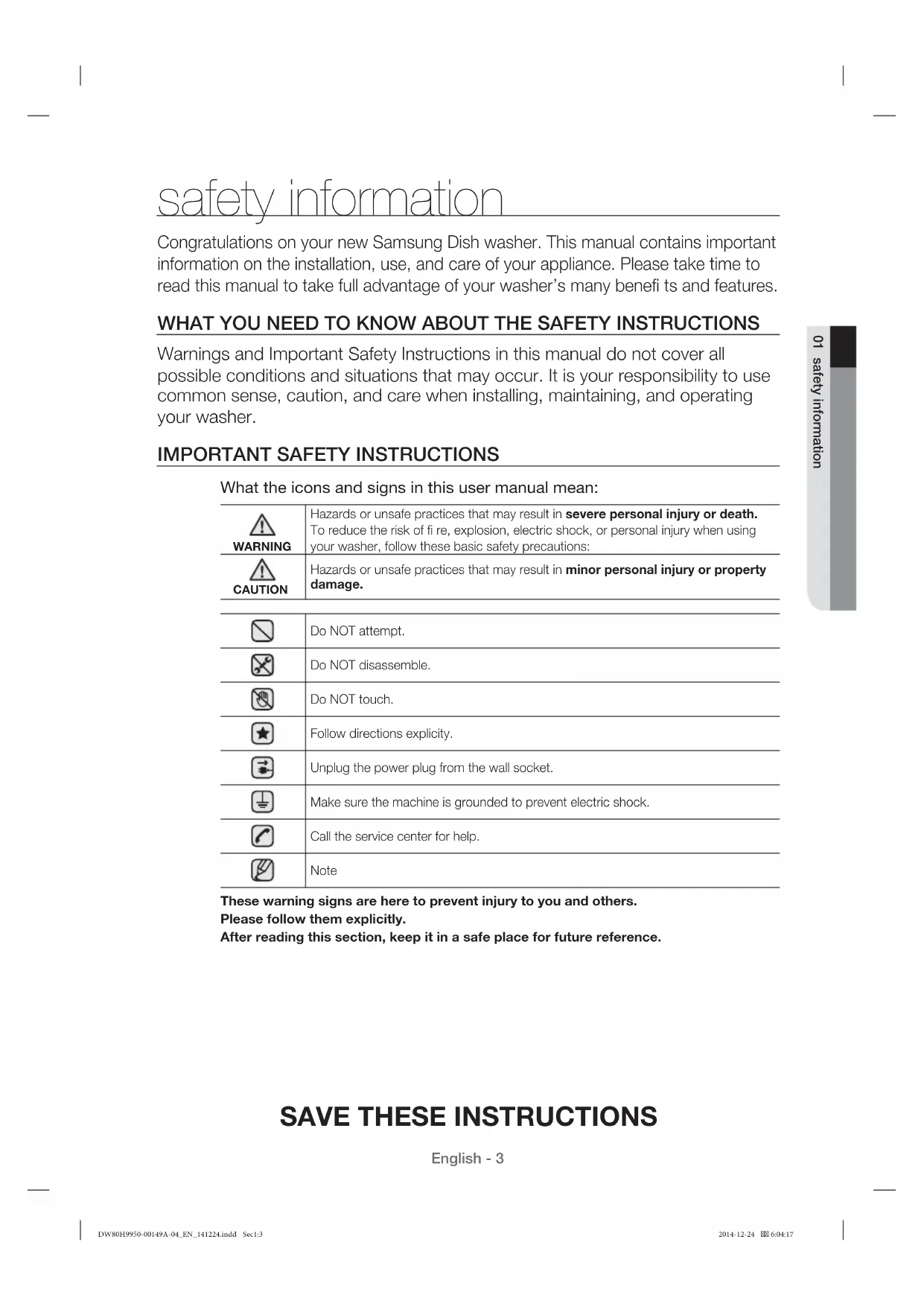

Congratulations on your new Samsung Dish washer. This manual contains important

information on the installation, use, and care of your appliance. Please take time to

read this manual to take full advantage of your washer’s many benefi ts and features.

WHAT YOU NEED TO KNOW ABOUT THE SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all

possible conditions and situations that may occur. It is your responsibility to use

common sense, caution, and care when installing, maintaining, and operating

IMPORTANT SAFETY INSTRUCTIONS What the icons and signs in this user manual mean: WARNINGHazards or unsafe practices that may result in severe personal injury or death.To reduce the risk of fi re, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:CAUTIONHazards or unsafe practices that may result in minor personal injury or property damage.Do NOT attempt.Do NOT disassemble.Do NOT touch.Follow directions explicity.Unplug the power plug from the wall socket.Make sure the machine is grounded to prevent electric shock.Call the service center for help. Note These warning signs are here to prevent injury to you and others.Please follow them explicitly.After reading this section, keep it in a safe place for future reference. SAVE THESE INSTRUCTIONS 01 safety information DW80H9950-00149A-04_EN_141224.indd Sec1:3DW80H9950-00149A-04_EN_141224.indd Sec1:3 2014-12-24  6:04:172014-12-24  6:04:17English - 4

WARNING : When using your dishwasher, follow basic precautions, including the following:

1. Read all instructions before using the dishwasher.

2. Use the dishwasher only for its intended function.

3. Use only detergents or wetting agents recommended for use in a dishwasher and keep them

out of the reach of children.

4. When loading items to be washed:

- locate sharp items so that they are not likely to damage the door seal, and

- load sharp knives with the handles up to reduce the risk of cut-type injuries.

5. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For

plastic items not so marked, check the manufacturer’s recommendations.

6. Do not touch the HEATING ELEMENT during or immediately after use.

7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

8. Do not tamper with controls.

9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

10. To reduce the risk of injury, do not allow children to play in or on a dishwasher.

11. Under certain conditions, hydrogen gas may be produced in a hot-water system that has

not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water

system has not been used for such a period, before using the dishwasher turn on all hot-

water faucets and let the water fl ow from each for several minutes. This will release any

accumulated hydrogen gas. As the gas is fl ammable, do not smoke or use an open fl ame

12. Remove the door to the washing compartment when removing an old dishwasher from

service or discarding it.

This product contains chemicals known to the State of California to cause cancer and

reproductive toxicity.

• After unpacking the dishwasher, keep the packaging out of the reach of children.

• The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by

yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.

• As with any equipment using electricity, water, and moving parts, potential hazards exist.

• Do not install the dishwasher near electrical components. Keep the dishwasher away from

• Install and level your dishwasher on an uncarpeted fl oor that can support its weight.

• Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See

page 7 for more information on grounding your dishwasher.

• Connect the ground wire to the green ground connector in the terminal box.

• After the dishwasher is installed, check that the drain hose is properly connected and

that there is no leakage from the hose connectors. If the drain hose is loose, it may cause

• The water supply line is susceptible to breakage. As time goes by, it becomes less fl exible.

Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it

• To safely operate this appliance, familiarize yourself with its operations and exercise care

when using it. WARNINGWARNINGCAUTION SAVE THESE INSTRUCTIONS

DW80H9950-00149A-04_EN_141224.indd Sec1:4DW80H9950-00149A-04_EN_141224.indd Sec1:4 2014-12-24  6:04:172014-12-24  6:04:17English - 5 • Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.• Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.• Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.• Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.• Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.• Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs, and modifi cations are permitted by authorized service technicians only. Work done by an unauthorized person may void your warranty.• Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals cannot get trapped inside.• If the dishwasher is left unused for an extended period of time, turn off the water supply.• This dishwasher is intended for residential use only.

BEFORE USING YOUR DISHWASHER WARNING Tip-Over Hazard- Do not use the dishwasher until it is correctly installed.- Do not push down on an open door.- Do not place excessive weight on the open door.Electric Shock HazardFailure to follow these instructions can result in death, fi re, or electric shock:- Electrically ground the dishwasher- Connect the ground wire to the green ground connector in the junction box.- Do not use an extension cord.WARNING SAVE THESE INSTRUCTIONS

01 safety information

DW80H9950-00149A-04_EN_141224.indd Sec1:5DW80H9950-00149A-04_EN_141224.indd Sec1:5 2014-12-24  6:04:172014-12-24  6:04:17English - 6

setting up your dishwasher

Be sure to have your installer follow these instructions closely so that your new

dishwasher works properly and that you’re not at risk of injury when washing

UNPACKING YOUR DISHWASHER

• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage.

If the dishwasher has been damaged, make note of it on the waybill and keep a copy.

Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.

• If there is no damage to the product, you can proceed with the installation. If you are going to install it

yourself, make sure to read through the installation guide and follow the directions inside.

• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

CHECKING PARTS When your dishwasher has been unpacked, make sure you’ve received all the parts shown below.

If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung

Customer Service at 1-800-SAMSUNG (726-7864)

Accessory parts - User/Installation manual, Installation Kit, Drain Hose, Holder Drain Hose,

Hose Clamp, Kick Plate.

Lower rackUpper rack Upper nozzle Door

Base Top nozzleDispenserLower nozzleWater refl ectorControl panelVapor vent cover DW80H9950-00149A-04_EN_141224.indd Sec3:6DW80H9950-00149A-04_EN_141224.indd Sec3:6 2014-12-24  6:04:182014-12-24  6:04:18English - 7

MEETING INSTALLATION REQUIREMENTS Electrical supply and grounding

To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be

done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and

local codes and ordinances. It is the personal responsibility of the appliance owner to provide

adequate electrical service for this appliance.

Never use an extension cord.

When preparing for installation, ensure that your power supply provides:

• An individual 120 Volt, 60Hz branch circuit serving only your dishwasher with a 15 AMP fuse

Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding

will reduce the risk of electric shock by providing a path of least resistance for the electric

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

GROUNDING INSTRUCTIONS For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an

equipment-grounding conductor must be run with the circuit conductors and then connected to

the equipment-grounding terminal or lead on the appliance.

The hot water supply line pressure must be between 20 ~ 120 psi (140 ~ 830 kPa).

Adjust the water heater to deliver water between 120 ˚F (49 ˚C) ~ 149 ˚F (65 ˚C).

Most plumbing supply stores sell water supply lines of various lengths up to 10 feet

You can reduce the risk of leaks and water damage by:

• Making water faucets easily accessible.

• Turning off faucets when the dishwasher is not in use.

• Periodically checking for leaks at water supply line fittings.

Before using your dishwasher for the first time, check all connections at the water supply valve

and faucets for leaks.

For safety, your dishwasher must be installed on a solidly constructed fl oor.

Never install your dishwasher on a platform or poorly supported structure.

Your dishwasher must be properly installed in accordance with the Installation Guide before you use it.

If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website

at www.samsung.com. CAUTIONWARNINGWARNING 02 setting up your dishwasher

DW80H9950-00149A-04_EN_141224.indd Sec3:7DW80H9950-00149A-04_EN_141224.indd Sec3:7 2014-12-24  6:04:192014-12-24  6:04:19English - 8

using your dishwasher

WARNING: To reduce the risk of fi re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

CONTROL PANEL DW80H997 / DW80H995 Series

When you press the Power button, the light of the most recently fi nished

cycle turns on. When the cycle you selected has fi nished, all other indicator

lights are turned off and the "End" light is illuminated for some minutes.

Then, the Power turns off automatically.

Select the appropriate wash cycle depending on the soil level of your dishes.

After you select a cycle, the Cycle On light for that cycle lights.

Also, the Upper and Lower zone lights turn on by default.

If you want to change the cycle once it has started, press the Reset

button and turn off the dishwasher. Then, turn on the dishwasher again

and select a new cycle.

The default cycle is Normal.

When turning on the dishwasher after it has been reset, the last run

cycle is selected by default.

Select this option to clean the dishwasher TUB. Run with the dishwasher

empty. The Upper and Lower options are turned off by default.

When you select Upper, only the upper rack nozzle is activated.

The lower nozzle will not operate.

Use this feature to wash a small load of dishes or glasses placed in the upper

When you select Upper, place dishes, glasses, etc. in the upper rack

only. The dishwasher will not wash items placed in the lower rack.

Selecting Upper reduces both the cycle time and the amount of electricity

consumed. WARNING DW80H9950-00149A-04_EN_141224.indd 8DW80H9950-00149A-04_EN_141224.indd 8 2014-12-24  6:04:192014-12-24  6:04:19English - 9

When you select Lower (Lower Rack - Only), only the lower rack nozzle is

activated. The upper nozzle will not operate.

Use this feature to wash a small load of dishes or glasses placed in the lower

When you select Lower (Lower Rack - Only), place items, glasses, etc.

in the lower rack only. The dishwasher will not wash items placed in the

Selecting Lower (Lower Rack - Only) reduces both the cycle time and the

amount of electricity consumed.

If you want to wash heavily soiled items such as pots and pans, select

the Zone Booster option. (This option consumes slightly more water

Select Zone Booster L option: Applies intensive washing power to the

left part of the lower rack.

Select Zone Booster R option: Applies intensive washing power to the

right part of the lower rack.

Select both Zone Booster L & R options: Applies intensive washing

power to the whole lower rack.

Selecting a Zone Booster option does not turn off the Upper Nozzle.

Select this option to reduce washing time.

With the Sanitize option selected, the water temperature is increased to

162˚F (72 ˚C) in the fi nal rinse cycle for high temperature sanitization.

If you select the Sanitize option, the "Sanitize" lamp blinks when the water

temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and then

remains illuminated until the Sanitize option ends. When you open the door

or press the Power button, the "Sanitize" lamp turns off.

You cannot select the Sanitize option if you select the Delicate cycle.

The Sanitize feature operates in accordance with NSF/ANSI Standard

184 for Residential Dishwashers. Certifi ed residential dishwashers are

not intended for licensed food establishments. Your dishwasher is NSF Certifi ed.

The cycle that is NSF certifi ed is the Normal Cycle with the Sanitize option

Use this option when you want to dry your dishes more completely.

The temperature rises to 162 ˚F (72 ˚C) in the fi nal rinse cycle and dry time is

If you select the this option, electricity consumption is increased.

The next time you use the dishwasher, the Dry+ option will be selected

automatically and applied to the next cycle. You can turn off the Dry+ option

by pressing the Dry+ button.

You cannot select the Dry+ option if you select the Delicate cycle.

*Child Lock : This option allows you to lock the buttons on the control panel -

except the Power button - so children cannot accidently start the dishwasher

by pressing the buttons on the panel. Only the Power button remains active.

To lock or unlock the buttons on the control panel, press and hold the

Dry+/Child Lock button for three (3) seconds.

- When the Power is On : Press and hold the "Dry+/Child Lock" button for

- When the Power is Off : Push the Power button fi rst, and then press and

hold the "Dry+/Child Lock" button for three (3) seconds.

remains active until you turn it off. You cannot select cycles or

Displays cycle time and remaining hours and minutes, Delay Start hours, and

If a problem occurs during operation, an information code appears with a

Turns on if the Child Lock is set (or the dishwasher is in the standby or

- Turns off while the dishwasher is operating.

- When Child Lock is on, the Child Lock indicator blinks for several

seconds if any button except the Power button is pressed.

Self Clean indicator (for some models)

- Turns on when the Self Clean option is enabled (or the dishwasher is

in the standby or pause modes), but turns off while the dishwasher is

- Blinks for 5 seconds every 20 to 22 cycles.

- The cycle counter disappears when the Self Clean operation is

complete or when the dishwasher reaches the 23rd cycle without the

Self Clean cycle being used. (The Reset or Self Clean operation is not

counted by the cycle counter.)

Rinse Refi ll indicator

- Turns on if the dishwasher runs out of rinse aid (or the dishwasher is in

the standby or pause modes).

- Turns off while the dishwasher is operating.

using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 10DW80H9950-00149A-04_EN_141224.indd 10 2014-12-24  6:04:202014-12-24  6:04:20English - 11

Lack of salt indicator (*applicable models only)

rns on when the water softener runs out of salt. (or the dishwasher is

in the standby or pause modes.)

- Turns off while the dishwasher is operating.

Delay a cycle for up to 24 hours in one-hour increments. To increase the delay

start time, press or hold the Delay Start button. The hour displayed indicates

the time at which the wash will be started.

- After setting the delay time, press the Start button, and then close the

door to start the cycle.

- If you want to change the delay time once the dishwasher has started,

press the Reset button and turn off the dishwasher. Then, turn on the

dishwasher again and select a new cycle with a new delay setting.

To start a cycle, press the Start button before closing the door.

*Reset : To cancel a currently running cycle and drain the dishwasher, press

and hold the Start button for three (3) seconds.

Once the dishwasher is reset, select a cycle and option, and then press Start

to restart the dishwasher.

You can select options (Self Clean, Upper, Lower, Speed Booster, Sanitize, Dry+, Delay Start) before

starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.

To prevent the touchpad from losing response sensitivity, follow these instructions:

- Touch the center of each keypad using one fi nger. Do not push.

- Clean the touch control’s surface regularly with a soft, damp cloth.

- Be careful not to touch more than one touch key pad at a time, except as directed.

When you pause a cycle by opening the door during operation, press the Start button before closing

the door to continue the cycle.

03 using your dishwasher

using your dishwasher

CYCLE SELECTOR 1 2 3 4 5 1

This cycle detects the level of soil and automatically initiates the optimal cycle

after a few minutes of operation.

Use this cycle for normally soiled dishes.

The energy-usage label is based on this cycle.

Heavy Use this cycle for heavily soiled dishes.

Use this cycle for soiled fragile items such as glasses.

You cannot select the Zone Booster, Dry+, or Sanitize option if you select

Use this cycle when you need to wash dishes quickly. It takes about 1 hour.

When the dishwasher is in a wash portion of a cycle, the fi rst

arrow light is illuminated and the remaining time is displayed.

When the dishwasher is in a rinse portion of a cycle, the

second arrow light is illuminated and the remaining time is

When the dishwasher is in a drying portion of a cycle, the third

arrow light is illuminated and the remaining time is displayed.

After the dishwasher has completed all portions of a cycle, all

other indicator lights are turned off.

The dishwasher chimes and End is displayed for several

When the dishwasher starts a cycle, the light that corresponds to the current operation turns on to

show the progress of the cycle.

On DW80H993 series dishwashers, the Pocket LED lights when the dishwasher operates.

DW80H9950-00149A-04_EN_141224.indd 12DW80H9950-00149A-04_EN_141224.indd 12 2014-12-24  6:04:202014-12-24  6:04:20English - 13

1. Open the door and load your dishes (see page 16 ~ 19).

- Place dishes into the upper and lower racks, unless you have selected the Upper or Lower

(Lower Rack - Only) option.

- Remove any food remains from the dishes before placing them in the rack(s).

- After placing the dishes into the racks, turn the upper nozzles to make sure none of the dishes will

block nozzle rotation.

- Make sure the dishes will not prevent the detergent dispenser from opening.

2. Add detergent to the dispenser (see page 20).

- Make sure to use only automatic dishwasher detergent.

- Refer to "Using detergent" on how to add detergent.

3. Press the Power button.

- When you press the Power button, the cycle light of the most recently fi nished cycle lights up.

- If "Rinse Refi ll" Indicator is illuminated, you should refi ll the rinse aid dispenser to improve washing

and drying performance.

4. Select an appropriate cleaning cycle depending on the soil level of the dishes. (see pages 12 and 24).

- Press the appropriate Cycle button.

- When you press a Cycle button, the cycle indicator light is illuminated.

- For information about selecting a cycle according to the soil level of the dishes, see "Cycle

5. Press the Start button, and then close the door.

- Push the racks back so that they are in place, and then press the Start button and close the door.

- Make sure to close the door fi rmly. If the door is slightly ajar, the selected cycle will not start

- The dishwasher will start draining after a few seconds, and then start the cycle you selected.

6. When the wash cycle is completed.

- The "End" light illuminates and the dishwasher sounds a chime.

- The power is automatically turned off after a few minutes.

If you want to load more dishes or pause the dishwasher while it is already running, make sure to open

the door slowly and carefully as there is a possibility of injury from the hot steam or water inside the

(If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the

cycle.) To resume operation, press the Start button, and then close the door.

Note that adding dishes several minutes after the dishwasher started operating may affect the

You should use rinse aids for better drying performance. You can further improve drying performance

by also selecting the Dry+ option. CAUTION 03 using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 13DW80H9950-00149A-04_EN_141224.indd 13 2014-12-24  6:04:202014-12-24  6:04:20English - 14

Touch controls allow you to operate the dishwasher easily.

• They are convenient to operate, requiring only a soft touch.

• Have a simple and stylish design.

• Are easy to clean.

If you have children or you want to clean the Control Interface, we recommend activating

the Child Lock feature to lock the control buttons.

- Children will not be able to accidently start the dishwasher by touching the controls with

this option selected.

- If a cycle is running, the buttons will not respond. (except the Power button and

ChildLock & Reset options)

- If dishwasher is off, only the Power button responds.

When you select the Delay Start option, your dishwasher will begin the selected cycle when the

The Water Refl ector Interference Alarm:

• The water refl ector interference feature automatically detects obstacles in the tub. If it detects

an obstacle, the display blinks and the dishwasher chimes for several minutes. If an obstacle

is detected at the end a cycle, End blinks for several minutes.

• Remove any obstacles in the bottom of the dishwasher.

The Setting Mode lets you change the dishwasher's sound setting and LED brightness setting.

To enter the Setting mode, press the Delay Start + Sanitize buttons for 3 seconds while

the dishwasher is on. Press the Sanitize button to select a sub-setting menu and press the

Delay Start button to change a setting.

- Sound Setting: Press the Sanitize button until "S on" or "SoFF" is displayed. To change

the setting, press the Delay Start button. "SoFF" means that the sound is off for all cycles.

The dishwasher maintains the Sound Setting you have selected until you change it.

- Pocket LED Brightness Setting: Press the Sanitize button until "B0 ~ B5" is displayed.

The higher the number, the brighter the LEDs. To change the setting on an H9930 series

dishwasher, press the Delay Start button.

When using the dishwasher, try to arrange the dishes properly as described on page 16.

• You should remove food remains such as bones, fruit seeds, etc. and any other waste such

as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create

noise, or cause the dishwasher to malfunction.

• Select the appropriate cycle depending on the level of soil and the type of dishes.

• Use only the proper amount of detergent and rinsing agent.

Do not wash the following items

• Acrylic or Aluminum items: Acrylic and aluminum items can discolor dishes with printed

gold rim decoration and mar other items.

• Dishes treated with adhesive: Treated plastics can come apart. Wood, ivory, copper, and tin

glued to dishes can come loose.

• Plastics with a temperature tolerance less than 194 ˚F (90 ˚C): Thin plastics wash and dry

poorly, and may be damaged by elevated wash temperatures.

• Tin: Tin should be washed by hand and dried immediately as it can rust.

• Wooden utensils: Wooden items can crack. WARNINGWARNING using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 14DW80H9950-00149A-04_EN_141224.indd 14 2014-12-24  6:04:202014-12-24  6:04:20English - 15

ADJUSTING THE ANGLE OF THE PLATE SUPPORTS You can adjust the angle of the tines in the upper rack to three different positions to match the size and

shape of your dishes. To adjust the tines, grasp the handle at the back of the rack, and then push it left or

right. See the illustration below.

In the lower rack, you can easily fold down the fold-down tines to make room for large items such as pots

and pans. Remove the rack from the dishwasher, and then fold down the tines one at a time. See the

DW80H9950-00149A-04_EN_141224.indd 15DW80H9950-00149A-04_EN_141224.indd 15 2014-12-24  6:04:202014-12-24  6:04:20English - 16

ADJUSTING THE HEIGHT OF THE UPPER RACK You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can

accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can

accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to

8 in. (20 cm) in diameter.

1. To lower the upper rack by 2 in. (5 cm), pull

the adjust handles located at the left and

right sides of the upper rack, and then push

the upper rack downwards slightly at the

2. To raise the upper rack, just pull the upper

rack upwards. The adjuster handle will latch

and the upper rack will move to the high

We recommend adjusting the height of

the upper rack before loading dishes into

the rack. If you adjust the the rack after

loading the dishes, you may damage the

dishes. If you do not adjust with left and right handle together, the dishwasher door may not close

Pull out the upper rack from the tub until it is fully revealed before adjusting the upper rack.

LOADING THE LOWER RACK Load cookware (pots, pans, etc.), up to 12 in. (30 cm) in diameter into the lower rack. The lower rack has

been especially designed for dinner dishes, soup bowls, plates, pots, lids, and casserole dishes.

Load your plates into the center column of the rack so that their top sides face each other. Load large items

such as pans and pots into the dishwasher so their inner cavities face downwards. We recommend loading

cups, stemware, and small plates into the upper rack.

See the recommended loading patterns below.

8 place setting 10 place setting 12 place setting CAUTION using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 16DW80H9950-00149A-04_EN_141224.indd 16 2014-12-24  6:04:212014-12-24  6:04:21English - 17

Loading large items into the Zone Booster Areas

You can load large items such as pots and pans into the left

and/or right sides of the lower rack - the Zone Booster areas -

for more effective cleaning. When you select the Zone Booster

option, an additional, powerful jet is activated and directed at

items in the Zone Booster areas. Make sure pot handles and

other items do not interfere with the rotation of the nozzles and

the water refl ector.

LOADING THE UPPER RACK The upper rack has been designed for small plates, mugs, glasses, and plastic items marked "dishwasher

safe". Load your plates into the dishwasher so that their top sides face each other.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom

of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out suffi ciently so you can load it without striking the counter

8 place setting 10 place setting 12 place setting

Using the glass support

You can load cups or glasses onto the glass support. This is also

very convenient for washing wine glasses. Hang your wine glasses

onto the pegs of the glass support.

You can fold the glass support back when it is not being used.

03 using your dishwasher

(CUTLERY) RACK (FOR SOME MODELS)

Loading the cutlery rack

<Place items randomly or regularly.>

In addition to the standard cutlery basket in the lower rack, some models come with a cutlery rack.

The cutlery rack is best suited for fl atware and cooking or serving utensils. You can place cutlery and

utensils randomly or regularly on the cutlery rack.

Heavily soiled utensils or items with baked on foods should be placed in the lower cutlery basket for

the most effective cleaning.

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

Loading the cutlery pad

<Place items randomly or regularly.>

Some models come with a removable, foldable cutlery pad along with a cutlery rack. To use,

place the pad on the cutlery rack. and then place cutlery and serving and cooking utensils on the

pad in a random or regular fashion. After a wash cycle is complete, and the cutlery and utensils

are dry, you can fold the pad and carry the cutlery and utensils in the pad to their storage

Use caution when folding and moving the rack with a long thin item inside the pad.

The item may fall out in this process, causing physical injury.

It is advisable not to move the pad while it is wet.

Wait until the pad is dry.

The pad dries quickly after a wash cycle when exposed to

air for a few minutes. WARNING using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 18DW80H9950-00149A-04_EN_141224.indd 18 2014-12-24  6:04:272014-12-24  6:04:27English - 19

USING THE CUTLERY BASKET The cutlery basket consists of two compartments.

You can place each knife, spoon, or fork separately into the cutlery stands

in the basket’s covers to prevent chipping and discoloration.

DO NOT let any item extend through the bottom.

Serving spoons and Serving forks

8 place setting 10 place setting 12 place setting

The cutlery stands as seen from above with the suggested placement of cutlery items. Match the numbers

in the diagram to the numbers in the list of cutlery items above.

You can use the cutlery basket with the covers open.

Refer to the illustration to the right.

03 using your dishwasher

1 3 42 5 Salad fork, Tea spoonDinner fork, Dinner spoon DW80H9950-00149A-04_EN_141224.indd 19DW80H9950-00149A-04_EN_141224.indd 19 2014-12-24  6:04:272014-12-24  6:04:27English - 20

USING DETERGENT All dishwasher cycles require detergent in the detergent compartment.

Add the correct amount of detergent for the selected cycle to ensure the best performance.

Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the

dishwasher’s performance or cause it to malfunction.

Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains

irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed

dishwasher detergent or inhaled the fumes, seek medical attention immediately.

Keep dishwasher detergent out of the reach of children.

Filling the detergent dispenser

1. Open the detergent dispenser fl ap by pushing the detergent

dispenser release catch.

The fl ap is always open at the end of a dishwashing cycle.

2. Add the recommended amount of detergent to the main

wash detergent compartment.

3. Close the fl ap by sliding it to the left and then pressing it

4. For better cleaning result, especially if you have very dirt

items, pour a small amount (about 1/2 of an ounce or 15g)

of detergent onto the door.

The additional detergent will activate during the pre-wash

phase. CAUTIONWARNINGWARNING using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 20DW80H9950-00149A-04_EN_141224.indd 20 2014-12-24  6:04:312014-12-24  6:04:31English - 21

The cover opens automatically to dispense the detergent during the wash. CYCLEAMOUNT OF DETERGENTMain wash dispenser Onto the door for pre-washAuto, Normal 3/4 oz (20 g) 1/3 oz (10 g)Heavy, Express 60' 1 oz (30 g) 1/2 oz (15 g)Delicate 3/4 oz (20 g) 1/5 oz (5 g) The numbers inside the dispenser refer to grams.

USING RINSE AID Filling the rinse aid reservoir

When the Rinse Refi ll indicator lights up on the control panel, refi ll with rinse aid.

Your dishwasher has been designed to use liquid rinse aid only.

Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to

Rinse aid improves the drying performance of the dishwasher.

Do not add regular detergent to the rinse aid reservoir.

1. Remove the rinse aid reservoir cap by rotating it

2. Fill the rinse aid reservoir with rinse aid.

Use the viewing port when fi lling the rinse aid reservoir.

Do not fi ll the reservoir above the full level indicator.

Excess rinse aid can overfl ow during the wash cycle.

3. Turn the rinse aid indicator dial to a number between 1 and

6. The higher the number, the more rinse aid the dishwasher

uses. If you are unable to rotate the rinse aid dial easily, try

4. Close the rinse aid reservoir cap by rotating it clockwise. CAUTIONCAUTION 03 using your dishwasher

DW80H9950-00149A-04_EN_141224.indd 21DW80H9950-00149A-04_EN_141224.indd 21 2014-12-24  6:04:312014-12-24  6:04:31English - 22

cleaning and maintaining your

Keeping your dishwasher clean improves its performance, reduces unnecessary

repairs, and lengthens its life.

CLEANING THE EXTERIOR It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the

control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or

alcohol. These materials may discolor the door panel and other outer surfaces and cause stains. Do not

clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the

If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for

Home Appliances or similar product using a clean, soft cloth.

CLEANING THE INTERIOR Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of

the dishwasher and the inner part of the door with a wet dishcloth. We recommend fi lling the detergent

dispenser with dishwasher soap, and then running the dishwasher empty periodically using the Self Clean

option. To keep the cutlery pad clean, turn it over. This will keep your dishwasher clean.

If white spots and odor are still present in your dishwasher, run the Self Clean option with the dishwasher

empty and without detergent until it fl ushes. Then, interrupt the cycle and put an 8 ounce cup of white

vinegar into the lower basket. Close the dishwasher and let the cycle fi nish.

Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).

CLEANING THE NOZZLES If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean

each of the nozzles. When removing the nozzles, take care as they may break.

1. Pull the upper rack towards the front

2. Check whether the nozzle holes are

clogged by food particles.

3. If cleaning is needed, remove the nozzle.

4. To remove the nozzle, unfasten and remove

the nut, and then remove the nozzle.

5. Clean the nozzle, re-insert it, and fasten the

6. When fastening the nut, turn it fi rmly by

7. Check whether the nozzle is engaged

correctly by rotating it by hand. CAUTION DW80H9950-00149A-04_EN_141224.indd Sec5:22DW80H9950-00149A-04_EN_141224.indd Sec5:22 2014-12-24  6:04:322014-12-24  6:04:32English - 23

1. Check whether the nozzle holes are

clogged by food particles.

2. If cleaning is needed, remove the nozzle.

3. To remove the nozzle, pull out the upper

rack fi rst, unfasten the nozzle cap by turning

it counterclockwise, and then remove the

4. Clean the nozzle, re-insert it, and then

fasten the nozzle cap to the nozzle by

turning the cap clockwise.

5. Check whether the nozzle is engaged

correctly by rotating it by hand.

1. Remove the lower rack fi rst.

2. Rotate the fi lter handle counterclockwise to unfasten the fi lter

3. Remove the fi lter door, and then the

fl at micro fi lter underneath.

4. Remove any dirt or other remains

from the micro fi lter and the fi lter door,

and then rinse them under running

5. Re-install the fl at micro fi lter, and then the fi lter door.

6. Rotate the fi lter door handle clockwise to lock the fi lter door.

Once a month, clean the fi lter for better washing performance.

If the fi lter door does not close properly, cleaning performance will be decreased.

STORING YOUR DISHWASHER If you need to store your dishwasher for an extended period of time, fi rst drain and disconnect it. If you

leave water in the hoses and internal components, you can damage the dishwasher.

After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit

breaker. CAUTION 04 cleaning and maintaining

• When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level

• The water consumption and wash time varies depending on the steps or options you add, and on the

pressure and temperature of the supplied water.

• When the Rinse Aid is empty, wash time and Last Rinse temperature can increase a little.

DW80H9950-00149A-04_EN_141224.indd Sec6:24DW80H9950-00149A-04_EN_141224.indd Sec6:24 2014-12-24  6:04:322014-12-24  6:04:32English - 25

CHECK THESE POINTS IF YOUR DISHWASHER…

PROBLEM POSSIBLE CAUSE SOLUTION Will not start.

The door is not closed

Check if the door is latched and closed

completely. Check whether the Upper Rack is

properly joined with Duct Nozzle.

Also, Check imbalance assembly of the Upper

No cycle is selected. Select a proper cycle.

The power cable is not

Connect the power cable properly.

The water supply does not

Check if the water supply valve is open.

The Control Panel is locked. Unlock the child lock, (See page 10.)

A circuit breaker is open. Reset the circuit breaker.

It’s taking too long

Cold water is being supplied. Check if the water supply line is connected to a

hot water supply. (Additional time is required to

PROBLEM POSSIBLE CAUSE SOLUTION There are food

The cycle selected was

Select a cycle according to the number and soil

level of the dishes, as directed in this manual.

The water temperature is low. Connect the water supply line to a hot water

supply. For best performance, the temperature of

the supplied water should be 120 ˚F (49 ˚C).

Low water pressure. The water pressure should be between 20and

120 psi (140 ~ 830 kPa).

The water is too hard. Use a commercial dishwasher cleaner.

Use high-quality, fresh detergent with rinse aid.

Clean the fi lter at least once per month. (See

Use a water softener additive designed for

Dishwasher detergent was not

Use automatic dishwasher detergent.

We recommend a powder or gel type

dishwasher detergent.

Detergent remains in the

Make sure large items such as cookie sheets,

cutting boards, or contaners, etc. are not

blocking the detergent dispenser and preventing

it from opening properly.

Rearrange the dishes so they do not interfere

with detergent dispenser operation.

There is no rinse aid. Check the dispenser and add rinse aid.

Use liquid type rinse aid.

A nozzle is clogged. Clean the nozzle. See pages 22 and 23.

The dishes are improperly

Too many dishes have been

Rearrange the dishes so they do not interfere

with nozzle rotation and detergent dispenser

Load only an appropriate number of dishes.

Load your dishes as recommended.

Filter could be clogged.

(Food soils remain on the fi lter.)

Scrape food from dishes prior to loading. (Do not

Clean the soils and fi lters. (See page 23.)

The water supplied is soft and

too much detergent was used.

Underload the dishwasher and use a rinse aid to

Aluminum dishes were

included in the wash load.

Remove the marks on the dishes using a low

sensitivity cleaner.

This is caused by coffee and

Remove the soils using a spot cleaner.

DW80H9950-00149A-04_EN_141224.indd Sec7:26DW80H9950-00149A-04_EN_141224.indd Sec7:26 2014-12-24  6:04:322014-12-24  6:04:32English - 27

PROBLEM POSSIBLE CAUSE SOLUTION Does not dry

There is no rinse aid in the

Check the dispenser and add rinse aid.

Use a liquid type rinse aid.

The temperature of the water

is low when the dishwasher is

Connect the water supply line to a hot water

Use rinse aid with the Sanitize option.

Too many dishes have been

Proper loading of items can affect drying.

Load your dishes as recommended.

Glasses and cups with

concave bottoms hold water.

This water may spill onto other

items when unloading.

After fi nishing the cycle, empty the lower rack

fi rst and then the upper rack. This will prevent

water dripping from the upper rack onto the

dishes in the lower rack.

Water was left over from an

Insert detergent without loading dishes, and run

the Normal cycle to clean the dishwasher.

The Drain Hose is obstructed. Contact a qualifi ed service technician to remove

any obstruction from the drain hose.

The dishwasher is not used

daily or soiled dishes are left in

With the dishwasher empty and no detergent,

place a glass with 8 ounces of vinegar upright

into the lower rack, and then run a Normal cycle.

Sound is generated when the

dispenser cover is open and

the drain pump is operating in

This is normal operation.

The dishwasher is not level. Ensure the dishwasher is level.

Foreign material (a screw, a

plastic piece) is in the pump

Contact a qualifi ed service technician to remove

foreign material from the pump chamber.

There is a ‘chopping’ sound

because a nozzle is bumping

Rearrange the dishes.

The nozzle hole is clogged

with food particles.

Clean the nozzle hole.

See pages 22 and 23.

The nozzle is blocked by a

dish or pot and cannot rotate.

After placing the dishes into the racks, rotate the

nozzles by hand to check whether any of the

dishes interfere with them.

The drain is clogged. Contact a qualifi ed service technician to remove

any obstruction from the drain hose and drain

hole inside the sump. After that check the drain

The dishes are not loaded

Load your dishes as recommended.

INFORMATION CODES The Control Panel displays information codes to help you understand what is occurring with your

OC Over-level water check

• Functional check. Close the water supply valve and go to your house circuit

breaker panel, set the dishwasher’s circuit breaker switch to off, and then

contact an authorized Samsung service centre.

• If a water supply valve connection leak occurs, close the water supply valve

and go to your house circuit breaker panel, set the dishwasher’s circuit breaker

switch to off, and then contact the installer to fi x.

If the problem continues, contact an authorized Samsung service centre.

4C Water supply check

• Check if the water supply valve is closed, the water supply is suspended, or the

water inlet valve or line is frozen or clogged by foreign particles.

If the problem continues, close the water supply valve, and then contact an

authorized Samsung service centre.

• After closing the water supply valve, check whether the drain hose is clogged or

folded. Also, check whether drain hole inside sump is clogged.

If the problem continues, contact an authorized Samsung service centre.

HC High temperature heating check

• Functional check. With the dishwasher empty, add detergent, and then run a

If the problem continues, go to your house circuit breaker panel, set the

dishwasher’s circuit breaker switch to off, and then contact an authorized

Samsung service centre.

3C Pump operation check

• Functional check. Turn off the dishwasher and try to start it again.

If the problem continues, contact an authorized Samsung service center.

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

HELPING THE ENVIRONMENT

• Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please

observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be

connected to a power source.

• Remove the door so that animals and small children cannot get trapped inside the appliance.

• Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions.

SPECIFICATIONS Model DW80H9970US / DW80H9950US / DW80H9930US Type Built-in Dishwasher Wash capacity 15 place setting

SAMSUNG DISHWASHER LIMITED WARRANTY TO ORIGINAL PURCHASER This SAMSUNG brand product, as supplied and distributed by USA: SAMSUNG ELECTRONICS AMERICA,

INC./CANADA: SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original

carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in

materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor, Five (5) Years Linear Motion Parts*, Printed Circuit Board, Racking (Labor

Charges for in-home service starting from the 2nd year is customer’s responsibility), and Lifetime Stainless

Door Liner & Tub for leakage. Samsung will replace your unit with same or current model (that is better or

equivalent in functionality) (Labor related to replacement is customer’s responsibility).

* Linear Motion Parts: Belt operating AC motor [Motor Geared], Belt V-Timing, Rail, Holder Rail [Front Up,

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States/Canada. To receive warranty service, the purchaser must contact SAMSUNG for

problem determination and service procedures. Warranty service can only be performed by a SAMSUNG

authorized service center. The original dated bill of sale must be presented upon request as proof of

purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service

during the warranty period at no charge, subject to availability within the contiguous United States/Canada.

In home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service

is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specifi ed above. All replaced parts and products become the property of SAMSUNG and must be returned

to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90)

days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;

delivery and installation; applications and uses for which this product was not intended; altered product or

serial numbers; cosmetic damage or exterior fi nish; accidents, abuse, neglect, fi re, water, lightning, or other

acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,

applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG

that damage this product or result in service problems; incorrect electrical line voltage, fl uctuations and

surges; customer adjustments and failure to follow operating instructions, maintenance and environmental

instructions that are covered and prescribed in the instruction book; product removal and reinstallation;

problems caused by pest infestations. This limited warranty does not cover problems resulting from

incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for

instructions, or fi xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of

Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion

or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply

to you. This warranty gives you specifi c rights, and you may also have other rights, which vary from state to

state or province to province.

To obtain warranty service, please contact SAMSUNG at:

In USA Samsung Electronics America, Inc.

85 Challenger Road Ridgefi eld Park, NJ 07660

panier (couverts) (sur

programme incomplet.

85 Challenger Road Ridgefi eld Park, NJ 07660.
