USER MANUAL MV 2 Kärcher

www.kaercher.com/register-and-win 59651030 11/13

Downloaded from www.vandenborre.be4

Please read and comply with

these original instructions

prior to the initial operation of your ap-

pliance and store them for later use or

In accordance with the descriptions

and the safety information in these op-

erating instructions the appliance is in-

tended for use as a multi-purpose vac-

This appliance has been designed for

use in private households and is not in-

tended for commercial use. – Protect the unit from rain. Do not store outside. – This device may not be used to suck in ash and soot.

Please use this appliance only with ac-

cessories and spare parts approved by

The manufacturer is not responsible

for any damages that may occur on ac-

count of improper use or wrong opera-

The packaging material can be

recycled. Please do not place the

packaging into the ordinary re-

fuse for disposal, but arrange for

the proper recycling.

Old appliances contain valuable

materials that can be recycled.

Please arrange for the proper re-

cycling of old appliances. Please

dispose your old appliances using

appropriate collection systems.

Filters and filter bags are made from

environment-friendly materials.

They can therefore be disposed off

through the normal household garbage

provided you have not sucked in sub-

stances that are not permitted to be

thrown into household garbage.

Notes about the ingredients

You will find current information about

www.kaercher.com/REACH The terms of the guarantee applicable

in each country have been published

by our respective national distributors.

We will repair possible faults on your

unit free of charge within the warranty

period, insofar as the faults are caused

by material defects or defective work-

manship. Guarantee claims should be

addressed to your dealer or the near-

est authorized customer service cen-

tre, and supported by documentary ev-

(See address on the reverse)

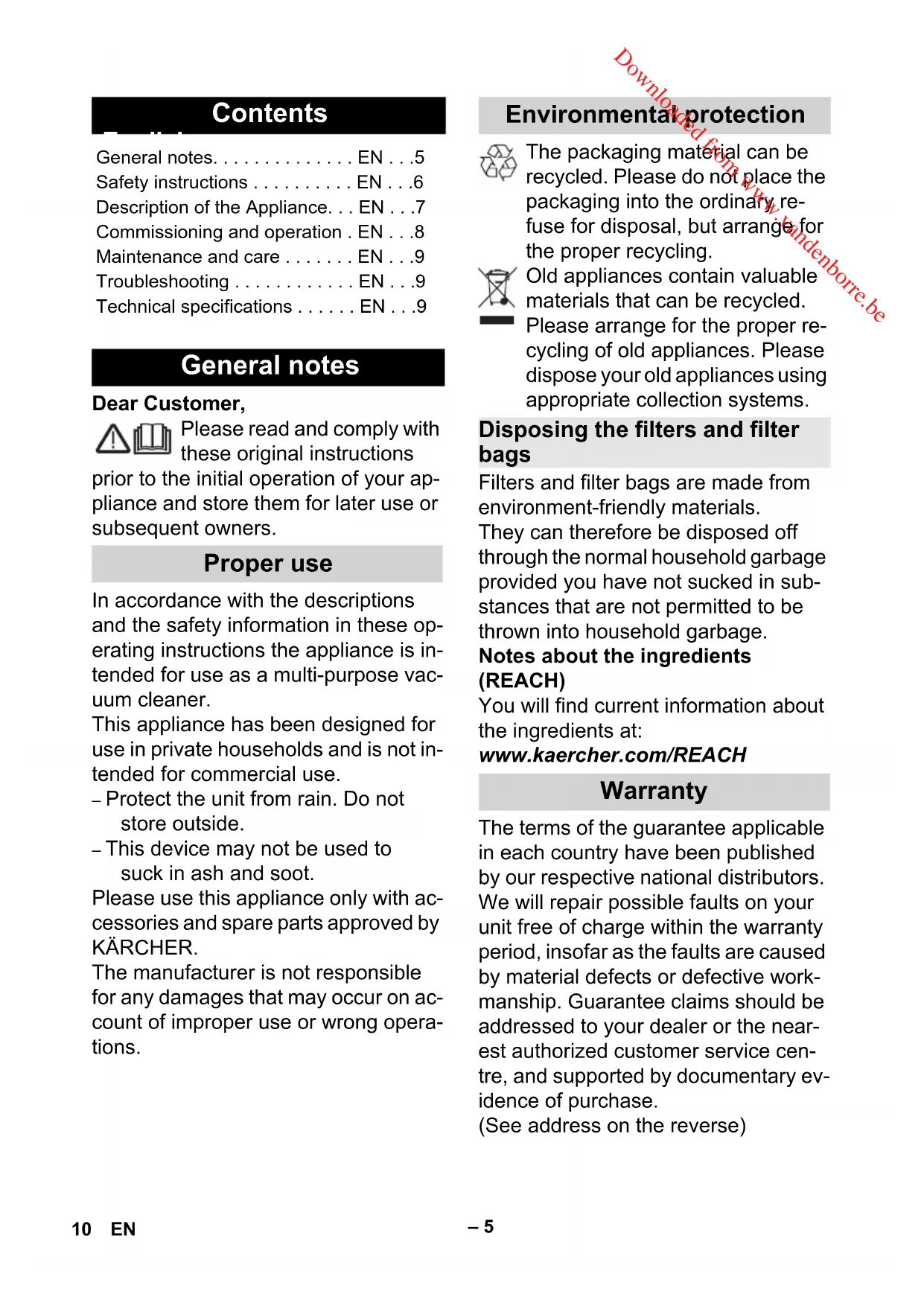

Contents General notes. . . . . . . . . . . . . . EN . . .5Safety instructions . . . . . . . . . . EN . . .6Description of the Appliance. . . EN . . .7Commissioning and operation . EN . . .8Maintenance and care . . . . . . . EN . . .9Troubleshooting . . . . . . . . . . . . EN . . .9Technical specifications . . . . . . EN . . .9 General notes

Environmental protection

Disposing the filters and filter

10 EN Downloaded from www.vandenborre.be– 6

Our KÄRCHER branch will be pleased

to help you further in the case of ques-

At the end of the operating instructions

you will find a selected list of spare

parts that are often required.

You can procure the spare parts and

the attachments from your dealer or

your KÄRCHER branch office. – This appliance is not intended for use by persons with limit-

ed physical, sensory or men-

tal capacities or lacking expe-

rience and/or skills, unless

such persons are accompa-

nied and supervised by a per-

son in charge of their safety

or they have received precise

instructions on the use of this

appliance and have under-

stood the resulting risks. – Children may only use this appliance if they are over the

age of 8 and supervised by a

person in charge of their safe-

ty, or if they have received in-

structions on the use of this

appliance and have under-

stood the resulting risks. – Children must not play with this appliance. – Supervise children to prevent them from playing with the

appliance. – Cleaning and user maintenance must not be performed by chil-

dren without supervision. – Keep packaging film away from children - risk of suffoca-

tion! – Switch the appliance off after every use and prior to every

cleaning/maintenance proce-

dure. – Risk of fire. Do not vacuum up any burning or glowing ob-

jects. – The appliance may not be used in areas where a risk of

explosion is present.

몇 Electrical connection

The appliance may only be con-

nected to alternating current.

The voltage must correspond

with the type plate on the appli-

 Risk of electric shock

Never touch the mains plug and

the socket with wet hands.

Do not pull the plug from the

socket by pulling on the con-

Check the power cord with

mains plug for damage before

every use. If the power cord is

damaged, please arrange im-

mediately for the exchange by

an authorized customer service

or a skilled electrician.

To avoid accidents due to elec-

trical faults we recommend the

use of sockets with a line-side

current-limiting circuit breaker

(max. 30 mA nominal tripping

Ordering spare parts and

explosive vapours or mixtures

when agitated by the suction air!

Never vacuum up the following

materials: – Explosive or combustible gases, liquids and dust parti-

cles (reactive dust particles) – Reactive metal dust particles (such as aluminium, magne-

sium, zinc) in combination

with highly alkaline or acidic

detergents – Undiluted, strong acids and alkalies – Organic solvents (such as petrol, paint thinners, ace-

In addition, these substances

Immediate danger that can

cause severe injury or even

that could lead to severe injury

Possible hazardous situation

that could lead to mild injury to

persons or damage to property.

When unpacking the product, make

sure that no accessories are missing

and that none of the package contents

have been damaged. If you detect any

transport damages please contact your

Illustrations on fold-out

3 Suction hose connection

4 Storage compartment for mains ca-

6 Appliance head with clip closure

7 Storage for suction tubes and ac-

8 Mains cable with mains plug

11 Suction tubes 2 x 0.5 m

12 Floor nozzle with insert for wet and

15 Foam or cartridge filter (installed in

Symbols in the operating

Always work with an inserted

foam or cartridge filter during

wet and dry vacuum cleaning!

Illustration  Remove the appliance head and take accessories out of the contain-

Illustration  Fit the swivel casters on the con- tainer bottom. Insert filter bag if re-

Illustration  Put the appliance head onto the container and lock it.

Illustration  Connect accessories. Note: For vacuuming dry dirt or water

off the floor - always work with the in-

sert (brush strip and rubber lip) in the

Illustration  Connect the mains plug and turn on the appliance.

Only work with a dry foam or

cartridge filter!  For appliances with foam filter: When dry vacuuming, always install

the filter bag in addition to the foam

filter.  For appliances with cartridge fil- ter: To vacuum fine dust, use the fil-

ter bag. – The filling level of the filter bag de- pends on the dirt that is sucked in. – The filter bag needs to be replaced more frequently while sucking in

fine dust, sand, etc. – Clogged filter bags can burst - therefore make sure to replace the

filter bag in a timely manner!

Vacuum cold ashes only when

Order no. basic design: 2.863-139.0,

premium design: 2.863-161.0.

Immediately switch the appli-

ance off or pull the power plug if

foam forms or liquids escape!

Do not use a filter bag!

Note: If the container is full, a float

closes the suction opening, and the ap-

pliance works at a higher speed.

Switch off the appliance immediately,

and empty the container.

Illustration  Turn off the appliance and discon- nect the mains plug.

Illustration  Remove the appliance head and empty the reservoir.

Illustration  Stow away the mains cable and ac- cessory at the machine. Store the

appliance in a dry room.

Attaching the Accessories

Information filter bag

Storing the appliance

13EN Downloaded from www.vandenborre.be– 9

Turn off the appliance and re-

move the mains plug prior to any

care and maintenance work.

Repair works may only be per-

formed by the authorised cus-

Do not use abrasives, glass or

universal cleaners! Never im-

merse the appliance in water.  Clean the appliance and accessory parts made of plastic with a com-

mercial plastic cleaner.  If required, rinse the container and accessories with water properly

and dry them before reuse.

Illustration  When necessary, clean the foam or cartridge filter under running water

only, do not wipe or brush down. Al-

low to dry completely prior to instal-

You can install a cartridge filter instead

of a foam filter.  Prior to installing the cartridge filter, remove the black cover cap and

keep it for later use with the foam fil-

ter.  Insert the cartridge filter and lock it with a bajonet lock.

If the cleaning power of the appliance

deteriorates please check the follow-

ing:  Accessories, suction hose or suc- tion tubes are clogged, please re-

move the obstruction using a stick.  Filter bag is full, install new filter bag.  Foam filter is contaminated, clean it under running water.  Cartridge filter is dirty, knock off dirt from cartridge filter and clean under

running water if necessary.  Replace damaged filter. Subject to technical modifications!

Maintenance and care

Decreasing cleaning power

Technical specifications
