USER MANUAL 49LB620V LG

:LGEAK :LGEKR :LGERS

:LGEAZ :LGEMA :LGESY

:LGEEG :LGEMX :LGETH

:LGEIL :LGEND :LGEVN

:LGEIN :LGERA :LGEWR

Printing specification

2. Printing Specification

Uncoated, wood-free paper 60 g/㎡

Coated, Snow white paper 150 g/㎡

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,

Details should be followed Eco-SCM management standard[LG(56)-A-2524].

Especially, Part should be followed and controlled the following specification.

(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.

(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

Printed in Kazakhstan

Printed in Indonesia

:Part numberwww.lg.com

Please read this manual carefully before operating your set

and retain it for future reference.

OWNER’S MANUAL LED TV*

* LG LED TV applies LCD screen with LED backlights.

TABLE OF CONTENTS TABLE OF CONTENTS COMMON LANGUAGE COMMON A-3 SETTING UP THE TV A-3 Attaching the stand

A-4 MAKING CONNECTIONS A-4 Antenna connection

A-6 Satellite dish connection

A-7 Euro Scart connection

A-10 Other connections

SETTING UP THE TV SETTING UP THE TV Image shown may differ from your TV.

(Only 32LB56**-ZT / ZQ,

When attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

(Only LB56**-ZT / ZQ, LB62**-ZE)A-4 MAKING CONNECTIONS MAKING CONNECTIONS This section on MAKING CONNECTIONSmainly uses diagrams for the 47LB561V models. Antenna connection

CABLE IN Wall Antenna Socket*Not Provided English Connect the TV to a wall antenna socket with an RF cable (75 Ω).

y Use a signal splitter to use more than 2 TVs.

y If the image quality is poor, install a signal amplifier properly to improve the image quality.

y If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.

y An antenna cable and converter are not supplied.

Digital, Dolby Digital Plus, HE-AAC OPOMBAA-6

MAKING CONNECTIONS Satellite dish connection

(Only satellite models)

LNB Satellite IN 13/18V 700mA Max Satellite

Connect the TV to a satellite dish to a satellite socket

with a satellite RF cable (75 Ω).

MAKING CONNECTIONS Euro Scart connection

Transmits the video and audio signals from an

external device to the TV set. Connect the external

device and the TV set with the euro scart cable as

Any Euro scart cable used must be signal

When watching digital TV in 3D imaging mode,

only 2D out signals can be output through the

SCART cable. (Only 3D models)

MAKING CONNECTIONS Other connections

MAKING CONNECTIONS Only LB56**, LB62** series

Connect your TV to external devices. For the best

picture and audio quality, connect the external device

and the TV with the HDMI cable as shown. Some sepa-

rate cable is not provided.

ločeni kabli niso priloženi.A-12

MAKING CONNECTIONS English

Connect various external devices to the TV and switch

input modes to select an external device.

For more information of external device’s connection,

refer to the manual provided with each device.

Available external devices are:

HD receivers, DVD players, VCRs, audio systems,

USB storage devices, PC, gaming devices, and other

The external device connection may differ from

Connect external devices to the TV regardless of

the order of the TV port.

If you record a TV programme on a DVD recorder

or VCR, make sure to connect the TV signal

input cable to the TV through a DVD recorder or

VCR. For more information of recording, refer to

the manual provided with the connected device.

Refer to the external equipment’s manual for

operating instructions.

If you connect a gaming device to the TV, use the

cable supplied with the gaming device.

In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast or

brightness. If noise is present, change the PC

output to another resolution, change the refresh

rate to another rate or adjust the brightness and

contrast on the PICTURE menu until the picture

In PC mode, some resolution settings may not

work properly depending on the graphics card.

apparaat is geleverd.

DVD-recorder of videorecorder op de TV is

aangesloten. Zie voor meer informatie over het

opnemen de handleiding die bij het aangesloten

apparaat is geleverd.

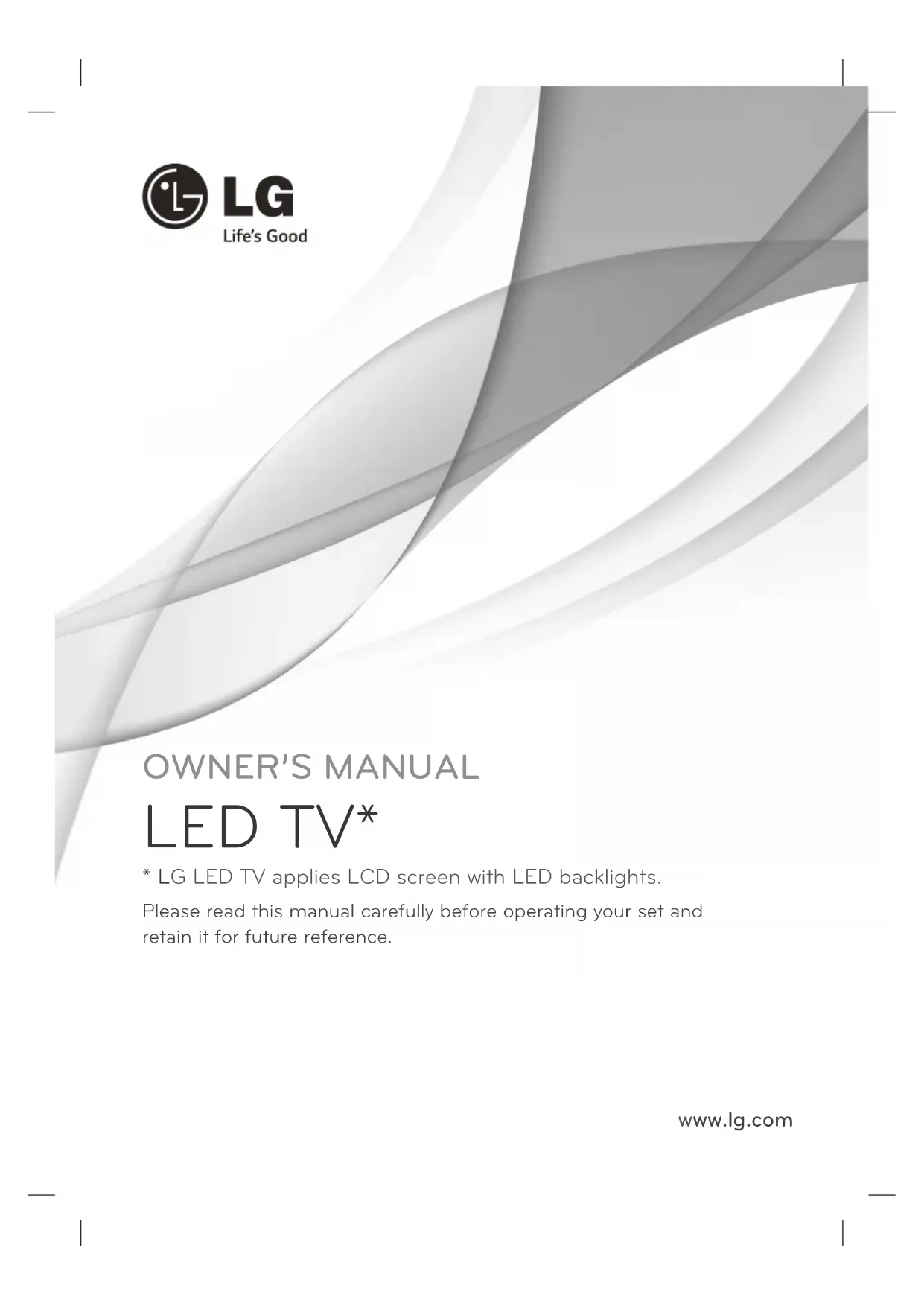

Please read this manual carefully before operating your set and

retain it for future reference.

OWNER’S MANUAL LED TV*

* LG LED TV applies LCD screen with LED backlights.2

ENG ENGLISH LICENSES / OPEN SOURCE SOFTWARE NOTICE LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

ABOUT DIVX VIDEO: DivX

is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an ofcial DivX Certied

passed rigorous testing to verify that it plays DivX video. Visit divx.com

for more information and software tools to convert your les into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied

registered in order to play purchased DivX Video-on-Demand (VOD)

To obtain your registration code, locate the DivX VOD section in your device setup

menu. Go to vod.divx.com for more information on how to complete your

video up to HD 1080p, including premium content.”

and associated logos are trademarks of

Rovi Corporation or its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,

please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing

such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com.

This offer is valid for three (3) years from the date on which you purchased the product.3

ENGENGLISH SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product.

Do not place the TV and/or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce heat

- Near kitchen counters or humidifiers where they can easily be exposed to steam or

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in re, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.This

plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth

pin. (Except for devices which are not grounded on earth.) Otherwise possibility you

may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely

into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.4

ENG ENGLISH SAFETY INSTRUCTIONS

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of

TV as to not create possibility of electric shock /fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient

to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation.

Keep it out of the reach of children.

Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them.

Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver)

between power cable plug and input Wall Socket while it is connected to the input

terminal on the wall. Additionally, do not touch the power cable right after plugging into

the wall input terminal. You may be electrocuted.

(Depending on model)

Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling of the

inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the

product, or inflammable objects such as paper and matches. Children must pay

particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into the product,

unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or

benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop

anything onto the screen.

You may be injured or the product can be damaged.5

ENGENGLISH SAFETY INSTRUCTIONS

Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and

It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in re or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long

Accumulated dust can cause re hazard and insulation deterioration can cause electric

Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist.

This may damage the product and cause it to fall.

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep

the former from touching the latter even when the antenna falls.

This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also

avoid places where there is vibration or where the product cannot be fully supported.

Otherwise, the product may fall or flip over, which may cause injury or damage to the

ENG ENGLISH SAFETY INSTRUCTIONS

If you install the TV on a stand, you need to take actions to prevent the product from

overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the

back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed

by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen

size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery.

This could cause damage to the remote control.

Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open

fireplace and electric heaters .

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg

Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the

connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall

outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.7

ENGENGLISH SAFETY INSTRUCTIONS

Please follow the installation instructions below to prevent the product from overheating.

- The distance between the product and the wall should be more than 10 cm.

- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in re.

Take care not to touch the ventilation openings when watching the TV for long periods

as the ventilation openings may become hot. This does not affect the operation or

performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an

authorized servicer.

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall

outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or

pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with

a soft cloth. Applying excessive force may cause scratches or discolouration. Do not

spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial

shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its

Otherwise, this may result in fire, electric shock or product damage (deformation,

corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if

you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don’t pull at the cord to unplug the power cord from the power board, as this could be

When moving the product, make sure you turn the power off first. Then, unplug the

power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard or cause

ENG ENGLISH SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product is heavy.

Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it is turned on.

This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million

pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a

size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the

performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or

You may find different brightness and color of the panel depending on your viewing

position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the

product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a

prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image

sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1

or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic

thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal

deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-

speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on

This generated sound does not affect the performance and reliability of the product.9

ENGENGLISH SAFETY INSTRUCTIONS Viewing 3D Imaging

WARNING Viewing Environment

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of

time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or

particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac

disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images

or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing

depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness,

nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.10

ENG ENGLISH SAFETY INSTRUCTIONS CAUTION Viewing Environment

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel

discomfort in viewing 3D contents, move further away from the TV.

- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in

development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra

attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance between the

eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults

for the same 3D image.

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise

them to refrain from watching 3D contens for a long time when they are tired.

- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the

recommended distance.

Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modified 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the

lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.11 ENGENGLISHASSEMBLING AND PREPARING

y Image shown may differ from your TV.

y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

NOTE ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

y Do not use any unapproved items to ensure the safety and product life span.

y Any damages or injuries by using unapproved items are not covered by the warranty.

y Some models have a thin film attached on to the screen and this must not be removed. CAUTION

y The items supplied with your product may vary depending on the model.

y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

ENG ENGLISH ASSEMBLING AND PREPARING Remote control,

(Only 32LB55**, 32LB56**,

The number of 3D glasses may

differ depending on the model or

ENGENGLISH ASSEMBLING AND PREPARING Separate purchase

Optional extras can be changed or modied for quality improvement without any notication.

Contact your dealer for buying these items.

These devices only work with certain models.

LG Audio Device AG-F***

AG-F***DP Dual play glasses

AG-F***DP Dual play glasses

The model name or design may be changed due to the manufacturer’s circumstances or policies.14

ENG ENGLISH ASSEMBLING AND PREPARING Parts and buttons

(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)

Remote control sensor

(* This button is located below

(Only LB56**-ZT / ZQ, LB62**-ZE)

Remote control sensor

(* This button is located below

You can set the power indicator light to on or off by selecting OPTION in the main menus.

ENGENGLISH ASSEMBLING AND PREPARING Using the Joystick button

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

When the TV is turned off, place your nger on the joystick button

and press it once and release it.

When the TV is turned on, place your nger on the joystick button

and press it once for a few seconds and release it.

(However, if the Menu button is on the screen, pressing and holding

the joystick button will let you exit the Menu.)

If you place your nger over the joystick button and move it left or

right, you can adjust the volume level you want.

If you place your nger over the joystick button and move it up or

down, you can scrolls through the saved programmes you want.

When your finger over the joystick button and push it to the up, down, left or right, be careful not to

press the joystick button. If you press the joystick button first, you can not adjust the volume level

and saved programmes.

NOTE Adjusting the Menu

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items( , , , ) moving the joystick button up, down, left or right.

TV off Turns the power off.

Settings Accesses the main menu.

Close Clears on-screen displays and returns to TV viewing.

Input List Changes the input source.16

ENG ENGLISH ASSEMBLING AND PREPARING Lifting and moving the TV Please note the following advice to prevent the TV from

being scratched or damaged and for safe transportation

regardless of its type and size.

Avoid touching the screen at all times, as this

may result in damage to the screen.

It is recommended to move the TV in the box or

packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the

power cord and all cables.

When holding the TV, the screen should face away

from you to avoid damage.

Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker,

or speaker grill area.

When transporting a large TV, there should be at

When transporting the TV by hand, hold the TV as

shown in the following illustration.

When transporting the TV, do not expose the TV to

jolts or excessive vibration.

When transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the left

Do not apply excessive pressure to cause flexing /

bending of frame chassis as it may damage screen.17

ENGENGLISH ASSEMBLING AND PREPARING Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall

for proper ventilation. 10 cm10 cm 10 cm 10 cm 2 Connect the power cord to a wall outlet.

Do not place the TV near or on sources of heat,

as this may result in fire or other damage.

CAUTION Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and

bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-

bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with

Make sure to keep the rope horizontal with the flat

Make sure that children do not climb on or hang

Use a platform or cabinet that is strong and large

enough to support the TV securely.

Brackets, bolts and ropes are not provided. You

can obtain additional accessories from your local

NOTE18 ENGENGLISHASSEMBLING AND PREPARING Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel.LG recommends that wall mounting be performed by a qualied professional installer. 10 cm 10 cm 10 cm 10 cmMake sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase(Wall Mounting Bracket) Model32/39LB56** 32LB55** 32LB62**42/47/50/55LB56** 42/49LB55** 42/49/55LB62**VESA (A x B) 200 x 200 400 x 400Standard screw M6 M6Number of screws 4 4Wall mount bracket LSW240BMSW240LSW440BMSW240Model 60LB56**VESA (A x B) 400 x 400Standard screw M6Number of screws 4

Wall mount bracket LSW440B A B

y Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.

y If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

y Do not over tighten the screws as this may cause damage to the TV and void your warranty.

y Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. CAUTION

y Use the screws that are listed on the VESA standard screw specifications.

y The wall mount kit includes an installation manual and necessary parts.

y The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.

y The length of screws may differ depending on the wall mount. Make sure to use the proper length.

y For more information, refer to the manual supplied with the wall mount. NOTE

y Only 42LB55**, 42LB56**, 42LB62**Wall Mount Spacers NOTE19 ENGENGLISHREMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

y Do not mix old and new batteries, as this may damage the remote control. CAUTION Make sure to point the remote control toward the remote control sensor on the TV.(Only LB55**, LB56**) 1

1 1 (POWER) Turns the TV on or off.TV/RAD Selects Radio, TV and DTV programme.SUBTITLE Recalls your preferred subtitle in digital mode.AD By pressing the AD button, audio descriptions function will be enabled. RATIO Resizes an image. INPUT Changes the input source.Number buttons Enters numbers. LIST Accesses the saved programme list.Q.VIEW Returns to the previously viewed programme.

Adjusts the volume level. FAV Accesses your favourite programme list.GUIDE Shows programme guide.MUTE Mutes all sounds. P Scrolls through the saved programmes.

PAGE Moves to the previous or next screen.Teletext buttons ( TEXT / T.OPT) These buttons are used for teletext.

INFO Views the information of the current programme and screen.SETTINGS Accesses the main menus.Q.MENU Accesses the Quick menus.Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and conrms your input. BACK Returns to the previous level.EXIT Clears on-screen displays and returns to TV viewing.AV MODE Selects an AV mode. Starts to record and displays record menu. (Only Time Machine Ready supported model)Control buttons ( ) Controls the MY MEDIA menus, Time Machine Ready control or the SIMPLINK compatible devices (USB, SIMPLINK or Time Machine Ready

1 1 (POWER) Turns the TV on or off.TV/RAD Selects Radio, TV and DTV programme.SUBTITLE Recalls your preferred subtitle in digital mode.GUIDE Shows programme guide.AV MODE Selects an AV mode. INPUT Changes the input source.Number buttons Enters numbers. LIST Accesses the saved programme list.Q.VIEW Returns to the previously viewed programme.

Adjusts the volume level. FAV Accesses your favourite programme list. Used for viewing 3D video.MUTE Mutes all sounds. P Scrolls through the saved programmes.

PAGE Moves to the previous or next screen.Teletext buttons ( TEXT / T.OPT) These buttons are used for teletext.

INFO Views the information of the current programme and screen.SETTINGS Accesses the main menus.Q.MENU Accesses the Quick menus.Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and conrms your input. BACK Returns to the previous level.EXIT Clears on-screen displays and returns to TV viewing.AD By pressing the AD button, audio descriptions function will be enabled. Starts to record and displays record menu. (Only Time Machine Ready supported model)Control buttons ( ) Controls the MY MEDIA menus, Time Machine Ready control or the SIMPLINK compatible devices (USB, SIMPLINK or Time Machine Ready

SETTINGS SETUP Auto Tuning

Automatically tunes the programmes.

If Input Source is not connected properly,

programme registration may not work.

Auto Tuning only finds programmes that are

currently broadcasting.

If Lock System is turned on, a pop-up window will

appear asking for password.

To adjust picture with Picture Wizard

SETTINGS PICTURE Picture Wizard III

[Depending on model]

Calibrates and adjusts for optimum picture quality us-

ing the remote control and the Picture Wizard without

expensive pattern devices or help from a specialist.

To select Picture Mode

SETTINGS PICTURE Picture Mode

Select the picture mode optimized for the viewing envi-

ronment or the programme.

Vivid : Heightens contrast, brightness and

sharpness to display vivid images.

Standard : Displays images in standard levels of

contrast, brightness and sharpness.

Eco/APS: [Depending on model]

The Energy Saver feature changes settings on the

TV to reduce power consumption.

Cinema/Game: Displays the optimum picture for

Sports : Optimizes the video image for high and

dynamic actions by emphasizing primary colours

such as white, grass, or sky blue.

Expert 1, 2 : Menu for adjusting picture quality

that allows experts and amateurs to enjoy the best

TV viewing. This is the adjustment menu provided

for ISF-certified picture tuning professionals. (ISF

logo can only be used on ISF-certified TVs.)

ISFccc: Imaging Science Foundation Certified

picture modes may differ.

Expert mode is for picture tuning professionals

to control and fine-tune using a specific image. For

normal images, the effects may not be dramatic.

The ISF function is only available on some models.

To set advanced control

SETTINGS PICTURE Picture Mode

Advanced Control / Expert Control

Calibrates the screen for each picture mode; or adjusts

picture settings for a special screen. First select a

Picture Mode of your choice.

Dynamic Contrast : Adjusts the contrast to the

optimal level according to the brightness of the

Dynamic Colour : Adjusts colours to make the

image appear in more natural colours.

Skin Colour : Sets Skin colour spectrum separately

to implement the skin colour as defined by the user.

Sky Colour : Sky colour is set separately.

Grass Colour : Natural colour spectrum (meadows,

hills, etc.) can be separately set.

Gamma : Sets the gradation curve according to the

output of picture signal in relation to the input signal.

Colour Gamut : Selects the range of colours that

Patterns used for expert adjustment.

Colour Filter : Filters a specific colour spectrum in

RGB colours to fine-tune colour saturation and hue

Colour Temperature : Adjusts the overall tone of

the screen as desired. In Expert mode, detailed fine-

tuning can be set via Gamma method, etc.

Colour Management System : This is a system

that experts use when they adjust colour with a

test pattern. They can select from six colour areas

(Red / Green / Blue / Cyan / Magenta / Yellow)

without affecting other colours. For normal images,

adjustments may not result in noticeable colour

Depending on input signal or other picture settings,

the range of detailed items for adjustment may

ENG ENGLISH SETTINGS To set additional picture options

SETTINGS PICTURE Picture Mode

[Depending on model]

Adjusts detailed setting for images.

Noise Reduction : Eliminates noise in the picture.

MPEG Noise Reduction : Eliminates noise

generated while creating digital picture signals.

Black Level : Adjusts the brightness and contrast of

the screen to suit the black level of the input picture

by using the blackness (black level) of the screen.

Real Cinema : Optimizes the screen for movie

Motion Eye Care/SUPER Energy Saving :

[Depending on model]

Saves power consumption by adjusting the

brightness corresponding to the movement of the

image on the screen.

Depending on input signal or other picture settings,

the range of detailed items for adjustment may

SETTINGS PICTURE TruMotion

[Depending on model]

Corrects images to display smoother motion sequences.

Smooth : De-judder/De-blur working on higher

Clear : De-judder/De-blur working on middle range

User : De-judder / De-blur can be set manually.

De-judder : This function adjusts juddering of the

De-blur : This function adjusts and eliminates

blurring of the screen.

Auto means Juddering and blurring range that depend

on input video status is controlled by TruMotion mode.

To use Energy Saving feature

SETTINGS PICTURE Energy Saving

Reduces power consumption by adjusting screen

Auto : [Depending on model]

The TV sensor detects the ambient lighting and

automatically adjusts the screen brightness.

Screen Off : Screen is turned off and only sound is

played. Press any button except Power button on

the remote control to turn the screen back on.

SETTINGS AUDIO Sound Out TV Speaker

[Depending on model]

Sound is output through the TV speaker.

To use External Speaker

SETTINGS AUDIO Sound Out

External Speaker (Optical)

[Depending on model]

Sound is output through the speaker connected to the

SimpLink is supported.

SETTINGS AUDIO Sound Out

[Depending on model]

If a third-party device with the HDMI-CEC function

is also used, the SIMPLINK device may not work

[Depending on model]

If you select or play media from a the device with a

home theatre function, the HT Speaker(Speaker) is

automatically connected.

Be sure to connect with an optical cable (sold

separately) to use the HT Speaker(Speaker)

Direct Play : Plays the multimedia device on the TV

Select multimedia device : Selects the desired

device via the SIMPLINK menu to control it from the

TV screen instantly.

Disc playback : Manages the multimedia device

with the TV remote control.

Power off all devices : When you power off the TV,

all connected devices are turned off.

Sync Power on: When the equipment with

SIMPLINK function connected HDMI terminal starts

to play, the TV will automatically turn on.

Speaker : [Depending on model]

Select speaker either on the home theatre unit or

Sets or changes the TV password.

The initial password is set to ‘0000’.

When France is selected for Country, password is not

When France is selected for Country, password cannot

To return Factory Reset

All stored information is deleted and TV settings are

The TV turns itself off and back on, and all settings are

When Lock System is in place, a pop-up window

appears and asks for password

Do not turn off the power during initialization.

To connect and use LG audio device

SETTINGS AUDIO Sound Out

LG Sound Sync (Optical)

[Depending on model]

Connect LG audio device with the logo to the opti-

cal digital audio output port. LG audio device allows you

to enjoy rich powerful sound easily.

SETTINGS AUDIO Sound Out Headphone

[Depending on model]

Sound is output through the headphone connected to

the earphone/headphone port.

To synchronize audio and video

SETTINGS AUDIO AV Sync. Adjust

[Depending on model]

Synchronizes video and audio directly when they do

If you set AV Sync. Adjust to ON, you can adjust

the sound output (TV speakers or SPDIF) to the

[Depending on model]

SIMPLINK is a feature that enables you to control and

manage various multimedia devices conveniently via

[Depending on model]

For home theatre units with a SIMPLINK function,

connect HDMI terminals as above, and use an

optical cable to connect Optical Digital Audio

Out from the TV to Optical Digital Audio In of the

2 Select INPUT(OPTION) SIMPLINK.

SIMPLINK menu window appears.

3 In SIMPLINK Setting window, set SIMPLINK

4 In SIMPLINK menu window, selects the device you

This function is only compatible with devices with

To use the SIMPLINK function, you need to use

cable (with CEC (Consumer

cables have the No. 13 pin connected for

information exchange between devices.24

ENG ENGLISH SETTINGS To remove the USB device

Select a USB storage device that you want to remove.

When you see a message that the USB device has

been removed, separate the device from the TV.

Once a USB device has been selected for removal,

it can no longer be read. Remove the USB storage

device and then re-connect it.

Using a USB storage device - warning

If the USB storage device has a built-in auto

recognition program or uses its own driver, it may

Some USB storage devices may not work or may

Use only USB storage devices formatted with the

Windows FAT32 or NTFS File System.

For external USB HDDs, it is recommended that you

use devices with a rated voltage of less than 5 V

and a rated current of less than 500 mA.

It is recommended that you use USB memory sticks

of 32 GB or less and USB HDDs of 1 TB or less.

If a USB HDD with power-saving function does not

work properly, turn the power off and on. For more

information, refer to the user manual of the USB HDD.

Data in the USB storage device can be damaged, so

be sure to back up important files to other devices.

Data maintenance is the user’s responsibility and

the manufacturer is not responsible for data loss.

My Media supporting file

ssa (SubStation Alpha), *.txt (TMplayer), *.psb

Internal supported subtitle formats: XSUB (Supports

internal subtitles generated from DivX6)

Supported Video Formats

Maximum: 1920 x 1080 @ 30p (only Motion JPEG

AC3, MP3, 3D WMV Single Stream.

[Audio] MP3, AAC, HE-AAC

[Sample freq.] 16 kHz - 48 kHz

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 48 kHz

[Support] ADIF, ADTS

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 48 kHz

[Bit rate] 128 Kbps ~ 320 Kbps

[Sample freq.] 8 kHz ~ 48 kHz

[Support] WMA7, WMA8, WMA9 Standard

[Bit rate] ~ 768 Kbps

[Channel / Sample freq.]

M0 : up to 2 Channel @ 48 kHz

M1 : up to 5.1 Channel @ 48 kHz,

M2 : up to 5.1 Channel @ 96 kHz

[Support] WMA 10 Pro

[Bit rate] Free Format

[Sample freq.] 8kHz ~ 48 kHz

[Support] OGG Vorvis

Supported Photo Formats

Category : 2D (jpeg, jpg, jpe)

[Available file type] SOF0: Baseline,

SOF1: Extend Sequential,

[Available file type] Interlace, Non-Interlace

TO SEE WEB MANUAL To obtain detailed User Guide information,

please visit www.lg.com.

EXTERNAL CONTROL DEVICE SETUP To obtain the external control device setup information,

please visit www.lg.com.26

ENG ENGLISH MAINTENANCE MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan.

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to

prevent possible damage from lightning or power surges.

CAUTION Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent.

Then wipe immediately with a dry cloth.

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in

scratches and image distortions.

Do not use any chemicals as this may damage the product.

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Remove the accumulated dust or dirt on the power cord regularly.27

ENGENGLISH TROUBLESHOOTING TROUBLESHOOTING Problem Solution

Cannot control the TV with

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

Check the power control settings. The power supply may be interrupted.

Check if the Automatic Standby (Depending on model) / Sleep Timer /

Off Time feature is activated in the TIME settings.

If there is no signal while the TV is on, the TV will turn off automatically after 15

minutes of inactivity.

When connecting to the PC

(HDMI), ‘No signal’ or ‘Invalid

Format’ is displayed.

Turn the TV off/on using the remote control.

Reconnect the HDMI cable.

Restart the PC with the TV on.www.lg.com

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Certified Calibration Control

*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer),

AC3, MP3, 3D WMV Single Stream.

[Audio] MP3, AAC, HE-AAC

[Bitrate] Freies Format

[Bitrate] Freies Format

[Bitrate] Freies Format

SOF1: Extend Sequential,

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Support muralLSW440B A B

*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer),

AC3, MP3, 3D WMV Single Stream

[Audio] MP3, AAC, HE-AAC

7,295,673; 7,460,668; 7,515,710; 7,519,274”

AG-F***DP Occhiali Dual play

AG-F***DP Occhiali Dual play

Certified Calibration Control

ssa (SubStation Alpha), *.txt (TMplayer), *.psb

[Audio] MP3, AAC, HE-AAC

[Formati supportati] ADIF, ADTS

Senza supporto (kg) 6,0 6,0 8

VHF, UHF C-Band, Ku-Band

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Imaging Science Foundation Certified Calibration

*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer),

[Audio] MP3, AAC, HE-AAC

[Soporte] ADIF, ADTS

7,295,673; 7,460,668; 7,515,710; 7,519,274”

(Apenas 42/49LB55**,

ssa (SubStation Alpha), *.txt (TMplayer), *.psb

AC3, MP3, 3D WMV SingleStream

[Áudio] MP3, AAC, HE-AAC

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Certified Calibration Control

*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer),

AC3, MP3, 3D WMV Single Stream.

[Audio] MP3, AAC, HE-AAC

[Ondersteuning] ADIF, ADTS

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Science Foundation Certified Calibration Control

*.ass/*.ssa (SubStation Alpha), *.txt (TMplayer),

AC3, MP3, 3D WMV Single Stream.

[Υποστήριξη] ADIF, ADTS

7,295,673; 7,460,668; 7,515,710; 7,519,274”

ISFccc: Imaging Science Foundation Certified

ssa (SubStation Alpha), *.txt (TMplayer), *.psb

[Podpora] ADIF, ADTS

SPECIFICATIONS SPECIFICATIONS Product specications may be changed without prior notice due to upgrade of product functions.

Power consumption 120 W 130 W 130 W Power requirement

Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 %

Satellite Digital TV Digital TV Analogue TV Television system

VHF, UHF C-Band, Ku-Band

VHF, UHF VHF: E2 to E12,

Video, which is input as below media contents is switched into the 3D screen automatically.

The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched

automatically into 3D, manually convert the settings to view 3D images.

Input Signal Resolution

Side by Side(half), Top and Bottom,

Single frame sequential

Side by Side, Top and Bottom

1080i 1920 x 1080 28.125 50

USB 1080p 1920 x 1080 33.75 30

Side by Side, Top and Bottom,

SPECIFICATIONS Component port connecting information

Component ports on the TV Y P B P R Video output ports on

(50 Hz / 60 Hz only)

(Use HDMI IN 1 for PC mode)

(Except for 32LB55*B, 32LB55*U, 32LB56*B,

32LB56*U, 32LB62*U)B-6

REGULATORY REGULATORY LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements

in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recy-

cling service voluntarily in some countries. LG Electronics evaluates products’ recyclability at the design step using

LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities,

LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustain-

ability/environment/take-back-recycling

Energy efciency cuts energy consumption and thus saves money by reducing electricity bills. The following indica-

tions allow to reduce power consumption when the television is not being watched:

Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and

is recommended when the television is not being used for a long time, e.g. when on holiday,

Putting the television into standby mode, will reduce energy consumption, but will still draw some power,

Reducing the brightness of the screen will reduce energy use.

Disposal of waste batteries (Applicable in the European Union and

other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be

treated as household waste.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for

the environment and human health which could otherwise be caused by inappropriate waste handling of the battery.

The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an

incorporated battery, this battery should be replaced by qualied service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection

point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the bat-

tery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local authority, your

household waste disposal service or the shop where you purchased the product.B-7

REGULATORY EU ecolabel (Only EU ecolabel applied model)

LGE announced the ‘LG Declaration for a Cleaner Environment ‘in 1994, and this ideal has served as a Guiding

managerial principle ever since. The Declaration is a foundation that has allowed us to undertaike Environmentally

friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities

for environmental preservation, and we specically develop our products to embrace the Concept of environment-

friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These

environmental characteristics are endorsed by the award of the European Commission as approval of the product

environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address :

http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine)

Обмеження України на наявність небезпечних речовин

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of

certain dangerous substances in electrical and electronic equipment.

Устаткування відповідає вимогам технічного регламенту щодо обмеженного використання небезпечних

Isolator (Only Sweden, Norway)

“Equipment connected to the protective earthing of the building installation through the mains connection or

through other equipment with a connection to protective earthing - and to a cable distribution system using

coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has

therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic

isolator, see EN 60728-11)”

Better for the environment...

High Energy Efficiency

Reduced CO2 emissions

Designed to facilitate repair and recycling

EU Ecolabel : PL/22/004Record the model number and serial number

Refer to the label on the back cover and

quote this information to your dealer when

requiring any service.

MODEL SERIAL Please contact LG First.

If you have any inquiries or comments,
