WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Never use steam cleaners or pressure cleaners on the appliance.

WARNING: Ensure that the appliance is

• The type of problem encountered.

• The appliance model (Mod.).

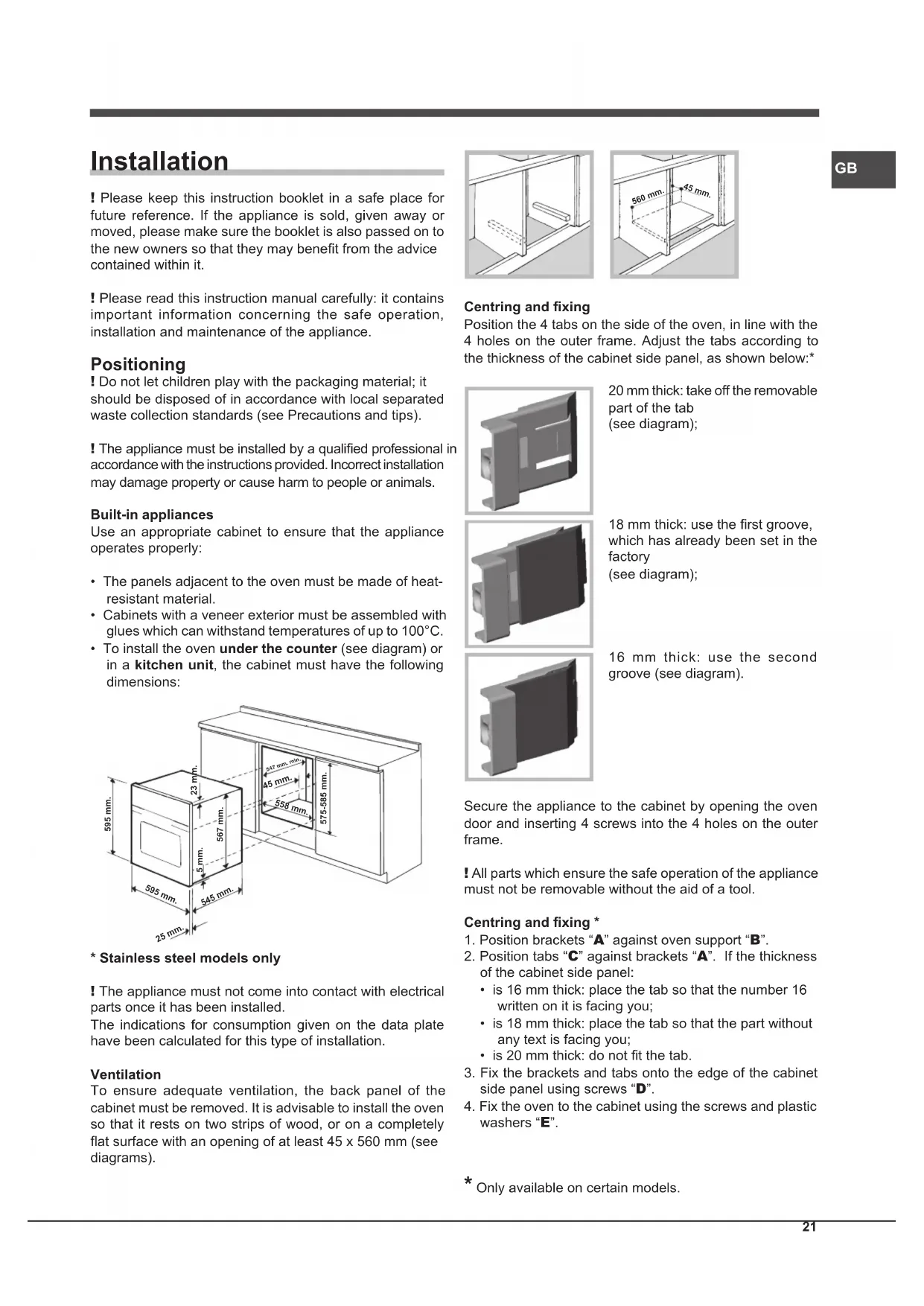

Installation ! Please keep this instruction booklet in a safe place for future reference. If the appliance is sold, given away or moved, please make sure the booklet is also passed on to the new owners so that they may benet from the advice contained within it. ! Please read this instruction manual carefully: it contains important information concerning the safe operation, installation and maintenance of the appliance. Positioning ! Do not let children play with the packaging material; it should be disposed of in accordance with local separated waste collection standards (see Precautions and tips). ! The appliance must be installed by a qualied professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals. Built-in appliances Use an appropriate cabinet to ensure that the appliance operates properly:

• The panels adjacent to the oven must be made of heat- resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

• To install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions: 595 mm. 595 mm. 25 mm. 545 mm.5 mm.567 mm.23 mm.575-585 mm.45 mm.558 mm. 547 mm. min.

• Stainless steel models only ! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation. Ventilation To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely at surface with an opening of at least 45 x 560 mm (see diagrams). 560 mm. 45 mm. Centring and xing Position the 4 tabs on the side of the oven, in line with the 4 holes on the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below:* 20 mm thick: take off the removable part of the tab (see diagram); 18 mm thick: use the rst groove, which has already been set in the factory (see diagram); 16 mm thick: use the second groove (see diagram). Secure the appliance to the cabinet by opening the oven door and inserting 4 screws into the 4 holes on the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool. Centring and xing *

1. Position brackets “A” against oven support “B”.

2. Position tabs “C” against brackets “A”. If the thickness

of the cabinet side panel:

• is 16 mm thick: place the tab so that the number 16 written on it is facing you;

• is 18 mm thick: place the tab so that the part without any text is facing you;

• is 20 mm thick: do not t the tab.

3. Fix the brackets and tabs onto the edge of the cabinet

side panel using screws “D”.

4. Fix the oven to the cabinet using the screws and plastic

Electrical connection Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable

1. Open the terminal board

by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

2. Install the power supply

cable by loosening the cable clamp screw and the three wire contact screws L-N- . Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow/Green wire to the terminal marked (see diagram).

3. Secure the cable by fastening the clamp screw.

4. Close the cover of the terminal board.

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point (the back panel of the oven, for example). ! The installer must ensure that the correct electrical connection has been performed and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.

• The voltage is in the range between the values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. Electrical connections voltage: 220-240V~ 50/60Hz (see data plate) maximum power absorbed 2800WENERGYLABELAPPLIANCE SPECIFICATIONS Dimensions* width 43,5 cm height 32,4 cm depth 40,6 cm Dimensions** width 45,5 cm height 32,4 cm depth 40,6 cmVolume*58 lt.Volume**60 lt.* Only for models with drawn rails.** Only for models with wire rails. Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Energy consumption for Natural convection – heating mode: / Traditional Declared energy consumption for Forced convection Class – heating mode: / Baking This appliance conforms to the following European Economic Community directives: - 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2012/19/EC and subsequent amendments. 1275/2008 standby/off mode.GB

Start-up and use WARNING! The oven is provided with a stop system to extract the racks and prevent them from coming out of the oven (1).As shown in the drawing, to extract them completely, simply lift the racks, holding them on the front part, and pull (2).! The rst time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. Starting the oven 1. Select the desired cooking mode by turning the SELECTOR knob.2. Select the desired temperature with the THERMOSTAT knob. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes).3. When lit, the THERMOSTAT indicator light indicates that the oven is heating up to the temperature set.4. You may do the following during cooking:- change the cooking mode by turning the SELECTOR knob.- change the temperature by turning the THERMOSTAT knob.- stop cooking by turning the SELECTOR knob to the “0” position.! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged.! Always place cookware on the rack(s) provided.Cooling ventilationIn order to cool down the external temperature of the oven, some models are tted with a cooling fan that blows out air between the control panel and the oven door.! Once cooking has been completed, the cooling fan continues to operate until the oven has cooled down sufciently.Oven lightIt goes on when selecting / with the SELECTOR knob. It stays on when a cooking mode is selected. Using the cooking timer* 1. To set the buzzer, turn the COOKING TIMER knob clockwise almost one complete revolution.2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the COOKING TIMER knob with the indicator on the control panel.3. When the selected time has elapsed, a buzzer sounds and the oven turns off.4. When the oven is off the cooking timer can be used as a normal timer.! To use the oven manually, in other words when you do not wish to use the end of cooking timer, turn the COOKING TIMER knob until it reaches the symbol. The electronic programmer DISPLAYSET TIMEbuttonEND OFCOOKING iconCLOCK iconDURATION icon TIMER iconDECREASE TIMEbuttonINCREASE TIMEbutton

Setting the clock ! The clock may be set when the oven is switched off or when it is switched on, provided that a the end time of a cooking cycle has not been programmed previously.After the appliance has been connected to the mains, or after a blackout, the icon and the four numerical digits on the DISPLAY will begin to ash.1. Press the button several times until the icon and the four digits on the display begin to ash.2. Use the “ ” and “ ” buttons to adjust the time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.3. Wait for 10 seconds or press the button again to nalise the setting.Setting the timer! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.1. Press the button several times until the icon and the three digits on the display begin to ash.2. Use the “ ” and “ ” buttons to set the desired time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.3. Wait for 10 seconds or press the button again to nalise the setting.The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated.

Programming cooking ! A cooking mode must be selected before programming can take place. Programming the cooking duration

1. Press the button several times until the icon and

the three digits on the DISPLAY begin to ash.

2. Use the “ ” and “ ” buttons to set the desired duration;

if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.

4. When the set time has elapsed, the text END appears

on the DISPLAY, the oven will stop cooking and a buzzer sounds. Press any button to stop it.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode ! A cooking duration must be set before the cooking end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed above.

2. Next, press the button until the icon and the four

digits on the DISPLAY begin to ash.

3. use the “ ” and “ ” buttons to adjust the cooking end

time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.

5. When the set time has elapsed, the text END appears

on the DISPLAY, the oven will stop cooking and a buzzer sounds.Press any button to stop it. Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately.

• For example: It is 9:00 a.m. and a duration of 1 hour has been programmed. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m. Cancelling a programme To cancel a programme:

• press the button until the icon corresponding to the setting you wish to cancel and the digits on the display are no longer ashing. Press the “ ” button until the digits 00:00 appear on the display.

• Press and hold the “ ” and “ ” buttons; this will cancel all the settings selected previously, including timer settings. Cooking modes ! A temperature value can be set for all cooking modes between 60°C and Max, except for

• BARBECUE (recommended: set only to MAX power level);

• GRATIN (recommended: do not exceed 200°C). / LEAVENING mode The oven reaches and maintains a temperature of 40°C irrespective of the position of the THERMOSTAT knob. This mode is ideal for leavening dough made with yeast. / TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only: if more than one rack is used, the heat distribution will be uneven. / BAKING mode The rear heating element and the fan come on, guaranteeing the distribution of heat delicately and uniformly throughout the oven. This mode is ideal for baking and cooking temperature sensitive foods such as cakes that need to rise and to prepare certain tartlets on 3 shelves simultaneously. / FAST COOKING mode The heating elements and the fan come on, guaranteeing the distribution of heat consistently and uniformly throughout the oven. Pre-heating is not necessary for this cooking mode. This mode is especially recommended for cooking pre-packed food quickly (frozen or pre-cooked). The best results are obtained if you use one cooking rack only. / MULTI-COOKING mode All the heating elements (top, bottom and circular), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time. / PIZZA mode The heating elements (bottom and circular) and the fan come on. This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the bottom element. If you use more than one rack simultaneously, switch the position of the dishes halfway through the cooking process. / BARBECUE mode The top heating element and the rotisserie (where present) come on. The high and direct temperature of the grill is recommended for food that requires high surface temperature. Always cook in this mode with the oven door closed. / GRATIN mode The top heating element as well as the fan and the rotisserie (where present) come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed.GB

The Rotisserie * To operate the rotisserie (see diagram) proceed as follows:

1. Place the dripping pan in

support in position 3 and insert the spit in the hole provided on the back panel of the oven.

3. Start the rotisserie using the knob to select MODE

/ or / . ! When / mode is on, the rotisserie will stop if the door is opened. Practical cooking advice ! Do not place racks in position 1 and 5 during fan-assisted cooking. This is because excessive direct heat can burn temperature sensitive foods. ! In the BARBECUE and GRATIN cooking modes, particularly when using the rotisserie spit, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING

• Use positions 2 and 4, placing the food which requires more heat on 2.

• Place the dripping pan on the bottom and the rack on top. BARBECUE

• Place the rack in position 3 or 4. Position the food in the centre of the rack.

• We recommend that the power level is set to maximum. The top heating element is regulated by a thermostat and may not always operate constantly. PIZZA OVEN

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan as it prevents the crust from forming by extending the total cooking time.

• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

Cooking advice table Cooking modes Foods Weight (in kg) Rack Position Pre-heating time (minutes) Recommended temperature Cooking time (minutes) Leavening Leavening process of dough made with yeast or baking powder (brioches, bread, sugar pie, croissants, etc.) Traditional Oven Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts

65-75 70-75 70-80 15-20 30-35 Baking Mode Tarts Fruit cakes Plum cake Sponge cake Stuffed pancakes (on 2 racks) Small cakes (on 2 racks) Cheese puffs (on 2 racks) Cream puffs (on 3 racks) Biscuits (on 3 racks) Meringues (on 3 racks)

2 and 4 2 and 4 2 and 4 1 and 3 and 5 1 and 3 and 5 1 and 3 and 5

25-30 15-20 Pre-cooked food Golden chicken wings

20-25 Fresh Food Biscuits (short pastry) Plum cake Cheese puffs

10-12 Multi- cooking Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies

15-20 25-30 60-70 Barbecue Soles and cuttlefish Squid and prawn kebabs Cuttlefish Cod filet Grilled vegetables Veal steak Sausages Hamburgers Mackerels Toasted sandwiches (or toast)

55-60 30-35 With rotisserie (where present) Veal on the spit Lamb on the spit Chicken on the spit + potatoes (roasted)

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• When moving or positioning the appliance, always use the handles provided on the sides of the oven.

• Do not touch the appliance while barefoot or with wet or damp hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held responsible for any damage caused as a result of improper, incorrect and unreasonable use of the appliance.

• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.

• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

• The ventilation and heat dispersal openings must never be obstructed.

• Always grip the oven door handle in the centre: the ends may be hot.

• Always use oven gloves when placing cookware in the oven or when removing it.

• Do not use aluminium foil to line the bottom of the oven.

• Do not place ammable materials in the oven: if the appliance is switched on accidentally, the materials could catch re.

• Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.

• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Do not perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the event of malfunctions, under no circumstances should you attempt to perform the repairs yourself. Contact an authorised Service Centre (see Assistance).

• Do not rest objects on the open oven door.

• Do not let children play with the appliance.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning. The cooking mode programming options, the “delayed cooking” mode (see Cooking modes) and “delayed automatic cleaning” mode (see Care and Maintenance) in particular, enable the user to organise their time efciently.

• Always keep the oven door closed when using the BARBECUE and GRATIN modes: This will achieve improved results while saving energy (approximately 10%).

• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse. Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.

• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.

• All accessories - with the exception of the sliding racks - can be washed like everyday crockery, and are even dishwasher safe. ! Never use steam cleaners or pressure cleaners on the appliance.28

Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. For more thorough cleaning purposes, the oven door may be removed:1. Open the oven door fully (see diagram);2. Use a screwdriver to lift up and turn the small levers F located on the two hinges (see diagram).

3. Grip the door on the two external sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you lifting it out of its seat (see diagram). *3. Grip the door on the two outer sides and close it approximately half way. Pull the door towards you, lifting it out of its seats (see diagram). *To replace the door, reverse this sequence.Inspecting the sealsCheck the door seals around the oven regularly. If the seals are damaged, please contact your nearest Service Centre (see Assistance). We recommend that the oven is not used until the seals have been replaced.

Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover of the lamp-holder.2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14.3. Replace the glass cover (see diagram).! Do not use the oven lamp as/for ambient lighting. Sliding Rack Kit assembly To assemble the sliding racks:1. Loosen the two screws A (see diagram). If the oven is fitted with self-cleaning panels, these will have to be temporarily disassembled.2. Replace the screws A with the screws and spacers (B + C) supplied with the kit.3. Tighten the new screws B and the corresponding spacers C, tting the self-cleaning panels on again.4. Secure the two joints D of the guide rail in the holes provided on the oven walls (see diagram). The holes for the left guide rail are situated at the top, while the holes for the right one are at the bottom.5. Finally, t the guide rail on the spacer C.! Do not place the sliding racks in position 5.
