WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com1.

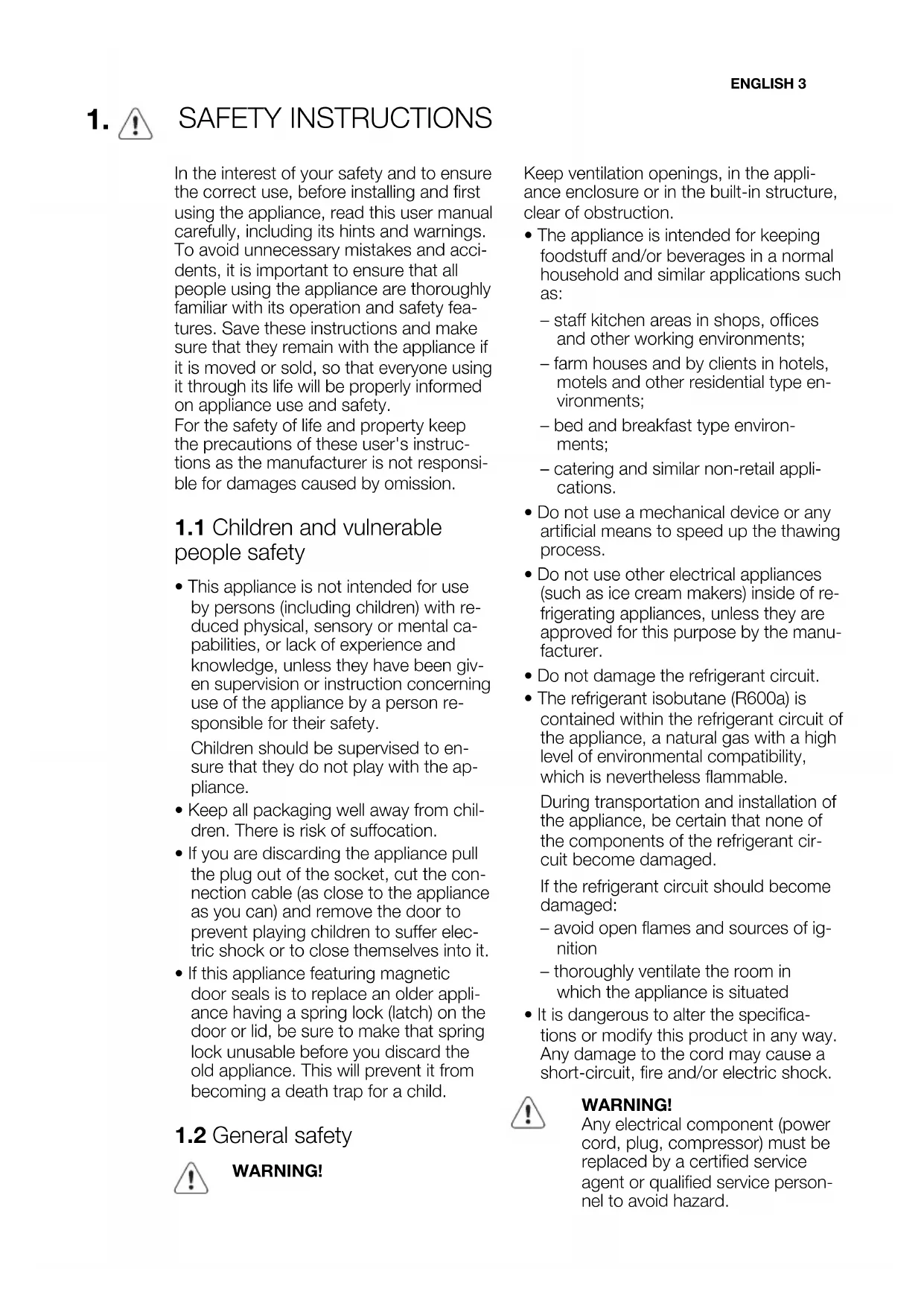

SAFETY INSTRUCTIONS In the interest of your safety and to ensure

the correct use, before installing and first

using the appliance, read this user manual

carefully, including its hints and warnings.

To avoid unnecessary mistakes and acci-

dents, it is important to ensure that all

people using the appliance are thoroughly

familiar with its operation and safety fea-

tures. Save these instructions and make

sure that they remain with the appliance if

it is moved or sold, so that everyone using

it through its life will be properly informed

on appliance use and safety.

For the safety of life and property keep

the precautions of these user's instruc-

tions as the manufacturer is not responsi-

ble for damages caused by omission.

1.1 Children and vulnerable

• This appliance is not intended for use

by persons (including children) with re-

duced physical, sensory or mental ca-

pabilities, or lack of experience and

knowledge, unless they have been giv-

en supervision or instruction concerning

use of the appliance by a person re-

sponsible for their safety.

Children should be supervised to en-

sure that they do not play with the ap-

• Keep all packaging well away from chil-

dren. There is risk of suffocation.

• If you are discarding the appliance pull

the plug out of the socket, cut the con-

nection cable (as close to the appliance

as you can) and remove the door to

prevent playing children to suffer elec-

tric shock or to close themselves into it.

• If this appliance featuring magnetic

door seals is to replace an older appli-

ance having a spring lock (latch) on the

door or lid, be sure to make that spring

lock unusable before you discard the

old appliance. This will prevent it from

becoming a death trap for a child.

Keep ventilation openings, in the appli-

ance enclosure or in the built-in structure,

clear of obstruction.

• The appliance is intended for keeping

foodstuff and/or beverages in a normal

household and similar applications such

– staff kitchen areas in shops, offices

and other working environments;

– farm houses and by clients in hotels,

motels and other residential type en-

– bed and breakfast type environ-

– catering and similar non-retail appli-

• Do not use a mechanical device or any

artificial means to speed up the thawing

• Do not use other electrical appliances

(such as ice cream makers) inside of re-

frigerating appliances, unless they are

approved for this purpose by the manu-

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is

contained within the refrigerant circuit of

the appliance, a natural gas with a high

level of environmental compatibility,

which is nevertheless flammable.

During transportation and installation of

the appliance, be certain that none of

the components of the refrigerant cir-

cuit become damaged.

If the refrigerant circuit should become

– avoid open flames and sources of ig-

– thoroughly ventilate the room in

which the appliance is situated

• It is dangerous to alter the specifica-

tions or modify this product in any way.

Any damage to the cord may cause a

short-circuit, fire and/or electric shock.

Any electrical component (power

cord, plug, compressor) must be

replaced by a certified service

agent or qualified service person-

nel to avoid hazard.

Power cord must not be length-

Make sure that the power plug is

not squashed or damaged by the

back of the appliance. A squashed

or damaged power plug may over-

heat and cause a fire.

Make sure that you can come to

the mains plug of the appliance.

Do not pull the mains cable.

If the power plug socket is loose,

do not insert the power plug. There

is a risk of electric shock or fire.

You must not operate the appli-

ance without the lamp cover (if

foreseen) of interior lighting.

• This appliance is heavy. Care should be

taken when moving it.

• Do not remove nor touch items from

the freezer compartment if your hands

are damp/wet, as this could cause skin

abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appli-

ance to direct sunlight.

• Bulb lamps (if foreseen) used in this ap-

pliance are special purpose lamps se-

lected for household appliances use

only. They are not suitable for house-

hold room illumination.

• Do not put hot pot on the plastic parts

• Do not store flammable gas and liquid

in the appliance, because they may ex-

• Do not place food products directly

against the air outlet on the rear wall. (If

the appliance is Frost Free)

• Frozen food must not be re-frozen once

it has been thawed out.

• Store pre-packed frozen food in ac-

cordance with the frozen food manu-

facturer's instructions.

• Appliance's manufacturers storage rec-

ommendations should be strictly ad-

hered to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks

in the freezer compartment as it creates

pressure on the container, which may

cause it to explode, resulting in damage

• Ice lollies can cause frost burns if con-

sumed straight from the appliance.

1.4 Care and cleaning

• Before maintenance, switch off the ap-

pliance and disconnect the mains plug

from the mains socket.

• Do not clean the appliance with metal

• Do not use sharp objects to remove

frost from the appliance. Use a plastic

• Regularly examine the drain in the re-

frigerator for defrosted water. If neces-

sary, clean the drain. If the drain is

blocked, water will collect in the bottom

For electrical connection carefully

follow the instructions given in

specific paragraphs.

• Unpack the appliance and check if

there are damages on it. Do not con-

nect the appliance if it is damaged. Re-

port possible damages immediately to

the place you bought it. In that case re-

• It is advisable to wait at least four hours

before connecting the appliance to al-

low the oil to flow back in the compres-

• Adequate air circulation should be

around the appliance, lacking this leads

to overheating. To achieve sufficient

ventilation follow the instructions rele-

vant to installation.

• Wherever possible the back of the

product should be against a wall to

avoid touching or catching warm parts

(compressor, condenser) to prevent

• The appliance must not be located

close to radiators or cookers.

• Make sure that the mains plug is acces-

sible after the installation of the appli-

• Connect to potable water supply only (If

a water connection is foreseen).

www.electrolux.com1.6 Service

• Any electrical work required to do the

servicing of the appliance should be

carried out by a qualified electrician or

• This product must be serviced by an

authorized Service Centre, and only

genuine spare parts must be used.

1.7 Environment Protection

This appliance does not contain

gasses which could damage the

ozone layer, in either its refrigerant

circuit or insulation materials. The

appliance shall not be discarded

together with the urban refuse and

rubbish. The insulation foam con-

tains flammable gases: the appli-

ance shall be disposed according

to the applicable regulations to

obtain from your local authorities.

Avoid damaging the cooling unit,

especially at the rear near the heat

exchanger. The materials used on

this appliance marked by the sym-

Fridge Compartment button

Freezer Compartment button

It is possible to change predefined sound

of buttons to a loudly one by pressing to-

gether Mode button and Temperature

colder button for some seconds. Change

After selection of the fridge or

freezer compartment the anima-

After selection of the temperature

the animation flashes for a few mi-

3.2 Switching on the appliance

To switch on the appliance do these

Connect the mains plug to the power

The temperature indicators show the

set default temperature.

6 www.electrolux.comIf DEMO appears on the Display, the ap-

pliance is in demonstration mode: refer to

“WHAT TO DO IF....” paragraph.

To select a different set temperature refer

to "Temperature regulation".

3.3 Switching off the fridge

To switch off the fridge:

Press the Fridge Compartment button

The fridge OFF indicator is shown.

3.4 Switching on the fridge

To switch on the fridge:

Press the Fridge Compartment but-

The fridge OFF indicator goes off.

To select a different set temperature refer

to "Temperature regulation".

To switch off the appliance do these

The display switches off.

To disconnect the appliance from the

power disconnect the mains plug

from the power socket.

3.6 Temperature regulation

Select the fridge or freezer compartment.

Press the temperature button to set the

Set default temperature:

• +4°C for the fridge

• -18°C for the freezer

The temperature indicators show the set

The set temperature will be reached with-

After a power failure the set tem-

perature remains stored.

This function allows you to keep the re-

frigerator closed and empty during a long

holiday period without the formation of a

The fridge compartment must be

empty with holiday function on.

To switch on the function:

Press the Mode button until the cor-

responding icon appears.

The fridge temperature indicator

shows the set temperature.

To switch off the function:

Press the Mode button in order to se-

lect an other function or press the

Mode button until you can see none

of the special icons

The function switches off by se-

lecting a different fridge set tem-

3.8 EcoMode for Fridge and

For optimal food storage select the Eco-

To switch on the function:

Select the fridge/freezer compart-

Press the Mode button until the cor-

responding icon appears.

The temperature indicator shows the

– for the fridge: +4°C

– for the freezer: -18°C To switch off the function:

Select the fridge/freezer compart-

Press the Mode button in order to se-

lect an other function or press the

Mode button until you can see none

of the special icons

The function switches off by se-

lecting a different set temperature.

If you need to insert a large amount of

warm food, for example after doing the

grocery shopping, we suggest activating

the ShoppingMode to chill the products

more rapidly and to avoid warming the

other food which is already in the refriger-

To switch on the function:

Press the Mode button until the cor-

responding icon appears.

ENGLISH 7The ShoppingMode shuts off automatical-

ly after approximately 6 hours.

To switch off the function before its auto-

Press the Mode button in order to se-

lect an other function or press the

Mode button until you can see none

of the special icons

The function switches off by se-

lecting a different fridge set tem-

3.10 DrinksChill mode

The DrinksChill mode is to be used to set

an acoustic alarm at the preferred time,

useful for example when a recipe requires

to cool down a mixture for a certain peri-

od of time, or when a reminder is needed

in order not to forget the bottles placed in

the freezer for fast cooling.

To switch on the function:

Press the DrinkChill button.

The DrinksChill indicator appears.

Press the Temperature colder button

and Temperature warmer button to

change the Timer set value from 1 to

The Timer start to flash (min).

At the end of the countdown the Drinks-

Chill indicator flashes and an audible

Remove any drinks contained in the

freezer compartment.

Press the DrinkChill button to switch

off the sound and terminate the func-

It is possible to deactivate the function at

any time during the countdown:

Press the DrinkChill button.

The DrinksChill indicator goes off.

It is possible to change the time during

the countdown and at the end by press-

ing the Temperature colder button and

the Temperature warmer button.

To switch on the function:

Press the Mode button until the cor-

responding icon appears.

The FreeStore indicator is shown.

To switch off the function:

Press the Mode button in order to se-

lect an other function or press the

Mode button until you can see none

of the special icons

If the function is activated auto-

matically the FreeStore indicator is

not shown (refer to "Daily use").

The activation of the FreeStore

mode increases the energy con-

3.12 FastFreeze mode

To switch on the function:

Select the freezer compartment.

Press the Mode button until the cor-

responding icon appears.

This function stops automatically after 52

To switch off the function before its auto-

Select the freezer compartment.

Press the Mode button in order to se-

lect an other function or press the

Mode button until you can see none

of the special icons

The function switches off by se-

lecting a different freezer set tem-

3.13 High temperature alarm

An increase in the temperature in the

freezer compartment (for example due to

an earlier power failure) is indicated by:

• flashing the alarm and freezer tempera-

• sounding of buzzer.

The buzzer switches off.

The freezer temperature indicator

shows the highest temperature

reached for a few seconds. Then

show again the set temperature.

The alarm indicator continue to flash

until the normal conditions are re-

When the alarm has returned the alarm in-

www.electrolux.com3.14 Door open alarm

An acoustic alarm will sound if the door is

left open for a few minutes. The door

open alarm conditions are indicated by:

• flashing Alarm indicator

When normal conditions are restored

(door closed), the alarm will stop.

During the alarm, the buzzer can be

switched off by pressing any button.

4.1 Storage of frozen food

When first starting-up or after a period out

of use, before putting the products in the

compartment let the appliance run at least

The freezer drawers ensure that it is quick

and easy to find the food package you

want. If large quantities of food are to be

stored, remove all drawers except for the

bottom drawer which needs to be in place

to provide good air circulation. On all

shelves it is possible to place food that

protrude until 15 mm from the door.

In the event of accidental defrost-

ing, for example due to a power

failure, if the power has been off

for longer that the value shown in

the technical characteristics chart

under "rising time", the defrosted

food must be consumed quickly

or cooked immediately and then

re-frozen (after cooling).

4.2 Freezing fresh food

The freezer compartment is suitable for

freezing fresh food and storing frozen and

deep-frozen food for a long time.

To freeze fresh food activate the Fast

Freezing function at least 24 hours before

placing the food to be frozen in the freezer

Place the fresh food to be frozen in the

The maximum amount of food that can be

frozen in 24 hours is specified on the rat-

ing plate, a label located on the inside of

The freezing process lasts 24 hours: dur-

ing this period do not add other food to

After 24 hours, when the freezing process

is completed, deactivate the Fast Freezing

function (see "Fast Freezing function").

Deep-frozen or frozen food, prior to being

used, can be thawed in the refrigerator

compartment or at room temperature, de-

pending on the time available for this op-

Small pieces may even be cooked still fro-

zen, directly from the freezer: in this case,

cooking will take longer.

ENGLISH 94.4 DYNAMICAIR The refrigerator compartment is equipped

with a device that allows for rapid cooling

of foods and more uniform temperature in

This device activates by itself when nee-

ded, for example for a quick temperature

recovering after door opening or when the

ambient temperature is high.

Allows you to switch on the device man-

ually when needed (refer to "DYNAMICAIR Function").

The DYNAMICAIR device stops when the

door is open and restarts immediately af-

ter the door closing.

The walls of the refrigerator are equipped

with a series of runners so that the

shelves can be positioned as desired.

Place the bottles (with the opening facing

front) in the pre-positioned shelf.

If the shelf is positioned horizontally, place

only closed bottles.

This bottle holder shelf can be tilted in or-

der to store previously opened bottles. To

obtain this result, pull the shelf up so it

can rotate upwards and be placed on the

To permit storage of food packages of

various sizes, the door shelves can be

placed at different heights.

To make these adjustments proceed as

gradually pull the shelf in the direction of

the arrows until it comes free, then reposi-

4.8 Humidity Control

When storing vegetables and fruits in the

refrigerator it is good practise to place the

produce in the drawer. The refrigerator

makes sure that the temperature is kept

low, thus slowing down the aging. In nor-

mal conditions, when the vegetable draw-

er is not fully loaded, and contains a mix

of vegetables and fruits, the humidity con-

trol should be placed in the high humidity

position illustrated by the large drop. This

means that the top grill is closed high hu-

midity is maintained inside the drawer.

This should be the standard setting.

Sometimes when the drawer is tightly

packed there is a risk that the produce is

cooled less effectively it is then good

practise to open the vents of the grill to-

wards the small droplet. Vegetables nor-

mally cool themselves by evaporating wa-

ter, and in the case of closed vents, there

is risk of a build up of drops and pools of

water inside. Produce that may drive large

quantities include lettuces, mushrooms,

broccoli and carrots. In cases where the

mix contains apples and fruits, it may be a

good idea to keep the vents a little open

in case there is a risk of ethylene accumu-

lation inside. Ethylene is a growth hor-

mone released by some fruits and vegeta-

bles, that may harm some, and speed up

ENGLISH 114.9 Freshzone drawer

The FreshZone drawer is suitable for stor-

ing fresh food like fish, meat, seafood, be-

cause the temperature is lower here than

in the rest of the fridge.

4.10 CrispFresh drawer

The drawer is suitable for storing fruit and

4.11 Removal of freezing baskets from the freezer

The freezing baskets have a limit stop to

prevent their accidental removal or falling

out. At the time of its removal from the

freezer, pull the basket towards yourself

and, upon reaching the end point, remove

the basket by tilting its front upwards.

At the time of putting it back, slightly lift

the front of the basket to insert it into the

freezer. Once you are over the end points,

push the baskets back in their position.

5. HELPFUL HINTS AND TIPS

5.1 Hints for energy saving

• Do not open the door frequently or

leave it open longer than absolutely

• If the ambient temperature is high and

the Temperature Regulator is set to low

temperature and the appliance is fully

loaded, the compressor may run con-

tinuously, causing frost or ice on the

evaporator. If this happens, set the

Temperature Regulator toward warmer

settings to allow automatic defrosting

and so a saving in electricity consump-

To obtain the best performance:

• do not store warm food or evaporating

liquids in the refrigerator

• do cover or wrap the food, particularly if

it has a strong flavour

• position food so that air can circulate

5.3 Hints for refrigeration

Meat (all types) : wrap in polythene bags

and place on the glass shelf above the

For safety, store in this way only one or

two days at the most.

Cooked foods, cold dishes, etc..: these

should be covered and may be placed on

Fruit and vegetables: these should be

thoroughly cleaned and placed in the spe-

cial drawer(s) provided.

Butter and cheese: these should be

placed in special airtight containers or

wrapped in aluminium foil or polythene

bags to exclude as much air as possible.

Bottles: these should have a cap and

should be stored either on the bottle rack

or the door bottle shelf.

Bananas, potatoes, onions and garlic, if

not packed, must not be kept in the re-

5.4 Hints for freezing

To help you make the most of the freezing

process, here are some important hints:

• the maximum quantity of food which

can be frozen in 24 hrs. is shown on

• the freezing process takes 24 hours.

No further food to be frozen should be

added during this period;

• only freeze top quality, fresh and thor-

oughly cleaned, foodstuffs;

• prepare food in small portions to enable

it to be rapidly and completely frozen

and to make it possible subsequently to

thaw only the quantity required;

• wrap up the food in aluminium foil or

polythene and make sure that the

packages are airtight;

• do not allow fresh, unfrozen food to

touch food which is already frozen, thus

avoiding a rise in temperature of the lat-

• lean foods store better and longer than

fatty ones; salt reduces the storage life

• water ices, if consumed immediately af-

ter removal from the freezer compart-

ment, can possibly cause the skin to be

• it is advisable to show the freezing in

date on each individual pack to enable

you to keep tab of the storage time.

5.5 Hints for storage of frozen

To obtain the best performance from this

appliance, you should:

• make sure that the commercially frozen

foodstuffs were adequately stored by

• be sure that frozen foodstuffs are trans-

ferred from the foodstore to the freezer

in the shortest possible time;

• not open the door frequently or leave it

open longer than absolutely necessary;

• once defrosted, food deteriorates rap-

idly and cannot be refrozen;

• do not exceed the storage period indi-

cated by the food manufacturer.

6. CARE AND CLEANING

6.1 Cleaning the interior

Before using the appliance for the first

time, wash the interior and all internal ac-

cessories with lukewarm water and some

neutral soap so as to remove the typical

smell of a brand-new product, then dry

ENGLISH 13Do not use detergents or abrasive

powders, as these will damage

Unplug the appliance before car-

rying out any maintenance opera-

This appliance contains hydrocar-

bons in its cooling unit; mainte-

nance and recharging must there-

fore only be carried out by author-

6.2 Periodic cleaning

The equipment has to be cleaned regular-

• clean the inside and accessories with

lukewarm water and some neutral

• regularly check the door seals and wipe

clean to ensure they are clean and free

• rinse and dry thoroughly.

Do not pull, move or damage any

pipes and/or cables inside the

Never use detergents, abrasive

powders, highly perfumed clean-

ing products or wax polishes to

clean the interior as this will dam-

age the surface and leave a

Clean the condenser (black grill) and the

compressor at the back of the appliance

with a brush. This operation will improve

the performance of the appliance and

save electricity consumption.

Take care of not to damage the

Many proprietary kitchen surface cleaners

contain chemicals that can attack/dam-

age the plastics used in this appliance.

For this reason it is recommended that

the outer casing of this appliance is only

cleaned with warm water with a little

washing-up liquid added.

After cleaning, reconnect the equipment

to the mains supply.

6.3 Defrosting the refrigerator

Frost is automatically eliminated from the

evaporator of the refrigerator compart-

ment every time the motor compressor

stops, during normal use. The defrost wa-

ter drains out through a drain hole into a

special container at the back of the appli-

ance, over the motor compressor, where

It is important to periodically clean the de-

frost water drain hole in the middle of the

refrigerator compartment channel to pre-

vent the water overflowing and dripping

onto the food inside.

Use the special cleaner provided, which

you will find already inserted into the drain

www.electrolux.com6.4 Defrosting the freezer

A certain amount of frost will always form

on the freezer shelves and around the top

Defrost the freezer when the frost layer

reaches a thickness of about 3-5 mm.

To remove the frost, follow the

• pull out the plug from the wall socket or

switch off the appliance

• remove any stored food, wrap it in sev-

eral layers of newspaper and put it in a

• remove the freezer drawers

• put insulating material around the draw-

ers, e.g. blankets or newspapers.

Defrosting can be accelerated by placing

bowls with hot water (not boiling) inside

• Loosen the drainage channel from its

resting position, push it in according to

the illustration and place it in the bot-

tom freezer drawer where water can

• carefully scrape off the ice when it

starts to thaw. Use a wood or a plastic

• when all the ice has melted, clean and

wipe the cabinet dry, then put the

drainage channel back in place.

• switch on the cabinet and replace the

It is recommended to operate the ap-

pliance at the highest position of the

thermostatic control for some hours

so that it can reach the sufficient

storing temperature as soon as possi-

Never use sharp metal tools to

scrape off frost from the evapora-

tor as you could damage it. Do

not use a mechanical device or

any artificial means to speed up

the thawing process other than

those recommended by the man-

ufacturer. A temperature rise of

the frozen food packs, during de-

frosting, may shorten their safe

7. TROUBLESHOOTING CAUTION!

Before troubleshooting, discon-

nect the power supply.

Only a qualified electrician or com-

petent person must do the trou-

bleshooting that is not in this man-

There are some sounds during

The appliance is not sup-

Check if the appliance

stands stable (all the four

feet should be on the floor).

The Temperature regulator

may be set incorrectly.

Set a warmer temperature.

The door is not closed

Refer to "Closing the door".

ENGLISH 15Problem Possible cause Solution

opened too frequently.

Do not keep the door open

longer than necessary.

The product temperature

Let the product tempera-

ture decrease to room tem-

perature before storage.

The room temperature is

Decrease the room temper-

The Fast freezing function

Refer to "Fast freezing

rear plate of the re-

During the automatic de-

frosting process, frost de-

frosts on the rear plate.

Water flows into the

The water outlet is clog-

Clean the water outlet.

Products prevent that wa-

ter flows into the water

Make sure that products do

not touch the rear plate.

The melting water outlet

does not flow in the evap-

orative tray above the

Attach the melting water

outlet to the evaporative

Products are not wrapped

Wrap the products better.

The door is not closed

Refer to "Closing the door".

The Temperature regulator

may be set incorrectly.

Set a higher temperature.

the appliance is too

The door is not closed

Refer to "Closing the door".

The product temperature

Let the product tempera-

ture decrease to room tem-

perature before storage.

Many products are stored

Store less products at the

the refrigeration is

There is no cold air circu-

lation in the appliance.

Make sure that there is cold

air circulation in the appli-

Products are too near to

Store products so that

there is cold air circulation.

The appliance is switched

Switch on the appliance.

www.electrolux.comProblem Possible cause Solution

The mains plug is not con-

nected to the mains sock-

Connect the mains plug to

the mains socket correctly.

The appliance has no

power. There is no voltage

in the mains socket.

Connect a different electri-

cal appliance to the mains

socket. Contact a qualified

The lamp is in stand-by. Close and open the door.

The appliance is in dem-

Keep pressed approxi-

mately 10 sec the Mode

button since a long sound

of buzzer is heard and the

display shut off for a short

while: appliance start works

The door is not closed

the temperature dis-

An error has occurred in

measuring the tempera-

Call your service represen-

tative (the cooling system

will continue to keep food

products cold, but temper-

ature adjustment will not be

As much as the advice does not lead to result, call the nearest brand-mark service.

If necessary, adjust the door. Refer to

8. INSTALLATION WARNING!

Read the "Safety Information"

carefully for your safety and cor-

rect operation of the appliance

before installing the appliance.

Install this appliance at a location where

the ambient temperature corresponds to

the climate class indicated on the rating

plate of the appliance:

SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C ENGLISH 178.2 Electrical connection

Before plugging in, ensure that the volt-

age and frequency shown on the rating

plate correspond to your domestic power

The appliance must be earthed. The pow-

er supply cable plug is provided with a

contact for this purpose. If the domestic

power supply socket is not earthed, con-

nect the appliance to a separate earth in

compliance with current regulations, con-

sulting a qualified electrician.

The manufacturer declines all responsibili-

ty if the above safety precautions are not

This appliance complies with the E.E.C.

A B 100 mm min 20 mm The appliance should be installed well

away from sources of heat such as radia-

tors, boilers, direct sunlight etc. Ensure

that air can circulate freely around the

back of the cabinet. To ensure best per-

formance, if the appliance is positioned

below an overhanging wall unit, the mini-

mum distance between the top of the

cabinet and the wall unit must be at least

100 mm . Ideally, however, the appliance

should not be positioned below overhang-

ing wall units. Accurate levelling is ensur-

ed by one or more adjustable feet at the

base of the cabinet.

It must be possible to disconnect

the appliance from the mains

power supply; the plug must

therefore be easily accessible after

You can find the two spacers in the bag

Do these steps to install the spacers:

Engage the spacer below the screw.

Turn the spacer to the right position.

Tighten again the screws.

18 www.electrolux.com8.5 Levelling

When placing the appliance ensure that it

stands level. This can be achieved by two

adjustable feet at the bottom in front.

8.6 Door reversibility

Before carrying out any opera-

tions, remove the plug from the

To carry out the following opera-

tions, we suggest that this be

made with another person that will

keep a firm hold on the doors of

the appliance during the opera-

To change the opening direction of the

door, do these steps:

• Open the doors. Unscrew the middle

hinge (B). Remove the plastic spacer (A)

• Remove the spacer (F) and move to the

other side of the hinge pivot (E).

• Remove the left-hand cover pin of the

middle hinge (C, D) and move to the

• Fit the pin of the middle hinge (E) into

the left-hand hole of the lower door.

ENGLISH 19• Unscrew the upper hinge pivot and

screw it on the opposite side.

• Remove the cover with the help of a

• Unscrew the lower hinge pivot (B) and

the spacer (C) and place them on the

• Re-insert the cover (A) on the opposite

• Remove the covers (B). Remove the

• Unscrew the handles (C) and fix them

on the opposite side . Place the lower

handle to the upper door and the upper

handle to the lower door.

• Re-insert the cover pins (A) on the op-

Do a final check to make sure that:

• All screws are tightened.

• The magnetic seal adheres to the cabi-

• The door opens and closes correctly.

If the ambient temperature is cold (i.e. in

Winter), the gasket may not fit perfectly to

the cabinet. In that case, wait for the nat-

ural fitting of the gasket.

In case you do not want to carry out the

above mentioned operations, contact the

nearest After Sales Service Force. The Af-

ter Sales Service specialist will carry out

the reversibility of the doors at your cost.

www.electrolux.com9. NOISES There are some sounds during normalrunning (compressor, refrigerant circula-tion).BRRR!HISSS! CLICK! BLUBB!CRACK!SSSRRR!

10. TECHNICAL DATA Dimension Height 1854 mm Width 595 mm Depth 668 mmRising Time 20 hVoltage 230-240 VFrequency 50 Hz 22 www.electrolux.comThe technical information are situated in

the rating plate on the internal left side of

the appliance and in the energy label.

11. ENVIRONMENT CONCERNS Recycle the materials with the symbol

. Put the packaging in applicable

containers to recycle it.

Help protect the environment and human

health and to recycle waste of electrical

and electronic appliances. Do not dispose

appliances marked with the symbol

with the household waste. Return the

product to your local recycling facility or

contact your municipal office.

www.electrolux.com/productregistration

tructions respectives.
