USER MANUAL Robot Vacuum Cleaner Lefant

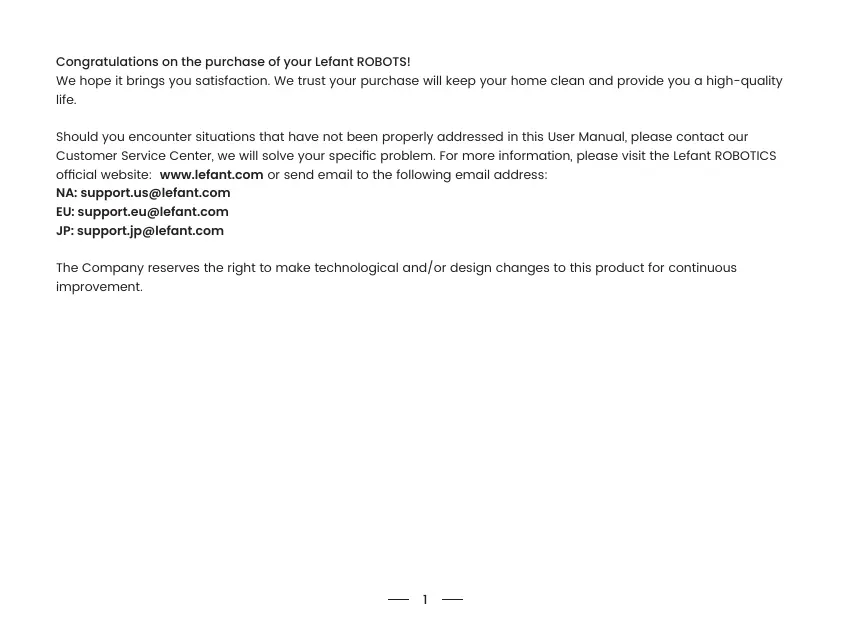

Congratulations on the purchase of your Lefant ROBOTS! We hope it brings you satisfaction. We trust your purchase will keep your home clean and provide you a high-quality lite. Should you encounter situations that have not been properly addressed in this User Manual, please contact our Customer Service Center, we wil solve your specific problem. For more information, please visit the Lefant ROBOTICS official website: www-lefant.com or send email to the following email address: NA: support us@lefant.com EU: support.eu@lefant.com JP: support jp@lefant.com The Company reserves the right to make technological and/or design changes to this product for continuous improvement.

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instru

electric shock, fire or serious injury. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. For Household use only When using an electrical appliance, basic precautions should always be followed, including the followint

1. The robot must be used in accordance with the

directions in this User Manual. Our company cannot be held liable or responsible for any damages or injuries caused by improper use.

2. Do not allow to be used as a toy. Close attention is

necessary when used by or near children.x Do not allow children to sit on the vacuum:

3. Clear the area to be cleaned. Remove power cords

and small objects from the floor that could entangle the Robot. Tuck rug fringe under the rug base, and lift items such as curtains and table cloths off the floor. 4.ifthere is a drop offin the cleaning area due to a step or stairs, you should operate the Robot to ensure that it can detect the step necessary to place a physical barrier at the edge to keep the unit from falling, Make sure the physical barrier is not a trip hazard

5. Only use as described in this manual. Only use

attachments recommended or sold by the manufactur- er.

6. Please make sure your power supply voltage matches

the power voltage marked on the Docking Station. ns may result in

7. Do not handle or plug appliance with wet hands.

8. Non-rechargeable batteries are prohibited.

8. Do not use without dust bin and/or filters in place.

10. Do not operate the robot in an area where there are lit

candles or fragile objects on the floor to be cleaned.

11. Do not use and store in extremely hot or cold environ-

ments (below -5°C /23°F or above 40°C/104°F). Please charge the robot in temperature above 0°C/32*F and below 40°C/104*F. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire

12. Keep hair, loose clothing, fingers, and al parts of body

away from any openings and moving parts.

13. Do not operate the robot in a room where an infant or

14. For INDOOR use ONLY. Do not use the robot in outdoor,

commercial or industrial environments. Do not use Appliance on wet surfaces or surfaces with standing water. 2 —

15. Do not allow the robot to pick up large objects like

stones, large pieces of paper or any item that may clog the robot.

16. Do not use the robot to pick up flammable or

combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present

17. Do not use the robot to pick up anything that is burning

or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.

18. Do not put any object into openings. Do not use with

any opening blocked: keep free of dust lint, hair, and anything that may reduce air flow.

19. Take care not to damage the power cord. Do not pull

on or carry the robot or the Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or comers. Do not run the robot over the power cord Keep power cord away from hot surfaces. Do not unplug by pulling on cord, To unplug, grasp the plug, not the cord

20. the power cord is damaged, it must be replaced by

the manufacturer or its service agent in order to avoid a hazard

21. Do not use the Docking Station if it is damaged

22. Do not use the robot or the Docking Station i i is not

working properiÿ, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

23. Turn OFF the power switch before cleaning or

maintaining the robot. Turn off all controls

24. The plug must be removed from the receptacle

before cleaning or maintaining the Docking Station

25. Remove the robot from the Docking Station, and turn

OFF the power switch to the Appliance before removing the battery for disposal of the robot

26. The battery must be removed and discarded

according to local laws and regulations betore disposal ofthe robot

27. Please dispose of used batteries according to local

laws and regulations.

28. Do not incinerate the robot even if it is severely

damaged. The batteries can explode in a fire.

29. When not using the Docking Station for a long period

of time, please unplug it

30. Prevent unintentional starting. Ensure the switch is in

the off position before connecting to battery pack, picking up or carrying the appliance. Carrying the robot with your finger on the switch or energizing the robot that have the switch on invites accidents.

31. When battery pack is not in use, keep it away from

other metal objects, Ike paper clips, coinskeys, naïls, screwsect, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

32. Under abusive conditions, liquid may be ejected from

the battery: avoid contact. contact accidentally occurs,

flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause iritation or burns.

33. Do not use a battery pack that is damaged or

modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury.

34. Do not expose a battery pack or appliance to fire or

excessive temperature. Exposure to fire or temperature ‘above 130°C/265°F may cause explosion:

35. Have servicing performed by a qualified repair person

using only identical replacement parts.

36. Do not modify or attempt to repair the robot or the

battery pack (as applicable) except as indicated in the instructions.

37. Do not operate the robot in a room that has lit

candles on furniture that the vacuum may accidentally hit or bump into:

38. Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack

39. Use the robot only with specifically designated

battery packs. Use of any other battery packs may create a risk of injury and fire

40. The robot contains batteries that are only replace-

able by skilled persons. To replace the robots battery, please contact Customer Service: A1. the robot is not going to be used for a long time. fuly charge the robot, power it OFF, and unplug the Docking Station

SAVE THESE INSTRUCTIONS

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. Short-cireuit-proof safety isolating transformer Suiteh mode power supply For indoor use only Direct current eu Attornating current detachable supply unit

Correct Disposal of this Product This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased They can safely recycle this product. Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmtul interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmtul interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. f this equipment does cause harmtul interference to radio or television reception, which can be determined by turing the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected! + Gonsuit the dealer or an experienced radio/Tv technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation FCC Caution: Any changes or modifications not expressiy approved by the party responsible for compliance could void the user 55 authority to operate this equipment. RF exposure warning This equipment complies with FC radiation exposure limits set forth for an uncontralled environment This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

21 Assemble and charge 22 Using environment preparation

3. Using the product

3.1 How to use buttons

32 App download and configuration

4. Abnormal symptoms

The different models of this series are only different in appearance, parameters, configuration, etc., and the usage methods are the same. This manual uses one of the models as an example to explain how to use it. HS € Docking Station Dust bin High Efficient Particulate & AG Adapter Air (HEPA) Fiter

Side brush Cleaning tool User manual Robot vacuum cleaner

Front view Internal view Power Suitch (ONO=Or) Start/pause button 5) | Dust bin Pannel Start/pause button Anti-collision sensor Bottom view Appearance of other models Anti-falling sensor Universal wheel Charging electrode Side brush Suction mouth Drive wheel

Docking Station Power adapter Infrared signal transmitter Charging electrode Power adapter socket Docking Station for other models Power adapter Indicator light Power adapter socket — 10 — Dust bin! handle Pre-filter HEPA Filter Dust bin‘for other models Pre-filter Snap Lock HEPA Filter

2. Preparation / 2.1 Assemble and charge

© remove the protective film on @ installthe side brushes © Priacement ofthe charging base the robot and docking station 1 connection of power suppiy

• Place tho docking station on an open place. _ * Connect the poser supply and tidy up tho power cord ta avoid tuining, @ rumonthe robot © charging L'means ON,” O ‘means OFF Place the robot at Docking Station and make sure to align the charging electrodes æwinking means charging. (© turn off means fuly charged. À ful charge tokes 5 hours. ‘@ Rominder: Cannot charge ven product is turned off. _n —

2. Preparation / 2.2 Using environment preparation

Tidy up the room Organize the items on the A) ‘tn rug at home has tinged floor, such as wires, edges, please put the edges slippers and other under the rug in advance. sundries to avoid affecting the operation of the robot The robot can climb to the top ot objects with a height of less. than 12mm. If you dont want the robot to climb on them, please take them away. A] nt robot operate on wet floors. —_ 0 —

3. Using the product / 3.1 How to use buttons

Single press: Start/pause Double press: Automatic return and charge Keep pressing for 6 seconds Indicator Meaning Robot status Indicator status Cleaning Blue light on Pause/standby Blue light on Charging a Low battery-automatic Rod ight on return and charge Cleaning complete automatic Pink ight on return and charge Entering Wi-Fi pairing mode Blue light flash Error Red light on/flash —_ nm —

3. Using the product / 3.2 App download and configuration

Downloading and installation of the “Lefant” app Method 1: Scan the following QR code, and then download and install App as prompted Method I: Search "Lefant in the App store, download and install the Lefant app.

Note: The robot works with 2.4GHz Wi networks only. < Setings WLAN

V TP 246 TP-unk_56 Tips:

• Follow the guidance in the Lefant app to register, login, and pair the robot

• Please make sure that the mobile phone is connected to your Wi-Fi network before paring the robot vacuum cleaner.

• When cleaning and maintaining the robot and its accessories, please unplug the charging stand. © open tre faceplate and take @ open the dust bin latch and out the dust bin dump the garbage A Warning The HEPA Fier should not touch the water. © cieantne HEPA-filter

• When cleaning and maintaining the robot and its accessories, please unplug the charging stand. r \ A Waming © ©pcn tre faceplate and take out the dust bin ne HEPA Fier Stbi should not touch the water. C © remove the fiter assemby © cieanthe pre-fiter 16 — @ open the dust bin latch and dump the garbage

© cieantne HEPA-filter

• When cleaning and mainta ing the robot and its accessories, please unplug the charging stand.

1. Clean the anti-drop sensor to ensure the sensitivity of the sensor. 6. Clean the Anti-collision sensors to ensure

sensitive obstacle avoidance.

2. Clean the universal wheel

to prevent hair from tangling.

3. Cleanthe charging

electrode to ensure successful charging,

7. Clean the side brush to prevent hair from

8. Clean the charging electrode of the

docking station to ensure successful charging

5. Clean the driving wheel to

When the robot runs into trouble, its red indicator light wil| be on or flash and beep with different durations and separations. The following table summarizes the corresponding causes: RTmmme | rover | sur The red ightis on 1 | abnormal drvingunoet | _ 1 boop for three times | PI200 check whether the dving hoel is tanglod and clean upit 2 | abnormal side brush | 2 beops for three timos | Please check whother the sie brush is tangled, and clean up the side brush 3 Abnormal fan 3 beops for three times | Pleaso check tne waste inthe dust bin andl th air dut a | undotectod dust bin | 8 boeps or tr times | Pleaso instal the aust binin tho robot Rod light flashes Ground-detection alarm | 2 beeps for three times | ne robot nange in the air. Please move it to the ground. 2 [biemma aimination alarm | 3 beeps tor three times | ral ta get id of a dilommaïploase move to an open place. 3 Low Battery 4 beops for three times. | Ploase move the robot to tho docking station for charging, à | abnormal adapter | 5 boope for three times | cisan the cicctrode and ensure the original aclapter. 5 | Abnomalcharging | 6 beeps forte times | check if tno robots turned on.

• the above mothod cannot resove the problem, please try the following operations: Turn en the ON/OFF button under the faceplato to restant the robot —_ 18 —

I the following problems oceur in the application process of the product, users can resoive them independentiy by comparison and inquiry. reg t a aparation in te able, contat our customer are raprasentote. Sn] Faut Possible causes Solutions caning component bicciage 15 recommended to replace consumables regular, such as high-afcioncy 3 [abnormar | Sleaning components blockage fiers (EPA), pre-fiter, side brushes, etc. clecning Joust on sensars and other companents (Please refer to the chapter [Maintenance] of he manuel 1 clean 1ne robot keep pressing the Start/pause button for 6 seconds: Entering Wi-Fi pairing mode. Unable to | Not entered Wi-Fi pairing mode à lon [27218 WE paring mot Please refer to the manuañs chapter [App download and configuration]. APP [24cm nemomisntused oaso reter tone manuals chapter [App download and configuration] incorrect placement of charging base [Please place ine charging stand in an open and fat area Fe charging stand is powered offor [rease check einer ine charging Pose is connected tone pour SUP Do nt Dificuit to |moved manualy move the posion of the charging base when tne robot is working, 3 |retum en sr 12 home is 100 large. and te lease refer to the chapter [Using environment preparation] of the manual charge environment is complex Presse rofer to the chapter [using * preparation] of x ' Fe roBoE ut isa rom ne Eng caren Latine robot clean trom the docking station. ne pouer suppiy is not connected or [Check netner both ends of he power adapter are connected and powered on ne plug is 10050 normal unabie to [Poor contact Berisen ie robot and [Ensure tartine changing alscuode ofine robot and ie changing Base are fui 4 Large |ino charging electrode of ie docting. connected, and clean te charging electrode one robot angine docking station tation reguiony sata dataroraton caused} NS reCOmmEdSE to UE IIS proue Mequen. FINS Bat CONNEE ES on long tai due chargeci due to not using for a long time, plaase contact a customer service representative. 59 —

Product model M210 Rated input of machine Docking Station Model calu Rated Output Voltage Rated Output Current 064 Power Adapter Model AD-0121900060US Power Adapter Input 100-240V- 50-60Hz 0.5 Power Adapter Output DC 19V, 0.6A, CLASS II Off/Standby Mode Power Less than 05W Networked Standby Power Less than 2.00W Note: Since the product needs continuous improvement, the actual product shall prevail Our company reserves the right to update the product. — 20 —

Warranty This warranty covers the repair or replacement of the malfunction device at our companys discretion for a period of 1-year. In addition this certificate is void if altered. The serial number must be provided as well as all accessories to be eligible for warranty coverage. Please kindiy fill in below form accurately and completely. Order Number: Serial Number: Date of Purchase: important: When returning ts device, carefuly pack the product to avoid damage in shipping. Damage in shipping is not covered by the Warranty and shal be the sole responsiliy of Buyer, Damage or loss not covered by Enis Warranty or occuring outside the Warranty Period vil require a fe0 10 cover the cost f handling and shipping. AI such fees and costs shal be the sols responsibility of Buyer. Exclusion Unless agreed in ring. the warranty vil not appiy the deect relate to: + Consumable parts such es fers, or brushes ete, hat are subject o normal wear and tear, and! require regular maintenance and/or replacement to ensure the proper funetning af Your unit : Defects caused by rough er inapproprate handling or uso or damage caused by accident misuse, negiect fie, water, ing or other acts of nature, external sources such 68 weather, electrical outages ar power surges proper aperation er maintenance, use not In accordance aith the produet instructions or connection Lo Improper voltage supply.

• Aecident, abuse, misapplcation or any unauthorized repair, modification, or isassemb}y of the product + Any failure to adequately package the Product for transportation. : Use of part not in accordance witn the product Instructions. : Use of parts and accessories other than those produced or recommended by our company. : Use in a commercial environment as the Products designed fr residentel use on. : Consequential and incidental damage. + Any produet(s) purchased from unauthoized dealers/reselrs. : Products used outside ne country of purchase. «Lost and/or stolen products.
