USER MANUAL CV166 CANDY

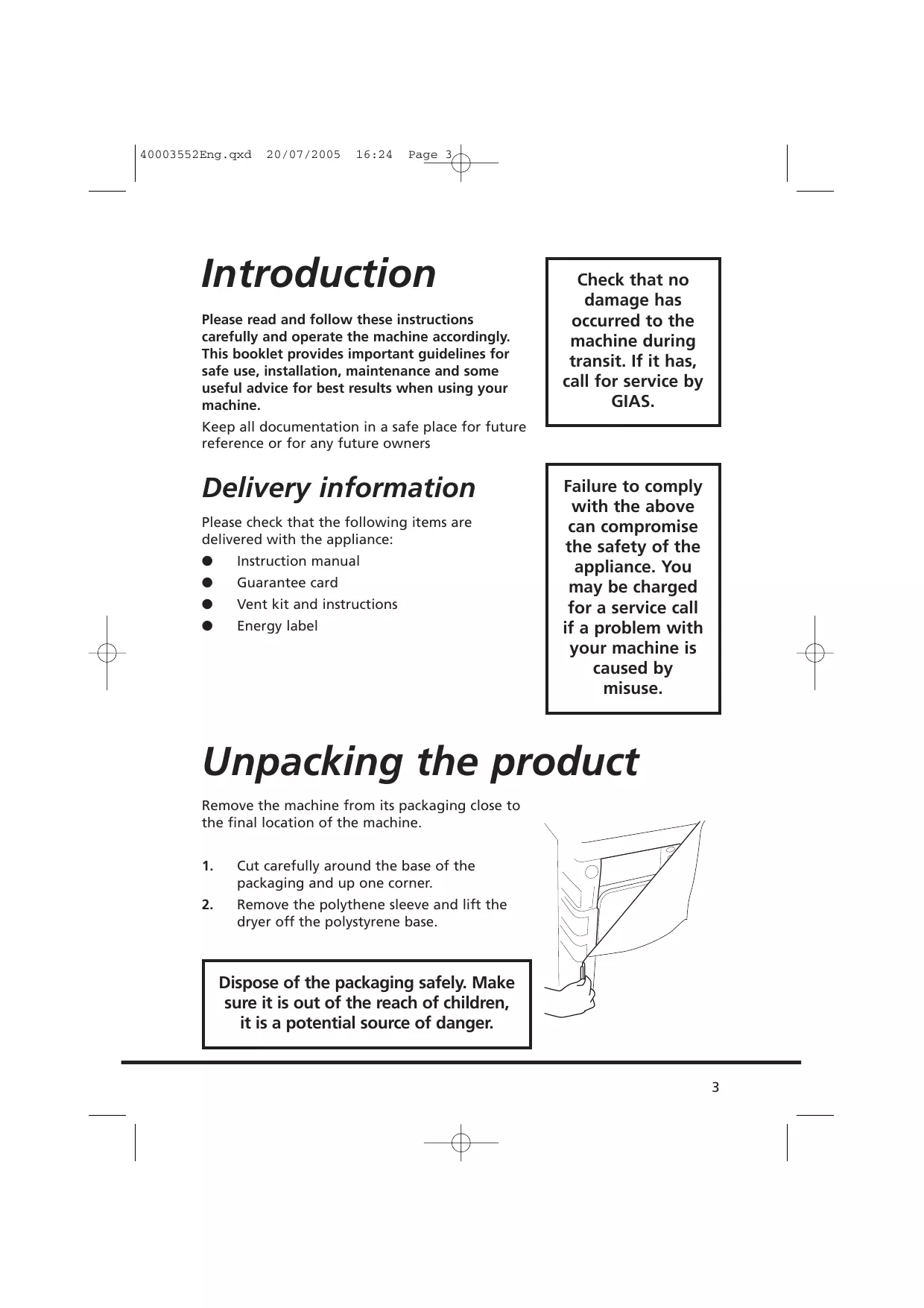

40003552Eng.qxd 20/07/2005 16:24 Page 3 Introduction Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Keep all documentation in a safe place for future reference or for any future owners Delivery information Please check that the following items are delivered with the appliance:

Vent kit and instructions

Energy label Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse. Unpacking the product Remove the machine from its packaging close to the final location of the machine.

Cut carefully around the base of the packaging and up one corner.

Remove the polythene sleeve and lift the dryer off the polystyrene base. Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger.

Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service. Do not use adapters, multiple connectors and/or extensions. This machine should not be installed in a bathroom or shower room. Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer. Use

WARNING Misuse of a tumble dryer may create a fire hazard. This machine is solely for domestic use, i.e. to dry household textiles and garments. This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance. Do not touch the appliance when hands or feet are damp or wet. Do not lean on the door when loading the machine or use the door to lift or move the machine. Do not allow children to play with the machine or its controls. WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited. WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C. Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance. Do not continue to use this machine if it appears to be faulty. Lint and fluff must not be allowed to collect on the floor around the outside of the machine. The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry. The Laundry

WARNING Do not tumble dry fabrics treated with dry cleaning fluids. WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MUST NOT be placed in the dryer. Always refer to the laundry care labels for directions on suitability for drying. Clothes should be spin dried or thoroughly wrung before they are put 40003552Eng.qxd

20/07/2005 16:24 Page 5 into the tumble dryer. Clothes that are dripping wet should NOT be put into the dryer. Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine. Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres. Garments treated or contaminated with flammable cleaning sprays or liquids such as petrol, cooking oil or aerosol sprays MUST NOT be put in this machine. Environmental Issues

All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal. To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock. GIAS Service

To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS Service engineer. European directive 2002/96/EC This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

40003552Eng.qxd 20/07/2005 16:24 Page 6 Installation You may be charged for a service call if a problem with your machine is caused by incorrect installation. Electrical requirements Tumble dryers are supplied to operate at a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A. Electricity can be extremely dangerous. This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type. Do not use multiple adapters and/or extension leads. If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person. The plug should be accessible for disconnection after the appliance has been installed. The wires in the mains lead are coloured in accordance with the following codes: Blue NEUTRAL Brown LIVE Green and Yellow EARTH CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments. Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice. Adjusting the feet Once the machine is in place the feet should be adjusted to ensure that the machine is level. Adjust the four feet to ensure the machine is firm and level.

40003552Eng.qxd 20/07/2005 16:24 Page 7 Ventilation Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Check regularly that the air flowing through the dryer is not restricted.

Check the fluff filter after use, and clean, if necessary.

The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions.

Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.

NEVER install the dryer up against curtains. Installation of the Discharge Hose It is essential to use a venting hose to carry the hot moist air away from the dryer unless the dryer is situated in a open space with a good air flow around it. Re-recirculation of the moist air will prevent the efficient operation of the dryer. The hose is assembled to the machine as shown The hose may be fitted through a wall or through an open door or window. The hose is 110mm in diameter and will extend 1.8 meters. The following guidelines should be followed when installing the discharge hose.

Do not use two hoses joined together as the drying performance will be reduced.

Do not restrict the flow of air through the hose e.g. by kinking it or

40003552Eng.qxd 20/07/2005 16:24 Page 8 fitting a smaller diameter connector to mount to a wall opening.

Avoid the hose making U shaped curves as this will restrict the flow of air and increase the chance that water will collect in the hose.

Check the hose regularly to remove any build-up of fluff or water that may have collected in it. The following diagrams give examples of good and bad installations. Preparing the load Before using the tumble dryer for the first time: Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Please read this instruction book thoroughly.

Remove all items packed inside drum.

Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit. Clothes preparation Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled. 40003552Eng.qxd 20/07/2005 16:24 Page 9 Maximum drying weight

Synthetics Max. 3 kg Sort the load as follows:

By care symbols These can be found on the collar or inside seam: Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry. If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

By amount and thickness Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

By type of fabric Cottons/linen: Towels, cotton jersey, bed and table linen. Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

40003552Eng.qxd 20/07/2005 16:24 Page 10 Drying advice IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion). Do not tumble dry: Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc. Energy saving Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity. During the last 15 minutes the load is always tumbled in cool air. ALWAYS

Try to dry the maximum weight of laundry, this will save time and electricity.

Check that the filter is clean before every drying cycle. NEVER

Exceed the maximum weight, this will waste time and electricity.

Put dripping wet items into the tumble dryer, this may damage the appliance. Drying guide The table shows approximate drying times, depending on the type of fabric and dampness of the clothes. HEAVY LOAD MEDIUM LOAD HEAT SETTING INDICATOR LIGHT COTTON HIGH OFF SYNTHETICS LOW

LIGHT LOAD 120-140 min 100-120 min 30-50 min 40003552Eng.qxd 20/07/2005 16:24 Page 11 Controls and indicators TIME REMAINING DISPLAY ACRYLICS/SYNTHETICS BUTTON START BUTTON FILTER CARE INDICATOR START DELAY BUTTON ON/OFF BUTTON PROGRAMME SELECTOR Control panel and indicator lights Programme Selector – select the required programme On/Off (Marche/Arrêt) button and indicator – press to switch on, the indicator will light START (Départ) button – Press to commence the selected drying programme. Press for 5 seconds to cancell/reset the programme Acrylics/Synthetics (Séchage Délicat) button – press to reduce the heat level for delicate items, the indicator above the button will light up. To change the heat setting the programme must be reset. Low Heat – Indicator light ON High Heat – Indicator light OFF FILTER CARE (Entretien Filtre) Indicator – lights when the filter needs cleaning START DELAY (Départ Différé) Button – Allows the user to delay the start of the drying cycle (see details of operation on page 14). Time Remaining (TEMPS RESTANT) Display START – When the dryer is switched On the START indicator will flash, when the programme starts the START indicator will light up 60' – Indicator lights when there is less than 60 minutes left until completion of the programme 15' – Indicator lights when there is less than 15 minutes left until completion of the programme. At this stage of the drying cycle the machine enters the Cool down phase STOP – Indicator lights when the programme is finished. 6h – 6 hour start delay (light flashes when in operation) 9h – 9 hour start delay (light flashes when in operation)

40003552Eng.qxd 20/07/2005 16:24 Page 12 Door and Filter Opening the door Pull on handle to open the door. To restart the dryer, close the door and press Départ. WARNING! When the tumble dryer is in use the drum and door may be VERY HOT Filter IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

Pull the filter upwards.

Open filter as shown.

Gently remove lint using a soft brush or your fingertips.

Snap the filter together and push back into place. Filter Care Indicator Entretien Filtre lights when the filter needs cleaning. If the laundry is not drying check that the filter is not clogged. The indicator will also light when the venting hose is blocked or kinked.

40003552Eng.qxd 20/07/2005 16:24 Page 13 Selecting the Programme This Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table below lists the programmes and the function of each programme. Programme Description Bone Dry Select the degree of dryness that you require. Extra Dry This ranges from Bone Dry for bath towels and bathrobes, through Cupboard Dry for items that will be put away without ironing, to the programmes that leave the laundry suitable for ironing. Cupboard Dry Iron Dry Medium Dry Damp Dry Fast Iron The Fast Iron programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. The Fast Iron process relaxes the creases in the fabric making ironing quicker and easier. 75' 75 minutes of drying 60' 60 minutes of drying 45' 45 minutes of drying 30' 30 minutes of drying Refresh Tumbling of laundry in cool air Note: The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes. Set the programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown. If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after 180 minutes.

40003552Eng.qxd 20/07/2005 16:24 Page 14 Operation

Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

Gently close the door pushing it slowly until you hear the door 'click' shut.

Press the Départ button to switch on the dryer. The indicator will light up and the START indicator will flash.

Turn the Programme Selector dial to select the required drying program (see Programme Guide).

If drying synthetics, acrylics or delicate items, press the Séchage Délicat button to reduce the heat level. The light above the push button will light up when the machine is in low heat setting. To deselect this status when the drying cycle has started it is necessary to reset the machine

Press the Départ button. The dryer will start automatically and the START indicator will be continuously lit.

The TEMPS RESTANT display will show the drying progress in terms of time remaining.

If the door is opened during the programme to check the laundry, it is necessary to press Départ to recommence drying after the door has been closed.

When the 15' indicator is lit the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down. WARNING! The drum, door and load may be very hot.

When the programme is complete the STOP indicator will light. Cancelling and resetting the programme To cancel a programme press the Départ button for 5 seconds. The machine will indicate that it has been reset by the START indicator flashing. It is possible to change the programme within the first 10 minutes without using the cancel and reset function. Start Delay The Delay Start Function (Départ Différé) allows the user to delay the start of the drying cycle by 6 or 9 hours.

40003552Eng.qxd 20/07/2005 16:24 Page 15 When the function is first selected the display will show a delay of 6 hours, a subsequent press of the button will increase the delay to 9 hours. To commence the programme press Départ and the appliance will complete the drying cycle at the end of this time. The 6 or 9 hour indicator light will flash to indicate that the start delay is in progress. Cleaning and Routine Maintenance Cleaning the dryer

Clean the filter after every drying cycle.

After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.

Wipe the outside of the machine and the door with a soft cloth.

DO NOT use abrasive pads or cleaning agents.

To prevent the door sticking or the build up of fluff periodically clean the inner door and gasket with a damp cloth. IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance. Technical specifications Drum capacity 115 litres Maximum load 6 kg Height 85cm Width 60cm Depth 60cm Energy Label Band

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

40003552Eng.qxd 20/07/2005 16:24 Page 16 Troubleshooting What might be the cause of... Defects you can remedy yourself Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone. Drying time is too long/clothes are not dry enough…

Have you selected the correct drying time/programme?

Were the clothes too wet? Were the clothes thoroughly wrung or spindried?

Does the filter need cleaning?

Is the dryer overloaded?

Is the venting hose kinked or blocked?

Has the Séchage Délicat option been selected from a previous cycle? The dryer does not operate…

Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.

Is the plug properly connected to the mains supply?

Is there a power failure?

Is the door fully closed?

Is the dryer switched on, both at the mains supply and at the machine?

Has the drying time or the programme been selected?

Has the machine been switched on again after opening the door? The dryer is noisy…

Switch off the dryer and contact GIAS Service for advice. The Filter Care Indicator is on…

Does the filter need cleaning?

Is the venting hose kinked or blocked?

40003552Eng.qxd 20/07/2005 16:24 Page 17 Customer Service Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

Is found to be in working order.

Has not been installed in accordance with the installation instructions.

Has been used incorrectly. Spares Always use genuine spares, available direct from GIAS Service. GIAS Service For service and repairs call your local GIAS Service engineer. The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
