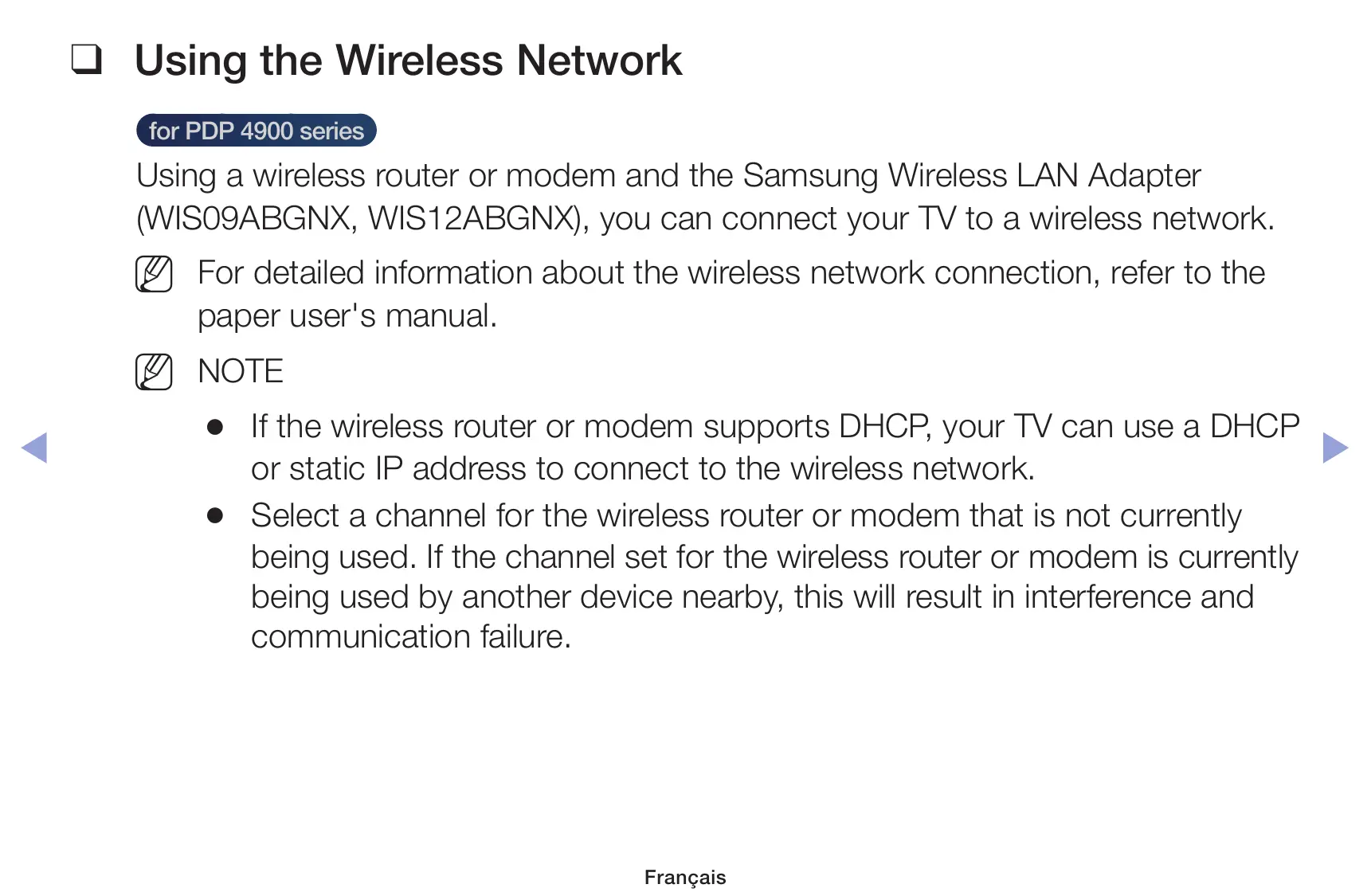

❑❑ Using the Wireless Network for PDP 4900 series Using a wireless router or modem and the Samsung Wireless LAN Adapter (WIS09ABGNX, WIS12ABGNX), you can connect your TV to a wireless network. NN For detailed information about the wireless network connection, refer to the paper user's manual. NN NOTE

●● If the wireless router or modem supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. ●● Select a channel for the wireless router or modem that is not currently being used. If the channel set for the wireless router or modem is currently being used by another device nearby, this will result in interference and communication failure. Français

●● You must use the “Samsung Wireless LAN Adapter” (WIS09ABGNX,

WIS12ABGNX) to connect the TV to a wireless network. The Samsung Wireless LAN Adapter and the USB extension Cable are sold separately and are offered by selected retailers, E-commerce sites, and SamsungParts.com. ●● Your TV supports only the following wireless network security protocols. –– Authentication Mode: WEP, WPAPSK, WPA2PSK –– Encryption Type: WEP, TKIP, AES ●● If you select the HIGH PURE THROUGHPUT (Greenfield) 802.11n mode and the Encryption type is set to WEP or TKIP in your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. ●● If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode. Français

●● If your router, modem, or device is not certified, it may not connect to the

TV via the “Samsung Wireless LAN Adapter”. ●● Connection Methods : You can setup the wireless network connection in four ways: –– Auto Setup (Using the Auto Network Search function) –– Manual Setup –– WPS(PBC) –– Wi-Fi Direct ●● Ensure the TV is turned off before you connect the Samsung Wireless LAN Adapter. ●● The TV may not recognize the Samsung Wireless LAN Adapter if it is connected to the TV using a USB hub or USB extension cable other than the cable supplied. Français

How to connect the Samsung Wireless LAN Adapter You can connect the LAN Adapter in one of two ways: 1 Connect the LAN Adapter using the USB right angle adapter. 2 Connect the LAN Adapter via the USB extension cable.

NN The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such a case, connect the Samsung Wireless LAN Adapter using the USB extension cable. Put the Adapter in a place where it does not affect the picture. NN The position of the USB port may differ depending on the model.

NN You can only use the Internet to share content via AllShare™. English

■■ Auto Network Setup Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up wireless security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

NN When you connect the Samsung Wireless LAN Adapter for the first time, the Network setup screen appears immediately.

2. The Network function searches for available wireless networks. When done, it

displays a list of the available networks.

3. In the list of networks, press the ▲/▼ buttons to select a network, and then

press ENTERE button. NN If the wireless router is set to Hidden (Invisible), you have to select Ajouter réseau, and then enter the correct network name and Security key to establish the connection.

4. If the Enter security key screen appears, go to step 5. If you select a wireless

router that does not have wireless security, go to step 6. English

NN You can also enter numbers by pressing the number buttons. NN You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

6. The network connection screen appears, and network set up is done.

detailed manual set up instructions, refer to "Manual Network Setup". NN If you select Changer réseau, you can select other wireless networks. English

WPS(PBC) Wireless Setup If your router has a WPS(PBC) button, follow these steps.

1. In the TV's menu, go to the Paramètres réseau screen.

(Réseau → Paramètres réseau)

2. The Network function searches for available wireless networks. When done, it

displays a list of the available networks.

3. Scroll through the list. Find, and then select WPS(PBC).

4. Press the WPS(PBC) button on your router within 2 minutes. Your TV

automatically acquires all the network setting values it needs and connects to your network.

5. The network connection screen appears, and network set up is done.

■■ Manual Network Setup Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. NN You can get the network connection values from you Internet provider. How to set up manually To set up your TV’s wireless network connection manually, follow these steps.

2. The network function searches for available wireless networks. When done, it

displays a list of the available networks.

3. In the list of networks, select a network you want to connect to.

–– If the wireless router is set to Hidden (Invisible), you have to select Ajouter réseau and enter the correct Network Nom (SSID) and Security Key to establish the connection. English

4. If the Enter security key screen appears, go to step 5. If you select a wireless

router that does not have wireless security, go to step 7.

5. To set wireless security for the router, enter the Security Key.

–– Enter the Security Key using the keyboard pop-up screen and your remote. –– You should be able to find the Pass Phrase on one of the set up screens you used to set up your router.

6. When finished, select Fait. The network connection screen appears and the

verification process starts.

7. Select Arrêter. The verification process stops. Select Param. IP on the

network connection screen. The Param. IP screen appears.

Select Param. IP, and then set Param. IP to Entrer manuellement.

9. Go to the Adresse IP entry field, and then select Adresse IP using your

10. Enter the first portion of the IP Address (for example, 105) into the first entry

field using your remote. When done, go to the next field.

11. Enter the next portion of the IP Address. When done, go to the next field.

12. Repeat the entry process for each field in the IP Address.

–– If you make a mistake when entering a number, re-enter the number to correct it.

13. When done, go to the Masque s.-réseau fields.

15. When done, select OK. The network connection screen appears and the

If Your TV Fails to Connect to the Internet If your TV fails to connect to the Internet, read the information below and view the troubleshooting guide on the following pages. Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet. If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet. The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider. If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics. English

Troubleshooting a wireless network connection failure If the wireless network connection fails, try the following solutions: Issue Solutions and Explanations Wireless network connection failed.

• No wireless router selected. Go to Paramètres réseau to select your router. Unable to connect to wireless router.

• Check if the router is turned on, and if it is on, try turning it off and on again.
• Check if you need to enter a security key to use the router.

English Issue IP auto setting failed. Solutions and Explanations

• Try the following to set your IP address automatically or set your IP address manually by selecting Param. IP. - Ensure DHCP server is enabled on the router, and then unplug and plug-in the router. - Check if you need to enter a security key to use the router. - Contact your Internet Service Provider for more information. Unable to connect to the network.

• Check if your IP address is set correctly in Param. IP.
• Check if you need to enter a security key to use the router.
• Contact your Internet Service Provider for more information. English

Issue Connected to your local network, but cannot connect to the Internet. Solutions and Explanations

• Make sure your Internet LAN cable is connected correctly to the LAN port of the router.
• Check the DNS settings in Param. IP.
• If the problem persists, contact your Internet Service Provider to access the Internet. Network setup
• Confirm that your router is connected to the Internet. complete, but cannot
• If the problem persists, contact your Internet Service Provider to access connect to the Internet. the Internet.

English ❑❑ Managing the Network Connected Devices for PDP 4900 series ■■ Wi-Fi Direct OO MENUm → Réseau → Wi-Fi Direct→ ENTERE Use to connect the TV to wireless mobile devices. Using this function, you can connect wireless mobile devices with your TV directly without a wireless router.

NN You can use this function only when the Samsung Wireless LAN Adapter is connected to the TV. NN Wi-Fi Direct only supports the Media Play function. NN Wi-Fi Direct may not be supported by your mobile device, depending on the device. English

How to connect a device to your TV using the Wi-Fi Direct function NN To use this function, you must turn on the Wi-Fi Direct function on your device.

1. In the TV's menu, go to Wi-Fi Direct. The TV starts to search for devices.

(Réseau → Wi-Fi Direct)

2. Select a device from the list that the TV displays, and then press ENTERE

3. When the connection message appears on your device, allow it.

NN If you want to disconnect the device, select the connected device, and press the ENTERE button to select Déconnexion. English

■■ Paramètres AllShare OO MENUm → Réseau → Paramètres AllShare → ENTERE Lets you allow a network connected device such as a smartphone or tablet to share content with or control the TV using an application downloaded to the mobile device. For details on set up options, refer to the “Using the AllShare Settings Functions”. ■■ Nom de l'app.

❑❑ Using the DLNA Functions (AllShare™) for PDP 4900 series Via your network, you can play videos, photos, and music saved on your mobile phone or on other devices (such as your PC) through your TV, and control playback using controls on the TV via the network. NN NOTE

●● This model only supports the DLNA function in AllShare™. ●● First, connect your TV to your network. For detailed network connection instructions, refer to “Paramètres réseau”. ●● For more information, visit “www.samsung.com” or contact the Samsung call center. Mobile devices may need additional software installed. For details, refer to each device’s user’s guide. ●● If your Samsung TV connects to a non-Samsung DLNA server, a compatibility issue may occur during video playback. English

NN By connecting your Samsung TV to a network via AllShare™, you can use Samsung’s original functions, controls, and capabilities as follows:

Playback of various video formats (DivX, MP4, 3GPP, AVI, ASF, MKV, etc.) Bookmark function (to resume video playback) Auto-chaptering (scene navigation) Digital content management Compatibility with various subtitle formats (SRT, SMI, SUB, TXT, TTXT) And many others NN To use Samsung's original DLNA functions fully, we recommend that you use ▶ the AllShare™ software provided with your TV. English Playing the media contents saved on the devices

1. Connect a mobile phone or another device which supports AllShare™ to your

network, and then select and play a media file on the device. A popup screen appears on the bottom of your TV.

2. Select Permet. to accept the connected device. The media contents of the

device can now be played on your TV. NN You can find the allowed devices on Paramètres AllShare.

English Using the Media Play function, play the media contents of the devices connected to your TV through AllShare™.

1. Press the MEDIA.P button to select Media Play.

2. Press ▲/▼ button to select the desired category (Vidéos, Photos, or

Musique), and then press the ENTERE button.

3. When the DLNA device is selected, press the ENTERE button again.

English NN NOTE ●● Contents may not play on your TV depending on their resolution and format. ●● The ENTERE and ◄/► buttons may not work depending on the type of media content. ●● Using the mobile device, you can control the media playback. For details, refer to each device's user’s guide.

English Using the AllShare Settings function OO MENUm → Réseau → Paramètres AllShare → Partage de contenu → ENTERE Shows a list of mobile phones or connected devices which have been set up with this TV to use the Paramètres AllShare function. NN The Paramètres AllShare function is available in all devices which support DLNA DMC.

●● Permet. / Bloquer: Allows/Blocks the devices. ●● Supprimer: Deletes the devices from the list. NN This function only deletes the name of the devices from the list. If the deleted device is turned on or tries to connect to the TV, it may appear on the list again. English

Connecting to a PC through your network You can play pictures, music, and videos saved on your PC via a network connection through your TV using Media Play. NN If you want to use Media Play to play files saved on your PC through your TV, you should download “AllShare PC Software” and the AllShare user's manual from “www.samsung.com”.

1. Connect your TV to your network. For network connection instructions, refer

–– We recommend you locate both TV and PC in same subnet. The first 3 parts of the IP address of the TV and PC should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

2. Connect the PC on which you will install or have installed AllShare PC

software and your TV to the same network. NN Functions that are not supported by Media Play when the TV is connected to a PC through a network: ●● Background music when playing a slide show. ●● The π (REW) or µ (FF) button while a movie is playing.

NN The DivX DRM, Multi-audio, embedded caption is not supported. NN Make sure AllShare PC Software is permitted by the firewall program on your PC. English

NN When you use Media Play through a network connection, depending on the functions of the server: ●● The sorting method may vary. ●● The π (REW), µ (FF) or ∑ (Pause) buttons may not work depending on the content information. NN When you play video through a network, the video may not run depending on the network status. Also, when you play video over a network connection, the video may not play smoothly.
