USER MANUAL PN58B540 SAMSUNG

Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Comment contacter Samsung dans le monde Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs Samsung. Country U.S.A CANADA Customer Care Center Web Site 1-800-SAMSUNG(726-7864) www.samsung.com/us 1-800-SAMSUNG(726-7864) www.samsung.com/ca Address Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronique Canada Inc., Service à la Clientèle 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Plasma TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model Serial No. BN68-02143B-00 BN68-02143B_Eng.indb 1 2009-03-10 오후 5:38:29 Important Warranty Information Regarding Television Format Viewing Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty. U.S.A Only The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. Other countries The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. © 2009 Samsung Electronics Co., Ltd. All rights reserved. English - BN68-02143B_Eng.indb 2 2009-03-10 오후 5:38:29 User Instructions Screen Image retention Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to page 24 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image. Altitude The PDP can only operate normally at heights under 6500ft. Heat on the top of the Plasma TV The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product. The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit. Cell Defects The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Avoid operating the TV at temperatures below 41°F (5°C) A still image displayed too long may cause permanent damage to the PDP Panel. Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty. After-images on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a long time. Warranty Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty. English - BN68-02143B_Eng.indb 3 2009-03-10 오후 5:38:30 English Contents Connecting and Preparing Your TV PC Display

Note One-Touch Button TOOLS English - BN68-02143B_Eng.indb 4 2009-03-10 오후 5:38:30 Connecting and Preparing Your TV List of Features

Adjustable picture settings that can be stored in the TV’s memory. Automatic timer to turn the TV on and off. A special sleep timer. V-Chip function. Excellent Digital Interface & Networking : With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box) needed.

• You can listen to music files and view pictures on USB Mass Storage Class (MSC) devices.
• HDMI/DVI connection of your PC to this TV.

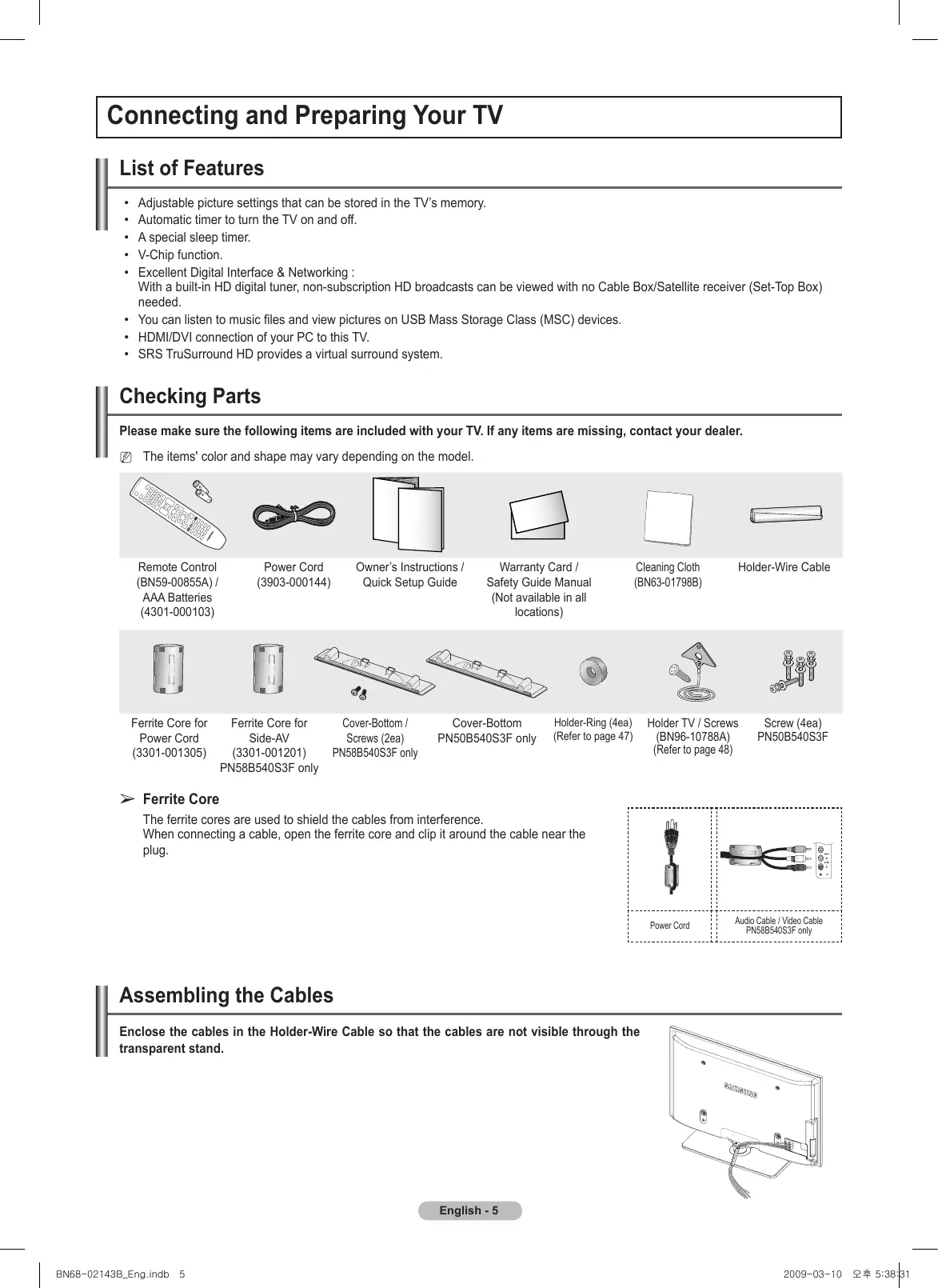

• SRS TruSurround HD provides a virtual surround system. Checking Parts Please make sure the following items are included with your TV. If any items are missing, contact your dealer. N The items' color and shape may vary depending on the model. Remote Control (BN59-00855A) / AAA Batteries (4301-000103) Ferrite Core for Power Cord (3301-001305)

Power Cord (3903-000144) Ferrite Core for Side-AV (3301-001201) PN58B540S3F only Owner’s Instructions / Quick Setup Guide Cover-Bottom / Screws (2ea) PN58B540S3F only Warranty Card / Safety Guide Manual (Not available in all locations) Cover-Bottom PN50B540S3F only Cleaning Cloth (BN63-01798B) Holder-Ring (4ea) (Refer to page 47) Holder-Wire Cable Holder TV / Screws (BN96-10788A) (Refer to page 48) Screw (4ea) PN50B540S3F Ferrite Core The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug. Power Cord Audio Cable / Video Cable PN58B540S3F only Assembling the Cables Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the transparent stand. English - BN68-02143B_Eng.indb 5 2009-03-10 오후 5:38:31 Viewing the Control Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. N The product color and shape may vary depending on the model. N If you touch the front panel button, the each button will be operated. 1 SOURCEE Toggles between all the available input sources (TV, AV1, AV2, Component1, Conponent2, PC, HDMI1, HDMI2/DVI, HDMI3). In the on-screen menu, use this button as you use the ENTERE button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features. 3 + VOL – Press to increase or decrease the volume. In the on-screen menu, use the + VOL – buttons as you would use the ◄ and ► buttons on the remote control. 4 < CH > Press to change channels. In the on-screen menu, use the < CH > buttons as you would use the ▲ and ▼ buttons on the remote control. 5 POWER INDICATOR Blinks and turns off when the power is on and lights up in stand-by mode. 6 P (POWER) Press to turn the TV on and off.

7 REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV. 8 SPEAKERS English - BN68-02143B_Eng.indb 6 2009-03-10 오후 5:38:31 Viewing the Connection Panel Use the connection panel jacks to connect A/V components that will be connected continuously, such as Blu-Ray/DVD players or a VCR. N The product color and shape may vary depending on the model. TV Rear Panel TV Side Panel 1 POWER IN Connects the supplied power cord.

8 COMPONENT IN 1, 2 / AV IN 1

Connects Component video / audio. The COMPONENT IN 1 jack is also used as the AV IN 1 jack. 2 AUDIO OUT Connect to a Digital Audio component. N Connect the video cable to the COMPONENT IN 1

3 PC IN [PC] / [AUDIO]

Connects to the video and audio output jacks on your PC. 4 DVI AUDIO IN (AUDIO-R/L) Connect to the DVI audio output jack of an external device.

5 HDMI IN 1, 2(DVI), 3

Connect to the HDMI jack of a device with an HDMI output. (HDMI 2 supports HDMI-DVI IN and connection from a PC.) - HDMI 2 can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection. - When using an optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device. [Y/VIDEO] jack and the audio cable to the COMPONENT IN 1 [R-AUDIO-L] jacks. 9 EX-LINK Used for service only. 0 USB Connect a USB mass storage device to view photo files and play audio files. ! AV IN 2 Video and audio inputs for external devices. 6 ANT IN Uses a 75Ω Coaxial connector for an Air/Cable Network. 7 DIGITAL AUDIO OUT (OPTICAL) Connects to a Digital Audio component. English - BN68-02143B_Eng.indb 7 2009-03-10 오후 5:38:32 Remote Control You can use the remote control up to a distance of about 23 feet from the TV. N The product color and shape may vary depending on the model. N The performance of the remote control may be affected by bright light. 1 POWER Turns the TV on and off. 2 NUMERIC BUTTONS Press to change the channel.

Press to select additional channels (digital % TV Selects the TV mode directly. and analog) being broadcast by the same station. For example, to select channel ^ PRE-CH “54-3”, press “54”, then press “ ” and “3”. Tunes to the previous channel. 4 MMUTE Press to temporarily cut off the sound.

$ Use these buttons in the DMA, Media Play and Anynet+ modes. : This remote can be used to control recording on Samsung recorders with the Anynet+ feature) VOL Press to increase or decrease the volume. 6 SOURCE Press to display and select the available video sources. 7 CH LIST Used to display Channel Lists on the screen. 8 TOOLS Use to quickly select frequently used functions.

Press to change channels.

• MENU Displays the on-screen menu. ( FAV.CH Press to switch to your favorite channels. ) RETURN Returns to the previous menu. a EXIT Press to exit the menu. b P.SIZE Picture size selection. c SRS Selects SRS TruSurround HD mode. d CC Controls the caption decoder. e MTS Press to choose stereo, mono or Separate Audio Program (SAP broadcast). @ MEDIA.P (Media play) This function enables you to view and play photo and music files from an external device. (Refer to pages 37 (Photo) and 40 (Music)) # P.MODE Press to select the picture mode. ❑ Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. N Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Close the cover as shown in the figure. N Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. (Assuming typical TV usage, the batteries should last for about one year.) N If the remote control doesn’t work, check the following

Is the TV power on? Are the plus and minus ends of the batteries reversed? Are the batteries drained? Is there a power outage or is the power cord unplugged? Is there a special fluorescent light or neon sign nearby? English - BN68-02143B_Eng.indb 8 2009-03-10 오후 5:38:33 Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads” below. If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads”. If you have two antennas, see “Separate VHF and UHF Antennas”. ❑ Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or rabbit ears) that has 300 Ω twin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied).

Use a screwdriver to tighten the screws.

2. Plug the adaptor into the ANT IN terminal on the back of the TV.

ANT IN ❑ Antennas with 75 Ω Round Leads ANT IN Plug the antenna lead into the ANT IN terminal on the back of the TV. ❑ Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

2. Plug the combiner into the ANT IN terminal on the bottom of the back panel.

UHF VHF ANT IN UHF VHF Connecting Cable TV To connect to a cable TV system, follow the instructions below. ❑ Cable without a Cable Box Plug the incoming cable into the ANT IN terminal on the back of the TV. ANT IN N Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. ❑ Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

N This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”. ANT IN ANT OUT

2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.

ANT IN Continued... English - BN68-02143B_Eng.indb 9 2009-03-10 오후 5:38:33 ❑ Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is

connected to the ANT IN terminal on your cable box. N This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”. ANT IN

2. Connect this cable to a two-way splitter.

3. Connect an Antenna cable between the

OUTPUT terminal on the splitter and the IN terminal on the cable box. Splitter

4. Connect an Antenna cable between the ANT

OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.

5. Connect another cable between the other

OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.

6. Connect the last Antenna cable between the

OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.

RF (A/B) Switch TV Rear

ANT IN RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English - 10 BN68-02143B_Eng.indb 10 2009-03-10 오후 5:38:34 Connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI This connection can only be made if there is an HDMI Output jack on the external device. This connection will provide the highest quality picture.

Connect an HDMI Cable between the HDMI IN (1, 2(DVI), or 3) jack on the TV and the HDMI jack on the DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box). TV Rear Panel DVD/Blu-Ray Player or Cable Box / Satellite receiver TV Side Panel

1 HDMI Cable (Not supplied) N What is HDMI?

• HDMI, or high-definition multimedia interface, is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. N Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. N The TV may not output sound and pictures may be displayed with abnormal color when DVD / Blu-Ray Player or Cable Box / Satellite receiver supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2(DVI) jack and the audio cables to the DVI AUDIO IN [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD / Blu-Ray Player or Cable Box / Satellite receiver to confirm the HDMI version, then request an upgrade. N HDMI cables that are not 1.3 may cause annoying flicker or no screen display. Connecting a DVD /Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via DVI This connection can only be made if there is a DVI Output jack on the external device.

Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMI IN 2(DVI) jack on the TV and the DVI jack on the DVD / BluRay Player or Cable Box/Satellite receiver (Set-Top Box). Connect Audio Cables between the DVI AUDIO IN [R-AUDIO-L] jack on the TV and the DVD/Blu-Ray Player or Cable Box / Satellite receiver. TV Rear Panel DVD/Blu-Ray Player or Cable Box / Satellite receiver 2 Audio Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied) N Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. N When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. N When using an HDMI / DVI cable connection, you must use the HDMI IN 2(DVI) jack. English - 11 BN68-02143B_Eng.indb 11 2009-03-10 오후 5:38:36 Connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via Component cables The rear panel jacks on your TV make it easy to connect a DVD/Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) to your TV. Connect Component Cable between the COMPONENT IN (1 or 2) [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD / Blu-Ray Player or Cable Box / Satellite receiver(Set-Top Box). 2. Connect Audio Cables between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box). TV Rear Panel DVD / Blu-Ray Player or Cable Box / Satellite receiver 2 Audio Cable (Not supplied) 1 Component Cable (Not supplied) N Component video separates the video into Y (Luminance (brightness)), PB (Blue) and PR (Red) for enhanced video quality. Be sure to match the compon ent video and audio connections. For example, if connecting the video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also. N Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. N When connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. Connecting a Camcorder The side and rear panel jacks on your TV make it easy to connect a camcorder to your TV. ❑ Using an Video / Audio Cable

1. Connect a Video Cable between the AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder.

2. Connect Audio Cables between the AV IN 2 [L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on the Camcorder.

N Each Camcorder has a different back panel configuration. TV Side Panel Camcorder 1 Video Cable (Not supplied) 2 Audio Cable (Not supplied) N When connecting a Camcorder, match the color of the connection terminal to the cable. English - 12 BN68-02143B_Eng.indb 12 2009-03-10 오후 5:38:37 ❑ Using an HDMI Cable

1. Connect an HDMI Cable between the HDMI IN (1, 2(DVI), or 3) jack on the TV and the HDMI jack on the camcorder.

TV Rear Panel TV Side Panel Camcorder 1 HDMI Cable (Not supplied)

N Each Camcorder has a different back panel configuration. Connecting a VCR ❑ Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

4. Connect a Video Cable between the AV IN 1 [Y/VIDEO] or AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the

5. Connect Audio Cables between the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the VCR

TV Rear Panel TV Side Panel VCR Rear Panel

5 Audio Cable(Not supplied) 4 Video Cable(Not supplied) 3 Antenna cable(Not supplied) N If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks of the TV. Alternatively, connect the cable to the “R” jack. If your VCR is stereo, you must connect two cables. N Each VCR has a different back panel configuration. N When connecting a VCR, match the color of the connection terminal to the cable. N When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow). English - 13 BN68-02143B_Eng.indb 13 2009-03-10 오후 5:38:38 Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System(Home theater/Receiver) to your TV.

Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input (OPTICAL) jacks on the Digital Audio System. When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack : Decrease the volume of the TV, and adjust the volume level with the system’s volume control. TV Rear Panel Digital Audio System Optical Cable (Not supplied) N 5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. N Each Digital Audio System has a different back panel configuration. N When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Blu-Ray player or Cable/ Satellite Box directly to an Amplifier or Home Theater, not the TV. Connecting an Amplifier / DVD Home Theater

Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [L-AUDIO-R] jacks on the Amplifier/ DVD Home Theater. When an audio amplifier is connected to the AUDIO OUT [R-AUDIO-L] jacks terminals : Decrease the volume of the TV, and adjust the volume level with the Amplifier’s volume control. TV Rear Panel Amplifier / DVD Home Theater Audio Cable (Not supplied) N Each Amplifier / DVD Home Theater has a different back panel configuration. N When connecting an Amplifier / DVD Home Theater, match the color of the connection terminal to the cable. English - 14 BN68-02143B_Eng.indb 14 2009-03-10 오후 5:38:40 Connecting a PC ❑ Using a D-Sub Cable

1. Connect a D-Sub Cable between PC IN [PC] jack on the TV and the PC output jack on your computer.

2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your

computer. TV Rear Panel

2 PC Audio Cable (Not supplied) 1 D-Sub Cable (Not supplied) ❑ Using an HDMI/DVI Cable

1. Connect an HDMI/DVI cable between the HDMI IN 2(DVI) jack on the TV and the PC output jack on your computer.

2. Connect a 3.5 mm Stereo plug to 2RCA cable between the DVI AUDIO IN [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer. TV Rear Panel

2 3.5 mm Stereo plug to 2 RCA Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied) N Each PC has a different back panel configuration. N When connecting a PC, match the color of the connection terminal to the cable. N When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI) terminal. English - 15 BN68-02143B_Eng.indb 15 2009-03-10 오후 5:38:41 Operation Turning the TV On and Off Press the POWER button on the remote control. You can also use the POWER button on the TV. N It may take a while for your TV to power on. Changing Channels ❑ Using the Channel Buttons Press the CH or CH button to change channels. or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 20 to memorize channels. N When you press the CH ❑ Using the Number Buttons Press the number buttons to go directly to a channel. For example, to select channel “27”, press “2”, then “7”. N For quick channel change, press the number buttons, then press the ENTERE button. ❑ Using the “ ” Button The “ ” button is used to select stations that broadcast a digital signal.

1. For example, for Channel "7-1", press "7", then "

, then "1". N HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Standard Definition signal. N For quick channel change, press the number buttons, then press the ENTERE button. ❑ Using the PRE-CH Button to select the Previous Channel

1. Press the PRE-CH button. The TV will switch to the last channel viewed.

N To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them. Adjusting the Volume ❑ Using the Volume Buttons

or VOL button to increase or decrease the volume. ❑ Using the M MUTE Button At any time, you can cut off the sound using the MMUTE button.

1. Press MMUTE button and the sound cuts off.

The M will displayed on the screen.

2. To turn mute off, press the MMUTE button again, or simply press the VOL

English - 16 BN68-02143B_Eng.indb 16 2009-03-10 오후 5:38:42 Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The Tools menu changes depending on which external input mode you are viewing.

Press the ▲/▼/◄/►/ENTERE buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC), see page 43 Sound Mode, see page 28 Sleep Timer, see page 33 Add to Favorite (or Delete from Favorite), see page 21 Switch to Cable (or Air), see page 20 Auto Adjustment, see page 27 Tools Anynet+ (HDMI-CEC) Sound Mode

Off Add to Favorite Switch to Cable U Move Enter e Exit Viewing the Display The display identifies the current channel and the status of certain audio-video settings.

Press the INFO button on the remote control. The TV will display the channel, the type of sound, and the status of certain picture and sound settings. TV #1 DTV Air 13-1 Fri, Dec 19 2:05 am Dolby Digital Next Program M. Spillane’s Mike Hammer 1080i 16:9 English 1:55 am - 2:55 am Bonocrunch Prison Break 2:55 am - 3:55 am O Press the INFO button once more or wait approximately 10 seconds and it disappears automatically. English - 17 BN68-02143B_Eng.indb 17 2009-03-10 오후 5:38:42 Viewing the Menus Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.

Press the MENU button. The main menu is displayed on the screen. Its left side has the following icons: Picture, Sound, Channel , Setup, Input, Application, Support. Press the ▲ or ▼ button to select one of the icons. Press the ◄ or ► button to access the icon’s sub-menu. Press the ▲ or ▼ button to move to items in the menu. Press the ENTERE button to enter items in the menu. Press the ▲/▼/◄/► button to change the selected items. Press the RETURN button to return to the previous menu. Press the EXIT button to exit from the menu. Using the remote control buttons Button MENU RETURN EXIT Operations Button Display the main on-screen menu.

Return to the previous menu. ENTERE Exit the on-screen menu. Operations Move the cursor and select an item. Select the currently selected item. Confirm the setting. ❑ Example: Setting the TV’s Brightness in the Picture Menu

Adjusting the Brightness to 80

2. Press the ENTERE button to select Picture.

3. Press the ▲ or ▼ button to select Brightness.

5. Press the ◄ or ► button until the Brightness changes to 80.

6. Press the ENTERE button.

N Press the EXIT button to exit from the menu.

Move Return Adjust Enter Return English - 18 BN68-02143B_Eng.indb 18 2009-03-10 오후 5:38:43 Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. N The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running. N The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

Press the POWER button on the remote control. The message Menu Language, Store Demo, Channels, and Time will be set. is displayed. Press the ENTERE button, then Select Language of the OSD. menu is automatically displayed. Press the ENTERE button. Press the ▲ or ▼ button to select language, then press the ENTERE button. The message Select ‘Home Use’ when installing this TV in your home. is displayed. Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTERE button. We recommend setting the TV to Home Use mode for the best picture in your home environment. N Store Demo mode is only intended for use in retail environments.

If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds. The message Select the Antenna source to memorize. is displayed. Press the ▲ or ▼ button to memorize the channels of the selected connection. Press the ENTERE button to select Start. Plug & Play Menu Language, Store Demo, Channels, and Time will be set. Start Enter Plug & Play Select the Antenna source to memorize. Air Start Cable Start Auto Start U Move Enter Skip Plug & Play Auto Program in Progress. DTV Air : -Air : -DTV Cable : -- Cable : --

• Air: Air antenna signal.
• Cable: Cable antenna signal.
• Auto: Air and Cable antenna signals. N In Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the ▲, ▼, ◄ or ► button, then press the ENTERE button. If you have Digital cable, select the cable system signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.

5. The TV will begin memorizing all of the available channels.

Stop Enter Skip Plug & Play Enjoy your TV.

N To stop the search before it has finished, press the ENTERE button with Stop selected. N After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then reappears.

Press the ENTERE button when channel memorization is complete. The message Set the Clock Mode. is displayed. Press the ENTERE button. Press the ▲ or ▼ button to select Auto, then Press the ENTERE button. The message Set to daylight saving time. is displayed. If you select Manual, Set current date and time is displayed. For detailed descriptions about the Manual, refer to page 33. Press the ▲ or ▼ button to select Off, On, or Auto, then press the ENTERE button. The image to select time zone in which you live is automatically displayed. Press the ▲ or ▼ button to Select the time zone, then press the ENTERE button. If you have received a digital signal, the time will be set automatically. If not, see page 33 to set the clock. The brief instruction on How to get the best performance from your new HDTV is displayed. Press the ENTERE button. N You can access the HD Connection Guide in the Support menu.

10. Press the ENTERE button. The message Enjoy your TV. is displayed.

When you have finished, press the ENTERE button. If you want to reset this feature...

N The Plug & Play feature is only available in the TV mode. Setup

: English Time Game Mode : Off V-Chip Caption Melody : Medium English - 19 BN68-02143B_Eng.indb 19 2009-03-10 오후 5:38:43 Channel Control Storing Channels ❑ Antenna → Air / Cable Channel Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). T Press the TOOLS button to display Tools menu. You can also switch the antenna by selecting Tools → Switch to Cable (or Air) Antenna : Air

Auto Program Clear Scrambled Channel Channel List Fine Tune ❑ Auto Program

• Air: Air antenna signal.
• Auto: Air and Cable antenna signals N STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected. N After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then reappears. N If you want to stop Auto Programming, press the ENTERE button. The Stop Auto Program? message will be displayed. Select Yes by pressing the ◄ or ► button, then press the ENTERE button. ❑ Clearing Scrambled Channel (Digital) The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes. N To stop searching scrambled channels: Press the ENTERE button to select Stop. Press the ◄ button to select Yes, then press the ENTERE button. N This function is only available in Cable mode. Clear Scrambled Channel Removing scrambled channel. Stop Enter ❑ Fine Tune (Analog) Use fine tuning to manually adjust a particular channel for optimal reception. N If you do not store the fine-tuned channel in memory, adjustments are not saved. N “*” will appear next to the name of fine-tuned channels. N To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTERE button. DTV Cable 122

Return Fine Tune Fine Tuned Air 8*

Reset UMove L Adjust Save Return Managing Channels ❑ Channel List Using this menu, you can Add / Delete or set Favorite channels and use the program guide for digital broadcasts. O Press the CH LIST button on the remote control to bring up the channel lists.

All Channels: Shows all currently available channels. Added Channels: Shows all added channels. Favorite: Shows all favorite channels. Programmed: Shows all current reserved programs. Using the Color buttons with the Channel List

• Green (Zoom): Enlarges or shrinks a channel number.
• Yellow (Select): Selects multiple channel lists.
• TTOOLS (Tools): Displays the Add (or Delete), Add to Favorite (or Delete from Favorite), Timer Viewing, Channel Name Edit, Select All, Deselect All, and Auto Program menus (The Options menus may differ depending on the situation.) N Channel Status Display Icons

A channel set as a Favorite.

A channel selected by pressing the yellow button.

A program currently being broadcast. English - 20 BN68-02143B_Eng.indb 20 Continued... 2009-03-10 오후 5:38:43 ❑ Channel List Option Menu (in All Channels / Added Channels / Favorite) N Press the TOOLS button to use the option menu. N Option menu items may differ depending on the channel status. Add to Favorite / Delete from Favorite You can set channels you watch frequently as favorites.

You can also set the favorite channel by selecting Tools

• Add to Favorite (or Delete from Favorite) N The “♥” symbol will be displayed and the channel will be set as a favorite. N All favorite channels will be shown on Favorite menu. O To select the favorite channels you have set up, press the FAV.CH button on the Air Air ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air 6-1 T Press the TOOLS button to display Tools menu. Air ♥ TV #6 7-1 9-1 10-1 11-1

Add / Delete You can delete or add a channel to display the channels you want. N All deleted channels will be shown on All Channels menu. N A gray-colored channel indicates the channel has been deleted. N The Add menu only appears for deleted channels. N You can also delete a channel to the Added Channels or Favorite menu in the same manner. All Channels

Delete Add to Favorite Timer Viewing Channel Name Edit Select All Auto Program T Tools Air ♥ TV #6 Air 7-1 9-1 10-1 11-1

♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Select Delete Add to Favorite Timer Viewing Channel Name Edit Select All Auto Program T Tools remote control.

6-1 All Channels Timer Viewing If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program , set the current time first. N Only memorized channels can be reserved. N You can set the channel, day, month, year, hour and minute directly by pressing the number buttons on the remote control. N Reserving a program will be shown on Programmed menu. N Digital Program Guide and Viewing Reservation: When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above.

♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Select Delete Add to Favorite Timer Viewing Channel Name Edit Select All Auto Program T Tools

Select All / Deselect All

• Select All: You can select all the channels in the channel list.
• Deselect All: You can deselect all the selected channels in the channel list. N You can perform the add / delete, add to Favorite / delete from Favorite function for multiple channels at the same time. Select the required channels and press the yellow button to set all the selected channels at the same time. N The c mark appears to the left of the selected channels. N You can only select Deselect All when there is a selected channel.

Channel Name Edit (Analog) Channels can labeled so that their call letters appear whenever the channel is selected. N The names of digital broadcasting channels are automatically assigned and cannot be labeled. ❑ Channel List Option Menu (in Programmed) 9/20/2009 Programmed You can view, modify or delete a reservation. N Press the TOOLS button to use the option menu.

Change Info Select to change a viewing reservation.

Cancel Schedules Select to cancel a viewing reservation.

Information Select to view a viewing reservation. (You can also change the reservation information.)

Select All / Deselect All You can select (or deselect) all channels in the channel list. 5:02 pm

9/19/2009 5:20 pm Air Zoom Select Change Info Cancel Schedules Information Select All T Tools E Information English - 21 BN68-02143B_Eng.indb 21 2009-03-10 오후 5:38:44 Picture Control Changing the Picture Settings ❑ Mode Picture You can select the type of picture which best corresponds to your viewing requirements.

• Dynamic: Select a high-definition picture for bright environments.
• Standard: Selects the optimal picture display for normal environments. This setting is convenient for most situations.
• Movie: Selects a comfortable picture display for dark environments. ❑ Cell Light / Contrast / Brightness / Sharpness / Color / Tint (G/R) Picture Your television has several setting options that allow you to control the picture quality.
• Cell Light: Adjusts the pixel brightness. 10 is the brightest setting.
• Contrast: Adjusts the contrast level.
• Brightness: Adjusts the brightness level.
• Sharpness: Adjusts the sharpness.
• Color: Adjusts the color saturation of the picture using the bar on the screen.
• Tint (G/R): The closer to Red 100, the more saturated the red color becomes. N When you make changes to Cell Light, Contrast, Brightness, Sharpness, Color, or Tint (G/R), the OSD will be adjusted accordingly. N When in PC mode, Tint (G/R), Sharpness and Color are not available. N Settings can be adjusted and stored for each external device you have connected to an input of the TV. N The energy consumed during use can be significantly reduced if the brightness level is lowered, which will reduce the overall running cost. Mode :Standard Cell Light

Advanced Settings ❑ Advanced Settings You can adjust the detailed settings for your screen including the color and contrast. N Advanced Settings is available in Standard or Movie mode. N In PC mode, you can only make changes to Gamma and White Balance from among the Advanced Settings items.

Black Tone You can select the black level on the screen to adjust the screen depth.

• Off: Turns the Black Adjust function off.
• Dark: Sets the black color depth to dark.
• Darker: Sets the black color depth to darker.

Dynamic Contrast You can adjust the screen contrast so that the optimal contrast is provided.

• Off: Turns the Dynamic Contrast function off.
• Low: Sets Dynamic Contrast to low.
• Medium: Sets Dynamic Contrast to medium.
• High: Sets Dynamic Contrast to high.

Gamma You can adjust the Primary Color (Red, Green, Blue) Intensity.

Color Space Color Space is a color matrix composed of red, green and blue colors. Select your favorite color space to experience the most natural color.

• Native: Sets the color range wider than that of the input video source.
• Auto: Automatically sets the color range depending on the input video source. Continued... English - 22 BN68-02143B_Eng.indb 22 2009-03-10 오후 5:38:44

White Balance You can adjust the color temperature for more natural picture colors.

• R-Offset: Adjust the low level red intensity.
• G-Offset: Adjust the low level green intensity.
• B-Offset: Adjust the low level blue intensity.
• R-Gain: Adjusts the high level red intensity.
• G-Gain: Adjusts the high level green intensity.
• B-Gain: Adjusts the high level blue intensity.
• Reset: Resets the default white balance. N Changing the adjustment value will refresh the adjusted screen.

Flesh Tone You can emphasize the pink flesh tone in the picture. N Changing the adjustment value will refresh the adjusted screen.

Color Space : Native White Balance : On Enter Move Tint (G/R) Protection from among the items in Picture Options.

Color Tone → Cool / Normal / Warm1 / Warm2 You can select the most comfortable color tone for viewing. N Warm1 or Warm2 is only activated when the picture mode is Movie. N Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Size Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.

• 16:9 : Sets the picture to the 16:9 aspect ratio.
• Zoom1: Stretches the 16:9 aspect ratio picture vertically.
• Zoom2: Stretches the Zoom 1 picture vertically.
• Wide Fit: Stretches the picture both horizontally and vertically to display the optimal picture.
• 4:3: Sets the picture to the 4:3 aspect ratio.
• Screen Fit: Displays the full native HD signal that cannot be viewed using a normal TV. O Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size. Zoom1 Picture N In PC mode, you can only make changes to the Color Tone, Size and Screen Burn Wide Fit

Screen Burn Protection Move Enter Return Zoom2 4:3 Screen Fit N Temporary image retention may occur when viewing a static image on the set for more than two hours. N After selecting Zoom1, Zoom2 or Wide Fit: Press the ◄ or ► button to select Position, then press the ENTERE button. Press the ▲ or ▼ button to move the picture up and down. N After selecting Screen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may made need to center the picture: Press the ◄ or ► button to select Position, then press the ENTERE button. Press the ▲, ▼, ◄ or ►button to move the picture. Reset: Press the ◄ or ► button to select Reset, then press the ENTERE button. The TV will be reset to 16:9. N HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) English - 23 BN68-02143B_Eng.indb 23 Continued... 2009-03-10 오후 5:38:46 N Settings can be adjusted and stored for each external device you have connected to an input of the TV. In PC Mode, only 16:9 and 4:3 mode can be adjusted. N Settings can be adjusted and stored for each external device you have connected to an input of the TV.

16:9, Zoom1, Zoom2, 4:3 16:9, Wide Fit, 4:3 16:9, 4:3, Wide Fit, Screen Fit 16:9, 4:3 Picture Digital NR If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. Tint (G/R) : G50/R50

• Off: Turns the Digital NR function off. Advanced Settings
• Low: Sets Digital NR to low. Picture Options
• Medium: Sets Digital NR to medium. Picture Reset
• High: Sets Digital NR to high.

HDMI Black Level You can directly select the black level on the screen to adjust the screen depth.

• Normal: The screen gets brighter.
• Low: The screen gets darker. N This function is active only when an external device is connected to the TV via HDMI. HDMI Black Level function may not be compatible with all external devices. Film Mode The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
• Off: Basic video image processing applied and No auto-detection for film-based programs.
• Auto: Automatically adjusts for the best image quality between film and video programs. N Film mode is supported in TV, Video, Component (480i / 1080i) and HDMI (1080i). Screen Burn Protection Configures the Screen Burn Protection options to prevent and reduce pixel burn. When an image remains in one position too long, it may cause a permanent burn on the screen. Preventing Screen Burn-in

Enter Return To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.

• Pixel Shift : Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to prevent afterimages on the screen. N Optimum condition for pixel shift; Item TV/AV/Component/HDMI/PC Horizontal 0~4

• Side Gray : When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. To prevent the screen burn from happening, select Dark or Light. - Dark: When you set the screen ratio to 4:3, it darkens the left and right sides. - Light: When you set the screen ratio to 4:3, it brightens the left and right sides. English - 24 BN68-02143B_Eng.indb 24 2009-03-10 오후 5:38:47 Reducing the Effects of Screen Burn If screen burn has occurred, you can select Scrolling to help remove screen burn artifacts.
• Scrolling : This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time. N The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove afterimages on the screen. If the after-image is not removed after performing the function, repeat the function again. N Press any key on the remote control to cancel this feature. ❑ Picture Reset → Reset Picture Mode / Cancel Resets all picture settings to the default values. N Select a picture mode to be reset. The reset is performed for each picture mode. Advanced Settings Picture Picture Options Picture Reset

English - 25 BN68-02143B_Eng.indb 25 2009-03-10 오후 5:38:47 PC Display Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on Control Panel on the

2. When the control panel window appears, click on Appearance and Themes and a display

dialog-box will appear.

3. When the control panel window appears, click on Display and a display dialog-box will

4. Navigate to the Settings tab on the display dialog-box. The correct size setting (resolution)

Optimum : 1920 X 1080 pixels. If a vertical frequency option exists on your display settings dialog box, the correct value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box. Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing. D-Sub and HDMI/DVI Input Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 350 720 x 400

N When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI) terminal. English - 26 BN68-02143B_Eng.indb 26 2009-03-10 오후 5:38:47 Setting up the TV with your PC ❑ Auto Adjustment Picture Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. Brightness : 45 Sharpness : 50 Auto Adjustment

Screen T Press the TOOLS button to display Tools menu. Advanced Settings You can also set the Auto Adjustment by selecting Tools → Auto Adjustment. Picture Options N Preset: Press the SOURCE button to select PC mode. N This function does not work in DVI-Digital mode. Picture Reset ❑ Screen The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then make the vertical frequency adjustments on your PC and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen. N Preset: Press the SOURCE button to select PC mode.

Coarse Adjusts the frequency when vertical noise appears on the screen.

Image Reset You can replace all image settings with the factory default values. Move Enter Return English - 27 BN68-02143B_Eng.indb 27 2009-03-10 오후 5:38:47 Sound Control Changing the Sound Settings ❑ Mode Sound You can select the sound mode to best suit the programming you’re watching.

• Standard: This sound mode is for general purposes.
• Music: Music mode enables you to listen to music as if you are sitting in a concert hall.
• Movie: Movie mode enables you to experience live and full movie sound as if you are sitting in a movie theater.
• Clear Voice: Emphasizes voice over other sounds. Select this sound mode when watching news, soap operas, or documentaries.
• Custom: You can customize the sound settings to suit your personal preferences. Mode : Custom SRS TruSurround HD : Off Preferred Language : English Multi-Track Sound : Stereo Auto Volume : Off Speaker Select : TV Speaker T Press the TOOLS button to display Tools menu. You can also set the sound mods by selecting Tools → Sound Mode Equalizer Mode ❑ Equalizer The sound settings can be adjusted to suit your personal preferences.
• Mode: Selects the sound mode among the predefined settings.
• Balance L/R: Adjusts the balance between the right and left speaker.
• 100Hz, 300Hz, 1kHz, 3kHz, 10kHz (Bandwidth Adjustment): Adjusts the level of different bandwidth frequencies.
• Reset: Resets the equalizer settings to the default values.

Adjust Enter Return ❑ SRS TruSurround HD → Off / On SRS TruSurround HD enables you to enjoy a virtual 5.1 Surround Sound effect over the TV's two speakers. This function provides not only rich deep bass also improves high frequency resolution. O You can select these options simply by pressing the SRS button on the remote control. TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. ❑ Preferred Language (Digital) Digital-TV broadcasts are capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). N You can only select the language from among the actual languages being broadcast. O You can listen in a language other than the Preferred Language by pressing the MTS button on the remote control. ❑ Multi-Track Sound (MTS) (Analog)

• Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal.
• Stereo: Choose for channels that are broadcasting in stereo.
• SAP: Choose to listen to the Separate Audio Program, which is usually a foreign-language translation. N Depending on the particular program being broadcast, you can listen to Mono, Stereo, or SAP. O Press the MTS button on the remote control repeatedly to select Mono, Stereo, or SAP. ❑ Auto Volume → Off / On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. Continued... English - 28 BN68-02143B_Eng.indb 28 2009-03-10 오후 5:38:48 ❑ Speaker Select Sound When you watch TV with it connecting to a Home theater, turn the TV speakers off so you can listen to sound from the Home theater’s (external) speakers.
• External Speaker: Uses the external speakers(Home Theater) to output sound.
• TV Speaker: Uses the TV speakers to output sound. N If you select External Speaker in the Speaker Select menu, the sound settings will be limited. N The volume buttons and MMUTE buttons do not operate when the Speaker Select is set to External Speaker. Please set the volume on your Home theater. Multi-Track Sound Auto Volume : Stereo : Off Speaker Select : TV Speaker

Sound Reset TV's Internal Speakers Audio Out (Optical, L / R Out) to Sound System TV / AV / Component / PC / HDMI TV / AV / Component / PC / HDMI TV Speaker Speaker Output Sound Output External Speaker Mute Sound Output Video No Signal Mute Mute Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ❑ Sound Reset You can restore the Sound settings to the factory defaults.

• Reset All: All the sound values return to default settings.
• Reset Sound Mode: Current sound values return to default settings.
• Cancel: Select the sound reset options. Function Description Configuring the Setup Menu ❑ Language You can set the menu language. Plug & Play Setup ❑ Game Mode → Off / On When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting the game menu.

Time Game Mode : Off V-Chip Caption When the Game Mode is On Melody : Medium

• Picture mode is automatically changed to Standard and cannot be changed. Energy Saving : Off
• Sound mode is automatically changed to Custom and cannot be changed. Adjust the sound using the equalizer.
• The Reset in the Sound menu is activated. Reset function initializes the Equalizer settings to the factory default setting. N Game Mode is not available in regular TV mode or Game Mode set to Off. N If the picture is poor when an external device is connected to the TV, check if Game Mode is On. N If you display the TV menu in Game mode, the screen shakes slightly. N The mark ( ) appears on the screen which means that Game Mode is on with the selected source. N This function supports only game function. N Game mode is not available in PC mode. Continued... English - 29 BN68-02143B_Eng.indb 29 2009-03-10 오후 5:38:48 ❑ V-Chip The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed. N V-Chip function is not available in HDMI, Component or PC mode. N The default PIN number of a new TV set is ‘0-0-0-0’. N If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to ‘0-0-0-0’ : Power Off. → M MUTE → 8 → 2 → 4 → Power On. N Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.

TV Parental Guidelines First, set up a personal identification number (PIN) and enable the V-Chip. Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

• Base Categories TV Parental Guidelines Allow All Block All Enter Move Return - TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature audience
• Sub-ratings - All: Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog N The V-Chip will automatically block certain categories that are more restrictive. For example, if you block TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TVMA). The sub-ratings (D, L, S, V) work together similarly.

MPAA Rating The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

• G: General audience (no restrictions).
• PG: Parental guidance suggested.
• PG-13: Parents strongly cautioned.
• R: Restricted. Children under 17 should be accompanied by an adult.
• NC-17: No children under age 17.
• NR: Not rated. N While a particular category is selected, press the ENTERE button to activate it. The “ \ ” symbol will be displayed. Press the ENTERE button to block or unblock the category. N The V-Chip will automatically block any category that is More restrictive. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked also. MPAA Rating

Canadian English You can block TV programs depending on their Canadian English rating.

• C: Programming intended for children under age 8.
• C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• G: General programming, suitable for all audiences.
• PG: Parental Guidance.
• 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14.
• 18+: Adult programming. N The V-Chip will automatically block any category that is More restrictive. For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also.

Canadian French You can block TV programs depending on their French Canadian rating.

• 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• 13 ans+: Programming may not be suitable for children under the age of 13.
• 16 ans+: Programming is not suitable for children under the age of 16.
• 18 ans+: Programming restricted to adults. N The V-Chip will automatically block any category that is More restrictive. For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also. Allow All Block All Enter Move Return Canadian French Allow All Block All Move Enter Return Continued... English - 30 BN68-02143B_Eng.indb 30 2009-03-10 오후 5:38:48

Downloadable U.S. Rating Rating title Parental restriction information can be used while watching DTV channels Downloadable U.S. Rating N If information is not downloaded from the broadcasting station, the Downloadable U.S. 1/2 Humor Level Rating menu is deactivated. Allow All N Parental restriction information is automatically downloaded while watching DTV channels. Block All It may take several seconds. N The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. N Parental restriction levels differ depending on the broadcasting station. The default Enter Return Move menu name and Downloadable U.S. Rating changes depending on the downloaded information. The number of The number of all N Even if you set the On-screen display to your desired language, the Downloadable U.S. current rating rating information Rating menu will appear in English only. information N The rating will automatically block certain categories that are more restrictive. N The rating titles (For example: Humor Level..etc) and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.

Change PIN You can change four-digit code to use the V-Chip function. N The default PIN code for a new TV set is '0-0-0-0'. N If you change the PIN code completely, the message PIN is changed successfully. is displayed.

How to Reset the TV after the V-Chip Blocks a Channel (Emergency Escape) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear.

To resume normal viewing, tune to a different channel using CH > button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V-Chip function for an “emergency escape”: N If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to '0-0-0-0' : Power Off. → MMUTE → 8 → 2 → 4 → Power On. Received Rating : TV-14/NL This channel is blocked by a Parental Lock. Please enter the PIN to unblock.

Change 0~9 Enter PIN ❑ Caption (On-Screen Text Messages) N The Caption feature doesn’t work in Component, HDMI or PC modes. N The availability of captions depends on the program being broadcast. O Press the CC button on the remote control to turn the Caption On or Off.

Digital The Digital Captions function operates on digital channels.

Analog The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

Digital Caption Options Move Enter Return Digital Caption Options are available only when Default and Service1~Service6 can be selected in Caption Mode. Service1~6 in digital caption mode may not be available depending on the broadcast. Default means to follow the standard set by the broadcaster. Foreground and Background cannot be set to have the same color. Foreground Opacity and Background Opacity cannot be both set to Transparent. English - 31 BN68-02143B_Eng.indb 31 2009-03-10 오후 5:38:49 ❑ Melody V-Chip Caption Setup A melody sound can be set to come on when the TV is powered On or Off.

• Off: Turns off the melody function.
• Low: Sets the melody volume to low.
• Medium: Sets the melody volume to medium.
• High: Sets the melody volume to high. N The Melody does not play. Melody : Medium Energy Saving : Off

- When no sound is output from the TV because the MMUTE button has been pressed. - When no sound is output from the TV because the volume has been reduced to minimum with the VOL button. - When the TV is turned off with the Sleep Timer function. ❑ Energy Saving This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy Saving mode option to High to reduce eye fatigue as well as power consumption.

• Off: Turns the Energy Saving function off.
• Low: Sets the Energy Saving function to low.
• Medium: Sets the Energy Saving function to medium.
• High: Sets the Energy Saving function to maximum. English - 32 BN68-02143B_Eng.indb 32 2009-03-10 오후 5:38:49 Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Plug & Play Language Setup ❑ Time Game Mode

: English Time Clock

• Clock Mode → Auto / Manual You can set up the current time manually or automatically.
• Clock Set You can set the current time manually. N This function is only available when Clock Mode is set to Manual. N You can set the Month, Day, Year, Hour, or Minute directly by pressing the number buttons on the remote control.

• Time Zone Select your time zone. N This function is only available when Clock Mode is set to Auto. N Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually. N The Antenna or cable must be connected in order to set the time automatically.
• DST (Daylight Saving Time) → Off / On / Auto Switches the Daylight Saving Time function on or off. N This function is only available when Clock Mode is set to Auto.

Sleep Timer The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes). T Press the TOOLS button to display Tools menu. You can also set the sleep timer by selecting Tools → Sleep Timer.

Timer 1 / Timer 2 / Timer 3 Use this feature to set the TV to turn on or off at a desired time. 3 different On/Off times can be set. You must set the clock first.

• On Time: Set the Hour, Minute, am/pm, and Activate/Inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)
• Off Time: Set the Hour, Minute, am/pm, and Activate/Inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)
• Volume: Set the desired volume level.
• Contents: When the On Time is activate, you can turn on a specific channel or play back contents such as photo or audio files. - TV/USB: Select TV or USB. (Make sure that an USB device is connected to your TV.) - Antenna: Select Air or Cable. - Channel: Select the desired channel. - Music: Select the folder containing MP3 files on the USB device. - Photo: Select the folder containing JPEG files on the USB device. Time Off Clock 30 min. Sleep Timer 60 min. 90 min. Timer 1 120 min. Timer 2 150 min. Timer 3 180 min. Move Enter Return Timer 1 On Time

Sun Mon Tue Wed The Fri Sat Once Move Adjust Enter Return

• Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. N When Manual is selected, press the ►button to select the desired day of the week. Press the ENTERE button over the desired day and the c mark will appear. N You can set the hour, minute and channel by pressing the number buttons on the remote control. N Auto Power Off When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. English - 33 BN68-02143B_Eng.indb 33 2009-03-10 오후 5:38:49 Source List / Edit Name ❑ Source List

Input Use to select TV or other external input sources such as DVD / Blu-Ray players / Cable boxes / Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice. Source List Edit Name TV, AV1, AV2, Component1, Component2, PC, HDMI1, HDMI2/DVI, HDMI3. N You can choose only those external devices that are connected to the TV. In the Source List, connected inputs will be highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom. N Using the Color buttons on the remote with the Source list

• Red (Refresh): Refreshes the connected external devices. Press this if your Source is on and connected, but does not appear in the list.
• T TOOLS (Tools): Displays the Edit Name and Information menus. O Press the SOURCE button on the remote control to view an external signal source. ❑ Edit Name You can name the device connected to the input jacks to make your input source selection easier.

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI / TV / IPTV / Blu-ray / HD DVD / DMA N When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2(DVI) port, you should set the HDMI2/DVI mode to PC in the Edit Name menu. Edit Name AV1 AV2 VCR Component1 DVD Component2 Cable STB

Picture Test If you think you have a picture problem, perform the picture test. Check the color pattern on the screen to see if the problem still exists. N Does the problem still exist with this test photo? appears on the screen. If the test pattern does not appear or there is noise in the test pattern, select Yes. If the test pattern is properly displayed, select No.

• Yes: There may be a problem with the TV. Contact the Samsung Call center.
• No: There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer to the external device’s user manual. Self Diagnosis

Software Upgrade HD Connection Guide Contact Samsung Sound Test Self Diagnosis If you think you have a sound problem, please perform the sound test. You can check the Picture Test sound by playing a built-in melody sound through the TV. Sound Test Signal Strength N Does the problem still exist with this sound test? appears on the screen. If during the sound test you can hear sound only from one speaker or not at all, select Yes. Move Enter Return If you can hear sound from the speakers, select No.

• Yes: There may be a problem with the TV. Contact the Samsung Call center.
• No: There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer to the external device’s user manual. N If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV speaker in the Sound menu. N The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MMUTE button. Continued... English - 34 BN68-02143B_Eng.indb 34 2009-03-10 오후 5:38:49

Signal Strength (Digital) Unlike analog channels, which can vary in reception quality from snowy to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels. N If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal. Signal Strength

Enter Return TV side Panel USB Drive ❑ Software Upgrade Self Diagnosis Support Samsung may offer upgrades for your TV’s firmware in the future. Please visit Samsung. com or contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port. N Please be careful not to disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. N When software is upgraded, video and audio settings you have made will return to their default (factory) settings. N We recommend you write down your settings so that you can easily reset them after the upgrade. Software Upgrade

HD Connection Guide Contact Samsung Software Upgrade Scanning for USB It may take up to 30 seconds. ❑ HD Connection Guide A brief instruction on How to get the best performance from your new HDTV is displayed. Follow the guide for the best connection method for your HD devices. HD Connection Guide How to get the best performance from your new HDTV. Step 1. Connect the HD box to the TV using the Component video (Red, Green, Blue) and audio (Red, White) cables or HDMI Cable.

HDMI Cable TV rear view Component Cable Step 2. Press the Source button on the Remote to select HDMI or Component Input. ● Depending on your location, HD programming may also be viewed using as off-air antenna. ● For more details, please refer to HD Connections in the Owner Manual. Return ❑ Contact Samsung You can know the Samsung Call center, website and information for product. N You can move the previous or next page by pressing the ▲ or ▼ button. Contact Samsung 1/2 Please contact Samsung if you are having problems operating this TV. Contact Samsung : - Call Center : 1-800-SAMSUNG (7267864) - Web Site : www.samsung.com To obtain latest firmware of your TV, please visit the Samsung website. www.samsung.com >“Support”> “Download Center”

Page Up/Down Enter Return English - 35 BN68-02143B_Eng.indb 35 2009-03-10 오후 5:38:50 Media Play Using the Media Play Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

TV Side Panel Press the POWER button on the remote control or front panel. N The TV is powered on.

onnect a USB device containing JPEG and/or MP3 files to the USB jack on the side of the TV. If you enter the Media Play mode with no USB device connected the message There USB Drive is no device connected. will appear. In this case, insert the USB device, exit the screen by pressing the MEDIA.P button on the remote control and enter the Media Play screen again. PTP(Picture Transfer Protocol) is supported, but MTP(Media Transfer Protocol) is not supported. The file system only supports FAT16/32 (The NTFS file system is not supported). Certain types of USB Digital camera and audio devices may not be compatible with this TV. Media Play only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Recommended image resolution for Media Play is 6 mega pixels. Do not disconnect the USB device while it is loading. MSC supports MP3 and JPEG files, and the PTP device supports JPEG files only. We recommend the sequential jpeg, and progressive jpeg format. Progressive jpeg uses a lot of memory and decoding may fail. The Media Play mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. If the horizontal resolution of an image is higher than 5000, it cannot be decoded. If the vertical resolution of an image is higher than 4000, it cannot be decoded. The higher the resolution of the image, the longer it takes to display on the screen. The maximum supported JPEG resolution is 15360x8640 pixels For unsupported or corrupted files, the Not Supported File Format message is displayed The Photo or Music List displays up to 300 folders or files. MP3 files with DRM downloaded from pay sites are not played. DRM(Digital Rights Management) prevents illegal uses of digital media for copyright protection. ❑ Using the Remote Control Button in the Media Play Menu Button Operations Move the cursor and select an item. Select the currently selected item. During a Slide Show or Music Play: - Pressing the ENTERE button during play pauses the play. - Pressing the ENTERE button during pause resumes the play. Play or pause the Slide Show or Music file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current Slide Show or Music file. Page Up or Down (file list item) Stop the current function and return to the Media Play main menu. English - 36 BN68-02143B_Eng.indb 36 Continued... 2009-03-10 오후 5:38:51 ❑ Using the Media Play Menu

press the ENTERE button. N The Media Play menu differs depending on the USB Memory Device connected to TV. N Some devices may not be supported due to compatibility problems.

4. Press the ◄ or ► button to select an icon (Photo, Music, Setup), then press

the ENTERE button. N To exit Media Play mode, press the MEDIA.P button on the remote control. Memorycard 315.0MB/495.0MB Free Photo Music Setup L Move E Enter R Return Using the PHOTO (JPEG) List This menu shows JPEG files and folders saved on an USB memory device.

Complete Steps 1 to 2 of Using the Media Play Menu. (Refer to page 37) Press the ◄ or ► button to move to Photo, then press the ENTERE button. The saved file information is displayed as a folder or file. Press the ▲, ▼, ◄ and ► buttons to select a file. Memorycard 315.0MB/495.0MB Free

• Pressing the ENTERE button over a photo icon shows the currently selected Photo Music Setup photo in full screen. L Move E Enter R Return
• Pressing the ENTERE button over a folder icon shows the JPEG files included in the folder. N To exit Media Play mode, press the MEDIA.P button on the remote control. IMG_0550.JPG N Moving to a photo may take a few seconds to load the file. At this point, the Photo icon will appear at the top left of the screen. N It takes time to show JPEG files as Thumbnail images. N This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. N The files are displayed on a page. 15 thumbnail photos are displayed per page. N The thumbnails are numbered from left to right and from top to bottom, from 1 to 15. Select Move Option E Enter R Return N Certain types of USB Digital camera and audio devices may not be compatible with this TV. N Folders are displayed first and they are followed by all JPEG files in the current folder. N The folders and MP3 files appear in the order of the time they were saved to the USB memory device. N The folders and JPEG files appear in the order of the time they were saved to the USB memory device. N If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. N While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. N Press the button when a Photo icon is selected to start a Slide Show. N Photos without EXIT information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. 1/3 Page

6. Press the INFO button during the slide show to set the following options

(View, Start Slideshow, Delete, Delete All, Deselect All).

5. Press the ▲ or ▼ button to select Start Slideshow then press the ENTERE

button. N During the slide show, files are displayed in order from the currently shown file. N MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device. Photo 1/3 Page

Background Music Select to choose whether you want to play an MP3 file during a slide show. Press the ▲ or ▼ button to select the required option(On, Off), then press the ENTERE button.

Background Music Setting While the slide show is in progress, MP3 files and folders under the same directory are displayed. Select a folder using the ▲ or ▼ button and press the ENTERE button. Press the ENTERE button again to return to the slide show screen. The selected background music is played. N If you turn Off the Background Music, even if the Background Music Setting have been set up, the background music will not be played.

the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15). 1/3 Page

ove to the previous folder stage icon Select Move INFO Option E Enter R Return Such as the resolution File size Date modified Photo 400*340 53 KB Jan 18, 2009 1 / 40 Order of the file in the current directory ❑ Using the Option Menu

1. Complete Steps 1 to 2 of Using the Media Play Menu. (Refer to page 37)

2. Press the ◄ or ► button to move to Photo, then press the ENTERE button.

The saved file information is displayed as a folder or file.

3. Press the ▲, ▼, ◄ and ► button to select a file, then press the ENTERE

button. Pressing the button over a photo thumbnail displays the photo in full screen.

4. Press the INFO button to display the option

(Start Slideshow, Zoom, Rotate, List) Start Slideshow Zoom Rotate List INFO

• Each time the ▲ or ▼ button is pressed, the photo rotates repeatedly. - 0º : This rotates a photo to its original position - 90º : This rotates a photo by 90 degrees - 180º : This rotates a photo by 180 degrees - 270º : This rotates a photo by 270 degrees N The rotated file is not saved. N The Start Slideshow, Zoom option is disabled when the Rotate option is selected.

• Press the ▲ or ▼ button to select Zoom, then press the ENTERE button.
• Each time the ▲ or ▼ button is pressed, the photo size increases. (x1 → x2 → x4 ) - x1 : Restore a photo to its original size. - x2 : Zoom-in to a photo x2. - x4 : Zoom-in to a photo x4.
• To pan up/down/left/right in the zoomed-in photo, press the INFO button to remove option menu, then press the ▲, ▼, ◄, and ► buttons. N The Start Slideshow, Rotate option is disabled when the Zoom option is selected.

• Move to the photo list. English - 39 BN68-02143B_Eng.indb 39 2009-03-10 오후 5:39:10 Using the MP3 List This menu shows MP3 files from among the files saved on a USB memory device.

Press the ◄ or ► button to move to Music, then press the ENTERE button. The saved file information is displayed as a folder or file.

Pressing the ENTERE button over a musical note icon immediately plays the Music Setup L Move E Enter R Return music file. N Pressing the ENTERE button over a folder icon shows the music files included

button to move to the To select all files or a file, press the INFO button to display the Music menus. Press the ENTERE button to select Play, Repeat Music, Delete, Delete All or Deselect All. To exit Media Play mode, press the MEDIA.P button on the remote control.

in the folder. N To select a file on the next page, press the next or previous page. 1/3 Page Folder 1 Jan 14, 2009 001 Swan Song feat.TBNY.mp3 00:04:01 1/20 002 Beatles-Yesterday.mp3 00:04:28 003 Fall in Love.mp3 00:04:12 004 Tom Waits-Time.mp3 00:05:39 005 Chuk Mangione-Feel So good.mp3 00:04:30 Play Repeat Music : Off Delete Delete All Deselect All Exit

Play Select to play MP3 files. : Music list icon N Press the button while playing an MP3 file to pause the file. N Press the button to exit Play mode. ove to the previous N This menu only shows files with the MP3 file extension. Files with other file folder stage icon extensions are not displayed, even if they are saved on the same USB device. N The selected file is displayed on the top with its playing time. N To adjust the music volume, press the VOL or VOL button on the remote control. To mute the sound, press the MMUTE button on the remote control. N Press buttons to change pages.

Repeat Music Select to repeatedly play MP3 files in the current folder. You can select On or Off Music function information icon Icon Function When all music files in the folder (or the selected file) are repeated. Repeat Music is On. When all music files in the folder (or the selected file) are played once. Repeat Music is Off. When pressing the PLAY/PAUSE button on the remote control while music is playing. When pressing the STOP button on the remote control, the music stops. English - 40 BN68-02143B_Eng.indb 40 2009-03-10 오후 5:39:16 Using the Setup Menu Setup display settings you can make in the Media Play menu.

Slide Show Speed Select to control the slide show speed. You can select Fast, Normal, or Slow.

Background Music Select to determine whether to play an MP3 file during a slide show. You can select Music On or Music Off.

315.0MB/495.0MB Free Photo Music Setup Fast Slide Show Speed : Slow Normal Background Music : On Background Music Setting Slow Repeat Music : Off Screen Saver : 10 min. Safe Remove U Move Background Music Setting While a slide show is in progress, use the Background Music Setting to select a music file to listen to. Select a MP3 file as the background music. E Enter R Return Upper Folder 001 Swan Song feat.TBNY.mp3 002 Beatles-Yesterday.mp3 003 Fall in Love.mp3 Repeat Music Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. You can select On or Off Screen Saver Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 10min., 20min., or 1hour. Setup L Move E Enter R Return Press the ▲ or ▼ button to select the option, then press the ENTERE button. N To exit Media Play mode, press the MEDIA.P button on the remote control.

Memorycard 004 Tom Waits-Time.mp3 005 Chuk Mangione-Feel So good.mp3 ◄◄1/2 Page ►► Select Setup Safe Remove The message USB device can now be safely removed from TV. is displayed. You can remove the device safely from the TV. U Move Slide Show Speed Background Music Background Music Setting Repeat Music Screen Saver Safe Remove Slow OffOn 10Off min. U Move Setup Slide Show Speed Background Music Background Music Setting Repeat Music Screen Saver Safe Remove E Enter R Return Slow Off 10min. min. 20 min. 1 hour U Move Setup E Enter R Return E Enter R Return Slide Show Speed : Normal Background Music : On Background Music Setting Repeat Music : Off Screen Saver : 10 min. Safe Remove U Move E Enter R Return English - 41 BN68-02143B_Eng.indb 41 2009-03-10 오후 5:39:23 Anynet+ Connecting Anynet+ Devices Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to a TV 1. Connect the HDMI IN (1, 2(DVI), or 3) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI

Home Theatre Optical Cable Anynet+ Device 1 HDMI 1.3 Cable HDMI 1.3 Cable Anynet+ Device 2 Anynet+ Device 3 HDMI 1.3 Cable HDMI 1.3 Cable N Connect an Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theater. N When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home

Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater, not the TV. Connect only one Home Theater. You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type. Continued... English - 42 BN68-02143B_Eng.indb 42 2009-03-10 오후 5:39:24 ❑ Setting Up Anynet+ Application The following settings help set the Anynet+ functions. T Press the TOOLS button to display Tools menu. You can also set the Anynet+ by selecting Tools → Anynet+ (HDMI-CEC)

To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On

N The Anynet+ (HDMI-CEC) function is enabled. N If you select Off, Anynet+ (HDMI-CEC) is disabled. N When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Anynet+ (HDMI-CEC)

Media Play (USB) Device List Setup Move Enter Return Setup Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off

1. Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTERE button.

2. Press the ▲ or ▼ button to select Yes, then press the ENTERE button.

N The Auto Turn Off function is enabled. N If you select No, the Auto Turn Off function is canceled.

N The active source on the TV remote must be set to TV to use the Anynet+ function. N If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off. ❑ Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button.

Press the ▲ or ▼ button to select Device List, then press the ENTERE button. N Anynet+ devices connected to the TV are listed. N If you cannot find a device you want, press the red button to scan for devices. View TV Device List Recording

2. Press the ▲ or ▼ button to select to a particular device and press the ENTERE

button. It is switched to the selected device. N Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears. DVDR INFO Receiver Setup N Switching to the selected devices may take up to 2 minutes. You cannot cancel the Return operation during the switching operation. N The time required to scan for devices is determined by the number of connected devices. N When the device scan is complete, the number of devices found are not displayed. N Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is already on are not displayed in the device list. In this case, select the Searching Connections menu to search devices. N If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

TV Remote Control Buttons Available in Anynet+ Mode Device Type Anynet+ Device Operating Status Available Buttons After switching to the device, when the menu of the corresponding device is displayed on the screen. Numeric buttons ▲/▼/◄/► ENTERE buttons Color buttons / EXIT button After switching to the device, while playing a file Device with built-in Tuner Audio Device After switching to the device, when you are watching a TV program When Receiver is activated (Backward search) / (Forward search) (Stop) / (Pause) CH / VOL (Play) / CH button / VOL / MMUTE button Continued... English - 43 BN68-02143B_Eng.indb 43 2009-03-10 오후 5:39:25 N The Anynet+ function only works when the active source on the TV remote control is set to TV. N The button works only while in the recordable state. N You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. N The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device. N The Anynet+ functions do not operate with other manufacturers’ products. The

operations may differ depending on the device. Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Description Switches from Anynet+ to TV broadcast mode. Device List Displays the Anynet+ device list. Recording Starts a recording. (This menu works only for a device supporting recording.) Menu INFO Shows the menu of the connected device. Example: When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example: When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Timer Recording Allows reserving a recording. (This menu works only for a device supporting recording reservations.) Stop Recording Stops recording. Receiver Setup Sound is output through the receiver (home theater). You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for using Anynet+. ❑ Recording You can make a recording of a TV program using a Samsung recorder.

1. Press the TOOLS button.

2. Press the ▲ or ▼ button to select Recording Immediately and press the ENTERE

button. Recording begins. When there is more than one recording device When multiple recording devices are connected, the recording devices are listed. Press the ▲ or ▼ button to select a recording device and press the ENTERE button. Recording begins. When the recording device is not displayed Select Device List and press the red button to search devices View TV Device List Recording

3. Press the EXIT button to exit.

button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded. N Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual. N Pressing the ❑ Listening through a Receiver (Home theater) You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button. Press the ▲ or ▼ button to select Receiver.

2. Press the ◄ or ► button to select to On.

Now you can listen to sound through the receiver.

3. Press the EXIT button to exit.

N If your receiver supports audio only, it may not appear in the device list. N The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV. N When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. N When using the Media Play feature, sound may not output properly through the receiver. N When listening through the receiver, there are restrictions for using the audio-related (MTS, Preferred language) menus. N If there is a power interruption to the TV when the Receiver is set to On (by disconnecting the power cord or a power failure), the Speaker Select may be set to External Speaker when you turn the TV on again. English - 44 BN68-02143B_Eng.indb 44 2009-03-10 오후 5:39:26 Troubleshooting for Anynet+ Symptom Solution Anynet+ does not work.

• Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.
• Connect only one receiver (home theater).
• Check if the Anynet+ device power cord is properly connected.
• Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections.
• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
• Check whether the TV remote control is in TV mode.
• Check whether it is Anynet+ exclusive remote control.
• Anynet+ doesn’t work in certain situations. (Searching channels, Operating Media play, Plug & Play, etc.)
• When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or turn your TV off and on again.
• Check if the Anynet+ Function of Anynet+ device is set on. I want to start Anynet+.
• Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.
• Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. I want to exit Anynet+.
• Select View TV in the Anynet+ menu.
• Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.
• Press CH, CH LIST, PRE-CH, and FAV.CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The message Connecting to
• You cannot use the remote control when you are configuring Anynet+ or switching to a view Anynet+ device... appears on the mode. screen.
• Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not play. You cannot use the play function when Plug & Play is in progress. The connected device is not displayed. The TV program cannot be recorded. The TV sound is not output through the receiver.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions.

• If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan. Check whether the antenna jack on the recording device is properly connected. Connect the optical cable between TV and the receiver. English - 45 BN68-02143B_Eng.indb 45 2009-03-10 오후 5:39:26 Appendix Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG. Problem Possible Solution Poor picture quality. Try another channel. Adjust the antenna. Check all wire connections. Try another channel. Adjust the antenna. Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. Make sure the MMUTE button is off. First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. Check all connections. Unplug the TV for 30 seconds, then try operating it again. Make sure the wall outlet is working. Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. Press the TV button to put your remote control in the TV mode. Make sure the remote has batteries. Check that the “+” and “-” ends of the batteries are inserted correctly. Please check the digital signal strength and antenna input. Poor sound quality. No picture or sound. No sound or sound is too low at maximum volume. Picture rolls vertically. The TV operates erratically. The TV won’t turn on. Remote control malfunctions Digital broadcasting screen problem. The image is too light or too dark. Adjust the Brightness and Contrast. Adjust the Fine tuning. The image is too large or too small. Adjust the Size settings. The visual qualities of digital The visual qualities of digital channels may vary depending on the original production method channels vary. (analog or digital). - If the original production method is digital: High visual quality. - If the original production method is analog: The digital program displayed on the screen is originally an analog program which has been converted to digital. The visual quality is of an SD(Standard Definition) grade. Screen is black and power On your computer; check the Power and Signal Cable. indicator The TV is using its power management system. light blinks steadily. Move the computer’s mouse or press any key on the keyboard. On your equipment check (STB, DVD, etc) ; Power and Signal Cable. The TV is using its power management system. Press the SOURCE button on the panel or remote control. Turn the TV off and on. Although the TV caption shows The HD(High Definition) caption that appears when switching channels or when pressing the HD, the visual quality is not Information button on the remote control means the selected channel is a digital channel. If satisfactory. the broadcasting station converts an analog signal into digital and transmits the signal, the visual quality may not be perfect. A distorted picture appears in the If Screen Fit is selected in some external devices, a distorted picture may appear in the corner of the screen. corner of the screen. This symptom is caused by external devices, not the TV. A strange sound is heard. This is caused by minor systems operation and is not a defect. Pixels are visible on the screen. There may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. The "Resets all settings to the This appears when you press and hold the EXIT button for a while. The product settings are default values" message appears. reset to the factory defaults. English - 46 BN68-02143B_Eng.indb 46 2009-03-10 오후 5:39:26 Preparation before installing the Wall-Mount Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company’s Wall-Mount

Install the Wall Mount with a torque range of 15kgf·cm or less. Use care as the parts can be damaged if the torque is out of the specified range.

2. Accessory Kit contains Holder–Ring [②] for installing another company’s Wall-Mount. (Case B)

N Screw down the hole [①] when installing wall-mount on the wall. How to attach the Stand-Base Using the screws for securing the stand base and the TV, firmly attach the TV to the stand base. (The exterior of the set may be different from the picture.) (PN50B540S3F) When mounting your TV on a wall, install the cover (➊) on the stand-base using two screws. (PN58B540S3F) Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. N Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. Using the Stand-Base N Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. Always keep the PDP upright. N The PDP can rotate 20 degrees in right and left directions. -20° ~ 20° English - 47 BN68-02143B_Eng.indb 47 2009-03-10 오후 5:39:28

Securing the TV to the Wall Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang

Caution over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

Accessaries Holder-TV / Screw 1

To prevent the TV from falling

1. Attach the TV-Holder to the TV by fastening the screws 1 (M4*16) into the holes in the center of the TV.

N 42˝, 50˝ : Unscrew a screw attached on the back of your TV before attaching the TV-Holder. N Make sure to only use the supplied screw. 42", 50" 58", 63" 2. Firmly fasten the screws to the wall or cabinet where the TV is to be installed. Tie the TV-Holder attached to the TV and the screws fastened on the wall or cabinet so that the TV is fixed. N Purchase the screws to be used on the wall or cabinet separately. N Install the TV close to the wall so that it does not fall. N When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes. N Confi rm that the cord or link does not come loose frequently. N Before moving the TV, separate the connected cord first. 42", 50" Wall 58", 63" Wall 3. Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any doubt about the security of your connections, contact a professional installer. English - 48 BN68-02143B_Eng.indb 48 2009-03-10 오후 5:39:30 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family inch VESA Spec. (A * B) 19" ~22" 100 * 100 23"~29" 200 * 100 30"~40" 200 * 200 46"~55" 400 * 400 57"~70" 800 * 400 80" ~ 1400 * 800 42"~ 50" 400 * 400 58"~ 63" 600 * 400 70" ~ 800 * 400 80" ~ 1400 * 800 Standard Screw Quantity

The standard dimensions for wall mount kits are shown in the table above. When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications. N Do not use screws that do not comply with the VESA standard screw specifications. Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. N Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. N Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model. N Do not exceed 15 degrees tilt when mounting this TV. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. English - 49 BN68-02143B_Eng.indb 49 2009-03-10 오후 5:39:31 Specifications Model Name PN50B540S3F PN58B540S3F 50 inch (49.9 inches measured diagonally) 58 inch (58.0 inches measured diagonally) PC Resolution 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz Sound (Output) 10W x 2 15W x 2
