USER MANUAL PS50A566 SAMSUNG

Plasma TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. User Instructions Screen Image retention Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Height The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there. Heat on the top of the PDP TV The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product. The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit. Cell Defects The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Avoid operating the TV at temperatures below 5°C(41°F) A still image displayed too long may cause permanent damage to the PDP Panel. Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Afterimage on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. Warranty - Warranty does not cover any damage caused by image retention. - Burn-in is not covered by the warranty. Installation Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. © 2008 Samsung Electronics Co., Ltd. All rights reserved. English - 2 General Information Function Description

Symbols Press Important English - 3 Note English Contents Checking Parts Owner’s Instructions Remote Control/ AAA Batteries Power Cord Cloth-Clean Cover-Bottom / Screws (2ea) (Refer to page 71) Ferrite Core for Power Cord Ferrite Core for S-Video Ferrite Core for Component Warranty Card/ Safety Guide Manual (Not available in all locations) Sold Separately Antenna Cable Component Cables Audio Cables PC Cable Scart Cable PC Audio Cable HDMI Cable HDMI/DVI Cable Ferrite Core (Power Cord, S-Video, Component) ¯ The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug. Using the Stand-Base or more people ¯ Two should carry the PDP.

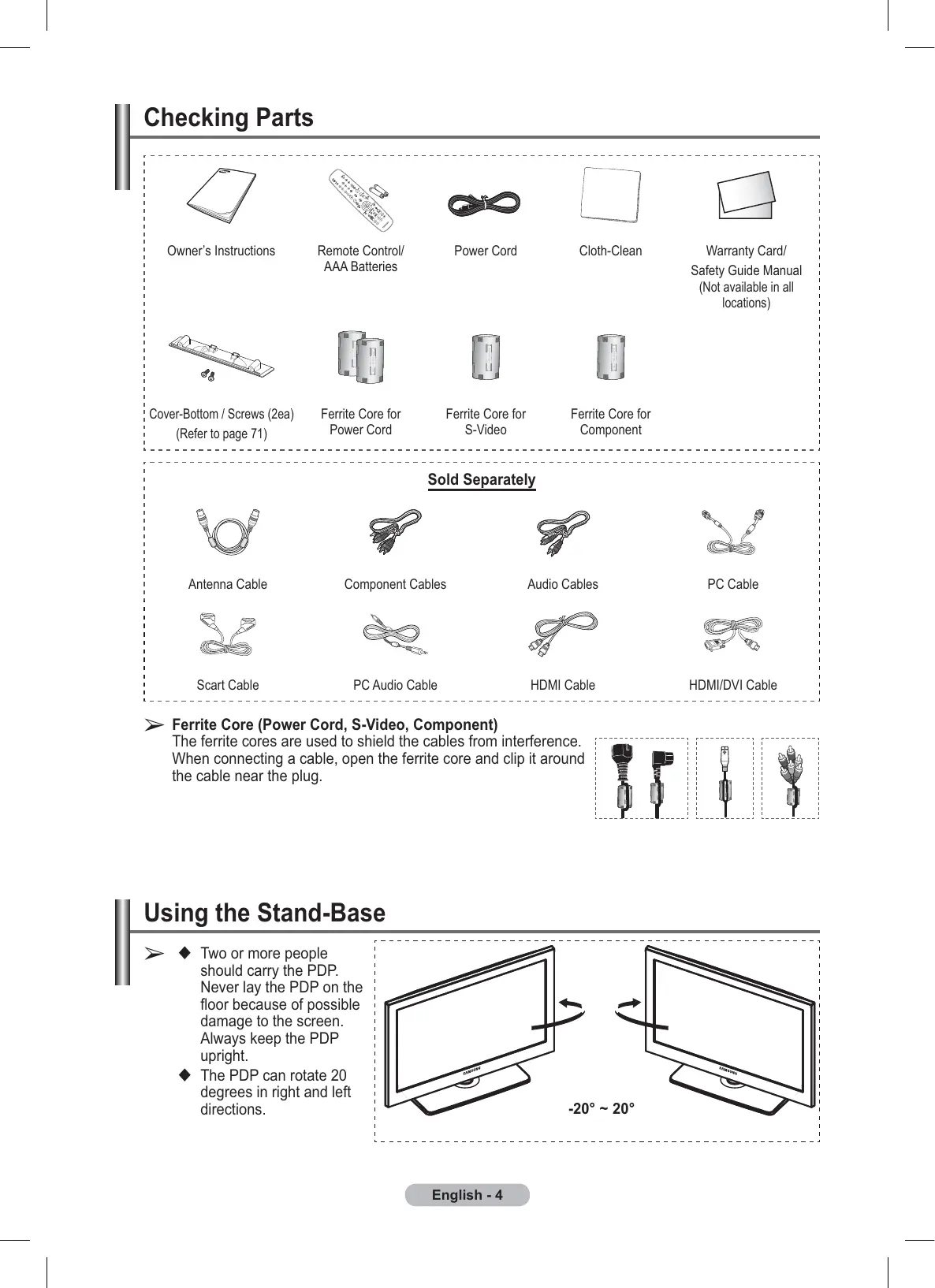

Never lay the PDP on the floor because of possible damage to the screen. Always keep the PDP upright. The PDP can rotate 20 degrees in right and left directions.

-20° ~ 20° English - 4 Control Panel Front Panel ¯ The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3, USB).

In the on-screen menu, use this button as you would use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features. 5 Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

7 Remote Control Sensor Aim the remote control towards this spot on the TV. 8 Speakers 3 – Press to increase or decrease the volume. In the on-screen menu, use the – + buttons as you would use the ◄ and ► buttons on the remote control.

POWER Press to turn the TV on and off. Press to change channels. In the on-screen menu, use the buttons as you would use the ▲ and ▼ buttons on the remote control. English - 5 Connection Panel Rear Panel

¯ The product colour and shape may vary depending on the model. you connect an audio or video system to your set, ensure that all elements are Whenever switched off. When connecting an external device, match the colour of the connection terminal to the cable. 1 POWER IN Connect the supplied power cord. 2 COMPONENT IN Audio (AUDIO L/R) and video (Y/PB/PR) inputs for Component.

Connect to the video and audio output jack on your PC. 4 EXT 1, EXT 2 Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. 5 DIGITAL AUDIO OUT (OPTICAL) Connect to a Digital Audio Component. 6 AUDIO OUT(AUDIO R/L) Connect RCA audio signals from the TV to an external source, such as Audio equipment. 7 SERVICE − Connector for service. − Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control. Input/Output Specification Connector EXT 1 EXT 2 Input Output Video Audio(L/R) RGB Video + Audio(L/R) Only TV or DTV

output is available. Output you can

choose. Continued... English - 6 8 HDMI IN 1,2 - No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. ¯ What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio. - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

The product colour and shape may vary depending on the model. 1 COMMON INTERFACE Slot Insert CI (Common Interface) card into the slot. (refer to page 40) − When ‘CI Card’ isn’t inserted in some channels, “Scramble Signal” is displayed on the screen. − The pairing information containing a telephone number, CI CARD ID, Host ID,and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. − When the channel information configuration has finished, the message “Updating Completed” is displayed, indicating that the channel list is now updated. Insert the CI-Card in the direction marked on it.

2 HDMI IN 3 Connect to the HDMI jack of a device with HDMI output. 3 WISELINK Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3). 4 S-VIDEO or VIDEO / AUDIO L/R Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR. 5 HEADPHONES JACK You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room. Prolonged use of headphones at a high volume may damage your hearing. English - 7

Viewing the Remote Control The performance of the remote control may be affected by bright light. 1 POWER button (turns the TV on and off) 2 Selects the TV and DTV mode directly 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 Temporary sound switch-off Volume increase Volume decrease 7 Electronic Program Guide (EPG) display 8 Use to quickly select frequently used functions. 9 Control the cursor in the menu 0 Use to see information on the current broadcast ! Use these buttons in the Channel list and WISELINK, etc. # Press to select the optional display and sound modes for sports, cinema and games. $ VCR/DVD Function (Rewind, Stop, Play/Pause, Fast/ Forward) % Available source selection ^ Previous channel Next channel Previous channel

• Displays the main on-screen menu ( This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. (See page 46 (JPEG), 56 (MP3)) ) Returns to the previous menu a Exit the on-screen menu b Picture size selection c Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode.(The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 64) d Digital subtitle display e Channel control button (Refer to page 18) W.LINK Teletext Functions (Refer to page 68) 2 Exit from the teletext display (depending on the model) 7 Teletext store 8 Teletext size 0 Teletext reveal ! Fastext topic selection @ Teletext display/mix both teletext information and the normal broadcast % Teletext mode selection (LIST/FLOF) ^ Teletext sub page & P :Teletext next page P :Teletext previous page
• Teletext index ) Teletext hold a Teletext cancel Continued... English - 8 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Do not mix battery types, i.e. alkaline and manganese. Close the cover as shown in the figure. Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

remote control doesn’t work! Check the following: ¯If1.the Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off The mains lead is attached to the rear of the television. 1 Plug the mains lead into an appropriate socket. The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz. 2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control to switch the television on. The channel that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically” on page 14 or “Storing Channels Manually” on page 15. If the television is initially powered on, several basic customer settings proceed automatically. Refer to “Plug & Play Feature” on page 10. 3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control. 4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER button or number buttons on the remote control.

Press the MENU button. The main menu is displayed on the screen. Its left side has six icons: Picture, Sound, Channel, Setup, Input, and Application Press the ▲ or ▼ button to select one of the icons. Press the ENTER button to access the icon’s sub-menu. Press the ▲ or ▼ button to move to items in the menu. Press the ENTER button to enter items in the menu. Press the ▲/▼/◄/► button to change the selected items. Press the RETURN button to return to the previous menu. Press the EXIT button to exit from the menu. Mode : Standard Cell Light

Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50 Tint (G/R) : G50/R50 Detailed Settings W.LINK English - 9 Plug & Play Feature When the television is initially powered on, several basic customer settings proceed automatically and subsequently.The following settings are available. If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running.

Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice. The message Select ‘Home Use’ when installing this TV in your home. is displayed.

Nederlands English : English Soumi Menu Language

Move Enter Plug & Play Select 'Home Use' when installing this TV in your home.

Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed. The default selection is Home Use. We recommend setting the TV to Home Use mode for the best picture in your home environment. Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

Auto Store in progress. Digital Channels : 0 Analogue Channels : -- Channel 6 Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER button to select Start. Digital & Analogue: “Digital” and “Analogue” channels. Digital: “Digital” channels. Analogue: “Analogue” channels. Stop The channel search will start and end automatically. Enter Press the ENTER button at any time to interrupt the memorization process. After all the available channels are stored, the message Set the Clock Mode is displayed.

Skip Continued... English - 10 stop the search before it has finished, press the ¯To ENTER button with stop selected.

Press the ◄ or ► button to select Yes, then press the ENTER button. The Auto Store menu then reappears. Press the ENTER button when channel memorization is completed. The message Set the Clock Mode is displayed. Press the ENTER button. Press the ▲ or ▼ button to select Manual for setting the current time manually, then press the ENTER button. The message Set current date and time. is displayed. If you select Auto, the message Enjoy your viewing is displayed. If you have received a digital signal, the time will be set automatically. Press the ◄ or ► button to move to Day, Month, Year, Hour or Minute. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. You can set the Day, Month, Year, Hour and Minute directly by pressing the number buttons on the remote control. The message Enjoy your viewing. is displayed. When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

Enter Skip Plug & Play Enjoy your viewing.

Setup If you want to reset this feature … 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Setup, then press the ENTER button. 3 Press the ENTER button again to select Plug & Play. 4 Enter your 4 digit PIN number. The default PIN number of a new TV set is “0-0-0-0”. For further details on setting up options, refer to the pages 10-11. The Plug & Play feature is only available in the TV mode. Plug & Play

Preference Plug & Play The Menu Language, Store Demo, Channels and Time will be set. 0~9 English - 11 Enter PIN Return Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “TOOLS” menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The Tools menu will appear.

Mono Device List, see page 65 Picture Mode, see page 27 Sound Mode, see page 32 Sleep Timer, see page 35 SRS TS XT, see page 32 Energy Saving, see page 38 Dual I II, see page 34 PIP, see page 38 Move Viewing External Signal Sources Input You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ENTER button again to select Source List. 4 Press the ▲ or ▼ button to select the signal source, then press the ENTER button. Available signal sources: TV,Ext1,Ext2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3, USB You can choose only those external devices that are connected to the TV. Source List Edit Name

¯ Using the Color buttons on the remote with the Source list.

• Red (Refresh): Refreshes the connecting external devices. (Option): Displays the Edit Name and Information menus. Ext.1

Refresh can select these options simply by pressing the ¯ You SOURCE button on the remote control. watch television programme again, press the TV/DTV ¯ To button and select the channel number required. English - 12 Off Off Option Enter Exit Editing Device Names Source List Input You can give a name to the external source. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ▲ or ▼ button to select Edit Name, then press the ENTER button. 4 Press the ▲ or ▼ button to select the external source to be edited, then press the ENTER button. 5 Select the required device by pressing ▲ or ▼, then press the ENTER button. Available device names: VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, Digital Media Adapter. 6 Press the EXIT button to exit. Edit Name

Ext 2 S-Video Component HDMI1 Move English - 13 Enter Return Storing Channels Automatically Channel You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. Auto Store 3 Press the ▲ or ▼ button to select Auto Store, then press Manual Store the ENTER button. Full Guide 4 Press the ▲ or ▼ button to select the channel source to Mini Guide memorize. Press the ENTER button to select Start. Default Guide : Mini Guide Digital & Analogue: “Digital” and “Analogue” Channel List channels. Digital: “Digital” channels. Channel Mode : Added Channels Analogue: “Analogue” channels. Child Lock

Scans for all channels with active broadcast stations and stores them in the TV’s memory. Auto Store If you want to stop Auto Store, press the ENTER Select the channel source to memorize. button. Start Digital Analogue The Stop Auto Store? message will be displayed. Start Digital Select Yes by pressing the ◄ or ► button, then press the ENTER button. Analogue Start 5 Press the EXIT button to exit. Move Enter Return When there is a locked channel by Channel Lock setting, PIN input screen appears. (refer to page 25)

Stop Enter Return Plug & Play Auto Store is incomplete. Digital channels: 20 Analogue channels: 36 Enter English - 14 Skip Storing Channels Manually Channel You can store television channels, including those received via cable networks. When storing channels manually, you can choose: Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the Auto Store ENTER button. Manual Store 3 Press the ▲ or ▼ button to select Manual Store, then Full Guide press the ENTER button. Mini Guide 4 Select the required option by pressing the ▲ or ▼ button, Default Guide then press the ENTER button. Channel List 5 When you are satisfied with your setting, press the ENTER button. Channel Mode 6 Press the EXIT button to exit. Child Lock Digital Channel Fine Tune Channel Press the ▲, ▼ or numeric buttons (0~9) to select a channel. The available channels are 5~69. The corresponding Auto Store frequency for the selected channel is automatically set Manual Store Frequency You can specify the frequency (KHz) using the numeric buttons Full Guide (0~9). If you do not know the exact frequency, follow the above Mini Guide step to select the frequency automatically using channel. Default Guide Bandwidth Channel List Press the ▲ or ▼ button to select a bandwidth. The Channel Mode available bandwidths are 7 and 8 MHz. Channel Child Lock

: Mini Guide : Added Channels : On Digital Channel Analogue Channel : Mini Guide : Added Channels : On Analogue Channel Fine Tune Programme (Programme number to be assigned to a channel) Manual Store Press the ▲ or ▼ button until you find the correct number. You can also select the channel number directly by Channel Frequency Bandwidth pressing the numeric buttons (0~9). 178750 KHz 8 MHz Colour System: Auto/PAL/SECAM/NTSC4.43 Press the ▲ or ▼ button to select the required colour standard. Search Move Adjust Return Sound System: BG/DK/I/L Press the ▲ or ▼ button to select the required sound Manual Store standard. Programme Colour System Sound System Channel (When you know the number of the channel to be stored) A U TO Press the ▲ or ▼ button to select C (Air channel) or S Channel Search Store (Cable channel). -40 MHz Press the ► button, then press the ▲ or ▼ button to select Move Adjust Return the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required. Search (When you do not know the channel numbers) Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen. Store (When you store the channel and associated programme number) Set to OK by pressing the ENTER button. Channel mode - P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. - C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. - S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

English - 15 Viewing the EPG (Electronic Programme Guide) Information The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. Auto Store Manual Store Channel 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Full Guide, Mini Guide or Default Guide then press the ENTER button. Full Guide For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information. One hours of programme information is displayed which may be scrolled forwards or backwards in time. Mini Guide The information of each program is displayed by each line on the current channel Mini Guide screen from the current program onwards according to the program starting time order. Full Guide Mini Guide Default Guide

(ENTER) Select a programme by pressing the ▲/▼/◄/► button. If the next progrmme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, press the ▲/▼/◄/► button to select Cancel Schedules, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the section. : Mini Guide Channel List Channel Mode : Added Channels Child Lock : On Fine Tune Signal Information Full Guide 18:08 Fri 5 Aug DTV 805 BBCi BBCi 18:00~0:00 BBCi-featuring news, sport, weather and TV.. Today BBC NEWS 24 802 BBC ONE 803 BBC THREE 804 BBC THREE 805 BBCi ▼806 ▲801 Watch INFO 12:00 - 13:00 BBC Ne.. BBC Ne.. 13:00 - 14:00 BBC News Departure Lounge This is BBC THREE This Weakest L.. BBCi Canal 7 information Mini Guide The 7 O’.. Tsunami.. No Information +24 Hours Exit Manual Store GREEN YELLOW Full Guide: Scroll backwards quickly (24 hours). Mini Guide: Display next page quickly. Full Guide Channel RED Toggle between the Mini Guide or Full Guide. Mini Guide Default Guide Full Guide: Scroll forwards quickly (24 hours). Mini Guide: Display previous page quickly. Exit the guide. INFO INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information (HD/SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information. “…” will be appeared if the summary is long. Default Guide: Mini Guide/Full Guide Press the ▲ or ▼ button to select Mini Guide or Full Guide. Press the ENTER button. The selected guide menu is displayed. You can also display the guide menu simply by pressing the GUIDE button.

Press the ◄ button to select Added Channels.

Press the ▲ or ▼ button to select All Channels, then press the ENTER button. Shows all currently available channels. All Press the ▲ or ▼ button to select a channel to view, then press the ENTER button. All UKTV Gold UKTV style

C -C -C -C -C -C -C -- Channel Type Zoom Press the CH LIST button on the remote control to bring up the channel lists. Using the Color buttons on the Remote with the Channel List

• Red (Channel Type): Toggle between your “TV”, “Radio”, “Data/Other” and “All”.
• Green (Zoom): Enlarges or shrinks a channel number.
• Yellow (Select): Selects multiple channel lists.
• (Option): Displays the “Delete”(or “Add”), “Add to Favourite”(or “Delete from Favourite”), “Lock”, “Timer Viewing”, “Edit Channel Name”, “Sort”, “Edit Channel Number”, “Select All”, “Deselect All” or “Auto Store” menu. (The Options menus may differ depending on the situation.) ¯ A gray-colored channel indicates the channel has been deleted. The Add menu only appears for

deleted channels. A channel marked with ♥ mark means the channel has been set as a Favourite. The Delete from Favourite menu only appears for channels with the ♥ mark. English - 17 Erasing and Adding Channels Mini Guide Default Guide Channel : Added Channels Child Lock :On Signal Information LNA

All UKTV Gold UKTV style

C -C -C -C -C -C -C -- Channel Type Added Channels

Press the CH LIST button on the remote control to ¯bring up the channel lists. : Mini Guide Channel List Added Channels You can delete or add a channel to display the channels you want. 1 Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 2 Press the ◄ button to select Added Channels. 3 Press the ▲ or ▼ button to select All Channels. Shows all currently available channels. Press the ENTER button. 4 Press the ▲ or ▼ button to select a channel to delete, then press the TOOLS button. 5 Press the ENTER button to select Delete. All deleted channels will be shown on All Channels menu. 6 Press the EXIT button to exit. You can also add a channel to the All Channels menu in the same manner. A channel must be deleted before it can be added back to the Added Channels list. To Add (Restore) a channel back to the Added Channel List, follow steps 1-3 above, press the ▲ or ▼ button to select a channel to add, the press the TOOLS button. Press the ENTER button to select Add. Zoom UKTV Gold UKTV style

C -C -C -C -C -C -C -- Channel Type Delete Add to Favourite Timer Viewing Edit Channel Name Sort Select All

Zoom Select Option Setting Your Favourite Channels Channel You can set channels you watch frequently as Favourite. Mini Guide 1 Press the MENU button. Default Guide : Mini Guide Press the ▲ or ▼ button to select Channel, then press the Channel List ENTER button. Channel Mode : Added Channels Press the ▲ or ▼ button to select Channel List, then Child Lock : On press the ENTER button. Fine Tune 2 Press the ◄ button to select Added Channels. Signal Information 3 Press the ▲ or ▼ button to select All Channels, then LNA : Off press the ENTER button. Shows all currently available channels. 4 Press the ▲ or ▼ button to select a channel as a favourite channel. UKTV Gold Adding multiple channels to Favourite. UKTV style Press the ▲ or ▼ button to select the desired channel C -Delete Add to Favourite in the channel list. Then press the yellow button. C -Timer Viewing C -Edit Channel Name Repeat the above operation to select multiple C -Sort channels. The mark appears to the left of the C -Select All

-selected channels. C -5 Press the TOOLS button. C -All Channel Type Zoom Select Option 6 Press the ▲ or ▼ button to select Add to Favourite, then press the ENTER button. The “♥” symbol will be displayed and the channel will be set as a favourite. 7 To cancel your favourite channel selection, press the TOOLS button when a favourite channel is selected. Press the ▲ or ▼ button to select Delete from Favourite, then press the ENTER button. The channel is deleted from Favourites and the “♥” mark disappears. Press the EXIT button to exit. You can also Add or Delete a channel from Favourite in the Added Channels menu in the same manner. All favourite channels will be shown on Favourite menu. Press the CH LIST button on the remote control to bring up the channel lists.

English - 19 Reserving a Program (Time Viewing)

Press the ▲ or ▼ button to select Timer Viewing, then press the ENTER button. You can also reserve a program in the All Channels or Favourites menus using the same procedures.

For information on how to confirm a viewing reservation, refer to page 21. Only memorized channels can be reserved.

You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control. :Mini Guide Channel List Channel Mode : Added Channels Child Lock : On Fine Tune Signal Information LNA The Reserve a Program (Timer Viewing) screen appears. Press the ▲/▼/◄/► buttons to reserve a program and then press the ENTER button. Reserving a program has been completed. Press the EXIT button to exit.

Mini Guide Channel If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program, set the current time first. See pages 35. Reserved chanels can only be set if they are in the Channel List (See page 17). 1 Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 2 Press the ▲ or ▼ button to select a channel, then press the TOOLS button. Air : Off UKTV Gold UKTV style

C -C -C -C -C -C -C -- Delete Delete from Favourite Timer Viewing Edit Channel Name Sort Select All

Channel Type Zoom Select Option Timer Viewing Antenna DTV Channel

Repeat Once Date 01-01-2008 Move Start Time 10:09 Adjust Enter Return Press the CH LIST button on the remote control to bring up the channel lists.

Added Channels Digital Program Guide and Viewing Reservation When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above. : A program currently being broadcast. : A reserved program. Air UKTV Gold UKTV style

Watch Continued... English - 20 Confirming a Viewing Reservation You can view, modify or delete a reservation.

• Change Info: Select to change a viewing reservation.
• Cancel Schedules: Select to cancel a viewing reservation.
• Information: Select to view a viewing reservation.
• Select All / Deselect All: You can select(or Deselect) all channel in the channel list. Press the CH LIST button on the remote control to bring up the channel lists. Continued... English - 21 Assigning Names to Channels Editing the Channel Name-Analogue

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Press the ▲ or ▼ button to select the channel to be assigned to a new name, then press the TOOLS button. Press the ▲ or ▼ button to select Edit Channel Name, then press the ENTER button. Press the ▲/▼/◄/► button to select a letter, a number, or a symbol, then press the ENTER button.

• Number buttons: You can enter numbers.
• Red button: You can switch between English and Characters.
• Green button: You can delete an already entered character.
• Yellow button: You can enter a blank space.
• Blue button: Press this button to finish renaming a channel. Mini Guide Channel Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names. All : Off Television UKTV style

C -C -C -C -C -C -C -- Channel Type Delete Delete form Favourite Timer Viewing Edit Channel Name Sort Select All

Zoom Select Option ►Next Program Edit Channel Name Repeat steps 5 to 6 for each channel to be assigned to a new name. Press the EXIT button to exit.

Character Delete Blank

Done Move Editing the Channel Number-Digital

Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Select the channel number that you wish to edit by pressing the ▲ or ▼ button repeatedly, then press the TOOLS button. Press the ▲ or ▼ button to select Edit Channel Number, then press the ENTER button. Then you can edit the Channel Number pressing the ▲ or ▼ button repeatedly. You can also edit the channel number by pressing the number buttons on the remote control. English - 22 Added Channels

All Enter Return Television UKTV style UKTB style C -C -C -C -C -C -C -- Channel Type Zoom Delete Add to Favourite Timer Viewing Edit Channel Number Select All Auto Store Select TOOLS Option Edit Channel Number Channel

C -C -C -C -C -C -C -- Channel Type Delete Delete form Favourite Timer Viewing Edit Channel Name Sort Select All

Move English - 23 : Mini Guide Channel List Added Channels This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 4 Press the TOOLS button. 5 Press the ▲ or ▼ button to select Sort, then press the ENTER button. 6 Select the channel that you wish to move by pressing the ▲ or ▼ button, then press the ENTER button. 7 Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button. Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly. 8 Repeat steps 4 to 7 until you have moved all the channels to the required programme numbers. 9 Press the EXIT button to exit. Enter Return Selecting and Deselecting All Channels

Added Channels Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Press the ▲ or ▼ button to select the Channel to be assigned a new name, then press the TOOLS button. Press the ▲ or ▼ button to select Select All or Deselect All, then press the ENTER button. You can select(or Deselect) all channel in the channel list. The mark appears to the left of the selected channels.

Storing Channels in Memory (Auto Store)

Added Channels Press the MENU button. Television UKTV style Press the ▲ or ▼ button to select Channel, then press the C -ENTER button. Add to Favourite C -Timer Viewing Press the ▲ or ▼ button to select Channel List, then press C -Edit Channel Name C -the ENTER button. Sort C -Select All C -Press the ▲ or ▼ button to select the channel to be Auto Store C -assigned a new name, then press the TOOLS button. C -All Channel Type Zoom Select Option Press the ▲ or ▼ button to select Auto Store, then press the ENTER button. For further details on setting up options, refer to page 14. When there is a locked channel by Channel Lock setting, PIN input screen appears. (refer to page 25)

Setting the Channel Mode

Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel Mode, then press the ENTER button. Press the ▲ or ▼ button to select Added Channels or Favourite Channels, then press the ENTER button. Press the EXIT button to exit. Default Guide Channel You can display either the added channels list or the favourite channels list when the CH LIST button on the remote control is pressed. : Mini Guide Channel List Channel Mode : Added Channels Child Lock : On Fine Tune Signal Information Channel LNA : Off Default Guide Channel List : Mini Guide Channel Mode Added Channels : Added Channels Favourite Channels Child Lock : On Fine Tune Signal Information LNA English - 24 : Off Locking Channels Channel This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children. Locking channels Channel List 1 Press the MENU button to display the menu. Channel Mode : Added Channels 2 Press the ▲ or ▼ button to select Channel, then press the : On Child Lock ENTER button. 3 Press the ▲ or ▼ button to select Child Lock, then press Fine Tune the ENTER button. Signal Information LNA : On Enter your 4 digit PIN number. ¯ The default PIN number of a new TV set is “0-0-0-0”. ¯ If you want to change PIN number, refer to page 36. 4 Press the ▲ or ▼ button to select On, then press the ENTER button. 5 Press the ▲ or ▼ button to select Channel List, then Child Lock press the ENTER button. Enter PIN 6 Press the ▲ or ▼ button to select a channel to be locked,

Return 0~9 Enter PIN locked. Unlocking channels UKTV Gold UKTV style 7 Press the ▲ or ▼ button to select Unlock, then press the C -Delete ENTER button. Add to Favourite C -Enter your 4 digit PIN number. Lock C -4 C -Timer Viewing ¯ The channel is unlocked and the (lock icon) mark also C -Edit Channel Name C -disappears. Sort C -8 -¯ The default PIN number of a new TV set is “0-0-0-0”. All Channel Type Zoom Select Option ¯ If there is a locked channel by "Channel Lock" setting, PIN input screen appears when you start "Auto Store" or "Plug&Play".(refer to page10) All Channels

Fine Tuning Analogue Channels

Press the ◄ or ► button to adjust the fine tuning. To store the fine tuning setting in the TV’s memory, press the ENTER button. ¯ If you do not store the fine-tuned channel in memory, adjustments are not saved.

To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTER button. Press the EXIT button to exit. ¯ Only Analogue TV channels can be fine tuned.

• ” will appear next to the number of fine-tuned ¯ “channels. Channel Use fine tuning to manually adjust a particular channel for optimal reception. 1 Press the MENU button to display the menu. Channel Mode Press the ▲ or ▼ button to select Channel, then press the Child Lock ENTER button. : On Fine Tune

Enter Return LNA (Low Noise Amplifier) Channel This function is very useful in the situation that the TV is used in weak signal. LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal. 1 Press the MENU button to display the menu. Fine Tune 2 Press the ▲ or ▼ button to select Channel, then press the Signal Information ENTER button. Off LNA 3 Press the ▲ or ▼ button to select LNA, then press the ENTER button. 4 Select Off or On by pressing the ▲ or ▼ button, then press the ENTER button. 5 Press the EXIT button to exit. While viewing an Analogue channel, this function can be selected.

:Standard Cell Light

Detailed Settings Picture Choose Dynamic for viewing the TV during the day or ¯ when there is bright light in the room. Choose Standard for general TV watching mode. Choose Movie when viewing the movie. Mode Mode Cell Light : Dynamic :7 Standard Contrast : 80 Movie Brightness : 45 Sharpness : 50 Colour : 50 Tint (G/R) : G50/R50 Detailed Settings Easy Setting Tools

Press the TOOLS button on the remote control.

Energy Saving Dual I II Move Customizing the Picture Settings Mode Picture Your television has several setting options that allow you to control the picture quality. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ENTER button again to select Mode. 4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button. Available modes: Dynamic, Standard, Movie 5 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 6 When you are satisfied with your setting, press the ENTER button. 7 Press the EXIT button to exit. ◄ Standard ► : Standard Off Off Off Mono Adjust :Standard Cell Light

Contrast : 95 Brightness : 45 Sharpness : 50 Colour : 50 Tint (G/R) : G50/R50 Detailed Settings Picture Options Cell Light – Contrast – Brightness – Sharpness – Colour – Tint(G/R) In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function. In PC mode, you can only make changes to Contrast and Brightness. Press the ◄ or ► button until you reach the optimal setting.

Configuring Detailed Settings on the Picture ¯Detailed Settings is available in Standard or Movie mode. PC mode, you can only make changes to Dynamic ¯InContrast, Gamma and White Balance from among the Detailed Settings items. Picture You can set detailed picture settings. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, Edge Enhancement, xvYCC 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit. Colour : 50 Tint (G/R) : G50/R50 Detailed Settings

White Balance Black Adjust: Off/Low/Medium/High Flesh Tone You can directly select the black level on the screen to Edge Enhancement : On adjust the screen depth. Enter Return Move Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. Gamma: -3 ~ +3 You can adjust the middle brightness of pictures. Press the ◄ or ► button until you reach the optimal setting. Colour Space : Auto/Native/Custom Colour space is a colour matrix composed of red, green and blue colours. Select your favourite colour space to experience the most natural colour. − Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources. − Native: Native Colour Space offers deep and rich colour tone. − Custom: Adjusts the colour range to suit your preference. (see “Customizing the Colour Space”) Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom. Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button. − Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. − Reset: Resets the colour space to the default values. White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. Continued... English - 28 Flesh Tone:-15~+15 You can emphasize the pink tone in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen. Edge Enhancement: Off/On You can emphasize object boundaries. xvYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. The xvYCC function works only in Component or HDMI mode If xvYCC function is active, PIP cannot be selected.

Picture Options Picture You can set detailed picture settings. Tint (G/R) : G50/R50 Detailed Settings 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. Picture Options 3 Press the ▲ or ▼ button to select Picture Options, then Picture Reset press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit. In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection from among the Picture Options items in Picture Options. Colour Tone : Cool2 Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 When the picture mode is set to Dynamic or Size Cool1 Standard, Warm1 and Warm2 cannot be selected. Screen Mode Normal Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan Digital NR Warm1 You can select the picture size which best corresponds to DNle : 2min Warm2 your viewing requirements. HDMI Black Level : 2min − Auto Wide: Expanding and pulling up the picture from Movie Plus :Off 4:3 to 16:9 ratio. Auto Wide function is available only in TV, Ext.1, Enter Return Move Ext.2, AV and S-Video mode. − 16:9: Sets the picture to 16:9 wide mode. − Wide Zoom: Magnify the size of the picture more than 4:3. Move the screen up/down using the ▲ or ▼ button after selecting the Position by pressing the ► or ENTER button. − Zoom: Magnify the size of the picture vertically on screen. − 4:3: Sets the picture to 4:3 normal mode. − Just Scan: Use this function to see the full image without any cutoff when HDMI(720p/1080i/ 1080p), Component(1080i/1080p) or DTV(1080i) signals are input. After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Press the ◄ or ► button to select Position, then press the ENTER button. Press the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select Reset, then press the ENTER button. You can initialize the setting. With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen. For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p) connection of 50 and 60Hz, only the input source is supported. You can change the picture size simply by pressing the P.SIZE button on the remote control. Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Continued...

Positioning and Sizing the screen using Zoom − Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction using the ▲ or ▼ button as well as the screen size. − Move the screen up/down using the ▲ or ▼ button after selecting the Position by pressing the ◄ or ► button. − Resize the screen vertically using the ▲ or ▼ button after selecting the Size by pressing the ◄ or ► button. Screen Mode: 16:9/Wide Zoom/Zoom/4:3 Picture Options When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the Colour Tone : Normal 4:3 WSS (Wide Screen Service) image or nothing. Each Size 16:9 individual European country requires different picture size Screen Mode so this function is intended for users to select it. Wide Zoom − 16:9: Sets the picture to 16:9 wide mode. Digital NR Zoom − Wide Zoom: Magnify the size of the picture more than DNle : 2min 4:3 4:3. HDMI Black Level : 2min − Zoom: Magnify the size of the picture vertically on Movie Plus :Low screen. − 4:3: Sets the picture to 4:3 normal mode. Enter Return Move This function is available in Auto Wide mode. This function is not available in PC,Component or HDMI mode. Digital NR: Off/Low/Medium/High/Auto If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. When the signal is weak, select one of the other options until the best picture is displayed. DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is available only in Dynamic mode. HDMI Black Level: Normal/Low Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low colour, etc.) is encountered by the HDMI input for RGB limited range (16 to 235). This function is active only when the external input connects to HDMI(RGB signals). Movie Plus: Off/Low/Medium/High/Demo You can view more natural skin and clear text even in fast moving scenes. It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode. This function is not available in “Wide Zoom” and “Zoom” modes. This function is not available when "PIP" is set to "On".

Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/ Yellow Colour Bar Patterns, without using an additional Blue Filter. Blue Only Mode is available when the picture mode is set to Movie or Standard.

Continued... English - 30 Screen Burn Protection To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes. − Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen. − Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button. − Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Horizontal Dot, Vertical Line, Time Optimum condition for pixel shift;

Time : 4 min Move Enter Return ¯The Pixel Shift value may differ depending on the monitor size (inches) and mode. ¯This function is not available in the Just Scan mode. − All White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. Dark: When you set the screen ratio to 4:3, it darkens the left and right sides. Light: When you set the screen ratio to 4:3, it brightens the left and right sides. To remove after images on the screen, use either White or Scrolling function. Although both of the two functions remove after images on the screen, Scrolling is more effective. The after image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after images on the screen. If after image is not improved after the execution of the function, repeat the function again. Press any button on the remote control to cancel this feature.

Resetting the Picture Settings to the Factory Defaults

Cancel Sound Features

Sound Press the MENU button to display the menu. Press the ▲ or ▼ button to select Sound, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Mode, Equalizer, SRS TruSurround XT, Audio Language, Audio Format, Audio Description, Auto Volume, TV Speaker, Sound Select, Sound Reset 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit. Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Sound Mode. 3 Press the ◄ or ► button to select the required option. 4 Press the EXIT or TOOLS button to exit. Equalizer: Mode/Balance/100Hz/300Hz/1kHz/3kHz/ 10kHz/Reset You can select a sound mode to suit your personal preferences. The television has several settings which allow you to control the sound quality. The adjusted values are stored according to the selected Sound mode. - Reset : Resets the equalizer settings to the default values. SRS TruSurround XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select SRS TS XT. 3 Press the ◄ or ► button to select Off or On. 4 Press the EXIT or TOOLS button to exit. Mode : Standard

Energy Saving Dual I II : Standard : Standard Off ◄ Off ► Off : Mono Move Adjust Exit TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Audio Language You can change the default value for audio languages. Displays the language information for the incoming stream. While viewing a Digital channel, this function can be selected. You can only select the language among the actual languages being broadcast.

Audio Format: MPEG/Dolby Digital When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function. While viewing a Digital channel, this function can be selected. You can only select the language among the actual languages being broadcast.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. English - 32 Audio Description: Audio Description/ Volume This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the Audio Description, when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume. − Audio Description : On/Off − Volume : 0~100 Volume is active when Audio Description is set to On. While viewing a Digital channel, this function can be selected.

Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. The – +, MUTE buttons do not operate when the TV Speaker is set to Off. When TV Speaker is set to Off, you can operate only Audio Language, Audio Format, Audio Description, Sound Select(in PIP mode), Sound Reset(in digital TV mode) and Sound Reset(in analogue TV mode) in Sound menu.

AV, S-Video Component, PC, HDMI TV Speaker On Speaker Output Speaker Output Speaker Output Speaker Output Speaker Output Speaker Output TV Speaker Off Mute Mute Mute Speaker Output Speaker Output Speaker Output Video No Signal Mute Mute Mute Mute Mute Mute Sound Select: Main/Sub When the PIP feature is activated, you can listen to you can operate only Sound Select (in PIP mode) in Sound menu. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. Sound Reset: Reset All/Reset Sound Mode/Cancel You can restore the Sound settings to the factory defaults. - Reset All: All the sound values return to default settings. - Reset Sound Mode: Currently set values return to default settings. English - 33 Selecting the Sound Mode (depending on the model) The DUAL I-II button displays/controls the processing and output of the audio signal. When power is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the current transmission. Easy Setting

Off Off Energy Saving

Off Dual I II ◄ Mono ► Move Adjust Exit Mono (Normal) Mono (Normal use)) Zweisprachig oder Dual-I/II Dual I Dual II Stereo Stereo Mono (Forced mono) ¯ If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono. If the stereo signal is weak and automatic switching occurs, switch to Mono. This function is only available in Analogue TV mode. Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.

When you insert the head set jack into the corresponding port, you can operate only DTV : Audio Language,Audio Format, Audio Description,TV Speaker,Sound Reset ATV : TV Speaker, Sound Reset PIP : Sound Select, Sound Reset in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not hear sound from the speakers when you connect headphones to the TV. The headphone volume and TV volume are adjusted separately. English - 34 TV Side Panel

Clock You can set the television clock so that the current time is displayed when pressing the INFO button on the remote control. You must also set the time if you wish to use the automatic on or off timers. Option 1: Setting the Clock Manually − Clock Mode Press the ENTER button to select Clock Mode. Press the ▲ or ▼ button to select Manual, then press the ENTER button − Clock Set Press the ◄ or ► button to select Day, Month, Year, Hour, Minute or am/pm. Set these by pressing the ▲ or ▼ button. You can set the Day, Month, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control.

You can set the On/Off timers so that the television will switch on or Repeat Sun Mon Tue Wed The Fri Sat off automatically at the time you select. You must set the clock first. Once − Press the ◄ or ► button to select the required item below. Adjust Move Enter Return Press the ▲ or ▼ button to adjust to the setting satisfied. On Time : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Off Time : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Contents: You can select the content to be played when the TV turns on automatically. Volume : Select the required volume level. Repeat : Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. When Manual is selected, Press the ► button to select the desired day of the week. Press the ENTER button over the desired day and the mark (V) will appear. You can set the hour, minute, directly by pressing the number buttons on the remote control.

Auto Power Off When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time. English - 35 Language / Change PIN / Parental Lock / Subtitle / Teletext Language / Preference / Light Effect / Melody / Entertainment / Energy Saving / PIP

Setup Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Plug & Play 3 Select the required option by pressing the ▲ or ▼ button, Language : English then press the ENTER button. Time Available options: Language, Change PIN, Parental Change PIN Lock, Subtitle, Teletext Language, Preference,Light Parental Lock Effect, Melody, Entertainment, Energy Saving, PIP Subtitle 4 When you are satisfied with your setting, press the ENTER button. Teletext Language : ---5 Press the EXIT button to exit. Preference Language It is variable depending on the model. When you start using the television for the first time, you must select the language which will be used for displaying menus and indications. Change PIN Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The Enter PIN is displayed. Enter your current 4-digit PIN code by using the numeric buttons (0~9). The Enter New PIN and Confirm New PIN is displayed. If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:POWER (Off), MUTE, 8, 2, 4, POWER (On). Parental Lock This feature allows you to prevent unauthorized users, such Parental Lock as children, from watching unsuitable programmes by a Parental Rating 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to Enter Return assign a PIN code (you can change it later, if necessary). 1 Enter your 4-digit PIN by using the numeric buttons (0~9). Parental Rating 2 Press the ENTER button to select Parental Rating. 3 Press the ▲ or ▼ button to select an appropriate Allow All restriction, then press the ENTER button. Block All The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to block or unblock the category. Allow All: Press unlock all ratings.

Block All: Press to lock all TV ratings. Move Enter Return The default PIN code for a new TV set is 0000.

Subtitle Subtitle Subtitle : On / Off − You can select these options simply by pressing the Subtitle : On Off SUBT. button on the remote control. Mode : Default While viewing a programme, the subtitle can be selected. Subtitle Language Mode Normal (basic subtitle) Hard hearing (subtitle for a hearing-impaired person) Move Enter Return − If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even though Hard of hearing mode is selected. While viewing a programme, audio languages can be selected. Subtitle Language : You can change the default value for subtitle languages. Teletext Language You can set the Teletext language by selecting the language type. English is the default in cases where the selected language is unavailable in the broadcast.

Continued... English - 36 Setup Preference Sub title This menu consists of 6 sub-menus: Teletext Language : ---Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Preference Language, Primary Teletext Language, and Secondary Light Effect : Watching TV Teletext Language (depending on the Country). Wall-Mount Adjustment Using this feature, users can select one of the languages Melody : Off (English, German, Italian, Swedish, French, Welsh, Gaelic, Entertainment : Off Irish, Danish, Finnish, Spanish, Dutch). The language Energy Saving : Off selected here is the default when the user selects a PIP channel. Software Upgrade Press the

button select required menu (Primary Audio Language, Secondary Audio Preference Language, Primary Subtitle Language, Secondary Primary Audio Language : French Subtitle Language, Primary Teletext Language, Secondary Audio Language : French or Secondary Teletext Language), then press the Primary Subtitle Language : French ENTER button. Secondary Subtitle Language : French The options of the selected menu are displayed. Primary Teletext Language : French Press the ▲ or ▼ button to select required option Secondary Teletext Language : French (Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French,Gaelic, German,Greek,Hungarian, Move Enter Return Irish, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish,Turkish, Welsh), then press the ENTER button. − If you change the language setting, the Audio Language, Subtitle Language, and the Teletext Language of the Language menu are automatically changed to the selected language. − The Audio Language, Subtitle Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Audio Language, Primary Subtitle Language, or the Primary Teletext Language of the Preference menu. Light Effect: Off/In Standby/Watching TV/Always You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes. − Off: The blue LED is always off. − In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on. − Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off. − Always: The blue LED always lights. Set the Light Effect to Off to reduce the power consumption.

Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted. ¯ When the Melody does not play ¯ When no sound is output from the TV because the MUTE button has been pressed. (Volume) button has been pressed. ¯ When no sound is output from the TV because the – ¯ When the TV is turned off by Sleep Timer. Entertainment: Off/Sports/Cinema/Game Entertainment mode enables you to select the optimal display and sound for sports, cinema and games. − Off: Switches the Entertainment function off. − Sports: Provides the optimal picture and sound quality for sports. − Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound. − Game: Provides the optimal picture and sound quality for games.This mode accelerates the playing speed when using an external game console connected to the TV. you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off. The Entertainment settings are saved for each input source. .Continued...

English - 37 Setup Energy Saving: Off/Low/Medium/High This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Switches off the Energy Saving mode. − Low: Operates in standard mode regardless of the surrounding illumination. − Medium: Enters Medium power saving mode regardless of the surrounding illumination. − High: Enters maximum power saving mode regardless of the surrounding illumination. Melody : Off Entertainment : Off Energy Saving : Off

PIP Software Upgrade Common Interface Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Energy Saving. 3 Press the ◄ or ► button to select the required option. 4 Press the EXIT or TOOLS button to exit. PIP (Picture in Picture): You can display a sub picture within the main picture. In this way you can watch TV programme or monitor the video input from any connected devices. − PIP: On/Off You can activate or deactivate the PIP function. Tools Device List Picture Mode : Standard Sound Mode Sleep Timer

Software Upgrade Common Interface − Source You can select a source of the sub-picture. − Size:

You can select a size of the sub-picture. If main picture is in PC and Component mode, Size is not available. − Position:

You can select a position of the sub-picture. In Double( , ) mode, Position cannot be selected. − Channel You can select a channel of the sub-picture only when the Source is set to TV.

Off Move English - 38 Return Enter Exit Upgrading the Software To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the side of the TV. TV side Panel USB Drive

BY USB : Standby Mode Upgrade :On − Preset : Insert a USB drive containing the firmware upgrade into TV. Alternative Software --/--/--_------- Please be careful to not disconnect the power or remove the USB drive while upgrades are being Enter Move Return applied. The TV will turn off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade. BY Channel

BY Channel : Upgrades the software using the broadcasting signal. Standby Mode Upgrade : To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed. Alternative Software : To display the software version information. English - 39 Common Interface This contains information on CAM inserted in the CI slot and displays it. You can install the CAM anytime whether the TV is ON or OFF.

Installing the CI Card a. Purchase the CI CAM module by visiting your nearest dealer or by phone. b. Insert the CI CARD into the CAM in the direction of the arrow until it fits. c. Insert the CAM with the CI CARD installed into the common interface slot. Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot. d. Check if you can see a picture on a scrambled signal channel.

Select the Common Interface by pressing the ▲ or ▼ button, then press the ENTER button. PIP Software Upgrade Setup CI Menu This helps the user select an item from the CAM-supported menu. Press the ENTER button. The options of the selected menu are displayed. Press the ▲ or ▼ button to select the required option, then press the ENTER button. Common Interface

Application Info. This contains information on CAM inserted in the CI slot and displays it. the ENTER button to display the information for Press your application. Select the CI Menu based on the PC Card menu.

Application Info. Move Enter Exit CI Menu Main menu Module information Smart card information Language Software Download Press Ok to select, or Exit to quit Move Enter Exit Application Info Type : CA Manufacturer : Canal Plus Info : Top Up TV Enter English - 40 Exit Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1 Right click the mouse on the Windows Desktop, then click on Properties. The Display Properties will be displayed. 2 Click on Settings tab, then set the Display Mode with reference to the Display Modes Table. You do not need to change the Colours settings. 3 Click on Advanced. A new settings dialog box will be displayed. 4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the Screen refresh rate. 5 Click on OK to close the window, then Click on OK button to the Display Properties window. Automatic re-booting may commence at this moment. English - 41 Input Mode (PC) Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported: D-Sub Input Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 350 720 x 400

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. English - 42 Setting the PC ¯ Preset to the PC mode by pressing the SOURCE button. Mode :Standard Cell Light

Contrast : 95 Brightness : 45 Sharpness : 20 Screen Adjustment Detailed Settings Brightness : 45 Sharpness : 20 Auto Adjustment

Screen Adjustment Detailed Settings Picture Options Picture Reset Auto Adjustment in progress. Please Wait. Easy Setting Tools 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER button. Device List Picture Mode Sound Mode Sleep Timer

Auto Adjustment Picture Press the MENU button to display the menu. Press the ▲ or ▼ button to select Picture, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit. Auto Adjustment : Auto adjustment allows the PC screen to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. Picture

Off Enter Exit Screen Adjustment: Coarse/Fine/Position/Image Reset : 20 Auto Adjustment Picture - Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Finetune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. 1 Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button. 2 Press the ◄ or ► button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button. Sharpness Screen Adjustment

Position Image Reset Move - Position Adjust the PC’s screen positioning if it does not fit the TV screen. 1 Adjust the position by pressing the ▲/▼/◄/► button. 2 Press the ENTER button. English - 44 Return Position Adjust - Image Reset You can replace all image settings with the factory default values. Enter Enter Image Reset is completed. Return Using the WISELINK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

Press the POWER button on the remote control or front panel. The TV is powered on.

Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. TV Side Panel ¯ If you enter the WISELINK mode with no USB device

connected the message “No external storage device USB Drive found. Check the connection status.” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. MTP (Media Transfer Protocol) is not supported. The file system only supports FAT16/32 (The NTFS file system is not supported). Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Do not disconnect the USB device while it is loading. MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only. The sequential jpeg format is supported. Photo and audio files must be named in English, French or Spanish. If not, the files can not be played. Change the file names to English, French or Spanish if necessary. The higher the resolution of the image, the longer it takes to display on the screen. The maximum supported JPEG resolution is 15360x8640 pixels. For unsupported or corrupted files, the “Not Supported File Format” message is displayed. Using the Remote Control Button in WISELINK Menu Button Operations Move the cursor and select an item. Select the currently selected item. During a Slide Show or Music Play: - Pressing the ENTER button during play pauses the play. - Pressing the ENTER button during pause resumes the play. Play or pause the Slide Show or Music file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or Music file. Jump to previous group / Jump to next group. Show file information. W.LINK

Exit W.LINK Press the SOURCE button on the remote control repeatedly to select USB, then press the ENTER button. Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory Device. (i.e. WiseLink does not support the use of a usb hub.) Press the ENTER button. This function differs depending on the USB Memory Device connected to TV. The selected USB device name appears at the bottom left of the screen.

Using the Photo List This menu shows Photo files saved on an USB memory device. Photo List

WISELINK 851.98MB/995.00MB Free USB Press the W.LINK button on the remote control to display the WISELINK menu. PHOTO Press the ◄ or ► button to select Photo, then press the ENTER button. This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. Photo Music Photo files are displayed. Device USB Press the (Play)/ENTER button to start the Slide Show. When moving to a photo, loading may take a few image_1.jpg Photo Month : Jan seconds. At this point, the loading icon will appear Date : Jan.01.2008 Color : Gray at the screen. Composition : It takes some time to load photo files as Folder : P-other Favorite Thumbnail images. Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. Monthly To move to the previous / next group, press the Device Favorites Setting Select (REW) or (FF) button. USB

Jan Timeline Continued... English - 46 Nov

Currently selected photo Shows the currently selected photo.

Photo Information Window Shows information about the currently selectedphoto. You can change the Color, Compositon, and Favorite. Photo

Current Sort Standard Device Favorites Setting Select Jump Option 7 USB 5 Press the ▲ or ▼ button to change the standard for sorting photos. (Monthly, Timeline, Color, Composition, Folder, Preference) The item that is selected as the sorting standing is highlighted in the Photo Information Window.

View Groups Shows the sorting groups. The sorting group including the currently selected photo is highlighted.

Current Device Shows the currently selected device name. Press the Red button to select a device.

Item Selection Information Shows the number of photos that are selected by pressing the Yellow button.

• Red(Device) button: Selects a connected device.
• Green(Favorites Setting) button: Changes the favorites setting for the selected photo. Press this button repeatedly until the relevant value appears.
• Yellow(Select) button: Selects photos from the photo list. Selected photos are marked with a symbol ( ) on the left.
• TOOLS(Option) button: Displays the Slide Show, Play Current Group, Delete, Change Group info (in Color or Composition group),Information or Remove Safely menus. button: Jumps to the previous sorting group / Jumps to the next sorting group. Continued... English - 47 Sorting Photo List WISELINK 851.98MB/995.00MB USB You can sort photos in the Photo List by a particular standard. 1 Press the W.LINK button on the remote control to display the WISELINK menu. 2 Press the ◄ or ► button to select Photo, then press the ENTER button. Photo files are displayed. 3 Press the ▲ or ▼ button to select a sorting standard. (Monthly, Timeline, Color, Composition, Folder,

PHOTO Photo Music Setup USB Exit Device Photo image_1.jpg Month : Jan Preference) Date : Jan.01.2008 Color : Gray 4 Press Enter to start the Slide Show in the order Composition : Folder : P-other selected by the user. Favorite Wiselink identifies the color and composition of images and groups them accordingly by analyzing images on the USB device. Monthly The Composition and Color information extracted from a photo file may be different from what you Device Favorites Setting Select Jump USB selected. Photo information is automatically set. You can change the Color, Composition, and Favorite.

Photos for which information cannot be displayed are set as Unclassified. PTP does not support folder sort mode.

Monthly Photo Sorts photos by month.

It sorts and shows photos in the file by month. It sorts only by month (from January to December) regardless of year. Select Monthly as the sorting standard in the Photo List. Press the ◄ or ► buttons to select from the sublist of files grouped by Month. image_1.jpg Month Date Color Composition Folder Favorite : Jan Slide Show : Jan.01.2008 : Gray Play Current Group : P-other Delete

To move to the previous / next group, press the (REW) or (FF) button. Press the TOOLS button. Press the ▲ or ▼ button to highlight Play Current Group.

Press ENTER button to play the the selected group of photo files from the sublist. Timeline Sorts photos by time. It sorts and shows photos by date. It sorts by year and month from the earliest photo. Photo

Select Timeline as the sorting standard in the Photo List. Press the ◄ or ► buttons to select from the sublist of files grouped by Timeline. ¯ To move to the previous / next group, press the image_1.jpg Month Date Color Composition Folder Favorite : Jan Slide Show Show : Jan.01.2008 Slide : Gray Play Current Group Play Current Group : P-other Delete Delete

Press ENTER button to play the the selected group of photo files from the sublist. English - 48 Nov

Color Select Jump Option Color Sorts photos by color. image_1.jpg Photo Month : Jan You can change the photo color information. Silde Show Date : Jan.01.2008 Play Current Group Color : Gray Select Color as the sorting standard in the Photo List. Composition : Delete Folder : P-other Press the ◄ or ► button to select from the sublist of Favorite : ))) Change Group files grouped by color. To move to the previous / next group, press the (REW) or (FF) button. Press the TOOLS button. Press the ▲ or ▼ button Color to select Change Group. Device Favorites Setting Select Jump Option Press ENTER to play the selected group of photo SUM files from the sublist. Changing the color information Select Color as the sorting standard in the Photo List and press the ◄ or ► button to select a photo. image_1.jpg Photo Month : Jan Changing the information of multiple files Press Date : Jan.01.2008 Color : Gray the ◄ or ► button to select the desired photo in the Composition : Photo list. Then press the yellow button. Folder : P-other Favorite Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. Press the TOOLS button. Press the ▲ or ▼ button to select Change Group. Color Press the ENTER button. Press the ◄ or ► button to select the desired Device Favorites Setting Select Jump Option SUM option, then press the ENTER button. The group information of the current file is updated and the file is moved to the new group. Color options: Red, Yellow, Green, Blue, Magenta, Black, Gray, Unclassified.

Composition Sorts photos by composition. image_1.jpg Photo Month : Jan Silde Show You can change the compositional information of photos. Date : Jan.01.2008 Play Current Group Color : Gray Select Composition as the sorting standard in the Photo List. Composition : Delete Folder : P-other Press the ◄ or ► button to select from the sublist of Favorite : ))) Change Group files grouped by compositon. To move to the previous / next group, press the (REW) or (FF) button. Press the TOOLS button. Press the ▲ or ▼ button Composition to select Play Current Group. Device Favorites Setting Select Jump Option SUM Press ENTER to play the selected group of photo files from the sublist. Changing the composition information image_1.jpg Select Composition as the sorting standard in the Photo Photo Month : Jan Date : Jan.01.2008 List and press the ◄ or ► button to select a photo. Color : Gray Changing the information of multiple files Composition : Folder : P-other Press the ◄ or ► button to select the desired photo Favorite in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. Press the TOOLS button. Composition Press the ▲ or ▼ button to select Change Group. Device Favorites Setting Select Jump Option Press the ENTER button. SUM Press the ◄ or ► button to select the desired option, then press the ENTER button. The group information of the current file is updated and the file is moved to the new group. Composition options: (horizontal), (vertical), (object), (perspective), (pattern), Unclassified.

Unclassified Color Unclassified Folder

Continued... English - 49 Folder Sorts photos by folder. If there are many folders in USB, the photos files are shown in order in each folder. The photo file in the Root folder is shown first and the others are shown in alphabetical order by name. Select Folder as the sorting standard in the Photo List.

Press the ◄ or ► button to select from the sublist of files grouped by folder. To move to the previous / next group, press the (REW) or (FF) button.

Preference Device Favorites Setting Select Jump Option Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group. Press ENTER to play the selected group of photo files from the sublist. Preference Sorts photos by preference. (Favorite) ¯ You can change the photo preferences.

Select Preference as the sorting standard in the Photo List. Press the ◄ or ► button to select from the sublist of files grouped by preference.

(REW) or (FF) button. Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group. Press ENTER to play the selected group of photo files from the sublist. To move to the previous / next group, press the Changing the Favorites setting

Press the ◄ or ► button to select the desired photo in Photo image_1.jpg Month : Jan the Photo list. Date : Jan.01.2008 Color : Gray Changing the information of multiple files Composition : Folder : P-other Press the ◄ or ► button to select the desired photo Favorite in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. Press the Green button repeatedly until the desired Preference setting appears. SUM Device Favorites Setting Select Jump Option Favorites settings change completed. Favorite options: ))) , ))) , ))) , ))) Users can select the number of stars (up to 3) according to their preference. The stars in the Favorite options have no effect on priority. They are simply for grouping purposes. For example, files stored in the 3 star option do not have priority over files saved in the 1 star option.

Deleting the Photo files

Photo Press the ◄ or ► button to select the desired photo in the Photo list. Press the TOOLS button. Press the ▲ or ▼ button to select Delete, then press the ENTER button. ¯The Selected Files : Delete this file? message appear. Press the ◄ or ►button to select OK, then press the ENTER button. ¯The photo is deleted. ¯When a read-only file is deleted, the “Read-only file(s). Delete the files?” message appear. ¯If you select Cancel, the deletion is cancelled. To exit WISELINK mode, press the W.LINK button on the remote control. ¯You cannot remove the PTP-connected digital camera picture files. ¯While removing files, don’t remove the USB memory device. ¯You cannot recover a deleted photo file. Deleting Multiple Photos

Preference Monthly Jan Nov

Timeline USB Device Favorites Setting Select Jump Option Delete Selected File(s) : image_1.jpg 1 File(s) Delete this file?

Cancel Photo Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. ¯Repeat the above operation to select multiple photos. ¯The ( ) mark appears to the left of the selected photo. Press the TOOLS button. Press the ▲ or ▼ button to select Delete selected File, then press the ENTER button. ¯ The Selected Files: image... 2 Files Delete the selected files? message appear. Press the ◄ or ► button to select OK, then press the ENTER buttons. selected photos are deleted. ¯TIf he you select Cancel, the deletion is cancelled. To exit WISELINK mode, press the W.LINK button on the remote control. ¯You cannot remove the read-only files from the selected ones. ¯You cannot recover a deleted photo file. : Jan Silde Show : Jan.01.2008 Play Current Group : Gray Delete : P-other Information

image_1.jpg Month Date Color Composition Folder Favorite 1File(s) Selected : Jan : Jan.01.2008 Silde Show : Gray Delete selected File : P-other Deselect All

Remove Safely Preference Monthly Jan Nov

Timeline USB Device Favorites Setting Select Jump Option Delete Selected File(s) : image_1.jpg 2 File(s) Delete the selected files?

Cancel Photo image_1.jpg Month Date Color Composition Folder Favorite Viewing the Photo Information The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed. : Jan : Jan.01.2008 : Gray Play Current Group Delete : P-other Information Remove Sately Preference

Press the ◄ or ► button to select the desired photo in the Photo list.

Press the W.LINK button on the remote control to display the WISELINK menu. Press the ◄ or ► button to move to Photo, then press the ENTER button. ¯ Photo files are displayed. Press the ◄ or ► button to select the desired photo in the Photo list. Press the TOOLS button. Press the ▲ or ▼ button to select Slide Show, then press the ENTER button. ¯ All files in the photo list will be used for the Slide Show. ¯ During the slide show, files are displayed in order from the currently shown file. image_1.jpg Month Date Jan.01.2008 Color Composition Folder Favorite : Jan

Silde Show Play Current Group Delete Information : Gray : P-other

Preference Monthly Jan USB Nov

Timeline Device Favorites Setting image_1.jpg 440x440 Jump Select 104.1KB Option 2008/1/1 Slide Show progresses in the order sorted in ¯ TthehePhoto list. ¯ Music files can be automatically played during the Slide Show if the Background Music is set to On. (Refer to page 54) USB Slide Show Previous Next Option Return While a photo list is displayed, press the (Play)/ ENTER button on the remote control to start slide show. To perform a SlideShow with only the selected files

Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. ¯The mark appears to the left of the selected photo. ¯If you select one file, the SlideShow will not be performed. (Play)/ ENTER button Press the ¯The selected files will be used for the Slide Show. ¯If you have selected files, only the selected files will be used for the Slide Show. Playing current group

image_1.jpg Press the ▲ or ▼ button to select a sorting standard. Photo Silde Show Month : Jan (“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”) Date : Jan.01.2008 Play Current Group Color : Gray Delete Press the ◄ or ► button to select the desired photo in the Composition : Information Folder : P-other Photo list. Favorite ¯To move to the previous / next group, press the (REW) or (FF) button. Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Monthly Group, then press the ENTER button. Only the Device Favorites Setting Select Jump Option photos in the sorting group including the selected files USB will be used for the Slide Show. To exit WISELINK mode, press the W.LINK button on the remote control.

Slide show function information icon (Displayed at the top left of the screen). Icon Current OSD Function (Photo) SlideShow Photo Slide Show is in progress. Photo Pause You can pause a SlideShow and Music by pressing the (pause) / ENTER button on the remote control during a Slide Show. (play) / ENTER button on the remote control again. To resume the SlideShow, press the English - 52 Continued... Viewing a photo

Press the ◄ or ► button to select the desired photo in the Photo list. Then Press the Yellow button to select only one file. USB

The currently selected photo is displayed in full screen. Using the option menu during a slide show (or Viewing a Photo)

During a slide show(or viewing a photo), Press the TOOLS button to set the option.

Press the ▲ or ▼ button to select the desired option. Then press the ENTER button. Start Slide Show (Stop Slide Show) You can start or stop a Slide Show. Press the ▲ or ▼ button to select Start Slide Show (or Stop Slide Show), then press the ENTER button. Tools Start Slide Show Rotate Zoom Slide Show Speed : Normal Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom Information Remove Safely Move Rotate Enter Exit 90˚ You can rotate images in full screen mode. Press the ▲ or ▼ button to select Rotate, then press the ENTER button. Press the ◄ or ► button repeatedly to rotate the photo by the desired amount. ¯ Whenever you press the ◄ button, it rotates by 270˚, 180˚, 90˚, and 0˚. ¯ Whenever you press the ► button, it rotates by 90˚, Rotate 180˚, 270˚, and 0˚. ¯ If you have select Zoom, the Rotate function is deactivate ¯ The rotated file is not saved. ¯ The Rotating function information icon is displayed at the top right of the screen Icon Current OSD Function

Rotating (0°) This rotates a photo to its original position 90˚ Rotating (90°) This rotates a photo by 90 degrees 180˚ Rotating (180°) This rotates a photo by 180 degrees 270˚ Rotating (270°) This rotates a photo by 270 degrees Continued... English - 53 Zoom You can zoom into images in full screen mode. Press the ▲ or ▼ button to select Zoom, then press the ENTER button. Press the ◄ or ► button repeatedly to increase or decrease the Zoom effect. (x1 → x2 → x4) To move the enlarged photo image, press the ENTER button, then press the ▲/▼/◄/► buttons. Note that when the enlarged picture is smaller than the original screen size, the location change function doesn’t work. The enlarged file is not saved. If you have select Rotate, the Zoom function is deactivate Zoom function information icon is displayed at the top right of the screen.

Icon Current OSD Function

Zoom (x 1) Restore a photo to its original size.

Zoom (x 2) Zoom-into a photo at 2x.

Zoom (x 4) Zoom-into a photo at 4x. Pan Down Pan down to view the lower part of a zoomed-in photo.

Move Pan Up Enter Pan up to view the upper part of a zoomedin photo. Pan Right Pan right to view the right side of a zoomed-in photo. Pan Left Pan left to view the left side of a zoomed-in photo. Return Tools Stop Slide Show Rotate Zoom Slide Show Speed ◄ Normal ► Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom Information Move Adjust Exit Slide Show Speed You can select the slide show speed. Press the ▲ or ▼ button to select Slide Show Speed. Press the ◄ or ► button to select the desired option. (Normal → Fast → Slow) You can select the Slide Show speed only during a slide show.

Background Music If you set Background Music On, the background music will be played when viewing photos one by one or in a Slide Show. Press the ▲ or ▼ button to select Background Music. Press the ◄ or ► button to select On or Off. ¯ If you set Background Music to On, a screen appears immediately where you can set the Background Music. Tools Stop Slide Show Rotate Zoom Slide Show Speed : Normal Background Music ◄ Off ► Background Music Setting Picture Mode : Standard Sound Mode : Custom Information Move Adjust Exit

• On: When the background music is available, if you select On, the music is played back. To use this feature, there must be music and photo files stored on the USB device.
• Off: Background music is not played. Continued... English - 54 Background Music Setting You can set the background music. Press the ▲ or ▼ button to select Background Music Setting, then press the ENTER button. If you turn off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. Loading music files is needed to change BGM Mode. Play music files in music category to load. Background Music setting menu is displayed. Press the ◄ or ► button to select the desired BGM (Background music) mode. (Shuffle, Selected file, Mood) Tools Stop Slide Show Rotate Zoom Slide Show Speed : Normal Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom Information

• Shuffle: Plays music file in random order.
• Selected file: Plays a selected music file.
• Mood: Plays music file of a particular mood only. Background Music Setting BGM Mode

Calm Select Music File ¯ Selecting the background music file

Set BGM Mode to Selected file in the Background Music Settings menu. Press the ▲ or ▼ button to select Selected Music File, then press the ENTER button. Press the ▲ or ▼ button to select a music file, then press the yellow button. The ( ) mark appears to the left of the selected music. Repeat the above operation to select multiple music files. Press the ENTER button. Selecting the background music file mood Press the ◄ or ► button to set BGM Mode to Mood. Press the ▲ or ▼ button to select BGM Mood. Then press ◄ or ► button to select the desired BGM mood. Press the ENTER button. BGM Mode option: Energetic, Rhythmical, Sad, Exciting, Calm ¯ Wiselink identifies the mood of the music files and groups them accordingly be analyzing the music files on the USB device. Picture Mode You can set the Picture mode. (Refer to page 27) Sound Mode You can set the Sound mode. (Refer to page 32) Information Move Adjust Enter Return Background Music Setting BGM Mode

Selected file BGM Mood

Select Move Enter Background Music Setting The photo file information including the order of the file in BGM Mode Mood the current directory, the name, the size, the resolution, the BGM Mood Calm date modified and the path is displayed. (Refer to page 50) Select Music File Remove Safely You can remove the device safely from the TV. Press the ▲ or ▼ button to select Remove Safely, then press the ENTER button. Move Enter The Safely removing USB device. message appears and then the USB device can now be safely removed from TV. appears. Remove the USB device from the TV. Return

Return Continued... English - 55 Using the Music List This menu shows MP3 files from among the files saved on a USB memory device.

Press the ◄ or ► button to select Music, then press the ENTER button. ¯ Music files are displayed. ¯ Press the (Play)/ ENTER button over a music icon to play the music. ¯ To select a file on the previous / next group, press WISELINK 851.98MB/995.00MB Free USB MUSIC Photo Music Setup Device USB Exit Music If Everyone Cared the (FF) button to move to the (REW) or previous / next group. If You Want Me Lies Nickelback Marketa lrgl... Glen Hansard All The Right Reas.. Blues Once Ost Soundtrack Once Ost Soundtrack Energetic

Favorites Setting Currently selected music Music Shows the currently selected music. If Everyone Cared If You Want Me Current Sort Standard Press the ▲ or ▼ button to Nickelback Marketa lrgl... change the standard for sorting All The Right Reas.. Once Ost

music files. (Title, Artist, Mood, Soundtrack Blues Genre, Folder, Preference) Energetic Sad Calm View Groups Shows the sorting groups. The Preference sorting group including the Title 2

currently selected music file is Artist highlighted. Device Favorites Setting Select USB 4 Current Device Shows the currently selected device name. Press the Red button to select a device. Item Selection Information Shows the number of music files that are selected by pressing the Yellow button. Help Items

• Red(Device) button: Selects a connected device.
• Green(Favorites Setting) button: Changes the favorites setting for the selected music. Press this button repeatedly until the relevant value appears.
• Yellow(Select) button: Selects music files from the music list. Selected music files are marked with a symbol ( ) on the left. button: Jumps to the previous sorting group / Jumps to the next sorting group.
• TOOLS(Option) button: Displays the Play Current Group, Delete, Change Group info(in Mood group), Information or Remove Safely menus. Continued... English - 56 Sorting Music List You can sort music files in the Music List by a particular standard.

Press the W.LINK button on the remote control to display the WISELINK menu. Press the ◄ or ► button to select Music, then press the ENTER button. Music files are displayed. Press the ▲ or ▼ button to select a sorting standard. (Title, Artist, Mood, Genre, Folder, Preference) Music files are sorted according to the newly selected sorting standard.

Press ENTER button to start playing music in the the order selected.

Music information is set automatically and you can change the Favorite information. Music files for which information cannot be displayed are set to “Unclassified”. If there is no title information for a music file, the filename is displayed. 851.98MB/995.00MB Free USB MUSIC

Artist Device USB If no information is available for the Genre, Artist, Album, or Year, the corresponding item is displayed as blank.

Option Title Sorts music files by the title. It sorts the Music titles in alphabetical order, and shows the music file.

Select Title as the sorting standard in the Music List. Press the ◄ or ► buttons to select from the sublist of files grouped in alphabetical order.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group. Press the TOOLS button.

Press the ▲ or ▼ buttons to select Play Current Group. Press ENTER button to play the selected group of music files from the sublist. Play Current Group Delete Glen Hansard Once Ost Information2007 Soundtrack Remove Safely

Option Artist Sorts music files by the artist. ¯ It sorts the music file by artist in alphabetical order. 1 Select Artist as the sorting standard in the Music List. 2 Press the ◄ or ► button to select from the sublist of files grouped by artist. Music Gold

If You Want Me Interference Marketa lrgl... Once Ost Soundtrack Once Ost Soundtrack Black Capricorn Day To move a file on the previous / next group, press Sad Sad the (REW) or (FF) button to move to the previous / next group. Artist Press the TOOLS button. Device Favorites Setting Press the ▲ or ▼ buttons to select Play Current USB Group. Press ENTER button to play the selected group of music files from the sublist. Play Current Group Delete Jamiroquai Synkronized Information1999 Acid Jazz Remove Safely Exciting

Select Jump Option Continued.. English - 57 Mood Music Sorts music files by the mood. Gold

You can change the music mood information. Select Mood as the sorting standard in the Music List.

Sad Press the ◄ or ► buttons to select from the sublist of files grouped in alphabetical order. (REW) or (FF) button to move to the the previous / next group. Black Capricorn Day

Sad Play Current Group Delete Jamiroquai Synkronized Change Group InformationAcid Jazz

Press the ▲ or ▼ buttons to select Play Current Group.

Press ENTER button to play the selected group of music files from the sublist. Calm Jump Select

Select Mood as the sorting standard in the Music List and press the ◄ or ► button to select a music file.

Press the ENTER button. ¯ Wiselink identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device. The Mood information extracted from a music file may differ from what you selected. Music Gold Once Ost Soundtrack Once Ost Soundtrack

Sad Play Current Group Delete Jamiroquai Synkronized Change Group InformationAcid Jazz

Option Music Sorts music files by the genre. Gold Select Genre as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by genre.

Sad To move a file on the previous / next group, press Genre the (REW) or (FF) button to move to the Device Favorites Setting USB previous / next group. Press the TOOLS button. Press the ▲ or ▼ buttons to select Play Current Group Press ENTER button to play the selected group of music files from the sublist. Play Current Group Delete Jamiroquai Synkronized Information1999 Acid Jazz Remove Safely Exciting

Black Capricorn Day Marketa lrgl... Press the ◄ or ► button to select the desired option, then press the ENTER button. ¯ The group information of the current file is updated and the file is moved to the new group. ¯ Mood option: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassified Genre

Select Jump Option Continued.. English - 58 Folder Sorts music files by the folder.

Music If there are many folders in USB, the files are shown in order in each folder. The music file in the Root folder is shown first and the others are shown in alphabetical order by name. Select Folder as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by folder. ¯ To move a file on the previous / next group, press

Sad Black Capricorn Day Play Current Group Jamiroquai Delete Synkronized Information Acid Jazz Remove Safely

Preference Device USB Trash. Favorites Setting Select Jump Option the (REW) or (FF) button to move to the previous / next group. Press the TOOLS button. Press the ▲ or ▼ buttons to select Play Current Group. Press ENTER button to play the selected group of music files from the sublist. Preference Sorts music files by preference. (Favorite)

You can change the music files preferences.

Select Preference as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by folder. ¯ To move a file on the previous / next group, press the

(REW) or (FF) button to move to the previous / next group. Press the TOOLS button. Press the ▲ or ▼ buttons to select Play Current Group. Press ENTER button to play the selected group of music files from the sublist. Changing the Favorites setting 1 Press the ◄ or ► button to select the desired music in the Music List. Music Gold

Press the Green button repeatedly until the desired setting appears.

Changing the information of multiple files Press the ◄ or ► button to select the desired music in the Music List. Then press the yellow button. Repeat the above operation to select multiple music. The mark appears to the left of the selected music. If You Want Me Interference Marketa lrgl... Once Ost Soundtrack Once Ost Soundtrack

Sad Black Capricorn Day Play Current Group Delete Jamiroquai Synkronized Information Acid Jazz Remove Safely

Title Device Favorites Setting Select Jump Option Favorites settings change completed. Favorite option: ))) , ))) , ))) , ))) Users can select the number of stars (up to 3) according to their preference. Press the ENTER button to start playing music.

The stars in the Favorite options have no effect on priority. They are simply for grouping purposes. For example, files stored in the 3 star option do not have priority over files saved in the 1 star option. Continued.. English - 59 Deleting the Music files

Press the ◄ or ► button to select the desired music in the music list. Press the TOOLS button. Press the ▲ or ▼ button to select Delete, then press the ENTER button. The (for example) Selected Files: Delete this file? message appear. Press the ◄ or ►button to select OK, then press the ENTER button. The music is deleted. When a read-only file is deleted, the Read-only files. Delete the files? message appear. If you select Cancel, the deletion is cancelled. To exit WISELINK mode, press the W.LINK button on the remote control. While removing files, don’t remove the USB memory device. You cannot recover a deleted music files.

Music If Everyone Cared

Energetic Press the ◄ or ► button to select the desired music in the music list. Then press the yellow button. Repeat the above operation to select multiple music files. The ( ) mark appears to the left of the selected music files. Press the TOOLS button. Press the ▲ or ▼ button to select Delete selected File, then press the ENTER button. The (for example) Selected Files: Delete the selected files? message appear. Press the ◄ or ► button to select OK, then press the ENTER button. The selected music files are deleted. If you select Cancel, the deletion is cancelled. To exit WISELINK mode, press the W.LINK button on the remote control. You cannot remove the read-only files from the selected ones. You cannot restore the deleted music files.

Press the ◄ or ► button to select the desired photo in the Music list. Press the TOOLS button. Press the ▲ or ▼ button to select Information, then press the ENTER button. The information on the selected file appears.

Press the INFO button to viewing the information.

Option Delete Selected File(s) : If You Want Me.mp3... 1 File(s) Delete this file?

Energetic Delete selected Glen Hansard OnceAll Ost FileDeselect Soundtrack Remove Safely

Option Delete Selected File(s) : If You Want Me.mp3... 2 File(s) Delete the selected file(s)?

Cancel Music If Everyone Cared Viewing the Information The music file information including the order of the file in the current directory, the name, the size, the date modified and the path is displayed.

Sad Play Current Group Delete Glen Hansard Once Ost Information Soundtrack Remove Safely Music

Sad Play Current Group Glen Hansard Delete Once Ost Information Soundtrack Remove Safely

Continued.. English - 60 Playing a Music File Playing a music file

Pressing the ◄ or ► button to select a music file to be played, then press the ENTER button. This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device. (play) / ENTER button over a Press the music icon to play the music. (REW) or (FF) buttons do not function during play. (pause) / ENTER button while Press the playing a MP3 file to pause the file. Press the (stop) button to exit Play mode. The selected file is displayed at the top with its playing time. To adjust the music volume, press the VOL or VOL button on the remote control. To mute the sound, press the MUTE button on the remote control. he playing duration of a mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file.

USB Pause Previous Next Return Option

Music If Everyone Cared

To exit WISELINK mode, press the W.LINK button on the remote control. Title

Option Playing the music group

Press the W.LINK button on the remote control to display the WISELINK menu. Press the ◄ or ► button to select Music, then press the ENTER button. To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group. Press the ◄ or ► button to select the desired music file. Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button. The music files in the sorting group including the selected file are played. To exit WISELINK mode, press the W.LINK button on the remote control.

Continued... English - 61 Playing the selected music files

Press the ◄ or ► button to select the desired music file, then press the yellow button. Repeat the above operation to select multiple music. The ( ) mark appears to the left of the selected music files.

Press the (Play) / ENTER button. Only the selected file is played. button while playing to stop the Press the current item and to return to the music list.

USB Pause Previous Next Return Option Music function information icon (Displayed at the top left of the screen). Icon Current OSD Function (Music) Repeat When all music fi les in the folder(or the selected file) are repeated. Repeat Mode is On. (Music) One When all music fi les in the folder(or the selected file) are played once. Repeat Mode is Off. (Music) Play/ Pause/Enter When pressing the (play) / (pause) / the remote control while music is playing. (enter) button on Repeating Music Play

While a Music file is playing, press the TOOLS button.

Press the ◄ or ► button to select On or Off.

• On: Plays back all music files in the folder (or the selected file) repeatedly.
• Off: Doesn’t play back repeatedly.

5 min Information Remove Safely Music Repeat Mode Select to repeatedly play music files. Press the ▲ or ▼ button to select Music Repeat Mode. Press the ◄ or ► button to select On or Off. USB Device Move Slide Show Speed

Move Adjust Return What is Anynet+? Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected. Connecting Anynet+ Devices The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV. To directly connect to TV

HDMI Cable HDMI Cable Home Theatre HDMI Cable Anynet+ Device 3 Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI Cable Optical Cable Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio ¯Input on the receiver. ¯Connect only one receiver. can listen to 5.1 channel sound through the home theatre’s speakers. Otherwise, you can only ¯You listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of

the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre. You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. English - 64 Setting Up Anynet+ The following settings are to use Anynet+ functions. Using the Anynet+ Function

Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTER button. Press the ▲ or ▼ button to select Yes, then press the ENTER button. The Auto Turn Off function is enabled. If you select No, the Auto Turn Off function is canceled. Press the EXIT button to exit. The active source on the TV remote must be set to TV to use the Anynet+ function. If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off.

: Yes Move Enter Return Scanning and Switching between Anynet+ Devices

Press the TOOLS button. Tools Anynet+ devices connected to the TV are listed. View TV If you cannot find a device you want, press the red Device List button to scan for devices. Press the ▲ or ▼ button to select a particular device and Recording : DVD press the ENTER button. It is switched to the selected DVD Menu device. DVD Menu Only when you set Anynet+ (HDMI-CEC) to On in the Picture Mode : Standard Application menu, the Device List menu appears. Picture Mode : Standard If you cannot find a device you want, press the ▲ or ▼ button to select Searching Connections, then press the ENTER button. Sleep Timer Off The meassage Configuring Anynet+ connection... is displayed. When searching devices completes, the connected devices are Move Enter Exit listed in the Anynet+ menu. Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of found devices is not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

Continued... English - 65 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup Description Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. You can set the environment for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode Device Type Anynet+ Device Operating Status After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file Available Buttons Numeric buttons ▲/▼/◄/►/ENTER buttons Colour buttons EXIT button (Backward search) (Forward search) (Stop) (Play/Pause) Device with built-in Tuner After switching to the device, when you are watching a TV programme

Audio Device When a Receiver is activated

button ¯The Anynet+ function only works when the remote control is set to TV. ¯The REC button works only while in the recordable state. cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ ¯You devices only using the TV remote control. ¯The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device. ¯The Anynet+ functions don’t operate for the products from other manufacturers. ¯In Anynet+ mode, the colour buttons may not work properly. ¯The , operations may differ depending on the device. Recording You can make a recording of a TV programme using a recorder. Press the REC button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. You can also record the source streams by selecting Record after pressing the TOOLS button. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

English - 66 Listening through a Receiver Tools You can listen to sound through a receiver instead of the TV speaker. 1 Press the TOOLS button. View TV Device List Press the ▲ or ▼ button to select Receiver, then press the ENTER button. Recording : DVD 2 Press the ◄ or ► button to select to On, then press the ENTER button. DVD Menu Now you can listen to sound through the receiver. DVD Menu 3 Press the EXIT button to exit. Picture Mode : Standard ¯ When the receiver (home theater) is set to On, you can hear sound Picture Mode : Standard output from the TV’s Optical jack. When the TV is displaying a Sleep Timer Off DTV(air) signal, the TV will send out 5.1 channel sound to the Move Enter Exit Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. ¯ If your receiver supports audio only, it may not appear in the device list. ¯ The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV. ¯ When listening through the receiver, there are restrictions for using the PIP and audio-related(MTS, Preferred language) menus. ¯ If there is a power interruption to the TV when the Receiver is On (by disconnecting the power cord or a power failure), the TV Speaker may be set to Off when you turn the TV on again. Check Points before Requesting Service Symptom Anynet+ does not work. Solution

I want to start Anynet+.

I want to exit Anynet+.

The message Connecting to Anynet+ device… appears on the screen. The Anynet+ device does not play. The connected device is not displayed.

The TV programme cannot be recorded. The TV sound is not output through the receiver.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work at a certain condition. (Searching channels) When connecting or removing the HDMI cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of CH, CH LIST, and PRE-CH to change to the TV mode. (Note that the channel button operates only when a tunerembedded Anynet+ device is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. You cannot use the play function when Plug & Play is in progress. Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions. Check whether the antenna jack on the recording device is properly connected. Connect the optical cable between TV and the receiver. English - 67 Teletext Feature (depending on the model) Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

(exit) Exit from the teletext display (depending on the model) (store) Used to store the teletext pages. (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. Coloured buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button. (sub-page) Used to display the available sub-page. (page up) Used to display the next teletext page. (page down) Used to display the previous teletext page. (index) Used to display the index (contents) page at any time while you are viewing teletext. (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. (cancel) Used to display the broadcast when searching for a page. W.LINK can change teletext pages by pressing the numeric buttons ¯ You on the remote control. Continued... English - 68 The teletext pages are organized according to six categories: Part

Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages ¯ displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) ¯ Press the TV/DTV button to exit from the teletext display. English - 69 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family inch VESA Spec. (A * B) Standard Screw 23 ~ 26 200 * 100

provided the standard dimensions for wall mount kits as shown in the table above. ¯We purchasing our wall mount kit, a detailed installation manual and all parts necessary for ¯When assembly are provided. not use screws longer than the standard dimension, as they may cause damage to the inside of ¯Do the TV set. wall mounts that do not comply with the VESA standard screw specifications, the length of the ¯For screws may differ depending on their specifications. Do not use screws that do not comply with the VESA standard screw specifications. ¯Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. is not liable for product damage or personal injury when a non-VESA or non-specified wall ¯Samsung mount is used or the consumer fails to follow the product installation instructions. Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our ¯dedicated wall mount kit for this model. ¯Do not exceed 15 degrees tilt when mounting this TV. not install your Wall Mount Kit while your TV is turned on. DIt omay result in personal injury due to electric shock. English - 70 Auto Wall - mount adjustment (Sold separately) Once the auto wall mount is installed, the position of your TV can be easily adjusted. Auto Wall-Mount Rear Panel Serial Cable(1P to 1P)(Not supplied) Entering the menu

Setup Press the ▲, ▼, ◄ or ► button on your remote control. The Wall Mount Adjustment screen is displayed. If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button.
• Press the ▲ or ▼ button to select Wall-Mount Adjustment, then press the ENTER button. Plug & Play Language Change PIN Parental Lock Subtitle Teletext Language Adjust to the desired position using the ▲, ▼, ◄, ► buttons. If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. Press the INFO button to reset. Press the ◄ or ► button to select Yes, then press the ENTER button. The position is initialized to the default setting.

Press the ENTER button to save. When Position1 is selected, the message Current position saved as Position1 is displayed. Press the ENTER button. The saved Position appears on the left side of the OSD.

Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position1, Position2 or Position3 in order to save the current position. To not save the current position, press the RETURN button. When selecting a save mode, you cannot use the Color buttons.

Wall-Mount Adjustment

Continued... English - 71 Moving to the remembered position

Complete Step 1 of Entering the menu. Wall-Mount Adjustment Pressing a Color (Red, Green, Yellow) button moves the auto wall Position 1 mount to the saved position. You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. If you adjust the positon after moving to a pre-set position, the Position

position display will disappear. Adjust Save Center For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ or WISELINK is operating. 42 inches model is not compatible with the older wall mount model (WMN5090A).

How to assemble the Stand-Base (depending on the model) Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.) Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. or more people should carry ¯Two the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. English - 72 In case of installing your TV on the wall, close the cover (1) on the stand-base connection part using two screws for hiding. Securing the TV to the Wall Caution Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. To avoid the TV from falling:

Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall. ° You may need additional material such as an anchor depending on the type of wall. ° Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again. ° Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly. ° Install the TV near to the wall so that it does not fall backwards. ° It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. ° Untie the string before moving the TV.

Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections,contact a professional installer. English - 73 Wall Wall Troubleshooting Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer. No sound or picture Check that the mains lead has been connected to a wall socket. Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER button on the remote control. Check the picture contrast and brightness settings. Check the volume. Check if TV Speaker is set to Off.

Normal picture but no sound Check the volume. Check whether the volume MUTE button on the remote control has been pressed.

No picture or black and white picture Adjust the colour settings. Check that the broadcast system selected is correct.

Sound and picture interference Try to identify the electrical appliance that is affecting the television, then move it further away. Plug the television into a different main socket.

Blurred or snowy picture, distorted sound Check the direction, location and connections of your aerial. This interference often occurs due to the use of an indoor aerial.

Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check that the “+” and “–” ends of the batteries are inserted correctly. Check that the batteries are drained.

Screen is black and power indicator light blinks steadily On your computer check; Power, Signal Cable. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. On your equipment check (STB, DVD, etc) ; Power, Signal Cable. The TV is using its power management system. Press the Source button on the panel or remote control. Turn the TV off and on.

The damaged picture appears in the corner of the screen. If Just Scan is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.

The "Resets all settings to the default values" message appears. This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

Tous UKTV Gold UKTV style

Tous Television UKTV style

Icône Current OSD Function
