USER MANUAL PS42A426 SAMSUNG

U.K 0845 SAMSUNG (7267864) www.samsung.com UKRAINE 8-800-502-0000 www.samsung.com UZBEKISTAN 8-10-800-500-55-500 www.samsung.uz Plasma TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. BN68-01786A-01 BN68-01786A-Eng.indb 1 2008-08-29 오후 3:20:25 User Instructions Screen Image retention Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Height The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there. Heat on the top of the PDP TV The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product. The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit. Cell Defects The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Avoid operating the TV at temperatures below 5°C(41°F) A still image displayed too long may cause permanent damage to the PDP Panel. Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Afterimage on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. Warranty - Warranty does not cover any damage caused by image retention. - Burn-in is not covered by the warranty. Installation Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. © 2008 Samsung Electronics Co., Ltd. All rights reserved. English - BN68-01786A-Eng.indb 2 2008-08-29 오후 3:20:25 General Information

Important Note Symbols Press English - BN68-01786A-Eng.indb 3 2008-08-29 오후 3:20:26 Checking Parts Owner’s Instructions Remote Control/ AAA Batteries Power Cord Cloth-Clean Cover-Bottom / Screws (2ea) (Refer to page 50) Ferrite Core for Power Cord Ferrite Core for S-Video Cable Tie Warranty Card/ Safety Guide Manual (Not available in all locations) Sold Separately Antenna Cable Component Cables Audio Cables PC Cable Scart Cable PC Audio Cable HDMI Cable HDMI/DVI Cable Core (Power Cord, S-Video) ➢ Ferrite The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug. Using the Stand-Base

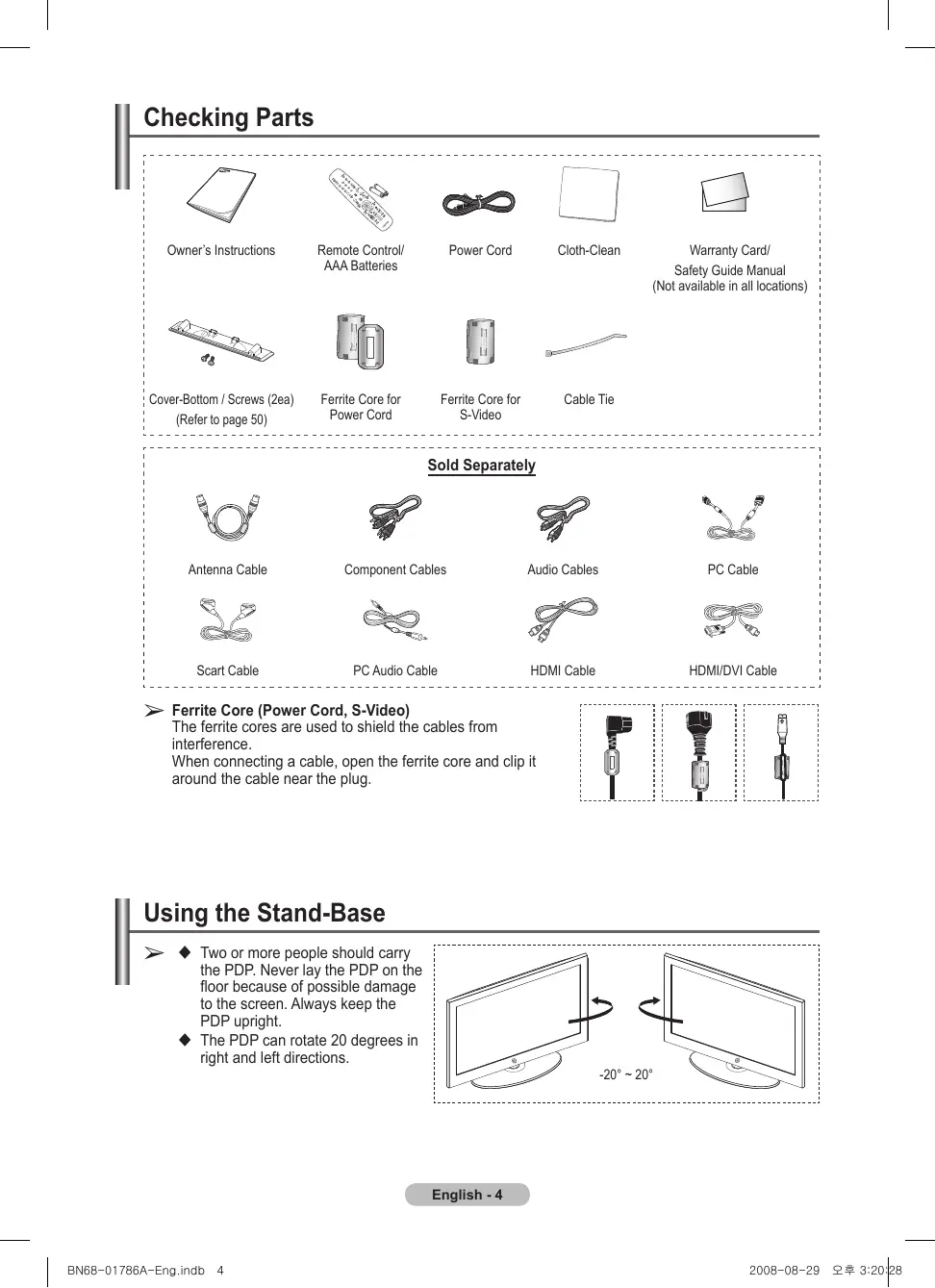

Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. Always keep the PDP upright. The PDP can rotate 20 degrees in right and left directions. -20° ~ 20° English - BN68-01786A-Eng.indb 4 2008-08-29 오후 3:20:28 Control Panel Front Panel ➢ The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI,).

ENTER In the on-screen menu, use this button as you would use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features.

3 – Press to increase or decrease the volume. In the on-screen menu, use the – + buttons as you would use the ◄ and ► buttons on the remote control. C/P. Press to change channels. In the on-screen menu, use the C/P. buttons as you would use the ▲ and ▼ buttons on the remote control. POWER Press to turn the TV on and off. Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode. Remote Control Sensor Aim the remote control towards this spot on the TV. 7 Speakers English - BN68-01786A-Eng.indb 5 2008-08-29 오후 3:20:29 Connection Panel Rear Panel

The product colour and shape may vary depending on the model. Whenever you connect an audio or video system to your set, ensure that all elements are switched off. When connecting an external device, match the colour of the connection terminal to the cable. 1 POWER IN Connect the supplied power cord. 2 COMPONENT IN Audio (AUDIO L/R) and video (Y/PB/PR) inputs for Component.

Connect to the video and audio output jack on your PC. 4 EXT 1, EXT 2 Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. 5 DIGITAL AUDIO OUT (OPTICAL) Connect to a Digital Audio Component. 6 AUDIO OUT(AUDIO R/L) Connect RCA audio signals from the TV to an external source, such as Audio equipment. 7 SERVICE − Connector for service. − Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control. Input/Output Specification Connector EXT 1 EXT 2 Input Output Video Audio(L/R) RGB Video + Audio(L/R) Only TV or DTV

output is available. Output you can

choose. Continued... English - BN68-01786A-Eng.indb 6 2008-08-29 오후 3:20:31 8 HDMI IN 1,2 − No additional Audio connection is needed for an HDMI to HDMI connection. − When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. What is HDMI? − “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio. − The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI audio outputs for external devices. 9 ANT IN 75Ω Coaxial connector for Aerial/Cable Network. Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component 480i

➢ The product colour and shape may vary depending on the model. 1 COMMON INTERFACE Slot Insert CI (Common Interface) card into the slot. (refer to page 39) − When not inserting “CI CARD” in some channels, “Scramble Signal” is displayed on the screen. − The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. − When the channel information configuration has finished, the message “Updating Completed” is displayed, indicating that the channel list is now updated. Insert the CI-Card in the direction marked on it. 2 SERVICE For service only. 3 S-VIDEO or VIDEO / AUDIO L/R Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR. 4 HEADPHONES JACK You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room. Prolonged use of headphones at a high volume may damage your hearing.

English - BN68-01786A-Eng.indb 7 2008-08-29 오후 3:20:32 Viewing the Remote Control The performance of the remote control may be affected by bright light. 1 POWER button (turns the TV on and off) 2 Selects the TV and DTV mode directly 3 Number buttons for direct channel access 4 One/Two-digit channel selection 5 Temporary sound switch-off Volume increase Volume decrease 7 Use to quickly select frequently used functions. 8 Control the cursor in the menu 9 Use to see information on the current broadcast @ Electronic Program Guide (EPG) display # Available source selection $ Previous channel Next channel Previous channel ^ Returns to the previous menu & Exit the on-screen menu

• Displays the main onscreen menu ( Picture size selection ) Channel control button (Refer to page 17) a Digital subtitle display Teletext Functions (Refer to page 44) 2 Exit from the teletext display (depending on the model) 7 Teletext size 9 Teletext reveal 0 Fastext topic selection ! Teletext display/mix both teletext information and the normal broadcast @ Teletext store # Teletext mode selection (LIST/FLOF) $ Teletext sub page % P :Teletext next page P :Teletext previous page ^ Teletext hold & Teletext cancel
• Teletext index TV/DTV

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Do not mix battery types, i.e. alkaline and manganese. Close the cover as shown in the figure. Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

remote control doesn’t work! Check the following: ➢ If1.the Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off The mains lead is attached to the rear of the television. 1 Plug the mains lead into an appropriate socket. The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz. 2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on TV/DTV the remote control to switch the television on. The channel that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to Storing Channels Automatically on page 14 or Storing Channels Manually on page 15. If the television is initially powered on, several basic customer settings proceed automatically. Refer to Plug & Play Feature on page 10. 3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the POWER button on the remote control. 4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER button or number buttons on the remote control.

Press the MENU button. The main menu is displayed on the screen. Its left side has six icons: Picture, Sound, Channel, Setup and Input. Press the ▲ or ▼ button to select one of the icons. Press the ENTER button to access the icon’s sub-menu. Press the ▲ or ▼ button to move to items in the menu. Press the ENTER button to enter items in the menu. Press the ▲/▼/◄/► button to change the selected items. Press the RETURN button to return to the previous menu. Press the EXIT button to exit from the menu. Mode : Standard Cell Light

Contrast : 95 Brightness : 45 Sharpness : 20 Colour : 50 Tint (G/R) : G50/R50 Detailed Settings TTX/MIX MENU GUIDE SUBT. P.SIZE BN59-00705A English - BN68-01786A-Eng.indb 9 2008-08-29 오후 3:20:34 Plug & Play Feature When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available. If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed. Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries. The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running.

Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice. The message Select ‘Home Use’ when installing this TV in your home. is displayed.

Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed. The default selection is Home Use. We recommend setting the TV to Home Use mode for the best picture in your home environment. Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER button to select Start. Digital & Analogue: Digital and Analog channels. Digital: Digital channels. Analogue: Analog channels. The channel search will start and end automatically. Press the ENTER button at any time to interrupt the memorization process. After all the available channels are stored, the message Set the Clock Mode is displayed. Plug & Play Les menus Langue, Enr. démo, Canaux et Heure seront définis.

Entrer Plug & Play Select the OSD Language. Nederlands English : English Menu Language Suomi Move Enter Plug & Play Select “Home Use” when installing this TV in your home. Store Demo Home Use Move Enter Plug & Play Select the channel source to memorize. Digital & Analogue Start Digital Start Analogue Start Move Enter Skip Plug & Play Auto Store in progress. Channel 6 Digital Channels : 0 Analogue Channels : --

Stop Enter Skip Continued... English - 10 BN68-01786A-Eng.indb 10 2008-08-29 오후 3:20:34 stop the search before it has finished, press the ➢ To ENTER button with stop selected.

Press the ◄ or ► button to select Yes, then press the ENTER button. The Auto Store menu then reappears. Press the ENTER button when channel memorization is completed. The message Set the Clock Mode is displayed. Press the ENTER button. Press the ▲ or ▼ button to select Manual for setting the current time manually, then press the ENTER button. The message Set current date and time. is displayed. If you select Auto, the message Enjoy your viewing is displayed. If you have received a digital signal, the time will be set automatically. Press the ◄ or ► button to move to Day, Month, Year, Hour or Minute. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. You can set the Day, Month, Year, Hour and Minute directly by pressing the number buttons on the remote control. The message Enjoy your viewing. is displayed. When you have finished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

Plug & Play Auto Store is completed. Digital Channels : 20 Analogue Channels : 36

Enter Skip Plug & Play Enjoy your Viewing.

Setup If you want to reset this feature … 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Setup, then press the ENTER button. 3 Press the ENTER button again to select Plug & Play. 4 Enter your 4 digit PIN number. The default PIN number of a new TV set is 0-0-0-0. When there is a locked channel by Channel Lock setting, PIN input screen appears. (refer to page 24) For further details on setting up options, refer to the pages 10~11. The Plug & Play feature is only available in the TV mode.

Preference English - 11 BN68-01786A-Eng.indb 11 2008-08-29 오후 3:20:35 TV/DTV Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The Tools menu will appear. Tools

Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Energy Saving Dual I II

Move Picture Mode, see page 26 Sound Mode, see page 31 Sleep Timer, see page 34 SRS TS XT, see page 31 Energy Saving, see page 37 Dual I II, see page 33 Dynamic Standard Off Off POff Mono Enter Exit Viewing External Signal Sources Input You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Input, then press the ENTER button. 3 Press the ENTER button again to select Source List. 4 Press the ▲ or ▼ button to select the signal source, then press the ENTER button. Source List TTX/MIX MENU Edit Name GUIDE SUBT. P.SIZE BN59-00705A ➢ Using the Color buttons on the remote with the Source list.

• Red (Refresh): Refreshes the connecting external devices.
• TOOLS (Option): Displays the Edit Name and information menus.

Available signal sources: TV, Ext1, Ext2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI. You can choose only those external devices that are connected to the TV.

Refresh Option You can select these options simply by pressing the ➢ SOURCE button on the remote control. TV/DTV To watch television programme again, press the TV/DTV ➢ button and select the channel number required. TV/DTV English - 12

BN68-01786A-Eng.indb 12 2008-08-29 오후 3:20:36 Editing Device Names You can give a name to the external source.

Ext 2 S-Video Component HDMI1 Move Enter Return English - 13 BN68-01786A-Eng.indb 13 2008-08-29 오후 3:20:36 Storing Channels Automatically Channel You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the Auto Store ENTER button. 3 Press the ▲ or ▼ button to select Auto Store, then press Manual Store the ENTER button. Full Guide 4 Press the ▲ or ▼ button to select the channel source to Mini Guide memorize. Press the ENTER button to select Start. Default Guide : Mini Guide Digital & Analogue: “Digital” and “Analogue” Channel List channels. Channel Mode : Added Channels Digital: “Digital” channels. Child Lock : On Analogue: “Analogue” channels. Scans for all channels with active broadcast stations Auto Store and stores them in the TV’s memory. Select the channel source to memorize. If you want to stop Auto Store, press the ENTER button. Start Digital & Analogue The Stop Auto Store? message will be displayed. Digital Start Select Yes by pressing the ◄ or ► button, then press Start Analogue the ENTER button. Move Enter Skip 5 Press the EXIT button to exit. When there is a locked channel by Channel Lock Auto Store setting, PIN input screen appears. (refer to page 24)

Start Enter Return Auto Store Auto Store is completed. Digital Channels : 20 Analogue Channels : 36 Enter Return English - 14 BN68-01786A-Eng.indb 14 2008-08-29 오후 3:20:37 Storing Channels Manually Channel You can store television channels, including those received via cable networks. When storing channels manually, you can choose: Whether or not to store each of the channels found. The programme number of each stored channel which you wish to identify. 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the Auto Store ENTER button. 3 Press the ▲ or ▼ button to select Manual Store, then press Manual Store the ENTER button. Full Guide 4 Select the required option by pressing the ▲ or ▼ button, then Mini Guide press the ENTER button. Default Guide : Mini Guide 5 When you are satisfied with your setting, press the ENTER Channel List button. Channel Mode : Added Channels 6 Press the EXIT button to exit. Child Lock Digital Channel

Channel Press the ▲, ▼ or numeric buttons (0~9) to select a channel. The available channels are 5~69. The corresponding frequency for the selected channel is automatically set Frequency You can specify the frequency (KHz) using the numeric buttons (0~9). If you do not know the exact frequency, follow the above step to select the frequency automatically using channel. Bandwidth Press the ▲ or ▼ button to select a bandwidth. The available bandwidths are 7 and 8 MHz.

Manual Store Programme (Programme number to be assigned to a channel) Press the ▲ or ▼ button until you find the correct number. Channel Frequency Bandwidth 1 787 5 0 K H z 8 MHz You can also select the channel number directly by pressing the numeric buttons (0~9). Colour System: Auto/PAL/SECAM/NTSC4.43 Move Adjust Search Return Press the ▲ or ▼ button to select the required colour standard. Manual Store Sound System: BG/DK/I/L Press the ▲ or ▼ button to select the required sound standard. Programme Colour System Sound System A U TO Channel (When you know the number of the channel to be stored) Channel Search Store Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). -40 MHz Press the ► button, then press the ▲ or ▼ button to select the Move Adjust Return required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required. Search (When you do not know the channel numbers) Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen. Store (When you store the channel and associated programme number) Set to OK by pressing the ENTER button. Channel mode - P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. - C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. - S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

English - 15 BN68-01786A-Eng.indb 15 2008-08-29 오후 3:20:37 Viewing the EPG (Electronic Programme Guide) Information The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

Mini Guide The information of each program is displayed by each line on the current channel Mini Guide screen from the current program onwards according to the program starting time order.

(ENTER) Toggle between the Mini Guide or Full Guide. GREEN Full Guide: Scroll backwards quickly (24 hours). Mini Guide: Display next page quickly. YELLOW Full Guide: Scroll forwards quickly (24 hours). Mini Guide: Display previous page quickly. Exit the guide. INFO INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information (HD/SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information. “…” will be appeared if the summary is long. Default Guide: Mini Guide/Full Guide Press the ▲ or ▼ button to select Mini Guide or Full Guide. Press the ENTER button. The selected guide menu is displayed. You can also display the guide menu simply by pressing the GUIDE button. : Added Channels Child Lock : On Signal Information Full Guide DTV 805 BBCi 18:08 Fri 5 Aug BBCi 18:00~0:00 BBCi-featuring news, sport, weather and TV. Today BBC NEWS 24 802 BBC ONE 803 BBC THREE 804 BBC THREE 805 BBCi ▼806 ▲801 Watch INFO 18:00~19:00 BBC Ne.. BBC Ne.. This is BBC THREE This Weakest L.. BBCi Canal 7 information Mini Guide 19:00~20:00 BBC News Departure Lounge The 7 O’.. Tsunami.. No Information +24 Hours Exit Manual Store Full Guide Mini Guide Default Guide : Mini Guide Channel List Channel Mode : Added Channels Child Lock : On Fine Tune Signal Information LNA Mini Guide 18:00 18:30 19:00 Watch : Off

BBC News Sportsday BBC News INFO information Next Page Full Guide Exit Full Guide Channel BLUE Channel Mode Fine Tune Channel RED Select a programme by pressing the ▲ /▼/◄/► button. If the next progrmme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, press the ▲/▼/◄/► button to select Cancel Schedules, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the section. : Mini Guide Channel List Mini Guide Default Guide Channel List : Mini MiniGuide GuideMini Guide Full Guide Channel Mode : Added Channels Child Lock : On Fine Tune Signal Information LNA : Off

English - 16 BN68-01786A-Eng.indb 16 2008-08-29 오후 3:20:38 Erasing and Adding Channels TV/DTV Channel You can delete or add a channel to display the channels you want. 1 Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 2 Press the ◄ button to select Added Channels. 3 Press the ▲ or ▼ button to select All Channels. Shows all currently available channels. Press the ENTER button. 4 Press the ▲ or ▼ button to select a channel to delete, then press the TOOLS button. 5 Press the ENTER button to select Delete. All deleted channels will be shown on Added Channels menu. 6 Press the EXIT button to exit. You can also add a channel to the All Channels menu in the same manner. A channel must be deleted before it can be added back to the Added Channels list. To Add (Restore) a channel back to the Added Channel List, follow steps 1-3 above, press the ▲ or ▼ button to All select a channel to add, the press the TOOLS button. Press the ENTER button to select Add. Press the CH LIST button on the remote control to bring up the channel lists.

: Off UKTV Gold UKTV style

C -C -C -C -C -C -C -- Channel Type Delete Add to Favourite Timer Viewing Edit Channel Name Sort Select All

TTX/MIX MENU GUIDE SUBT. P.SIZE BN59-00705A English - 17 BN68-01786A-Eng.indb 17 2008-08-29 오후 3:20:39 Setting Your Favourite Channels Channel You can set channels you watch frequently as favourites. Mini Guide TV/DTV 1 Press the MENU button. Default Guide : Mini Guide Press the ▲ or ▼ button to select Channel, then press the Channel List ENTER button. Channel Mode : Added Channels Press the ▲ or ▼ button to select Channel List, then press Child Lock : On the ENTER button. Fine Tune 2 Press the ◄ button to select Added Channels. Signal Information 3 Press the ▲ or ▼ button to select All Channels, then press LNA : Off the ENTER button. Shows all currently available channels. 4 Press the ▲ or ▼ button to select a channel as a favourite - / -channel. UKTV Gold Adding multiple channels to Favourite. UKTV style Press the ▲ or ▼ button to select the desired channel C -Delete in the channel list. Then press the yellow button. Add to Favourite C -Timer Viewing C -Repeat the above operation to select multiple C -Edit Channel Name channels. The ✓ mark appears to the left of the C -Sort C -Select All selected channels. C -8 C -5 Press the TOOLS button. All Channel Type Zoom Select Option 6 Press the ▲ or ▼ button to select Add to Favourite, then press the ENTER button. The “♥” symbol will be displayed and the channel will be set as a favourite. 7 To cancel your favourite channel selection, press the TOOLS button when a favourite channel is selected. Press the ▲ or ▼ button to select Delete from Favourite, then press the ENTER button. The channel is deleted from Favourites and the “♥” mark disappears. Press the EXIT button to exit. You can also Add or Delete a channel from Favourites in the Added Channels menu in the same manner. All favourite channels will be shown on Favourite menu. TTX/MIX MENU P.SIZE Press the CH LIST button on the remote control to bring up the channel lists. GUIDE SUBT.

BN59-00705A English - 18 BN68-01786A-Eng.indb 18 2008-08-29 오후 3:20:39 Reserving a Program (Time Viewing) ress the ▲ or ▼ button to select Timer Viewing, then press the ENTER button. The Reserve a Program (Timer Viewing) screen appears. 4 Press the ▲/▼/◄/► buttons to reserve a program and then press the ENTER button. Reserving a program has been completed. Press the EXIT button to exit. Default Guide : Mini Guide Channel TV/DTV List Channel Mode : Added Channels Child Lock : On Fine Tune Signal Information LNA

Mini Guide Channel If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program, set the current time first. See pages 34. Reserved channels can only be set if they are in the Channel List (See page 20). 1 Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. 2 Press the ▲ or ▼ button to select a channel, then press the TOOLS button. UKTV Gold

All ou can also reserve a program in the All Channels or ➢ Y Favourite menus using the same procedures. ➢ For information on how to confirm a viewing reservation, refer to page 20. Only memorized channels can be reserved. ➢ You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control. : Off Delete Add to Favourite Timer Viewing Edit Channel Name Sort Select All C -C -C -C -C -C -C -- Channel Type

Added Channels Digital Program Guide and Viewing Reservation When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above. : A program currently being broadcast. : A reserved program. All UKTV Gold UKTV style

: Off UKTV Gold UKTV style

Channel Type Zoom Select

• Change Info: Select to change a viewing reservation.
• Cancel Schedules: Select to cancel a viewing reservation.
• Information: Select to view a viewing reservation.
• Select All/Deselect All: You can select(or Deselect) all channels in the channel list. Press the CH LIST button on the remote control to bring up the channel lists. TTX/MIX MENU GUIDE SUBT. P.SIZE BN59-00705A Continued... English - 20 BN68-01786A-Eng.indb 20 2008-08-29 오후 3:20:41 Assigning Names to Channels Editing the Channel Name-Analog

• Number buttons: You can enter numbers.
• Red button: You can switch between English and Characters.
• Green button: You can delete an already entered character.
• Yellow button: You can enter a blank space.
• Blue button: Press this button to finish renaming a channel.

Character Delete Blank

Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Select the channel number that you wish to edit by pressing the ▲ or ▼ button repeatedly, then press the TOOLS button. Press the ▲ or ▼ button to select Edit Channel Number, then press the ENTER button. Then you can edit the Channel Number pressing the ▲ or ▼ button repeatedly. You can also edit the channel number by pressing the number buttons on the remote control.

Done Repeat steps 5 to 6 for each channel to be assigned to a new name. Press the EXIT button to exit.

All Enter Return Television UKTV style UKTB style C -C -C -C -C -C -C -- Channel Type Zoom Delete Add to Favourite Timer Viewing Edit Channel Number Select All Auto Store Select Option Edit Channel Number Channel

Name BBC Radio 1 Move Enter Return English - 21 BN68-01786A-Eng.indb 21 2008-08-29 오후 3:20:42 Sorting the Stored Channels- Analog Channel This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. 1 Press the MENU button to display the menu. Mini Guide 2 Press the ▲ or ▼ button to select Channel, then press the Default Guide : Mini Guide ENTER button. Channel List 3 Press the ▲ or ▼ button to select Channel List, then Channel Mode : Added Channels press the ENTER button. Child Lock : On 4 Press the TOOLS button. Fine Tune 5 Press the ▲ or ▼ button to select Sort, then press the Signal Information ENTER button. LNA : Off 6 Select the channel that you wish to move by pressing the ▲ or ▼ button, then press the ENTER button. 7 Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button. Television Press the ENTER button. The channel is moved to its new UKTV style position and all other channels are shifted accordingly. UKTB style Delete Add to Favourite 8 Repeat steps 4 to 7 until you have moved all the channels C -Timer Viewing C -to the required programme numbers. C -Edit Channel Name C -9 Press the EXIT button to exit. Sort Added Channels

Move Enter Return English - 22 BN68-01786A-Eng.indb 22 2008-08-29 오후 3:20:43 Selecting and Deselecting All Channels

All Television UKTV style

C -♥ C -C -C -C -C -C -- Channel Type Delete Add to Favourite Deselect All Select All Auto Store Zoom Select Option can select(or Deselect) all channel in the channel list. ➢ You ➢ The ✓mark appears to the left of the selected channels. Storing Channels in Memory (Auto Store)

Added Channels Press the MENU button. Television UKTV style Press the ▲ or ▼ button to select Channel, then press the C -ENTER button. Add to Favourite C -Timer Viewing Press the ▲ or ▼ button to select Channel List, then press C -Edit Channel Name C -the ENTER button. Sort C -Select All C -2 Press the ▲ or ▼ button to select the channel to be C -Auto Store assigned a new name, then press the TOOLS button. C -All Channel Type Zoom Select Option 3 Press the ▲ or ▼ button to select Auto Store, then press the ENTER button. For further details on setting up options, refer to page 14. When there is a locked channel by Channel Lock setting, PIN input screen appears. (refer to page 24)

Setting the Channel Mode

The “ ” symbol will be displayed and the channel will be locked. Unlocking channels 7 Press the ▲ or ▼ button to select Unlock, then press the ENTER button. Enter your 4 digit PIN number. Channel Mode : Added Channels Child Lock : On

Press the ▲ or ▼ button to select On, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Press the ▲ or ▼ button to select a channel to be locked, then press the TOOLS button. Channel List Channel This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children. Locking channels 1 Press the MENU button to display the menu. 2 Press the ▲ or ▼ button to select Channel, then press the ENTER button. 3 Press the ▲ or ▼ button to select Child Lock, then press the ENTER button. Enter your 4 digit PIN number. All Return UKTV Gold UKTV style

C -C -C -C -C -C -- Channel Type Delete Add to Favourite Lock Timer Viewing Edit Channel Name Sort

Zoom Select Option ➢ The channel is unlocked and the “ ” mark also disappears. ➢ The default PIN number of a new TV set is “0-0-0-0”. Fine Tuning Analog Channels

Press the ◄ or ► button to adjust the fine tuning. To store the fine tuning setting in the TV’s memory, press the ENTER button. If you do not store the fine-tuned channel in memory, adjustments are not saved. To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTER button. Press the EXIT button to exit. Channel Use fine tuning to manually adjust a particular channel for optimal reception. 1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Channel Mode : Added Channels Child Lock :On Fine Tune LNA

nly analog TV channels can be fine tuned. “ * ” will appear next to the number of fine-tuned channels.

Press the TOOLS button on the remote control.

Detailed Settings Picture Choose Dynamic for viewing the TV during the day or when there is bright light in the room. Choose Standard for general TV watching mode. Choose Movie when viewing the movie. Mode Mode : Dynamic Cell Light Contrast : 7Standard Movie : 80 Brightness : 45 Sharpness : 20 Colour : 50 Tint (G/R) : G50/R50 Detailed Settings Tools Picture Mode Sound Mode Sleep Timer

Energy Saving Dual I II

Exit Customizing the Picture Settings Picture Your television has several setting options that allow you to control the picture quality. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ENTER button again to select Mode. 4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button. Available modes: Dynamic, Standard, Movie 5 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. 6 When you are satisfied with your setting, press the ENTER button. 7 Press the EXIT button to exit. Mode :Standard Cell Light

Detailed Settings Picture Options Cell Light - Contrast – Brightness – Sharpness – Colour – Tint(G/R) In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function. In PC mode, you can only make changes to Cell Light, Contrast, and Brightness. Press the ◄ or ► button until you reach the optimal setting.

PC mode, you can only make changes to Dynamic ➢ InContrast, Gamma and White Balance from among the Detailed Settings is available in Standard or Movie mode. Detailed Settings items. Picture You can set detailed picture settings. 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. 3 Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, Edge Enhancement. 5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit. Colour : 50 Tint (G/R) : G50/R50 Detailed Settings

White Balance Black Adjust: Off/Low/Medium/High Flesh Tone You can directly select the black level on the screen to Edge Enhancement : On adjust the screen depth. Enter Return Move Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. Gamma: -3 ~ +3 You can adjust the middle brightness of pictures. Press the ◄ or ► button until you reach the optimal setting. Colour Space : Auto/Native/Custom Colour space is a colour matrix composed of red, green and blue colours. Select your favourite colour space to experience the most natural colour. − Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources. − Native: Native Colour Space offers deep and rich colour tone. − Custom: Adjusts the colour range to suit your preference. Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom. Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button. − Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. − Reset: Resets the colour space to the default values. White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. English - 27 BN68-01786A-Eng.indb 27 Continued... 2008-08-29 오후 3:20:45 Flesh Tone:-15~+15 You can emphasize the pink tone in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen. Edge Enhancement: Off/On You can emphasize object boundaries.

TV/DTV Picture Options Picture You can set detailed picture settings. Tint (G/R) : G50/R50 Detailed Settings 1 Press the MENU button to display the menu. 2 Press the ENTER button to select Picture. Picture Options 3 Press the ▲ or ▼ button to select Picture Options, then Picture Reset press the ENTER button. 4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. - / -5 When you are satisfied with your setting, press the ENTER button. 6 Press the EXIT button to exit. In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection from among the Picture Options items in Picture Options. Colour Tone : Cool2 Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 Size : Cool1 When the picture mode is set to Dynamic or Screen Mode Standard, Warm1 and Warm2 cannot be selected. Normal Digital NR Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan Warm1 DNIe You can select the picture size which best corresponds to Warm2 : 2min HDMI Black Level your viewing requirements. − Auto Wide: Expanding and pulling up the picture from Real 100Hz Demo : Off 4:3 to 16:9 ratio. Enter Return Move Auto Wide function is available only in TV, Ext.1, Ext.2, AV and S-Video mode. − 16:9: Sets the picture to 16:9 wide mode. − Wide Zoom: Magnify the size of the picture more than 4:3. TTX/MIX MENU P.SIZE Move the screen up/down using the ▲ or ▼ button after selecting the Position by pressing the ► or ENTER button. GUIDE SUBT. − Zoom: Magnify the size of the picture vertically on screen. − 4:3: Sets the picture to 4:3 normal mode. − Just Scan: Use this function to see the full image without any cutoff when HDMI(720p/1080i), Component(1080i) signals are input. After selecting Just Scan in HDMI (1080i) or Component (1080i) mode: Press the ◄ or ► button to select Position, then press the ENTER button. Press the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select Reset, then press the ENTER button. You can initialize the setting. With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen. For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p) connection of 50 and 60Hz, only the input source is supported. You can change the picture size simply by pressing the P.SIZE button on the remote control. Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Continued...

English - 28 BN68-01786A-Eng.indb 28 2008-08-29 오후 3:20:46 Positioning and Sizing the screen using Zoom − Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction using the ▲ or ▼ button as well as the screen size. − Move the screen up/down using the ▲ or ▼ button after selecting the Position by pressing the ◄ or ► button. − Resize the screen vertically using the ▲ or ▼ button after selecting the Size by pressing the ◄ or ► button. Picture Options Screen Mode: 16:9/Wide Zoom/Zoom/4:3 When setting the picture size to Auto Wide in a 16:9 wide Colour Tone TV, you can determine the picture size you want to see the Size 4:3 WSS (Wide Screen Service) image or nothing. Each Screen Mode individual European country requires different picture size 16:9 Digital NR so this function is intended for users to select it. Wide Zoom DNIe − 16:9: Sets the picture to 16:9 wide mode. Zoom − Wide Zoom: Magnify the size of the picture more than : 2min HDMI Black Level 4:3 4:3. Real 100Hz Demo : Off − Zoom: Magnify the size of the picture vertically on Enter Move screen. − 4:3: Sets the picture to 4:3 normal mode. This function is available in Auto Wide mode. This function is not available in PC,Component or HDMI mode. Return

Digital NR: Off/Low/Medium/High/Auto If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. When the signal is weak, select one of the other options until the best picture is displayed.

DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes. This function is not available in PC mode. DNIe is only available in Dynamic mode.

HDMI Black Level: Normal/Low Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low colour, etc.) is encountered by the HDMI input for RGB limited range (16 to 235). This function is active only when the external input connects to HDMI(RGB signals). Real 100 Hz Demo: Off/On You can get a clear distinction between “Real 100Hz” and 50Hz, especially when watching sports. Therefore, when seeing a paused or static image, you will not be able to distinguish between “Real 100Hz” and 50Hz. Demo 100Hz works only with 50Hz signal.

Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/ Yellow Colour Bar Patterns, without using an additional Blue Filter. Blue Only Mode is available when the picture mode is set to Movie or Standard.

Continued... English - 29 BN68-01786A-Eng.indb 29 2008-08-29 오후 3:20:46 Screen Burn Protection To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes. − Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen. − Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button. − Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Horizontal Dot, Vertical Line, Time Optimum condition for pixel shift;

Time : 2 min Move Enter Return function is not available in the Just Scan mode. ➢ This ➢ The Pixel Shift value may differ depending on the monitor size (inches) and mode. − All White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time. − Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. Dark: When you set the screen ratio to 4:3, it darkens the left and right sides. Light: When you set the screen ratio to 4:3, it brightens the left and right sides. remove after images on the screen, use either White or Scrolling function. Although both of ➢ To the two functions remove after images on the screen, Scrolling is more effective. after image removal function has to be executed for a long time (approximately 1 hour) to ➢ The effectively remove after images on the screen. If after image is not improved after the execution of the function, repeat the function again. ➢ Press any button on the remote control to cancel this feature. Resetting the Picture Settings to the Factory Defaults

Cancel ➢ Each mode can be reset. English - 30 BN68-01786A-Eng.indb 30 2008-08-29 오후 3:20:46 Sound Features Press the MENU button to display the menu. Press the ▲ or ▼ button to select Sound, then press the ENTER button. 3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Mode, Equalizer, SRS TruSurround XT, Audio Language, Audio Format, Audio Description, Auto Volume, TV Speaker, Sound Select, Sound Reset 4 When you are satisfied with your setting, press the ENTER button. 5 Press the EXIT button to exit. Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Sound Mode. 3 Press the ◄ or ► button to select the required option. 4 Press the EXIT or TOOLS button to exit. Equalizer: Mode/Balance/100Hz/300Hz/1kHz/3kHz/ 10kHz/Reset You can select a sound mode to suit your personal preferences. The television has several settings which allow you to control the sound quality. The adjusted values are stored according to the selected Sound mode. - Reset : Resets the equalizer settings to the default values. SRS TruSurround XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Sound

Energy Saving Dual I II

Energy Saving Dual I II

Move Dynamic Standard Off ◄ Off ► Off Mono Adjust Exit TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Audio Language You can change the default value for audio languages. Displays the language information for the incoming stream. ➢ While viewing a Digital channel, this function can be selected. ➢ You can only select the language among the actual languages being broadcast. Audio Format: MPEG/Dolby Digital When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function. While viewing a Digital channel, this function can be selected. You can only select the language among the actual languages being broadcast.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. English - 31 BN68-01786A-Eng.indb 31 2008-08-29 오후 3:20:48 Audio Description This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the Audio Description, when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume. − Audio Description : On/Off − Volume : 0~100 Volume is active when Audio Description is set to On. While viewing a Digital channel, this function can be selected.

Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. The – +, MUTE buttons do not operate when the TV Speaker is set to Off. When TV Speaker is set to Off, you can operate only DTV : Audio Language, Audio Format, Audio Description, Sound Reset ATV : Sound Reset in Sound menu.

AV, S-Video Component, PC, HDMI TV Speaker On Speaker Output Speaker Output Speaker Output Speaker Output Speaker Output Speaker Output TV Speaker Off Mute Mute Mute Speaker Output Speaker Output Speaker Output Video No Signal Mute Mute Mute Mute Mute Mute Sound Reset: Reset All/Reset Sound Mode/Cancel You can restore the Sound settings to the factory defaults. - Reset All: All the sound values return to default settings. - Reset Sound Mode: Currently set values return to default settings. English - 32 BN68-01786A-Eng.indb 32 2008-08-29 오후 3:20:48 Selecting the Sound Mode (depending on the model) The DUAL I-II button displays/controls the processing and output of the audio signal. When power is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the current transmission. Tools Easy Setting

Regular broadcast (Standard audio) NICAM dual-2 Mono (Normal) Mono (Normal use) Bilingual or DUAL-I/II Dual I Dual II Stereo Stereo Mono (Forced mono)

If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono. If the stereo signal is weak and automatic switching occurs, switch to Mono. Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room. ➢ When you insert the head set jack into the corresponding TV Side Panel port, you can operate only DTV : Audio Language,Audio Format, Audio Description,TV Speaker,Sound Reset ATV : TV Speaker, Sound Reset ➢ Prolonged use of headphones at a high volume may damage your hearing. ➢ You will not hear sound from the speakers when you connect headphones to the TV. ➢ The headphone volume and TV volume are adjusted separately.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Time, then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Clock, Sleep Timer, Timer 1, Timer 2, Timer 3 When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit. Clock You can set the television clock so that the current time is displayed when pressing the INFO button on the remote control. You must also set the time if you wish to use the automatic on or off timers. − Press the ◄ or ► button to select Day, Month, Year, Hour, or Minute. Set these by pressing the ▲ or ▼ button. You can set the Day, Month, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control. Plug & Play Language : English Setup

Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode. − Select the preset time interval (Off, 30, 60, 90, 120, 150, or 180) for staying on by pressing the ▲ or ▼ button. Enter

Energy Saving Dual I II Easy Setting

Inactivate You can set the On/Off timers so that the television will Volume Antenna Channel switch on or off automatically at the time you select. You must set the clock first. ATV − Press the ◄ or ► button to select the required item below. Repeat Sun Mon Tue Wed The Fri Sat Press the ▲ or ▼ button to adjust to the setting satisfied. Once On Time : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Adjust Move Enter Return Off Time : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Volume : Select the required volume level. Antenna :You can select either DTV or ATV when the TV turns on automatically. Channel : You can select the channel to be played when the TV turns on automatically. Repeat : Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun, Manual. When Manual is selected, Press the ► button to select the desired day of the week. Press the ENTER button over the desired day and the mark ( ) will appear. You can set the hour, minute, directly by pressing the number buttons on the remote control.

Auto Power Off When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time. English - 34 BN68-01786A-Eng.indb 34 2008-08-29 오후 3:20:49 Language / Change PIN / Parental Lock / Subtitle / Teletext Language / Preference / Light Effect / Melody / Entertainment / Energy Saving

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Available options: Language, Change PIN, Parental Lock, Subtitle, Teletext Language, Preference, Light Effect, Melody, Entertainment, Energy Saving When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit. Plug & Play Language

Preference Language It is variable depending on the model. When you start using the television for the first time, you must select the language which will be used for displaying menus and indications. Change PIN Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The Enter PIN is displayed. Enter your current 4-digit PIN by using the numeric buttons (0~9). The Enter New PIN and Confirm New PIN is displayed. If you forget the PIN, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:POWER (Off), MUTE, 8, 2, 4, POWER (On).

Parental Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4digit PIN (Personal Identification Number) that is defined by the user. The on-screen menu will instruct you to assign a PIN (you can change it later, if necessary). 1 Enter your 4-digit PIN by using the numeric buttons (0~9). 2 Press the ENTER button to select Parental Rating. 3 Press the ▲ or ▼ button to select an appropriate restriction, then press the ENTER button. The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to block or unblock the category. Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. The default code for a new TV set is 0000.

Parental Lock Parental Rating Enter Return Parental Rating

Move Enter Subtitle − Subtitle : On / Off Subtitle You can select these options simply by pressing the SUBT. button on the remote control. Subtitle : On Off − Mode : Normal (basic subtitle) / Hard of hearing Mode : Default (subtitle for a hearing-impaired person) If the programme you are watching does not support Subtitle Language the Hard of hearing function, Normal automatically Move Enter activates even though Hard of hearing mode is selected. − Subtitle Language : You can change the default value for subtitle languages. Return

Return Teletext Language You can set the Teletext language by selecting the language type. English is the default in cases where the selected language is unavailable in the broadcast. While viewing a programme, the subtitle can be selected While viewing a programme, audio languages can be selected.

Continued... English - 35 BN68-01786A-Eng.indb 35 2008-08-29 오후 3:20:50 Setup Preference Sub title This menu consists of 6 sub-menus: Teletext Language : ---Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Preference Primary Teletext Language, and Secondary Teletext Light Effect : Watching TV Language (depending on the Country). Wall-Mount Adjustment Using this feature, users can select one of the languages Melody : Off (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Entertainment : Off Danish, Finnish, Spanish, Dutch). The language selected here is Energy Saving : Off the default when the user selects a channel. Software Upgrade Press the ▲ or ▼ button to select required menu (Primary Common Interface Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, or Secondary Teletext Preference Language), then press the ENTER button. Primary Audio Language : French The options of the selected menu are displayed. Secondary Audio Language : French Press the ▲ or ▼ button to select required option Primary Subtitle Language : French Bulgarian, Croatian, Czech, Danish, Dutch,Engilsh, Finnish, French,Gaelic, German,Greek,Hungarian, Irish, Secondary Subtitle Language : French Primary Teletext Language : French Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish,Turkish, Welsh), Secondary Teletext Language : French then press the ENTER button. Move Enter Return − If you change the language setting, the Audio Language, Subtitle Language, and the Teletext Language of the Language menu are automatically changed to the selected language. − The Audio Language, Subtitle Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Audio Language, Primary Subtitle Language, or the Primary Teletext Language of the Preference menu.

Light Effect : Off/In Standby/Watching TV/Always You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes. − Off: The blue LED is always off. − In Standby : The blue LED lights while in Standby mode and it turns off when your TV is turned on. − Watching TV : The blue LED lights when watching TV and it turns off when your TV is turned off. − Always : The blue LED always lights. Melody : Off/Low/Medium/High The TV power on/off melody sound can be adjusted. the Melody does not play ➢ When When no sound is output from the TV because the MUTE button has been pressed. ➢ When sound is output from the TV because the – (Volume) button has been pressed. ➢ When no the TV is turned off by Sleep Timer function. Entertainment : Off/Sports/Cinema/Game Entertainment mode enables you to select the optimal display and sound for sports, cinema and games. − Off: Switches the Entertainment function off. − Sports: Provides the optimal picture and sound quality for sports. − Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound. − Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. If you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off. The Entertainment settings are saved for each input source.

Continued... English - 36 BN68-01786A-Eng.indb 36 2008-08-29 오후 3:20:50 Melody Setup Energy Saving: Off/Low/Medium/High This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Switches off the Energy Saving mode. − Low: O perates in standard mode regardless of the surrounding illumination. − Medium: Enters Medium power saving mode regardless of the surrounding illumination. − High: Enters maximum power saving mode regardless of the surrounding illumination. : Off Energy Saving : Off Press the TOOLS button on the remote control. Press the ▲ or ▼ button to select Energy Saving. Press the ◄ or ► button to select the required option. Press the EXIT or TOOLS button to exit.

Software Upgrade Common Interface Easy Setting

Energy Saving Dual I II

Move Dynamic Standard Off Off ◄ Off ► Mono Adjust Exit English - 37 BN68-01786A-Eng.indb 37 2008-08-29 오후 3:20:51 Upgrading the Software Samsung may offer upgrades for your TV’s firmware in the future. Please contact the Samsung call center at 3260 SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port.

Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the side of the TV. TV side Panel USB Drive

Press the ▲ or ▼ button to select “BY USB”,“BY Channel” or “Standby Mode Upgrade”. Press the ENTER button. BY USB - Preset : Insert a USB drive containing the firmware upgrade into TV. Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

BY Channel Standby Mode Upgrade Alternative Software Move :On --/--/--_-------- Enter Return BY Channel Upgrades the software using the broadcasting signal. Standby Mode Upgrade To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed. Alternative Software : To display the software version information. English - 38 BN68-01786A-Eng.indb 38 2008-08-29 오후 3:20:51 Common Interface This contains information on CAM inserted in the CI slot and displays it. ➢ You can install the CAM anytime whether the TV is ON or OFF. Installing the CI Card a. Purchase the CI CAM module by visiting your nearest dealer or by phone. b. Insert the CI CARD into the CAM in the direction of the arrow until it fits. c. Insert the CAM with the CI CARD installed into the common interface slot. Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot. d. Check if you can see a picture on a scrambled signal channel.

Software Upgrade Common Interface

Application Info. This contains information on CAM inserted in the CI slot and displays it. Press the ENTER button to display the information for your application. Select the CI Menu based on the PC Card menu. Common Interface CI Menu

Move Enter Exit CI Menu Main menu Module information Smart card information Language Software Download Press Ok to select, or Exit to quit Move Enter Exit Application Info Type : CA Manufacturer : Canal Plus Info : Top Up TV Enter Exit English - 39 BN68-01786A-Eng.indb 39 2008-08-29 오후 3:20:52 Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1 Right click the mouse on the Windows Desktop, then click on Properties. The Display Properties will be displayed. 2 Click on Settings tab, then set the Display Mode with reference to the Display Modes Table. You do not need to change the Colours settings. 3 Click on Advanced. A new settings dialog box will be displayed. 4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the Screen refresh rate. 5 Click on OK to close the window, then Click on OK button to the Display Properties window. Automatic re-booting may commence at this moment. English - 40 BN68-01786A-Eng.indb 40 2008-08-29 오후 3:20:52 Input Mode (PC) Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported: D-Sub Input Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) PS42A426 PS50A426 IBM 640 x 350 720 x 400

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. For the PS42A426 PC text quality is optimum in VESA mode(1024 x 768@60Hz). For the PS50A426 PC text quality is optimum in VESA mode (1360 x 768@60Hz). English - 41 BN68-01786A-Eng.indb 41 2008-08-29 오후 3:20:52 Setting the PC ➢ Preset to the PC mode by pressing the SOURCE button.

Mode :Standard Cell Light

Auto Adjustment Screen Adjustment Detailed Settings Picture Auto Adjustment : Auto adjustment allows the PC screen to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. Brightness : 45 Sharpness : 20 Auto Adjustment

Energy Saving Auto Adjustment

Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button. Press the ◄ or ► button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button. : 20 Auto Adjustment Picture - Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. Sharpness Screen Adjustment

Position Image Reset Move - Position Adjust the PC’s screen positioning if it does not fit the TV screen.

Enter Return Position Adjust the position by pressing the ▲/▼/◄/► button. Press the ENTER button. Adjust - Image Reset You can replace all image settings with the factory default values. Enter Return Image Reset is completed. English - 43 BN68-01786A-Eng.indb 43 2008-08-29 오후 3:20:53 Teletext Feature (depending on the model) Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

(Exit) Exit from the teletext display (depending on the model) (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. Coloured buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colourcoded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. (store) Used to store the teletext pages. (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button. (sub-page) Used to display the available sub-page. (page up) Used to display the next teletext page. (page down) Used to display the previous teletext page. (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. (cancel) Used to display the broadcast when searching for a page. (index) Used to display the index (contents) page at any time while you are viewing teletext. TV/DTV

➢ You can change teletext pages by pressing the numeric buttons on the remote control. Continued... English - 44 BN68-01786A-Eng.indb 44 2008-08-29 오후 3:20:56 The teletext pages are organized according to six categories: Part

Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. information is often divided between several pages ➢ Teletext displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) ➢ Press the TV/DTV button to exit from the teletext display. TV/DTV

TTX/MIX MENU GUIDE SUBT. P.SIZE BN59-00705A English - 45 BN68-01786A-Eng.indb 45 2008-08-29 오후 3:20:57 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family inch VESA Spec. (A * B) Standard Screw 23 ~ 26 200 * 100

provided the standard dimensions for wall mount kits as shown in the table above. ➢ We purchasing our wall mount kit, a detailed installation manual and all parts necessary for ➢ When assembly are provided. not use screws longer than the standard dimension, as they may cause damage to the inside of ➢ Do the TV set. wall mounts that do not comply with the VESA standard screw specifications, the length of the ➢ For screws may differ depending on their specifications. not use screws that do not comply with the VESA standard screw specifications. ➢ Do Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. is not liable for product damage or personal injury when a non-VESA or non-specified wall ➢ Samsung mount is used or the consumer fails to follow the product installation instructions. 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our ➢ Our dedicated wall mount kit for this model. ➢ Do not exceed 15 degrees tilt when mounting this TV. not install your Wall Mount Kit while your TV is turned on. DIt omay result in personal injury due to electric shock. English - 46 BN68-01786A-Eng.indb 46 2008-08-29 오후 3:20:57 Auto Wall- mount adjustment (Sold separately) Once the auto wall mount is installed, the position of your TV can be easily adjusted. Auto Wall-Mount Rear Panel Serial Cable(1P to 1P)(Not supplied) TV/DTV Entering the menu

Press the ▲, ▼, ◄ or ► button on your remote control. clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. ress the ▲ or ▼ button to select Wall-Mount Adjustment, then press the ENTER button. Setup ➢ The Wall Mount Adjustment screen is displayed. ➢ If the Wall Mount Adjustment screen is not displayed when Plug & Play Language Time Change PIN

Parental Lock Teletext Language

Preference Adjust to the desired position using the ▲, ▼, ◄, ► buttons. If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. Press the INFO button to reset. Press the ◄ or ► button to select Yes, then press the ENTER button. The position is initialized to the default setting.

Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position1, Position2 or Position3 in order to save the current position. Wall-Mount Adjustment

Save Centre ➢ To not save the current position, press the RETURN button. ➢ When selecting a save mode, you cannot use the Color buttons.

Press the ENTER button to save. ➢ When Position1 is selected, the message Current position saved as Position1 is displayed.

Wall-Mount Adjustment Complete Step 1 of Entering the menu. Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the saved position. ➢ You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. Position

➢ If you adjust the positon after moving to a pre-set Centre Save Adjust position, the position display will disappear. For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. 42 inches model is not compatible with the older wall mount model (WMN5090A).

How to assemble the Stand-Base (depending on the model) Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.) In case of installing your TV on the wall, close the cover (1) on the stand-base connection part using two screws for hiding. Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. or more people should carry ➢ Two the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. English - 48 BN68-01786A-Eng.indb 48 2008-08-29 오후 3:21:00 Securing the TV to the Wall Caution Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. To avoid the TV from falling:

Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.

Wall Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.
