USER MANUAL PN63A650T1F SAMSUNG

Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Comment contacter Samsung dans le monde Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs Samsung. Country Customer Care Center Web Site CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca U.S.A 1-800-SAMSUNG (7267864) www.samsung.com Address Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronique Canada Inc., Service à la Clientèle 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 Plasma TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. BN68-01532B-02 BN68-01532B-Eng.indb 1 2008-05-30 오후 2:31:47 Important Warranty Information Regarding Television Format Viewing Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty. U.S.A Only The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. Other countries The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only. The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product. Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables. For the location of a SAMSUNG Authorized Service Center, please call toll-free: In the United States : 1-800-SAMSUNG (1-800-726-7864) In Canada : 1-800-SAMSUNG ➢ See the warranty card for more information on warranty terms. © 2008 Samsung Electronics Co., Ltd. All rights reserved. English - BN68-01532B-Eng.indb 2 2008-05-30 오후 2:31:47 User Instructions Screen Image retention Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to page 32 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image. Altitude The PDP can only operate normally at heights under 6500ft. Heat on the top of the Plasma TV The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product. The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit. Cell Defects The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Avoid operating the TV at temperatures below 5°C (41°F) A still image displayed too long may cause permanent damage to the PDP Panel. Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty. After-images on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a long time. Warranty Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty. English - BN68-01532B-Eng.indb 3 2008-05-30 오후 2:31:47 English Contents General Information

Adjustable picture settings that can be stored in the TV’s memory. Automatic timer to turn the TV on and off. A special sleep timer. V-Chip function. Excellent Digital Interface & Networking : With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (SetTop Box) needed.

• HDMI/DVI connection of your PC to this TV.

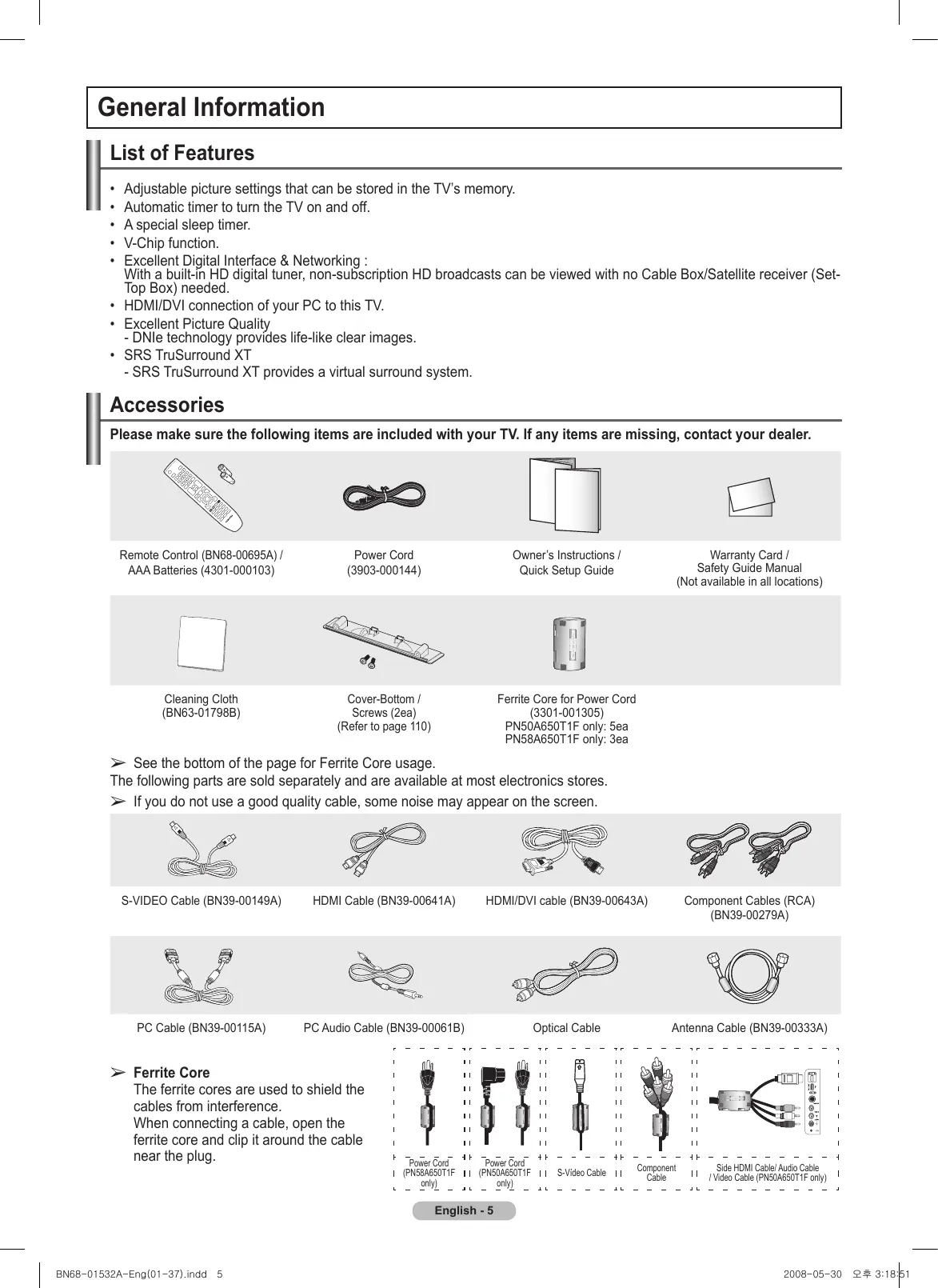

• Excellent Picture Quality - DNIe technology provides life-like clear images.
• SRS TruSurround XT - SRS TruSurround XT provides a virtual surround system. Accessories Please make sure the following items are included with your TV. If any items are missing, contact your dealer. Remote Control (BN68-00695A) / AAA Batteries (4301-000103) Power Cord (3903-000144) Owner’s Instructions / Quick Setup Guide Cleaning Cloth (BN63-01798B) Cover-Bottom / Screws (2ea) (Refer to page 110) Ferrite Core for Power Cord (3301-001305) PN50A650T1F only: 5ea PN58A650T1F only: 3ea Warranty Card / Safety Guide Manual (Not available in all locations) ➢ See the bottom of the page for Ferrite Core usage. The following parts are sold separately and are available at most electronics stores. ➢ If you do not use a good quality cable, some noise may appear on the screen. S-VIDEO Cable (BN39-00149A) HDMI Cable (BN39-00641A) HDMI/DVI cable (BN39-00643A) Component Cables (RCA) (BN39-00279A) PC Cable (BN39-00115A) PC Audio Cable (BN39-00061B) Optical Cable Antenna Cable (BN39-00333A)

Ferrite Core The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug. Power Cord (PN58A650T1F only) Power Cord (PN50A650T1F only) S-Vídeo Cable Component Cable Side HDMI Cable/ Audio Cable / Video Cable (PN50A650T1F only) English - BN68-01532A-Eng(01-37).indd 5 2008-05-30 오후 3:18:51 Viewing the Control Panel Buttons on the Lower-Right Part of the Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

The product color and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB). ➢ In the on-screen menu, use this button as you would use the ENTER button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features. Front Panel buttons Touch each button to operate. 5 Power Indicator Lights up when the power is on. 6 POWER Press to turn the TV on and off. 7 Remote Control Sensor Aim the remote control towards this spot on the TV. 8 Speakers 3 + VOL – Press to increase or decrease the volume. In the onscreen menu, use the + VOL – buttons as you would use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you would use the ▲ and ▼ buttons on the remote control. English - BN68-01532B-Eng.indb 6 2008-05-30 오후 2:31:50 Viewing the Connection Panel Rear Panel Jacks Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 9-15. The product color and shape may vary depending on the model. 1 POWER IN Connect the supplied power cord. 2 LAN Connect a LAN cable to this port to connect to the Network (SAMSUNG's InfoLink Service). (See page 89) 3 AUDIO OUT (R/L) Audio outputs to external devices.

Connect to the video and audio output jack on your PC. 5 DVI IN (HDMI 2) (AUDIO-R/L) Connect to the DVI audio output jack of an external device. 6 HDMI IN 1, 2, 3 Connect to the HDMI jack of a device with an HDMI output. (HDMI 2 supports HDMI-DVI IN and connection from a PC.) - This input can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection. hen using an optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device. 7 ANT IN Uses a 75Ω Coaxial connector for an Air/Cable Network. 8 DIGITAL AUDIO OUT (OPTICAL) Connect to a Digital Audio component.

9 COMPONENT IN 1, 2 / AV IN 1

Connects Component video/audio. The COMPONENT IN 1 jack is also used as the AV IN 1 jack. - Connect the video cable to the COMPONENT IN 1 [Y/ VIDEO] jack and the audio cable to the COMPONENT IN 1 [R-AUDIO-L] jacks. 0 EX-LINK Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. Side Panel Jacks Use the right side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game. The product color and shape may vary depending on the model. 1 HDMI IN 4 Connect to the HDMI jack of a device with an HDMI output. 2 WISELINK Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3). 3 S-VIDEO (AV IN 2) S-Video input for external devices with an S-Video output. 4 AV IN 2 Video and audio inputs for external devices. 5 HEADPHONE You can connect a set of headphones if you wish to watch a television program without disturbing other people in the room. English - BN68-01532B-Eng.indb 7 2008-05-30 오후 2:31:51 Remote Control You can use the remote control up to a distance of about 23 feet from the TV. 1 POWER % Use these buttons in theRETURNDMA, WISELINK and Anynet+ modes. : This remote can be used EXIT to control recording W.LINK on Samsung recorders with the Anynet+ feature) CH LIST INFO Turns the TV on and off. 2 TV Selects the TV mode directly. RETURN 3 NUMERIC BUTTONS W.LINK CH LIST EXIT

Press to select additional channels RETURN analog) being broadcast (digital and by the same station. For example, to select EXIT channel “54-3”, press “54”, W.LINK then press “ ” and “3”. CH LIST INFO RETURN EXIT W.LINK CH LIST VOL EXIT Press to increase or decrease W.LINK the CH LIST INFO volume. CH LIST W.LINK INFO SOURCE TOOLS TOOLS Press to display and select the available video sources. 8 CH LIST Used to display Channel Lists on the screen. 9 TOOLS Use to quickly select frequently used functions. 0 U

P▲ / DOWN▼ / LEFT◄ /

RIGHT► / ENTER Press the Up/Down/Left/Right sections of the wheel button and Enter to select on-screen menu items and change menu values. You can navigate up and down the menu, switch channels and adjust the volume by turning the wheel button. (See pages 18~19) While using the MENU, TOOLS, and WISELINK, the wheel function starts the power saving mode if idle for more than 20 seconds. Press the wheel button to disable the power saving mode. ! INFO

Press to display information on the TV screen. @ COLOR BUTTONS Use these buttons in the Channel list and WISELINK, etc. # CC Controls the caption decoder. TOOLS ON/OFF Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF( ) light button set to On will reduce the battery usage time.) & PRE-CH RETURN MUTE TOOLS Press toRETURNtemporarily cut off the sound.

Press to change the channel. Tunes to the previous channel. RETURN

Press to change channels. INFO ( MENU TOOLS Displays the main on-screen menu. ) W.LINK(WISELINK) This function enables you to view and play photo and music files from an external device. (Refer to pages 71 (Photo) and 81 (Music)) a RETURN Returns to the previous menu. b EXIT Press to exit the menu. c INFO.L Press to use the News, Stock Market and Weather Forecast information services available over the network. (see page 97) d DMA (Digital Media Adapter) Use this when connecting a Samsung DMA device through an HDMI interface and switching to DMA mode. For more information on the operating procedures, refer to the user manual of the DMA. ➢ T his button is available when “Anynet+(HDMI-CEC)” is “On”. (see page 102) e P.SIZE Picture size selection. f FAV.CH Press to switch to your favorite channels. $ E.MODE Press to select the preset display and sound modes for sports, cinema and games.

The performance of the remote control may be affected by bright light. English - BN68-01532B-Eng.indb 8 2008-05-30 오후 2:31:51 Installing Batteries in the Remote Control 1 Lift the cover at the back of the remote control upward as shown in the figure. 2 Install two AAA size batteries. ➢ Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. ➢ Using the remote control with the ON/OFF( ) light button set to On will reduce the battery usage time. 3 Close the cover as shown in the figure. ➢ Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) ➢ If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads” below. If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads”. If you have two antennas, see “Separate VHF and UHF Antennas”. Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions below. 1 Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied). Use a screwdriver to tighten the screws. 2 Plug the adaptor into the ANT IN terminal on the back of the TV. ANT IN Antennas with 75 Ω Round Leads

Plug the antenna lead into the ANT IN terminal on the back of the TV. ANT IN Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops). 1 Connect both antenna leads to the combiner. 2 Plug the combiner into the ANT IN terminal on the bottom of the back panel. UHF VHF UHF VHF ANT IN English - BN68-01532B-Eng.indb 9 2008-05-30 오후 2:31:52 Connecting Cable TV To connect to a cable TV system, follow the instructions below. Cable without a Cable Box

Plug the incoming cable into the ANT IN terminal on the back of the TV. ➢ Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. ANT IN Connecting to a Cable Box that Descrambles All Channels

Find the cable that is connected to the ANT OUT terminal on your cable box. ➢ This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”. ANT IN ANT OUT 2 Connect the other end of this cable to the ANT IN terminal on the back of the TV. ANT IN Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available at most electronics stores.)

Find and disconnect the cable that is connected to the ANT IN terminal on your cable box. ➢ This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”. ANT IN 2 Connect this cable to a two-way splitter. Incoming cable 3 Connect an Antenna cable between an OUTPUT terminal on the splitter and the IN terminal on the cable box. Incoming cable Splitter Splitter Cable Box

Connect an Antenna cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch. Incoming cable Splitter RF (A/B) Switch Cable Box

Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch. Incoming cable Splitter Cable Box

Connect the last Antenna cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV. RF (A/B) Switch TV Rear Incoming cable Splitter ANT IN RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English - 10 BN68-01532B-Eng.indb 10 2008-05-30 오후 2:31:53 Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI This connection can only be made if there is an HDMI Output jack on the external device. This connection will provide the highest quality picture.

Connect an HDMI Cable between the HDMI IN (1, 2, 3 or 4) jack on the TV and the HDMI jack on the DVD Player or Cable Box / Satellite receiver (Set-Top Box). TV Rear Panel DVD Player or Cable Box / Satellite receiver (Set-Top Box) TV Side Panel

1 HDMI Cable (Not supplied) What is HDMI?

• HDMI, or high-definition multimedia interface, is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. ➢ Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. ➢ The TV may not output sound and pictures may be displayed with abnormal color when DVD Player or Cable Box / Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD Player or Cable Box / Satellite receiver to confirm the HDMI version, then request an upgrade. ➢ HDMI cables that are not 1.3 may cause annoying flicker or no screen display. Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via DVI This connection can only be made if there is a DVI Output jack on the external device.

Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMI IN 2 jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (SetTop Box).

Connect Audio Cables between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the DVD Player or Cable Box / Satellite receiver (SetTop Box). TV Rear Panel DVD Player or Cable Box / Satellite receiver (Set-Top Box) Audio Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied)

Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack. English - 11 BN68-01532B-Eng.indb 11 2008-05-30 오후 2:31:56 Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via Component cables The rear panel jacks on your TV make it easy to connect a DVD Player/Cable Box/Satellite receiver (Set-Top Box) to your TV.

Connect a Component Cable between the COMPONENT IN (1 or 2) [Y, PB, PR] jacks on the TV and the

COMPONENT [Y, PB, PR]

jacks on the DVD Player or Cable Box / Satellite receiver(Set-Top Box). TV Rear Panel DVD Player or Cable Box / Satellite receiver (Set-Top Box) Connect Audio Cables between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box / Satellite receiver (Set-Top Box). Audio Cable (Not supplied) 1 Component Cable (Not supplied)

Component video separates the video into Y (Luminance (brightness)), PB (Blue) and PR (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting a Component video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also. Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. Connecting a Camcorder The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.

Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the Camcorder.

Connect Audio Cables between the AV IN 2 [L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on the Camcorder. TV Side Panel 1 S-Video Cable(Not supplied)

Camcorder 1 Video Cable (Not supplied) Audio Cable (Not supplied)

Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable. English - 1 BN68-01532B-Eng.indb 12 2008-05-30 오후 2:31:57 Connecting a VCR Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages ~10). Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or antenna from the back of the TV.

Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 [Y/VIDEO] or AV IN 2 [VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV. TV Rear Panel TV Side Panel VCR Rear Panel 5 Audio Cable(Not supplied) 4 Video Cable(Not supplied) Antenna cable(Not supplied)

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks of the TV. Alternatively, connect the cable to the “R” jack. If your VCR is stereo, you must connect two cables. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow). S-Video Connection Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared to a standard VCR.)

To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.

Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 2 [S-VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 2 [R-AUDIO-L] jacks on the TV. TV Rear Panel TV Side Panel VCR Rear Panel 1 Antenna cable(Not supplied) Audio Cable (Not supplied) S-Video Cable(Not supplied) An S-Video cable may be included with your VCR. (If not, check your local electronics store.) ➢ Each VCR has a different back panel configuration. ➢ When connecting a VCR, match the color of the connection terminal to the cable. English - 1 BN68-01532B-Eng.indb 13 2008-05-30 오후 2:32:00 Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System(Home theater/Receiver) to your TV.

Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input (OPTICAL) jacks on the Digital Audio System. TV Rear Panel Digital Audio System When a Digital Audio System is connected to the “DIGITAL

AUDIO OUT (OPTICAL)”

jack: Decrease the volume of the TV, and adjust the volume level with the system’s volume control. Optical Cable (Not supplied) What is OPTICAL?

• An optical cable converts an electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a transmission system of digital audio in the form of a light wave that uses a glass conductor. ➢ 5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. ➢ Each Digital Audio System has a different back panel configuration. ➢ When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV. Connecting an Amplifier / DVD Home Theater

Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [L-AUDIO-R] jacks on the Amplifier/DVD Home Theater. TV Rear Panel Amplifier / DVD Home Theater When an audio amplifier is connected to the AUDIO OUT [R-AUDIO-L] jacks terminals : Decrease the volume of the TV, and adjust the volume level with the Amplifier’s volume control. Audio Cable (Not supplied)

Each Amplifier / DVD Home Theater has a different back panel configuration. When connecting an Amplifier / DVD Home Theater, match the color of the connection terminal to the cable. English - 14 BN68-01532B-Eng.indb 14 2008-05-30 오후 2:32:03 Connecting a PC Using the D-Sub Cable 1 Connect a D-Sub Cable between PC IN [PC] jack on the TV and the PC output jack on your computer. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. Using the D-Sub Cable TV Rear Panel

PC Audio Cable (Not supplied) 1 D-Sub Cable (Not supplied) Using the HDMI/DVI Cable 1 Connect a HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer. Connect a 3.5 mm Stereo plug to 2RCA cable between the

DVI IN (HDMI2) [R-AUDIO-L]

jack on the TV and the Audio Out jack of the sound card on your computer. Using the HDMI/DVI Cable TV Rear Panel

.5 mm Stereo plug to RCA Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied)

Each PC has a different back panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal. English - 15 BN68-01532B-Eng.indb 15 2008-05-30 오후 2:32:06 Operation Turning the TV On and Off Press the POWER button on the remote control. You can also use the POWER button on the TV.

It may take a while when your TV starts. Plug & Play Feature The first time you turn on your new TV, choose your basic settings for language, input source and channels, and time of day using the plug and play feature. The TV will store these settings in memory. Storing the channels in memory will allow you to scan the stored channels rather than have to enter their digits each time you want to change channels. When the TV is initially powered on, basic settings proceed automatically: 1 Press the POWER button on the remote control. The message Menu Language, Store Demo, Channels, and Time will be set. is automatically displayed. 2 Press the ENTER button to enter the language. Press the ▲ or ▼ button to select language, then press the ENTER button. The message 'Select Home Use’ when installing this TV in your home. is automatically displayed. ➢ The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running. Plug & Play Menu Language, Store Demo, Channels, and Time will be set. Enter Plug & Play Select Language of the OSD. Menu Language : English

➢ The Screen Saver is activated if there is no operating signal for longer than Enter 15 minutes. Plug & Play 3 P ress the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. Select Language of the OSD. English Español : English Menu Language Français ➢ We recommend setting the TV to Home mode for the best picture in your home environment. Move ➢ Store Demo mode is only intended for use in retail environments. ➢ If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard) mode: Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

Press the ▲ or ▼ button to memorize the channels of the selected connection, then press the ENTER button.

Air: Air antenna signal. Cable: Cable antenna signal. Auto: Air and Cable antenna signals. In Cable mode, you can select the correct analog signal source among STD, HRC, and IRC by pressing the ◄ or ► button, then press the ENTER button. If you have Digital cable, select the signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area. Enter Plug & Play Select ‘Home Use’ when installing this TV in your home. Store Demo Home Use Move Enter Plug & Play Select the Antenna source to memorize. Air Start Cable Start Auto Start Move Enter Skip Plug & Play Selects the cable system. Analog STD HRC IRC Digital STD HRC IRC Start Move Enter Skip Continued... English - 16 BN68-01532B-Eng.indb 16 2008-05-30 오후 2:32:07 5 The TV will begin memorizing all of the available channels. After all the available channels are stored, the TV starts to remove scrambled channels (see page 47). The Auto program menu then reappears. Press the ENTER button when channel memorization is complete. The Clock Mode menu is displayed.

Plug & Play Auto Program in Progress. DTV Air : -Air : -DTV Cable : -- Cable : -- To stop the search before it has finished, press the ENTER button with stop selected. Air

Press the ENTER button. Press the ▲ or ▼ button to select Manual for setting the current time manually, then press the ENTER button. The message Set current date and time. is displayed. ➢ If you select Auto, Set to daylight saving time. is displayed, then go to step 9. ress the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or am/pm. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. ➢ You can set the month, day, year, hour, and minute directly by pressing the number buttons on the remote control. Enter Skip Enter Skip Plug & Play Auto Program is completed. 56 channels are memorized. DTV Air : 20 Air : 11 DTV Cable : 15 Cable : 10

The message Enjoy your watching. is displayed. When you have finished, press the ENTER button. ➢ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Set current date and time Month

Move Adjust Enter Skip Plug & Play Enjoy your watching.

Setting the Clock Automatically 9 Press the ENTER button. Press the ▲ or ▼ button to select Off or On, then the ENTER button. The message Select the time zone in which you live. is displayed. Plug & Play Set to daylight saving time. DST : Off Off Move 10 P ress the ▲ or ▼ button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States). Press the ENTER button. If clock is not automatically set, see page 53 to set the clock. Enter Skip Plug & Play Select the time zone in which you live. Newfoundland Atlantic Eastern Central Mountain Pacific 11 The message Enjoy your watching. is displayed. When you have finished, press the ENTER button.

Move ➢ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Continued... Enter Skip Plug & Play Enjoy your watching.

English - 17 BN68-01532B-Eng.indb 17 2008-05-30 오후 2:32:08 If you want to reset this feature...

2 Press the ENTER button to select Plug & Play. For further details on setting up options, refer to the pages 16~17. ➢ The Plug & Play feature is only available in the TV mode. Setup Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Plug & Play Language

button, the TV changes channels in EXIT CH EXIT CH LIST INFO W.LINK W.LINK sequence. You will see all the channels that the TV has memorized. TOOLS EXIT CH LIST CH LIST INFO INFO W.LINK have memorized at least three channels). You will not (The TV must TOOLS TOOLS CH LIST that see channels INFOwere either erased or not memorized. See page 20 to memorize channels. TOOLS ➢ To increase the channel number, turn the wheel clockwise when the Channel Display is displayed. To decrease the channel number, turn the wheel counterclockwise. Using the Number Buttons

W.LINK CH LIST Press the number buttons to go directly to a channel. For example, to select channel 27, press 2, then 7. The TV will change channels when you press the second number. ➢ For quick channel change, press the number buttons, then press the ENTER button. ➢ You can press number buttons on Remote control for direct channel access, press the same Number button again to switch between digital and analog TV channels broadcast by the same station. RETURN RETURN Using the “-” Button EXIT The “ ” button is used to select stations that broadcast a digital signal. INFO EXIT W.LINK 1 TOOLS For example, for Channel 7-1, press 7, then , then 1. CH LIST INFO High Definition signal. ➢ HD indicates the TV is receiving a Digital TOOLS SD indicates the TV is receiving a Standard Definition signal. ➢ For quick channel change, press the number buttons, then press the ENTER button. Using the PRE-CH Button to select the Previous Channel Use the number buttons to quickly tune to any channel.

Press the PRE-CH button. The TV will switch to the last channel viewed. ➢ To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them. English - 18 BN68-01532B-Eng.indb 18 2008-05-30 오후 2:32:09 Adjusting the Volume Using the Volume Buttons RETURN

RETURN Press the VOL or VOL button to increase or decrease the volume. EXIT W.LINK turn the volume up, turn the wheel clockwise when the Volume

➢ W.LINK EXIT CH LIST INFO

Control window is displayed. turn the volume down, turn the wheel TOOLS CH LIST INFO counterclockwise. TOOLS Using the Mute Button At any time, you can cut off the sound using the MUTE button.

EXIT INFO TOOLS The display identifies the current channel and the status of certain audio-video settings.

Press the INFO button on the remote control. The TV will display the channel, the type of sound, and the status of certain picture and sound settings. TV #1 DTV Air 13-1 Sun, Sep 3 1:45 pm Dolby Digital M. Spillane’s Mike Hammer 480i 4:3 English 12:59 pm - 1:59 pm Bonocrunch Press the INFO button once more or wait approximately 10 seconds and it disappears automatically. Viewing the Menus

To move to a lower menu, turn the wheel clockwise when the menu Display is on the screen. To move to a higher menu, turn the wheel counterclockwise. Picture With the power on, press the MENU button. The main menu appears on the screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input, Application. Mode : Standard Cell Light

It takes about one minute until the on-screen menu disappears. English - 19 BN68-01532B-Eng.indb 19 2008-05-30 오후 2:32:10 Using the Remote Control Backlight Buttons Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.

light button Pressing the ON/OFF light button toggles between ON and OFF. ➢ When ON, the button backlight is turned on for a moment. ➢ Pressing a remote control button when the remote control is on turns the button backlight on for a moment. If you touch or move the remote control and the motion is detected by the sensor of the remote control, the button backlight will be turned on for a moment. ➢ The remote contains two small movement sensors that control the backlight function. If you shake or drop the remote, you may hear the sensors rattle. This is normal and is not a defect. ➢ The button backlight will not be turned on when the remote control is turned off. Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The TOOLS menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The TOOLS menu will appear. Press the ▲/▼ button to select a menu, then press the ENTER button. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page. Tools Device List Multi-Track Sound Picture Mode Sound Mode Sleep Timer Add to Favorite Switch to Cable ● Device List, see page 102 ● Multi-Track Sound, see page 38 ● Picture Mode, see page 23 ● Sound Mode, see page 36 ● Sleep Timer, see page 55 ● Add to Favorite, see page 43 ● Switch to Cable(or Switch to Air), see pages 20~21 ● PIP: see pages 34~35 ● Auto adjustment: see page 50

Stereo Standard Custom Off Move Enter Exit Memorizing the Channels RETURN Your TV can memorize and store all of the available channels for both air and cable channels. After the available RETURN channels are memorized, use the CH button to scan through the channels. This eliminates the need EXIT CH to change channels by entering theW.LINK channel digits. There are three steps for memorizing channels: selecting a EXIT CH LIST INFO W.LINK broadcast source, memorizing the channels (automatic) and adding and deleting channels (Channel Lists). CH LIST INFO TOOLS

Channel Selecting the Video Signal-source TOOLS Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Antenna : Air

Stereo Standard Custom Off Move Enter Exit Storing Channels in Memory (Automatic Method)

When selecting the Cable TV system: Press the ENTER button to start the auto program. Press the ◄ or ► to select the correct analog signal cable system source among STD, HRC, and IRC, then press the ENTER button. If you have Digital cable TV, select the cable system signal source for both Analog and Digital. ➢ STD, HRC, and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected. Enter Return Auto Program Select the cable system. Analog STD HRC IRC Digital STD HRC IRC Start Move Enter Return Auto Program Auto Program in Progress.

The TV begins memorizing all available stations. After all the available channels are stored, the TV starts to remove scrambled channels (see page 47). The Auto program menu then reappears. If you want to stop Auto Programming, press the ENTER button. The Stop Auto Program? message will be displayed. Select Yes by pressing the ◄ or ► button, then press the ENTER button. DTV Air : 5 Air : 4 DTV Cable : -- Cable : -- Stop Enter Return Auto Program Removing scrambled channel. DTV Air : 5 DTV Cable : 7 Press the EXIT button to exit. Cable 3

Air : 4 Cable : 5 DTV Cable 41 77% Stop Enter Return Auto Program Auto Program is completed. 56 channels are memorized. DTV Air : 20 Air : 11 DTV Cable : 15 Cable : 10 Enter Return English - 21 BN68-01532B-Eng.indb 21 2008-05-30 오후 2:32:11 To Select the Source Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.

Input Press the MENU button to display the menu. Press the ▲ or ▼ button to select Input, then press the ENTER button. Source List Edit Name 2 Press the ENTER button to select Source List. Press the ▲ or ▼ button to select the signal source, then press the ENTER button. ➢ Available signal sources: TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4,USB. ➢ You can choose only those external devices that are connected to the TV. In the Source List, connected inputs will be highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom. ➢ Using the Color buttons on the remote with the Source list.

• Red (Refresh): Refreshes the connecting external devices.

Refresh TOOLS Option You can also press the SOURCE button on the remote control to view an external signal source. To Edit the Input Source Name You can name the device connected to the input jacks to make your input source selection easier.

Enter Return Edit Name Press the EXIT button to exit. AV1 ➢ When a PC with a resolution of 1920 x 1080@60Hz is connected to the S-Video HDMI IN 2 port, you should set the HDMI2 mode to PC in the Edit Name of the Input mode.

Press the MENU button to display the menu. Press the ENTER button to select Picture. Picture You can select the type of picture which best corresponds to your viewing requirements. Mode :Standard Cell Light

• Dynamic: Select the picture for high-definition in a bright room.
• Standard: Select the picture for the optimum display in the normal environment.
• Movie: Select the picture for viewing movies in a dark room. Picture 2 Press the ENTER button to select Mode. Press the ▲ or ▼ button to select Dynamic, Standard, or Movie. Press the ENTER button. 3 Press the EXIT button to exit. : Dynamic Cell Light Contrast : 7Standard Movie : 80 Brightness : 45 Sharpness : 50 Color : 50 Tint (G/R) : G50/R50 Detailed Settings Tools Easy Setting 1 Press the TOOLS button on the remote control. 2 Press the ▲ or ▼ button to select Picture Mode. 3 Press the ◄ or ► button to select the required option.

Stereo ◄ Standard ► Custom Off Move Customizing the Picture Settings Adjust Exit Your television has several setting options that allow you to control the picture quality.

Mode Picture To select the desired picture mode, follow the “Changing the Picture Standard” instructions number 1 to 2. 2 Press the ▲ or ▼ button to select Cell Light, Contrast, Brightness, Sharpness, Color, or Tint (G/R), then press the ENTER button. 3 Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. Press the EXIT button to exit. ➢ • When you make changes to Cell Light, Contrast, Brightness, Sharpness, Color, or Tint (G/R) the OSD will be adjusted accordingly.

• When in PC mode, Tint(G/R), Sharpness and Color are not available.
• Each adjusted setting will be stored separately according to its input mode.
• Cell Light: Selects the brightness of PDP Cell Light.
• Contrast: Adjusts the contrast level of the picture.
• Brightness: Adjusts the brightness level of the picture.
• Sharpness: Adjusts the edge definition of the picture.
• Color: Adjusts color saturation of the picture.
• Tint(G/R): Adjusts the color tint of the picture by compensating the red and green color. :Standard Cell Light

Move Adjust Enter Return English - 23 BN68-01532B-Eng.indb 23 2008-05-30 오후 2:32:12 Adjusting the Detailed Settings Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings. Activating Detailed Settings

Picture Options Detailed Settings Press the ▲ or ▼ button to select Black adjust, then press the ENTER button. Press the ▲ or ▼ button to select Off, Low, Medium or High. Press the ENTER button.

• Off: Turns off the black adjustment function.
• Low: Sets the black color depth to low.
• Medium: Sets the black color depth to medium.

• Off: Turns off the dynamic contrast adjustment function.
• Low: Sets the dynamic contrast to low.
• Medium: Sets the dynamic contrast to medium.
• High: Sets the dynamic contrast to high. Activating Gamma You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3)

• Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.
• Native: Native Color Space offers deep and rich color tone.
• Custom: Adjusts the color range to suit your preference. (see “Customizing the Color Space”) Enter Return Auto Native : Low Custom Color Space Move Enter Return Customizing the Color Space 13 Press the ▲ or ▼ button to select Color, then press the ENTER button. ➢ Color is available when Color Space is set to Coustom. 14 Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button. Color Space Color Space Color Red Green Blue Reset : Custom : Red

• Red: Adjusts the red saturation level.
• Green: Adjusts the green saturation level.
• Blue: Adjusts the blue saturation level.
• Reset: Resets the color space to the default values. Return Red Green Blue Yellow Cyan : Low Magenta 15 P ress the ▲ or ▼ button to select “Red”, “Green”, or “Blue” to change it. Press the ENTER button. 16 Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. ➢ In Color, you can adjust the RGB values for the selected color. ➢ To reset the adjusted RGB value, select Reset. Enter Move Enter Return Color Space Red

Move Adjust Enter Return ➢ Changing the adjustment value will refresh the adjusted screen. ➢ S ettings can be adjusted and stored for each external device you have connected to an input of the TV. For example, if you have a DVD player connected to HDMI 1 and it is currently selected, settings and adjustments will be saved for the DVD player. Continued... English - 25 BN68-01532B-Eng.indb 25 2008-05-30 오후 2:32:13 Activating White Balance You can adjust the color temperature for more natural picture colors. Detailed Settings 17 Press the ▲ or ▼ button to select White Balance, then press the ENTER button. 18 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Black Adjust : Off Dynamic Contrast : Medium Gamma

Edge Enhancement : On Enter Move 19 Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button.

• R-Offset: Adjusts the red color darkness.
• G-Offset: Adjusts the green color darkness.
• B-Offset: Adjusts the blue color darkness.
• R-Gain: Adjusts the red color brightness.
• G-Gain: Adjusts the green color brightness.
• B-Gain: Adjusts the blue color brightness.
• Reset: The previously adjusted white balance will be reset to the factory defaults.

Changing the adjustment value will refresh the adjusted screen. Return White Balance R-Offset

Enter Return Off : On Enter Return Continued... English - 26 BN68-01532B-Eng.indb 26 2008-05-30 오후 2:32:13 Activating xvYCC Setting the xvYCC mode to On increases detail and color space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. 24 Press the ▲ or ▼ button to select xvYCC, then press the ENTER button. 25 Press the ▲ or ▼ button to select Off or On. Press the ENTER button. ➢ x vYCC is available when the picture mode is set to Movie, and the external input is set to Component or HDMI(Y,Cb,Cr) mode. Detailed Settings Dynamic Contrast : Medium Gamma

Press the ▲ or ▼ button to select a particular item. Press the ENTER button. ➢ When you are satisfied with your setting, press theENTER button. ➢ In PC mode, you can only make changes to the Color Tone, Size and Screen Burn Protection from among the items in Picture Options. Picture

Press the ▲ or ▼ button to select Color Tone, then press the ENTER button. ress the ▲ or ▼ button to select Cool2, Cool1, Normal, Warm1 or Warm2. Press the ENTER button. ➢ Warm1 or Warm2 is only activated when the picture mode is Movie. ➢ Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Picture Reset Adjusting the Color Tone 1 Follow the Activating Picture Options instructions numbers 1 and 2.

Film Mode Normal : 2min Warm1 : 2min Warm2 : 2min Blue Only Mode : Off DNle HDMI Black Level Move Enter Return Continued... English - 27 BN68-01532B-Eng.indb 27 2008-05-30 오후 2:32:13 Changing the Screen Size Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible. 1 Follow the Activating Picture Options instructions numbers 1 and 2.

• 16:9 : Sets the picture to 16:9 wide mode.
• Zoom1 : Magnifies the size of the picture on the screen.
• Zoom2 : Expands the Zoom1 format picture.
• Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen.
• 4:3 : Sets the picture to 4:3 normal mode.
• Just Scan : Use this function to see the full image without any cutoff when HDMI(720p/1080i/1080p), Component(1080i/1080p) or DTV(1080i) signals are input. ➢ When Double (

Zoom1 Zoom2 Wide Fit 4:3 Just Scan Move ) mode has been set in PIP, the Picture Size cannot ➢ Temporary image retention may occur when viewing a static image on the set for more than two hours.

Return Enter Reset Return Settings can be adjusted and stored for each external device you have connected to an input of the TV. Input Source Picture Size ATV, Video, S-Video, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3 DTV(720p), Component (720p) 16:9, 4:3, Wide Fit DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p) 16:9, 4:3, Wide Fit, Just Scan

16:9, 4:3 Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size. English - 28 BN68-01532B-Eng.indb 28 Continued... 2008-05-30 오후 2:32:14 16:9 Sets the picture to 16:9 wide mode. Zoom1 The screen size when Wide screen is vertically enlarged. Zoom2 The screen size when the Zoom1 screen is vertically enlarged. Wide Fit Enlarges the aspect ratio of the picture to fit the entire screen. 4:3 Sets the picture to 4:3 normal mode. Just Scan Use this function to see the full image without any cutoff when HDMI(720p/1080i/1080p), Component(1080i/1080p) or DTV(1080i) signals are input. Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Press the ▲ or ▼ button to select Off, Low, Medium, High or Auto. Press the ENTER button.

• Off: Turns the screen noise reduction function off.
• Low: Reduces screen noise at a low level.
• Medium: Reduces screen noise at a medium level.
• High: Reduces screen noise at a high level.
• Auto: Automatically recognizes and reduces screen noise. Return Picture Options Color Tone : Normal Size : 16:9 Digital NR : Auto Off DNle Low : On Medium : Normal High : Off Auto : Off HDMI Black Level Film Mode Blue Only Mode Press the EXIT button to exit. Enter

Move Enter Return Continued... English - 29 BN68-01532B-Eng.indb 29 2008-05-30 오후 2:32:16 DNIe (Digital Natural Image engine) This TV includes the DNIe function to provide high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated.

Press the ▲ or ▼ button to select On or Off or then press the ENTER button.

• Off: Switches off the DNIe mode.
• On: Switches on the DNIe mode. Press the EXIT button to exit. ➢ DNIe™ (Digital Natural Image engine) This feature brings you a more detailed image with 3D noise reduction and detail, contrast and white enhancement. : Normal Size : 16:9 Digital NR DNle : Auto Off : On HDMI Black Level

• Normal: The screen gets brighter.

Enter Return Continued... English - 30 BN68-01532B-Eng.indb 30 2008-05-30 오후 2:32:16 Setting the Film Mode The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 27)

ress the ▲ or ▼ button to select Blue Only Mode, then press the ENTER button. Return Picture Options Color Tone Film Mode Setting the Blue Only Mode This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Color and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Color and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Color Bar Patterns, without using an additional Blue Filter.

Blue Only Mode is available when the picture mode is set to Movie or Standard. Size : 16:9 Digital NR : Auto DNle : Off HDMI Black Level : Normal Film Mode : Off Off : Off Screen Burn Protection Blue Only Mode Move Enter Return Continued... English - 31 BN68-01532B-Eng.indb 31 2008-05-30 오후 2:32:17 Reducing the Effects of Screen Burn If screen burn has occurred, you can select a white screen or scrolling to help remove screen burn artifacts. 1 Follow the Activating Picture Options instructions numbers 1 and 2. (Refer to page 27) 2 Press the ▲ or ▼ button to select Screen Burn Protection, then press the ENTER button. Picture Options Size : 16:9 Digital NR : Auto DNle : Off HDMI Black Level : Normal Film Mode : Off Blue Only Mode : Off Enter Move 3 Press the ▲ or ▼ button to select Pixel Shift, All White, Scrolling, or Side Gray then press the ENTER button. Press the EXIT button to exit.

• All White This function removes after-images on the screen by changing the color of pixels to white. Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.
• Scrolling This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time.
• Side Gray When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. To prevent the screen burn from happening, select Dark or Light.

• Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.
• Light: When you set the screen ratio to 4:3, it brightens the left and right sides. ➢ To remove after-images on the screen, use either the All White or Scrolling function. Although both functions remove after-images on the screen, Scrolling is more effective. ➢ The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again. ➢ Press any key on the remote control to cancel this feature. Continued... English - 32 BN68-01532B-Eng.indb 32 2008-05-30 오후 2:32:17 Preventing Screen Burn-in To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/ down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.

All White Scrolling Side Gray : Dark Enter Move 3 Press the ENTER button to select Pixel Shift, then press the ENTER button. Pressing the ▲ or ▼ button will alternate between On and Off. You will also see the items Horizontal Dot, Vertical Line and Time.

• Pixel Shift: Using this function, you can minutely move pixels on the PDP in the horizontal or vertical direction to prevent after-images on the screen. Pixel Shift Pixel Shift

Cancel Viewing Picture-in-Picture You can use the PIP feature to simultaneously watch the TV tuner (analog broadcasts only) and one external video source. (See page 40 to select the PIP picture sound.) This product has one built-in tuner, which does not allow PIP to function in the same mode. Please see ‘PIP Settings’ below for details.

While V-Chip (See page 57) is in operation, the PIP function cannot be used. Setup Activating Picture-in-Picture

Press the ENTER button again. Press the ▲ or ▼ button to select On, then press the ENTER button. ➢ If you turn the TV off while watching in PIP mode and turn it on again, the PIP window will disappear. ➢ You can view Analog TV broadcasts on the PIP screen (sub-picture) when the main picture is from an external device connected to HDMI 1,HDMI/DVI 2, HDMI 3, HDMI 4, Component 1, 2 or PC. ➢ PIP Settings Main picture Sub picture Component 1, 2

HDMI 1, HDMI2/DVI, HDMI 3, HDMI 4

Analog TV broadcasts only Entertainment : Off Energy Saving : Off PIP

Air/cable : Cable Channel : Cable 3 Size Enter Move Return PIP Changing the Size of the PIP Window 3 Press the ▲ or ▼ button to select Size, then press the ENTER button. Press the ▲ or ▼ button to select the desired size of the PIP window, then press the ENTER button. ➢ You may notice that the picture in the PIP window becomes slightly unnatural when you use the main picture to view a game or karaoke. PIP : On Size

Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button at the bottom of the remote to select the desired channel in the PIP window, then press the ENTER button. Press the EXIT button to exit. ➢ You can select only analog TV broadcasts on the PIP screen (sub-picture). PIP PIP

Press the TOOLS button on the remote control.

Standard Custom Off Move Enter Exit PIP PIP

Return English - 35 BN68-01532B-Eng.indb 35 2008-05-30 오후 2:32:18 Sound Control Changing the Sound Standard You can select the sound mode to best suit the programming you’re watching.

Equalizer 2 Press the ENTER button to select Mode. Press the ▲ or ▼ button to select Standard, Music, Movie, Speech, or Custom sound setting, then press the ENTER button. SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Stereo Auto Volume : Off TV Speaker : On Sound Select : Main Mode : Standard Press the EXIT button to exit. Standard: Selects the normal sound mode. Music: Emphasizes music over voices. Movie: Provides the best sound for movies. Speech: Emphasizes voice over other sounds. Custom: Recalls your customized sound settings. (see Customizing the Sound) Sound

Music Equalizer Press the EXIT or TOOLS button to exit.

Stereo Standard ◄ Custom ► Off Move Adjust Exit Customizing the Sound The sound settings can be adjusted to suit your personal preference.

Press the ▲ or ▼ button to select a particular frequency to adjust. Press the ◄ or ► button to increase or decrease the level of the particular frequency.

• Mode: Selects the sound mode among the predefined settings.
• Balance L/R: Adjusts the balance between the right and left speaker.
• Bandwidth Adjustment (100Hz, 300Hz, 1kHz, 2kHz, 3kHz, 10kHz): To adjust the level of different bandwidth frequencies. Equalizer Mode : Custom Balance

Move Adjust Resetting the Equalizer Settings to the Factory Defaults

The equalizer resets to the factory defaults. Press the EXIT button to exit. Enter Return Equalizer

Move Enter Return Custom mode returns to default settings. Setting the TruSurround XT TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two-speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multi channel formats.

: English Multi-Track Sound : Stereo Auto Volume : Off TV Speaker : On Sound Select : Main Sound Reset TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. English - 37 BN68-01532B-Eng.indb 37 2008-05-30 오후 2:32:19 Choosing Preferred Language The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). Preferred language

Sound Reset Press the EXIT button to exit. ➢ You can only select the language from among the actual languages being broadcast. ➢ Preferred Language is available only in Digital TV mode. Equalizer Sound 3 Press the ▲ or ▼ button to choose the language (English, Spanish, or French) you want, then press the ENTER button. SRS TruSurround XT : Off Preferred Language : English English Multi-Track Sound Spanish : Mono Auto Volume French : Off TV Speaker : On Sound Select : Main Sound Reset Choosing a Multi-Channel Sound (MTS) Track - Analog Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Multi-Track Sound

ono: Choose for channels that are broadcasting in mono or if you are having a difficulty receiving a stereo signal.

• Stereo: Choose for channels that are broadcasting in stereo. AP: Choose to listen to the Separate Audio Program, which is usually a foreign language translation. SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Mono Mono Auto Volume Stereo : Off TV Speaker SAP : Off Sound Select : Main Sound Reset Multi-Track Sound is available only in Analog TV mode. Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Tools Device List Easy Setting

Off Add to Favorite Switch to Cable Press the EXIT or TOOLS button to exit. English - 38 BN68-01532B-Eng.indb 38 Move Enter Exit 2008-05-30 오후 2:32:19 Automatic Volume Control Reduces the difference in volume level among broadcasters.

: Off Sound Select : Main Sound Reset Setting the TV Speakers On/Off Sound output from the TV speakers is muted.

• The VOL , VOL and MUTE buttons do not operate when the EXIT W.LINK TV Speaker is set to Off. Multi-Track Sound : Stereo Auto Volume : Off TV Speaker : Off Off Sound Select

AV, S-Video Component, PC, HDMI TV Speaker On Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output TV Speaker Off Mute Mute Mute Sound Output Sound Output Sound Output Video No Signal Mute Mute Mute Mute Mute Mute English - 39 BN68-01532B-Eng.indb 39 2008-05-30 오후 2:32:20 Listening to the Sound of the Sub (PIP) Picture When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

Sound Reset 2 Press the ▲ or ▼ button to select Sound Select, then press the ENTER button. 3 Press the ▲ or ▼ button to select Main or Sub, then press the ENTER button.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture.

Sound Press the EXIT button to exit. Auto Volume : Off TV Speaker : On Sound Select : Main Main Sound Reset Sub You can select this option when PIP is set to On. (See page 34) Resetting the Sound Settings to the Factory Defaults You can restore the Sound settings to the factory defaults.

Sound Reset Select the sound reset options. Reset All Reset Sound Mode Move Cancel Enter Return Audio settings changed to default. Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room. ➢ When you insert the headphone’s plug into the headphone jack, you can operate TV Side Panel only Preferred Language (in digital TV mode), Multi-Track Sound (in analog TV mode), Auto Volume, Sound Select (in PIP mode) and Sound Reset in Sound menu.

Prolonged use of headphones at a high volume may damage your hearing. You will not hear sound from the speakers when you connect headphones to the TV. RETURN The headphone volume and TV volume are adjusted separately. RETURN Press the VOL W.LINK W.LINK CH LIST CH LISTEXIT INFO

EXIT INFO TOOLS button to adjust the headphone's volume.

English - 40 TOOLS BN68-01532B-Eng.indb 40 2008-05-30 오후 2:32:21 Channel Control Managing Channels Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts.

Auto Program Clear Scrambled Channel Channel Viewing All Channels Show all currently available channels. To use the Channel List function, first run Auto Program (see page 21). Channel List Fine Tune Signal Strength Press the ◄ button to select Added Channels. Press the ▲ or ▼ button to select All Channels, then press the ENTER button. ➢ Shows all currently available channels. Added Channels

7-1 9-1 10-1 11-1 Air Antenna Air ♥ SBS Air ♥ KBS D-2 Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Zoom Select TOOLS Option Select TOOLS Option Air ♥ SBS Air ♥ KBS D-2 Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Zoom Press the CH LIST button on the remote control to bring up the channel lists. Using the Color buttons on the Remote with the Channel List ed (Antenna): Switches to DTV air or DTV cable.

• Green (Zoom): Enlarges or shrinks a channel number.
• Yellow (Select): Selects multiple channel lists.
• TOOLS (Option): Displays the Add (or Delete), Add to Favorite (or Delete from Favorite), Timer Viewing, Channel Name Edit, and Auto Program menus. ➢ A gray-colored channel indicates the channel has been deleted. The Add menu

only appears for deleted channels. A channel marked with ♥ mark means the channel has been set as a Favorite. The Delete from Favorite menu only appears for channels with the ♥ mark. Continued... English - 41 BN68-01532B-Eng.indb 41 2008-05-30 오후 2:32:22 Erasing and Adding Channels You can delete or add a channel to display the channels you want. Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Press the ◄ button to select Added Channels.

Press the ▲ or ▼ button to select All Channels. ➢ Shows all currently available channels. Press the ENTER button.

Fine Tune Signal Strength

6-1 Press the ▲ or ▼ button to select a channel to delete, then press the TOOLS button. Press the ENTER button to select Delete. ➢ All deleted channels will be shown on Added Channels menu.

Press the EXIT button to exit. ➢ You can also add a channel to the Added Channels menu in the same Air manner. Channels list.

➢ To Add (Restore) a channel back to the Added Channel List, follow steps 1-3 above, press the ▲ or ▼ button to select a channel to add, the press the TOOLS button. Press the ENTER button to select Add. Antenna

6-1 Added Channels ➢ A channel must be deleted before it can be added back to the Added Antenna

Channel List Added Channels

Clear Scrambled Channel Channel

Auto Program Air Antenna Air ♥ SBS Air ♥ KBS D-2 Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Zoom Select TOOLS Option Select TOOLS Option Air ♥ SBS Air ♥ KBS D-2 Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Zoom Air ♥ SBS Air ♥ KBS D-2 Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Zoom Delete Add to Favorite Timer Viewing Channel Name Edit Auto Program Select TOOLS Option Press the CH LIST button on the remote control to bring up the channel lists. Continued... English - 42 BN68-01532B-Eng.indb 42 2008-05-30 오후 2:32:22 Setting Your Favorite Channels You can set channels you watch frequently as favorites. Auto Program Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button. Press the ◄ button to select Added Channels.

Press the ▲ or ▼ button to select All Channels, then press the ENTER button. Shows all currently available channels.

ress the ▲ or ▼ button to select Add to Favorite, then press the ENTER button. The “♥” symbol will be displayed and the channel will be set as a favorite. Signal Strength 6-1

Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Air Antenna 6-1 Favorite 6 To cancel your favorite channel selection, press the TOOLS button when a favorite channel is selected. Press the ▲ or ▼ button to select Delete from Favorite, then press the ENTER button. The channel is deleted from Favorites and the “♥” mark disappears. Press the EXIT button to exit. Fine Tune Added Channels

Press the ▲ or ▼ button to select a channel as a favorite channel, then press the TOOLS button. Adding multiple channels to Favorites ➢ Press the ▲ or ▼ button to select the desired channel in the channel list. Then press the yellow button. Repeat the above operation to select multiple channels. The (✓) mark appears to the left of the selected channels. Channel List Added Channels

Clear Scrambled Channel Channel

Zoom Delete Add to Favorite Timer Viewing Auto Program Select TOOLS Option Delete Delete from Favorite Timer Viewing Auto Program Select TOOLS Option ♥ SBS 7-1 ♥ KBS D-2 9-1 ♥ KBS D-1 10-1 ♥ EBS DTV 11-1 ♥ MBCDTV ➢ You can also Add or Delete a channel from Favorites in the Added Channels menu in the same manner.

Air All favorite channels will be shown on Favorite menu. Antenna Zoom TOOLS Option Press the CH LIST button on the remote control to bring up the channel lists. To select the favorite channels you have set up, press the FAV.CH button on the remote control. Easy Setting

Press the TOOLS button on the remote control. Press the ▲ or ▼ button to select Add to Favorite or Delete from Favorite, then press the ENTER button. ➢ The current channel is added to or deleted from Favorites. Tools Device List Multi-Track Sound : Stereo Picture Mode Standard Sound Mode Custom Sleep Timer Off Add to Favorite Switch to Cable Move Enter Exit Continued... English - 43 BN68-01532B-Eng.indb 43 2008-05-30 오후 2:32:23 Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

Press the ▲ or ▼ button to select a channel, then press the TOOLS button. Clear Scrambled Channel Channel List Fine Tune Signal Strength Added Channels

Auto Program Channel Reserving a Program (Time Viewing) If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program, set the current time first. See pages 52~53. Reserved chanels can only be set if they are in the Channel List (See page 41). 3 P ress the ▲ or ▼ button to select Timer Viewing, then press the ENTER button. The Reserve a Program (Timer Viewing) screen appears. Air

Press the ▲/▼/◄/► buttons to reserve a program and then press the ENTER button. Reserving a program has been completed. Press the EXIT button to exit.

You can also reserve a program in the All Channels or Favorite menus using the same procedures.

For information on how to confirm a viewing reservation, refer to page 46. Only memorized channels can be reserved channels.

You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control. 6-1

Air ♥ KBS D-1 Air ♥ EBS DTV ♥ MBC DTV Air Air Antenna Zoom Delete Delete from Favorite Timer Viewing Auto Program Select Option TOOLS Timer Viewing Antenna DTV Air Channel 7-1 Date 01-01-2008 Move Repeat once Start Time 10:09 am Adjust Enter Return Press the CH LIST button on the remote control to bring up the channel lists. : A program currently being broadcast. 6-1

Added Channels Digital Program Guide and Viewing Reservation When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above. : A reserved program. Air ♥ SBS Air 2007/2/3 2007/2/3 1/22/2008 7-1 ♥ KBS D-2

Channel List Fine Tune Signal Strength

Press the ◄ button to select Added Channels.

ress the ▲ or ▼ button to select Programmed, then press the ENTER button. You can view the program reservations. Added Channels

ress the ▲/▼/◄/► buttons to change a reservation setting and then press the ENTER button. The reservation modification is applied. 2007/2/3 Programmed

ress the ◄ or ► button to select OK, then press the ENTER button. The viewing reservation has been canceled. 2007/2/3 Programmed 4 To select a reservation item to be canceled, press the ▲ or ▼ button, andthen press the TOOLS button. Air Press the EXIT button to exit. Antenna TOOLS Option Information Programmed Menu

• Change Info: Select to change a viewing reservation.
• Cancel Schedules: Select to cancel a viewing reservation.
• Information: Select to view a viewing reservation. Press the CH LIST button on the remote control to bring up the channel lists. Continued... English - 45 BN68-01532B-Eng.indb 45 2008-05-30 오후 2:32:24 Labeling Channels - Analog Channels can labeled so that their call letters appear whenever the channel is selected.

6-1 7-1 9-1 10-1 Air Press the ▲/▼/◄/► button to select a letter, then press the ENTER button.

• Numeric buttons: You can enter numbers.
• Red button: You can switch between English and Characters.
• Green button: You can delete an already entered character.
• Yellow button: You can enter a blank space.
• Blue button: Press this button to finish renaming a channel. Antenna Added Channels

When you have finished, press the blue button to assign the new name. Zoom

Press the EXIT button to exit. ➢ The names of digital broadcasting channels are automatically assigned and cannot be labelled. Number

Character Delete Blank

Done Move Enter Return Storing Channels in Memory (Auto Program) Channels can labeled so that their call letters appear whenever the channel is selected.

6-1 7-1 9-1 10-1 Air Antenna Air ♥ Air Air ♥ Air Air ♥ Air Air ♥ Air Zoom Delete Add to Favorite Timer Viewing Channel Name Edit Auto Program Select TOOLS Option Press the ▲ or ▼ button to select Auto Program, then press the ENTER buton. For further details on setting up options, refer to pages 21.

Press the EXIT button to exit. English - 46 BN68-01532B-Eng.indb 46 2008-05-30 오후 2:32:25 Clearing Scrambled Channels - Digital The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20-30 minutes.

Antenna Channel Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Clear Scrambled Channel, then press the ENTER button. It searches scrambled channels, which are to be removed from the list. Press the EXIT button to exit. ➢ This function is only available in Cable mode. Clear Scrambled Channel

Channel List Fine Tune Signal Strength To stop searching scrambled channels; Press the ENTER button to select Stop. Press the ◄ button to select Yes, then press the ENTER button. 2 When the scrambled channel searching is completed, press the ENTER button. Auto Program Clear Scrambled Channel Removing scrambled channel. DTV Cable 122

Stop Enter Return Fine Tuning Analog Channels Use fine tuning to manually adjust a particular channel for optimal reception.

Signal Strength 2 Press the ▲ or ▼ button to select Fine Tune, then press the ENTER button. 3 Press the ◄ or ► button to adjust the fine tuning. To store the fine tuning setting in the TV’s memory, press the ENTER button. ➢ If you do not store the fine-tuned channel in memory, adjustments are not saved. Fine Tune Air 6 Reset Move Adjust Save Return Fine Tune Air 6

To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTER button. Press the EXIT button to exit. ➢ Only analog TV channels can be fine tuned. ➢ “ * ” will appear next to the number of fine-tuned channels.

Reset Move Adjust Save Return Fine Tune Air 6* Fine Tuned Reset Move Adjust Save Return Fine Tune Air 6 Fine Tuned Reset Move Enter Return English - 47 BN68-01532B-Eng.indb 47 2008-05-30 오후 2:32:26 Checking the Digital-Signal Strength Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.

2 Press the ▲ or ▼ button to select Signal Strength, then press the ENTER button. If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal. Press the EXIT button to exit. Channel List Channel Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Fine Tune Signal Strength

Enter Return English - 48 BN68-01532B-Eng.indb 48 2008-05-30 오후 2:32:26 PC Display Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

When the control panel window appears, click on Appearance and Themes and a display dialog-box will appear.

When the control panel window appears, click on Display and a display dialogbox will appear.

Navigate to the Settings tab on the display dialog-box. The correct size setting (resolution) Optimum: 1920 X 1080 pixels If a vertical-frequency option exists on your display settings dialog box, the correct value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box. Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing. D-Sub Input Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 350 720 x 400

English - 49 BN68-01532B-Eng.indb 49 2008-05-30 오후 2:32:26 Setting up the TV with your PC How to Auto Adjust

Picture Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives from the PC. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Picture, then press the ENTER button. Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER button. :Standard

Auto Adjustment Screen Detailed Settings Picture 2 The message Auto Adjustment in progress. Please wait. appears on the screen and the picture adjustments are automatically activated. Mode Cell Light Control Brightness : 45 Sharpness : 50 Auto Adjustment

Screen Detailed Settings Press the EXIT button to exit. ➢ This function does not work in DVI-Digital mode. ➢ Preset: Press the SOURCE button to select PC mode. Picture Options Picture Reset Auto Adjustment in progress. Please Wait. Easy Setting

Off PIP Auto Adjustment Move Adjusting the Screen Quality Sharpness Exit : 50 Auto Adjustment Picture The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then make the vertical frequency adjustments and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned in the center of the screen. Enter Screen

Detailed Settings Picture Options

Position Image Reset Press the EXIT button to exit. ➢ Vertical stripes may appear or the picture may be blurry. ➢ Preset: Press the SOURCE button to select PC mode. Move Enter Return

Position Image Reset Move Enter Return Image Reset is completed. English - 51 BN68-01532B-Eng.indb 51 2008-05-30 오후 2:32:27 Time Setting Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Manually

Press the ▲ or ▼ button to select DST (Daylight Saving Time), then press the ENTER button. Press the ▲ or ▼ button to select On or Off, then press the ENTER button. Press the EXIT button to exit. Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually. ➢ Antenna or Cable must be connected in order to set the time automatically.

• On Time: Set the Hour, Minute, am/pm, and Activation/Inactivation. (To activate timer with the setting you’ve chosen, set to Activate.)
• Off Time: Set the Hour, Minute, am/pm, and Activation/Inactivation. (To activate timer with the setting you’ve chosen, set to Activate.)
• Volume: Set the desired volume level.
• Contents: When the On Time is activate, you can turn on a specific channel or play back contents such as photo or audio files. – TV/USB: Select TV or USB. (Make sure that an USB device is connected to your TV.) – Antenna: Select Air or Cable. – Channel: Select the desired channel. – Music: Select the folder containing MP3 files on the USB device. – Photo: Select the folder containing JPEG files on the USB device.
• Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual. ➢ When Manual is selected, Press the ► button to select the desired day of the week. Press the ENTER button over the desired day and the mark ( ) will appear.

Sun Mon Tue Wed The Fri Sat Once Move Adjust Enter Return Contents TV/USB

Antenna Cable Channel

Music None Photo None Move Adjust Enter Return You can set the hour, and minute directly by pressing the number buttons on the remote control. Auto Power Off When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. Continued... English - 54 BN68-01532B-Eng.indb 54 2008-05-30 오후 2:32:28 Setting the Sleep Timer

Español Français V-Chip Caption External Settings Entertainment : Off Energy Saving : Off English - 56 BN68-01532B-Eng.indb 56 2008-05-30 오후 2:32:29 Using the V-Chip U.S.A Only This product is covered by the following U.S. patents : US4,930,158 US4,930,160 The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed.

Time Network setup Setup Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. ➢ The Screen Saver is activated if there is no remote control key input for longer than 1 minute while setting up the V-Chip. V-Chip

0~9 Enter PIN 3 The V-Chip screen will appear. Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. Re-enter the same 4 digits. When the message PIN is changed successfully. is displayed, your PIN has been memorized. Return V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Press the EXIT button to exit.

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off. → MUTE → 8 → 2 → 4 → Power On. Downloadable U.S. Rating Change PIN

0~9 Enter PIN 3 The V-Chip screen will appear. To enable the V-Chip feature, press the ENTER button so that the V-Chip Lock field is On. (Pressing the ▲ or ▼ button will alternate between On and Off.) Press the ENTER button. Return V-Chip V-Chip Lock : Off Off TV Parental Guidelines On MPAA Rating Canadian English Press the EXIT button to exit. Canadian French Downloadable U.S. Rating Change PIN Move Enter Return How to Set up Restrictions Using “TV Parental Guidelines”

Time Network setup Setup First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. V-Chip Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button.

MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move Enter Return Continued... English - 58 BN68-01532B-Eng.indb 58 2008-05-30 오후 2:32:29

The TV Parental Guidelines screen will appear. Press the ▲ or ▼ button to select one of the six aged based categories:

• TV-Y: All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages two to six.
• TV-Y7: Directed to older children. The themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of seven.
• TV-G: General audience. It contains little or no violence, no strong language, and little or no sexual dialog or situations.
• TV-PG: Parental guidance suggested. This program may contain infrequent coarse language, limited violence, some suggestive sexual dialog and situations.
• TV-14: Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.
• TV-MA: Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit sexual content.

TV Parental Guidelines Allow All Block All Move Enter Return At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process. ➢ Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. ➢ The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:

• ALL: Lock all TV ratings.
• FV: Fantasy violence.
• D: Sexually suggestive dialog.

• S: Sexual situation.
• V: Violence. The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The subratings (D, L, S, V) work together similarly. (See next section.)

How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14, or TV-MA (See Step 4), and press the ENTER button. The “ ” symbol will be displayed for each sub-rating. While “ ” is selected, press the ► button to go to a sub rating. Press the ENTER to block the sub rating. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.

Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based on the MPAA codes.) ➢ These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else). The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group. English - 59 BN68-01532B-Eng.indb 59 Continued... 2008-05-30 오후 2:32:30 How to Set up Restrictions Using “MPAA Ratings” (G, PG, PG-13, R, NC-17, X, NR )

Time Network setup Setup The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings). V-Chip

0~9 Enter PIN 3 The V-Chip screen will appear. Press the ▲ or ▼ button to select MPAA Rating, then press the ENTER button.

Canadian English Canadian French Downloadable U.S. Rating Change PIN Move

Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to block or unblock the category. Enter Return MPAA Rating Allow All Block All Press the EXIT button to exit.

• G: General audience (no restriction).
• PG: Parental guidance suggested.
• PG-13: Parents strongly cautioned.
• R: Restricted. Children under 17 should be accompanied by an adult.
• NC-17: No children under age 17.

Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

The V-Chip will automatically block any category that is more restrictive. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked also.

While a particular category is selected, press the ENTER button to activate it. The “ ” symbol will be displayed. Press the ENTER button to block or unblock the category. Enter Return Continued... English - 60 BN68-01532B-Eng.indb 60 2008-05-30 오후 2:32:30 How to Set up Restrictions Using “Canadian English”

0~9 Enter PIN 3 The V-Chip screen will appear. Press the ▲ or ▼ button to select Canadian English, then press the ENTER button.

Return V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English

Canadian French Downloadable U.S. Rating Change PIN Move

Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated. ” symbol is Enter Return Canadian English Allow All Block All Press the EXIT button to exit. ➢ Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

• C: Programming intended for children under age 8.
• C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• G: General programming, suitable for all audiences.
• PG: Parental guidance.
• 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14.
• 18+: Adult programming.

Move Enter Return The V-Chip will automatically block any category that is “more restrictive”. For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also. Continued... English - 61 BN68-01532B-Eng.indb 61 2008-05-30 오후 2:32:30 How to Set up Restrictions Using “Canadian French”

The V-Chip screen will appear. Press the ▲ or ▼ button to select Canadian French, then press the ENTER button.

Return V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French

Downloadable U.S. Rating Change PIN Move

Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated. ” symbol is Enter Return Canadian French Allow All Block All Press the EXIT button to exit. ➢ Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

• 8 ans+: Not recommended for young children.
• 13 ans+: Programming may not be suitable for children under the age of 13.
• 16 ans+: Programming is not suitable for children under the age of 16.
• 18 ans+: Programming restricted to adults.

0~9 Enter PIN 3 The V-Chip screen will appear. Press the ▲ or ▼ button to select Downloadable U.S. Rating, then press the ENTER button. ➢ If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. ➢ Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. ➢ The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. Return V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating

Change PIN Move Enter Return Rating title

Downloadable U.S. Rating Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated. Humor Level Press the EXIT button to exit. ➢ Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. ➢ Parental restriction levels differ depending on the broadcasting station. ➢ The default menu name and downloadable US rating changes depending on the downloaded information. ➢ Even if you set the on-screen display to your desired language, the Downloadable U.S. Rating menu will appear in English only. ➢ The rating will automatically block certain categories that are more restrictive. ➢ The rating titles (for example: Humor Level..etc) and TV ratings (for example: DH,MH,H..etc) may differ depending on the broadcasting station.

Block All Move The number of current rating information Enter Return The number of all rating information Continued... English - 63 BN68-01532B-Eng.indb 63 2008-05-30 오후 2:32:31 How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

Press the ENTER button to select OK. To resume normal viewing, tune to a different channel using CH

button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V-Chip function for an “emergency escape”: Received Rating : TV-G/MPAA X/Canadian English : C8+ This channel is blocked by V-Chip. Prees ENTER to unblock.

Change Enter Channel Is Locked by

Enter your PIN, then press the ENTER button, and press the ▲ or ▼ button to temporarily disable the V-Chip Lock. ➢ If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off. → MUTE → 8 → 2 → 4 → Power On. Use the NUMBER buttons to enter your pin number to unlock all channels. Press EXIT to clear PIN. Press MENU for main menu. English - 64 BN68-01532B-Eng.indb 64 2008-05-30 오후 2:32:31 Viewing Closed Captions (On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels.

Press the ▲ or ▼ button to select Digital Caption Options, then press the ENTER button. Press the ▲ or ▼ button to select Size, then press the ENTER button. Press the ▲ or ▼ button to select the desired caption option, then press the ENTER button. Press the ▲ or ▼ button to select the desired sub-menu options (see options below), then press the ENTER button. Press the EXIT button to exit. ➢ The availability of captions depends on the program being broadcast. ➢ Default means to follow the standard set by the broadcaster. ➢ Foreground and Background cannot be set to have the same color. ➢ Foreground Opacity and Background Opacity cannot be both set to Transparent.

• Size: This option consists of Default, Small, Standard, and Large. The default is Default.
• Font Style: This option consists of Default, Style0 ~ Style7. You can change the font you want. The default is Default.
• Foreground Color: This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the color of the letter. The default is Default.
• Background Color: This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the background color of the caption. The default is Default.
• Foreground Opacity: This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the opacity of the letter.
• Background Opacity: This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the background opacity of the caption.
• Return to Default: This option sets each of Size, Font Style, Foreground Color, Background Color, Foreground Opacity, and Background Opacity to its default. Return Caption Caption : On Default Caption Mode

Return to Default Move Enter Return Press the CC button on the remote control to turn the Caption On or Off. English - 65 BN68-01532B-Eng.indb 65 2008-05-30 오후 2:32:32 Viewing Closed Captions (On-Screen Text Messages) - Analog The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

• The default is Default.
• CC1: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame.
• CC2: The Special Non-Synchronous Use Captions.This channel carries data that is intended to augment information carried in the program.
• CC3: Secondary Synchronous Caption Service. Alternate program-related caption data, typically second language captions.
• CC4: Special Non-Synchronous Use Captions. Similar to CC2.
• Text1: First Text Service. This may be various non-program related data.
• Text2: Second Text Service. Additional data, usually not program related.
• Text3/Text4: Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.

• T he Caption feature doesn’t work in COMPONENT, PC, HDMI(DVI) modes.
• The availability of captions depends on the program being broadcast. You can also press the CC button on the remote control to select Captions On or Off. English - 66 BN68-01532B-Eng.indb 66 2008-05-30 오후 2:32:32 Adjusting the TV On/Off Melody Sound The TV power on/off melody sound volume can be adjusted.

Wall-Mount Adjustment Off: Turns off the melody function. Low: Sets the melody volume to low. Medium: Sets the melody volume to medium. High: Sets the melody volume to high. The Melody does not play - When no sound is output from the TV because the MUTE button has been pressed, RETURN - When no sound is output from the TV because you have reduced the volume to minimum by pressing the VOL button. EXIT W.LINK - When the TV is turned off by Timer function. CH LIST : On Low Medium High Press the EXIT button to exit.

External Settings Melody Move Enter Return INFO TOOLS Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. English - 67 BN68-01532B-Eng.indb 67 2008-05-30 오후 2:32:33 Setting the Entertainment mode The Entertainment mode enables you to select the optimal display and sound for sports, cinema and games. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button.

SW Upgrade Caption External Settings Entertainment

: OOff Energy Saving Sports : Off PIP Press the EXIT button to exit.

• Off: Switches the Entertainment function off.
• Sports: Provides the optimal picture and sound quality for sports.
• Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound.
• Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. Caption Setup

Cinema Game If you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off. The Entertainment settings are saved for each input source. You can press the E.MODE button on the remote control repeatedly to change the Entertainment setting. Using the Energy Saving Feature This feature adjusts the power consumption of the unit in order to save energy.

• Off: Switches off the Energy Saving mode.
• Low: Operates in standard mode.
• Medium: Enters medium power saving mode.
• High: Enters maximum power saving mode. English - 68 BN68-01532B-Eng.indb 68 2008-05-30 오후 2:32:33 Upgrading the Software Samsung may offer upgrades for your TV’s firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port.

Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the side of the TV.

TV side Panel HDMI IN 4 Software can not be upgraded through the LAN connection. USB Drive Energy Saving : Off PIP Setup 2 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. SW Upgrade

The message Scanning for USB... It may take up to 30 seconds. is displayed. Software Upgrade Scanning for USB..... It may take up to 30 seconds.

If the firmware on the USB is properly recognized, the message Upgrade version xxxx to version xxxx? The system would be reset after upgrade. is displayed. Press the ◄ or ► button to select OK, then press the ENTER button. The upgrade starts. Software Upgrade Upgrade version XXXX to version XXXX ? The system would be reset after upgrade.

Cancel Please be careful not to disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade. English - 69 BN68-01532B-Eng.indb 69 2008-05-30 오후 2:32:33 WISELINK Using the WISELINK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. 1 Press the POWER button on the remote control or front panel. ➣ The TV is powered on.

TV Side Panel HDMI IN 4 Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. USB Drive If you enter the WISELINK mode with no USB device connected the message “No external storage device found. Check the connection status.” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. MTP (Media Transfer Protocol) is not supported. The file system only supports FAT16/32 (The NTFS file system is not supported). Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Do not disconnect the USB device while it is loading. MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only. The sequential jpeg format is supported. Photo and audio files must be named in English, French or Spanish. If not, the files can not be played. Change the file names to English, French or Spanish if necessary. The higher the resolution of the image, the longer it takes to display on the screen. The maximum supported JPEG resolution is 15360x8640 pixels. For unsupported or corrupted files, the “Not Supported File Format” message is displayed. Using the Remote Control Button in WISELINK Menu Button Operations Move the cursor and select an item. Select the currently selected item. During a Slide Show or Music Play: - Pressing the ENTER button during play pauses the play. - Pressing the ENTER button during pause resumes the play. Play or pause the Slide Show or Music file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or Music file. Jump to previous group / Jump to next group. Show file information. Exit WISELINK mode.

Press the ▲ or ▼ button to select WISELINK, then press the ENTER button. ➢ The WISELINK menu is diplayed. WISELINK 851.98MB/995.00MB Free USB PHOTO Photo USB Device Music Setup Exit Press the W.LINK button on the remote control to display the WISELINK menu. Press the SOURCE button on the remote control repeatedly to select USB, then press the ENTER button.

Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory Device. (i.e. WiseLink Pro does not support the use of a usb hub.) Press the ENTER button. ➢ This function differs depending on the USB Memory Device connected to TV. ➢ The selected USB device name appears at the bottom left of the screen.

Press the ◄ or ► button to select Photo, then press the ENTER button. ➢ This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. RETURN ➢ Photo files are displayed. (Play)/ENTER button to start the Slide Show. ➢ Press the EXIT When moving a photo, loading may take a few seconds. At this W.LINK point, the loading icon will appear at the screen. CH LIST INFO ➢ It takes some time to load photo files as Thumbnail images. TOOLS ➢ Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. (REW) or ➢ To move to the previous / next group, press the (FF) button. Continued...

Currently selected photo Shows the currently selected photo. Photo Month Date Color Composition Folder Favorite 2 Photo Information Window Shows information about the currently selectedphoto. You can change the Color, Compositon, and Favorite. Current Sort Standard Press the ▲ or ▼ button to change the standard for sorting photos. (Monthly, Timeline, Color, Composition, Folder, Preference) The item that is selected as the sorting standing is highlighted in the Photo Information Window.

View Groups Shows the sorting groups. The sorting group including the currently selected photo is highlighted.

Current Device Shows the currently selected device name. Press the Red button to select a device.

Item Selection Information Shows the number of photos that are selected by pressing the Yellow button.

• Red(Device) button: Selects a connected device.
• Green(Favorites Setting) button: Changes the favorites setting for the selected photo. Press this button repeatedly until the relevant value appears.
• Yellow(Select) button: Selects photos from the photo list. Selected photos are marked with a symbol ( ) on the left.
• TOOLS(Option) button: Displays the Slide Show, Play Current Group, Delete, Change Group info (in Color or Composition group),Information or Safe Remove menus. RETURNthe previous sorting group / Jumps to the next sorting group. RETURN Jumps to Jump: W.LINK CH LIST EXIT INFO TOOLS W.LINK CH LIST EXIT INFO Continued... TOOLS English - 72 BN68-01532B-Eng.indb 72 2008-05-30 오후 2:32:36 Sorting Photo List WISELINK You can sort photos in the Photo List by a particular standard. PHOTO 1 Press the W.LINK button on the remote control to display the WISELINK menu.

851.98MB/995.00MB USB Press the ▲ or ▼ button to select a sorting standard. (Monthly, Timeline, Color, Composition, Folder, Preference) Device Photo Press ENTER to start the Slide Show in the order selected by the user. ➢ Wiselink identifies the color and composition of images and groups Music Setup Exit image_1.jpg Month Date Color Composition Folder Favorite : Jan : Jan.01.2008 : Gray : P-other

them accordingly by analyzing images on the USB device. ➢ The Composition and Color information extracted from a photo file may be different from what you selected. ➢ Photo information is automatically set. You can change the Color, Composition, and Favorite. ➢ Photos for which information cannot be displayed are set as Unclassified. ➢ PTP does not support folder sort mode. Monthly Preference Monthly Jan Device Photo Sorts photos by month. sorts and shows photos in the file by month. It sorts only by month (from ➢ ItJanuary to December) regardless of year.

Select Monthly as the sorting standard in the Photo List. Press the ◄ or ► buttons to select from the sublist of files grouped by Monthly Month. USB Device RETURN RETURN (REW) or ➢ To move to the previous / next group, press the (FF) button. 3 Press the TOOLS button. Press the ▲ or ▼ button to highlight Play EXIT EXIT Current Group.

4 Press ENTER button to play the the selected group of photo files from CH LISTCHthe

Timeline Favorites Setting Select Jump TOOLS Option TOOLS TOOLS Timeline Photo Sorts photos by time. sorts and shows photos by date. It sorts by year and month from the earliest ➢ Itphoto.

Select Timeline as the sorting standard in the Photo List. Press the ◄ or ► buttons to select from the sublist of files grouped by Timeline Timeline. RETURN RETURN move the previous next group, press the (REW) USB Device (FF) button. 3 Press the TOOLS button. Press the ▲ or ▼ button to highlight Play EXIT EXIT Current Group.

4 Press ENTER button to play the the selected group of photo files from CH LISTCHthe

Color Favorites Setting Select Jump TOOLS Option TOOLS TOOLS English - 73 BN68-01532B-Eng.indb 73 2008-05-30 오후 2:32:38 Color Sorts photos by color. ➣ You can change the photo color information. 1 Select Color as the sorting standard in the Photo List. 2 Press the ◄ or ► button to select from the sublist of files grouped by color. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group.

4 Press ENTER to play the selected group of photo files from the CH LISTCH LIST sublist. Changing the color information 1 Select Color as the sorting standard in the Photo List and press the ◄ or ► button to select a photo. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. 2 Press the TOOLS button. 3 Press the ▲ or ▼ button to select Play Current Group. Press the ENTER button. 4 Press the ◄ or ► button to select the desired option, then press the ENTER button. ➣ The group information of the current file is updated and the file is moved to the new group. ➣ “Color” options: Red, Yellow, Green, Blue, Magenta, Black, Gray, Unclassified. Photo image_1.jpg Month Date Color Composition Folder Favorite : Jan Silde Show : Jan.01.2008 Play Current Group : Gray Delete : P-other : ★ ★ ★ Change Group Info

Composition SUM Device Favorites Setting Select Composition Sorts photos by composition. ➣ You can change the compositional information of photos. 1 Select Composition as the sorting standard in the Photo List. 2 Press the ◄ or ► button to select from the sublist of files grouped by compositon. ➣ To move to the previous / next group, press the (REW) or (FF) button. 3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group.

4 Press ENTER to play the selected group of photo files from the CH LISTCH LIST sublist. Changing the composition information 1 Select Composition as the sorting standard in the Photo List and press the ◄ or ► button to select a photo. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. 2 Press the TOOLS button. 3 Press the ▲ or ▼ button to select Play Current Group. Press the ENTER button. 4 Press the ◄ or ► button to select the desired option, then press the ENTER button. ➣ The group information of the current file is updated and the file is moved to the new group. (horizontal), (vertical), (object), ➣ Composition options: (perspective), (pattern), Unclassified Photo image_1.jpg Month Date Color Composition Folder Favorite : Jan Silde Show : Jan.01.2008 Play Current Group : Gray Delete : P-other : ★ ★ ★ Change Group Info

RETURN RETURN Color Composition Unclassified

Folder EXIT EXIT SUM Device Favorites Setting Select Jump TOOLS Option INFO INFO TOOLS TOOLS Photo image_1.jpg Month Date Color Composition Folder Favorite : Jan : Jan.01.2008 : Gray : P-other

Unclassified Color Composition Folder Unclassified

SUM Device Favorites Setting Select Jump TOOLS Option Continued... English - 74 BN68-01532B-Eng.indb 74 2008-05-30 오후 2:32:41 Folder Sorts photos by folder. ➣ If there are many folders in USB, the photos files are shown in order in each folder. The photo file in the Root folder is shown first and the others are shown in alphabetical order by name. 1 Select Folder as the sorting standard in the Photo List. 2 Press the ◄ or ► button to select from the sublist of files grouped by folder. ➣ To move to the previous / next group, press the (REW) or button. (FF)RETURN 3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group. W.LINK EXIT W.LINKENTER to play the selected group of photo files from the 4 Press CH LIST sublist. CH LIST INFO Photo image_1.jpg Month Date Color Composition Folder Favorite : Jan Silde Show : Jan.01.2008 Play Current Group : Gray Delete : P-other : ★ ★ ★ Information

Preference SUM Device Favorites Setting Select Jump TOOLS Option TOOLS Option EXIT INFO TOOLS TOOLS Preference Sorts photos by preference. (Favorite) ➣ You can change the photo preferences. 1 Select Preference as the sorting standard in the Photo List. 2 Press the ◄ or ► button to select from the sublist of files grouped by preference. ➣ To move to the previous / next group, press the (REW) or button. (FF)RETURN 3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group. EXIT W.LINKENTER to play the selected group of photo files from the 4 Press sublist. CH LIST RETURN EXIT W.LINK CH LIST INFO INFO TOOLS TOOLS Changing the Favorites setting 1 Press the ◄ or ► button to select the desired photo in the Photo list. ➣ Changing the information of multiple files Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The mark appears to the left of the selected photo. 2 Press the Green button repeatedly until the desired setting appears. ➣ Favorites settings change completed. ➣ Favorite options: ★ ★ ★ , ★ ★ ★ , ★ ★ ★ , ★ ★ ★ ➣ Users can select the number of stars (up to 3) according to their preference. ➣ The stars in the Favorite options have no effect on priority. They are simply for grouping purposes. For example, files stored in the 3 star option do not have priority over files saved in the 1 star option. Photo image_1.jpg Month Date Color Composition Folder Favorite : Jan : Jan.01.2008 : Gray : P-other

English - 75 BN68-01532B-Eng.indb 75 2008-05-30 오후 2:32:42 Deleting the Photo files

Press the ◄ or ► button to select the desired photo in the Photo list.

Press the ◄ or ►button to select OK, then press the ENTER button. ➢ The photo is deleted. ➢ When a read-only file is deleted, the “Read-only file(s). Delete the file(s)?” message appear. ➢ If you select Cancel, the deletion is cancelled. 5 To exit WISELINK mode, press the W.LINK button on the remote control. ➢ You cannot remove the PTP-connected digital camera picture files. ➢ While removing files, don’t remove the USB memory device. ➢ You cannot recover a deleted photo file. Preference Monthly Jan USB Device Nov

Timeline Favorites Setting Select Jump TOOLS Option Delete Selected File(s) : image_1.jpg 1 File(s) Delete this file?

Cancel Deleting Multiple Photos

Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. ➢ Repeat the above operation to select multiple photos. ➢ The ( ) mark appears to the left of the selected photo.

Press the ▲ or ▼ button to select Delete selected File, then press the ENTER button. ➢ The Selected File(s): image... 2 File(s) Delete the selected file(s)? message appear.

Press the ◄ or ► button to select OK, then press the ENTER buttons. ➢ The selected photos are deleted. ➢ If you select Cancel, the deletion is cancelled. Photo image_1.jpg Month Date Color Composition Folder Favorite 1File(s) Selected : Jan : Jan.01.2008 Silde Show : Gray Delete selected File : P-other Deselect All

Safe Remove Preference Monthly Jan USB Device Nov

Timeline Favorites Setting Select Jump TOOLS Option Delete Selected File(s) : image_1.jpg 2 File(s) Delete the selected file(s)? 5 To exit WISELINK mode, press the W.LINK button on the remote control. ➢ You cannot remove the read-only files from the selected ones. ➢ You cannot recover a deleted photo file.

Cancel Viewing the Photo Information The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed.

Press the ▲ or ▼ button to select Information, then press the ENTER button. ➢ The information on the selected photo appears. Preference Monthly Jan USB Device Press the INFO button to viewing the information. Nov

Press the ◄ or ► button to select the desired photo in the Photo list.

Silde Show Play Current Group Delete Information : Gray : P-other

Preference Monthly Jan USB Device Nov

Timeline Favorites Setting Select image_1.jpg Jump TOOLS 440x440 Option 104.1KB 2008/1/1 ➢ During the slide show, files are displayed in order from the currently shown file. ➢ The Slide Show progresses in the order sorted in the Photo list. ➢ Music files can be automatically played during the Slide Show if the USB Background Music is set to On. (Refer to page 79)RETURN While a photo list is displayed, press the control to start slide show. Slide Show Previous Next TOOLS Option Return (Play)/ ENTER button on the remote EXIT W.LINK CH LIST INFO To perform a SlideShow with only the selected files TOOLS 1 Press the ◄ or ► button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. ➢ The mark appearsRETURNto the left of the selected photo. ➢ If you select one file, the SlideShow will not be performed. 2 Press the (Play)/ ENTER button ➢ The selectedW.LINKfiles willEXIT be used for the Slide Show. files, only the selected files will be used for the CH LIST ➢ If you have selected INFO Slide Show. TOOLS Playing current group Photo

Press the ▲ or ▼ button to select a sorting standard. (Monthly, Timeline, Color, Composition, Folder, Preference) 2 Press the ◄ or ► button to select the desired photo in the Photo list. (REW) or ➢ To move to the previous / next group, press the (FF) button. 3 Press the TOOLS button.

4 Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button. Only the photos in the sorting group including the selected

Favorites Setting Select Jump TOOLS Option INFO INFO TOOLS TOOLS Slide show function information icon (Displayed at the top left of the screen). Icon Current OSD Function RETURN (Photo) SlideShow W.LINK CH LIST EXIT Photo Pause INFO RETURN TOOLS W.LINK Photo Slide Show is in progress. RETURN You can pause a SlideShow and Music by pressing the (pause) / ENTER RETURN button on the remote control during a Slide Show. To resume the SlideShow, press the (play) / ENTER button on the remote EXIT W.LINK EXIT control again. W.LINK CH LIST EXIT CH LIST INFO TOOLS CH LIST INFO INFO Continued... TOOLS English - 77 TOOLS BN68-01532B-Eng.indb 77 2008-05-30 오후 2:32:45 Viewing a photo

Press the ◄ or ► button to move to Photo, then press the ENTER button. ➢ Photo files are displayed. Press the ◄ or ► button to select the desired photo in the Photo list. Then Press the Yellow button to select only one file.

Press the ENTER button over a photo icon. The currently selected photo is displayed in full screen. image_1.jpg USB

Slide Show Previous 440x440 Next TOOLS 104.1KB Option 2008/1/1 Return Using the option menu during a slide show (or Viewing a Photo)

During a slide show(or viewing a photo), Press the TOOLS button to set the option.

Move Rotate You can rotate images in full screen mode. Press the ▲ or ▼ button to select Rotate, then press the ENTER button. Press the ◄ or ► button repeatedly to rotate the photo by the desired amount.

Enter Exit 90˚ Whenever you press the ◄ button, it rotates by 270˚, 180˚, 90˚, and 0˚. Whenever you press the ► button, it rotates by 90˚, 180˚, 270˚, and 0˚. Rotate If you have select Zoom, the Rotate function is deactivate The rotated file is not saved. The Rotating function information icon is displayed at the top right of the screen Icon Current OSD Function

Rotating (0°) This rotates a photo to its original position 90˚ Rotating (90°) This rotates a photo by 90 degrees 180˚ Rotating (180°) This rotates a photo by 180 degrees 270˚ Rotating (270°) This rotates a photo by 270 degrees Continued... English - 78 BN68-01532B-Eng.indb 78 2008-05-30 오후 2:32:46 Zoom You can zoom into images in full screen mode. Press the ▲ or ▼ button to select Zoom, then press the ENTER button. Press the ◄ or ► button repeatedly to increase or decrease the Zoom effect. (x1 → x2 → x4) To move the enlarged photo image, press the ENTER button, then press the ▲/▼/◄/► buttons.

Note that when the enlarged picture is smaller than the original screen size, the location change function doesn’t work.

The enlarged file is not saved. Zoom

If you have select Rotate, the Zoom function is deactivate Zoom function information icon is displayed at the top right of the screen. Icon Current OSD Function

Zoom (x 1) Restore a photo to its original size.

Zoom (x 2) Zoom-into a photo at 2x.

Zoom (x 4) Zoom-into a photo at 4x. Pan Down Pan down to view the lower part of a zoomed-in photo. Move Pan Up Pan up to view the upper part of a zoomedin photo. Pan Right Pan right to view the right side of a zoomed-in photo. Pan Left Pan left to view the left side of a zoomed-in photo. Slide Show Speed You can select the slide show speed. Press the ▲ or ▼ button to select Slide Show Speed. Press the ◄ or ► button to select the desired option. (Normal → Fast → Slow)

Enter Return Tools You can select the Slide Show speed only during a slide show. Stop Slide Show Rotate Zoom Slide Show Speed ◄ Normal ► Background Music : Off Background Music Setting Picture Mode : Standard Sound Mode : Custom Information Move Background Music If you set Background Music On, the background music will be played when viewing photos one by one or in a Slide Show. Press the ▲ or ▼ button to select Background Music. Press the ◄ or ► button to select On or Off.

If you set Background Music to On, a screen appears immediately where you can set the Background Music.

• On: When the background music is available, if you select On, the music is played back. To use this feature, there must be music and photo files stored on the USB device.

If you turn off the Background Music, even if the Background Music Settings have been set up, the background music will not be played.

Loading music files is needed to change BGM Mode. Play music files in music category to load.

• Selected file: Plays a selected music fi le.

Enter Background Music setting menu is displayed. Selecting the background music file Press the ◄ or ► button to set BGM Mode to Selected file. Press the ▲ or ▼ button to select Selected Music File, then press the ENTER button. Press the ▲ or ▼ button to select a music file, then press the yellow button. The ( ) mark appears to the left of the selected music. Repeat the above operation to select multiple music files. Press the ENTER button. Selecting the background music file mood Press the ◄ or ► button to set BGM Mode to Mood. Press the ▲ or ▼ button to select BGM Mood. Then press ◄ or ► button to select the desired BGM mood. Press the ENTER button. BGM Mode option: Energetic, Rhythmical, Sad, Exciting, Calm ➢ Wiselink identifies the mood of the music files and groups them accordingly be analyzing the music files on the USB device. Adjust Enter Return Background Music setting BGM Mode

Selected file BGM Mood

Move Enter Return Background Music setting Safe Remove You can remove the device safely from the TV. Press the ▲ or ▼ button to select Safe Remove, then press the ENTER button. The Safely removing USB device. message appears and then the USB device can now be safely removed from TV. appears. Remove the USB device from the TV. BGM Mode

Select Music File Move Enter Return Continued... English - 80 BN68-01532B-Eng.indb 80 2008-05-30 오후 2:32:47 Using the Music List This menu shows MP3 files from among the files saved on a USB memory device.

Currently selected music Shows the currently selected music.

Current Sort Standard Press the ▲ or ▼ button to change the standard for sorting music files. (Title, Artist, Mood, Genre, Folder, Preference) Music 3 View Groups Shows the sorting groups. The sorting group including the currently selected music file is highlighted.

Current Device Shows the currently selected device name. Press the Red button to select a device. 1File(s) Selected 5 If Everyone Cared

Item Selection Information Shows the number of music files that are selected by pressing the Yellow button.

• Red(Device) button: Selects a connected device.
• Green(Favorites Setting) button: Changes the favorites setting for the selected music. Press this button repeatedly until the relevant value appears.
• Yellow(Select) button: Selects music files from the music list. Selected music files are marked with a symbol ( ) on the left. RETURN Jumps to RETURNthe previous sorting group / Jumps to the next sorting group. Jump:
• TOOLS(Option) button: Displays the Play Current Group, Delete, Change Group info(in Mood group), Information or Safe Remove menus. EXIT EXIT W.LINK W.LINK CH LIST CH LIST INFO TOOLS INFO TOOLS Continued... English - 81 BN68-01532B-Eng.indb 81 2008-05-30 오후 2:32:48 Sorting Music List You can sort music files in the Music List by a particular standard. 1 Press the W.LINK button on the remote control to display the WISELINK menu. 2 Press the ◄ or ► button to select Music, then press the ENTER button. ➢ Music files are displayed. 3 Press the ▲ or ▼ button to select a sorting standard. (Title, Artist, Mood, Genre, Folder, Preference) ➢ M usic files are sorted according to the newly selected sorting standard.

Press ENTER button to start playing music in the the order selected. ➢ Music information is set automatically and you can change the Favorite information. ➢ Music files for which information cannot be displayed are set to “Unclassified”. ➢ If there is no title information for a music file, the filename is displayed. ➢ If no information is available for the Genre, Artist, Album, or Year, the corresponding item is displayed as blank. WISELINK USB 851.98MB/995.00MB Free Music Photo USB Music Device Setup Exit Music If Everyone Cared If You Want Me Lies Nickelback Marketa lrgl... Glen Hansard All The Right Reas.. Blues Once Ost Soundtrack Once Ost Soundtrack Energetic Sad

Option Title Sorts music files by the title. It sorts the Music titles in alphabetical order, and shows the music file. 1 Select Title as the sorting standard in the Music List. 2 Press the ◄ or ► buttons to select from the sublist of files grouped in alphabetical order. (REW) or ➢ To move a file on the previous / next group, press the (FF)RETURN button to move to the previous / next group. 3 Press the TOOLS button. 4 Press the ▲ or ▼ buttons to select Play Current Group. 5 PressW.LINKENTEREXITbutton to play the selected group of music files from the sublist. Music

Option INFO INFO TOOLS TOOLS Artist Sorts music files by the artist. It sorts the music file by artist in alphabetical order. Select Artist as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by artist. (REW) or ➢ To move a file on the previous / next group, press the (FF)RETURN button to move to the previous / next group. 3 Press the TOOLS button. 4 Press the ▲ or ▼ buttons to select Play Current Group. 5 PressW.LINKENTEREXITbutton to play the selected group of music files from the sublist.

Sad Black Capricorn Day Delete Jamiroquai Information Synkronized

Select Jump TOOLS Option TOOLS TOOLS Continued.. English - 82 BN68-01532B-Eng.indb 82 2008-05-30 오후 2:32:48 Mood Sorts music files by the mood. ➢ You can change the music mood information. 1 Select Mood as the sorting standard in the Music List.

Music Gold ress the ◄ or ► buttons to select from the sublist of files grouped in alphabetical order.

To move a file on the previous / next group, press the (FF)RETURN button to move to the previous / next group. Press the TOOLS button.

Favorites Setting EXIT W.LINK 5 PressCH LISTENTER button to play the selected group of music files from the INFO sublist. Jamiroquai Information Exciting

Option INFO TOOLS TOOLS Changing the Mood information 1 Select Mood as the sorting standard in the Music List and press the ◄ or ► button to select a music file. 2 Press the TOOLS button. 3 Press the ▲ or ▼ button to select Change Group info. Press the ENTER button. ➢ Wiselink identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device. ➢ T he “Mood” information extracted from a music file may differ from what you selected. 4 Press the ◄ or ► button to select the desired option, then press the ENTER button. ➢ The group information of the current file is updated and the file is moved to the new group. ➢ Mood option: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassified Genre Music Sorts music files by the genre. Gold

Select Genre as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by genre. (REW) or ➢ To move a file on the previous / next group, press the (FF)RETURN button to move to the previous / next group. 3 Press the TOOLS button. 4 Press the ▲ orEXIT▼ buttons to select Play Current Group 5 PressW.LINKENTER button to play the selected group of music files from the CH LIST sublist. INFO Marketa lrgl... Once Ost Soundtrack Once Ost Soundtrack Sad

Mood USB Sad Black Capricorn Day Delete Exciting

Select Jump TOOLS Option INFO TOOLS TOOLS Continued.. English - 83 BN68-01532B-Eng.indb 83 2008-05-30 오후 2:32:49 Music Folder Sorts music files by the folder. ➢ If there are many folders in USB, the files are shown in order in each folder. The music file in the Root folder is shown first and the others are shown in alphabetical order by name. Select Folder as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by folder. (REW) or ➢ To move a file on the previous / next group, press the (FF)RETURN button to move to the previous / next group. 3 Press the TOOLS button. 4 Press the ▲ or ▼ buttons to select Play Current Group. 5 PressW.LINKENTEREXITbutton to play the selected group of music files from the sublist. CH LIST Gold Interference Black Capricorn Day Delete InformationJamiroquai Marketa lrgl... Once Ost Soundtrack Sad

Select Preference as the sorting standard in the Music List. Press the ◄ or ► button to select from the sublist of files grouped by folder. (REW) or ➢ To move a file on the previous / next group, press the (FF)RETURN button to move to the previous / next group. 3 Press the TOOLS button. 4 Press the ▲ orEXIT▼ buttons to select Play Current Group. 5 PressW.LINKENTER button to play the selected group of music files from the sublist. CH LIST INFO PlayBlack Current Group Capricorn Day If You Want Me Interference Marketa lrgl... Once Ost Soundtrack Once Ost Soundtrack Sad

Press the ◄ or ► button to select the desired music in the Music List. Music Gold Changing the information of multiple files Press the ◄ or ► button to select the desired music in the Music List. Then press the yellow button. Repeat the above operation to select multiple music. The mark appears to the left of the selected music. 2 Press the Green button repeatedly until the desired setting appears. ➢ F avorites settings change completed. ➢ F avorite option: ★ ★ ★ , ★ ★ ★ , ★ ★ ★ , ★ ★ ★ ➢ Users can select the number of stars (up to 3) according to their preference. 3 Press the ENTER button to start playing music. ➢ The stars in the Favorite options have no effect on priority. They are simply for grouping purposes. For example, files stored in the 3 star option do not have priority over files saved in the 1 s tar option.

Exciting Exciting Calm Unclassified Artist Mood Rhythmical Genre USB Device Favorites Setting Sad

Option Continued... English - 84 BN68-01532B-Eng.indb 84 2008-05-30 오후 2:32:49 Deleting the Music files 1 Press the ◄ or ► button to select the desired music in the music list.

Press the ▲ or ▼ button to select Delete, then press the ENTER button. ➢ The (for example) Selected File(s): Delete this file? message appear. Press the ◄ or ►button to select OK, then press the ENTER button. ➢ The music is deleted. ➢ When a read-only file is deleted, the Read-only file(s). Delete the file(s)? message appear. ➢ If you select Cancel, the deletion is cancelled.

If Everyone Cared 5 To exit WISELINK mode, press the W.LINK button on the remote control. ➢ While removing files, don’t remove the USB memory device. ➢ You cannot recover a deleted music files. Deleting Multiple Music files 1 Press the ◄ or ► button to select the desired music in the music list. Then press the yellow button. ➢ Repeat the above operation to select multiple music files. ➢ The ( ) mark appears to the left of the selected music files.

Music Press the TOOLS button. ress the ▲ or ▼ button to select Delete selected File, then press the ENTER button. ➢ The (for example) Selected File(s): Delete the selected file(s)? message appear. Marketa lrgl... All The Right Reas.. Blues Once Ost Soundtrack Energetic Sad

Option Delete Selected File(s) : If You Want Me.mp3... 1 File(s) Delete this file?

Artist USB Device Favorites Setting Press the ◄ or ► button to select OK, then press the ENTER button. ➢ The selected music files are deleted. ➢ If you select Cancel, the deletion is cancelled. Lies Group Play Current If You Want Me Nickelback

Option Delete Selected File(s) : If You Want Me.mp3... 2 File(s) Delete the selected file(s)? 5 To exit WISELINK mode, press the W.LINK button on the remote control. ➢ You cannot remove the read-only files from the selected ones. ➢ You cannot restore the deleted music files. Viewing the Information The music file information including the order of the file in the current directory, the name, the size, the date modified and the path is displayed.

Artist USB Press the INFO button to viewing the information. Device Favorites Setting

Press the ◄ or ► button to select Music, then press the ENTER button. ➢ Music files are displayed. 3 Pressing the ◄ or ► button to select a music file to be played, then press the ENTER button. ➢ This menu only shows files with the MP3 file extension. Files with other file extensions are not RETURN displayed, even if they are saved on the same USB device. (play) / ENTER button over a music icon to play the ➢ Press the EXIT music. W.LINK RETURN RETURN (REW) (FF) buttons doRETURNnot function during play. CH LIST INFO RETURN (pause) / ENTER button while playing a MP3 file to ➢ Press the RETURN pause the file. Press the TOOLS(stop) button to exit Play mode. EXIT EXIT EXIT displayed the top with its playing time. ➢ The selected fileW.LINKisW.LINK RETURN

volume, press the VOL or VOL button ➢ To adjust the music W.LINK EXIT

W.LINK CH LIST on the remote control. To mute theINFOsound, press the MUTE button on CH LIST INFO EXIT CH LIST the remote control. INFO TOOLS TOOLS W.LINK TOOLS TOOLS file may be displayed as ‘00:00:00’ if its ➢ The playing duration of a mp3 TOOLS CH LIST playing time information is not found at INFO the start of the file. If You Want Me Lies Nickelback Marketa lrgl... All The Right Reas.. Blues Once Ost Soundtrack Energetic Sad

Music Press the ◄ or ► button to select Music, then press the ENTER button. To move a file on the previous / next group, press the (REW) or (FF)RETURN button to move to the previous / next group. If Everyone Cared

ress the ▲TOOLS or ▼ button to select Play Current Group, then press the ENTER button. ➢ T he music files in the sorting group including the selected file are played. W.LINK W.LINK EXIT EXIT Once Ost Soundtrack Sad

Press the (Play) / RETURN ENTER button. EXIT ➢ Only the selectedW.LINKfile is played. button while playing to stop the current item and to ➢ Press the

return to theW.LINKmusic list.

Option 00:01:15 00:05:41 If Everyone Cared TOOLS TOOLS USB Pause Previous Next TOOLS Option Return Music function information icon (Displayed at the top left of the screen). Icon Current OSD (Music) Repeat When all music fi les in the folder(or the selected file) are repeated. Repeat Mode is On. (Music) One When all music fi les in the folder(or the selected file) are played once. Repeat Mode is Off. RETURN RETURN RETURN (Music) Play/Pause W.LINK CH LIST INFO W.LINK Repeating Music Play

When pressing the (play) / EXIT CHTOOLS LIST

Function W.LINK CH LIST EXIT RETURN on the remote control while music is playing. (pause) button EXIT INFO TOOLS EXIT W.LINK CH LIST INFO INFO TOOLS TOOLS While a Music file is playing, press the TOOLS button. Tools Repeat Mode Picture Mode Sound Mode Information Safe Remove Press the ▲ or ▼ button to select Repeat Mode. Press the ◄ or ► button to select On or Off.

• On: Plays back all music fi les in the folder(or the selected file) repeatedly.
• Off: Doesn’t play back repeatedly.

Safe Remove You can remove the device safely from the TV. (Refer to page 80) To exit WISELINK mode, press the W.LINK button on the remote control. English - 88 BN68-01532B-Eng.indb 88 2008-05-30 오후 2:32:52 Network Settings and InfoLink To access Samsung’s Infolink network feature, you must make one of the connections on the following pages. Network Connection - Cable LAN Connection for a DHCP Environment The procedures to set up the network using Dynamic Host Configuration Protocol (DHCP) are described below. Since an IP address, subnet mask, gateway, and DNS are automatically allocated when DHCP is selected, you do not have to enter them manually. TV Rear Panel The Modem Port on the Wall External Modem (ADSL/VDSL/Cable TV)

Connect the [LAN] port on the rear panel of the TV and the external modem with a LAN Cable. Connect the Modem port on the wall and the external modem with a Modem Cable. 2 Modem Cable You can connect the LAN via a Sharer (Router). IP Sharer TV Rear Panel The Modem Port on the Wall LAN Cable External Modem (ADSL/VDSL/Cable TV) Modem Cable You can connect the LAN port and the TV directly depending on your network status. TV Rear Panel The LAN Port on the Wall LAN Cable ➣ The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer. ➣ If the IP address allocation by the DHCP server has failed, turn the external modem off, turn it on again after at least 10 seconds and then try again. ➣ For the connections between the external modem and the Sharer (Router), refer to the owner’s manual of the corresponding product. ➣ You can connect the TV to the LAN directly without connecting it through a Sharer (Router) ➣ You cannot use a manual-connection-type ADSL modem because it does not support DHCP. You have to use an automaticconnection-type ADSL modem. English - 89 BN68-01532B-Eng.indb 89 2008-05-30 오후 2:32:55 LAN Connection for Static IP Environment The procedures to set up the network using a static IP address are described below. You have to manually enter the IP address, subnet mask, gateway, and DNS that are provided by your Internet Service Provider (ISP). TV Rear Panel The LAN Port on the Wall 1 Connect the [LAN] port on the rear panel of the TV and the LAN port on the wall using the LAN cable. 1 LAN Cable You can connect the LAN via a Sharer (Router). The Modem Port on the Wall IP Sharer TV Rear Panel LAN Cable Modem Cable turn ➣ The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer. ➣ If you are using a static IP address, your ISP will inform you of the IP address, subnet mask, gateway, and DNS. You must enter these values to complete the network settings. If you do not know the values, ask your network administrator. ➣ For the information on how to configure and connect a Sharer (Router), refer to the owner’s manual for the corresponding product. ➣ You can connect the TV to the LAN directly without connecting it through a Sharer (Router). ➣ If you use an IP Sharer (IP Router) that supports DHCP, you can set up the device as either DHCP or static IP. ➣ For the procedures to use a static IP address, ask your Internet Service Provider. English - 90 BN68-01532B-Eng.indb 90 2008-05-30 오후 2:32:58 Network Connection - Wireless You can connect to the Samsung’s Infolink network wirelessly through a wireless IP sharer. TV Side Panel The Modem Port on the Wall Wireless IP sharer Wireless LAN Adapter for InfoLink 1 Connect the Samsung Infolink Wireless adapter into the Wiselink terminal of the TV. Modem Cable

You must use the Samsung Wireless LAN Adapter for InfoLink(WIS-08BG) to use a wireless network. The Samsung Wireless LAN Adapter for InfoLink is sold separately. Contact a Samsung Electronics agent or service center for purchasing. To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports DHCP, you TV can use a DHCP or static IP address to connect to the wireless network. You must use a wireless IP sharer that supports IEEE 802.11 b or IEEE 802.11g. If the wireless IP sharer allows you to turn on/off the Ping connection function, turn it on. Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communications may fail. When applying the security key for the AP (wireless IP sharer), only the following is supported.

• 1) Authentication Mode : WEP, WPAPSK, WPA2PSK
• 2) Encryption Type : WEP, TKIP, AES If you apply a security system other than the systems listed above, it will not work with the TV. Network selection Language Setup Select Cable or Wireless as the method to connect to the Samsung’s Infolink network. 1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. 2 Press the ▲ or ▼ button to select Network selection, then press the ENTER button. : English Time Network selection : Cable

ress the ▲, ▼, ◄ or ► button to move to an item, and press the numeric button to configure the selected item. Press the ENTER button. ➣ Select Network Test to check the network connectivity. (Refer to page 93) Press the EXIT button to exit. IP Address

Move Enter Return Network Test MAC Address IP Address, Subnet, Gateway, DNS Server Gateway Ping Domain Ping Network Test Completed. Your network is operating properly. If you still have a network problem, contact your network service provider. Return English - 93 BN68-01532B-Eng.indb 93 2008-05-30 오후 2:33:00 Wireless Network Setup ➣ The menu is activated only if the Samsung Infolink Wireless adapter is connected. (See page 91) Auto Setup Network selection Setup ➣ If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically configured. ➣ The wireless IP sharer to be connected to this product must support DHCP. : Wireless Cable Network Setup Wireless Network Setup

Press the ENTER button to select Internet Protocol Setup. Press the ▲ or ▼ button to select Auto Setup, then press the ENTER button. ➣ The Internet Protocol is set automatically. ➣ Select Access Point Select to check the network connectivity. (Refer to page 95) Press the EXIT button to exit. Access Point Select : AP1 IP Address

ress the ▲, ▼, ◄ or ► button to move to an item, and press the numeric button to configure the selected item. Press the ENTER button. ➣ If you want to use a static IP address, refer to the user manual of your wireless IP sharer. ➣ Select Access Point Select to check the network connectivity. (Refer to page 95) Press the EXIT button to exit. Wireless Network Setup Internet Protocol Setup : Auto AutoSetup Setup Network Test Manual Setup Access Point Select : AP1 IP Address

ress the ▲ or ▼ button to select Access Point Select, then press the ENTER button. ➣ The wireless Access Points that exist in you area are searched and displayed in the Access Point List. ress the ▲ or ▼ button to select the Access Point to use. Then press the ENTER button. ➣ If a wireless Access Point is not in the Access Point list, press the Red button. ➣ When the connection is made, you will be returned to the screen automatically. ➣ If you selected an Access Point that requires security authentication, enter the security key. Wireless Network Setup Internet Protocol Setup : Auto Setup Network Test Access Point Select : AP1 IP Address

Return Enter Move Wireless Network Setup Access Point Select 1/5 AP 1 AP 2 WEP AP 3

➣ If you have selected an Access Point with a security authentication: - The Security Key input screen appears. Screen images might be different depending on the type of the selected security key. - Enter the security key and press the ENTER button. - Using the Remote Control Buttons on the Security Key Input Screen Button Wheel ENTER RED GREEN BLUE Numeric buttons Operations Return Select Move Wireless Network Setup Securty Key

Moves the selection up/down/left/right. Enters (Inputs) the selected character. Switch between Upper- and Lower-Case Letters You can delete an already entered character. Press this button to finish entering the security key. You can enter numbers. AP 4 Search Move 1~ 9 Number 0~9 Number Lowercase Delete Done Select Return Wireless Network Setup Access Point Select 1/5 0016018F0176 Connected ALKO_AP WEP NESPOTOK

ress the ▲ or ▼ button to select Network Test, then press the ENTER button. ➣ The current network settings will appear. ➣ If no Access Point Select is set up, the test cannot be completed. (See page 95) Press the EXIT button to exit. Wireless Network Setup Internet Protocol Setup : Auto Setup Network Test Access Point Select : AP1 IP Address

Move Enter Return Network Test MAC Address IP Address, Subnet, Gateway, DNS Server Gateway Ping Domain Ping Network Test Completed. Your network is operating properly. If you still have a network problem, contact your network service provider. Return English - 96 BN68-01532B-Eng.indb 96 2008-05-30 오후 2:33:01 Using InfoLink You can view news, stock market and weather information services using SAMSUNG’s InfoLink service. Set up the network. (Refer to pages 92~96) The Caption will not work when InfoLink is operating. Information provided by USA TODAY via Infolink is for the United States only. Information for other countries is not provided. WISELINK 2 P ress the ▲ or ▼ button to select InfoLink, then press the ENTER button. 3 Press the ◄ or ► button to select a service (Weather, News, Stocks or Setup) and press the ENTER button. You can select and view more than one service at the same time only for ‘News (without detailed information)’, ‘Weather-Today’s Weather’, and ‘Stocks-Favorite Stocks, Major Indexes’. Press the EXIT button to exit.

Application Activating InfoLink 1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Application, then press the ENTER button. Weather Anynet+ (HDMI-CEC) InfoLink Move Return Press the INFO.L button on the remote control to display the InfoLink menu. English - 97 BN68-01532B-Eng.indb 97 2008-05-30 오후 2:33:01 Using the Weather Service 1 Press the INFO.L button on the remote control. 2 Press the ◄ or ► button to move to the Weather service and press the ENTER button. Move Weather Set up the Region 3 Press Yellow button. Input the postal (zip) code of the region by pressing the number buttons on the remote, then press the ENTER button. You can check the weather of the selected region. Set up Weather Option 4 Press the Red button while using the service to change the Weather service option. 5 Press ▲ or ▼ button and select Weather option, then press the ENTER button. To exit the Weather service, press the Blue button. To exit the InfoLink service, press the EXIT button. Return Los Angeles 59°F ● Options ● Zip ● Close Move Weather Return Options Today’s Weather Weekly Forecast Select Return Los Angeles 59°F Using the News Service 1 Press the INFO.L button on the remote control. 2 Press the ◄ or ► button to move to the News service and press the ENTER button. Press the ENTER button to view the detailed article. Press the ◄ or ► button to view the previous or next article. News Move Return Business GM turns 100 with focus on future Enter ● Options ● Close 3 Press the Red button while using the service to change the News service Option. 4 Press ▲ or ▼ button and select News service option, then press the ENTER button. The News service option changes depending on the provided web service. To exit the News service, press the RETURN button. To exit the InfoLink service, press the EXIT button. News Move Return Options Business Politics World Top news Entertainment Sports Select Business Return GM turns 100 with focus on future English - 98 BN68-01532B-Eng.indb 98 2008-05-30 오후 2:33:02 Using the Stock Service 1 Press the INFO.L button on the remote control. 2 Press the ◄ or ► button to move to the Stocks service and press the ENTER button. 3 Press the Red button while using the service to change the Stocks service option. 4 Press ▲ or ▼ button and select Stocks service option, then press the ENTER button.

• Favorite Stocks: The Favorite stock information is displayed. You can set up the Favorite Stocks by pressing the Yellow button.
• Market Summary: Dow Jones, Nasdaq and S&P 500 are toggled and the entire index, amount of up or down, and % are displayed.
• S tocks & News: The Favorite stock information and Dow Jones, NASDAQ and S&P 500 index and Financial news are displayed. 1/2 Wed 6:09 Stocks NASDAQ ▲ 21.51

0.80% Quotes delayed at least 15 minutes. Data provided by interastive Data. Return Move ● Options ● Close 1/2 Wed 6:09 Stock NASDAQ ▲ 21.51

0.80% Quotes delayed at least 15 minutes. Data provided by interastive Data. Return Move ● Options ● Close Options Favorite Stocks Market Summary Stocks & News Select Return Stock quotes delayed at least 15 minutes. To exit the Stocks service, press the Blue button. To exit the InfoLink service, press the EXIT button. Setting Favorite Stocks Items 1 Press the Yellow button when Favorite Stocks or Stocks & News is selected. The Set Favorite Stocks screen appears. 2 Press the ◄ or ► to move to the groups listed in alphabetical order. Press the ► or ▼ button to select a group. Press the ENTER button. 3 Press the ▲ or ▼ button to select a stock item and press the ENTER button. The selected stock is set as a Favorite Stocks. The mark will appear to the left of the stock name. Press the ENTER button again to cancel the setting. The mark will disappear. To cancel all selections, press the Green button. Pressing the Red button toggles between NYSE and NASDAQ. 4 To finish the settings, press the RETURN button. 1/2 Wed 6:09 Stocks Return Move NASDAQ ▲ 21.51

0.80% Quotes delayed at least 15 minutes. Data provided by interastive Data. ● Options ● Close Options Favorite Stocks Market Summary Stocks & News Select Return Set Favorite Stocks NYSE 3/1844 A- B

• Auto Launch: Determines whether to launch InfoLink automatically when the TV is turned on. You can select either Off or On.
• Display Time: Determines the time to display the news service on the TV screen. You can select 10 Minute, 20 Minute”, 1 Hour, or Always.
• Font Size: You can select letter size Standard or Large through InfoLink service.
• Background Color: You can select the Background Color of InfoLink service. The color is applied to each service, option and setup window.
• InfoLink’s Position: You can set the position of each InfoLink service on the screen. You can select from six preset InfoLink positions (“Position 1”~“Position 6”). Return Move Auto Launch : Off Display Time : 20 Minute Font Size : Standard Background Color : Black InfoLink’s Position Move Select Return To exit the Setup service, press the Blue button. To exit the InfoLink service, press the EXIT button. InfoLink’s Position Weather Stocks Weather News Stocks News Position 1 News Position 4 Stocks Position 2 Weather Position 3 Weather Stocks Weather News Stocks News Position 5 News Stocks Weather Position 6 All the materials available through InfoLink provided by USA TODAY are the property of USA TODAY and/or its affiliates or licensors, and are protected by copyright, trademark, and other intellectual property laws. InfoLink content provided by USA TODAY is provided solely for your personal noncommercial use. You may not use the InfoLink content provided by USA TODAY or the USA TODAY materials available on InfoLink in a manner that constitutes an infringement of USA TODAY’s rights or that has not been authorized by USA TODAY. More specifically, unless explicitly authorized in this disclaimer or by the owner of the materials, you may not modify, copy, reproduce, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium (including by email or other electronic means) any USA TODAY material from the InfoLink service. Content provided in connection with the InfoLink service may be time-delayed as specified by USA TODAY and/or its affiliates. English - 100 BN68-01532B-Eng.indb 100 2008-05-30 오후 2:33:03 About Anynet+ What is Anynet+? Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. Connecting Anynet+ Devices The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it. To connect to a TV

Connect the [HDMI 1], [HDMI 2] [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the Home Theater. Connect only one Home Theater. When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater, not the TV. Please see the home theater’s user manual for more information. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type. English - 101 BN68-01532B-Eng.indb 101 2008-05-30 오후 2:33:04 Setting Up Anynet+ The following settings help set the Anynet+ functions. To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On

: Yes Auto Turn Off Move Enter Return The active source on the TV remote must be set to TV to use the Anynet+ function. If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off. Scanning and Switching between Anynet+ Devices

Press the TOOLS button. ➢ Anynet+ devices connected to the TV are listed. ➢ If you cannot find a device you want, press the red button to scan for devices. 2 Press the ▲ or ▼ button to select a particular device and press the ENTER button. It is switched to the selected device. ➢ Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears. 3 If you cannot find a device you want, press the ▲ or ▼ button to select Searching Connections, then press the ENTER button. Tools View TV Device List Recording : DVD DVD Menu DVD Menu Picture Mode Sound Mode Sleep Timer Add to Favorite Standard Custom Off

Move Enter Exit The message Configuring Anynet+ connection... is displayed. When searching devices complete, the connected devices are listed in the Anynet+ menu.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of devices found are not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is already on are not displayed in the device list. In this case, select the Searching Connections menu to search devices. If you have selected an external device by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an external Anynet+ device by using the TOOLS button. Continued... English - 102 BN68-01532B-Eng.indb 102 2008-05-30 오후 2:33:05 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu Description View TV Switches from Anynet+ to TV broadcast mode. Device List Displays the Anynet+ device list. Recording: (Device_Name) Starts a recording. (This menu works only for a device supporting recording.) (Device_Name) Menu Shows the menu of the connected device. Example: When a DVD Recorder is connected, the DVD Recorder’s title menu appears. (Device_Name) Operation Shows the play control menu of the connected device. Example: When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Timer Recording Allows reserving a recording. (This menu works only for a device supporting recording reservations.) Stop Recording Stops recording. Receiver Sound is output through the receiver (home theater). Setup You can set the Anynet+ (HDMI-CEC), auto turn off, and searching connections for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode RETURN Device Type Operating Status RETURN RETURN EXIT W.LINK After switching to the device, when the menu of the corresponding device is displayed on the screen. Numeric buttons

Color buttons EXIT button After switching to the device, while playing a file (Backward search)RETURN RETURN RETURN (Forward search) EXIT (Stop) W.LINK EXIT EXIT RETURN(Play/Pause) RETURN W.LINK LIST W.LINK INFO LIST After switching to the device, when you are watchingRETURN a CHCH LIST CHEXIT TV program W.LINK Audio Device When a Receiver is activated EXIT CH LIST CH LIST INFO TOOLS

RETURN CH LIST INFO VOL EXIT W.LINK TOOLS MUTE button EXIT CH LIST button EXIT TOOLS button INFO TOOLS INFO CH LIST is set INFO The Anynet+ function only works when the active source on the TV remote control to TOOLS TV. The REC button works only while in the recordable state. TOOLS You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device. The Anynet+ functions do not operate with other manufacturers’ products. RETURN RETURN The operations may differ depending on the device. Recording W.LINK CH LIST EXIT INFO W.LINK CH LIST EXIT INFO You can make a recording of a TV program using a Samsung recorder. TOOLS TOOLS

Tools Press the TOOLS button. Press the ▲ or ▼ button to select Recording Immediately and press the ENTER button. Recording begins. View TV When there is more than one recording device When multiple recording devices are connected, the recording devices are listed. Press the ▲ or ▼ button to select a recording device and press the ENTER button. Recording begins. When the recording device is not displayed Select Device List and press the red button to search devices. Device List Recording : DVD DVD Menu DVD Menu Picture Mode Sound Mode Sleep Timer Add to Favorite Standard Custom Off

Move Enter Exit Press the EXIT button to exit. You can record the source streams by selecting Record after pressing the TOOLS button. Pressing the REC button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded. Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual. English - 103 BN68-01532B-Eng.indb 103 2008-05-30 오후 2:33:06 Listening through a Receiver (Home theater) You can listen to sound through a receiver instead of the TV speaker.

Press the TOOLS button. Press the ▲ or ▼ button to select Receiver, then press the ENTER button. 2 Press the ◄ or ► button to select to On, then press the ENTER button. Now you can listen to sound through the receiver. 3 Press the EXIT button to exit.

Tools View TV Device List Recording : DVD DVD Menu DVD Menu Picture Mode Sound Mode Sleep Timer Add to Favorite Standard Custom Off When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a Move Enter Exit digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If your receiver supports audio only, it may not appear in the device list. The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV. When using the WISELINK feature, sound may not output properly through the receiver. When listening through the receiver, there are restrictions for using the PIP and audio-related(MTS, Preferred language) menus. If there is a power interruption to the TV when the Receiver is On (by disconnecting the power cord or a power failure), the TV Speaker may be set to “Off” when you turn the TV on again. Troubleshooting for Anynet+ Symptom Anynet+ does not work. Solution

I want to start Anynet+.

I want to exit Anynet+.

The message Connecting to Anynet+ device... appears on the screen. The Anynet+ device does not play. The connected device is not displayed.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver (home theater). Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work in certain situations. (Searching channels, Operating WISELINK) When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or your TV off and on again. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. Select View TV in the Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ menu. Press CH, CH LIST, PRE-CH, and FAV.CH to change the TV mode. (Note that the channel button operates only when an Anynet+ device with a built-in tuner is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. You cannot use the play function when Plug & Play is in progress. Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. Check whether the antenna jack on the recording device is properly connected.

The TV program cannot be recorded. The TV sound is not output through Connect the optical cable between TV and the receiver. the receiver. English - 104 BN68-01532B-Eng.indb 104 2008-05-30 오후 2:33:06 Appendix

Securing the TV to the Wall Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not

Caution hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. To avoid the TV from falling:

Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall. ➢ You may need additional material such as an anchor depending on the type of wall. ➢ Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again. ➢ Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly. ➢ Install the TV near to the wall so that it does not fall backwards. ➢ It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. ➢ Untie the string before moving the TV.

Wall Wall Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections,contact a professional installer. English - 105 BN68-01532B-Eng.indb 105 2008-05-30 오후 2:33:06 Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Poor picture quality. Poor sound quality. No picture or sound. No sound or sound is too low at maximum volume. Picture rolls vertically. The TV operates erratically. The TV won’t turn on. Remote control malfunctions Digital broadcasting screen problem. Possible Solution Try another channel. Adjust the antenna. Check all wire connections. Try another channel. Adjust the antenna. Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. Make sure the MUTE button is off. First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. Check all connections. Unplug the TV for 30 seconds, then try operating it again. Make sure the wall outlet is working. Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. Press the TV button to put your remote control in the TV mode. Make sure the remote has batteries. Check that the “+” and “-” ends of the batteries are inserted correctly. Please check the digital signal strength and input antenna. The image is too light or too dark. Adjust the Brightness and Contrast. Adjust the Fine tuning. The image is too large or too small. Adjust the Size settings. The visual qualities of digital channels The visual qualities of digital channels may vary depending on the original production method vary. (analog or digital). - If the original production method is digital: High visual quality. - If the original production method is analog: The digital program displayed on the screen is originally an analog program which has been converted to digital. The visual quality is of an SD(Standard Definition) grade. Screen is black and power indicator On your computer; check the Power and Signal Cable. light blinks steadily. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. On your equipment check (STB, DVD, etc) ; Power and Signal Cable. The TV is using its power management system. Press the Source button on the panel or remote control. Turn the TV off and on. Although the TV caption shows HD, The HD(High Definition) caption that appears when switching channels or when pressing the the visual quality is not satisfactory. Information button on the remote control means the selected channel is a digital channel. If the broadcasting station converts an analog signal into digital and transmits the signal, the visual quality may not be perfect. The distorted picture appears in the If Just Scan is selected in some external devices, the distorted picture may appear in the corner of the screen. corner of the screen. This symptom is caused by external devices, not TV. A strange sound is heard. This is caused by minor systems operation and is not a defect. Pixels are visible on the screen. There may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. The “Resets all settings to the default values” message appears. This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. English - 106 BN68-01532B-Eng.indb 106 2008-05-30 오후 2:33:06 Auto Wall-mount adjustment (Sold separately) (PN50A650T1F) Once the auto wall mount is installed, the position of your TV can be easily adjusted. Auto Wall-Mount TV Rear Panel EX-LINK Cable (Not supplied) Entering the menu

Press the ▲, ▼, ◄ or ► button on your remote control. ➢ The Wall Mount Adjustment screen is displayed. ➢ If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

Enter Return Wall-Mount Adjustment Adjust to the desired position using the ▲, ▼, ◄, ► buttons. ➢ If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. ➢ Press the INFO button to reset. Press the ◄ or ► button to select Yes, then press the ENTER button. The position is initialized to the default setting. Press the Blue button. Press the ▲ and ▼ buttons to select a save mode from either Position1, Position or Position in order to save the current position. ➢ To not save the current position, press the RETURN button. ➢ When selecting a save mode, you cannot use the Color buttons. Press the ENTER button to save. ➢ When Position1 is selected, the message Current position saved as Position1 is displayed. Press the ENTER button. ➢ The saved Position appears on the left side of the OSD. Moving to the remembered position

: Medium Wall-Mount Adjustment Position

Center Save Select a mode to Save. Position1 Position2 Position3 Adjust Enter Return Complete Step 1 of Entering the menu. Wall-Mount Adjustment Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the Position1 saved position. ➢ You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. ➢ If you adjust the positon after moving to a pre-set position, the position display Position

will disappear. Adjust Center Save For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ or WISELINK is operating. English - 107 BN68-01532B-Eng.indb 107 2008-05-30 오후 2:33:08 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family inch VESA Spec. (A * B) Standard Screw 23 ~ 26 200 * 100

The standard dimensions for wall mount kits are shown in the table above. When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications. Do not use screws that do not comply with the VESA standard screw specifications. Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model. Do not exceed 15 degrees tilt when mounting this TV. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. English - 108 BN68-01532B-Eng.indb 108 2008-05-30 오후 2:33:08 Preparing before installing Wall- Mount on the wall Case A. Installing SAMSUNG Wall-Mount Case B. Installing other company’s Wall-Mount

Install Wall Mount with the torque range of 15kgf·cm or less. Make sure that parts can be damaged if the torque is out of the specified range. 2 Accessory Kit contains Holder–Ring [①] for installing other company’s Wall-Mount on Samsung TV. (Case B) How to attach the Stand-Base Using the screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different from the picture.) When mounting your TV on a wall, install the cover (1) on the stand-base using two screws. Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. English - 109 BN68-01532B-Eng.indb 109 2008-05-30 오후 2:33:12 Specifications Model Name PN50A650T1F PN58A650T1F 50 inch (49.9 inches measured diagonally) 58 inch (58.0 inches measured diagonally) PC Resolution 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz Sound (Output) 10W x 2 15W x 2

50 °F to 104 °F (10 °C to 40 °C) 10% to 80%, non-condensing -4 °F to 113 °F (-20 °C to 45 °C) 5% to 95%, non-condensing 50 °F to 104 °F (10 °C to 40 °C) 10% to 80%, non-condensing -4 °F to 113 °F (-20 °C to 45 °C) 5% to 95%, non-condensing Screen Size (Diagonal) Dimension (W x H x D) Body With stand Weight Body With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

This device is a Class B digital apparatus. Design and specifications are subject to change without prior notice. For the power supply and Power Consumption, refer to the label attached to the product. Stand Swivel (Left / Right) -20° ~ 20° English - 110 BN68-01532B-Eng.indb 110 2008-05-30 오후 2:33:15 Dimensions (PN50A650T1F)

TOP VIEW FRONT VIEW JACK PANEL DETAIL 7.2 x 3.7 inches SIDE VIEW REAR VIEW NOTE: All drawings not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to dimensions on each unit prior to performing any carpentry. Not responsible for typographical or printed errors. © 2008 Samsung Electronics America, Inc. English - 111 BN68-01532B-Eng.indb 111 2008-05-30 오후 2:33:16 Dimensions (PN58A650T1F)

SIDE VIEW REAR VIEW NOTE: All drawings not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to dimensions on each unit prior to performing any carpentry. Not responsible for typographical or printed errors. © 2008 Samsung Electronics America, Inc. English - 112 BN68-01532B-Eng.indb 112 2008-05-30 오후 2:33:17 The GNU General Public License (GPL) Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided

that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and

copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) English - 113 BN68-01532B-Eng.indb 113 2008-05-30 오후 2:33:17 These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form

under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any

attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a

license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. English - 114 BN68-01532B-Eng.indb 114 2008-05-30 오후 2:33:17

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to

time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM,

TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. One line to give the program’s name and a brief idea of what it does. Copyright (C) <year> <name of author> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under certain conditions; type `show c’ for details. The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w’ and `show c’; they could even be mouseclicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at compilers) written by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License. English - 115 BN68-01532B-Eng.indb 115 2008-05-30 오후 2:33:17 GNU Lesser General Public License (LGPL) Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries-of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run. English - 116 BN68-01532B-Eng.indb 116 2008-05-30 오후 2:33:17 TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.) “Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium,

provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and

copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library. 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machinereadable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code. English - 117 BN68-01532B-Eng.indb 117 2008-05-30 오후 2:33:18 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables. When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself. 6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute. 7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. English - 118 BN68-01532B-Eng.indb 118 2008-05-30 오후 2:33:18 10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited

to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time

to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,

END OF TERMS AND CONDITIONS

• Film: Provides the best sound for movies.

• G : Général (grand public).
