USER MANUAL LN-T4053H SAMSUNG

• Serial No. ____________ 2007-03-31 12:00:11 Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. Précautions à prendre lors de l’affichage d’une image fixe Une image fixe peut causer des dommages irrémédiables à l’écran du téléviseur.

• Troubleshooting p. 84
• Installing the Stand p. 86
• Disconnecting the Stand p. 86
• Wall- Mount Adjustment (LN-T4053H) (Sold separately) p. 87
• Wall Mount Kit Specifications ( VESA ) p. 88
• Using the Anti-Theft Kensington Lock p. 89
• Specifications Symbol Press Important Note One-Touch Button English - BN68-01156B-02Eng-0329.indd 1 2007-03-29 7:58:16 General Information List of Features Adjustable picture settings that can be stored in the TV’s memory. Automatic timer to turn the TV on and off. A special sleep timer. V-Chip function. Excellent Digital Interface & Networking : With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Set-Top Box needed. Remote Control The supplied remote can be used to operate the TV as well as most DVD players, Set-top boxes, Cable Boxes and VCRs. Excellent Picture Quality - DNIe technology provides life-like clear images. SRS TruSurround XT - SRS TruSurround XT provides a virtual Dolby surround system. Accessories Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. Remote Control & Batteries (AAA x 2) LN-T2353H, LN-T2653H (BN59-00598A) LN-T2354H (BN59-00615A) LN-T3253H, LN-T4053H (BN59-00599A) Stand LN-T2353H (BN96-04663A) LN-T2354H (BN96-04663B) LN-T2653H (BN96-04663A) LN-T3253H (BN96-04662A) Power Cord (3903-000144) Stand Screw LN-T2353H, LN-T2653H, LN-T3253H (6002-001294) LN-T2354H (6003-001324) Cleaning Cloth (BN63-01798A) Owner’s Instructions Cover-Bottom LN-T2353H, LN-T2653H (BN63-03221B) LN-T2354H (BN63-03221C) LN-T3253H (BN63-03103B) LN-T4053H (BN63-03113B) Warranty Card / Registration Card / Safety Guide Manual (Not available in all locations) The items color and shape may vary depending on the model. English - BN68-01156B-02Eng-0329.indd 2 2007-03-29 7:58:19 Viewing the Control Panel Buttons on the Lower-Right Part of the Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. p. 89

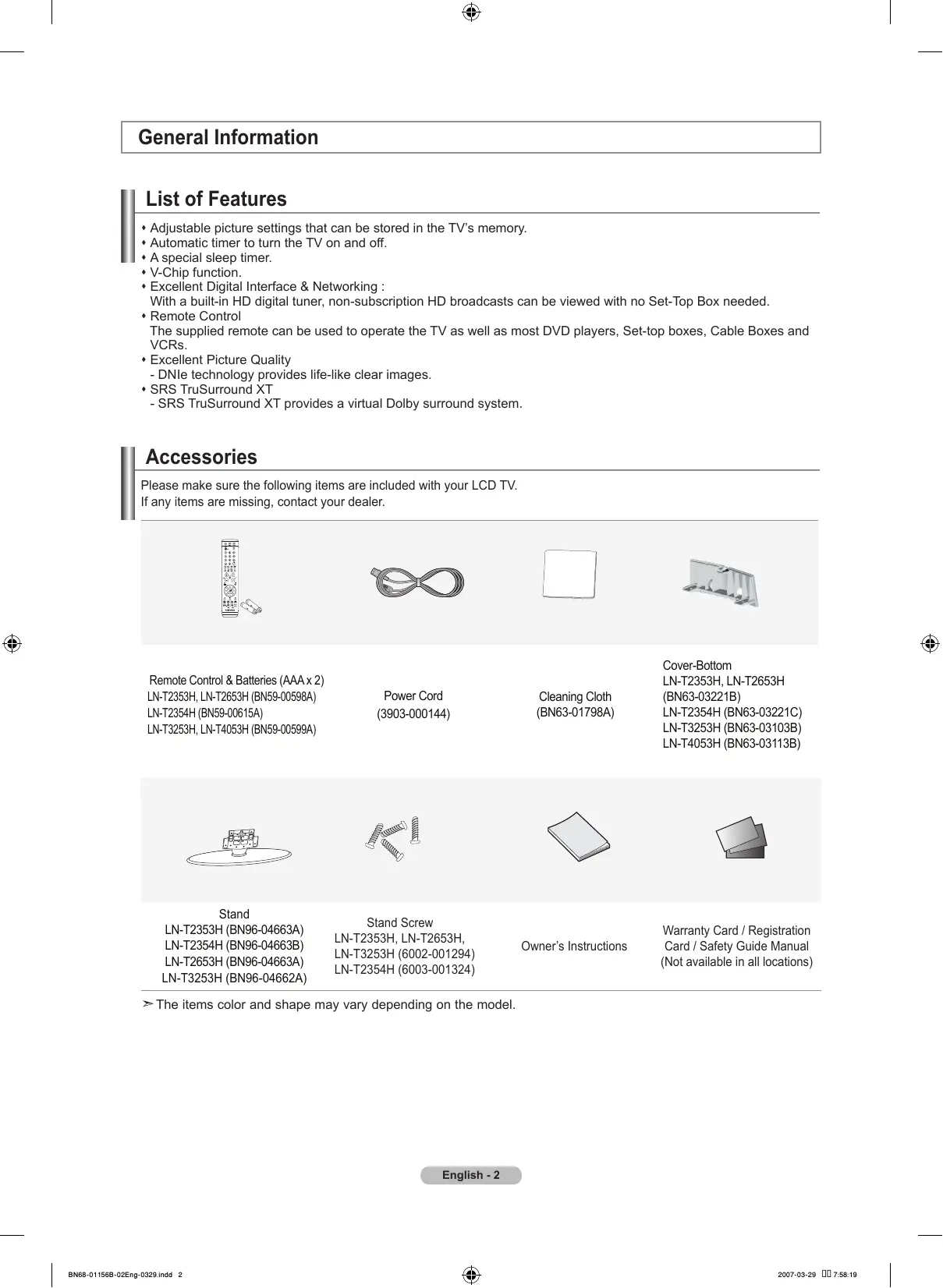

Front Panel buttons Touch the right side of each button to operate. The product color and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, AV1, AV2, S-Video 1, S-Video 2, Component1, Component2, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu, use this button as you would use the ENTER button on the remote control. 23,26 inch model supports TV, AV1, AV2, S-Video1, S-Video 2, Component 1,Component 2, PC, HDMI1, and HDMI2 only.

2 MENU Press to see an on-screen menu of your TV’s features. 3 + VOL Press to increase or decrease the volume. In the on-screen menu, use the + VOL - buttons as you would use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you would use the ▲ and ▼ butons on the remote control. (Power) Press to turn the TV on and off. POWER INDICATOR Blinks and turns off when the power is on and lights up in stand-by mode. 6 Remote Control Sensor Aim the remote control towards this spot on the TV. 7 SPEAKERS English - BN68-01156B-02Eng-0329.indd 3 2007-03-29 7:58:20 Viewing the Connection Panel (depending on the model) Rear Panel Jacks Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 6-12. [Side Panel Jacks] 1 AUDIO OUT Connects to the audio input jacks on your Amplifier/ Home theater. 2 DIGITAL AUDIO OUT (OPTICAL) Connects to a Digital Audio component. 3 PC IN Connects to the video and audio output jacks on your PC. 4 HDMI IN 1,2,3 /DVI IN(HDMI1) (AUDIO R/L) Connects to the HDMI jack of a device with an HDMI output. Use the HDMI IN 1 terminal for a DVI connection to an external device. You should use the DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for a video connection, and the DVI IN ‘R-AUDIO-L’ terminal for audio. - No sound connection is needed for an HDMI to HDMI connection - When using an HDMI/DVI cable connection, you must use the HDMI IN 1 terminal. 7 COMPONENT IN Connects Component video/audio. 8 Service (LN-T2353H, LN-T2354H, LN-T2653H) Connector for SERVICE only 9 AV IN 1 / AV IN 2 Video and audio inputs for external devices, such as a camcorder or VCR. S-VIDEO Connects an S-Video signal from a camcorder or VCR. 0 POWER INPUT Connects the supplied power cord ! KENSINGTON LOCK The Kensington lock (optional) is a device used to physically fix the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV. The place of the Kensington Lock may be different depending on its model.

- 23,26 inch model supports HDMI1 and HDMI2 only. HEADPHONE Connects a set of external headphones for private listening. # WISELINK (LN-T3253H,LN-T4053H) Connect a USB mass storage device to view photo files(JPEG) and play audio files (MP3).

Connects to an antenna or cable TV system. 6 EX LINK Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. English - BN68-01156B-02Eng-0329.indd 4 2007-03-29 7:58:21 Remote Control (LN-T2353H, LN-T2354H, LN-T2653H) You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. You can also use your remote control to operate your VCR, Cable box, DVD player, or Set-Top Box. 1 POWER Turns the TV on and off. 2 NUMERIC BUTTONS Press to change the channel.

( When pressing this button, a number of buttons on the remote control (e.g. TV, DVD, STB, CABLE, VCR, VOL and CH buttons) light up for a few seconds and then turn off to save power. This function is convenient for using the remote at night or when dark. (LN-T2353H, LN-T2653H) Press to select additional channels(digital and analog) being broadcast by the same station. For example, to select channel ) SOURCE “54-3”, press “54”, then press “–” and “3”. Press to display all of the available video sources. 4 CH LIST Used to display Channel Lists on the a PRE-CH screen. Tunes to the previous channel. 5 ANTENNA b FAV.CH 6 VCR/DVD Functions c HDMI Press to select “AIR” or “CABLE”. - Rewind - Stop - Play/Pause - Fast/Forward 7 VOL / VOL Press to increase or decrease the volume.

(MUTE) Press to temporarily cut off the sound. 9 MENU Displays the main on-screen menu. 0 S.MODE Press to select the sound mode. Press to switch to your favorite channels. Selects the HDMI mode directly. d CH / CH Press to change channels. e EXIT Press to exit the menu. f UP▲ / DOWN▼ / LEFT◄ / RIGHT► / ENTER Use to select on-screen menu items and change menu values. g INFO Press to display information on the TV screen. ! RETURN h CAPTION @ P.MODE i STILL Returns to the previous menu. Press to select the picture mode. # SRS Selects SRS TruSurround XT mode. $ MTS Press to choose stereo, mono or Separate Audio Program (SAP broadcast). % SLEEP Press to select a preset time interval for automatic shut off. Controls the caption decoder. Press to stop the action during a particular scene. Press again to resume normal video. j P.SIZE Picture size selection. k PIP Picture-in Picture ON/OFF. l CH

Displays the available channels in sequence. (These buttons change channels in the PIP window only.) ^ AUTO PROG. m ADD/DEL & SET n RESET Press to automatically store selected TV/Cable channels. Sets the remote to control your TV, VCR, Cable, DVD, or Set-Top Box

• TV, DVD, STB, CABLE, VCR Press to operate your TV, DVD, STB, CABLE (box), or VCR (see pages 18~22.) Use to store and delete channels to/from memory. When your remote does not work, change the batteries and press the RESET button for 2-3 seconds before use. This is a special remote control for the visually impaired, and has Braille points on the Power, Channel, STOP, PLAY/PAUSE and Volume buttons. The performance of the remote control may be affected by bright light. English - BN68-01156B-02Eng-0329.indd 5 2007-03-29 7:58:22 Remote Control (LN-T3253H, LN-T4053H) You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. You can also use your remote control to operate your VCR, Cable box, DVD player, or Set-Top Box. 1 POWER Turns the TV on and off. 2 NUMERIC BUTTONS Press to change the channel.

) SOURCE Press to display all of the available video sources. a PRE-CH Tunes to the previous channel. Press to select additional channels(digital b WISELINK and analog) being broadcast by the same This function enables you to view and station. For example, to select channel play photo (JPEG) and audio files “54-3”, press “54”, then press “–” and “3”. (MP3) from an external device. (Refer to page 68) 4 CH LIST c REC Used to display Channel Lists on the Records for Live Broadcasting. screen.

/ CH 5 ANTENNA Press to change channels. Press to select “AIR” or “CABLE”. 6 VCR/DVD Functions - Rewind - Stop - Play/Pause - Fast/Forward 7 VOL / VOL Press to increase or decrease the volume.

(MUTE) Press to temporarily cut off the sound. 9 MENU Displays the main on-screen menu. 0 S.MODE Press to select the sound mode. ! RETURN Returns to the previous menu. @ P.MODE Press to select the picture mode. # CAPTION Controls the caption decoder. $ FAV.CH Press to switch to your favorite channels. % SLEEP Press to select a preset time interval for automatic shut off. ^ SRS Selects SRS TruSurround XT mode. & SET Sets the remote to control your TV, VCR, Cable, DVD, or Set-Top Box

• TV, DVD, STB, CABLE, VCR Press to operate your TV,DVD, STB, CABLE (box), or VCR (See pages 18-22) e EXIT Press to exit the menu. f UP▲ / DOWN▼ / LEFT◄ / RIGHT► / ENTER Use to select on-screen menu items and change menu values. g INFO Press to display information on the TV screen. h Anynet+ Runs the Anynet view functions and sets up Anynet devices. i STILL Press to stop the action during a particular scene. Press again to resume normal video. j P.SIZE Picture size selection. k PIP Picture-in Picture ON/OFF. l CH

Displays the available channels in sequence. (These buttons change channels in the PIP window only.) m MTS Press to choose stereo, mono or Separate Audio Program (SAP broadcast). n RESET When your remote does not work, change the batteries and press the RESET button for 2-3 seconds before use. ( When pressing this button, a number of buttons on the remote control (e.g. TV, DVD, STB, CABLE, VCR, VOL and CH buttons) light up for a few seconds and then turn off to save power. This function is convenient for using the remote at night or when dark.

his is a special remote control for the visually impaired, and has Braille points on the Power, Channel, STOP, PLAY/PAUSE and Volume buttons. The performance of the remote control may be affected by bright light. English - BN68-01156B-02Eng-0329.indd 6 2007-03-29 7:58:23 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.

Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries should last for about one year.) If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like the diagram to the right, see “Antennas with 300 Ω Flat Twin Leads” below. If your antenna has one lead that looks like diagram to the right, see “Antennas with 75 Ω Round Leads”. If you have two antennas, see “Separate VHF and UHF Antennas”. Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or “rabbit ears") that has 300 Ω twin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter

(not supplied). Use a screwdriver to tighten the screws.

Plug the adaptor into the ANT 2 IN (CABLE) terminal on the back of the TV. ANT 2 IN (CALBE) Antennas with 75 Ω Round Leads

Plug the antenna lead into the ANT 1 IN (AIR) terminal on the back of the TV. ANT 1 IN (AIR) Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

Connect both antenna leads to the combiner. UHF VHF

Plug the combiner into the ANT 1 IN (AIR) terminal on the bottom of the rear panel. UHF ANT 1 IN (AIR) VHF English - BN68-01156B-02Eng-0329.indd 7 2007-03-29 7:58:25 Connecting Cable TV To connect to a cable TV system, follow the instructions below. Cable without a Cable Box

Plug the incoming cable into the ANT 2 IN (CABLE) terminal on the back of the TV. ANT 2 IN (CABLE) Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. Connecting to a Cable Box that Descrambles All Channels

Find the cable that is connected to the ANT OUT terminal on your cable box. This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”.

ANT IN ANT OUT Connect the other end of this cable to the ANT 2 IN (CABLE) terminal on the back of the TV. ANT 2 IN (CABLE) Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a twoway splitter, an RF (A/B) switch, and four lengths of RF cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is

connected to the ANT IN terminal on your cable box. This terminal might be labeled “ANT IN”, ANT IN "VHF IN” or simply, “IN”.

Connect this cable to a two-way splitter. Incoming cable

3. Connect an RF cable between the OUTPUT

terminal on the splitter and the IN terminal on the cable box. Incoming cable Splitter Splitter Cable Box

4. Connect an RF cable between the

ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch. Incoming cable Splitter RF (A/B) Switch Cable Box

5. Connect another cable between the other

OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch. Incoming cable Splitter Cable Box

6. Connect the last RF cable between the

OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV. RF (A/B) Switch ANT IN Incoming cable TV Rear Splitter Cable Box RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English - BN68-01156B-02Eng-0329.indd 8 2007-03-29 7:58:26 Connecting a VCR Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 7-8). Skip step 1 if you have not yet connected to an antenna or a cable system.

1. Unplug the cable or antenna

from the back of the TV.

to the ANT IN terminal on the back of the VCR.

Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the TV.

Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 (or AV IN 2) [VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R- AUDIO-L] jacks on the TV.

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables. TV Rear Panel VCR Rear Panel 5 Audio Cable (Not supplied)

4 Video Cable (Not supplied) 3 RF Cable (Not supplied) Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. S-Video Connection Your Samsung TV can be connected to an S-Video signal from an VCR. (This connection delivers a better picture as compared to a standard VCR.)

To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.

Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN1 [S-VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN1 [R-AUDIO-L] jacks on the TV. TV Rear Panel VCR Rear Panel 3 Audio Cable (Not supplied) 2 S-Video Cable (Not supplied) 1 RF Cable (Not supplied) An S-Video cable may be included with a VCR. (If not, check your local electronics store.) Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. English - BN68-01156B-02Eng-0329.indd 9 2007-03-29 7:58:28 Connecting a Camcorder The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR

1. Connect a Video Cable

between the AV IN2 [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder.

Connect Audio Cables between the AV IN2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder. TV Side Panel Camcorder 1 Video Cable (Not supplied) 2 Audio Cable (Not supplied) Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable. Connecting a DVD Player/Set-Top Box The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

1. Connect a Component

Cable between the COMPONENT IN(1 or 2) [Y, PB, PR] jacks on the TV DVD Player/Set-Top Box and the COMPONENT [Y, PB, PR] jacks on the DVD/Set-top Box.

TV Rear Panel Connect Audio Cables between the COMPONENT IN(1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD/Set-top Box

Audio Cable (Not supplied)

Component Cable (Not supplied) Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also. Each DVD Player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable. English - 10 BN68-01156B-02Eng-0329.indd 10 2007-03-29 7:58:29 Connecting a DVD Player/Set-Top Box via HDMI This connection can only be made if there is an HDMI Output connector on the external device.

1. Connect an HDMI Cable

DVD Player Rear Panel TV Rear Panel between the HDMI IN (1,2 or 3) connector on the TV and the HDMI connector on the DVD player/Set-Top Box HDMI Cable (Not supplied) TV Side Panel

• HDMI(High-Definition Multimedia Interface), is a next-generation an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. Each DVD player/STB has a different back panel configuration. 32,40 inch model supports HDMI 3 only Connecting a DVD Player/Set-Top Box via DVI This connection can only be made if there is a DVI Output connector on the external device.

Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 1 connector on the TV and the DVI connector on the DVD player/Set-Top Box.

Connect Audio Cables between the DVI IN (HDMI 1) [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD player/ Set-Top Box. TV Rear Panel DVD Player / Set-Top Box

Audio Cable (Not supplied) DVI to HDMI Cable (Not supplied) Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 1 terminal. English - 11 BN68-01156B-02Eng-0329.indd 11 2007-03-29 7:58:30 Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

Connect an Optical Cable between the “DIGITAL

AUDIO OUT (OPTICAL)”

jacks on the TV and the Digital Audio Input jacks on the Digital Audio System.

When a Digital Audio System is connected to the

(OPTICAL)” terminal: Decrease the volume of the TV, and adjust the volume level with the system’s volume control. Digital Audio System TV Rear Panel Optical Cable (Not supplied) 5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. Each Digital Audio System has a different back panel configuration. . Connecting an Amplifier/DVD Home Theater

Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] on the TV and AUDIO IN [R-AUDIOL] on the Amplifier/DVD Home Theater.

When an audio amplifier is connected to the “AUDIO OUT [L-AUDIO-R]” terminals: Decrease the volume of the TV, and adjust the volume level with the Amplifier’s volume control. TV Rear Panel Amplifier/DVD Home Theater Audio Cable (Not supplied) Each Amplifier/DVD Home Theater has a different back panel configuration. When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable. Connecting a PC

Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.

Connect a PC Audio Cable between PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. TV Rear Panel

PC Audio Cable (Not supplied)

D-Sub Cable (Not supplied) Each PC has a different back panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 1 terminal. English - 12 BN68-01156B-02Eng-0329.indd 12 2007-03-29 7:58:32 Operation Turning the TV On and Off Press the POWER You can also use the button on the remote control. button on the front of the panel. Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently:

Menu language, Shop Mode, Channels and Time will be set. Press the POWER button on the remote control. The message “Menu language, Shop Mode, Channels and Time will be set.” is displayed. Press the ENTER button, then “Select the language of the OSD” menu is automatically displayed.

2. Press the ▲ or ▼ buttons to select language, then press the ENTER button.

The message “Select Home Mode when installing this TV at home.” is displayed. Start Plug & Play Select the language of the OSD. Menu Language English Español Français

3. Press the ◄ or ► buttons to select “Shop” or “Home”, then press the

ENTER button. The message “Select the antennas to memorize.” is displayed. Move Enter Skip Plug & Play

We recommend setting the TV to Home mode for the best picture in your home environment. Shop mode is only intended for use in retail environments. If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode, press any Volume button and then hold down the MENU button for five seconds on the side panel of the TV. Select Home Mode when installing this TV at home.

4. Press the ▲ or ▼ buttons to memorize the channels of the selected connection.

Press the ENTER button to select “Start”. If the antenna is connected to ANT 1(AIR), select “Air” and if it is connected to ANT 2 (CABLE), select “Cable”. Plug & Play Select the antennas to memorize.

If both ANT 1 (AIR) and ANT 2 (CABLE) are connected, select the “Air + Cable”.

In Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the ▲ or ▼ button, then press the ENTER button. Contact your local cable company to identify the type of cable system that exists in your particular area.

Shop Home Move Enter Air Start Cable Start Air+Cable Start Move Enter Skip Plug & Play Auto Program in progress. Air Channel 50 The TV will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Press the ENTER button when channel memorization is complete. The message “Select the clock mode.” is displayed.

To stop the search before it has finished, press the ENTER button with stop selected. Skip 35% Stop Enter Skip Plug & Play Auto Program is completed. 16 Channels were memorized. Air : 16, Cable : 0.

Press the ▲ or ▼ buttons to select “On” or “Off”, then Press the ENTER button. The message “Select the time zone in which you live.” is displayed. Plug & Play Set to daylight savings time. Daylight Savings Time

Move Press the ▲ or ▼ buttons to highlight the time zone for your local area. Press the ENTER button. If you have received a digital signal, the time will be set automatically. If not, see page 49 to set the clock.

Off Enter Skip Plug & Play Select the time zone in which you live. Newfoundland Atlantic Eastern Central Mountain Pacific Alaska Hawaii Move

9. The message “Enjoy your watching.” is displayed.

When you have finished, press the ENTER button. Enter Skip Enjoy your watching.

If you want to reset this feature...

3. The message “Menu language, Shop Mode, Channels and Time will be set."

or CH button to change channels. When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 17 to memorize channels. Using the PRE-CH Button to select the Previous Channel

1. Press the PRE-CH button.

The TV will switch to the last channel viewed. To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them. English - 14 BN68-01156B-02Eng-0329.indd 14 2007-03-29 7:58:37 Adjusting the Volume

or VOL buttons to decrease or increase the volume. Using Mute At any time, you can cut off the sound using the MUTE button.

1. Press MUTE button and the sound cuts off.

The word “ “ will appear in the lower-left corner of the screen.

2. To turn mute off, press the MUTE button again, or simply press the

VOL or VOL buttons. Viewing the Display The display identifies the current channel and the status of certain audio-video settings.

Press the INFO button on the remote control. Air 7 The TV will display the channel, the type of sound, and the status of certain picture and sound settings. Mono Picture Mode : Dynamic Sound Mode : Custom MTS : Stereo 05 : 54 pm Press the INFO button once more or wait approximately 10 seconds and the display disappears automatically. English - 15 BN68-01156B-02Eng-0329.indd 15 2007-03-29 7:58:38 Viewing the Menus

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu’ s left side has five icons: Picture, Sound, Channel, Setup, Input.

2. Use the ▲ or ▼ buttons to select one of the five icons.

Then press the ENTER button to access the icon’s sub-menu.

Input Source List : TV ► Edit Name ► WISELINK Anynet+ (HDMI-CEC) Press the EXIT button to exit. Move Enter Exit The on-screen menus disappear from the screen after about one minute. Memorizing the Channels Your TV can memorize and store all of the available channels for both “off-air” (Air) and “Cable” channels. After the available channels are memorized, use the CH or CH buttons to scan through the channels. This eliminates the need to change channels by entering the channels digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Lists). Selecting the Video Signal-source Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Channel

Clear Scrambled Channel Channel List Name

Air Start Cable Start Air+Cable Start Move Move When selecting the Cable TV system: Press the ENTER button to start the auto program. By default, the cable TV system is set to “STD”. If you want to select another type of cable system, press the ▲ or ▼ button to select “STD”, “HRC” or “IRC”.

STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected. Press the ENTER button to start the auto program. To stop the search before it has finished, press the ENTER button with stop selected.

5. After all the available channels are stored, the “Auto Program” menu reappears.

Press the EXIT button to exit. Return Return Channel Select the antennas to memorize.

Air: “Air” antenna signal. / Cable: “Cable” antenna signal. / Air+Cable: “Air” and “Cable” antenna signals.

Return Return Auto Program Select the cable system. Analog Start STD HRC IRC Digital STD HRC IRC Move Move Enter Enter Return Return Auto Program Auto Program in Progress. Cable Channel 50 35% Stop Enter Return Plug & Play Auto Program is completed. 16 Channels were memorized. Air : 16, Cable : 0.

Enter Return English - 17 BN68-01156B-02Eng-0329.indd 17 2007-03-29 7:58:42 Setting Up Your Remote Control (depending on the model) After the television has been set up properly, your remote control can operate in five different modes: TV, DVD, Cable, Set-Top Box, VCR. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose. The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes. Setting Up the Remote to Operate Your VCR

1. Turn off your VCR.

Press the VCR button on your TV’s remote control.

Press the SET button on your TV’s remote control.

4. Using the number buttons on your remote control, enter three digits of the VCR code

listed on page 20 of this manual for your brand of VCR. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

5. Press the POWER button on the remote control.

Your VCR should turn on if your remote is set up correctly. If your VCR does not turn on after set up, repeat steps 2, 3, and 4, but try one of the other codes listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080. ote on Using Remote Control Modes: VCR When your remote control is in “VCR” mode, the volume buttons still control your TV’s volume. Setting Up the Remote to Operate Your Cable Box

1. Turn off your cable box.

Press the CABLE button on your TV’s remote control.

Press the SET button on your TV’s remote control.

4. Using the number buttons on your remote control, enter three digits of the cable box code

listed on page 21 of this manual for your brand of cable box. Make sure you enter three digits of the code, even if the first digit is a “0”. (If there is more than one code listed, try the first one.)

5. Press the POWER button on the remote control.

Your cable box should turn on if your remote is set up correctly. If your cable box does not turn on after set up, repeat steps 2, 3, and 4, but try one of the other codes listed for your brand of cable box. If no other codes are listed, try each code, 000 through 046. ote on Using Remote Control Modes: Cable Box When your remote control is in “CABLE” mode, the volume buttons still control your TV’s volume. English - 18 BN68-01156B-02Eng-0329.indd 18 2007-03-29 7:58:42 Setting Up the Remote to Operate Your DVD

1. Turn off your DVD.

Press the DVD button on your TV’s remote control.

Press the SET button on your TV’s remote control.

4. Using the number buttons on your remote control, enter three digits of the DVD code

listed on page 21~22 of this manual for your brand of DVD. Make sure you enter three digits of the code, even if the first digit is a “0”. (If there is more than one code listed, try the first one.)

5. Press the POWER button on the remote control.

Your DVD should turn on if your remote is set up correctly. If your DVD does not turn on after set up, repeat steps 2, 3, and 4, but try one of the other codes listed for your brand of DVD. If no other codes are list-ed, try each code, 000 through 141. ote on Using Remote Control Modes: DVD When your remote control is in “DVD” mode, the volume buttons still control your TV’s volume. Setting Up the Remote to Operate Your STB

1. Turn off your STB.

Press the SET button on your TV’s remote control.

4. Using the number buttons on your remote control, enter three digits of the STB code

listed on page 22 of this manual for your brand of STB. Make sure you enter three digits of the code, even if the first digit is a “0”. (If there is more than one code listed, try the first one.)

5. Press the POWER button on the remote control.

Your STB should turn on if your remote is set up correctly. If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of STB. (If no other codes are listed, try each code, 000 through 074.) ote on Using Remote Control Modes: STB When your remote control is in “STB” mode, the volume buttons still control your TV’s volume. English - 19 BN68-01156B-02Eng-0329.indd 19 2007-03-29 7:58:43 Remote Control Codes VCR Brand SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL JVC KENWOOD KLH KONIA LG(Goldstar) LIOYD LOGIK LXI MAGNAVOX MARANTZ MARTA MEI MEMOREX MGA MIDLAND MINOLTA MITSUBISHI Code

DVD Receiver AV Receiver Code

English - 22 BN68-01156B-02Eng-0329.indd 22 2007-03-29 7:58:44 To Select the Source (depending on the model) Use to select TV or other external input sources connected to the TV. Use to select the input source of your choice.

When you connect equipment to the LCD, you can choose between the following sets of jacks: TV, AV1, AV2, S-Video1, S-Video2, Component1, Component2, PC, HDMI1, HDMI2, HDMI3 on the TV’s rear panel. HDMI1, HDMI2, HDMI3 input can only be selected when the external device is turned on and connected via HDMI. 23,26 inch model supports TV, AV1, AV2, S-Video1,S-Video 2, Component1, Component 2, PC, HDMI1, and HDMI2 only. AV2/S-Video2/HDMI3 is placed on the side of the TV. Move

Enter Return Source List AV1 AV2 S-Video1 S-Video2 Component1 Component2 : ---: ---: ---: ---: ---: ---- ▼More You can choose only those external devices that are connected to the TV. Move ress the SOURCE button on the remote control to view an external signal source. Enter Return To Edit the Input Source Name (depending on the model) Name the device connected to the input jacks to make your input source selection easier.

2. Press the ▲ or ▼ buttons to select “AV1”, “AV2”, “S-Video1”, “S-Video2”,

Move Enter Return English - 23 BN68-01156B-02Eng-0329.indd 23 2007-03-29 7:58:47 Picture Control Using Automatic Picture Settings Your TV has Three automatic picture settings ("Dynamic”, “Standard”, “Movie") that are preset at the factory. You can activate either Dynamic, Standard, Movie by making a selection from the menu.

1. Press the MENU button to display the menu.

Press the ENTER button, to select “Picture”.

Press the ENTER button to select “Mode”. Press the ENTER button again. Press the ▲ or ▼ buttons to select the “Dynamic”, “Standard”, “Movie” picture setting. Press the ENTER button.

3. Press the ▲ or ▼ buttons to select “Contrast”, “Brightness”, “Sharpness”,

"Color”, or “Tint(G/R)”, then press the ENTER button. Press the EXIT button to exit. Return Mode : Dynamic Dynamic Standard Contrast 100 Brightness Movie Sharpness 85 Color Tint G 50 R 50 Backlight 10 ▼More Choose Dynamic to increase the clarity and sharpness of the picture. Choose Standard for the standard factory settings. Choose Movie for a natural Image without picture enhancements.

4. Press the ◄ or ► buttons to decrease or increase the value of a particular item.

For example, if you select “Contrast”, pressing the ► button increases it. Enter Move Enter

• When you make changes to Contrast, Brightness, Sharpness, Color, Tint(G/R) OSD will be also adjusted accordingly.
• When in PC mode, Tint, Sharpness, and Color are not available. ress the P.MODE button on the remote control repeatedly to select the desired picture mode. English - 24 BN68-01156B-02Eng-0329.indd 24 2007-03-29 7:58:49 Activating Backlight You can adjust the screen brightness by adjusting the LCD backlight brightness. (0~10)

Press the ENTER button, to select “Picture”.

2. Press the ▲ or ▼ button to select “Backlight”, then press the ENTER

3. Press the ◄ or ► button to decrease or increase the value of the backlight brightness.

Move Adjust Return Adjusting the Color Tone You can change the color of the entire screen according to your preference.

3. Press the ▲ or ▼ buttons to select “Cool2”, “Cool1”, “Normal”, “Warm1”,

Press the ENTER button, to select “Picture”.

2. Press the ENTER button to select “Mode”

Press the ▲ or ▼ buttons to select “Movie”, then press the ENTER button.

3. Press the ▲ or ▼ buttons to select “Detailed settings”,

You can directly select the black level on the screen to adjust the screen depth.

Press the ENTER button. Off: Turns off the dynamic contrast adjustment function. Low: Sets the dynamic contrast to low. Medium: Sets the dynamic contrast to medium. High: Sets the dynamic contrast to high. Enter Detailed Settings Move Off: Turns off the black adjustment function. Low: Sets the black color depth to low. Medium: Sets the black color depth to medium. High: Sets the black color depth to high. You can adjust the screen contrast so that the optimal contrast is provided.

13. Select the required option by pressing the ▲ or ▼ button, then press the

Enter Return White Balance R-Offset G-Offset B-Offset R-Gain G-Gain B-Gain Reset R offset: Adjusts the red color darkness. G offset: Adjusts the green color darkness. B offset: Adjusts the blue color darkness. R gain: Adjusts the red color brightness. G gain: Adjusts the green color brightness. B gain: Adjusts the blue color brightness. Reset: The previously adjusted white balance will be reset to the factory defaults. Changing the adjustment value will refresh the adjusted screen. Return Detailed Settings

You can adjust the color temperature for more natural picture colors.

Press the ENTER button. Return Black Adjust : Off Dynamic Contrast : Off Gamma Color Space : Auto White Balance My Color Control Edge Enhancement : Off Color space is a color matrix composed of red, green, and blue colors. Select your favorite color space to and experience the most natural color. Activating White Balance Return

Wide : Wide Color Space offers deep and rich color tone. Auto : Auto Color Space automatically adjusts to the most natural color tone based on program sources.

Move Adjust Return English - 27 BN68-01156B-02Eng-0329.indd 27 2007-03-29 7:58:57 Activating My Color Control This setting can be adjusted to suit your personal preferences. When using the My Color Control Feature, the current picture remains in movement.

Pink: Darkens or lightens the pink color Green: Darkens or lightens the green color Blue: Darkens or lightens the blue color White: Darkens or lightens the white color Reset: The previously adjusted colors will be reset to the factory defaults.

Enter Return My Color Control Pink Green Blue White Reset Changing the adjustment value will refresh the adjusted screen. Move

Press the ENTER button, to select “Picture”.

3. Press the ▲ or ▼ buttons to select the screen format you want.

Press the ENTER button. Press the EXIT button to exit.

• 16:9 : Sets the picture to 16:9 wide mode.
• Zoom1 : Magnifies the size of the picture on the screen.
• Zoom2 : Magnifies the size of the picture more than “Zoom1”.
• Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen.
• 4:3 : Sets the picture to 4:3 normal mode.
• Just Scan : Use the function to see the full image without any cutoff when HDMI 720p/1080i signals are input. Enter

Return Size 16 : 9 Zoom1 Zoom2 Wide Fit Position 4:3 Just Scan Move Enter Reset Return Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size. If you watch a still image or the 4:3 mode for a long time (over 2 hours), an image may be burned onto the screen. View the TV in 16:9 mode as much as possible. HD (High Definition) 16:9 - 1080i (1920x1080), 720P (1280x720) Zoom1 16:9 Sets the picture to 16:9 wide mode. The screen size when Wide screen is vertically enlarged. Wide Fit Enlarges the aspect ratio of the picture to fit the entire screen. 4:3 Sets the picture to 4:3 normal mode. Zoom2 The screen size when the Zoom1 screen is vertically enlarged. Just Scan Use the function to see the full image without any cutoff when HDMI 720p/1080i signals are input.

• In TV, VIDEO, S-VIDEO,and all COMPONENT (480i, 480p), DTV (480i, 480p) modes, all screen modes can be selected. (16:9 • Zoom1 • Zoom2 • 4:3).
• You can select only the 16:9, 4:3 and Wide Fit screen sizes in the DTV Component (720p, 1080i) or HDMI (720p, 1080i) mode.
• In PC modes, only 16:9 & 4:3 modes can be selected.
• You must select Zoom with the P. Size button on the remote if you want to move the Zoom 1or 2 picture up or down.
• When watching a DTV’s HD signal, you can use Wide Fit. Horizontal zoom (Wide Fit) sets the optical picture format by expanding it both horizontally and vertically. For example, you can reset the picture in 4:3 format to 16:9. Wide Fit does not support all external devices (DVD, VCR etc.). English - 29 BN68-01156B-02Eng-0329.indd 29 2007-03-29 7:59:02 Setting the Active Color If you turn on this option, the colors of the sky and grass will be stronger and clearer for a more vivid on-screen picture.

3. Press the ▲ or ▼ button to select “Off” or “On”

Press the ENTER button. Press the EXIT button to exit. Move Picture Mode is available only in Dynamic mode.

Enter Return Picture ▲More Color Tone : Cool1 Detailed settings Size : 16 : 9 Digital NR : Low Active Color : On Off DNle : On Reset : OK Move Enter Return DNIe (Digital Natural Image engine) This TV includes the DNIe function to provide high visual quality. If you set DNIe to On, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

1. Press the MENU button to display the menu.

Press the ENTER button, to select “Picture”.

3. Press the ▲ or ▼ buttons to select “Off”, “DNle Demo” or “On”, then press the

• Off: Switches off the DNIe mode.
• Demo: The screen before applying DNIe appears on the left screen. The screen after applying DNIe appears on the right.
• On: Switches on the DNIe mode. Press the EXIT button to exit.

DNIeTM (Digital Natural Image engine) This feature brings you a more detail image with 3D noise reduction and detail, contrast and white enhancement. This function doesn’t work when the Input Source is PC. The DNle function is not supported in Movie mode. Picture ▲More Color Tone : Cool1 Detailed settings Size : 16 : 9 Digital NR : Low Active Color : On DNle : On Reset : OK Move

Press the STILL button to freeze a moving picture.

Normal sound will still be heard. Press again to cancel.

While V-Chip is in operation, the Still function cannot be used. Setting the Film Mode You can: automatically senses and processes film signals from all sources and adjusts the picture for optimum quality.

3. Press the ▲ or ▼ buttons to select “Normal” or “Low”, then press the ENTER button.

• Normal: The screen gets brighter.
• Low: The screen gets darker.

Setup ▲More HDMI Black Level : Normal Film Mode : Off PIP Function Help : On SW Upgrade Move This function is active only when the an external device (DVD player, STB etc.) is connected to the TV via HDMI. Press the EXIT button to exit.

Return Setup ▲More HDMI Black Level : Normal Normal Low Film Mode : Off PIP Function Help : On SW Upgrade Move Enter Return English - 31 BN68-01156B-02Eng-0329.indd 31 2007-03-29 7:59:07 Viewing Picture-in-Picture This product has one built-in tuner, which does not allow PIP to function in the same mode. For example, you cannot watch one TV channel in the main screen, and a different one in the PIP screen. Please see ‘PIP Settings’below for details. You can use the PIP feature to simultaneously watch two video sources. (See page 39 to select the PIP picture sound.) While V-Chip (See page 61) in operation, the PIP function cannot be used. Activating Picture-in-Picture

2. Press the ENTER button again.

Return PIP PIP Size Position Channel

If you turn the TV off while watching in PIP mode and turn it on again, the PIP window will disappear.

Analog TV broadcasts only Move Enter Return

You can view Analog TV broadcasts on the PIP screen (sub-picture) when the main picture is from an connected PC to this TV. [LN-T3253H / LN-T4053H] Main picture Sub picture Component 1,2 HDMI 1,2,3

Analog TV broadcasts only

You can view Analog TV broadcasts on the PIP screen (sub-picture) when the main picture is from an external device connected to HDMI1,2,3 Component1,2 or PC. Alternately, you can press the PIP button on the remote control repeatedly to activate or deactivate the PIP. Changing the PIP Channel

3. Press the ▲ or ▼ buttons to select “Channel”, then press the ENTER button.

Press the ▲ or ▼ buttons to select the desired channel in the PIP window.

PIP PIP Size Position Channel The channel can be active when the sub picture is set to TV. Move

Enter Return PIP PIP Size Position Channel Press the PIP Channel buttons on the remote control. : On

Press the ▲ or ▼ buttons to select the desired channel in the PIP window. Press the ENTER buttons.

) mode cannot be selected in Position Move Enter

Channel : Cable 3 Move Changing the Size of the PIP Window

Enter Return PIP PIP Size Position Channel

5. Press the ▲ or ▼ buttons to select “Size”, then press the ENTER button.

Press the ▲ or ▼ buttons to select the desired channel in the PIP window. Press the ENTER buttons. Return : On

If the main picture is in PC mode, Size is not available.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

You can adjust the picture position only by using the size menu. Move

: Cable 3 Enter Return English - 33 BN68-01156B-02Eng-0329.indd 33 2007-03-29 7:59:11 Sound Control Customizing the Sound The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the “automatic” settings.)

3. Press the ◄ or ► buttons to select a particular frequency to adjust.

Press the ▲ or ▼ buttons to increase or decrease the level of the particular frequency.

• L/R Sound Balance Adjustment : To adjust the sound balance of the L/R speakers.

Balance Move 100Hz 300Hz 1KHz 3KHz 10KHz Adjust Return Using Automatic Sound Settings Your TV has automatic sound settings ("Standard”, “Music”, “Movie”, “Speech”, and “Custom") that are preset at the factory. Or, you can select “Custom”, which automatically recalls your personalized sound settings.

Press the ▲ or ▼ buttons to select “Standard”, “Music”, “Movie”, “Speech”, or “Custom” sound setting, then press the ENTER button. Press the EXIT button to exit.

Choose Standard for the standard factory settings. Choose Music when watching music videos or concerts. Choose Movie when watching movies. Choose Speech when watching a show that is mostly dialog (i.e., news). Choose Custom to recall your personalized settings (see “Customizing the Sound”).

Enter Return Sound Mode : Custom Standard Music Equalizer SRS TruSurround XT : Off Movie Speech Multi-Track Options Custom Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Move Enter Return Press the S.MODE button on the remote control repeatedly to select one of the sound settings. English - 34 BN68-01156B-02Eng-0329.indd 34 2007-03-29 7:59:14 Setting the TruSurround XT TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Sound

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Choosing a Multi-Channel Sound (MTS) track - Digital The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional “multitracks” depends upon the program. Preferred Language

Quick way to access the MTS menu: Just press the “MTS” button on the remote control. You can listen in a language other than your chosen language by pressing the MTS button.

2. Press the ▲ or ▼ buttons to select “Multi-Track Options”, then press the ENTER

3. Press the ENTER button to select “Preferred Language”.

Enter Return Multi-Track Options Preferred Language : English English Spanish Multi-Track Sound : Stereo French You can listen in a language other than the favorite language by pressing the MTS button on the remote control. Move Enter Return English - 35 BN68-01156B-02Eng-0329.indd 35 2007-03-29 7:59:16 Choosing a Multi-Channel Sound (MTS) track - Analog Multi-Track Sound

Return Multi-Track Options Preferred Language : English Multi-Track Sound : StereoMono Stereo SAP Press the ▲ or ▼ buttons to select a setting you want, then press the ENTER button. Press the EXIT button to exit.

• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.
• Choose Stereo for channels that are broadcasting in stereo.
• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-language translation. Move Enter Return Press the MTS buttons on the remote control repeatedly to select “Mono”, “Stereo”, or “SAP”. Automatic Volume Control Reduces the differences in volume level among broadcasters.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ buttons to select “On”, then press the ENTER button. When Internal Mute is set to “On”, Sound menus except Multi-track Options cannot be adjusted.

The VOL , VOL is set to On. and MUTE buttons do not operate when the Internal Mute Return Sound Move TV's Internal Speakers Enter Mode : Custom Equalizer SRS TruSurround XT : Off Multi-Track Options Auto Volume : Off Off Internal Mute : Off Sound Select : Main Reset Press the EXIT button to exit.

AV, S-Video Component, PC, HDMI Internal Mute Off Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output Internal Mute On Mute Mute Mute Sound Output Sound Output Sound Output Video No Signal Mute Mute Mute Mute Mute Mute When “Internal mute” is set to “On”, Sound menus except “Multi-Track Options” cannot be adjusted. Setting the On/Off Melody A melody sound can be set to come on when the TV is powered On or Off.

3. Press the ▲ or ▼ buttons to select “Off”, “Low”, “Medium”, “High” then press the

Setup ▲More Blue Screen : On Melody : Off Off Low Medium Home Theater PC : Off High Light Effect : Watching Mode On Energy Saving : Off ▼ More Move Enter Return Press the EXIT button to exit. DOLBY DIGITAL Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. English - 37 BN68-01156B-02Eng-0329.indd 37 2007-03-29 7:59:21 Listening to the Sound of the Sub (PIP) Picture When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

Press the ▲ or ▼ buttons to select “Main” or “Sub”, then press the ENTER button. Return Sound Mode : Custom Equalizer SRS TruSurround XT : Off Multi-Track Options Auto Volume : Off Internal Mute : Off Main Sound Select : Main Sub Reset Press the EXIT button to exit.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture.

You can select this option when “PIP” is set to “On”. Move Enter Return Resetting the Sound Settings to the Factory Defaults If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function resets the equalizer setting to the factory defaults.

Return Connecting Headphones You can connect a set of headphones to your set if you wish to watch a TV program without disturbing the other people in the room. When you insert the head set jack into the corresponding port, you can operate only “Multi track option” in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently.

Press the VOL button on the remote control repeatedly to select one of the sound settings. English - 38 BN68-01156B-02Eng-0329.indd 38 2007-03-29 7:59:24 Channel Control Selecting the Antenna

Auto Program Clear Scrambled Channel

: Air Air Auto Program Cable Clear Scrambled Channel Channel List Name Fine Tune Signal Strength LNA : On Move Enter Press the ANTENNA button on the remote control. If the antenna is connected to ANT 1 IN (AIR), select “Air” and if it is connected to ANT 2 IN (CABLE), select “Cable”. Channel Antenna Press the EXIT button to exit.

If both ANT 1 IN (AIR) and ANT 2 IN (CABLE) are connected, select the antenna input you want. If the antenna input is not selected properly, noise may appear on the screen. Clearing Scrambled Channels - Digital The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. It removes the scrambled channels from the list by tuning the digital cable channels. This process may take up to 20~30 minutes.

ENTER button. It searches scrambled channels, which are to be removed from the list. To stop searching scrambled channels; Press the ▼ button to select Stop. Press the ◄ button to select Yes, then press the ENTER button.

Return Clear Scrambled Channel Removing scrambled channel. DTV Cable 3-1 50% Stop

When the scrambled channel searching is completed, press the ENTER button.

Enter Return DTV Cable 3-1 Clear Scrambled Channel Press the EXIT button to exit. 60% Scrambled Channel Searching is completed. 0 Channels are deleted.

Enter Return English - 39 BN68-01156B-02Eng-0329.indd 39 2007-03-29 7:59:26 Setting the Channel Lists You can add or delete a channel so only channels you want are displayed.

4. Press the ▲ or ▼ buttons to select a channel to delete, then press the

ENTER button. Press the ▲ or ▼ buttons to select “Delete”, then press the ENTER button to delete the channel. The mark will disappear. Channel List / All Air 5 DTV Air 2-1 Air3 Air4 Air 5 Air 6 Air 7 DTV Air 7-1 Air 8 Move DTV Air 2-1 Air3 Air4 Air 5 Air 6 Air 7 DTV Air 7-1 Air 8 Move Press the ▲ or ▼ buttons to select “Add”, then press the ENTER button to add the channel. The mark will appear and the channel will be added. Press the EXIT button to exit.

• Red (P.MODE) button: Press repeatedly to select “All”, “Added”, or “Favorite”.
• Green (S.MODE) button: Press to add all channels deleted.
• Yellow (STILL) button: Press to delete all channels memorized. DTV Air 2-1 Air3 Air4 Air 5 Air 6 Air 7 DTV Air 7-1 Air 8 Move 1/2

Page Return (LN-T3253H, LN-T4053H) English - 40 BN68-01156B-02Eng-0329.indd 40 2007-03-29 7:59:30 To set-up Your Favorite Channels You can set channels you watch frequently as favorites.

Clear Scrambled Channel Channel List

Fine Tune Signal Strength

4. Press the ▲ or ▼ buttons to select your favorite channels to watch among the

labeled channels. Then press the ENTER button. Press the ▲ or ▼ buttons to select “Favorite”, then press the ENTER button. The “ “ symbol will be highlighted and the channel will be set as a Favorite. To cancel your Favorite channel selection, press the ENTER button until the ” “ symbol is no longer highlighted. Press the EXIT button to exit.

Return Channel List All Added Favorite Default List Mode The CH.List you have chosen will now be set. : All All ► Added Favorite Press the EXIT button to exit. Press the CH LIST button on the remote control to bring up the Channel Lists. Move Enter Return Viewing the Channel Lists You can display a list of all channels, added channels or your favorite channels.

3. Press the ▲ or ▼ buttons to select “All”, “Added” or “Favorite”, then press the

To toggle between your all channels, add channels, or favorite channels, use the red (P.Mode) button on the remote control.

Page Return (LN-T3253H, LN-T4053H) English - 42 BN68-01156B-02Eng-0329.indd 42 2007-03-29 7:59:35 Labeling Channels Channels can be labeled so that their call letters appear whenever the channel is selected.

Auto Program Clear Scrambled Channel

Press the ▲ or ▼ buttons to select the channel to be assigned a new name, then press the ENTER button. Press the ▲ or ▼ buttons to select a letter, a number or a blank (Results in this sequence: A...Z, 0...9, +, -, *, /, blank). Press the ► button to switch to the next field, which will be selected. Select a second letter or digit by pressing the ▲ or ▼ buttons, as above. Repeat the process to select the last three digits. When you have finished, press the ENTER button to assign the new name. To erase the assigned new name, select “Clear” by pressing the ◄ or ► button, then press the ENTER button.

The names of digital broadcasting channels are automatically assigned and thus cannot be assigned by users. Air 3 Clear Air 4 Clear Air 5 Clear Air 6 Clear

Move Clear Adjust Return LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

LNA functions when the antenna is set to Air or Cable. Settings will be stored separately in each channel. (See “Selecting the antenna.” on page 39.) Channel Antenna : Air Auto Program Clear Scrambled Channel Channel List Name LNA : On Move Enter

Move Enter Return English - 43 BN68-01156B-02Eng-0329.indd 43 2007-03-29 7:59:37 Fine Tuning Analog Channels Use fine tuning to manually adjust a particular channel for optimal reception.

Clear Scrambled Channel

3. Press the ◄ or ► buttons to adjust the fine tuning.

If you do not store the fine-tuned channel in memory, adjustments are not saved.

Reset Adjust "*” will appear next to the name of fine-tuned channels. : On

4. To reset the fine tuning setting, press the ▼ button to select “Reset”,

Reset Move Enter Return Checking the Digital-Signal Strength Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.

Channel Antenna : Air Auto Program Clear Scrambled Channel Press the ▲ or ▼ buttons to select “Signal Strength”, then press the ENTER button. If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal.

Press the EXIT button to exit

Enter Return English - 44 BN68-01156B-02Eng-0329.indd 44 2007-03-29 7:59:42 PC Display Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on “Control Panel” on the Windows start menu.

2. When the control panel window appears, click on “Appearance and Themes” and a

display dialog-box will appear.

3. When the control panel window appears, click on “Display” and a display dialog-box

4. Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution) Optimum: 1360 x 768 pixels If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box. Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing. D-Sub Input Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 720 X 400 640 X 480

HDMI/DVI Input English - 45 BN68-01156B-02Eng-0329.indd 45 2007-03-29 7:59:42 Setting up the TV with your PC How to Auto Adjust Use the Auto Adjust function to have the TV set automatically adjust the video signals the monitor receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. This function does not work in DVI-Digital mode.

Image Lock ► Position ► Auto Adjustment ► Image Reset ► Press the EXIT button to exit. Move Enter Return Auto Adjustment in Progress. Please Wait Adjusting the Screen Quality The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then make the frequency adjustments to the utmost and fine tune again.(See page 45) After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen.

Image Lock Position Auto Adjustment Image Reset Change to the PC mode first.

Press the ◄ or ► buttons to adjust the screen quality.

Vertical stripes may appear or the picture may be blurry. Press the ENTER button.

Press the EXIT button to exit. Enter Position

Adjust Initializing the Screen Position or Color Settings You can replace all image settings with the factory default value.

Image Lock Position Auto Adjustment Image Reset

Change to the PC mode first. Move Press the ▲ or ▼ buttons to select “Image Reset”, then press the ENTER button. Press the EXIT button to exit. Enter Return Image Reset is completed. Setting the Home Theater PC This function enables you to view higher quality pictures while in PC Mode. After setting the Home Theater PC function to On, you can go into the Detailed Settings menu and make adjustments without affecting settings in the regular TV mode..

Press the ▲ or ▼buttons to select “On” or “Off”, then press the ENTER button. Off: Turns off the settings for screen-related functions in PC input mode. On: Turns on the settings for screen-related functions in PC input mode to provide more dynamic scenes. Press the EXIT button to exit. This function is available only in PC mode. Setup ▲More Blue Screen : On ► Melody : Off ► PC ►

Setup ▲More Blue Screen : On Melody : Off Home Theater PC : Off Off On Mode On Light Effect : Watching Energy Saving : Off ▼ More Move Enter Return English - 47 BN68-01156B-02Eng-0329.indd 47 2007-03-29 7:59:47 Time Setting Setting the Clock Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Manually

The current time will appear every time you press the INFO button.

You can set the month, day, year, hour, and minute directly by pressing the number buttons on the remote control. Adjust Return Clock Set Set current date and time. Month

Set current date and time. Month

5. Press the ◄ or ► buttons to move to “Month”, “Day”, “Year”, “Hour”, “Minute”,

or “am/pm”. Set the date and time you want by pressing the ▲ or ▼ buttons, then press the ENTER button. Return Clock Move

5. Press the ▲ or ▼ buttons to highlight the time zone for your local area,

Return Time Zone Select the time zone in which you live. Newfoundland Atlantic Eastern Central Mountain Pacific Alaska Hawaii Move

6. Press the ▲ or ▼ buttons to select “DST” (Daylight Saving Time), then press

Press the EXIT button to exit. Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually.

The Antenna or cable must be connected in order to set the time automatically. Return Clock Clock Mode : Auto Clock Set Time Zone DST : Off Press the ▲ or ▼ buttons to select “On” or “Off”, then press the ENTER button.

Press the ▲ or ▼ buttons to select “On”, then press the ENTER button. Press the EXIT button to exit. Simply press the SLEEP button on the remote control for a Quick way to access the sleep timer setting.

Press the ▲ or ▼ buttons to adjust “Hour”, then press the ► button to move to the next step. Set other items using the same method as above.

Inactivate Repeat Activate or Inactivate Press the ▲or▼ button Repeat Select Once, Everyday, Mon-Fri, MonSat, Sat-Sun Press the ▲or▼ button Volume Select the required volume level. Press the ▲or▼ button Contents When the On Timer is active, you can turn on a specific channel or play back contents such as photo or audio files. (Make sure that an USB device is connected to your TV.) Press the ▲or▼ button

Channel Music None Photo None Move When finished, press the RETURN button to return. Air Adjust

• The current time will appear every time you press the INFO button.

• You can set the hour, minute, and channel by pressing the number buttons on the remote control. Press the EXIT button to exit. English - 51 BN68-01156B-02Eng-0329.indd 51 2007-03-29 7:59:56 Function Description Selecting a Menu Language

Enter Return Setup Plug & Play English Language : Off Español Time Français Game Mode : Off V-Chip Caption Press the EXIT button to exit. Menu Transpatency : High ▼More Move Enter Return Setting the Blue Screen Mode If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off"

Press the ▲ or ▼ buttons to select “On” or “Off” then press the ENTER button. Press the EXIT button to exit. Pressing the ▲ or ▼ buttons will alternate between “On” or “Off”

Setup ▲More Blue Screen : On Off Melody : Off Home Theater PC : Off Light Effect : Watching Mode On Energy Saving : Off ▼ More Move Enter Return English - 52 BN68-01156B-02Eng-0329.indd 52 2007-03-29 7:59:58 Using the Game Mode When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting Game mode.

Select “On” or “Off” by pressing the ▲ or ▼ buttons, then press the ENTER button.

To disconnect the game console and connect another external device, cancel game mode in the setup menu.

If you display the TV menu in Game mode, the screen shakes slightly.

Game Mode is not available in TV mode. Language : English Time Off Game Mode : Off V-Chip Caption Menu Transpatency : High ▼More Move Enter Return English - 53 BN68-01156B-02Eng-0329.indd 53 2007-03-29 7:59:59 Viewing Closed Captions (On-Screen Text Messages) - Analog The Analog Caption function operates when watching regular analog channels or when you have an analog external component (such as a VCR) connected.

Press the ▲ or ▼ buttons to select submenu (Default, CC1~CC4 or Text1~Text4) you want, the press the ENTER button. Press the EXIT button to exit.

• The default is “CC1”.
• CC1: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame.
• CC2: The Special Non-Synchronous Use Captions. This channel carries data that is intended to augment information carried in the program.
• CC3: Secondary Synchronous Caption Service. Alternate program-related caption data, typically second language captions.
• CC4: Special Non-Synchronous Use Captions. Similar to CC2.
• Text1: First Text Service. This may be various non-program related data.
• Text2: Second Text Service. Additional data, usually not program related.
• Text3/Text4: Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.

Press the ▲ or ▼ buttons to select “Size”, then press the ENTER button. Press the ▲ or ▼ buttons to select the desired Caption option, then press the ENTER button. Press the ▲ or ▼ button to select the desired sub-menu options (see options below), then press ENTER . Press the EXIT button to exit. The availability of captions depends on the program being broadcast. “Default” means to follow the standard set by the broadcaster.

• Size: This option consists of “Default”, “Small”, “Standard”, and “Large”. The default is “Standard”.
• Font Style: This option consists of “Default”, “Style0 ~ Style 7”. You can change the font you want. The default is “Style 0”.
• Foreground Color: This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”, “Yellow”, “Magenta”, and “Cyan”. You can change the color of the letter. The default is “White”.
• Background Color: This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”, “Yellow”, “Magenta”, and “Cyan”. You can change the background color of the caption. The default is “Black”.
• Foreground Opacity: This option consists of “Default”, “Transparent”, “Translucent”, “Solid”, and “Flashing”. You can change the opacity of the letter.
• Background Opacity: This option consists of “Default”, “Transparent”, “Translucent”, “Solid”,and “Flashing”. You can change the background opacity of the caption.
• Return to Default: This option sets each of “Size”, “Font Style”, “Foreground Color”, “Bakcground color”, “Foreground Opacity”, and “Background Opacity” to its default. : On Default : Default Service1 : Off Service2 Service3 Service4 Service5 Service6 Enter Return Caption Caption : On ► Caption Mode : Default ► Caption Options

“Caption Options” are available only when “Service1~Service6” can be selected in “Caption Mode”. Service1~6 in digital caption mode may not be available depending on the broadcast.

Return Press the CAPTION button repeatedly to select “On” or “Off”. English - 55 BN68-01156B-02Eng-0329.indd 55 2007-03-29 8:00:04 Menu Transparency Level Adjusts the transparency of the menu screen.

Setup Plug & Play Language : English Time Game Mode : Off High V-Chip Medium Caption Low Opaque Menu Transparency : Medium ▼More Move Enter Return Using the Energy Saving Feature This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the "Energy Saving “ mode option to “High” to reduce eye fatigue as well as power consumption.

Select the required option (Off, Low, Medium, High, Auto) by pressing the ▲ or ▼ button. Press the ENTER button.

Enter Return Setup ▲More HDMI Black Level : Normal Film Mode : Off PIP Function Help : On Off SW Upgrade Move Enter Return Setting the Light Effect You can turn on/off the blue LED on the front of TV.

3. Press the ▲ or ▼ button to select “Off”, “In Standby”, “In Watching TV” or “Always”,

Off: LED will not come on. In Standby: Turns the LED on in standby mode. In Watching TV: Turns the LED on while watching TV. Always: LED will come on after you turn the TV off. Press the EXIT button to exit. Setup ▲More Blue Screen : On ► Melody : Off ► PC ► Home Theater PC : Off ► Light Effect : In Watching TV ► Energy Saving : Off ► ▼ More Move Enter Return

Setup ▲More Blue Screen : On Melody : Off Off Home Theater PC : Off In Standby Mode On Light Effect : Watching In Watching TV Energy Saving : Off Always ▼ More Move Enter Return English - 57 BN68-01156B-02Eng-0329.indd 57 2007-03-29 8:00:08 Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

3. Press the ▲ or ▼ button to select “Off”, “Low”, “Medium”, “High”, “Auto”.

Press the ENTER button. Off: Turns the screen noise reduction function off. Low: Reduces screen noise at a low level. Medium: Reduces screen noise at a medium level. High: Reduces screen noise at a high level. Auto: Automatically recognizes and reduces screen noise. Press the EXIT button to exit. Picture ▲More Color Tone : Warm2 Detailed setting Size : 16 : 9 Digital NR : Low Active Color : On DNle : On Reset Move

English - 58 BN68-01156B-02Eng-0329.indd 58 2007-03-29 8:00:09 Using the V-Chip The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed. When the V-chip feature is activated, the PIP features do not function. Setting Up Your Personal ID Number (PIN)

The message “Enter PIN” will appear. Enter your 4 digit PIN number.

The “V-Chip” screen will appear. Press the ▲ or ▼ buttons to select “Change PIN”, then press the ENTER button. The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the “Confirm new PIN” screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized.

TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Press the EXIT button to exit. If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off. → Mute → 8 → 2 → 4 → Power On. Return V-Chip Move

Return Change PIN Enter new PIN U.S.A Only This product is covered by the following U.S.patents :US4,930,158,US4,930,160 Confirm new PIN Enter PIN Return English - 59 BN68-01156B-02Eng-0329.indd 59 2007-03-29 8:00:11 How to Enable/Disable the V-Chip

3. The “V-Chip” screen will appear.

To enable the V-Chip feature, press the ENTER button so that the “V-Chip Lock” field is “On”. (Pressing the ▲ or ▼ buttons will alternate between “On” and “Off”.)

Return V-Chip V-Chip Lock : off TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move How to Set up Restrictions Using the “TV Parental Guidelines” Off

The message “Enter PIN” will appear. Enter your 4 digit PIN number.

TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN

3. The “V-Chip” screen will appear. Press the ▲ or ▼ buttons to select “TV Parental

Canadian French Downloadable U.S. Rating

4. The “TV Parental Guidelines” screen will appear.

Press the ▲ or ▼ buttons to select one of the six aged based categories:

At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category. To select a different TV-Rating, press the ▲ or ▼ buttons and then repeat the process.

The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings: FV: Fantasy violence / D: Sexually Suggestive Dialog / L: Adult Language / S: Sexual situation / V: Violence

The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The sub-ratings (D, L, S, V) work together similarly. (See next section.) How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14, or TV-MA (See Step 4, on previous page), and press the ► button. The “ ”symbol will be displayed for each sub-rating. While “ ” is selected, press the ENTER button to go to a sub rating. Press ENTER to block the sub rating. To select a different TV-Rating, press the ▲ or ▼ buttons and then repeat the process.

The V-chip will automatically block certain categories that are “More restrictive”. For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.

7. Press the EXIT button to clear all the screens. (Or proceed to the next section,

and set up additional restrictions based on the MPAA codes.)

These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else). The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group. (See next step.) English - 61 BN68-01156B-02Eng-0329.indd 61 2007-03-29 8:00:15 How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

3. The “V-Chip” screen will appear. Press the ▲ or ▼ buttons to select “MPAA Rating”,

TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move

Return MPAA Rating Allow All Block All Block

4. The “MPAA Rating” screen will appear. Repeatedly press the ▲ or ▼ buttons to

select a particular MPAA category. Pressing the ▲ or ▼ buttons will cycle through the MPAA categories:

G: General audience (no restrictions). PG: Parental guidance suggested. PG-13: Parents strongly cautioned. R: Restricted. Children under 17 should be accompanied by an adult. NC-17: No children under age 17. X: Adults only. NR: Not rated.

Enter Return MPAA Rating Allow All Block All Block

Move Enter Return Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.

While a particular category is selected, press the ENTER button to activate it. The “ ” symbol will be displayed. Press the ENTER button to block or unblock the category. The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the “PG-13” category, then “R”, “NC-17” and “X” will automatically be blocked also. Press the EXIT button to exit. English - 62 BN68-01156B-02Eng-0329.indd 62 2007-03-29 8:00:18 How to Set up Restrictions Using the ‘Canadian English’

3. The “V-Chip” screen will appear. Press the ▲ or ▼ buttons to select

TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move

4. Press the ▲ or ▼ buttons to select an appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ indicated.

Programming intended for children under age 8. Programming generally considered acceptable for children 8 years and over to watch on their own. General programming, suitable for all audiences. Parental Guidance. Programming contains themes or content which may not be suitable for viewers under the age of 14. Adult programming. Allow All Block All Block C8+

14+ 18+ Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.

• 18+: Return Canadian English ” symbol is Press the EXIT button to exit.

Enter Return Canadian English Allow All Block All Block C8+

14+ 18+ Move Enter Return English - 63 BN68-01156B-02Eng-0329.indd 63 2007-03-29 8:00:21 How to Set up Restrictions Using the ‘Canadian French’

3. The “V-Chip” screen will appear. Press the ▲ or ▼ buttons to select

TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move

4. Press the ▲ or ▼ buttons to select an appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ indicated.

Allow All Block All Block 8 ans+ 13 ans+ 16 ans+ 18 ans+ Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.

• 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• 13 ans+: Programming may not be suitable for children under the age of 13.
• 16 ans+: Programming is not suitable for children under the age of 16.
• 18 ans+: Programming restricted to adults. Return Canadian French ” symbol is Press the EXIT button to exit.

3. The “V-Chip” screen will appear. Press the ▲ or ▼ buttons to select

“Downloadable U.S. Rating”, then press the ENTER button. If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings. Parental restriction levels differ depending on the broadcasting station. The default menu name and Downloadable US rating changes depending on the downloaded information. Even if you set the On-screen display to your desired language, the "Downloadable U.S. Rating” menu will appear in English only. The rating will automatically block certain categories that are more restrictive. The rating titles(For example: Humor Level..etc) and TV ratings (For example: DH,MH,H..etc) may differ depending on the broadcasting station.

Enter Return The number of current rating title Rating title Downloadable U.S. Rating Humor Level ” symbol is : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN

4. Press the ▲ or ▼ buttons to select an appropriate restriction.

Press the ENTER button to activate the restriction selected. The “ indicated. Return 41/2

Allow All Block All Move Enter Return The nimber of all rating title English - 65 BN68-01156B-02Eng-0329.indd 65 2007-03-29 8:00:27 Upgrading the Software (depending on the model) Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG (7267864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on located on the back of your TV.

1. Insert a USB drive containing the firmware upgrade into the WISELINK port on

the side of the TV. (LN-T2353H, LN-T2354H, LN-T2653H) TV Rear Panel

button. The message Scanning for USB... It may take up to 30 seconds. is displayed. Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. USB Drive (LN-T3253H, LN-T4054H) TV Side Panel USB Drive

Setup ▲More Film Mode : Off Wall-mount adjustment PIP Function Help : Off SW Upgrade Move Enter

Return SW Upgrade Scanning for USB... It may take up to 30 seconds. English - 66 BN68-01156B-02Eng-0329.indd 66 2007-03-29 8:00:29 WISELINK Using the WISELINK Function (LN-T3253H, LN-T4053H) This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. Example TV Side Panel Press the POWER button on the remote control or front panel. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. If you enter the WISELINK mode with no USB device connected. the message “There is no device connected” will appear. In this case, insert the USB device, exit the screen by pressing the WISELINK button on the remote control and enter the WISELINK screen again. Photo and audio files must be named in English, French, or Spanish. If not, the files can not be played. Change the file names to English, French,or Spanish if necessary. The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. Recommended image resolution for Wiselink is 600 mega pixels. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. We recommend the sequential jpeg format. Progressive jpeg uses a lot of memory and decoding may fail. Do not disconnect the USB device while it is “loading.” Neither PTP (Picture Transfer Protocol) nor MTP (Media Transfer Protocol) is supported. The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file The higher the resolution of the image, the longer it takes to display on the screen. If the horizontal resolution of an image is higher than 5000, it cannot be decoded. If the vertical resolution of an image is higher than 4000, it cannot be decoded. Using the Remote Control Button in WISELINK Menu Button Operations Move the cursor and select an item Select the currently selected item. Play or pause the Slide Show or MP3 file. Return to the previous menu Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) Stop the current function and return to the previous high-level menu. English - 67 BN68-01156B-02Eng-0329.indd 67 2007-03-29 8:00:30 Using the WISELINK Menu

Return STORAGE DEVICE STORAGE DEVICE connected to TV. Enter Press the ◄ or ► button to move to an icon, then press the ENTER button. To exit WISELINK mode, press the WISELINK button on the remote control. Enter Exit Enter Return XTICK 861MB/994MB Free Move Press the WISELINK button on the remote control to display a WISELINK menu. English - 68 BN68-01156B-02Eng-0329.indd 68 2007-03-29 8:00:32 Using the PHOTO (JPEG) List This menu shows JPEG files and folders saved on a USB memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button.

The saved file information is displayed as a folder or file. XTICK 861MB/994MB Free Move

Enter Return Press the ▲, ▼, ◄ and ► buttons to select a file, then press the ENTER button.

• Pressing the ENTER button over a photo icon shows the currently selected photo in full screen.
• Pressing the ENTER button over a folder icon shows the JPEG files included in the folder. To exit WISELINK mode, press the WISELINK button on the remote control. Select

Moving to a photo may take a few seconds to load the file. At this point, the icon will appear at the top left of the screen.

This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed.

The thumbnails are numbered from left to right and from top to bottom, from 1 to 15.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order.

If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button.

The saved file information is displayed as a folder or file. XTICK 861MB/994MB Free Move

Press the INFO button to display “Slide Show” or “Cancel the selected files”. Slide Show Cancel the selected files INFO

During the slide show, files are displayed in order from the currently shown file.

MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device.

5. Press the INFO button during “Slide Show” to set the option (Slide show Speed,

Background Music, Background Music Setting, List). Press the ▲ or ▼ button to select the option, then press the ENTER button.

• After setting the option press the ENTER button to make a change. Slide show Speed Background Music Background Music Setting List INFO Exit English - 70 BN68-01156B-02Eng-0329.indd 70 2007-03-29 8:00:35 Using the Menu during a Slide Show Slide Show Speed: Select to control the slide show speed. Fast You can select Slow, Normal, or Fast. Background Music: Select to choose whether you want to play an MP3 file during a slide show. OFF You can select Music “ON” or “OFF”. Background Music Setting: Background Music Setting The saved file information is displayed as a folder or MP3 file. Choose files for background music

• Select the Background Music Settings and press the ENTER button. Select a folder for the background music by using the ▲ or ▼ buttons and press the ENTER button. The selected folder will be highlighted.
• Press the MENU button again to return to the SlideShow screen. The selected background music is played.

Move Enter Return If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. List: The saved file information is displayed as a folder or JPEG file. Up Folder Forder1 File 4 File 9 Photo 0001 Photo 0001 None File 5 File 6 File 7 File 8 File 10 File 11 File 12 File 13 To exit WISELINK mode, press the WISELINK button on the remote control. Select INFO Photo Menu Move Open Return English - 71 BN68-01156B-02Eng-0329.indd 71 2007-03-29 8:00:38 Slideshow function information icon (Displayed at the top left of the screen). Icon Current OSD Function (Photo) SlideShow Photo SlideShow is in progress. You are able to pause a SlideShow and Music by pressing the PLAY/PAUSE button on the remote control during a SlideShow. Photo Pause To resume the SlideShow, press the PLAY/PAUSE button on the remote control again. Move to Next Photo Pressing the (right) direction button on the remote control allows you to move to the next photo. Move to Previous Photo Pressing the (left) direction button on the remote control allows you to move to the previous photo. When selecting a photo file, the photo file information is displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15). Such as the resolution Date modified Order of the file in the current directory Photo Up Folder Forder1 File 4 File 9 108 x 81 Dec20. 2006 4/25 Select INFO Photo 0001 Photo 0001 None File 5 File 6 File 7 File 8 File 10 File 11 File 12 File 13 Photo menu Move View Return English - 72 BN68-01156B-02Eng-0329.indd 72 2007-03-29 8:00:40 Rotating

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button.

The saved file information is displayed as a folder or file. XTICK 861MB/994MB Free Move Enter Return

3. Press the ▲, ▼, ◄ and ► buttons to select a file, then press the ENTER button.

Pressing the button over a photo thumbnail displays the photo in full screen. Select

• The INFO button, the Rotate option and Enter must be pressed each time you want to rotate the picture. For example, from 90 to 180 degrees. To rotate a photo, press the INFO button to open the options window, select the “Rotate” option and press the ENTER button. Whenever you do this, the photo on the screen is rotated. (90°, 180°, 270°, 0°) Slide Show Rotate Zoom List INFO Exit To exit WISELINK mode, press the WISELINK button on the remote control.

The rotated file is not saved.

The Zoom/Slide Show option is disabled when the Rotate option is selected.

The Rotating function information icon (Displayed at the top left of the screen). Icon Current OSD Function Rotating (90°) This rotates a photo by 90 degrees Rotating (180°) This rotates a photo by 180 degrees Rotating (270°) This rotates a photo by 270 degrees Rotating (0°) This rotates a photo by original English - 73 BN68-01156B-02Eng-0329.indd 73 2007-03-29 8:00:42 Zooming-in

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

2. Press the ◄ or ► button to move to “Photo”, then press the ENTER button.

The saved file information is displayed as a folder or file. XTICK 861MB/994MB Free Move Enter Return

3. Press the ▲, ▼, ◄ and ► buttons to select a file, then press the ENTER button.

Pressing the button over a photo thumbnail displays the photo in full screen. Select

Up Folder Forder1 File 4 File 9 INFO Photo Photo 0001 Photo 0001 None File 5 File 6 File 7 File 8 File 10 File 11 File 12 File 13 Menu Move Open Return Press the INFO button to display the option(Slide Show, Rotate, Zoom, List). Press the ▲ or ▼ button to select “Zoom”, then press the ENTER button. The enlarged photo image appears on the screen. To enlarge a displayed photo, press the INFO button to open the Options window, select the “Zoom” option and press the ENTER button. Whenever you do this, the following zoom options are applied in sequence.

• The INFO button, the Rotate option and Enter must be pressed each time you want to Zoom the picture. For example, from x 2 to x 4.
• Zoom(x 2): Zoom-in to the photo x2.
• Zoom(x 4): Zoom-in to the photo x4.
• Zoom(x 1): Restore the photo to its original size. Slide Show Rotate Zoom List INFO Exit

To pan up/down/left/right, press the ▲, ▼, ◄ and ► buttons. Images with a resolution larger than 1280 X 720 are not supported. To exit WISELINK mode, press the WISELINK button on the remote control. English - 74 BN68-01156B-02Eng-0329.indd 74 2007-03-29 8:00:44 Zoom function information icon (Displayed at the top left of the screen). Icon Current OSD Function

Zoom (x 2) Zoom-in to a photo x2.

Zoom (x 4) Zoom-in to a photo x4.

Zoom (x 1) Restore a photo to its original size. Pan Down Pan down to view the lower part of a zoomed-in photo. Pan Up Pan up to view the upper part of a zoomed-in photo. Pan Right Pan right to view the right side of a zoomed-in photo. Pan Left Pan left to view the left side of a zoomed-in photo. Pan Down (END) Pan to the bottom of a zoomed-in photo. Pan Up (END) Pan to the top of a zoomed-in photo. Pan Right (END) Pan to the right-most part of a zoomed-in photo. Pan Left (END) Pan to the left-most part of a zoomed-in photo. The Rotate/Slide show option is disabled when the Zoom option is selected. English - 75 BN68-01156B-02Eng-0329.indd 75 2007-03-29 8:00:45 Using the MP3 List This menu shows MP3 files from among the files saved on a USB memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

2. Press the ◄ or ► button to move to “Music”, then press the ENTER button.

The saved file information is displayed as a folder or file. XTICK 861MB/994MB Free Move

Press the ▲ or ▼ button to select a file, then press the ENTER button. Nat King Cole-Fly me to the moon To select all files or a file, press the INFO button to display the Music menus. Press the ENTER button to select “Play”, “Music Repeat”, or “Cancel the selected file”.

• Pressing the ENTER button over a musical note icon immediately plays the music file.
• Pressing the ENTER button over a folder icon shows the music files included in the folder. Play Music Repeat CancelExit the selected file INFO To exit WISELINK mode, press the WISELINK button on the remote control.

FF ►► /REW ◄◄ Key does not function during the play. 00:04:00 Folder 1 button while playing an MP3 file to pause the file.

4. Press the PLAY/PAUSE

Press the STOP button ▄ to exit Play mode. This menu only shows files with the mp3 file extension. Files with other file extensions are not displayed,even if they are saved on the same USB device. The selected file is displayed on the top with its playing time. Return Upper Folder To select a file on the next page, press the REW ◄◄ or FF ►► button to move to the next page.

Enter 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 008 Bon jovi-This ain’t a love song 00:05:25 Exit : Folder icon : Photo icon : Move to the previous folder stage icon Music function information icon (Displayed at the top left of the screen). Icon Current OSD Function (Music) All When all music files are being played. (Music) One When a music file is being played. (Music) Play/Pause (Music) Stop When pressing the PLAY/PAUSE button on the remote control while music is playing. The music stops and the ‘Play’ text appears at the top of the screen. When pressing the STOP ▄ button on the remote control when music is stopped. The music resumes and the ‘Stop’ text appears at the top of the screen. English - 76 BN68-01156B-02Eng-0329.indd 76 2007-03-29 8:00:48 Music Repeat

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

2. Press the ◄ or ► button to move to “Music”, then press the ENTER button.

The saved file information is displayed as a folder or file. XTICK 861MB/994MB Free Move

Select to repeatedly play MP3 files in the current folder. Nat King Cole-Fly me to the moon 00:04:00 Upper Folder Folder 1

You can select “On” or “Off"

• On: Plays back a music file or all music files repeatedly Play

• Off: Doesn’t play back the music files repeatedly. Music Repeat CancelExit the selected file INFO 001 Swan Song feat.TBNY 00:04:01 002 Beatles-Yesterday 00:04:28 003 Fall in Love 00:04:12 004 Tom Waits-Time 00:05:39 005 Chuk Mangione-Feel So good 00:04:30 006 Nat King Cole-Fly me to the moon 00:04:30 007 Ryuichi Sakamoto-Rain 00:03:54 008 Bon jovi-This ain’t a love song 00:05:25 Exit To exit WISELINK mode, press the WISELINK button on the remote control. English - 77 BN68-01156B-02Eng-0329.indd 77 2007-03-29 8:00:49 Using the Setup Menu Setup displays the user settings of the WISELINK menu.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 68)

Background Music Setting Music Repeat Off : On Screen Saver : 5 min. Move Enter Return Background Music Setting: You can select the background music to play during a slide show. You can also select the background music while a slide show is playing by pressing the the INFO button and selecting the “Background Music Setting” menu. Slide Show Speed : Fast Background Music : Off Background Music Setting Music Repeat : On Screen Saver : 5 min. Move Enter Return Music Repeat: Select to repeatedly play MP3 files in the current folder. You can select “On” or “Off”. On: Off: (Music) All, (Music) All, Slide Show Speed : Fast Background Music : Off Background Music Setting (Music) One (Music) One Music Repeat : OnOn Screen Saver : Off Off Move Enter Return Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 3 or 5 minutes. Slide Show Speed : Fast Background Music : Off Background Music Setting To exit WISELINK mode, press the WISELINK button on the remote control. Music Repeat : On Screen Saver : Off 1 min. 3 min. 5 min. Move Enter Return English - 79 BN68-01156B-02Eng-0329.indd 79 2007-03-29 8:00:52 About Anynet+ What is Anynet+? (LN-T3253H, LN-T4053H) Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with the TV's remote. Connecting Anynet+ Devices The Anynet+ system can be used only with Samsung AV devices that have the Anynet+ feature. To be sure your Samsung AV device has this feature, check if there is an Anynet+ mark on it. To directly connect to TV

onnect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

onnect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI Cable HDMI Cable ➢ Connect the Optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the Home Theater. ➢ Connect only one Home Theater. ➢ You can listen to 5.1 channel sound through the home theater’s speakers. Otherwise, you can only listen to 2 channel stereo

sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theater and the TV correctly to listen to TV sound through the home theater. However, you cannot listen to sound from the BD recorder that is sent to the home theater via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theater. You can connect an Anynet+ device using the HDMI Cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 12 AV devices in total. English - 80 BN68-01156B-02Eng-0329.indd 80 2007-03-29 8:00:53 Setting Up Anynet+ The following settings are to use Anynet+ functions. To use the Anynet+ Function, HDMI Control must be set to On

Press the EXIT button to exit. Setup Searching Connections Move Yes Enter Return Device setting of the TV remote control is to be set to TV to use the ➢ The Select Anynet+ function. ➢ If you set Auto Turn Off to On, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off. ➢ When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Scanning and Switching between Anynet+ Devices

Press the Anynet+ button. ➢ Anynet+ devices connected with the TV are listed.

2. Press the ▲ or ▼ button to select to a particular device and press the ENTER button.

It is switched to the selected device. Air28 Recevier: On Connect Recorder Setup

3. If you cannot find a device you want, press the ▲ or ▼ button to select Searching

Connections, then press the ENTER button. The meassage Configuring Anynet+ connection... is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu. Move Enter Exit Setup HDMI Control : On

➢ Switching to the selected devices may take up to 2 minutes. You cannot cancel the Auto Turn Off : Yes operation during the switching operation. Searching Connections ➢ The time required to scan for devices is determined by the number of connected devices. Move Enter Return ➢ When the device scan is complete, the number of found devices is not displayed. ➢ Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices. the SOURCE button, you cannot use the Anynet+ function. Make sure to ➢ If you have selected+external input mode by pressing switch to an Anynet device by using the Anynet+ button. English - 81 BN68-01156B-02Eng-0329.indd 81 2007-03-29 8:00:55 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu Description Watch TV Switches from Anynet+ to TV broadcast mode. (Device_Name) Menu Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. (Device_Name) Operation Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Connected to (Device_Name) Your TV connects to the corresponding device. Receiver Sound is output through the receiver. Setup You can set the environment for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode Device Type Operating Status Available Buttons After switching to the device, when the menu of the corresponding device is displayed on the screen. Numeric buttons ▲/▼/◄/►/ENTER buttons Color buttons EXIT button After switching to the device, while playing a file ◄◄ (Backward search) ►►(Forward search) (Stop) ► (Play/Pause) Device with built-in Tuner After switching to the device, when you are watching a TV program CH ▲/▼ button Audio Device When Receiver is activated VOL +/- button MUTE button Anyview2 When watching TV ► (Play/Pause) Anynet+ Device ➢ The Anynet+ function only works when the remote control is set to TV. ➢ The REC button works only+ in Watch TV status. ➢ You cannot control Anynet devices using the buttons on the side of the TV. You can control Anynet+ devices only using the TV remote control. ➢ The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. ➢ The Anynet+ functions do not work withother manufacturers' products. ➢ In Anynet+ mode, the color buttons may not work properly. Recording You can make a recording of a TV program using a recorder. Press the REC button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) ➢ The current TV program is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. English - 82 BN68-01156B-02Eng-0329.indd 82 2007-03-29 8:00:55 Listening through a Receiver (Home theater) You can listen to sound through a receiver instead of the TV speaker.

Press the ▲ or ▼ button to select Receiver, then press the ENTER button.

Now you can listen to sound through the receiver.

Air28 Recevier: On Connect Recorder Setup Press the EXIT button to exit. ➢ When the receiver is set to On, you can listen to the TV sound through the 2-channel receiver. ➢ If the receiver is exclusively for a home theater only (supporting audio only), it may not appear in the device list. ➢ Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work. ➢ In case of a content with copyright problem, listening through the receiver may not properly operate. Move Enter Exit Check Points before Requesting Service Symptom Solution Anynet+ does not work. ■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. ■ Connect only one receiver (home theater). ■ Check if the Anynet+ device power cord is properly connected. ■ Check the Anynet+ device’s Video/Audio/HDMI Cable connections. ■ Check whether the TV remote control is in TV mode. ■ Check whether it is Anynet+ exclusive remote control. ■ Anynet+ doesn’t work at a certain condition. (Searching channels, Operating WISELINK) I want to start Anynet+. ■ Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. ■ Press the TV button on the TV remote control to switch to TV. Then press the Anynet+ button to show the Anynet+ menu and select a menu you want. ■ Select Watch TV in Anynet+ menu. I want to exit Anynet+. ■ Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. ■ Press CH, CH LIST, PRE-CH, etc. to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The Connecting to Anynet+ ■ You cannot use the remote control when you are configuring Anynet+ or switching to a device... message appears on the view mode. screen. ■ Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not play. You cannot use the play function when an auto channel scan is in progress or in WISELINK mode. Stop the currently running function. The connected device is not displayed. ■ Check whether or not the device supports Anynet+ functions. ■ Check whether or not the HDMI Cable is properly connected. ■ Check whether HDMI Control is set to On in the Anynet+ setup menu. ■ Search Anynet+ devices again. ■ You can connect an Anynet+ device using the HDMI Cable only. Some HDMI cables may not support Anynet+ functions. English - 83 BN68-01156B-02Eng-0329.indd 83 2007-03-29 8:00:55 Appendix Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Possible Solution Poor picture Try another channel. Adjust the antenna. Check all wire connections. Poor sound quality. Try another channel. Adjust the antenna. No picture or sound. Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. No sound or sound is too low at maximum volume. First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. Picture rolls vertically. Check all wire connections. The TV operates erratically. Unplug the TV for 30 seconds, then try operating it again. The TV won’t turn on. Make sure the wall outlet is working. Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. “Check signal cable” message. Ensure that the signal cable is firmly connected to the PC source. “Not Supported Mode” message. Check the maximum resolution and the frequency of the Video Adapter. Compare these values with the data in the Display Modes. Digital broadcasting screen problem. Please check the digital signal strength and input antenna. The image is too light or too dark. Adjust the Brightness and Contrast. Adjust the Fine tuning. Black bars on the screen. Make sure the broadcast you’re receiving is High Definition (HD). HD channels sometimes broadcast Standard Definition (SD) programming, which can cause black bars. Set your cable/satellite box to stretch or widescreen mode to eliminate the bars. Picture has a Red/Green or Pink tint. Make sure the Component cables are connected to the correct jacks. Closed Captioning not working. If you are using a Cable/Satellite box, you must set Closed Captioning on the box, not your TV. Snowy picture Your cable box may need a firmware upgrade. Please contact your Cable company. Ghosting on picture This is sometimes caused by compatibility issues with your cable box. Try connecting Component cables instead. English - 84 BN68-01156B-02Eng-0329.indd 84 2007-03-29 8:00:56 Problem Possible Solution Horizontal bars appear to flicker, jitter or shimmer on the image. Adjust the Coarse tuning and then adjust the Fine tuning. Vertical bars appear to flicker, jitter or shimmer on the image. Adjust the Coarse tuning and then adjust the Fine tuning. Screen is black and power indicator light blinks steadily. On your computer check: Power, Signal Cable. The TV is using its power management system. Move the computer's mouse or press any key on the keyboard. Image is not stable and may appear to vibrate when you have a computer connected to the PC input. If the setting is not correct, use your computer utility program to change the display settings. Your TV supports multiscan display functions within the following frequency domain: Horizontal frequency (kHz) 30~60 Vertical frequency (Hz) 60~75 PC Maximum refresh rate (at 60 Hz) 1360 x 768 Image is not centered on the screen. Adjust the horizontal and vertical position. The screen position must be adjusted on the output source (i.e. STB) with a digital signal. If a still image is displayed for an extended period of time, residual images or blurring may appear. When you need to leave the monitor unused for an extended period of time, adjust the settings so that the monitor automatically goes into energy saving mode or activates the screen saver to display moving images.. The TFT LCD panel uses a panel consisting of sub pixels (3,147,264) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English - 85 BN68-01156B-02Eng-0329.indd 85 2007-03-29 8:00:56 Installing the Stand <2> <3>

1. Place the TV face down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten.

Disconnecting the Stand <2>

<3> <4> Place the TV face down on a soft cloth or cushion on a table. Remove four screws from the back of the TV. Separate the stand from the TV. Cover the bottom hole with a cap. English - 86 BN68-01156B-02Eng-0329.indd 86 2007-03-29 8:00:58 Wall- Mount Adjustment (LN-T4053H) (Sold separately) Once the wall mount is installed, the position of your TV can be easily adjustable. Auto Wall-Mount TV Rear Panel EX-LINK Cable (not supplied) Entering the menu

2. Press the ▲ or ▼ buttons to select “Wall-Mount Adjustment”,

then press the ENTER button.

3. Adjust to the desired position using the ▲,▼,◄,► buttons.

4. Press the EXIT button to exit.

Move If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. When you turn the power off, your TV moves to the initial installation position. When you turn the power on, your TV moves to the last remembered position you adjusted.

Enter Return Wall Mount Adjusment Position1 Position 1 2 3 Adjust INFO Center Exit Using the Remote Control Buttons Button green red button yellow button button Operations Wall-mount angle adjustment Tilt Up, Tilt Down, Move right, Move left Reset Moves to the initial installation position Remembering the position and moving to the remembered position

1. Select the direction buttons of the remote control.

2. Press the red button (Select Position 1).

djust the set to a desired position following the wall mount operating procedures.

4. The position you adjusted last is memorized as Position 1.

5. By using the green button (Select Position 2), and the yellow button

(Select Position 3), you can save positions according to the procedures above.

ou can save 3 respective positions to the red button (Select Position 1), green button (Select Position 2), and yellow button (Select Position 3). If you press a button, the set automatically moves to that saved angle.

7. If you additionally move the set from a saved position, the last position is

saved as the “final position”. For installation, refer to the Installation Manual provided. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. English - 87 BN68-01156B-02Eng-0329.indd 87 2007-03-29 8:01:01 Wall Mount Kit Specifications ( VESA ) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family LCD-TV PDP-TV inch VESA Spec. (A * B) Standard Screw 23~ 26 200 * 100

We provided the standard dimensions for wall mount kits as shown in the table above. When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications. o not use screws that do not comply with the VESA standard screw specifications. Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model. English - 88 BN68-01156B-02Eng-0329.indd 88 2007-03-29 8:01:01 Using the Anti-Theft Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use. Cable Figure 2 Figure 1 <Optional> The place of the Kensington Lock may be different depending on its model. 1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

2. Connect the Kensington lock cable.

3. Fix the Kensington lock to a desk or a heavy stationary object.

50 °F to 104 °F (10 °C to 40 °C) 10% to 80%, non-condensing -4 °F to 113 °F (-20 °C to 45 °C) 5% to 95%, non-condensing 50 °F to 104 °F (10 °C to 40 °C) 10% to 80%, non-condensing -4 °F to 113 °F (-20 °C to 45 °C) 5% to 95%, non-condensing Stand Swivel (Left / Right) (LN-T3253H, LN-T4053H) -20˚ ~ 20˚ Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply, refer to the label attached to the product. English - 90 BN68-01156B-02Eng-0329.indd 90 2007-03-29 8:01:02 This product uses parts of the software from the Independent JPEG Group. This product uses parts of the software owned by the Freetype Project (www.freetype.org). This product uses some software programs which are distributed under the GPL/LGPL license. Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to vdswmanager@samsung.com. GPL software: Linux Kernel, Busybox, Binutils LGPL software: Glibc The GNU General Public License (GPL) (LN-T2353H, LN-T2354H , LN-T2653H) Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does. 1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) Continued... English - 91 BN68-01156B-02Eng-0329.indd 91 2007-03-29 8:01:03 These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. Continued... English - 92 BN68-01156B-02Eng-0329.indd 92 2007-03-29 8:01:03 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED

BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER

PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. One line to give the program’s name and a brief idea of what it does. Copyright (C) <year> <name of author> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under certain conditions; type `show c’ for details. The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w’ and `show c’; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at compilers) written by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License. Continued... English - 93 BN68-01156B-02Eng-0329.indd 93 2007-03-29 8:01:04 GNU Lesser General Public License (LGPL) Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number

Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/ Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Continued... English - 94 BN68-01156B-02Eng-0329.indd 94 2007-03-29 8:01:04 “Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does. 1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library. 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code. 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables. When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Continued... English - 95 BN68-01156B-02Eng-0329.indd 95 2007-03-29 8:01:04 Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself. 6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute. 7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. 10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License. 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. Continued... English - 96 BN68-01156B-02Eng-0329.indd 96 2007-03-29 8:01:05 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED

BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER

PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by James Random Hacker. signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice That’s all there is to it! English - 97 BN68-01156B-02Eng-0329.indd 97 2007-03-29 8:01:05 This page is intentionally left blank. BN68-01156B-02Eng-0329.indd 98 2007-03-29 8:01:05 Table des matières Informations générales

TV, DVD, STB, CABLE, VCR, VOL

TV, DVD, STB, CABLE, VCR, VOL

between the DVI IN (HDMI 1) [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD player/Set-Top Box.

DVD Receiver AV Receiver Code

3. Press the ▲ ou ▼ buttons to select “Froide2”, “Froide1”, “Normal”, “Chaude1” ou

• Zoom1: Permet d'agrandir la taille de l'image affichée à l'écran.
• Zoom2: Magnifies the size of the picture more than “Zoom1”.
• Format large: Enlarges the aspect ratio of the picture to fit the entire screen.
• 4:3: Pour régler l’image en mode normal, c.-à-d. 4:3.

• Off: Désactive le mode DNIe.

If main picture is in PC mode, Size is not available.

Retour The number of current rating title Rating title
