USER MANUAL LE52A659A1F SAMSUNG

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRIA BELGIUM imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. BN68-01412A-00 BN68-01412A-00L08-Cover-new.indd1 1 2008-03-09 ¿ÀÈÄ 7:13:42 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.) Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2008 Samsung Electronics Co., Ltd. All rights reserved. Contents Connecting and Preparing Your TV List of Parts......................................................... 3 Installing the Stand.............................................. 3 Installing the Wall Mount Kit................................ 3 Viewing the Control Panel................................... 4 Viewing the Connection Panel............................ 5 Viewing the Remote Control................................ 8 Installing Batteries in the Remote Control........... 9 Switching On and Off.......................................... 9 Placing Your Television in Standby Mode........... 9 Viewing the Menus............................................ 10 Using the TOOLS Button................................... 10 Plug & Play.........................................................11 Setting the Channels Storing Channels Automatically........................ 12 Storing Channels Manually............................... 13 Adding / Locking Channels............................... 14 Sorting the Stored Channels............................. 15 Assigning Channels Names.............................. 15 Fine Tuning Channel Reception........................ 16 LNA (Low Noise Amplifier)................................ 16 Setting the Picture Changing the Picture Standard......................... 17 Adjusting the Custom Picture............................ 18 Configuring Detailed Settings on the Picture.... 18 Resetting the Picture Settings to the Factory Defaults............................................................. 19 Configuring Picture Option................................ 20 Viewing the Picture In Picture (PIP).................. 22 Setting the Sound Sound Features................................................. 23 Selecting the Sound Mode................................ 24 Connecting Headphones (Sold separately)...... 24 Function Description Choosing Your Language.................................. 26 Melody / Entertainment / Energy Saving . ........ 27 Selecting the Source......................................... 28 Editing the Input Source Names....................... 29 USING The DTV FeATuRe Previewing the DTV Menu System................... 30 Updating the Channel List Automatically........... 31 Updating the Channel List Manually................. 31 Editing Your Favourite Channels....................... 32 Selecting Channel List...................................... 34 Displaying Programme Information................... 34 Viewing the EPG (Electronic Programme Guide) Information........................................................ 35 Using the Scheduled List.................................. 36 Setting the Default Guide.................................. 36 Viewing All Channels and Favourite Channels 37 Adjusting the Menu Transparency..................... 37 Setting up the Parental Lock............................. 38 Setting the Subtitle............................................ 39 Setting the Subtitle Mode.................................. 39 Selecting the Audio Format............................... 39 Selecting the Audio Description........................ 40 Selecting the Digital Text (UK only)................... 40 Selecting the Time Zone (Spain only)............... 41 Viewing Product Information............................. 41 Checking the Signal Information....................... 42 Upgrading the Software.................................... 42 Viewing Common Interface............................... 43 Selecting the CI (Common Interface) Menu...... 43 Resetting........................................................... 44 Selecting the Preferred Language (Subtitle , Audio or Teletext).............................. 44 Preference......................................................... 45 Setting the Time Setting and Displaying the Current Time........... 25 Setting the Sleep Timer..................................... 25 Switching the Television On and Off Automatically..................................................... 26 English - 1 Recommendations For Use Setting up Your PC Software (Based on Windows XP)................................... 46 Display Modes................................................... 46 Setting up the TV with your PC......................... 47 Teletext Feature................................................ 61 Auto Wall-Mount (Sold separately).................... 63 Using the Anti-Theft Kensington Lock (depending on the model)................................. 64 Troubleshooting: Before Contacting Service Personnel.......................................................... 65 Technical and Environmental Specifications .... 66 About Anynet+ What is Anynet+? ............................................. 55 Connecting Anynet+ Devices............................ 55 Setting Up Anynet+........................................... 56 Scanning and Switching between Anynet+ Devices............................................................. 57 Recording.......................................................... 59 Listening through a Receiver............................ 59 Check Points before Requesting Service.......... 60

Symbol Press Note One-Touch Button English - 2 Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. M4 X L16 Remote Control & Batteries (AAA x 2) Power Cord

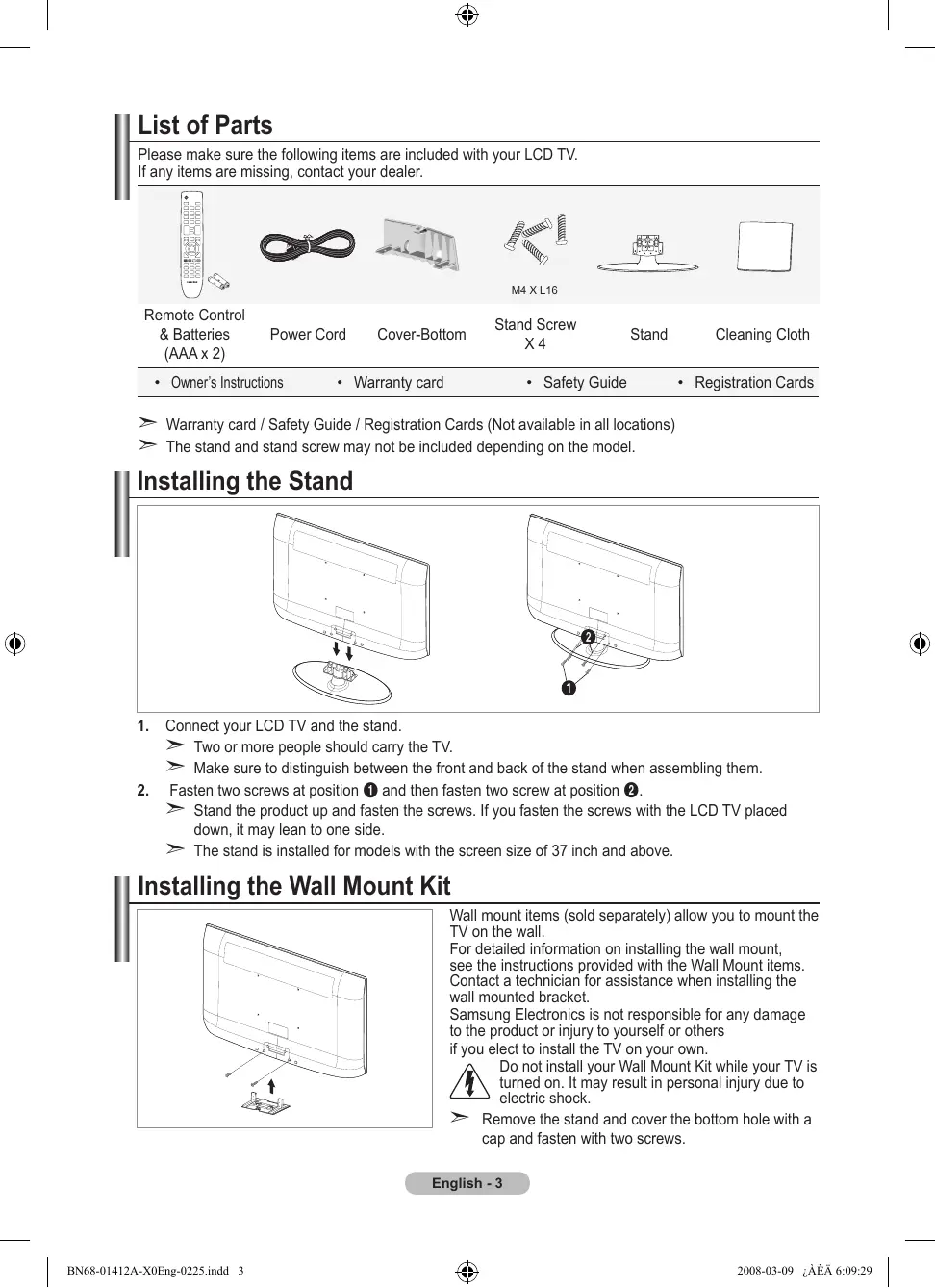

• Owner’s Instructions

Cover-Bottom Stand Screw

• Safety Guide Cleaning Cloth
• Registration Cards Warranty card / Safety Guide / Registration Cards (Not available in all locations) The stand and stand screw may not be included depending on the model. Installing the Stand

Connect your LCD TV and the stand. Two or more people should carry the TV. Make sure to distinguish between the front and back of the stand when assembling them. Fasten two screws at position 1 and then fasten two screw at position 2. ➣ Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side. ➣ The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. ➣ Remove the stand and cover the bottom hole with a cap and fasten with two screws. English - Viewing the Control Panel

Front Panel buttons Touch each button to operate.

The product colour and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, HDMI4, DTV). In the on-screen menu, use this button as you use the ENTER button on the remote control. 5 Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

(Power) Press to turn the TV on and off. 2 MENU Press to see an on-screen menu of your TV’s features. 7 Remote Control Sensor Aim the remote control towards this spot on the TV.

8 Speakers Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you use the ▼ and ▲ buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.) English - Viewing the Connection Panel [Side Panel Jacks]

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off When connecting an external device, match the colour of the connection terminal to the cable.

1 PC IN [PC] / [AUDIO]

- Connect to the video and audio output jack on your PC. 2 COMPONENT IN - Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set. - The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. - Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD. 3 HDMI IN 1, HDMI IN 2, HDMI IN 3, HDMI IN 4 - Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) - No additional Audio connection is needed for an HDMI to HDMI connection. - When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. English - What is HDMI? - “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio. - The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio. ➣ The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not

1.3 may cause annoying flicker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

- DVI audio outputs for external devices. ➣ Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component 480i 480p 576i 576p 720p 1080i 1080p

4 ANT IN To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network 5 SERVICE - Connector for SERVICE only. - Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. 6 COMMON INTERFACE Slot - When not inserting "CI CARD" in some channels,"Scrambled Signal" is displayed on the screen. - The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. - When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated. ➣ You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it. ➣ Insert the CI-Card in the direction marked on it.

The place of the COMMON INTERFACE Slot may be different depending on its model. 7 WISELINK - Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3) English - 8 S-VIDEO or VIDEO / R-AUDIO-L - Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. - Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device. 9 Headphones jack - Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

0 AUDIO OUT [R-AUDIO-L]

- Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre. ! DIGITAL AUDIO OUT (OPTICAL) - Connect to a Digital Audio Component. ➣ When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV. @ EXT 1, EXT 2 Connector EXT 1 EXT 2 Video

Output Video + Audio (L/R) Only TV or DTV output is available. Output you can choose. - Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. # Kensington Lock (depending on the model) - The Kensington lock (optional) is a device used to physically fix the system when used in a public place. - If you want to use a locking device, contact the dealer where you purchased the TV. - The location of the kensington lock may be different depending on its model. English - Viewing the Remote Control 1 Television Standby button 2 Selects the TV and DTV mode directly Number buttons for direct channel access 4 One/Two-digit channel selection 5 + : Volume increase – : Volume decrease 6 Available source selection 7 Electronic Program Guide (EPG) display Use to quickly select frequently used functions. 9 Use to see information on the current broadcast Colour buttons : Use these buttons in the Channel list and WISELINK, etc. Press to select the optional display and sound modes for sports, cinema and games. # Use these buttons in the DMA, WISELINK and Anynet+. ( : This remote can be used to control recording on Samsung recorders with the Anynet+ feature) $ Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF button set to On will reduce the battery usage time.) % Previous channel ^ Temporary sound switchoff & P : Next channel P : Previous channel Displays the main onscreen menu

This function enables you to view and play photo and music files from an external device. ) Returns to the previous menu a Control the cursor in the menu b Exit the on-screen menu c Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 56) d Picture size selection e Digital subtitle display f It display "Channel List" on the screen. Teletext Functions 2 Exit from the teletext display 6 Teletext mode selection (LIST/FLOF) 7 Teletext store 8 Teletext size selection 9 Teletext reveal 0 Fastext topic selection ! Alternately select Teletext, Double, or Mix. % Teletext sub page & P : Teletext next page P : Teletext previous page

• Teletext index ) Teletext hold b Teletext cancel The performance of the remote control may be affected by bright light. English - Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. ➣ Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment. Replace the cover. ➣ Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. ➣ Using the remote control with the ON/OFF button set to On will reduce the battery usage time. If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket. The standby indicator lights up on your set. Press the P button on your set. ➣ You also can press the POWER button or the TV/DTV button on the remote control to turn the TV on. ➣ The programme that you were watching last is reselected automatically. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or button on your set. ➣ When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control. The screen is turned off and a red standby indicator appears on your set. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV/DTV button or channel up/down ( / ) button again. ➣ Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

English - Viewing the Menus

With the power on, press the MENU button. The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input, Digital Menu. Press the ▲ or ▼ button to select one of the icons. Then press the ENTER button to access the icon’s submenu. Press the EXIT button to exit. ➣ The on-screen menus disappear from the screen after about one minute.

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move Enter Return Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

Press the TOOLS button. The “Tools” menu will appear. Press the ▲ or ▼ button to select a menu. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move

Standard Custom Off Off Off Mono Enter e Exit ♦ Anynet+ (HDMI-CEC), see page 56 ♦ Picture Mode, see page 17 ♦ Sound Mode, see page 23 ♦ Sleep Timer, see page 25 ♦ SRS TS XT, see page 23 ♦ Energy Saving, see page 28 ♦ Dual l-ll, see page 24 ♦ PIP, see page 22 ♦ Auto Adjustment, see page 47 English - 10 When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available. Plug & Play

Any functions related to Digital TV (DVB) will only work in Start Plug & Play. countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future Enter coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

2. Select the appropriate language by pressing the ▲ or ▼ button.

Press the ENTER button to confirm your choice.

3. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER button.

➣ We recommend setting the TV to "Home Use" mode for the best picture in your home environment. ➣ "Store Demo" mode is only intended for use in retail environments. ➣ If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

4. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button. ➣ Please check that the antenna cable is connected correctly.

5. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER button to confirm your choice.

6. The message “Some DTV functions may not be available. Digital Scan?” is displayed.

Press the ◄ or ► button to select “Yes” or “No”, then press the ENTER button. ♦ Yes: First an ATV search is performed and then a DTV ch. auto search is performed. ♦ No: Only an ATV search is performed.

his function is supported for all countries except for the following countries: France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button. ➣ The channel search will start and end automatically. The DTV channel scan menu appears and the DTV channel is automatically updated. ➣ If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV. After all the available channels are stored, the "Clock Set" menu appears. ➣ Press the ENTER button at any time to interrupt the memorization process. ➣ For detailed descriptions about DTV channel update, refer to page 31 of this manual. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country. Press the ENTER button. Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button. ➣ You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control. English - 11

9. Press the ENTER button to confirm your setting. The message “Enjoy your viewing” is displayed.

When you have finished, press the ENTER button. ➣ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. ♦ Language: Select your language. ♦ Country: Select your country. ♦ Auto Store: Automatically scans for and stores channels available in the local area. ♦ Clock Set: Sets the current time for the TV clock. If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the ENTER button again, to select "Plug & Play".

For further details on setting up options, refer to the page 11. ➣ The “Plug & Play” feature is only available in the TV mode.

Enter - Storing Channels Automatically - Storing Channels Manually Storing Channels Automatically Return Enter Return Channel

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button. Press the ENTER button to select "Country". Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice. ➣ Even though you have changed the country setting in this menu, the country setting for DTV is not changed. (Refer to page 31) Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button. Press the ENTER button. ➣ The TV will begin memorizing all of the available channels. ➣ Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu. After all the available channels are stored, the "Sort" menu appears. (refer to page 15) English - 12 Storing Channels Manually

Not available in DTV or external input mode. You can store television channels, including those received via cable networks. When storing channels manually, you can choose: ♦ Whether or not to store each of the channels found. ♦ The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Manual Store", then press

3. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

4. When you are satisfied with your setting, press the

5. Press the EXIT button to exit.

Manual Store Programme Colour System Sound System Channel Search Store Move ♦ Programme (Programme number to be assigned to a channel) - Press the ▲ or ▼ button until you find the correct number. ➣ You can also select the channel number directly by pressing the numeric buttons (0~9). ♦ Colour System: Auto/PAL/SECAM/NTSC4.43 - Press the ▲ or ▼ button to select the required colour standard. ♦ Sound System: BG/DK/I/L - Press the ▲ or ▼ button to select the required sound standard. ♦ C hannel (When you know the number of the channel to be stored) - Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). - Press the ► button, then press the ▲ or ▼ button to select the required number. ➣ You can also select the channel number directly by pressing the numeric buttons (0~9). ➣ If there is abnormal sound or no sound, re-select the sound standard required. ♦ Search (When you do not know the channel numbers) - Press the ▲ or ▼ button to start the search. - The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen. ♦ Store (When you store the channel and associated programme number) - Set to "OK" by pressing the ENTER button. ➣ Channel mode P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. - S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode. English - 13 Adding / Locking Channels

Not available in DTV or external input mode. Using the Channel Manager, you can conveniently lock or add channels.

♦ Adding channels Using the Channel List, you can add channels. Move

3. Select Channel List by pressing the ENTER button.

4. Move to the ( ) field by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the ENTER button to add the channel. ➣ If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added. ➣ " " is active when "Child Lock" is selected to "On". ♦ Locking channels This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

Press the ▲ or ▼ button to select "Child Lock", then press the ENTER button.

6. Select "On" by pressing the ▲ or ▼ button, then press the

7. Press the ▲ or ▼ button to select "Channel List", then press

8. Move to the " " field by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the ENTER button. ➣ If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel lock is cancelled. ➣ A blue screen is displayed when "Child Lock" is activated.

9. Press the EXIT button to exit.

➣ Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive. Enter Return Channel Manager Channel List Child Lock : Off

Move Enter Return Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return You can select these options by simply pressing the CH LIST button on the remote control. English - 14 Sorting the Stored Channels This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

Not available in DTV or external input mode. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Sort", then press the

3. Select the channel number that you wish to change by

pressing the ▲ or ▼ button repeatedly. Press the ENTER button. ➣ The selected channel number and name are moved to right side.

4. Press the ▲ or ▼ button to move to the position in which you

would like to change and then press the ENTER button. ➣ The selected channel is exchanged with the one previously stored to the chosen number.

5. Repeat steps 3 to 4 for another channel to be sorted.

6. Press the EXIT button to exit.

Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

Not available in DTV or external input mode. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button. Press the ▲ or ▼ button to select "Name", then press the ENTER button. If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button ➣ The selection bar is displayed around the name box. To... Then... Select a letter, number or symbol Press the ▲ or ▼ button Move on the next letter Press the ► button Move back the previous letter Press the ◄ button Confirm the name Ch. C-C23 C16

Move Name --------------------Enter Return button

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space) Repeat steps 3 to 4 for each channel to be assigned to a new name. Press the EXIT button to exit. English - 15 Fine Tuning Channel Reception Use fine tuning to manually adjust a particular channel for optimal reception.

Not available in DTV or external input mode. Use the number buttons to directly select the channel that you want to fine tune. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button. Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button. Press the ◄ or ► button to adjust the fine tuning. Press the ENTER button. Press the EXIT button to exit. Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red. To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). ➣ Not available in DTV or external input mode.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2. Press the ▲ or ▼ button to select "LNA", then press the

3. Press the ▲ or ▼ button to select "Off" or "On". Press the

4. Press the EXIT button to exit.

Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2. Press the ENTER button again, to select "Mode".

3. Press the ▲ or ▼ button to select the desired picture effect.

Press the ENTER button.

4. Press the EXIT button to exit.

♦ Dynamic: Selects the picture for high-definition in a bright room. ♦ Standard: Selects the picture for optimum display in a normal environment. ♦ Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Picture Mode”.

3. Press the ◄ or ► button to select the desired picture mode.

4. Press the EXIT or TOOLS button to exit.

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move

Enter Return Picture Dynamic Mode : Standard Standard 7 Backlight Movie 95 Contrast Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move Enter Return Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move Adjusting the Custom Picture Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the

Picture Standard" instructions number 1 to 3. (On page 17).

2. Press the ▲ or ▼ button to select a particular item. Press the

3. Press the ◄ or ► button to decrease or increase the value of a

particular item. Press theENTER button.

4. Press the EXIT button to exit.

♦ Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10) ♦ Contrast: Adjusts the lightness and darkness between objects and the background. ♦ Brightness: Adjusts the brightness of the whole screen. ♦ Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. ♦ Colour: Adjusts the colours, making them lighter or darker. ♦ Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move Enter Return

Move Adjust Return The adjusted values are stored according to the selected Picture mode. In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”. In Analogue TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19) Configuring Detailed Settings on the Picture You can set detailed picture settings.

Press the MENU button to display the menu. Press the ENTER button, to select "Picture". Press the ENTER button to select “Mode”. Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the ENTER button. Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit. "Detailed Settings" is available in "Standard" or "Movie" mode. In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed Settings” items. Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move

Enter ♦ Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth. ♦ Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. English - 18 ♦ Gamma: -3 ~ +3 You can adjust the Primary Colour (Red, Green, Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting. ♦ Colour Space: Auto/Native/Custom Colour space is a colour matrix composed of "Red", "Green" and "Blue" colours. Select your favourite Colour space to experience the most natural Colour. ♦ Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources. ♦ Native: Native Colour Space offers deep and rich colour tone. ♦ Custom: Adjusts the colour range to suit your preference.

Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”. Press the ENTER button. Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. Reset: Resets the colour space to the default values. ♦ White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. ♦ Flesh Tone: -15 ~ +15 You can emphasize the pink 'flesh tone' in the picture. Press the ◄ or ► button until you reach the optimal setting. ➣ Changing the adjustment value will refresh the adjusted screen. ♦ Edge Enhancement: Off/On You can emphasize object boundaries in the picture. ♦ xvYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. ➣ Only available in "HDMI" and "Component" on "Movie" mode. ➣ If xvYCC function is active, PIP cannot be selected. Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 (On page 17). Press the ▲ or ▼ button to select "Reset", then press the ENTER button. Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button. Press the EXIT button to exit. The "Reset" will be set for each "Picture" mode.

Picture More Picture Options Reset : OK Cancel Move Enter Return English - 19 Press the MENU button to display the menu. Press the ENTER button, to select "Picture". Press the ▲ or ▼ button to select "Picture Options", then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit.

In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”. ♦ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected "Picture" mode. ➣ “Warm1” or “Warm2” is only activated when the picture mode is "Movie". ♦ Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan You can select the picture size which best corresponds to your viewing requirements. Enter ♦ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. ♦ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. ♦ 4:3: This is the default setting for a video movie or normal broadcasting. ♦ Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input. "Auto Wide" function is available only in "TV", "DTV", "Ext.1", "Ext.2", "AV", and "S-Video" mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Temporary image retention may occur when viewing a static image on the set for more than two hours. Wide Zoom: Move the screen up/down using the ▲ or ▼ button after selecting the pressing the ► or ENTER button. Zoom: Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. When Double ( ) mode has been set in PIP, the Picture Size cannot be set. After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting. You can select these options by simply pressing the P.SIZE button on the remote control. English - 20 ♦ Screen Mode: 16:9/Wide Zoom/Zoom/4:3 When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it. ♦ 16:9: Sets the picture to 16:9 wide mode. ♦ Wide Zoom: Magnify the size of the picture more than 4:3. ♦ Zoom: Magnify the size of the picture vertically on screen. ♦ 4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode. This function is not available in "PC", "Component" or "HDMI" mode. ♦ Digital NR: Off/Low/Medium/High/Auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. ➣ When the signal is weak, select one of the other options until the best picture is displayed. ♦ DNIe: Off/Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. ➣ DNIe™ (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes. ➣ This function is not available in "Movie" and "Standard" mode. ♦ HDMI Black Level: Normal/Low You can directly select the black level on the screen to adjust the screen depth. ➣ This function is active only when the external input connects to HDMI(RGB signals). ♦ Movie Plus: Off/Low/Medium/High/Demo (LE32A656) You can view more natural skin and clear text even in fast moving scenes. ➣ Use this function when watching movies. ➣ This function is not available in “Wide Zoom” and “Zoom” modes. ➣ This function is not available when “PIP” is set to “On”. ➣ It is not supported in HDMI 1080p/24Hz mode. ♦ 100Hz Motion Plus: Off/Low/Medium/High/Demo (LE37A656, LE40A656, LE46A656, LE52A656) Removes drag from fast scenes with a lot of movement to provide a clearer picture. ➣ This function is not available in PC mode. ➣ If you enable "100 Hz Motion Plus", noise may appear on the screen. If this occurs, set "100Hz Motion Plus" to "off" or select one of the other options. ♦ Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter. ➣ “Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”. English - 21 Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the▲ or ▼ button to select "PIP", then press the

3. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

4. When you are satisfied with your setting, press the ENTER

5. Press the EXIT button to exit.

➣ You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “PIP”, then press the

3. Press the ▲ or ▼ button to select a particular item.

4. Press the ◄ or ► button to select the required option.

5. Press the EXIT or TOOLS button to exit.

Mode :PIP Custom Equalizer PIP :: On Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Move

Standard Custom Off Off Off Enter e Exit PIP ♦ PIP: On/Off You can activate or deactivate the PIP function. Main picture Sub picture Component PIP Source Programme Size Position Move ♦ Source You can select a source of the sub-picture. ♦ Size:

You can select a size of the sub-picture. ➣ If main picture is in "HDMI" mode, "Size" is available. ♦ Position:

You can select a position of the sub-picture. ➣ In Double ( , ) mode, "Position" cannot be selected. ♦ Programme You can select a channel of the sub-picture only when the "Source" is set to "TV" or "DTV". English - 22 Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit.

♦ Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "Sound Mode".

3. Press the ◄ or ► button to select the desired sound mode.

4. Press the EXIT or TOOLS button to exit.

♦ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz The sound settings can be adjusted to suit your personal preferences. ➣ If you make any changes to these settings, the sound mode is automatically switched to "Custom". Enter

Return Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return ♦ SRS TS XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “SRS TS XT”.

3. Press the ◄ or ► button to select the "Off" or "On".

4. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. ♦ Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. English - 23 ♦ TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. ➣ The +, - and MUTE buttons do not operate when the "TV Speaker" is set to "Off". ➣ When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) in Sound menu. ♦ Sound Select: Main/Sub When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Selecting the Sound Mode You can set the sound mode in the "Tools" menu. When you set to "Dual I-II", the current sound mode is displayed on the screen.

Press the TOOLS button on the remote control. Press the ▲ or ▼ button to select “Dual I-II". Press the ◄ or ► button to select required option. Press the ENTER button. Audio Type Mono Stereo Dual Mono Stereo Dual Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. This function is only available in Analogue TV mode. Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

TV Side Panel When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently. English - 24 Setting and Displaying the Current Time You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

Confirm the setting Enter button Day Year

Move Adjust Return Press the EXIT button to exit. The current time will appear every time you press the INFO button. You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control. Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button. Press the ▲ or ▼ button to select "Time", then press the ENTER button. Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button. Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button. Press the EXIT button to exit. The TV automatically switches to standby mode when the timer reaches 0. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sleep Timer”.

3. Press the ◄ or ► button to select the minute.

4. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move Switching the Television On and Off Automatically

Setup Press the MENU button to display the menu. Plug & Play Press the ▲ or ▼ button to select "Setup", then press the Language : English Time ENTER button. Auto Wall-Mount

2. Press the ▲ or ▼ button to select "Time", then press the

Melody : Off Entertainment : Off ENTER button. Energy Saving : Off PIP

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the ENTER button. Move Enter Return Three different On/Off Timer Settings can be made. ➣ You must set the clock first. Timer 1 On Time

4. Press the ◄ or ► button to select the required item below.

00 : 00 Inactivate Press the ▲ or ▼ button to adjust to the setting satisfied. Off Time ♦ On Time : Select hour, minute and "Activate"/"Inactivate". 00 : 00 Inactivate (To activate timer with the setting satisfied, set to "Activate".) Volume ♦ Off Time : Select hour, minute and "Activate"/"Inactivate". Repeat Once (To activate timer with the setting satisfied, set to "Activate".) ► Move Adjust Return ♦ Volume : Select the desired turn on volume level. ♦ Repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun". ➣ You can set the hour and minute directly by pressing the number buttons on the remote control. ➣ Auto Power Off When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. Choosing Your Language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button. Press the ▲ or ▼ button to select "Language", then press the ENTER button. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button. Press the EXIT button to exit.

Melody / Entertainment / Energy Saving

Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

3. When you are satisfied with your setting, press the ENTER

4. Press the EXIT button to exit.

♦ Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted. ➣ The Melody does not play − When no sound is output from the TV because the MUTE button has been pressed. − When no sound is output from the TV because the – (Volume) button has been pressed. − When the TV is turned off by the Sleep Timer function. ♦ E ntertainment: Off/Sports/Cinema/Game The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games. − Off: Switch the "Entertainment" function off. − Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound. − Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound. − Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off. The “Entertainment” settings are saved for each input source. If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available. You can press the E.MODE button on the remote control repeatedly to change the “Entertainment” setting. English - 27 ♦ Energy Saving: Off/Low/Medium/High/Auto This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Turns off the energy saving function. − Low: Sets the TV to low energy saving mode. − Medium: Sets the TV to medium energy saving mode. − High: Sets the TV to high energy saving mode. − Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Energy Saving”.

3. Press the ◄ or ► button to select the "Off", "Low",

"Medium", "High" or "Auto".

4. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move Selecting the Source You can select among external sources connected to your TV’s input jacks.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Input", then press the ENTER button. Press the ENTER button again, to select "Source List". ➣ When no external device is connected to your set, only "TV", "Ext.1", "Ext.2", "DTV" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2", "HDMI3", "HDMI4" are activated only when they are connected to your set. Select the required device by pressing the ▲ or ▼ button. Press the ENTER button.

Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV/DTV button, number buttons(0~9), and the P / button on the remote control. English - 28 Editing the Input Source Names Name the device connected to the input jacks to make your input source selection easier.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Input", then press the ENTER button. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button. Press the ▲ or ▼ button to select the device that you wish to edit. Press the ENTER button. Press the ▲ or ▼ button to select the required device. Press the ENTER button. Press the EXIT button to exit. ➣ When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

Mode Custom Edit: Name Equalizer Ext.1

:: ------SRS TS XT

Off Ext.2 :: ---VCR Auto Volume Off DVD :: ---Internal Mute Off S-Video : ----Cable STB Reset Satellite STB Component : ---PC

: ---- PVR STB

AV Receiver HDMI1 : ---- s sMore Move Enter Return Move Enter Return English - 29 Previewing the DTV Menu System ♦ The company does not guarantee the normal operation of the DTV menu for countries other than the supported countries (France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria) because only these country standards are supported. In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel Manager, etc. may not be displayed properly. ♦ Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button. Guide Now & Next Guide Full Guide Scheduled List Default Guide Digital Text Time Zone Common Interface System Language Audio Language Subtitle Language Teletext Language Preference

High, Medium, Low, Opaque Off, On Normal, Hard of hearing PCM, Dolby Digital Audio Description Off, On Volume Disable, Enable Move Application Info, CI Menu Product Information Signal Information Software Upgrade Reset Return Return Enter Enter Return Return Enter Enter Return Return Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move DTV Enter Channel Country :United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List Move DTV Enter

Channel Country Auto Store Manual Store Edit Favourite Channels Channel List All, Favourites, Default Setup Menu Transparency Change PIN Parental Lock Subtitle Subtitle Mode Audio Format Audio Description

Return Return Language Audio Language Subtitle Language Teletext Language Preference Move Move Enter Enter Return Return Primary Audio Language Secondary Audio Language Primary Subtitle Language Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language (Depending On the Country) The sub-items of the CI Menu may vary depending on the CAM model. English - 30 Updating the Channel List Automatically You can update the channel list when the broadcaster adds new Services or if you move the TV to a new location. DTV Channel Country :United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Channel", then press the

ENTER button. Move Enter Return

3. Press the ENTER button again, to select "Country".

4. Select the appropriate country by pressing the ▲ or ▼ button.

Mode DTV Auto: Custom Store Equalizer Press the ENTER button to confirm your choice.

SRS TS XT

: Off ➣ Even though you have changed the country setting in this Auto Volume : Off Scanning for digital services... Internal Mute : Off menu, the country setting for Analogue TV is not changed. 35% Reset (Refer to page 12) Services found: 24 Channel: 38

5. Press the ▲ or ▼ button again, to select "Auto Store".

Stop Press the ENTER button. Move Enter Return ➣ When it has finished, the number of scanned services Return will be displayed. ➣ The existing favourite channel list will not be deleted when the channel list is updated. ➣ To stop the scan before it has finished, press the ENTER button with "STOP" selected.

6. Press the EXIT button to exit.

➣ If the signal status is poor, the "No Service found! Check the aerial connection" message is displayed. Updating the Channel List Manually You can specify the channel for a fast channel search. DTV Manual Store

1. Press the MENU button to display the menu.

Channel Frequency Bandwidth Press the ▲ or ▼ button to select "Digital Menu", then press KHz 7 MHz the ENTER button.

2. Press the ▲ or ▼ button to select "Channel", then press the

ENTER button. Search

3. Press the ▲ or ▼ button to select "Manual Store", then press

Adjust Return the ENTER button.

4. Press the ▲ or ▼ button to select the required option, then press the ENTER button.

➣ − Channel : Channel "5" to "69" in sequence are displayed (depending on the country) − Frequency : The frequency available in the Channel group is displayed. andwidth : The available bandwidths are 7 and 8 MHz. ➣ Press the red button to start the scan for digital services. When it has finished, channels are updated in the channel list.

5. When it has finished, the number of scanned services will be displayed.

6. Press the EXIT button to exit.

English - 31 Editing Your Favourite Channels You can edit your favourite channels using the four colour buttons.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Channel", then press the

3. Press the ▲ or ▼ button to select "Edit Favourite Channels",

then press the ENTER button.

4. Press the red button to display all currently stored channels.

5. Press the ▲ or ▼ button to select a channel you want.

Press the ENTER button. ➣ A "" icon is shown next to the selected channel and the channel will be added to the favourite channel list. ➣ • To undo, press the ENTER button again.

• Select All: Select all channels currently displayed.
• Select None: Deselect all selected channels.
• Preview: Displays (a) currently selected channel(s). ➣ The Favourite Channels settings have been completed.

6. Press the EXIT button to exit.

♦ Add You can use this function when one or more favourite channels have been selected.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Channel", then press the

3. Press the ▲ or ▼ button to select "Edit Favourite Channels",

then press the ENTER button.

4. Press the red button in the "Edit Favourite Channels" menu.

To add more channels, refer to the step 5 on the previous description.

5. If you want to check the channel to be stored, press RETURN

button. Press the EXIT button to exit. ➣ • To add all channels to the favourite channel list, press the red button.

• To remove all channels, press the green button.
• Preview : Displays (a) currently selected channel(s).
• Press the CH LIST button to display the favourite channel manager. DTV Edit Favourite Channels (no channels) Move Add Channels Enter Return Return DTV Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC Move Enter Return Move Select Return Select All DTV Select None Preview Edit Favourite Channels

Move Add Move DTV EnterPreview Return Delete Renumber Return Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC

Move Select All Enter Select None Return Preview Move Select Return English - 32 ♦ Renumber (depending on the country) DTV

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Channel", then press the

3. Press the ▲ or ▼ button to select "Edit Favourite Channels",

then press the ENTER button.

4. Select the required channel using the ▲ or ▼ button.

5. Press the green button.

➣ The space for entering the number is a blank.

6. Enter the new channel number. Press ENTER button to store

or RETURN button to cancel. Edit Favourite Channels

Move Edit Enter Return Return Confirm

Press the ◄ button to delete an entered digit. If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel. That is, the two numbers are exchanged. ➣ The Favourite Channels are automatically sorted in ascending order of channel numbers. Press the EXIT button to exit. ♦ Preview

DTV In the "Edit Favourite Channels" menu, select the channel to be previewed by pressing the ▲ or ▼ button. Press the yellow button. ➣ The selected channel is displayed on the screen. Edit Favourite Channels

Add Renumber Move ♦ Delete

In the "Edit Favourite Channels" menu, select the channel to be deleted from the favourite channels list by pressing the ▲ or ▼ button. Press the blue button. ➣ The selected channel and number will be deleted. ➣ To add a deleted channel back in to the favourite channel list, see "Add" on page 32. DTV Preview Delete Return Edit Favourite Channels

Add Move Renumber Preview Delete Return English - 33 Selecting Channel List You can exclude the channels you have chosen from the channels you have scanned.When you scan through the stored channels, those you have chosen to skip are not displayed. All channels that you do not specifically choose to skip are displayed during scanning. Test Card M' v2.0 Vida003b Vida004b vida005b vida006b Ch 15 QVC UKTV Gold Channel List

bid-up.tv TCM UKTV Style Discovery DiscoveryH&L Cartoon Nwk Boomerang Ttext Holidays

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button. Previous Page Next/Page Favourites

2. Press the ▲ or ▼ button to select "Channel", then press the

Move Watch Return ENTER button.

3. Press the ▲ or ▼ button to select "Channel List".

Press the ENTER button.

4. Press the ▲ or ▼ button to select "All", "Favourites" or

It can be displayed simply by "Default". pressing the CH LIST button. Press the ENTER button.

5. Press the yellow button to toggle between your favourite

channels and all channels. ➣ Your favourite channels are only displayed if they were previously set in the "Editing Your Favourite Channels" menu (refer to page 32).

6. Press the red or green button to display the previous or next channel List page.

7. Press the ▲ or ▼ button to select a channel to be tuned.

Press the ENTER button. ➣ The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a icon if the channel is one of the favourite channels.

8. Press the blue button to toggle between your "TV", "Radio", "Data/Other" and "All".

9. Press the CH LIST button to exit from the channel List.

Displaying Programme Information While viewing a channel, additional information about the current programme may be displayed.

While viewing a programme, press the INFO button. ➣ The programme information is displayed. To exit from banner information, press the INFO button. ➣ The information is displayed: − Parental Rating − Video Type: SD, HD, Radio − Audio Type: Mono, Stereo, Dual, Dolby Digital − Existence of Teletext or DVB Subtitle − Audio Language 14:30 Sat 1 Sep AII Channels A 1 AFDO,16:9 14:30~14:33 AFDO 16:9 No Block Contains video with AFD O; coded frame is 16:9 Stereo Subtitle English Move Enter Return Exit English - 34 Viewing the EPG (Electronic Programme Guide) Information The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. ♦ Now & Next Guide For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information. ♦ Full Guide Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled forwards or backwards in time.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ENTER button, to select "Guide".

3. Press the ▲ or ▼ button to select "Now & Next Guide" or

"Full Guide". Press the ENTER button. ➣ You can also display the guide menu simply by pressing the GUIDE button.

To... Watch a programme in the EPG list Now & Next Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars All Channels INFO Now Watch Full Guide Next Favourites Exit Full Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Today Watch Now/Next 13:00 Favourites 14:00 -24Hours +24Hours Exit Then...

• Select a programme by pressing the ▲, ▼, ◄, ► button.
• Press the ENTER button. If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, the scheduling is cancelled with the clock icon gone. For details about scheduling programmes, refer to the next page.
• Select a programme of your choice by pressing the ▲, ▼, ◄, ► button. View programme information

• Press the INFO button when the programme of your choice is highlighted. Toggle between the "Now & Next Guide" or "Full Guide"

• Press the red button repeatedly. Display the "Favourites" and the "All Channels" list

• Press the green button repeatedly. Scrolls backwards quickly (24 hours).

• Press the yellow button repeatedly. Scrolls forward quickly (24 hours).

• Press the blue button repeatedly. Exit the guide The programme title is on the upper part of the screen center. Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information(HD/SD), Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and brief summary of the highlighted programme are included on the detailed information. "..." will be appeared if the summary is long. Six channels are displayed. To scroll between channels, move to a channel using the ▲ or ▼ button. To display page by page, use the P or P button. English - 35 Using the Scheduled List If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled programme at the scheduled time even if you are watching another programme.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ENTER button, to select "Guide".

3. Press the ▲ or ▼ button to select "Scheduled List", then press

4. Press the red button.

The channel will be switched to the scheduled programme.

5. Press the ENTER button to select an item and adjust with the

▲ or ▼ button . ➣ You can also set hour and minute by pressing the number buttons on the remote control.

• Channel: Set the channel.
• Date: Set Year, Month and Day.
• Frequency: S et the frequency. ("Once", "Daily", or "Weekly")

6. After setting the schedule, Press the red button.

7. Press the EXIT button to exit.

➣ • Save: Save the adjusted schedule.

• Cancel: Cancel the adjusted schedule.
• Add Programme: Add a new schedule.
• Edit: Readjust the selected schedule.
• Delete: Delete the selected schedule. DTV Scheduled List (No programmes) Add Programme Return DTV Scheduled List Tuesday 22 Apr 15:30 ~ 16:00 Once 801 RaiTre Add Programme Move Edit Delete Return DTV Scheduled List Channel 802 RaiUno Time 15 : 20 to -- : -- Date Tue 22 Apr 2008 Frequency Once Save Adjust Cancel Move Return

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ENTER button, to select "Guide".

3. Press the ▲ or ▼ button to select "Default Guide", then press

4. Select "Now/Next" or "Full Guide" using the ▲ or ▼ button,

and press the ENTER button.

5. Press the EXIT button to exit.

You can select these options by simply pressing the GUIDE button on the remote control. English - 36 Viewing All Channels and Favourite Channels In the EPG menu, you can display all channels or favourite channels.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button. Now & Next Guide 13:28 Wed 16 Feb

2. Press the ENTER button again, to select "Guide".

27 Discovery Extreme Machines: Armoured Cars

3. Select the your required guide ("Now & Next Guide" or "Full

All Channels Guide") by pressing the ▲ or ▼ button. Now Next

4. Press the ENTER button.

5. Press the green button.

All the channel lists and the Favourite Channel lists will be toggled. Watch Full Guide Favourites Exit

6. Select a programme of your choice by pressing the ▲, ▼, ◄, or

7. Press the INFO button to display information about the

highlighted programme. Full Guide

8. When the Edit Favourite Channels list has not been set up:

13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars

• " The favourites list is empty. Would you like to choose your favourites now?" message is Today displayed.
• Select "Yes". The "Edit Favourite Channels" menu is displayed. If you select "No", all channels will remain unchanged. Watch Now/Next Favourites -24Hours +24Hours Exit
• To edit the favourite channels, refer to page 32 for more details. 9 . Press the EXIT button to exit. ➣ "All Channels" is the list of channels that have been scanned by the channel list update. All channels are displayed in the all channel mode. ➣ "Favourites" (favourite channels) is the list of channels that has been set in the "Edit Favourite Channels" menu (refer to page 32). INFO INFO The favourites list is empty. Would you like to choose your favourites now? Yes

Adjusting the Menu Transparency You can set the Transparency of the menu. DTV

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Menu Transparency" then

press the ENTER button.

4. Select the required option ("High", "Medium", "Low", or

"Opaque") by pressing the ▲ or ▼ button, and press the ENTER button to change the setting.

5. Press the EXIT button to exit.

Setup Menu Transparency : Medium High Change PIN Medium Parental Lock Low Subtitle : On Opaque Subtitle Mode

Move Enter Return English - 37 Setting up the Parental Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press

3. Press the ▲ or ▼ button to select "Parental Lock.", then

press the ENTER button.

4. The "Enter PIN" is displayed.

5. Enter your current 4-digit PIN code by using the numeric

buttons (0~9). ➣ The default PIN code for a new TV set is 0000. ➣ If you enter an invalid PIN code,the "Invalid PIN code. Please try again." message is displayed.

6. Press the ENTER button.

7. Press the ▲ or ▼ button to select the age rating you want to

lock out. Press the ENTER button. DTV Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Move DTV Change PIN Enter Return Enter Return Parental Lock Enter PIN Enter PIN DTV DTV Return Parental Lock Parental Rating: No Block Block No Block

Move Enter▼ Return Move

Enter Return Setup Menu Transparency : Medium

1. Press the MENU button to display the menu.

Change PIN Press the ▲ or ▼ button to select "Digital Menu", then press the Parental Lock ENTER button. Subtitle : Off Subtitle Mode

2. Press the ▲ or ▼ button to select "Setup", then press

the ENTER button. Move Enter Return

3. Press the ▲ or ▼ button to select "Change PIN", then

press the ENTER button. Move Enter Return ➣ The "Enter PIN" is displayed. DTV Change PIN

4. Enter your current 4-digit PIN code by using the numeric

Confirm New PIN buttons (0~9). ➣ The “Enter New PIN” is displayed.

5. Enter your new PIN code by using the numeric buttons (0~9)

Your PIN code has been changed successfully. ➣ The "Confirm New PIN" is displayed.

6. Re-enter your new PIN code to confirm by using the numeric

buttons (0~9). Enter PIN Return ➣ The Your PIN code has been changed successfully message is displayed.

7. Press the ENTER button.

8. Press the EXIT button to exit.

➣ If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:POWER (Off), MUTE, 8, 2, 4, POWER (On). English - 38 Setting the Subtitle You can activate and deactivate the subtitles. DTV

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Subtitle ", then press the

4. Select "On" by pressing the ▲ or ▼ button. Press the ENTER

5. Press the EXIT button to exit.

You can select these options simply by pressing the SUBT. button on the remote control. Setting the Subtitle Mode Use this menu to set the Subtitle Mode. "Normal" under the menu is the basic subtitle and "Hard of hearing" is the subtitle for a hearing-impaired person. DTV

Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode : Normal Normal Hard of hearing ress the MENU button to display the menu. Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button. Move Enter

2. Press the ▲ or ▼ button to select "Setup", then press the

Move Enter ENTER button.

3. Press the ▲ or ▼ button to select "Subtitle Mode", then press

4. Press the ▲ or ▼ button to select "Normal" or "Hard of hearing". Press the ENTER button.

5. Press the EXIT button to exit.

➣ If the programme you are watching does not support the "Hard of hearing" function, "Normal" automatically activates even though "Hard of hearing" mode is selected. Return Return Selecting the Audio Format You can only hear Dolby Digital sound through the audio receiver connected through an optical cable. You can only hear PCM sound through the main speaker. When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the internal mute function. DTV Setup Audio Format : PCM Audio Description Digital Text : Enable Time Zone Common Interfece

1. Press the MENU button to display the menu.

Move Enter Return Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

3. Press the ▲ or ▼ button to select "Audio Format", then press the ENTER button.

4. Press the ▲ or ▼ button to select "PCM" or "Dolby Digital". Press the ENTER button.

5. Press the EXIT button to exit.

➣ The Audio Format appears according to the broadcasting signal. Dolby digital sound is only available when the TV is connected with an external speaker using an optical cable. English - 39 Selecting the Audio Description This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Audio Description", then

press the ENTER button.

4. Press the ▲ or ▼ button to select "On", then press the

5. Press the ▲ or ▼ button to select "Volume", then press the

ENTER button. ➣ "Volume" is active when "Audio Description" is set to "On".

6. Press the ◄ or ► button until you reach the optimal setting.

Press the ENTER button.

7. Press the EXIT button to exit.

DTV Setup Audio Format : PCM Audio Description Digital Text : Enable Time Zone Common Interfece Move DTV Return Audio Description Audio Description : On Off Volume

Enter Return Audio Description Audio Description : On Volume

Move Enter Return Selecting the Digital Text (UK only) If the programme is broadcast with digital text, this feature is enabled. DTV Setup Audio Format : PCM Audio Description Digital Text : Enable Disable Time Zone Enable Common Interfece

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

ENTER button. Move Enter Return

3. Press the ▲ or ▼ button to select "Digital Text", then press

4. Press the ▲ or ▼ button to select "Disable" or "Enable". Press the ENTER button.

5. Press the EXIT button to exit.

➣ MHEG(Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games. English - 40 Selecting the Time Zone (Spain only) Select the local time zone. DTV Setup Audio Format : PCM Audio Description Digital Text : Enable Time Zone Common Interfece Move DTV Enter

Return Time Zone The Iberian Peninsula and Balearic Islands Canary Islands Adjust Enter Return Viewing Product Information You can view your product information. For service or repair, please contact a Samsung approved dealer.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press

4. Press the ENTER button again, to select "Product

Information". ➣ The Product Information menu is selected. - Software Version, Firmware Version

5. Press the EXIT button to exit.

DTV Product Information Software Version: T-PERLDEUC-0202 Firmware Version: T-EMMA2DEUB-0106 Return English - 41 Checking the Signal Information You can get information about the signal status. DTV Signal Information Service: ?

1. Press the MENU button to display the menu.

Service ID:0000 Multiplex: ? (TSID 0000, ONID 0000) Press the ▲ or ▼ button to select "Digital Menu", then press the Network: ? (ID 0000) ENTER button. Bit error level: Signal Strength: 0

2. Press the ▲ or ▼ button to select "Setup", then press the

ENTER button. Move Enter Return

3. Press the ▲ or ▼ button to select "System", then press the

Return ENTER button.

4. Press the ▲ or ▼ button to select "Signal Information", then press the ENTER button.

5. Press the EXIT button to exit.

➣ If the signal status is poor, the "No signal." message is displayed. Upgrading the Software To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade. DTV System Product Information Signal Information Software Upgrade Reset

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the Move Enter Return ENTER button. DTV Software Upgrade

2. Press the ▲ or ▼ button to select "Setup", then press the

Software Information ENTER button. Manual Upgrade

3. Press the ▲ or ▼ button to select "System", then press the

Standby Mode upgrade : On ENTER button.

4. Press the ▲ or ▼ button to select "Software Upgrade",

then press the ENTER button.

5. Press the ▲ or ▼ button to select “Software Information”,

Move Enter Return “Manual Upgrade” or “Standby Mode upgrade”. Press the ENTER button. ♦ Software Information Press the ENTER button, then the current software version is shown. To display the software version information, press the ENTER button again. To switch to an alternative version, press the red button. Press the blue button to reset, activate the upgrade and restart. ♦ Manual Upgrade Press the ENTER button to search for new software from the currently broadcasting channels. ♦ Standby Mode Upgrade: On / Off Press the ENTER button. To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

Press the EXIT button to exit. English - 42 Viewing Common Interface This contains information on CAM inserted in the CI slot and displays it. DTV Application Info Type : CA Manufacturer : Channel Plus

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "Common Interface", then

press the ENTER button.

4. Press the ENTER button to display the information for

5. Press the EXIT button to exit.

➣ The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer

2. Insert the CI CARD into the CAM in the direction of the

arrow until it fits.

3. Insert the CAM with the CI CARD installed into the common

interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)

4. Check if you can see a picture on a scrambled signal channel.

Selecting the CI (Common Interface) Menu This enables the user to select from the CAM-provided menu.

1. Press the MENU button to display the menu.

Module information Press the ▲ or ▼ button to select "Digital Menu", then press the Smart card information Language ENTER button. Software Download

2. Press the ▲ or ▼ button to select "Setup", then press the

ENTER button. Press OK to select, or Exit to quit

3. Press the ▲ or ▼ button to select "Common Interface",

Move Enter then press the ENTER button.

4. Select to "CI Menu" by pressing the ▲ or ▼ button, and press the

5. Select the required option by pressing the ▲ or ▼ button, and press the ENTER button.

6. Press the EXIT button to exit.

➣ Select the CI Menu based on the menu PC Card. Exit English - 43 Resetting You can reset the values stored to the factory default values. ➣ The Reset operation deletes all channel information and user preferences returning all values to their default factory state.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Setup", then press the

3. Press the ▲ or ▼ button to select "System", then press

4. Press the ▲ or ▼ button to select "Reset", then press the

5. The "Enter PIN" screen will appear.

6. Enter your current 4-digit PIN code by using the numeric

buttons (0~9). ➣ The warning message is displayed. All values will be reset by pressing the coloured buttons (red, green, yellow, and blue) in turn.

7. Press the EXIT button to exit.

DTV Reset Enter PIN Enter PIN Return DTV Reset

WARNING: All channel settings and user

preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced. Return Selecting the Preferred Language (Subtitle, Audio or Teletext) You can change the default value for subtitle, audio teletext languages. Displays the language information for the incoming stream.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Digital Menu", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Language", then press

3. Press the ▲ or ▼ button to select "Audio Language",

"Subtitle Language" or "Teletext Language". Press the ENTER button.

4. Select a particular language by pressing the ▲ or ▼ button

repeatedly. Press the ENTER button. ➣ English is the default in cases where the selected language is unavailable in the broadcast.

5. Press the EXIT button to exit.

➣ While viewing a programme, the subtitle can be selected While viewing a programme, audio languages can be selected. DTV Language Audio Language Subtitle Language Teletext Language Preference Move DTV Enter Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Language DTV Audio Language Subtitle Language Teletext Language Preference Move Enter Return English - 44 Preference This menu consists of 6 sub-menus: DTV Language Primary Audio Language, Secondary Audio Language, Primary Audio Language Subtitle Language, Secondary Subtitle Language, Primary Subtitle Language Teletext Language, Secondary Teletext Language. Teletext Language Using this feature, users can select one of the languages Preference (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Spanish, Dutch). The language selected here is the Move Enter Return default when the user selects a channel. Move Enter Return ♦ Press the ▲ or ▼ button to select required menu (Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language), then press the ENTER button. The options of the selected menu are displayed. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu (refer to page 44) are automatically changed to the selected language. The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu. English - 45 Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on "Control Panel" on the Windows start menu. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display

dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box. Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 350 720 x 400

VESA 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) VESA 640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1600 x 1200

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200). English - 46 Setting up the TV with your PC

Press the SOURCE button to select PC mode. Press the MENU button to display the menu. Press the ENTER button, to select "Picture". Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit.

Move ♦ Auto Adjustment Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Auto Adjustment”, then

press the ENTER button. ♦ Screen Adjustment: Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER button. Press the ◄ or ► button to adjust the screen quality. Press the ENTER button. Position Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Press the ENTER button. Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Auto Adjustment Screen Adjustment Detailed Settings sMore Enter Auto Adjustment in progress Please wait. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving PIP Auto Adjustment Move

Standard Custom Off Off Off Enter e Exit Screen Adjustment Coarse 50 Fine 93 Position Image Reset Move

Enter Return Position Move Image Reset You can replace all image settings with the factory default values. Return Enter Return Screen Adjustment Coarse 50 Fine 93 Position Image Reset Move Enter Return English - 47 Using the WISELINK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device. Press the POWER button on the remote control or your set. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. If you enter the WISELINK mode with no USB device connected the message “There is no device connected” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. TV Side Panel USB Drive Only alphanumeric characters must be used as a folder name or filename (photo, music). The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.SAMSUNG is not responsible for any data file damage or data loss. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). We recommend the sequential jpeg format. Do not disconnect the USB device while it is loading. MTP (Media Transfer Protocol) is not supported. The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. The higher the resolution of the image, the longer it takes to display on the screen. The Photo or Music List displays up to 300 folders or files. Loading may take some time depending on the size of the file. English - 48 Using the WISELINK Menu

Source List : TV ► Edit Name ► Anynet+ (HDMI-CEC) WISELINK Move

Press the ▲ or ▼ button to select the corresponding USB Memory Device, then press the ENTER button. ➣ The "WISELINK" menu differs depending on the USB Memory Device connected to TV. ➣ Some devices may not be supported due to compatibility problems. Return Press the ◄ or ► button to move to an icon, then press the ENTER button. ➣ To exit "WISELINK" mode, press the W.LINK button on the remote control. Enter Exit Photo SUM 861MB/994MBFree Photo Music Move Setup Enter Return Press the W.LINK button on the remote control to display a WISELINK menu. Using the Remote Control Button in WISELINK Menu Button ENTER Operations Move the cursor and select an item. Select the currently selected item. Play the Slide Show or MP3 file. Pause the Slide Show or MP3 file. RETURN INFO Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) EXIT Stop the current function and return to the previous high-level menu. English - 49 Using the PHOTO (JPEG) List This menu shows JPEG files and folders saved on an USB memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

2. Press the ◄ or ► button to move to “Photo”, then press the

ENTER button. The saved file information is displayed as a folder or file.

3. Press the ▲, ▼, ◄ and ► buttons to select a file.

• Pressing the ENTER button over a photo icon shows the currently selected photo in full screen.
• Pressing the ENTER button over a folder icon shows the JPEG files included in the folder. Photo SUM 861MB/994MBFree Photo Music Setup Move Enter Return 1/10 Page Photo 580*440 47KB Jun 1,2008 3/23 Upper Folder Forder1 Photo 0001 Photo 0001 None File 7 File 8 File 12 File 13 To exit "WISELINK" mode, press the W.LINK button on the remote control. ➣ Moving to a photo may take a few seconds to load the file. At this point, the icon will appear at the top left Select Move Enter Option Return of the screen. ➣ It takes time to show JPEG files as Thumbnail images. ➣ This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed. ➣ The files are displayed on a page. 15 thumbnail photos are displayed per page. ➣ The thumbnails are numbered from left to right and from top to bottom, from 1 to 15. ➣ Certain types of USB Digital camera and audio devices may not be compatible with this TV. ➣ Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order. ➣ If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. ➣ While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. ➣ Press the button when a Photo icon is selected to start a Slide Show. ➣ Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. File 4 File 5 File 6 File 9 File 10 File 11 SUM 895MB/993MB INFO Viewing a Slide Show

Press the INFO button to display the option("Start Slide Show", "Select All"). Press the ▲ or ▼ button to select “Start Slide Show” then press the ENTER button. ➣ During the slide show, files are displayed in order from the currently shown file. ➣ MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device. Press the INFO button during the slide show to set the following options ("Slide Show Speed", "Background Music", "Background Music Setting", "List"). Press the ▲ or ▼ button to select the option, then press the ENTER button.

• After setting the option press the ENTER button to make a change. 1/10 Page Photo 580*440 47KB Jun 1,2008 3/23 Upper Folder Forder1 File 4 Start Slide Show 895MB/993MB Select All INFO File 9 Exit Select File 5 File 10 Move Photo 0001 Photo 0001 None File 6 File 7 File 8 File 11 Enter File 12 INFO Option File 13 Return Slide Show Speed Nomal► Background Music On ► Background Music Setting List INFO Exit English - 50 Using the Menu in the Photo List Start Slide Show: You can start a Slide Show. 1/10 Page Photo 580*440 47KB Jun 1,2008 3/23 Select All: Select all the files in the folder. Upper Folder Forder1 File 4 Deselect all: Deselect all the files in the folder. File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 Start Slide Show 895MB/993MB Select All File 9 Deselect all INFO File 10 Select Exit Move File 11 Enter File 12 INFO File 13 Option Return Using the Menu during a Slide Show Slide Show Speed: Select to control the slide show speed. Press the ▲ or ▼ button to select the required option ("Fast", "Normal", "Slow"), then press the ENTER button. Fast Slide Show Speed Nomal Background Music: Select to choose whether you want to play an MP3 file during a slide show. Press the ▲ or ▼ button to select the required option ("On", "Off"), then press the ENTER button. Background Music Setting: While the slide show is in progress, MP3 files and folders under the same directory are displayed. Background Music Nomal On ► Slow Background Music Setting List INFO Exit Slide Show Speed Nomal►

Off Background Music Setting

Background Music Press the ▲ or ▼ button to select a music file, then press the yellow button. The ( ) mark appears to the left of the selected music. Repeat the above operation to select multiple music files. Press the ENTER button. ➣ If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. List INFO Exit Background Music Setting Choose file for background music Upper Folder 01-001 02-002 03-003 04-004 05-005 ◄◄ 1/1 Page ►► Select List: The file information is displayed as a folder or JPEG file. To exit "WISELINK" mode, press the W.LINK button on the remote control. ➣ When selecting a photo file, the photo file information is displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15). Move Enter Return 1/10 Page Photo 580*440 47KB Jun 1,2008 3/23 Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 SUM 895MB/993MB File 9 Select File 10 Move File 11 Enter File 12 INFO Option File 13 Return Such as the resolution : Folder icon File Size : Photo icon Date modified Order of the file in the current directory : Move to the previous folder stage icon English - 51 Complete Steps 1 to 3 of “Using the WISELINK Menu”. (Refer to page 49) Press the ◄ or ► button to move to “Photo”, then press the ENTER button. The saved file information is displayed as a folder or file. Press the ▲, ▼, ◄ and ► button to select a file, then press the ENTER button. Pressing the button over a photo thumbnail displays the photo in full screen. Press the INFO button to display the option("Start Slide Show" , "Zoom", "Rotate", "List") Start Slide Show Zoom X1 ► Rotate

List Exit INFO Start Slide Show:

• Press the ▲ or ▼ button to select “Start Slide Show”, then press the ENTER button. You can start a Slide Show. Zoom:
• Press the ▲ or ▼ button to select “Zoom”, then press the ENTER button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. (X1, X2, X4) ➣ To pan up/down/left/right in the zoomed-in photo, press the INFO button to exit option menu, then press the ▲, ▼, ◄ and ► buttons. ➣ "Start Slide Show" or "Rotate" is disabled when the "Zoom" option is selected.

Start Slide Show Zoom

List Exit INFO " x1 " : Restore a photo to its original size. " x2 " : Zoom-in to a photo x2. " x4" : Zoom-in to a photo x4.

: Move the zoomed-in photo up/down/right/left. Rotate:

• Press the ▲ or ▼ button to select “Rotate”, then press the ENTER button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. (0°, 90°, 180°, 270°) ➣ The rotated file is not saved. ➣ "Start Slide Show" or "Zoom" is disabled when the “Rotate” option is selected.

Start Slide Show Zoom X1 ► Rotate

"0°" : This rotates a photo to its original position "90°" : This rotates a photo by 90 degrees "180°" : This rotates a photo by 180 degrees "270°" : This rotates a photo by 270 degrees English - 52 Using the MP3 List This menu shows MP3 files from among the files saved on a USB memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

2. Press the ◄ or ► button to move to “Music”, then press the

ENTER button. The saved file information is displayed as a folder or file.

3. Press the ▲ or ▼ button to move to an icon, then press the

• Pressing the ENTER button over a musical note icon immediately plays the music file.
• Pressing the ENTER button over a folder icon shows the music files included in the folder.
• To select a file on the next page, press the button to move to the next page.

4. To select all files or a file, press the INFO button to

display the Music menus. Press the ENTER button to select “Play”, “Repeat Music” or “Select All”. To exit "WISELINK" mode, press the W.LINK button on the remote control. Using the Option Menu

SUM 861MB/994MBFree Photo Music Setup Move Enter Return 1/10 Page Music 006-006 5MB Jun 1,2008 3/23 Folder 1 Play Repeat Music Off ► Select All INFO 00:04:00 Upper Folder Exit Select 001-001 00:04:01 002-002 00:04:28 003-003 00:04:12 004-004 00:05:39 005-005 00:04:30 006-006 00:04:30 007-007 00:03:54 008-008 Move 00:05:25 Enter INFO Option Return : Folder icon : Music icon : Move to the previous folder stage icon Play: Select to play MP3 files.

Music Press the button while playing an MP3 file to pause the file. Press the button to exit Play mode. This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device. The selected file is displayed on the top with its playing time. To adjust the music volume, press the – + button on the remote control. To mute the sound, press the MUTE button on the remote control. Repeat Music: Select to repeatedly play MP3 files in the current folder. You can select On or Off. Select All: Select all the files in the folder. Deselect all: Deselect all the files in the folder. Music function information icon : When all music files in the folder (or the selected file) are repeated. “Repeat Music” is “On”. : When all music files in the folder (or the selected file) are played once. “Repeat Music” is “Off”.

hen pressing the : When pressing the

button on the remote control while music is playing. button on the remote control when music is stopped. English - 53 Setup displays the user settings of the WISELINK menu.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

2. Press the ◄ or ► button to move to “Setup”, then press the ENTER button.

3. Press the ▲ or ▼ button to select an item you want, then press the ENTER button. (“Slide Show

Speed”, “Background Music”, “Background Music Setting”, “Repeat Music”, “Screen Saver”)

4. Press the ▲ or ▼ button to select the option, then press the ENTER button.

To exit WISELINK mode, press the W.LINK button on the remote control. Slide Show Speed: Select to control the slide show speed. You can select “Fast”, “Normal” or “Slow”. Setup Slide Show Speed Normal Fast Normal Slow

Background Music Background Music Setting Select to determine whether to play an MP3 file during a slide show. You can select Music “On” or Music “Off”. Setup Enter Slide Show Speed Normal Background Music

Background Music Setting Repeat Music Off

Move Background Music Setting: Enter Return Background Music Setting While a slide show is in progress, use the "Background Music Setting" to select a music file to listen to. Select an MP3 file as the background music. Choose file for background music Upper Folder 01-001 02-002 03-003 04-004 05-005 ◄◄ 1/1 Page ►► Repeat Music : Select Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. Setup Move Enter Slide Show Speed Normal Background Music

Background Music Setting Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes. Repeat Music Off Screen Saver 1min. Move Setup Off

Return Slide Show Speed Normal

Background Music Setting Repeat Music Off Screen Saver What is Anynet+? Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected. Connecting Anynet+ Devices The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV. To directly connect to TV Anynet+ Device 1 HDMI 1.3 Cable Anynet+ Device 2 HDMI 1.3 Cable Anynet+ Device 3 HDMI 1.3 Cable Anynet+ Device 4 HDMI 1.3 Cable Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. To connect to Home Theater

Anynet+ Device 1 Home Theatre

1. C

onnect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

2. Connect the

HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the receiver. Connect only one receiver. You can listen to 5.1 channel sound through the home theatre’s speakers. Otherwise, you can only listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre. You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total. English - 55 The following settings are to use Anynet+ functions. Using the Anynet+ Function

Press The TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)". Press the ▲ or ▼ button to select "Setup", then press the ENTER button. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button. Press the ▲ or ▼ button to select "On", then press the ENTER button. The "Anynet+ (HDMI-CEC)" function is enabled. If you select "Off", "Anynet+ (HDMI-CEC)" is disabled. When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated. Tools Anynet+ (HDMI-CEC) Picture Mode Sound Mode Sleep Timer

SRS TS XT

Energy Saving Dual l-ll Move

Standard Custom Off Off Off Mono Enter e Exit

View TV Select Device

:Off Turning an Anynet+ Device Off Automatically when the TV is Turned Off

Press the ▲ or ▼ button to select "Auto Turn Off", then press the ENTER button. Press the ▲ or ▼ button to select "Yes", then press the ENTER button.

The Auto turn off function is enabled. If you select "No", the Auto turn off function is cancelled. Move Enter Return Press the EXIT button to exit. The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off. English - 56 Scanning and Switching between Anynet+ Devices

Press the TOOLS button.

Then press the ENTER button to select "Anynet+(HDMIView TV CEC)". Select Device Press the ▲ or ▼ button to select "Select Device", then press Record Menu on Device the ENTER button. Device Operation Press the ▲ or ▼ button to select to a particular device and Receiver :Off press the ENTER button. It is switched to the selected device. Setup If you cannot find a device you want, press the ▲ or ▼ button to Move Enter Return select "Setup", then press the ENTER button. Setup Press the ▲ or ▼ button to select "Searching Connections", then press the ENTER button. Anynet+ (HDMI-CEC) : On The message "Configuring Anynet+ connection..." is displayed. Auto Turn Off : Yes When searching devices completes, the connected devices are Searching Connections listed in the Anynet+ menu. Switching to the selected devices may take up to 2 minutes. Move Enter Return You cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of found devices is not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select "Searching Connections" menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button. English - 57 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu View TV Select Device Record Menu on Device Device Operation Receiver Setup Description Switches from Anynet+ to TV broadcast mode. Your TV connects to the corresponding device. Starts a recording. (This menu works only for a device supporting recording.) Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Sound is output through the receiver. You can set the environment for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode Device Type Anynet+ Device Operating Status After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file (Backward search)/ (Forward search)/ (Stop)/ (Play)/ (Pause) Device with built-in Tuner After switching to the device, when you are watching a TV programme

Audio Device When Receiver is activated The Anynet+ function only works when the remote control is set to TV. The button works only while in the recordable state. You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the colour buttons may not work properly. The operations may differ depending on the device. English - 58 You can make a recording of a TV programme using a recorder. Press the button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) ➣ The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. ➣ You can also record the source streams by selecting "Record" after pressing the TOOLS button. ➣ Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual. Listening through a Receiver You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button. Then Press the ENTER button to

select "Anynet+(HDMI-CEC)".

Press the ▲ or ▼ button to select "Receiver", then press the View TV ENTER button. Select Device Record

2. Press the ◄ or ► button to select to "On", then press the

Menu on Device ENTER button. Device Operation Now you can listen to sound through the receiver. Receiver :Off

3. Press the EXIT button to exit.

Setup ➣ When the receiver is set to On, you can listen to the TV sound Move Enter through the 2-channel receiver. Return ➣ If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list. ➣ Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work. ➣ In case of a content with copyright problem, listening through the receiver may not properly operate. ➣ If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again. (see page 24) English - 59 Check Points before Requesting Service Symptom Anynet+ does not work. Solution

I want to start Anynet+.

I want to exit Anynet+. ■

The Configuring Anynet+ connection message appears on the screen. The Anynet+ device does not play. The connected device is not displayed. The TV programme cannot be recorded. The TV sound is not output through the receiver.

Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn’t work at a certain condition. (Searching channels, Operating WISELINK, Plug & Play, etc.) When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on. Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV/DTV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of P / , CH LIST and PRE-CH such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete. You cannot use the play function when Plug & Play is in progress.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. ■ If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3 cable or power cord or a power failure, please repeat the device scan. Check whether the antenna jack on the recording device is properly connected. Connect the optical cable between TV and the receiver. English - 60 Teletext Feature Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

1. (exit)

Exit from the teletext display 2 6 (index) Used to display the index (contents) page at any time while you are viewing teletext. 3 8 (store) Used to store the teletext pages. 4 4 (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. 5 5 (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

6 / (teletext on/mix) Press to activate teletext mode after selecting the channel

providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. 7 0 (mode) Press to select the teletext mode (LIST/FLOF). If you press it

in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the 8(store) button. 8 1 (sub-page) Used to display the available sub-page. 9 2 (page up) Used to display the next teletext page. 0 3 (page down) Used to display the previous teletext page. ! 9 (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. @ 7 (cancel) Used to display the broadcast when searching for a page. # Colour buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

You can change teletext pages by pressing the numeric buttons on the remote control. English - 61 The teletext pages are organized according to six categories: Part

Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) Press the TV/DTV button to exit from the teletext display. English - 62 Auto Wall-Mount (Sold separately) Once the auto wall mount is installed, your TV’s position can be easily adjusted. Auto Wall-Mount TV Rear Panel SERVICE Cable (Not supplied) Press the ▲, ▼, ◄ or ► button on your remote control. The Auto Wall-Mount screen is displayed. If the Auto Wall-Mount screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU butt on to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.

• Press the ▲ or ▼ button to select “Auto Wall-Mount”, then press the ENTER button. Enter Return Remembering the Position

Adjust to the desired position using the ▲,▼,◄,► buttons. If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. ➣ Press the INFO button to reset. Press the ◄ or ► button to select “Yes”, then press the ENTER button. The position is initialized to the default setting.

Press the blue button. Press the ▲ and ▼ buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position. ➣ To not save the current position, press the RETURN button. ➣ When selecting a save mode, you cannot use the Colour buttons. Press the ENTER button to save. ➣ When Position1 is selected, the message "Current position saved as Position1" is displayed. Auto Wall-Mount Position1 Position

INFO Center Save Select a mode to Save. Position1 Position2 Position3 Move Enter Return Press the ENTER button. ➣ The saved Position appears on the left side of the OSD. English - 63 Moving to the remembered position

Complete Step 1 of “Entering the menu”.

Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount to the saved position. ➣ You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. ➣ If you adjust the position after moving to a pre-set position, the position display will disappear.

Auto Wall-Mount Position1 Position

INFO Center For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ and WISELINK are operating. 37, 40 and 46 inch models are not compatible with the old electrically powered wall mount model (WMN5090A*). Using the Anti-Theft Kensington Lock (depending on the model) The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately.

Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2). Connect the Kensington Lock cable. Fix the Kensington Lock to a desk or a heavy stationary object. The place of the Kensington Lock may be different depending on its model. Cable Figure 2 Figure 1 <Optional> English - 64 Troubleshooting: Before Contacting Service Personnel No sound or picture ♦ Check that the mains lead has been connected to a wall socket. ♦ Check that you have pressed the button on your set. ♦ Check the picture contrast and brightness settings. ♦ Check the volume. Normal picture but no sound ♦ Check the volume. ♦ Check whether the MUTE button has been pressed on the remote control. ♦ Check if "TV Speaker" is "on" Screen is black and power indicator light blinks steadily ♦ On your computer check; Power, Signal Cable. ♦ The TV is using its power management system. ♦ Move the computer’s mouse or press any key on the keyboard. No picture or black and white ♦ Adjust the colour settings. picture ♦ Check that the broadcast system selected is correct. Sound and picture interference ♦ Try to identify the electrical appliance that is affecting the set and move it further away. ♦ Plug your set into a different mains socket. Blurred or snowy picture, distorted sound ♦ Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial. Remote control malfunctions ♦ Replace the remote control batteries. ♦ Clean the upper edge of the remote control (transmission window). ♦ Check the battery terminals. ♦ Check that the signal cable is firmly connected to the PC or video sources. ♦ Check that the PC or video sources are turned on. On PC mode, 'Not Supported ♦ Check the maximum resolution and the frequency of the video adaptor. Mode.' message is displayed ♦ Compare these values with the data in the Display Modes. The damaged picture appears in the corner of the screen If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV. This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. You may see small particles This is part of the product’s design and is not a defect. if you look closely at the edge of the bezel surrounding the TV screen. The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. English - 65 Technical and Environmental Specifications Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel (Left / Right) Model Name Screen Size (Diagonal) PC Resolution Sound Output Dimensions (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel (Left / Right)

LE32A656 LE37A656 32 inch 37 inch LE40A656 40 inch 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 10W x 2 10W x 2 10W x 2 806 x 81 x 528 mm 806 x 252 x 584 mm 923 x 84 x 597 mm 923 x 300 x 658 mm 998 x 83 x 638 mm 998 x 300 x 698 mm 14 kg 18 kg 20 kg Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product. English - 66 This page is intentionally left blank. Installation du support Installation du support mural 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Ajouter Verrouil. Déplacer Entrer Page Retour Nom station Prog.

Nom station --------------------Entrer Retour

PIP PIP Source Programme Taille Position Déplacer

Retour Régler les “Mois”, “Date”, “Année”, “Heure” ou “Minute” Bouton ou BBC TWO Five BBC THREE abc1 QVC Move Sélectionner tout Déplacer DTV Entrer Sélectionner aucun Sélect Return Aperçu Retour BBC TWO Five BBC THREE abc1 QVC

27 Discovery Extreme Machines: Armoured Cars INFO Aujourd’hui Regarder Main/Aprés 13:00 Favoris 14:00 - 24Heures +24Heures Quit Guide Now & Next Description audio Description audio : Marche Volume Déplacer Entrer Retour

Retour Menu CI Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Déplacer Entrer Quit Français - 43 BN68-01412A-00Fre-0226.indd 43 2008-03-09 ¿ÀÈÄ 6:17:15 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

CVT 1920 x 1080RB 66,587 59,934 138,500

CEA 1920 x 1080p 67,500 60,000 148,500

Upper Folder Forder1 Photo 0001 Photo 0001 None File 7 File 8 File 12 File 13 File 4 File 5 File 6 File 9 File 10 File 11 SUM 895MB/993MB INFO Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 Photo 0001 Photo 0001 None File 5 File 6 File 7 File 8 File 10 File 11 File 12 File 13 SUM 895MB/993MB File 9 Sélection Déplacer Entrer INFO Option Retour Résolution Upper Folder Folder 1 Lecture Câble SERVICE (non fourni) Fixation murale Position1 Position 1 2 3 Régler Sauvegarder INFO Centre Sauveg. Câble Figure 2 Figure 1 <Optionnel> Français - 64 BN68-01412A-00Fre-0226.indd 64 2008-03-09 ¿ÀÈÄ 6:17:52 Send. C-C23 C16

Navig. Name --------------------Eingabe Zurück

Balance 100Hz 300Hz 1kHz 3kHz 10kHz Navig.

Einstellen Zurück 13:28 Mi 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Heute Ansehen Akt./Näch 13:00 Favoriten 14:00 --24Std +24Std Beenden Sync-Polarität (H/V)

1920 x 1080RB 66,587 59,934 138,500

Sync-Polarität (H/V)

HDMI/DVI Eingang Vollbildmodus

640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200 Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 Upper Folder Forder1 Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 SUM 895MB/993MB File 9 Wählen File 10 Navig. File 11 Eingabe INFO File 12 File 13 Option Zurück Upper Folder Folder 1 00:04:01 001-001 002-002 00:04:28 003-003 004-004 00:05:39 00:04:12 00:04:30 005-005 Wiederhole Musik Aus ► Balans 100Hz 300Hz 1kHz 3kHz 10kHz Verpl. Instellen Terug ◄ of ► ▲ of ▼ knop ENTER Data Jaar

Verpl. Instellen Terug BBC TWO Five BBC THREE abc1 QVC Move Enter Return Verpl. Keuze Terug Alles kiezen Niets kiezen Trailer Favorieten bewerken DTV

BBC TWO Five BBC THREE abc1 QVC Move Alles kiezen Verpl. Enter Niets kiezen Keuze

Return Trailer Terug Nederlands - 32 BN68-01412A-00Dut-0223.indd 32 2008-03-09 ¿ÀÈÄ 6:44:36 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

CVT 1920 x 1080RB 66,587 59,934 138,500

CEA 1920 x 1080p 67,500 60,000 148,500

Photo SUM 861MB/994MB Free Foto Muziek Verpl Instellingen Enter Terug Photo SUM 861MB/994MB Free Foto Upper Folder Forder1 Photo 0001 Photo 0001 None File 7 File 8 File 12 File 13 File 4 File 5 File 6 File 9 File 10 File 11 Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 File 12 File 13 SUM 895MB/993MB File 9 Keuze File 10 Verpl. File 11 Enter INFO Optie Terug Resolutie Upper Folder Folder 1 Afspelen Muziek herhalen Uit ► Apparaatbediening Receiver Instellingen Cable Figure 2 Figure 1 <Optional> Nederlands - 64 BN68-01412A-00Dut-0223.indd 64 2008-03-09 ¿ÀÈÄ 6:45:56 ) Mantieni Teletext b Annulla Teletext 100Hz 300Hz 1kHz 3kHz 10kHz Sposta Regola Ritorno Ora Imposta Ora Timer stand-by Timer 1 Timer 2 Timer 3 Sposta 1 AFDO,16:9 14:30~14:33 AFDO 16:9 Sbloccato Contains video with AFD O; coded frame is 16:9 Stereo Sottotitolo Inglese Move Enter Return Esci Italiano - 34 BN68-01412A-00Ita-0223.indd 34 2008-03-09 ¿ÀÈÄ 6:52:46 Guida Completa 13:28 Mer 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Oggi Guarda 13:00 Ora/Segu Preferiti 14:00 -24 Ore +24 Ore Esci Guida “Ora & Seguente” 13:28 Mer 16 Feb 27 Discovery Extreme Machines: Armoured Cars

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

CVT 1920 x 1080RB 66,587 59,934 138,500

CEA 1920 x 1080p 67,500 60,000 148,500

Upper Folder Folder 1 Riproduci Monitor out L/R SOUND AMP NTP3100

PWM/ANA LM358D

Dimming Inverter on/off PWM/Ana dimming FBE_O(0:11) FRC 100Hz LVDS 4channel out

SVC_TX/RX

UART MAX232EC Display Panel 100Hz for 1366 x 768 50Hz for 1920 x 1080 Main/DTV Service Jack MAIN Part DTV Part @ EXT 1, EXT 2 Conector EXT 1 EXT 2 Vídeo

3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Añadir Bloquear Mover Entrar Página Volver Balance 100Hz 300Hz 1kHz 3kHz 10kHz Mover Ajustar Volver BBC TWO Five BBC THREE abc1 QVC Move Selecc. todos Mover DTV Enter No selec. ning. Selecc. Return Previsualiz. Volver 27 Discovery Extreme Machines: Armoured Cars INFO Hoy Ver Ahora/Después 13:00 Favoritos 14:00 -24Horas +24Horas Salir 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024 1360 x 768 1600 x 1200

CVT 1920 x 1080RB 66,587 59,934 138,500

CEA 1920 x 1080p 67,500 60,000 148,500

Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 Upper Folder Forder1 Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 File 12 File 13 SUM 895MB/993MB File 9 Seleccionar File 10 File 11 Mover Entrar INFO Opción Volver Resolución Upper Folder Folder 1 001-001 Reproducir

PROGRAMAR A IMAGEM

Balanço 100Hz 300Hz 1kHz 3kHz 10kHz Mover Ajustar Voltar Move Enter Adic. canais Return Voltar DTV BBC TWO Five BBC THREE abc1 QVC Move Enter Selec. Todos Selec. Nenhum Mover DTV Return Pré-vis Enter Voltar BBC TWO Five BBC THREE abc1 QVC Move Selec. Todos Mover Enter Selec. Nenhum Seleccion

Return Pré-vis Voltar Português - 32 BN68-01412A-00Por-0223.indd 32 2008-03-09 ¿ÀÈÄ 7:05:21 1 AFDO,16:9 14:30~14:33 AFDO 16:9 Sem bloqueio Contains video with AFD O; coded frame is 16:9 Estéreo Legenda Inglês Move Enter Return Sair Português - 34 BN68-01412A-00Por-0223.indd 34 2008-03-09 ¿ÀÈÄ 7:05:22 27 Discovery Extreme Machines: Armoured Cars INFO Hoje Ver 13:00 Act./Post Favoritos 14:00 -24 horas +24 horas Sair 640 X 480 640 X 480 640 X 480 800 X 600 800 X 600 800 X 600 1024 X 768 1024 X 768 1024 X 768 1280 X 1024 1280 X 1024 1360 X 768 1600 X 1200

CVT 1920 X 1080RB 66,587 59,934 138,500

CEA 1920 X 1080p 67,500 60,000 148,500

Upper Folder Forder1 Photo 0001 Photo 0001 None Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 File 12 File 13 SUM 895MB/993MB File 9 File 10 File 11 Selecc Mover Enter INFO Opção Voltar Upper Folder Folder 1 Reproduzir Vhod Avdio (L/R (L/D))

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move Enter Return Start Plug & Play.

Manual Store Programme Colour System Sound System Channel Search Store Channel Manager Channel List Child Lock : Off

Channel List P 1 C3 1 / 10 Prog.

BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return Pritisnite gumb ali Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move

Enter Picture Dynamic Mode : Standard Standard Backlight 7 Movie 95 Contrast Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move Enter Return

Move Adjust Return Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings sMore Move

Enter Mode :PIP Custom Equalizer PIP

PIP PIP Source Programme Size Position Move

Return Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return Nastavitev možnosti “Month”, “Day”, “Year”, “Hour” ali “Minute” Gumb ali . Potrdite nastavitve. Gumb ENTER

Volume Repeat Once Mode : Custom Input Equalizer Source List :: TV

SRS TS XT

Off Edit Name Auto Volume : Off Anynet+(HDMI-CEC) Internal Mute : Off WISELINK Reset Move Move Enter Enter

Return Return Mode : Custom Input Equalizer Source :: TV SRS TS List Off Edit Name Auto Volume : Off Anynet+(HDMI-CEC) Internal Mute Off WISELINK Reset Move Move

Return Return Digital Text Time Zone Common Interface System Language Audio Language Subtitle Language Teletext Language Preference

High, Medium, Low, Opaque Off, On Normal, Hard of hearing PCM, Dolby Digital Audio Description Off, On Volume Disable, Enable Application Info, CI Menu Product Information Signal Information Software Upgrade Reset Return Return Enter Enter Return Return Enter Enter Return Return Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Move DTV Enter Channel Country :United Kingdom Auto Store Manual Store Edit Favourite Channels Channel List Move DTV Enter

Channel Country Auto Store Manual Store Edit Favourite Channels Channel List All, Favourites, Default Setup Menu Transparency Change PIN Parental Lock Subtitle Subtitle Mode Audio Format Audio Description

Return Return Language Audio Language Subtitle Language Teletext Language Preference Move Move Enter Enter Return Return Primary Audio Language Secondary Audio Language Primary Subtitle Language Secondary Subtitle Language Primary Teletext Language Secondary Teletext Language (odvisno od države) Edit Favourite Channels (no channels) Move Add Channels Enter Return Return DTV Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC Move Enter Return Move Select Return Select All DTV Select None Preview Edit Favourite Channels

Move Add Move DTV EnterPreview Return Delete Renumber Return Edit Favourite Channels

BBC TWO Five BBC THREE abc1 QVC

Move Select All Enter Select None Return Preview Move Select Return Slovenščina - 32 BN68-01412A-00Sln-0223.indd 32 2008-03-09 ¿ÀÈÄ 7:11:08 Edit Favourite Channels

Move Edit DTV Return Return Confirm Edit Favourite Channels

Add Renumber Move Edit Favourite Channels

Add Move Renumber Preview Delete Return Slovenščina - 33 BN68-01412A-00Sln-0223.indd 33 2008-03-09 ¿ÀÈÄ 7:11:09 14:30 Sat 1 Sep AII Channels A 1 AFDO,16:9 14:30~14:33 AFDO 16:9 No Block Contains video with AFD O; coded frame is 16:9 Stereo Subtitle English Move Enter Return Exit Slovenščina - 34 BN68-01412A-00Sln-0223.indd 34 2008-03-09 ¿ÀÈÄ 7:11:09 Now & Next Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars All Channels INFO Now Watch Full Guide Next Favourites Exit Full Guide 13:28 Wed 16 Feb 27 Discovery Extreme Machines: Armoured Cars INFO Today Watch Now/Next 13:00 Favourites 14:00 -24Hours +24Hours Exit Scheduled List (No programmes) Add Programme Return DTV Scheduled List Tuesday 22 Apr 15:30 ~ 16:00 Once 801 RaiTre Add Programme Move Edit Delete Return DTV Scheduled List Channel 802 RaiUno Time 15 : 20 to -- : -- Date Tue 22 Apr 2008 Frequency Once Save Adjust Cancel Move Return The favourites list is empty. Would you like to choose your favourites now? Yes

Setup Menu Transparency : Medium High Change PIN Medium Parental Lock Low Subtitle : On Opaque Subtitle Mode

Move Enter Return Slovenščina - 37 BN68-01412A-00Sln-0223.indd 37 2008-03-09 ¿ÀÈÄ 7:11:12 Setup Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode Move Move DTV

Enter Return Enter Return Parental Lock Enter PIN Enter PIN DTV Return Parental Lock Parental Rating: No Block Block No Block

Move Enter▼ Return Move Enter Return Setup Audio Format : PCM Audio Description Digital Text : Enable Time Zone Common Interfece Move DTV Return Audio Description Audio Description : On Off Volume

Enter Return Audio Description Audio Description : On Volume

Move Enter Return Time Zone The Iberian Peninsula and Balearic Islands Canary Islands Adjust Setup Audio Format : PCM Audio Description Digital Text : Enable Time Zone Common Interfece

DTV Enter Return Product Information Software Version: T-PERLDEUC-0202 Firmware Version: T-EMMA2DEUB-0106 Return Slovenščina - 41 BN68-01412A-00Sln-0223.indd 41 2008-03-09 ¿ÀÈÄ 7:11:16 Signal Information Service: ? Service ID:0000 Multiplex: ? (TSID 0000, ONID 0000) Network: ? (ID 0000) Bit error level:

Signal Strength: Move

Enter Return Return Product Information Signal Information Software Upgrade Reset Move DTV Enter Return Software Upgrade Software Information Manual Upgrade Standby Mode upgrade : On Move Enter

Return Application Info Type : CA Manufacturer : Channel Plus Info : Top Up TV Return Reset Enter PIN Enter PIN Return DTV Reset

WARNING: All channel settings and user

preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced. Return Language Audio Language Subtitle Language Teletext Language Preference Move DTV Enter Return Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return Language DTV Audio Language Subtitle Language Teletext Language Preference Move Enter Return Slovenščina - 44 BN68-01412A-00Sln-0223.indd 44 2008-03-09 ¿ÀÈÄ 7:11:19 Language Audio Language Subtitle Language Teletext Language Preference Move Move Enter Enter Return Return 640 X 480 640 X 480 640 X 480 800 X 600 800 X 600 800 X 600 1024 X 768 1024 X 768 1024 X 768 1280 X 1024 1280 X 1024 1360 X 768 1600 X 1200

CVT 1920 X 1080RB 66,587 59,934 138,500

CEA 1920 X 1080p 67,500 60,000 148,500

Picture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Auto Adjustment Screen Adjustment Detailed Settings sMore Move Auto Adjustment in progress Please wait. Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer Off

SRS TS XT

Off Energy Saving Off PIP Auto Adjustment Move Screen Adjustment Coarse 50 Fine 93 Position Image Reset Move

Enter Return Position Screen Adjustment Coarse 50 Fine 93 Position Image Reset Move Enter Return Slovenščina - 47 BN68-01412A-00Sln-0223.indd 47 2008-03-09 ¿ÀÈÄ 7:11:21 Source List : TV ► Edit Name ► Anynet+ (HDMI-CEC) WISELINK Move Upper Folder Forder1 Photo 0001 Photo 0001 None File 7 File 8 File 12 File 13 File 4 File 5 File 6 File 9 File 10 File 11 Upper Folder Forder1 File 4 Start Slide Show 895MB/993MB Select All INFO File 9 Exit Select File 5 File 10 Move Photo 0001 Photo 0001 None File 6 File 7 File 8 File 11 Enter File 12 INFO Option File 13 Return Slide Show Speed Nomal► Background Music On ► Background Music Setting List INFO Exit Slovenščina - 50 BN68-01412A-00Sln-0223.indd 50 2008-03-09 ¿ÀÈÄ 7:11:41 Upper Folder Forder1 File 4 Start Slide Show 895MB/993MB Select All File 9 Deselect all INFO File 10 Select Exit Move File 11 Enter File 12 INFO File 13 Option Return Slide Show Speed Nomal Background Music Setting List INFO Exit Slide Show Speed Nomal►

Off Background Music Setting

Background Music List INFO Exit Background Music Setting Choose file for background music Upper Folder 01-001 02-002 03-003 04-004 05-005 ◄◄ 1/1 Page ►► Upper Folder Forder1 File 4 File 5 Photo 0001 Photo 0001 None File 6 File 7 File 8 SUM 895MB/993MB File 9 File 10 Move File 11 Enter File 12 INFO Option File 13 Return Kot ločljivost Photo Start Slide Show Zoom

Start Slide Show Zoom X1 ► Rotate

Slovenščina - 52 BN68-01412A-00Sln-0223.indd 52 2008-03-09 ¿ÀÈÄ 7:11:46 Play Repeat Music Off ► Select All INFO 00:04:00 Upper Folder Exit Select 001-001 00:04:01 002-002 00:04:28 003-003 00:04:12 004-004 00:05:39 005-005 00:04:30 006-006 00:04:30 007-007 00:03:54 008-008 Move 00:05:25 Enter INFO Option Return Slide Show Speed Normal Fast Normal Slow

Background Music Background Music Setting Slide Show Speed Normal Background Music

Background Music Setting Repeat Music Off

Move Background Music Setting Choose file for background music Upper Folder 01-001 02-002 03-003 04-004 05-005 ◄◄ 1/1 Page ►► Slide Show Speed Normal Background Music

Background Music Setting Slide Show Speed Normal

Background Music Setting Repeat Music Off Screen Saver

View TV Select Device

View TV Select Device

Auto Wall-Mount Position1 Position 1 2 3 Adjust Save Center Save Select a mode to Save. Position2 Position3 Move Enter Return

Slovenščina - 63 BN68-01412A-00Sln-0223.indd 63 2008-03-09 ¿ÀÈÄ 7:12:28 Auto Wall-Mount Position1 Position 1 2 3 Adjust Save INFO Center
