USER MANUAL ERT1000AOW ELECTROLUX

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning / Caution-Safety information. General information and tips Environmental information. Subject to change without notice. ENGLISH

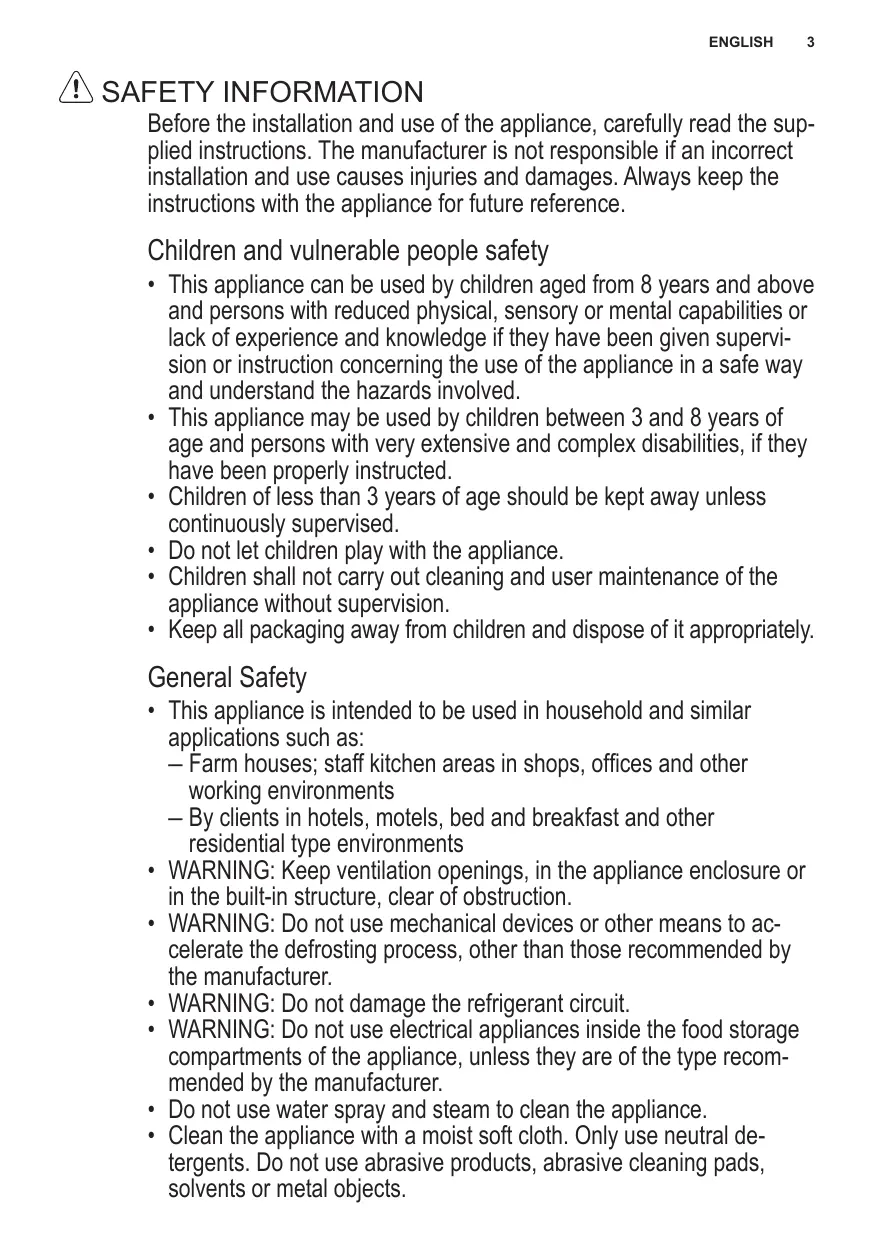

SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately. General Safety

• This appliance is intended to be used in household and similar applications such as: ––Farm houses; staff kitchen areas in shops, offices and other working environments ––By clients in hotels, motels, bed and breakfast and other residential type environments
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• If the appliance is equipped with an Ice maker or a water dispenser, fill them with potable water only.
• If the appliance requires a water connection, connect it to potable water supply only.
• The inlet water pressure (minimum and maximum)must be between 1 bar (0,1 MPa) and 10 bar (1 MPa) SAFETY INSTRUCTIONS Installation ARNING! Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• The rear of the appliance must stand against the wall.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor. Electrical connection WARNING! Risk of fire and electrical shock.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING! Do not use multi-plug adapters and extension cables.

• The appliance must be earthed.
• All electrical connections should be made by a qualified electrician.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Use WARNING! Risk of injury, burns, electrical shock or fire. ENGLISH

The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food. Internal light

Care and cleaning WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance. Disposal WARNING! Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

WARNING! Risk of electric shock.

• The type of lamp used for this appliance is not suitable for household room illumination. INSTALLATION Installation location WARNING! Refer to Safety chapters. The appliance should be set up in a wellventilated, dry room. Energy use and efficient performance of the appliance is affected by the ambient temperature. The appliance should therefore not be exposed to direct sunlight; Do not be installed next to radiators, cookers or other sources of heat; only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.

www.electrolux.com The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance. The appliance must be positioned so that the plug is accessible. The following table shows which ambient temperature is correct for each climate classification: Climate classification For an ambient temperature

+16 to +43 ºC If the refrigeration appliance is installed next to another refrigerator or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance. Your refrigerator needs air For correct operation this appliance must be located in a dry atmosphere, away from heat sources, e.g. cookers, radiators, boilers and direct sunlight. You should also ensure that air can circulate freely around the back and the top of the cabinet. There should be 100mm between the top of the cabinet and any overhanging kitchen furniture. Alternatively allow 50mm between the top of the cabinet and any overhanging kitchen furniture and a gap of 25mm on either side of the appliance. Reversing the door This refrigerator has the capability of either opening the door from the left or right side. This unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions. NOTE: All parts removed must be saved to do the reinstallation of the door. Reversal refrigerator door

1. Remove the screw nails (11).

2. Keep the door open, raise the end

of the top cover, push it(10) frontad and take it off from the block(9) of the top cover, then move the bottom block(8).

3. Remove the two screws blot (6) that

connect the upper hinge (5) on the right side of the cabinet top.

4. Carefully lift the door and place it

on a padded surface to prevent scratching.

5. Remove the plug (7) and transfer it

to the uncovered hole on the right side of the unit. Be sure to press the button firmly into the hole.

6. Remove the two screws(6) that hold

the lower hinge (2) on the right side of the unit.

7. Remove the screw-type leveling

front leg (4) and transfer it to the right side as shown in the adjacent figure.

8. Set the door into it’s new place making sure the pin enters the bushing

at the lower frame section (hole).

9. Secure the upper hinge (5) previously removed in step 3 on the

left side of the unit. Make sure the pin enters the bushing on the upper frame section (hole).

10. Loosely secure the lower left hinge

(2) and do not tighten the bolts until the door is in the closed position and leveled.

11. Insert the plug (7) on the uncovered

12. Fix the decoration block(8)in the

13. Keep the door open, raise the end of

the top cover, pull it(10) backwards to hitch the block(9).

14. After the assembly of the top cover,

close the door, fix the top cover(10 ) with the screw(11). ENGLISH

Changing the freezer compartment door Open the freezer compartment door a little way. Using a small screwdriver, press the spring in the opening of the lower door bearing slightly upwards and take the door bearing out complete with the door. 1 Screw 2 Low Hinge 3 Upper Hinge 4 Adjustable Low Foot 5 Adjustable High Foot 6 Screw Bolt 7 Plug 8 Decoration Block 9 The block of the top cover 10 Top Cover Plate 11 Screw nail Electrical connection –– Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. –– The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. –– The manufacturer declines all responsibility if the above safety precautions are not observed. –– This appliance complies with the E.E.C. Directives.

1. Position the covering cap (M) on the

2. Turn the freezer compartment door

through 180 and fit the lower door bearing into the lower bearing cavity of the freezer compartment door.

3. Lift the freezer compartment door

a little way upwards, fit it into the upper door bearing, and at the same time insert the lower door bearing into the square hole.

4. Small upward and downward adjustments of the freezer compartment

door will make fitting easier.

Prior to initial start-up Please clean the appliance interior and all accessories prior to initial start-up (see section: Cleaning and Care).

View of the appliance 1 Butter/cheese compartments and egg storage insert 2 Door storage compartment 3 Bottle shelf 4 Vegetable drawers 5 Storage shelves 6 Temperature regulator 7 Freezer compartment 8 Rating plate

STARTING UP AND TEMPERATURE REGULATION

Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal lighting is switched on. The temperature selector knob is located on the RH side of the refrigerator compartment. Setting “0” means: Off. Turning clockwise in direction “1” Refrigerating unit on, the latter then operating automatically. Setting” 1” means: Highest temperature, warmest setting. Setting “7” (end-stop) means: Lowest temperature, coldest setting. The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated. At a low ambient temperature of around 16°C, setting’1’ should be selected. At ambient temperatures of around 25°C , select setting ’2’. If you require a lower temperature, select setting ‘3’or’4’. On this setting, you can be sure the fresh food will be reliably frozen and that a storage temperature of -18°C will be maintained in the freezer compartment. If you want the freeze fresh food rapidly, select setting ‘7’,ensuring that the temperature in the refrigerator compartment does not drop below 0°C. You should also promptly reset the temperature regulator to setting ‘3’ or ‘4’. Important! High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position’6’ to ‘7’) can cause the compressor to run continuously. Reason: when the ambient temperature is high, the compressor mustrun continuously to maintain the low temperature in the appliance. The fridge will not be able to defrost since automatic defrosting of the fridge is only possible when the compressor is not running (see also ‘Defrosting’ section). The result is the build up of a thick layer of frost on the fridge rear wall. ENGLISH

If this happens, turn the temperature regulator back to a warmer setting (position ‘3’to ‘4’). At this setting the compressor will be switched on and off as usual and automatic defrosting recommenced. INTERIOR ACCESSORIES Storage shelves/wire trays Various glass or plastic storage shelves and wire trays are included with your appliancedifferent models have different combinations. You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. The height of the storage shelves can be adjusted: To do this pull the storage shelf forward until it can be swivelled upwards or downwards and removed. Please do the same in reverse to insert the shelf at a different height. Correct storage 1 Butter and cheese 2 Preserves 3 Drinks 4 Cheese storage, fruit, and vegetables 5 Meat, salami, cold cuts, dairy produce 6 Ready meals, pastries, preserves 7 Frozen food storage/freezing food Tip: Food in the fridge should always be covered or packaged, to prevent drying and tainting of other food. The following are suited for packaging: –– Polyethylene airtight bags and wraps; –– Plastic containers with lids; –– Special plastic covers with elastic; –– aluminium foil.

FREEZING AND STORING FROZEN FOOD

The freezer compartment is for freezing and storing food. Important! Important! The temperature in the freezer compartment must be -18ºC or colder before freezing food or storing food already frozen. Do not freeze too large a quantity at any one time (max. 1 kg per 24 hrs). The quality of the food is best preserved when it is frozen right through to the core as quickly as possible. Allow warm food to cool down be- fore freezing. The warmth will cause increased ice formation and increase the power consumption. Please note the maximum storage times specified by the manufacturer. Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time. Containers with flammable gases or liquids can leak at low temperatures.

www.electrolux.com There is a risk of an explosion! Do not store any containers with flammable materials such as spray cans, fire extinguisher refill cartridges etc in the freezer compartment. Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment. All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs. Caution! Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions. Lay the packaged food on the floor of the freezer compartment. Unfrozen food must not touch items already frozen, otherwise the frozen food could begin to defrost. Tips: The following are suited for the packaging of frozen goods: freezer bags and polyethylene wraps; special cans for frozen goods; extra-thick aluminium foil. The followings are suitable for sealing bags and wrap: plastic clips, rubber bands or tape. Smooth the air out of the bag before sealing; air makes it easier for the frozen food to dry out. Make flat packages, because these freeze more quickly. Do not fill cans for frozen goods to the brim with liquid or paste-like goods, because liquids expand during freezing. Preparation of ice cubes Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze. To loosen the frozen cubes, either bend the ice cube tray or hold it under running water for a few seconds. Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects, since you may damage the refrigerating circuit. Use the plastic scraper. DEFROSTING The fridge defrosts automatically The rear wall of the fridge covers with frost when the compressor is running, and defrosts when the compressor is off. The water from the thawing frost evaporates by itself. Defrosting the freezer compartment During use and when the freezer compartment door is opened, moisture is deposited in the freezer compartment as frost. Remove this frost from time to time with the soft plastic scraper. Under no circumstances, use hard or pointed objects to remove frost. The freezer compartment should always be defrosted when the layer of frost has reached a thickness of approx. 4 millimetres; however at least once a year. A good time for defrosting is when the appliance is empty or contains only little food. arning! Do not use electrical heating appliances or any other mechanical or artificial devices to speed up the defrosting process, with the exception of those recommended in these operating instructions. Do not use defrosting sprays, they can be hazardous to your health and/ or contain substances that damage plastics. aution! Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions. ENGLISH Remove frozen food, wrap it in several layers of newspaper and store it, covered, in a cool place. Switch off the appliance and unplug it, or pull the fuse or switch off the circuit breaker. Tip: You can speed up the defrosting water in the freezer compartment and closing the doors. Remove pieces of ice that have fallen before they completely defrost. After defrosting, thoroughly clean the freezer compartment (see “Cleaning and Care” section).

Switching off the appliance To switch off the appliance, turn the temperature regulator to position “0”. If the appliance is not going to be used for an extended period: Remove all refrigerated packages. Switch off the appliance by turning the temperature regulator to position “0”. Remove the mains plug or switch off or turn out the circuit breaker or fuse. Clean thoroughly (see section “cleaning and Care”). Leave the door open to avoid the build up of odour.

Normal operating sounds Hints for refrigeration The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off. Useful hints:
• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
• Cooked foods, cold dishes: cover and place on any shelf.
• Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.
• Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
• Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack. Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary. Hints for fresh food refrigeration
• Do not store warm food or evaporating liquids in the refrigerator.
• Cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely around it.

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly. arning! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapour can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service. Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel; butyric acid; cleansers which contain acetic acid. Do not allow such substances to come into contact with appliance parts. Do not use any abrasive cleansers. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered. Defrost the freezer compartment prior to cleaning (see «Defrosting» section). Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used. After cleaning wipe with fresh water and rub dry. Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner. Check the water drain hole on the rear wall of the fridge. After everything is dry place appliance back into service.

Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent operation of the compressor. Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings. Do not place warm foods into the appliance. Allow warm foods to cool first. Only leave door open as long as necessary. Do not set temperature any colder than necessary. Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge. Always keep the heat emitting condenser, the metal grille on the rear wall of your appliance clean. ENGLISH

TROUBLE SHOOTING Symptom Appliance does not work. Appliance cools too much. The food is too warm. Interior lighting does not work. Heavy build-up of frost, possibly also on the door seal. Unusual noises. Possible Cause Remedy Appliance is not switched on. Switch on the appliance. Mains plug is not plugged in or is loose. Insert mains plug. Fuse has blown or is defective. Check fuse, replace if necessary. Socket is defective. Mains malfunctions are to be corrected by an electrician. Temperature is set too cold. Turn the temperature regulator to a warmer setting temporarily. Temperature is not properly adjusted. Please look in the «initial Start Up» section. Door was open for an extended period. Open the door only as long as necessary. A large quantity of warm food was placed in the appliance within the last 24 hours. Turn the temperature regulation to a colder setting temporarily. The appliance is near a heat source. Please look in the «installation location» section. Light bulb is defective. Please look in the «changing the Light Bulb» section. Door seal is not air-tight(possibly after reversing the door). Carefully warm the leaking sections of the door seal with a hair dryer(on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly. Appliance is not level. Ρυθμίστε ξανά τα

The appliance is touching the wall or other objects. Μετακινήστε λίγο τη

A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall. If necessary, carefully bend the component out of the way.

www.electrolux.com The compressor does not start immediately after changing the temperature setting. This is normal, no error has occurred. The compressor starts after a period of time. Water on the floor or storage shelves. Water drain hole is blocked. See the «cleaning and care» section. CORRECTING MALFUNCTIONS Spare parts The following spare parts can be ordered from your local AEG Service Force Centre. You can fit these yourself without any special skill ortraining, e.g.:

• butter/cheese compartment, egg holders,
• fruit and vegetable drawers,
• storage racks. A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case. Important! Repairs to refrigerators/freezers may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or your local Service Force Centre.

CHANGING THE LIGHT BULB

arning! There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker. Put the refrigerator back into operation. Light bulb data: 220~240 V, max. 15 W To switch off the appliance, turn the temperature regulator to position “0”. Unplug the mains plug. Noises during operation To change the light bulb, undo the screw. The following noises are characteristic of refrigeration appliances: Press the light bulb cover as shown and slide it backwards. Clicks Change the defective light bulb. Refit thelight bulb cover and the screw. Whenever the compressor switches on or off, a click can be heard. ENGLISH

Humming As soon as the compressor is in operation, you can hear it humming. Bubbling When refrigerant flows into thin tubes, you can hear Splashing Bubbling or splashing noises. Even after the compressor has been switched off, this noise can be heard for a short time. ENVIRONMENTAL CONCERNS The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Packaging materials The materials with the symbol are recyclable. Dispose of the packaging in suitable collection containers to recycle it. Disposal of the appliance Disconnect the mains plug from the mains socket. Cut off the mains cable and discard it.
