USER MANUAL RB327N4WC1 HISENSE

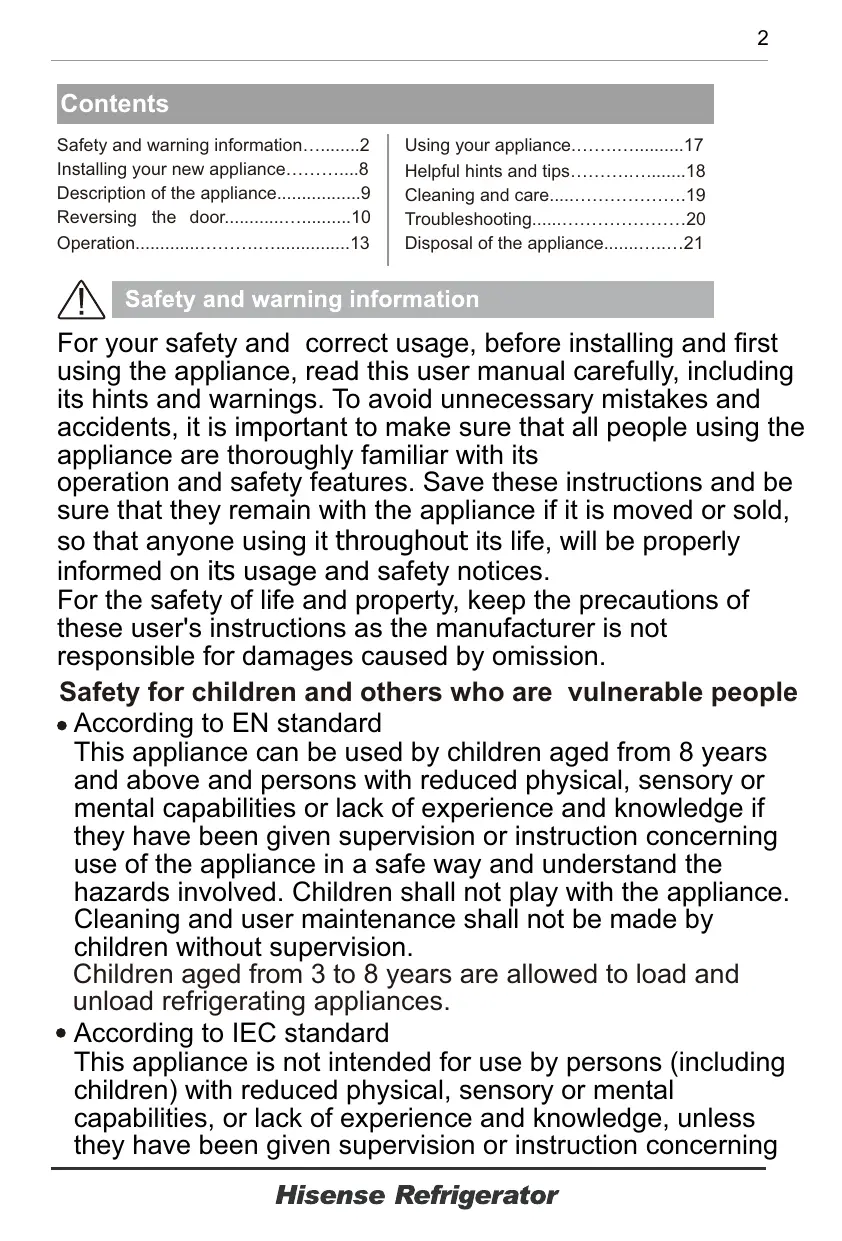

• Contents Safety and warning information… p. 2
• Installing your new appliance……… p. 8
• Description of the appliance Reversing the door p. 9
• … Operation p. 10
• ……….… p. 13
• Using your appliance.…….… p. 17
• Helpful hints and tips……….… Cleaning and care ……………….19 Troubleshooting …………………20 Disposal of the appliance … …21 For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Safety for children and others who are vulnerable people According to EN standard This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning p. 18

use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Keep all packaging away from children as there is a risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non-retail applications. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. WARNING ―Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean. The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

Warning: Risk of fire / flammable materials

Replacing the illuminating lamps WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety 1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged.

A crushed or damaged power plug may overheat and cause a fire.

3. Make sure that you can access the main plug of the

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire. 6.You must not operate the appliance without the interior lighting lamp cover. 7.The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. Daily use Do not store flammable gases or liquids in the appliance, There is a risk of an explosion. Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.). When unplugging always pull the plug from the mains socket,do not pull on the cable. Do not place hot items near the plastic components of this appliance.

Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to relrelevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance. Frozen food can cause frost burns if consumed straight from the freezer compartment. Do not place the appliance in direct sunlight. Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. The appliance is heavy.Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or frost/freezer burns. Never use the base,drawers, doors etc. to stand on or as supports. Frozen food must not be refrozen once it has been thawed out. Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution! Care and cleaning Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. Installation Important! For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible, the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation. The appliance must not be located close to radiators or cookers. Make sure that the mains plug is accessible after the installation of the appliance. Service Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. 1)If the appliance is Frost Free. 2)If the appliance contains freezer compartment.

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggest :It is advisable for there to be 50-70mm of space from the back to the wall, at least 100mm from its top,at last 100mm from its side to the wall and a clear space in front to allow the doors to open 115°. As shown in following diagrams. ≥100

Technical characteristics

Description of the appliance View of the appliance(display panel) 1.Display panel 2.Door switch 3.Glass shelf 4.Crisper cover 5.Crisper 6.Upper freezer drawer (Serving tray optional) 7.Middle freezer drawer 8.Lower freezer drawer 9.Adjustable bottom foot 10.Egg rack(inside) 11.Upper rack 12.Flexible wine rack(optional) 13.Fridge wind channel 14.Fridge gasket 15.Lower rack 16.Fridge door 17.Handle(opitional) 18.Freezer door 19.Freezer gasket 20.Freezer wind channel

View of the appliance(control panel) 1.LED light 2.Door switch 3.Glass shelf 4.Fridge wind channel 5.Control panel 6.Crisper cover 7.Crisper 8.Serving tray(Upper freezer drawer optional) 9.Middle freezer drawer 10.Lower freezer drqwer 11.Adjustable bottom foot 12.Egg rack(inside) 13.Upper rack 14.Flexible wine rack(optional) 15.Lower rack 16.Fridge gasket 17.Fridge door 18.Handle(opitional) 19.Freezer wind channel 20.Freezer gasket 21.Freezer door

Reversing the door 2.Remove part①, then take down part② from the top right side of refrigerator. Unscrew screws③ by a 8mm socket driver or a spanner, and remove hinge④. Please hold upper door by hand when installing. Use a putty knife or thin-blade screwdriver to lever part⑤ which is at the top left corner of the refrigerator. 8mm socket wrench Cross-shaped screwdriver Thin-blade screwdriver

Putty knife Monkey wrench 8mm wrench

①Self-tapping screw ②Upper hinge cover ③Special flange screw ④Upper hinge ⑤Screw hole cover-left

3. Remove the upper door from the

middle hinge by carefully lifting the door straight up. Then place the upper door on a smooth surface with its upper cover upwards. if some parts are not shown in the picture below, please ignore the relevant description. pr ess inwardly 4.Loose screw ③ and take down part ② and part ①, Install replacement door stopper-left ④ (provided in the plastic bag) and part ②(stop block) to the left side with screw③. Keep part ① with the appliance for future reference.

①Door stopper ②Stop block ③Self-tapping screw

7. Change screw and screw hole covers

on midde cover plate from left to right (as shown in figure below).

screw screw hole covers screw hole covers screw ④Door stopper-left

5. Unscrew the two special flange selftapping screws which are used for

fixing the middle hinge part, then remove the middle hinge part that hold the lower door in place. NOTE: When removing the door, watch for washer(s) between the center hinge and the upper of the lower door that may stick to the door. Don't lose it.

8. Lay the refrigerator on soft foam

packaging or similar material. Remove both adjustable bottom feet parts①, then remove the lower hinge part ②by unscrewing the special flange selftapping screws③.

①Adjustable bottom feet part ②Lower hinge part(right) ③Self-tapping screw

6. Place the lower door on a smooth

surface with its panel upwards. Loose screw ③ and take down part① and part ②, then Install door stopperleft ④(provided in the plastic bag) and left part ② and screw ③ to the left side and tighten them securely.Keep part ① with the appliance for future reference. ①Door stopper ②Stop block ③Self-tapping screw 9.Remove part ① from the lower hinge part(right), loose out the lower hinge pin, change it to the reverse hole site, and then tighten into position, then install part ① on the lower hinge pin.

10. Change screw hole covers on lower

cover plate from left to right (as shown in figure below).

screw hole cover screw hole cover

11.Replace the lower hinge part to the left side and fixing it with the special flange screws. Replace the adjustable bottom feet parts to another side and and pre-fixing it. 15.Move the upper door to an appropriate position, and then fix part④ by screws③.(Please hold the upper door by hand when installing).Install the upper hinge cover② on the left corner by screw①. Install the screw hole cover ⑤ on the top right corner of the refrigerator.

12.Transfer the lower door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the lower door, then tight the bolts. 13.Slot the lower door onto the bottom hinge pin and hold in position. Turn the middle hinge by 180°, change the washer on the axis to the lower side, adjust the middle hinge to the appropriate position and then install it ensuring the lower door in secured in place.

①Self-tapping screw ②Upper hinge cover ③Special flange screw ④Upper hinge ⑤Screw hole cover

16. Open the upper door and install the

door racks and then close it. Note: If your appliance has handle, you have to reverse handle by follow instructions below. Remove the upper door and place it on a smooth surface with its panel upwards. Lever part① and part④, then loose screws②. Change handle③ to the right side, then install screws②, part① and part④ in turn. middle hinge part screws Note: washer may stick to lower door washer

14. Transfer the upper door to the

appropriate position. Secure the door’s level, make the middle hinge axis into the lower hole of the upper door. Warning! When changing the side at which the door opens, the appliance must not be connected to the mains. Remove plug from the mains beforehand.

Operation Starting up and temperature regulation Use your appliance according to the following control regulations, your appliance has the corresponding functions as the display panels showed in the pictures below. you place them. Ambient temperature may also affect the actual temperature inside the appliance.

1. Fridge

Press “ ”to set fridge temperature between 2℃ and 8℃ as needed, and display panel will display corresponding values according to the following sequence. Note: When the“ ” is lighted, the holiday mode is activated. Check the Holiday mode instruction.

2. Mode

You can select different modes according to your requirements by pressing the button“ ”on the display panel, and the corresponding icon will be illuminated. Super Freeze( Control panel Display panel Controlling the temperature We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 4°C . If you want to change the temperature, follow the instructions below. Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer. You can press “ ” display panel inside door)for 3 sec to get into super freezer mode. When Super freeze Mode is selected, the light will be illuminated and the freezer temperature will be set at -24°C. In case of the maximum amount of food to be frozen, please wait about 24 h. Super freeze automatically switches off after about 52 hours and then the freezer temperature setting will revert back to the previous setting.

If you are going to be away for a long period of time, press “ ”you can activate this function. When Holiday Mode is activated, the light will be illuminated. The freezer temperature will be set at -18°C and the fridge temperature will be set at 15°C. Important! Do not store any food in the fridge during this time. 3.Switch( You can switch on or switch off your appliance by press this button. Press “ ”3 seconds, after a buzzer sound, the appliance will be turned off. Press “ ”1 seconds, after a buzzer sound, the appliance will be turned on. Control panel Temperature regulator in refrigerator chamber 1.Insufficient refrigeration in chamber. Set the temperature controller at “Colder”. 2.Using the refrigerator in normal. Set the temperature controller at “Mid” Important! High ambient temperatures (e.g. on hot summer days)and a colder setting can cause the compressor to run continuously or even non-stop! So we do not advise the user set the temperature control knob at “Cloder” in normal. At the same time, in order to ensure the fridge food be in a better storage condition, we also do not advise the user set the temperature control knob at “Cold” in normal. Reason:when the ambient temperature is high,the compressor must run continuously to maintain the low temperature in the appliance.

Operation Operation Display panel on door to the following sequence.

Freezer Press “ZONE CHOICE”, when the “ ” light turns on. Then press “SET TEMP.”, you can set freezer temperature between -14°C and -24°C as needed, and the display panel will display corresponding value according to the following sequence. -18°C Display panel on door -19°C -17°C -20°C -16°C -21°C -15°C -22°C -14°C -23°C -24°C Controlling the temperature We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 4°C. If you want to change the temperature, follow the instructions below. Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance. Super Freeze( Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer. ●You can press “SUPER” to get into super freezer mode. ●Whensuper freeze Mode is selected, the light will be illuminated and the freezer temperature will be set at -24°C. ●In case of the maximum amount of food to be frozen, please wait about 24 h. ●Super freeze automatically switches off after 52 hours and then the freezer temperature setting will revert back to the previous setting. Fridge ●Press “ZONE CHOICE”, the “ “ ”light will turn on. Then press “SET TEMP.”, you can set fridge temperature between 2°C and 8°C as needed, and display panel will display corresponding values according Eco energy This function makes the freezer work in a power saving mode which is useful for reducing energy consumption when you are away. ●You can press “ECO MODE” to get into economic energy mode. ●When economic energy Mode is

activated, the light will be illuminated. The freezer temperature will be set at -17°C and the fridge temperature will be set at 6°C. Switch You can switch on or switch off your appliance by press this button. ●Press “ ”for 3 seconds, after a buzzer sound, meanwhile the digital light will show “OF”, the appliance will be turned off. ● Press “ ” for 3 seconds, after a buzzer sound,the appliance will be turned on. Alarm has ●When the door of fridge been opened for over 2 minutes, the door alarm will sound. In case of door alarm, buzzer will sound 3 times every 1 minute and will stop alarming automatically after 8 minutes. ●To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can also be cleared by closing the door.

Accessories Movable shelves/trays Various glass, plastic storage shelves or wire trays are included with your appliance-different models have different combinations and different models have different features. The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Flexible wine rack It is for storing bottled wine or drinks, and it can be taken out to clean. Hold one side of the door shelf, press the oppsite side inwardly by the other hand, then lift up the door rack . When the slot of the door rack has been detached from the guide on the door, remove the rack upward obliquely. Install the door shelf guide Firstly hold the two side of the door shelf tightly, fit the door shelf along the guides on the door, then push it down to the right place. Vegetable Drawer For storing fruit and vegetables. Freezer Drawer For storing frozen food. Ice-cube tray For making ice and storing ice-cubes. Remove and install the door shelf

Warning:The door shelf must not

removed and installed by the user! If the door shelf is damaged ,contact the customer helpline for assistance .To replace the door shelf, the below steps can be followed: Remove the door shelf pr ess inwardly Refrigerator compartment For storing food that does not need to frozen and different sections suitable for different kinds of food. Freezer food compartment For freezing fresh food and storing frozen and deep-frozen food for long periods of time. Thawing food In the refrigerator compartment. At room temperature. In a microwave oven. In a conventional or convection oven. Food once thawed should not be re-frozen.

1) If the appliance contains related

accessories and functions.

2) If the appliance contains a freezer

Helpful hints and tips Energy saving tips We recommend that you follow the tips below to save energy. ● Try to avoid keeping the door open for long periods in order to conserve energy. ● Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc) ● Don't set the temperature colder than necessary. ● Don't store warm food or evaporating liquid in the appliance. ● Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. ● If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for fresh food refrigeration ●Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy. ● Do cover or wrap the food，particularly if it has a strong flavor. ● Place food properly so that air can circulate freely around it. Hints for refrigeration ● Meat (All Types) wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. ● Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf. ● Fruit and vegetables: They should be stored in the specia ldrawer provided. ● Butter and cheese: Should be wrapped in airtight foil or plastic film wrap. ● Milk bottles: Should have a lid and be stored in the door racks. Hints for freezing ● When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment. ● Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required. ● Wrap up the food in aluminum foil or polyethylene food wraps which are airtight, ● Do not allow fresh，unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter. ● Iced products，if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin. ● It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food ● Ensure that frozen food has been stored correctly by the food retailer ● Once defrosted， food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

1. Remove all food.

2. Remove the power plug from the mains

3. Clean and dry the interior thoroughly.

4. Ensure that all the doors are wedged

open slightly to allow air to circulate.

Cleaning and care For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months. Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. Exterior cleaning To maintain good appearance of your appliance, you should clean it regularly. -Wipe the control panel with a clean, soft cloth. 1.Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.

2. When defrosting is completed, clean your

freezer as described above. -Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. -Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth. Caution! -Don't use sharp objects as they are likely to scratch the surface. -Don't use thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic Gasket cleaning Take care to keep gaskets clean. Sticky food and drinks can cause gaskets to stick to the cabinet and tear when you open the door. Wash gaskets with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning. Caution! Only after the gaskets are completely dry should the appliance be powered on. solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire. Interior cleaning You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows:

Warning:

The LED light should be replaced by a competent person. If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1. Unplug your appliance.

2. Remove light cover by pushing up

3. Hold the LED cover with one hand

and pull it with the other hand while pressing the connector latch.

4. Replace LED light and snap it

correctly in place. Caution! Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Replacing the LED light:

Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. Problem Possible cause & Solution Check whether the power cord is plugged into the power outlet properly. Check the fuse or circuit of your power supply,replace if necessary. Appliance is not working correctly Odours from the compartments Noise from the appliance The motor runs continuously A layer of frost occurs in the compartment The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem. It is normal that the freezer is not operating during the defrost cycle, or for a short time after the appliance is switched on to protect the compressor. The interior may need to be cleaned. Some food, containers or wrapping cause odours. The sounds below are quite normal: ●Compressor running noises. compartment or other compartments. ●Gurgling sound similar to water boiling. ●Popping noise during automatic defrosting. ●Clicking noise before the compressor starts. Other unusual noises are due to the reasons below and may need you to check and take action: The cabinet is not level. The back of appliance touches the wall. Bottles or containers fallen or rolling. It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances: ● Temperature setting is colder than necessary ● Large quantity of warm food has recently been stored within the appliance. ● The temperature outside the appliance is too high. ● Doors are kept open too long or too often. ● After your installing the appliance or it has been switched off for a long time. Ensure food is placed within the appliance to allow sufficient ventilation.Ensure that door is fully closed.To remove the frost, please refer to cleaning care chaper.

Temperature inside is too warm Temperature inside is too cold Doors can’t be closed easily Water drips on the floor The light is not working You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top. Increase the temperature by following the “Display Operation” chapter. Check whether the top of the refrigerator is tilted back by 10-15 mm to allow the doors to self close, or if something inside is preventing the doors from closing. The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout. ●The light may be damaged. Refer to replace lights in cleaning and care chapter. Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1.Pull out the mains plug from the mains socket. 2.Cut off the power cord and discard with the mains plug. Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. Correct Disposal of this product This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
