USER MANUAL K6654X11 NEFF

en Table of Contents

Safety and warning information Information concerning disposal Scope of delivery Ambient temperature and ventilation … Installation location … Connecting the appliance . Getting to know your appliance . Switching the appliance on Setting the temperature .… Usable capacity Refrigerator compartment . The freezer compartment Max. freezing capacity

Freezing and storing food Freezing fresh food Super freezing Thawing frozen food Interior fittings … Sticker “OK” … Switching off and disconnecting the appliance . Defrosting … Cleaning the appliance . Tips for saving energy Operating noises …. Eliminating minor faults yourself Customer service …

fr Table des matières

electrical and electronic

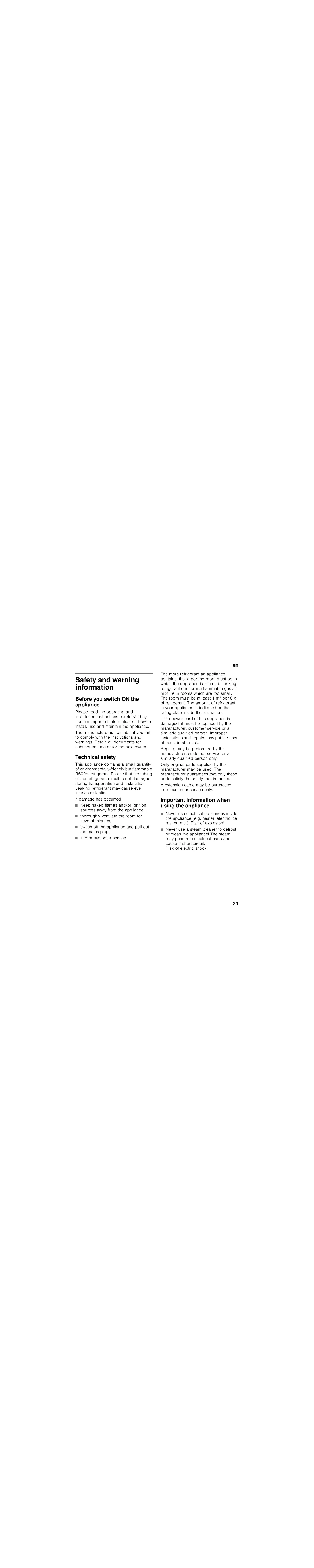

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

m Keep naked flames and/or ignition sources away from the appliance,

m thoroughly ventilate the room for several minutes,

= switch off the appliance and pull out the mains plug,

m inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m$ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A extension cable may be purchased from customer service only.

Important information when using the appliance

= Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion!

m Never use a steam cleaner to defrost or clean the appliancel! The steam may penetrate electrical parts and cause a short-ciruit.

Risk of electric shock!

# Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.

# Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

# Do not stand on or lean heavily against base of appliance, drawers or doors, etc

m Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable.

# Bottes which contain a high percentage of alcohol must be sealed and stored in an upright position.

= Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.

m Never cover or block the ventilation openings for the appliance.

m People (children incl.) who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions.

m Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explodel

m Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!

# Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

= Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!

# Do not allow children to play with the appliance!

= lfthe appliance features a lock: keep the key out of the reach of children!

General regulations The appliance is suitable

= for refrigerating and freezing food, m for making ice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant

safety regulations for electrical appliances (EN 60335-2-24).

Information concerning disposal

& Disposal of packaging

The packaging protects your appliance from damage during transit. AIl utilised

materials are environmentally safe and

recyclable. Please help us by disposing of the packaging in an environmentally

Please ask your dealer or inquire at your local authority about current means of disposal.

& Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is identified

> according to the European

— guideline 2002/96/EC on waste electrical and electronic equipment - WEEE. The directive specifies the framework for an EU-wide valid return and re-use of old appliances.

Redundant appliances 1. Pull out the mains plug.

2. Cut off the power cord and discard with the mains plug.

8. Do not take out the trays and receptacles: children are therefore prevented from climbing in!

4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

Interior fittings (depending on model) Bag containing installation materials Operating instructions

Customer service booklet

Information on the energy consumption and noises

Ambient temperature and ventilation

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures.

The climate class can be found on the rating plate. Fig.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e. g.

a cooker, radiator, etc. If installation next to a heat source is unavoidable, use

a suitable insulating plate or observe the following minimum distances to a heat source:

= 3 cm to electric or gas cookers.

Climate class Permitted ambient # 30 cm to an oil or coal-fired cooker. temperature

SN +10 °C to 32 °C N +16 °C to 32 °C 5

ST 16 0 10 36 70 Connecting the

T F6 C lo 43 0 appliance

Note After installing the appliance, wait at least

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature

The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class 1. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in non- European countries, check whether the stated voltage and current type match the values of your mains supply match the values of the mains supply. This information can be found on the rating plate. Fig.

Never connect the appliance to electronic energy saver plugs.

Our appliances can be used with mains and sine-controlled inverters. Mains- controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Getting to know your appliance

Please fold out the illustrated last page. These operating instructions refer

The features of the models may vary. The diagrams may differ.

6 Glass shelf in the refrigerator compartiment

7 Vegetable container

8 Shelf for tubes and small tins

9 Butter and cheese compartment * 1 Egg rack

1 Shelf for large bottles

A Freezer section B Refrigerator compartment

Fig. A L Main On/Off switch Serves to switch the whole appliance on and off.

2 “super” button Switches super freezing on and off. Illuminates when super freezing is on.

3 Temperature display refrigerator compartment The numbers correspond to the set refrigerator compartment temperatures in °C.

4 Refrigerator compartment temperature selection button The button sets the temperature in the refrigerator compartment.

Switching the appliance on

Switch on the appliance with the main On/Off switch. Fig. EJ/1

The temperature display, Fig. Æ/3, flashes until the appliance has reached the set temperature.

The appliance starts to cool, the light is switched on when the door is open.

When the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put any food in the appliance beforehand.

Operating tips The refrigerator compartment temperature rises:

= ifthe appliance door is opened frequently,

m if large quantities of food are placed in the refrigerator compartment,

m ifthe ambient temperature is high.

Setting the temperature

Fig. A Refrigerator compartment

The temperature can be set from

Keep pressing temperature setting button 4 until the required refrigerator compartment temperature is set.

The value last selected is saved. The set temperature is indicated on temperature display 3.

We recommend a factory setting

of +4 °C in the refrigerator compartment. Perishable food should not be stored above +4 °C.

The temperature in the freezer compartment depends on the temperature in the refrigerator compartment.

Information on the usable capacity can be found inside your appliance on the rating plate. Fig.

Refrigerator compartment

The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk, hard cheese, fruit and vegetables sensitive to cold.

Note when loading products

Wrap or cover food before placing in the appliance. This will retain the aroma, colour and freshness of the food. In addition, flavours will not be transferred between foods and the plastic parts will not become discoloured.

Avoid contact between food and rear panel. Otherwise the air circulation will be impaired.

Food or packaging could freeze

Note the chill zones in the refrigerator compartment The air circulation in the refrigerator

compartment creates different chill zones:

m Coldest zone is between the arrow stamped on the side and the glass

shelf situated below. Fig. EI Note

Store perishable food (e.g. fish,

sausage, meat) in the coldest zone. = Warmest zone is at the very top

Store e.g. hard cheese and butter in

the warmest zone. Cheese can then

continue to release its flavour and the butter will still be easy to spread.

The freezer compartment

Using the freezer compartment

mm To store deep-frozen food. m To make ice cubes. m To freeze small quantities of food.

Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!

The freezer compartment door engages audibly.

Max. freezing capacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig.

Freezing and storing food

Purchasing frozen food

m Packaging must not be damaged. # Use by the "use by” date.

= Temperature in the supermarket freezer must be -18 °C or lower.

= |f possible, transport deep-frozen food in a cool bag and place quickly in the freezer compartment.

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and

asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note Keep food which is to be frozen away from food which is already frozen.

= The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

= The following foods are not suitable for freezing': Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food To prevent food from losing its flavour or drying out, place in airtight containers. 1. Place food in packaging. 2. Remove air. 3. Seal the wrapping. 4. Label packaging with contents and date of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets. Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, cold- resistant adhesive tape, etc.

Bags and tubular film made of polyethylene can be sealed with a film heat sealer.

Shelf life of frozen food Storage duration depends on the type of food.

At a temperature of -18 °C:

m Fish, sausage, ready meals and cakes and pastries:

m Cheese, poultry and meat: up to 8 months

m Vegetables and fruit: up to 12 months

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour. Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.

If the max. freezing capacity is to be used, super freezing must be switched on for 6 hours before the fresh produce is placed in the freezer compartment. Smaller quantities of food can be frozen without super freezing.

During super freezing the refrigerator compartment becomes a little colder.

Switching on and off Fi. A Press “super” button 2.

If the super freezing has been switched on the button is lit.

Super freezing automatically switches off after approx. 112 days.

Depending on the type and application, select one of the following options:

m at room temperature

m inthe refrigerator

min an electric oven, with/without fan assisted hot-air

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.

No longer store the frozen produce for the max. storage period.

You can reposition the shelves inside the appliance and the door shelves as required:

= Pull shelf forwards, lower and swing out to the side. Fig.

m Raise the door shelf and remove. Fig.

Special features (not all models)

To facilitate the storage of tall items (e.g. cans or bottles), the front part of the Vario shelf can be taken out and pushed under the rear part.

Drawer for sausage and cheese

The drawer can be removed for adding and removing food. Lift the drawer and pull out. The drawer holder can be adjusted.

Bottles can be stored securely on the bottle shelf. The holder can be adjusted.

Temperature and humidity regulator for vegetable container

Fig. E For long-term storage of vegetables, salads and fruit, slide the regulator all the way to the right — ventilation opening is open - temperature drops.

For short-term storage slide the regulator to the left. Ventilation opening is closed - high air humidity - temperature rises.

Fig. D The bottle holder prevents bottles from falling over when the door is opened and closed.

1. Fillthe ice cube tray %4 full of water and place in the freezer compartment.

2. lfthe ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).

3. To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

The “OK” temperature monitor can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate “OK”.

When the appliance is switched on, it may take 12 hours until the temperature is reached.

Switching off and disconnecting the appliance

Switching the appliance off

Fig. A Press the main On/Off switch 1 (red circle becomes visible).

Temperature display goes out. Fridge and light are switched off.

Disconnecting the appliance

If you do not use the appliance

for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse. 3. Clean the appliance.

4. Leave the appliance door open.

Refrigerator compartment defrosts fully automatically

While the refrigerating unit is running, beads of condensation or hoarfrost form at the back of the refrigerator compartment. This is quite normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel,

Fig. Æ. and is conveyed to the refrigerating unit where it evaporates.

Keep the condensation channel and drainage hole clean, so that the condensation can run out.

The freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer compartment will impair refrigeration of the frozen food and increase power consumption. Regularly defrost the freezer compartment.

Do not scrape off hoarfrost or ice with a knife or pointed object. You could damage the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.

Approx. 4 hours before defrosting the appliance, switch on super freezing so that the food drops to a very low temperature and can therefore be stored at room temperature for a longer period.

1. Remove the frozen food and place temporarily in a cool location. 2. Switch the appliance off.

3. Pull out the mains plug or remove the fuse.

4. To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.

Wipe up condensation with a cloth or sponge.

6. Wipe dry the freezer compartiment. Switch the appliance on again.

8. Put the frozen food back in the freezer compartiment.

N Cleaning the appliance À Caution

m Donotuse abrasive, chloride or acidic cleaning agents or solvents.

# Do not use scouring or abrasive sponges. The metallic surfaces could corrode.

m Never clean shelves and containers in the dishwasher. The parts may become deformedl!

Proceed as follows: 1. Before cleaning: Switch the appliance off.

2. Pull out the mains plug or switch off the fuse.

8. Take out the frozen food and store in a cool location.

4. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.

5. Wipe the door seal with clear water only and then wipe dry thoroughly.

6. Rinsing water must not run through the drainage hole into the evaporation area.

7. After cleaning reconnect and switch the appliance back on.

8. Put the frozen food back in the freezer compartment.

All variable parts of the appliance can be taken out for cleaning.

Take out glass shelves

Lift the glass shelves, pull forwards, lower and swivel out to the side. Condensation channel

Fig. D Regularly clean the condensation channel and drainage hole with a cotton bud or similar implement to ensure that the condensation can drain.

Take out shelves in the door

Lift shelves upwards and take out.

Tips for saving energy

#m Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).

If required, use an insulating plate.

m Allow warm food and drinks to cool down before placing in the appliance.

m Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.

m Open the appliance as briefly as possible.

m Regularly defrost the freezer compartment to remove the layer of frost!

A layer of hoarfrost will impair refrigeration of the frozen food and increase power consumption.

m Ensure that the freezer compartment door has been closed properly.

m Occasionally clean the rear of the appliance to prevent an increased power consumption.

Droning Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing. Clicking

Motor, switches or solenoid valves are switching on/off.

The appliance is not level

Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.

The appliance is not free-standing Please move the appliance away from adjacent units or appliances.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service: Please check whether you can eliminate the fault yourself based on the following

Customer service will charge you for advice — even if the appliance is still under guarantee!

Fault Possible cause Remedial action

Temperature differs greatly from the set value.

In some cases it is adequate to switch off the appliance

If the temperature is too high wait a few hours and check whether the temperature has approached the set value.

If the temperature is too low check the temperature again the next day.

The light does not work.

The bulb is defective.

Replace bulb. Fig. E/B

1. Switch the appliance off.

2. Pull out mains plug or switch off fuse.

3. Slide cover forwards and remove. 4. Change the bulb.

(Replacement bulb: 220-240 V a.c., E14 bulb holder, see defective bulb for wattage.)

Light switch is jammed.

Check whether the light switch can

move. Fig. E/A The frozen food is frozen solid.

Loosen frozen food with a blunt object. Do not use a knife or pointed object.

There is a thick layer of frost in the freezer compartiment.

Defrosting the freezer compartment (see chapter Defrosting). Always ensure that the freezer compartment door is closed properly.

Bottom of the refrigerator compartment is wet.

The condensation channel or drainage hole are blocked.

Clean the condensation channel and the drainage hole. See chapter Cleaning the appliance. Fig.

The temperature in the Freezer compartment

refrigerator compartment is too

Close the freezer compartment door. The freezer compartment door engages audibly.

Temperature has been

Increase the temperature.

Switch off super freezing.

The refrigerating unit Appliance opened

is switching on more frequently.

Do not open the appliance unnecessarily.

Temperature display Appliance opened

refrigerator frequently.

Do not open the appliance unnecessarily.

flashing. Fig. Æ/3 placed in the

Before placing food in the freezer, press the “super” button.

Appliance has no = Appliance has been

refrigeration capacity. switched off.

m Power failure. m The fuse has been

= The mains plug has not been inserted

Press main On/Off switch. Fig. Æ/1

Check whether the power is on. Check the fuse.

The interior light glows Ambient temperature

at a reduced luminosity when the

(or light switch depressed).

or super freezing has door is almost closed been switched on.

The interior light goes out again at ambient temperatures above 20 °C or after super freezing has been switched off.

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD).

These specifications can be found on the rating plate. Fig.

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0844 8928989 Calls from a BT landline will be charged at up to 3 pence per minute. À call set-up fee of up to 6 pence may apply.
