USER MANUAL CSSM6182XH CANDY

es. Bed and Breakfast (B&B),

Section 1. Safety Info

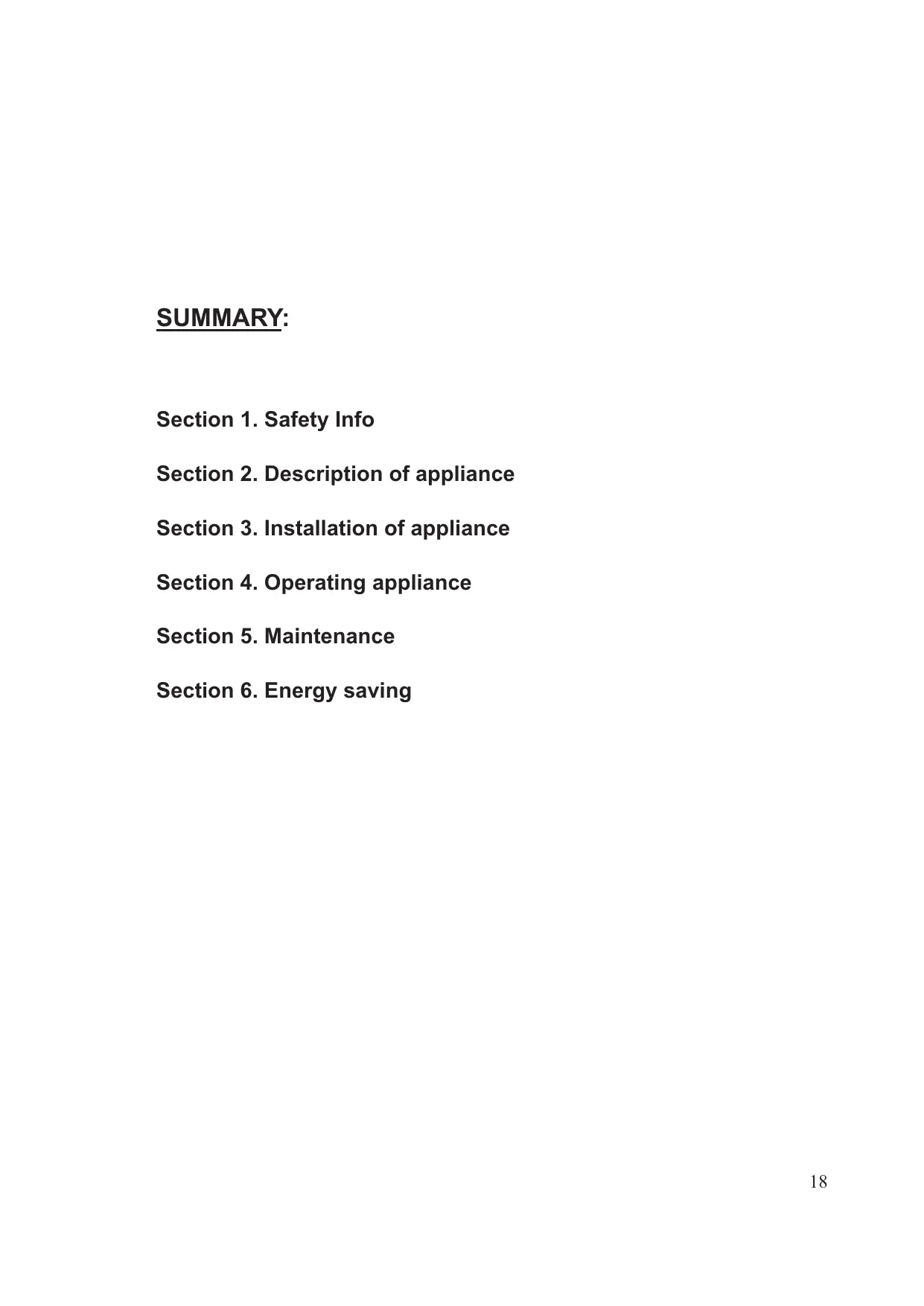

Section 2. Description of appliance Section 3. Installation of appliance Section 4. Operating appliance Section 5. Maintenance Section 6. Energy saving

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: -the kitchen area for personnel in shops, offices and other working environments -on farms, by clientele of hotels, motels and other environments of a residential type -at bed and breakfasts (B & B) -for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

Section 1. Safety Information

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable. Caution: risk of fire We recommend that you follow the following regulations so as to avoid situations dangerous to you: Before performing any operation, unplug the power cord from the power socket. -The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes. -If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service centre to ask for repair. -Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes. -Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. -Do not install the appliance near heaters or inflammable materials. -Do not use extension cords or adapters. -Do not excessively pull or fold the power cord or touch the plug with wet hands. -Do not damage the plug and/or the power cord; this could causeelectrical shocks or fires. -It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. 20

-Do not use mechanical devices or other equipment to hasten the defrosting process.

-Do not use or store inflammable sprays, such as spray paint, nearthe Wine Coolers. It could cause an explosion or fire. -Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. -Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion. -Do not store medicine or research materials in the Wine Coolers. -When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks. -Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. -Do not place objects and/or containers filled with water on the top of the appliance. -Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel. -This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved. -Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

· Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. · If this appliance is to replace an old refrigerator with a lock, as a safety measure break or remove the lock and/or door before disposal. · Your old appliances contain insulation gases and refrigerant that must be disposed of correctly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for correct disposal in line with current legislation. If there is any doubt contact your Local Authority for instructions. · This appliance may contain the refrigerant isobutene (R600a/R134a). This is a natural gas with a high level of environmental compatibility; however, caution is required as isobutene is a flammable gas. It is essential to ensure that refrigerant tubes are not damaged during transportation and the installation of the appliance. In the event that the refrigerant circuit is damaged, avoid naked flames or sources of ignition and ventilate the room in which the appliance is situated. · If using an adaptor, this must be used in accordance with the manufacturers instructions and ensure that the electrical circuit is not overloaded as this could cause overheating. · Do not twist or bend the cables, and keep them away from hot surfaces. · Do not plug ın or unplug this appliance with wet hands. · Following installation make sure that the power cable is not trapped underneath the appliance. · Ensure the appliance is left in an upright position for at least 4 hours before you switch it on. · The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

· This appliance is intended to be used in household and similar applications

– staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. · The instructions state that:

- the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

- children being supervised not to play with the appliance. · Do not damage the refrigerant circuit. · WARNING – Keep ventilation openings, in the appliance enclosure or in the

built-in structure, clear of obstruction.

· WARNING – Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the manufacturer.

· WARNING – Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type recommended by the manufacturer.

· WARNING: When positioning the appliance, ensure the supply cord is not

· WARNING: Do not locate multiple portable socket-outlets or portable power

supplies at the rear of the appliance.

· Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. · If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

Section 2. Description of appliance

1 Thermostat control (interior light)

2 Interior Glass shelf 3 Crisper 4 Drawer 5 Levelling Feet 6 Door Balcony(above) 7 Door Balcony(under) 8 Freezer Compartment 9 Refrigerator Compartment

Section 3. Installation

· IMPORTANT! This appliance must be left to stand in an upright positionfor at least 4 hours before being switched on for the first time. · This appliance has been designed for Domestic Use Only. · Remove all packaging and securing tape from the appliance. · Wash the interior of the appliance with luke warm water containing a small amount of bicarbonate soda (5ml to 0.5 litres of water). · Position the appliance in a dry atmosphere and out of direct sunlight. · Do not position next to a cooker or other sources of heat, i.e. radiator. · This appliance should not be sited in a cold atmosphere, i.e.garage or shed. Doing so may cause the freezer unit to underfreeze. · If positioned next to another fridge or freezer, leave a minimum gap of 2cm between the appliances in order to avoid condensation. · A clearance of 50mm should be left above the appliance. If this cannot be achieved you should ensure a clearance of 25mm is maintained on each side of the appliance. · Fit the plastic wall spacers to the condenser on the rear of the appliance, this will ensure an air gap between the appliance and the wall. · Do not place or store heavy items on the top of this appliance. · Ensure that the appliance is positioned on a firm flat floor. · This appliance must be level. Adjust the level by screwing the adjustable feet up or down (use your fingers or a suitable spanner). · Ensure that the appliance is upright and both feet are in firm contact with the floor so that the cabinet is stable. · Connect the plug to an adjacent 13amp socket out let and ensure that the appliance is not standing on the supply cable.

Section 4. Operating the Appliance

4.1. Switching on the Appliance · Allow the appliance to stand upright for a minimum of 4 hours before you switch it on. · Plug in the appliance and switch on at the mains supply. · Set the thermostat control to the required setting as detailed in the Temperature Control section (3.2.). · Leave the appliance for approximately 4 hours for the correct temperature to be reached. 4.2. Temperature Control The temperature selector knob is located on the lamp unit inside the refrigerator (see Description of the Appliance on page 2). · · · ·

Setting “0”: Unit Off

Setting “1”: Unit On - Warmest Temperature Setting “3 or 4” : Normal Operation (adequate for most situations) Setting “7 ”: Coldest Temperature

During high ambient temperatures e.g. on hot summer days, it may be necessary to set the thermostat to the coldest setting ( the "7" ). This may cause the compressor to run continuously in order to maintain a low temperature in the cabinet. 4.3. Storing & Freezing Food in the Freezer This appliance has a four star freezer that is suitable for the long-term storage of frozen food items. It can also be used for freezing and storing fresh food items.

4.4. Normal Operating Sounds

You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise. The thermostat controls the operation of the compressor, and you may hear a slight click as it cycles in and out. 4.5. Energy Saving Advice Do not install the appliance close to sourcesof heat, such as a cooker, dishwasher or radiator. Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear. Try to avoid keeping the doors open for a long time, warm air will enter the cabinet and may cause a build-up of ice as well as affecting the energy consumption. Ensure there are no obstructions preventing the doors from closing properly. Ensure that the door seals are clean and there are no tears or splits. Keep the most perishable foods, (those with a short shelf-life, such as cooked meats), in the coldest part of the fridge. The Salad Crisper Box is the warmest part of your fridge and should be used for vegetables, salads and fruits etc. (see Description of Appliance on Page 2) Do not overload the fridge: the cooling air that circulates to keep the fridge cold gets blocked and pockets of warm air form. Do not put hot food into the fridge or freezer? let it cool down first. 4.6. In the Event of a Power Failure If there is a power failure, keep the doors closed. When the power has been restored the appliance will start to operate but it may take some time to achieve the pre-set operating temperature. Check the condition of your stored food items and liquids.

Section 5. Maintenance

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. 5.1. Internal Cleaning Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol. 5.2. External Cleaning Wash the outer cabinet with warm soapy water. Do NOT use abrasive products. There may be sharp edges on the underside of the product, so care should be taken when cleaning. Once or twice a year dust the rear of the appliance and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause increased energy consumption. 5.3. Defrosting The fridge compartment will automatically defrost itself. However, you will need to defrost the freezer periodically. When ice build up in the freezerexceeds 3-5mm, empty the contents and switch off the appliance, leave the door open and allow the ice to melt. Place the frozen foods items in a cool-bag or wrap them in thick newspaper. Do not use sharp objects to scrape the ice away. Clean and dry the interior, close the door and turn on the power to the appliance. When the power has been restored the appliance will start to operate but it may take some time to achieve the pre-set operating temperature. 5.4. When the appliance is not in use When the appliance is not in use for long periods, remove the contents, disconnect from the electricity supply and clean the appliance, leaving the door ajar until you wish to use the appliance again. 5.5. Changing the Interior Light (Except Freezer compartment) · · · · ·

Switch off the power supply to the appliance

Remove the plastic light cover Remove the lamp from the light unit. Replace the lamp with a suitable replacement . Refit the cover and switch the appliance back on.

5.6. What to do if something goes wrong

There is no power to the appliance: · · · ·

there is not a power cut there is power to the electric socket/appliance the fuse in the plug (Must be 13 amp) that the thermostat has been set to position MIN or above (see section 3.2.)

The compressor runs continuously:

· Are the doors closed correctly? · Have large quantities of food recently been added to the appliance?- if yes, allow the interior temperature to recover · Have the appliance doors been opened frequently? - if yes, allow the interior temperature to recover · Check that the Thermostat Control has not been set to maximum

There is excessive frost/ice build up:

· Ensure that the doors have been closed correctly · Ensure that the door seals are clean and sealing correctly · Check that the Thermostat Control has not been set to maximum The appliance is making a noise: · Refer to Normal Operating Sounds, section 3.4 · Ensure that the appliance has been installed correctly (see section 1). If after the above checks there is still a fault please contact your retailer.

Any warranty provided with this product does not cover loss of fridge/freezer content.

Any claim for loss, damage, costs or expenses of an indirect or consequential nature including any economic loss or damage to foodstuffs or any other goods is excluded.

We recommend that you inspect your fridge/freezer regularly to check that itis working correctly, losses can result from deterioration following breakdown or accidental failure of the appliance, fuses, plugs or public electricity supply, these can be covered by your standard home insurance or might require extra cover. Check with your insurance provider. 29

Section 6. Energy Saving

For better energy saving we suggest : Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo. Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor. Do not excessively stuff foods so as to ensure proper air circulation. Defrost the appliance in case there is ice to facilitate the transfer of cold. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed. Open or keep the doors of the appliance open as little as possible Avoid adjusting the setting to temperatures too cold. Remeve dust present on the rear of the appliance

Scrapping old Appliance

This appliance is marked according to the European directive 2012/19/EU on Waste

Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: -WEEE should not be treated as household waste; -WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. 30

bed and breakfasts (B & B)

v hotely, motely a jiné typy residencí

CANDY HOOVER GROUP S.R.L.

Via Privata Eden Fumagalli 20861 Brugherio Milan Italy
