#$Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

#$Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

?(#'$'("'"C*%":*/(""./$'("

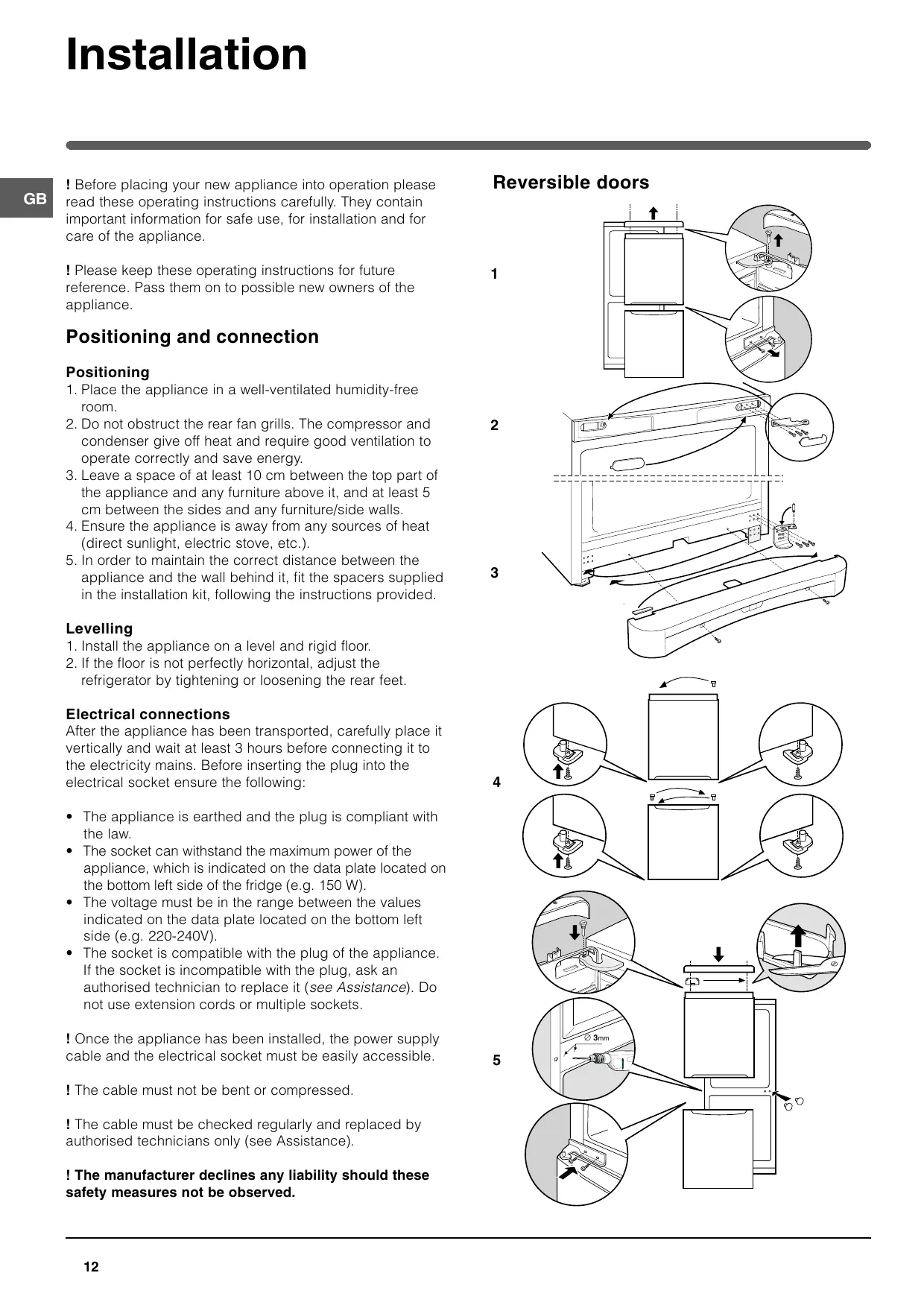

*+&%,%+"%"# 1. Place the appliance in a well-ventilated humidity-free room. 2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy. 3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls. 4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.). 5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

1. Install the appliance on a level and rigid floor. 2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W). • The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V). • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets. #$Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. #$The cable must not be bent or compressed. #$The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

@:!!B!: >*!:;9?>A Knob SHELVES• -;D* (see Maintenance) DE-9?FEC!!"bin :!@:?8!:;9>: >*!:;9?>A Knob

Removable lidded shelf with !8839:;<

Removable multipurpose

@:!!B!:3and C9>:;8! compartment ?0.!"ice tray•

C9>:;8! compartment•

! Varies by number and/or position.

! Available only on certain models.

CH!-G!C: with or without grill.

Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

*-;<3B>A!! Thanks to the new “Play Zone” bottle rack, you can cool several bottles, cans and energy drinks quickly to have them constantly at hand.

DE-9?FEC!!3bin: to store food (such as cold meats) for a long time and also prevent odours from lingering in the refrigerator.

@-!I3J>>-3=>I! This is the new box to keep meat, fish and cheese fresh. When positioned in the “lower” part of the fridge compartment, it is ideal for meat and fish; when moved to the “top” part of the fridge, it is perfect for cheese. It can be taken out of the fridge when it is not needed. 9!D*!:;9E:!!3Indicator light: to identify the coldest area in the refrigerator. 1. Check that OK appears clearly on the indicator light (see diagram).

2. If the word “OK” does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher (colder) position and wait approximately 10 hours until the temperature has stabilised.

3. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

! Available only on certain models.

If the “Play Zone” is placed on the glass shelf, you can store large and medium sized bottles on it simply by laying the bottle on the flat rack. This is ideal for storing wine bottles. When folded and secured in place on either side of the shelf, the rack can be used to store cans (at the top), energy drinks (in the centre) and other cans and energy drinks can be rested horizontally on the remaining part of the shelf. When placing cans (onto the

Play zone rack), make sure they do not touch the back of the refrigerator interior. The “Play Zone” can be used just like a normal shelf (when placed flat) and moved up or down along the fridge walls together with the rest of the shelf. It can be washed easily, and is also dishwasher safe. The ideal position for the Play zone rack is the central shelf.

K3=.L+1.3&,21,%"#3,'.32MM$%2"0.(3L+$$+N3,'.3%"&,2$$2,%+"

%"&,1O0,%+"& (see Installation). K3Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate. K3The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).

• Remember that cooked foods do not last longer than raw foods. • Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.

1. Insert the plug into the socket and ensure that the internal light illuminates ( the FREEZER OPERATION knob must not be on the !"position) . 2. Turn the FREEZER OPERATION knob and REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.

7.$$'"C*$3.*$.P1.0%$90.

The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the thermostat knob. min= warmest max = coldest We recommend, however, a medium position.

1. Once you have bought your food, remove all external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.

2. Protect the food, (especially easily perishable items and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge. 3. Store all food in such a way as to ensure air can circulate freely between different items. 4. Keep the inside of your fridge clean, taking care not to use oxidiser or abrasive products. 5. Remove all food past its expiry date from the refrigerator. 6. For the correct preservation of food, all easily perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.

Q3'&&.0*#R#$.P A+3@1+&,

It is recognisable by aeration cells located on the back walls of the compartments. The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

S#'"C*$3.*20..T.0*$(*'$#*29&&*1($."$'%&

The temperature inside the freezer compartment automatically adjusts itself according to the position of the thermostat knob. = warmest = coldest We recommend, however, a medium position. !J> is the optimal temperature for energy saving levels. switches the appliance off, including the refrigerator.

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).

• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment where the temperature drops below -18°C and guarantees rapid freezing. WARNING: to avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers. • Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break. • The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4)

?0.!3%0.3,12Q The fact that they are situated on the top part of the freezer drawers ensures greater cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole after filling with water is also provided).

1. Pull out the tray by pushing it up. Check that the tray is ompletely empty and fill it with water through the opening provided. 2. Take care not to exceed the level indicated (MAX WATER LEVEL). Excess water prevents the ice cubes from dispensing (if this happens, wait for the ice to melt and empty the tray). 3. Turn the tray 90°: due to the connected compartments each mould fills with water (see diagram).

4. Close the opening with the lid provided and put the tray back, placing the top part in the corresponding housing and allowing it to drop in again.

5. When the ice has formed (minimum time approximately 8 hours) knock the tray against a hard surface and wet the outside so that the ice cubes come loose and take them out through the opening.

MAX WATER LEVEL K3Do not open the door during freezing.

WATER LEVEL K3If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below.

Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (10W).

1. set the FREEZER OPERATION knob on

2. pull the plug out of the socket

Q&.%"'"C*$3.*%11&'%"/.

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia. • The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully. • The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

5M(':'"C*P(9&:*%":*9"1&.%#%"$*(:(90#

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly. • If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

9$#.%-&'/(,*%(7*&'",

K3The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • Do not touch the appliance with bare feet or with wet or moist hands and feet. • Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns. • When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. • Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact. • In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. • Do not use devices or tools other than the special scraper provided inside the compartments. • Do not put ice cubes taken directly from the freezer into your mouth. • Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door. • Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

• Observe local environmental standards when disposing packaging material for recycling purposes. • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

L.#1./$'"C*%":*/("#.0M'"C*$3.

."M'0("P."$ • Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources. • Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy. • Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously. • Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy. • Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption. • Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

?(##'B&.*/%9#.#*V*7(&9$'("#U

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

9'.3S+,+13P+.&3"+,3&,21,T

• The appliance comes with a motor protection control (see Start-up and use).

• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

• The door is not closed properly or is continuously opened.

• The outside ambient temperature is very high.

9'.32MM$%2"0.3S2V.&323$+,3+L3"+%&.T

• The appliance has not been installed on a level surface (see Installation).

• The appliance has been installed between cabinets that vibrate and make noise. • The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

• These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.

The doors do not close properly or the seals are damaged.

The doors are opened too frequently. The TEMPERATURE ADJUSTMENT knob is not in the correct position The refrigerator or the freezer have been over-filled.

=.L+1.302$$%"#3L+13;&&%&,2"0.X

• Check if the malfunction can be solved on your own (see Troubleshooting). • If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre S+P.$ &.1%2$3"OSR.1

• type of malfunction • appliance model (Mod.) • serial number (S/N) This information can be found on the data plate located on the bottom left side of the refrigerator compartment.
