USER MANUAL CMDDS5142W CANDY

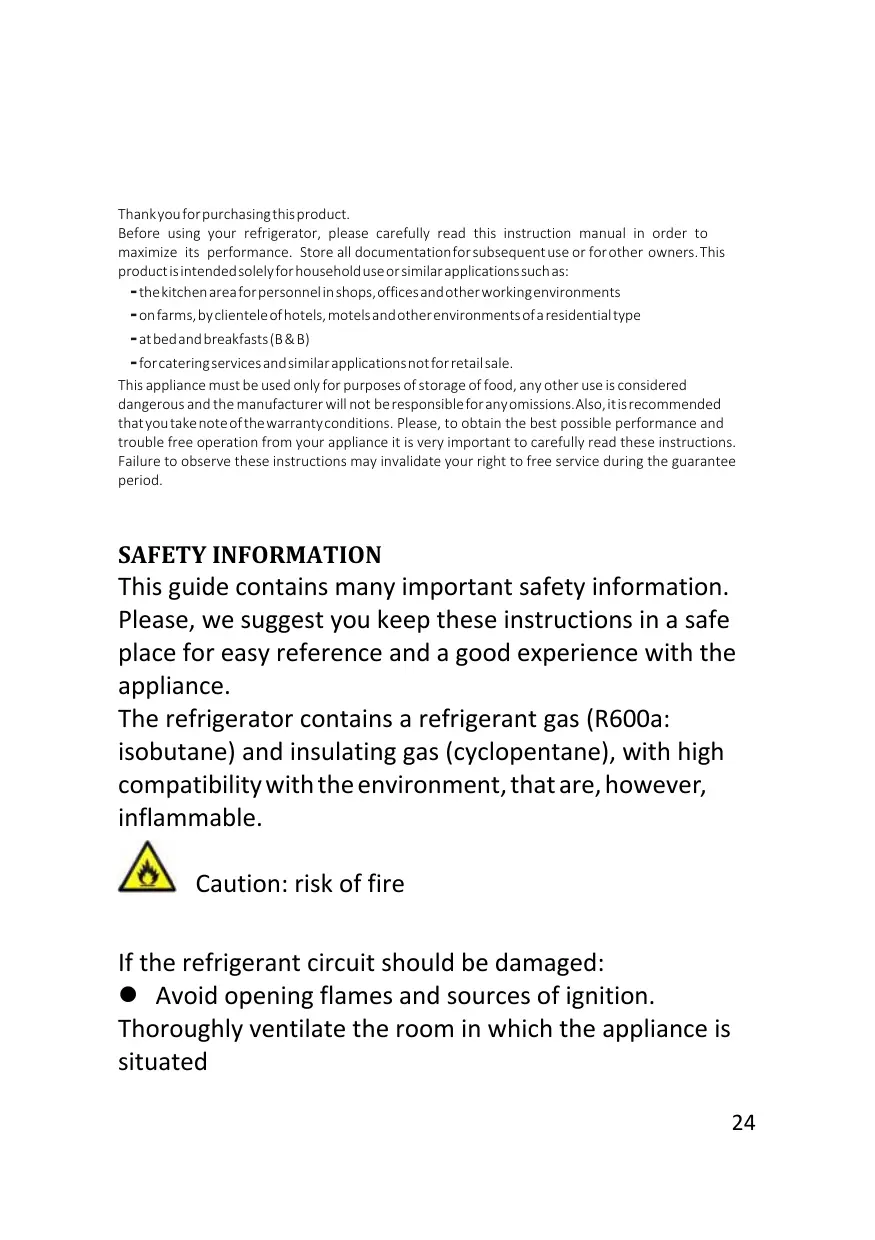

Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: - the kitchen area for personnel in shops, offices and other working environments

- on farms, by clientele of hotels, motels and other environments of a residential type

- at bed and breakfasts (B & B) - for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

SAFETY INFORMATION This guide contains many important safety information.

Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance. The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable. Caution: risk of fire If the refrigerant circuit should be damaged:  Avoid opening flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated 24

WARNING! • Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product. • This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance. • Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. • When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed. • Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. • Do not install the appliance near heaters or inflammable materials. 25

• If there is a power failure do not open the lid.

Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen. • If you find that the lid of the chest freezer is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes. • Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. • Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally. • This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff). • Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks. • Before performing any operation, unplug the power cord from the power socket. • On delivery, check to make sure that the product is 26

not damaged and that all the parts and accessories are in perfect condition.

If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair. Do not use extension cords or adapters. Do not excessively pull or fold the power cord or touch the plug with wet hands. Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion. Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire. Do not place objects and/or containers filled with water on the top of the appliance. We do not recommend the use of extension leads and multi-way adapters. Do not dispose of the appliance on a fire. Take care not to damage, the cooling circuit/pipes of the 27

appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries. Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. Do not use pointed or sharp-edged objects such as knives or forks to remove the frost. Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. Do not scrape with a knife or sharp object to 28

remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

Do not use mechanical devices or other equipment to hasten the defrosting process. Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase. Never use water wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. The product is designed and built for domestic household use only. The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises. The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided. The guarantee is applicable only to new products and is not transferable if the product is resold. Our company disclaims any liability for incidental or consequential damages. 29

• The guarantee does not in any way diminish your statutory or legal rights.

• Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel. • If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children. • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved. • Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. • Locks :If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer break off any old locks or latches as a safeguard.

DOUBLE DOOR Climate Class

The appliance is designed to operate at the limited range of ambient temperature, depending on climate zones. Do not use the appliance at the temperature out of the limit. Climate class of your appliance is indicated on the label with technical description inside the fridge compartment. Climate Class

TRANSPORTATION INSTRUCTIONS The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.

Failure to comply with the above instructions could result in damage occurring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.

The appliance must be protected against rain, moisture and other atmospheric influences.

INSTALLATION INSTRUCTIONS

If possible avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances:

Make sure that sufficient room, with an average temperature of between 16°C and 32°C, is provided around the appliance to ensure free air circulation. Ideally, a space of no less than

9cm on the back and 2cm on the sides. The appliance should be located on a smooth surface. It is forbidden to use the refrigerator outdoors. Protection from moisture. Do not locate the freezer in moist space to avoid the metal parts rusty. And do not spray water to the freezer, otherwise it will weaken the insulation and causes current leakage. Refer to "Cleaning and Care" section to prepare your appliance for use. If the freezer is installed in unheated areas, garages etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth. Never place Refrigerator in a wall recessed or into fitted cabinets or fumiture when it is working, the grille at the back may become hot and the sides warm. Do not drape the Refrigerator with any covering.

STARTING TO USE Before you starting to use the freezer, please check that:

1. The interior is dry and air can circulate freely at the rear. 2. Clean the interior as recommended under "TAKE CARE" section (electric parts of the refrigerator can only be wiped by dry cloth). 3. Do not switch on until 4 hours after moving the fridge/freezer. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle. 4. Before connecting the Refrigerator to the mains supply position. The thermostat control dias is located inside the Fridge compartment. 5. Turn the thermostat knob to the “3” position and turn on the electricity. The compressor and the light inside the refrigerator will begin to work. 6. Before storing foods in your refrigerator, turn the refrigerator on and wait for 24 hours, to make sure it is working properly and to allow the Fridge/Freezer to fail to the correct temperature. 7. Open the door 30 minutes later, if the temperature in the refrigerator decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.

DOUBLE DOOR OPERATION Switching on your unit

The temperature selector Knob is located on the right hand side wall of the refrigerator interior. Setting “Off”: unit is off. Setting “MIN”: less cool temperature. Setting “MED”: normal operation (adequate for most situations) Setting “MAX”: coolest Temperature During high ambient temperature: it may be necessary to set the thermostat to the coolest setting (position “MAX”). This may cause the compressor running continuously in order to maintain a low temperature in the cabinet. For the first time you install your refrigerator, set the thermostat knob at “MED”. Give your refrigerator time to cool down completely before adding food. It is the best to wait 24 hours before adding food. The thermostat knob controls the temperature. When the thermostat control knob is set to “OFF”, the refrigerator will not be running.

The appliance might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed

The information about the climate range of the appliance is provided on the rated plate. The fact that the internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature control device might have to be varied to allow for these factors The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food

Tips for keeping food perfect in the Fridge

Take extra care with meat and fish: cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil. Leave space around food: this allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept cool. Wrap up food!: to prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped. Pre-cooked food should be cooled properly: allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the internal temperature of the Fridge from rising. Shut the door!: to prevent cold air escaping, try to limit the number of times you open the door. When retuning from shopping, sort foods to be kept in your Fridge before opening the door. Only open the door to put food in or take it out.

If you're not at home for a long time

Turn off the refrigerator first and then unplug the unit from the wall outlet.

Remove all the food. Clean the refrigerator. Leave the lid open slightly to avoid possible formation of condensation, mold, or odors. Use extreme caution in the case of children. The unit should not be accessible to child’s play. Short vacations: Leave the refrigerator operating during vacations of less than three weeks. Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

ENERGY SAVING For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated room. • Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functionalizing of the compressor. • Do not excessively stuff foods so as to ensure proper air circulation. • Defrost the appliance in case there is ice to facilitate the transfer of cold. • In case of absence of electrical energy, it is advisable to keep the refrigerator door closed. • Open or keep the doors of the appliance open as little as possible. • Avoid adjusting the setting to temperatures too cold. • Remove dust present on the rear of the appliance.

TAKE CARE Defrosting

Defrost twice a year or when a frost layer of around 5 mm has formed. Alternatively you may switch off the freezer at the socket outlet and pull out the mains plug. Extract the water conduit and put in a water container. As a temporary measure, this frost should be scraped away using a plastic scraper. NEVER use a metal or sharp instrument. This should be carried out if the frost build-up cannot be scraped away, or if it begins to interfere with the food storage. Chose a time when the stock of frozen food is low and proceed as follow: 1. Take out the frozen food, turn the Refrigerator off at the mains supply and leave the doors open. Ideally the frozen food should be put into another Fridge/Freezer or refrigerator. If this is not possible wrap the food, firstly in several sheets of newspaper or large towels and then in a thick rug or blanket and keep it in a cool place. 2. Scrape away as much frost build-up as possible using the plastic scraper. To accelerate the thawing process place bowls of hot water inside the Fridge/Freezer cabinet. As the solid frost loosens, prize it away with the plastic scraper and remove. 3. When defrosting is completed, clean your Fridge/Freezer as described.

After defrosting you should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer.

Condensation will form on the back wall of the Fridge; however it will normally run down the back wall and into the drain hole behind the salad bin.

The drain hole will have a “cleaning spike” inserted into it. This ensures that small pieces off food can not enter the drain. After you have cleaned the inside of your Fridge and removed any food residues from around the whole, use the “cleaning spike” to make sure that there are no blockages.

Use standard furniture polish to clean the Fridge/Freezer exterior. Make sure that the doors are closed to prevent polish getting on the magnetic door seal or inside. The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment. Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer.

Remove the right top hinger cover .

Remove the screws fixed the top-hinge with cross-slot screwdriver.

Replace the top-hinge and the top-door limit block and the door bearing bush to the other side.

A. Remove the nut with sleeve.Take off the washer then remove the axes to the other side and fixed.

Remove the door limit block

Please taking out another door limit block, with screw mounting to the door

Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver .

Note：the refrigerator-freezer incline angle less 45°.

Replace the bottom door bearing bush and the limit block.

Replace the bottom hinge to the other side then fix it with screws

Set the top door right position,fix the top-hinge and the cover.

Install the four screw caps and two catches to corresponding position.

·Ensure the Appliance is unplugged and empty. ·Adjust the two leveling feet to their highest position. ·We recommend you have someone to assist you.

replace the leveler to the other side and adjust it to make sure the cabinet level.

If the appliance does not operate when switched on, check.

Power cut: If the internal temperature of the Fridge/Freezer compartment is -18℃ or less when the power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for approx 16 hours with the door closed. Do not open the Fridge/Freezer door more than necessary. The product is designed and built for domestic household use only. The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance). The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off. The temperature control has been set correctly. If the refrigerator is exceptionally cold, you may have accidentally adjusted the thermostat control dial to a higher position. If the refrigerator is exceptionally warm, the compressor may not be working. Turn the thermostat control dial to the maximum setting and wait a few minutes. If there is no humming noise, it is not working. Contact the local store where your purchase was made. If condensation appears outside of the Refrigerator, this may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues contact the local store where your purchase was made. If the provided plug has been replaced, make sure the new plug is properly connected. If the appliance is still not operating after the above checks, please contact Customer Service.

SCRAPPING OLD APPLIANCES This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and

Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: WEEE should not be treated as household waste. WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
