CH142120DPX - BEKO - Free user manual and instructions

USER MANUAL CH142120DPX BEKO

CH142100 DS CH146100 D CH142100 DX CH142120 DPX EWWERQWEW EN DE FR NL Please read this user manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well. The user manual will help you use the product in a fast and safe way. • Read the manual before installing and operating the product. • Make sure you read the safety instructions. • Keep the manual in an easily accessible place as you may need it later. • Read the other documents given with the product. Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual. Explanation of symbols Throughout this user manual the following symbols are used: CImportant information or useful tips.

AWarning against dangerous conditions for life and property. BWarning against electric voltage.

Intended use4 General safety4 For products with a . 7 water dispenser; 7 Child safety 7 Compliance with WEEE Directive and Disposing of the Waste Product: 8 Package information8 HC warning8 Things to be done for energy saving.9

5 Using your refrigerator

Thermostat setting button16 Defrost16 Water Dispenser17 *May not be available in all models...17

6 Maintenance and cleaning 7 Troubleshooting

Points to be paid attention to when the relocation of the refrigerator10 Electrical connection10 Disposing of the packaging 11 Disposing of your old refrigerator 11 Placing and Installation 11 Adjusting the legs12 Installing the lower ventilation cover12 Changing the illumination lamp 12 Turbo Cooling Fan13 Icematic and ice storage container...13 Reversing the doors14

Protection of plastic surfaces 19

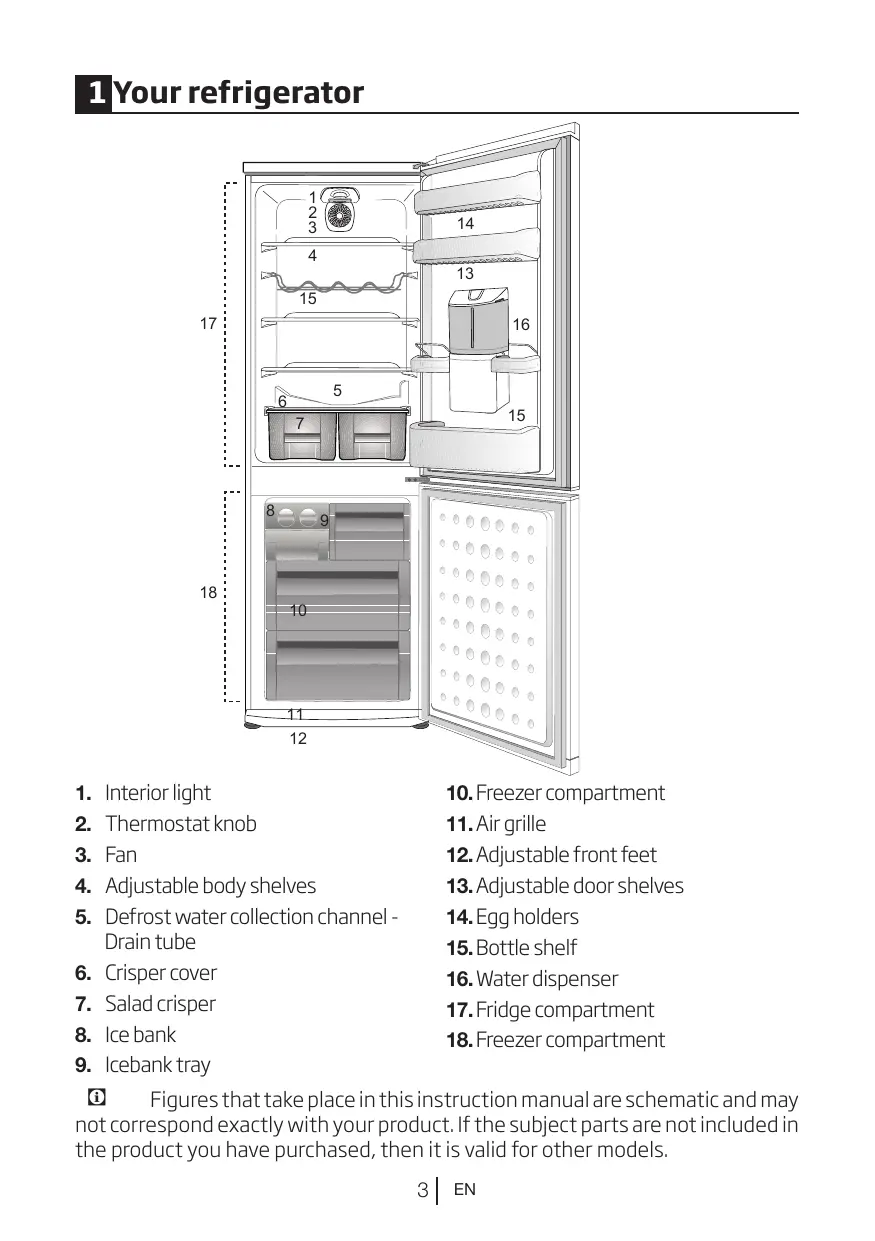

1. 2. 3. 4. 5. 6. 7. 8. 9.

Interior light Thermostat knob Fan Adjustable body shelves Defrost water collection channel Drain tube Crisper cover Salad crisper Ice bank Icebank tray

10. Freezer compartment 11. Air grille 12. Adjustable front feet 13. Adjustable door shelves 14. Egg holders 15. Bottle shelf 16. Water dispenser 17. Fridge compartment 18. Freezer compartment

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. 3

2 Important Safety Warnings Please review the following WARNING: information. Failure to observe Do not store explosive this information may cause substances such as A aerosol cans with a injuries or material damage. Otherwise, all warranty and flammable propellant in reliability commitments will this appliance. become invalid. Original spare parts will be This appliance is intended provided for 10 years, following to be used in household and the product purchasing date. similar applications such as – staff kitchen areas in shops, Intended use offices and other working environments; WARNING: – farm houses and by clients Keep ventilation in hotels, motels and other openings, in the A appliance enclosure or residential type environments; – bed and breakfast type in the built-in structure, environments; clear of obstruction. – catering and similar non-retail WARNING: applications. Do not use mechanical devices or other means General safety to accelerate the A d e f r o s t i n g p r o c e s s , • When you want to dispose/ scrap the product, we other than those recommend you to consult the recommended by the authorized service in order to manufacturer. learn the required information WARNING: and authorized bodies. Do not damage the A • Consult your authorized refrigerant circuit. service for all your questions WARNING: and problems related to the Do not use electrical refrigerator. Do not intervene appliances inside or let someone intervene the food storage to the refrigerator without of A compartments notifying the authorised the appliance, unless services. they are of the type • For products with a freezer recommended by the compartment; Do not eat manufacturer. cone ice cream and ice cubes immediately after 4

you take them out of the freezer compartment! (This may cause frostbite in your mouth.) For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst. Do not touch frozen food by hand; they may stick to your hand. Unplug your refrigerator before cleaning or defrosting. Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock. Never use the parts on your refrigerator such as the door as a means of support or step. Do not use electrical devices inside the refrigerator. Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries. Do not cover or block the ventilation holes on your refrigerator with any material. 5

• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user. • In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance. • Do not pull by the cable when pulling off the plug. • Ensure highly alcoholic beverages are stored securely with the lid fastened and placed upright. • Never store spray cans containing flammable and explosive substances in the refrigerator. • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product • Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns. EN

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards. • Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety. • Contact authorized service when there is a power cable damage to avoid danger. • Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise. • This refrigerator is intended for only storing food items. It must not be used for any other purpose. • Label of technical specifications is located on the left wall inside the refrigerator. • Never connect your refrigerator to electricitysaving systems; they may damage the refrigerator. • If there is a blue light on the refrigerator, do not look at the blue light with optical tools. • For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure. • This operation manual should be handed in to the new owner of the product when it is given to others. 6

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product

• Do not plug the refrigerator if the wall outlet is loose. • Water should not be sprayed on inner or outer parts of the product for safety purposes. • Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk. • Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock or fire. • Do not overload the refrigerator with food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. • Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator’s door. EN

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator. • If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire. • Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move. • When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped. • When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified. • The product shall never be used while the compartment which is located at the top or back of your product and in which electronic boards are available (electronic board box cover) (1) is open. 1

For products with a water dispenser; • Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber. • If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation. • Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum. • Use only potable water. Child safety • If the door has a lock, the key should be kept away from reach of children. • Children must be supervised to prevent them from tampering with the product.

EN Compliance with WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/ EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children’s safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material 8

collection points designated by the local authorities. Do not forget... Any recycled substance is an indispensable matter for nature and our national asset wealth. If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located. HC warning If your product's cooling system contains R600a: This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed. Ignore this warning if your product's cooling system contains R134a. Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator. Never throw the product in fire for disposal.

EN Things to be done for energy saving • Do not leave the doors of your refrigerator open for a long time. • Do not put hot food or drinks in your refrigerator. • Do not overload your refrigerator so that the air circulation inside of it is not prevented. • Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens. • Pay attention to keep your food in closed containers. • For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been

determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen. • Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation B In case the information which are

given in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator 1. Your refrigerator should be unplugged.Before transportation of your refrigerator, it should be emptied and cleaned. 2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed. 3. Original packaging and foam materials should be kept for future transportations or moving. Before you start the refrigerator, Check the following before you start to use your refrigerator: 1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.) 2. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section. 3. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on. 10

4. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal. 5. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important: The connection must be in compliance with national regulations. • The power plug must be easily accessible after installation. • Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards. • The voltage stated on the label located at left inner side of your product should be equal to your network voltage. • Extension cables and multi plugs must not be used for connection.

EN Placing and Installation

B A damaged power cable must be

replaced by a qualified electrician.

B Product must not be operated

before it is repaired! There is the risk of electric shock!

Disposing of the packaging The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities. The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator Dispose of your old refrigerator without giving any harm to the environment. • You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator. Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

A If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door. 1. Install your refrigerator to a place that allows ease of use. 2. Keep your refrigerator away from heat sources, humid places and direct sunlight. 3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet. 4. Place your refrigerator on an even floor surface to prevent jolts.

EN Adjusting the legs If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Changing the illumination lamp To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/ freezer in a safe and comfortable way.The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C. (only chest and upright freezer)

Installing the lower ventilation cover You can install the lower ventilation cover as illustrated in the figure.

EN Turbo Cooling Fan

Icematic and ice storage container “Turbo cooling fan is designed to

ensure homogenous distribution and circulation of the cold air inside your refrigerator. Operation time of the turbo cooling fan may vary depending on the properties of your product. While the turbo fan works only with the compressor in some products, the control system determines its operation time in some products in accordance with the cooling requirement. This situation is explained on a separate warning and information label attached on the refrigerator in products equipped with turbo fans running under different conditions than the compressor.”

*May not be available in all models Using the Icematic Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice. Turn the knobs on the ice reservoirs clockwise by 90 degrees. Ice cubes in the reservoirs will fall down into the ice storage container below. You may take out the ice storage container and serve the ice cubes. If you wish, you may keep the ice cubes in the ice storage container. Ice storage container Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

4 Preparation • Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight. • The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency. • Please make sure that the interior of your refrigerator is cleaned thoroughly. • If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them. • When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours. • The door should not be opened frequently. • It must be operated empty without any food in it. • Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section. • Original packaging and foam materials should be kept for future transportations or moving.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions. • Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided. • In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key. • Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal

5 Using your refrigerator Defrost

Thermostat setting button The interior temperature of your refrigerator changes for the following reasons; • Seasonal temperatures, • Frequent opening of the door and leaving the door open for long periods, • Food put into the refrigerator without cooling down to the room temperature, • The location of the refrigerator in the room (e.g. exposing to sunlight). • You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees. • If the ambient temperature is higher than 32°C, turn the thermostat button to maximum position. • If the ambient temperature is lower than 25°C, turn the thermostat button to minimum position.

Fridge compartment Fridge compartment performs fullautomatic defrosting. Water drops and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. Such formation is normal as a result of the cooling system. The frost formation is defrosted by performing automatic defrosting with certain intervals thanks to the automatic defrosting system of the rear wall. User is not required to scrape the frost or remove the water drops. Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself. Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary. Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food. The freezer compartment defrosts automatically.

EN Water Dispenser *May not be available in all models

The water dispenser is a very useful feature allowing cold water on tap without opening the door of your refrigerator .As you will not have to open your refrigerator door frequently, you will have saved energy. As the level of the water in your glass/container rises, slightly lessen the pressure on the lever to prevent the overspill. If you slightly press the lever, the water will drip; this is quite normal and not a failure. Filling the water dispenser's tank Open the cover of the water tank as shown in the figure. Fill in the pure and clean drinking water. Close the cover. To avoid flowing of water by mistake, we recommend you to lock the water dispenser .

Using the water dispenser Push the lever of the water dispenser with your glass. The dispenser will cease operating once you release the lever. When operating the water dispenser, maximum flow can be obtained by pressing the lever fully. Please remember that the amount of flow from the dispenser is subject to the degree you press the lever. 17

Warning! • Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/ liquids may damage the water tank. • Use clean and pure drinking water only. • Capacity of the water tank is 2.2 Litres (3.8 pints); do not overfill. EN

• Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the lever with your fingers from behind the glass.

Cleaning the water tank Release the tank cover from the water tank by opening latches at both sides. Remove the water tank and clean with warm and clean water. Place the water tank to its seating, install the tank cover and close the latches.

Make sure that the parts removed (if any) during cleaning are properly attached to their original places. Otherwise, water leakage may occur. Important: Components of the water tank and water dispenser should not be washed in dishwasher. Water tray Water that dripped while using the water dispenser accumulates in the spillage tray. Take out the spillage tray by pulling it towards yourself and empty it regularly. Take out the plastic strainer by pressing it on sides. Take the water valve out of the water tank. When replacing it, make sure that the seal is in place.

6 Maintenance and cleaning

A Never use gasoline, benzene or

C Check door seals regularly to ensure

B We recommend that you unplug the

A To remove door racks, remove all the

similar substances for cleaning purposes. appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household cleaner, detergent and wax polish for cleaning.

they are clean and free from food particles.

contents and then simply push the door rack upwards from the base.

A Never use cleaning agents or water

that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

B For non-No Frost products,

water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.

A Do not use sharp, abrasive tools,

soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

B Only use slightly damp microfiber

cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface.

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it dry.

Protection of plastic surfaces C Do not put the liquid oils or oil-

cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

C Use a damp cloth wrung out in

a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

B Make sure that no water enters the lamp housing and other electrical items.

B If your refrigerator is not going to

be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working. • The power plug is not fully settled. >>>

Plug it in to settle completely into the socket. • The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE). • The door is opened too frequently >>> • • • •

Take care not to open the product’s door too frequently. The environment is too humid. >>> Do not install the product in humid environments. Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders. The product’s door is left open. >>> Do not keep the product’s door open for long periods. The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working. • In case of sudden power failure

The refrigerator’s operating noise is increasing while in use. • The product’s operating performance

may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long. • The new product may be larger than the • •

or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. 20

If the product does not restart after this period, contact the service. Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically. The product is not plugged in. >>> Make sure the power cord is plugged in. The temperature setting is incorrect. >>> Select the appropriate temperature setting. The power is out. >>> The product will continue to operate normally once the power is restored.

previous one. Larger products will run for longer periods. The room temperature may be high. >>> The product will normally run for long periods in higher room temperature. The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

• The freezer or cooler door may be ajar.

>>> Check that the doors are fully closed. • The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature. • The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate. • The freezer compartment temperature

is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate. • The cooler compartment temperature is

set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen. • The cooler compartment temperature is

set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high. • The cooler compartment temperature

is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient 21

level by changing the temperature of cooler or freezer compartments. The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently. The door may be ajar. >>> Fully close the door. The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise. • The ground is not level or durable. >>>

If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product. • Any items placed on the product may cause noise. >>> Remove any items placed on the product. The product is making noise of liquid flowing, spraying etc. • The product’s operating principles

involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product. • The product uses a fan for the cooling

process. This is normal and not a malfunction.

There is condensation on the product’s internal walls. • Hot or humid weather will increase icing

and condensation. This is normal and not a malfunction.

• The doors were opened frequently or

kept open for long periods. >>> Do not open the doors too frequently; if open, close the door. • The door may be ajar. >>> Fully close the door. There is condensation on the product’s exterior or between the doors. • The ambient weather may be humid,

this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad. • The product is not cleaned regularly.

If The Surface Of The Product Is Hot. • High temperatures may be observed

between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!Be careful when touching these areas.

A WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

>>> Clean the interior regularly using sponge, warm water and carbonated water. • Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour. • The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product. The door is not closing. • Food packages may be blocking the

door. >>> Relocate any items blocking the doors. • The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product. • The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product. The vegetable bin is jammed. • The food items may be in contact with

the upper section of the drawer. >>> Reorganize the food items in the drawer. 22
