USER MANUAL DV457EVGSGR SAMSUNG

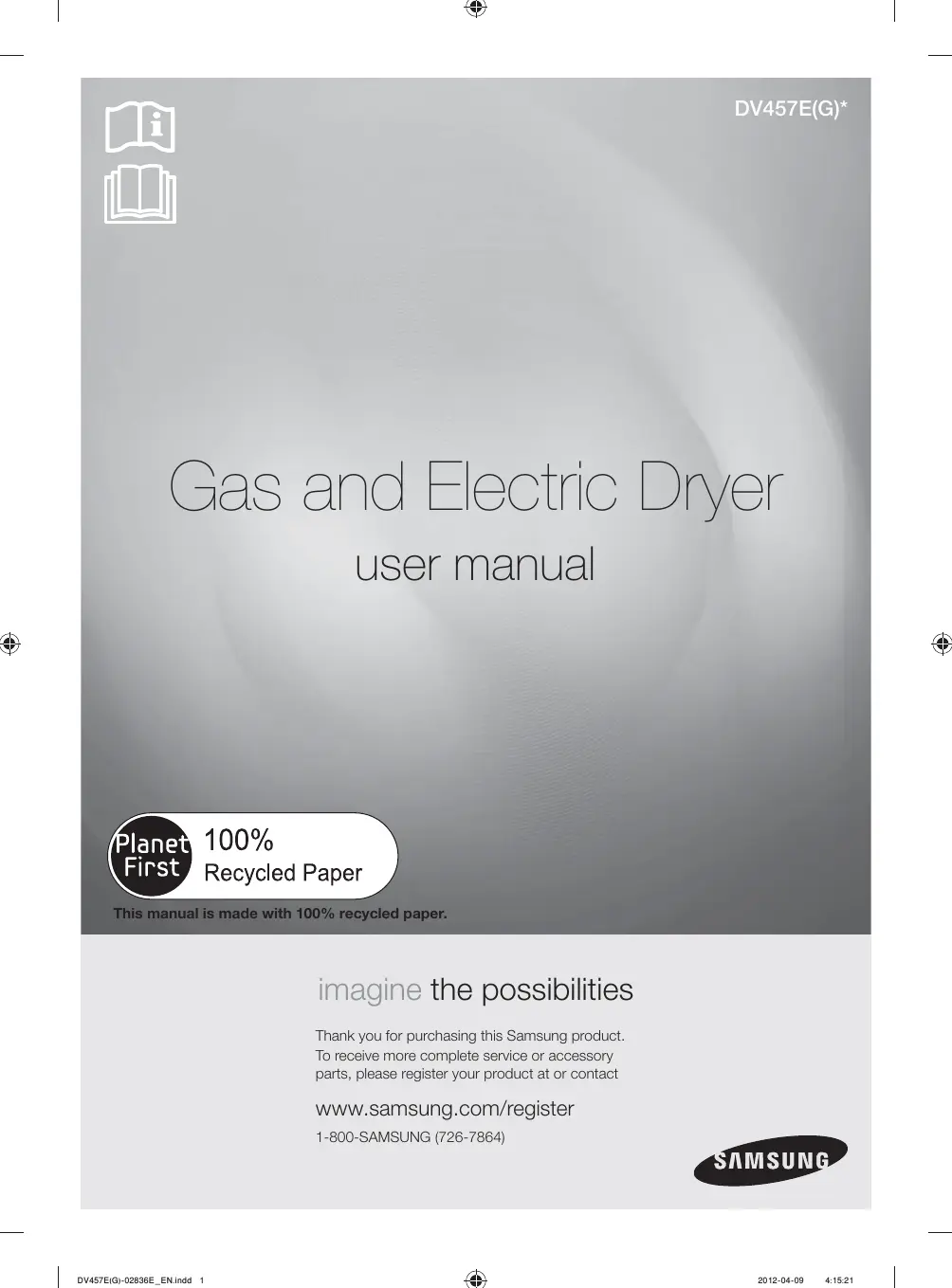

Gas and Electric Dryer user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service or accessory parts, please register your product at or contact Features Your new dryer will change the way you feel about drying laundry. From its specialized 8” LCD touch screen, and its innovative Smart Control technology to its time and energy efficiency, your new Samsung dryer has all the benefits to make drying laundry as easy and pleasant as possible.

• Extra Large Capacity Ultra drying capabilities at your fingertips! Now you can dry extra-large loads. Our ultra large

7.5 cu.ft. capacity dryer circulates more air through your clothes, drying them faster, for a

wrinkle-free result.

• 8” LCD Touch Screen Display The brilliant 8” Color LCD Touch Screen displays cycle information, settings, options, and more. The easy-to-use interface allows you to scroll through all the drying cycles with the slightest touch.

• Smart Control (Elec. Model Only) Samsung’s innovative Smart Control technology enables you to control your dryer through personal technology devices such as smart phones. You don’t have to be on standby until the cycle ends. The Smart Control allows you to monitor the drying process and lets you know when the cycle is complete.

• Smart Monitor (Gas Model Only) Samsung’s innovative Smart Monitor technology enables you to monitor your dryer through personal technologies such as smart phones. You don’t have to be on standby until the cycle ends. Smart Monitor allows you to monitor the drying process and lets you know when the cycle is complete.

• Smart Care Samsung’s Smart Care, an automatic error-monitoring system, detects and diagnoses problems at an early stage and provides quick and easy solutions through the LCD navigation. With the innovative Smart Control technology, you can also be alerted via your smart phone when a problem occurs.

• Steam Cycle This cycle sprays a small amount of water into the drum of the dryer after several minutes of tumbling with heat. It reduces bad odors from clothing that are difficult to remove when washing with water and also reduces wrinkles.

• Sanitize Cycle This cycle sanitizes garments by infusing high temperature heat deep into the fabric during the drying cycle and eliminating 99.9% of certain bacteria. Use this cycle for clothing, bedding, towels, or other items needing sanitization. The Sanitize cycle is certified by NSF International, an independent third-party testing and certification organization. NSF Protocol P154 Sanitization Performance of Residential Clothes Dryers

• Vent Sensor Your Samsung dryer is equipped with a Vent Sensor which detects and notifies you when it is time to clean the ducts. Keep your dryer safe and efficient! 2_ Features

• Time Saving Our cycles are designed with you in mind. All our dryers are designed to dry your clothes quickly... just 42 minutes! Giving you time for more important things in life.

• Energy Saving Your Samsung dryer is super energy efficient. You can dry up to 3.31 pounds of laundry with 1 kWh. Also, it saves energy by automatically drying your clothes the most efficient way.

• Easy Reversible Door Your Samsung dryer will fit just about anywhere and without a door issues. The direction of its easy reversible door can be changed quickly and easily.

• Pedestal with Storage Drawers An optional 15” pedestal is available to raise the dryer for easier loading and unloading. It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent. We strongly recommend that you DO NOT stack Samsung washers and dryers. It may be hard to view and use the dryer LCD control panel because of the viewing angle. <Pedestal with Storage Drawers>

• 4-way Vent (Electric models only: DV457E*) You can install the exhaust vent in the following four (4) positions: back, either side or at the bottom. Features _3 Safety instructions Congratulations on your new Samsung Dryer. This manual contains important information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefits and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Please read this manual thoroughly to ensure that you know how to operate the extensive features and functions of your new appliance safely and efficiently. Retain the manual in a safe place near the appliance for future reference. Use this appliance only for its intended purpose as described in this instruction manual. The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, or operating your dryer. Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean: WARNING CAUTION Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. Follow the information in this manual to minimize the risk of fire or explosion or to prevent property damage, personal injury, or death. Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance. Hazards or unsafe practices that may result in personal injury and/or property damage. Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

SAVE THESE INSTRUCTIONS

4_ Safety instructions WARNING - Risk of Fire

WARNING Clothes dryer installation must be performed by a qualified installer. Install the clothes dryer according to the manufacturer’s instructions and local codes. Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct the clothes dryer’s airflow and increase the risk of fire. To reduce the risk of severe injury or death, follow all installation instructions. TO REDUCE THE RISK OF FIRE OR EXPLOSION:

WARNING Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode. Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed. There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by spontaneous combustion. Do not try to light any appliance. Do not turn on the appliance. Do not touch any electrical switch. Do not use any phone in your building. Clear the room, building or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the fire department. Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

SAVE THESE INSTRUCTIONS

Safety instructions _5 Safety instructions WARNING WARNING To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other flammable or explosive substances, because they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any flammable substance, such

as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may cause the fabric to catch fire by itself.

4. Do not store or use gasoline or other flammable vapors and liquids near this or any other

5. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

6. Before the appliance is removed from service or discarded, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

7. Do not reach into the appliance when the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with the controls.

10. Do not repair or replace any part of the appliance or attempt any servicing unless specifically

recommended in the user-maintenance instructions or published in the user-repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

14. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

15. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that could cause a load to catch fire.

17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in the

“Installing your dryer” section.

18. This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. Refer to installation instructions for grounding this appliance.

SAVE THESE INSTRUCTIONS

6_ Safety instructions

19. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e.

coins, knives, pins, etc. These objects could damage your dryer.

20. Gas leaks may occur in your system, resulting in a dangerous situation.

21. Gas leaks may not be detected by smell alone.

22. Gas suppliers recommend you purchase and install a UL-approved gas detector.

1. Do not sit on top of the dryer.

2. Because of continuing product improvements, Samsung reserves the right to change

specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.

3. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

4. Install and use in accordance with the manufacturer’s instructions.

5. Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain significant amounts of these oils.

6. Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a fire hazard.

7. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never remove these items from the dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never pile or stack these items when they are hot.

8. Take care that children’s fingers are not caught in the door when closing it. This may result in

injury. CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects, or other reproductive harm and requires businesses to warn customers of potential exposure to such substances. Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

SAVE THESE INSTRUCTIONS

Safety instructions _7 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that causes

undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a different circuit from that of the receiver.
• Consult the dealer or an experienced radio/TV technician for help. FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

8_ Safety instructions

2. IC Notice

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For product available in the USA/Canada market, only channels 1~11 can be operated. Selection of other channels is not possible. IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator & your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

Safety instructions _9 Unpacking your dryer The dryer exterior Basic requirements Ducting requirements Important to installer Location considerations Alcove or closet installations Mobile home installations Exhausting Gas requirements Commonwealth of massachusetts installation instructions Electrical requirements Grounding Electrical connections Connecting the inlet hose Replacement parts and accessories Installation Final installation checklist Dryer exhaust tips Door Reversal Setting up your dryer for the first time Drying for the first time Basic instructions Using the control panel Drying your laundry using the cycle selection screen Using the Rack Dry Checking the filter Vent Sensor Configuring your dryer’s network settings and connecting to your network Turning on the Wi-Fi networking function of your dryer How to update the software Downloading and running the mobile app, Samsung Smart Washer/Dryer App Using the Mobile App Overview of wi-fi settings and ap connection screens 10_ Contents

CARE AND CLEANING

Control panel Tumbler Stainless steel tumbler Dryer exterior Dryer exhaust system Special laundry tips

Fabric care chart Protecting the environment Declaration of conformity Specifications Cycle chart

Contents _11 Installing your dryer

UNPACKING YOUR DRYER

Unpack your Dryer and inspect it for shipping damage. Make sure you have received all the items shown below. If your Dryer was damaged during shipping, or you do not have all the items, contact 1-800-SAMSUNG (726-7864). To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit. WARNING The packing materials can be dangerous to children. Keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children.

THE DRYER EXTERIOR

Top Cover [ BACK ] Control panel Door Filter Frame Front Duct Exhaust Water Inlet Parts supplied “Y”-connector Short inlet hose Rubber Washer Long inlet hose 12_ Installing your dryer Pipe wrench (gas only) Nut drivers Level Phillips Screwdriver Duct tape Wrench BASIC REQUIREMENTS Make sure you have everything necessary for the proper installation

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the “Electrical requirements” section on page 18.
• A POWER CORD for electric dryers (except for Canada).
• GAS LINES (if you have a gas dryer) must meet national and local codes.
• The EXHAUST SYSTEM must be rigid metal or flexible stiff-walled metal exhaust ducting. Installing your dryer _13 Installing your dryer DUCTING REQUIREMENTS

Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct. Do not use a smaller duct. Ducts larger than 4 inches (10.2 cm) in diameter can result in increased accumulation of lint. Lint should be removed regularly. If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct with a thin foil wall. A serious blockage can result if the flexible metal duct is bent too sharply. Never install any type of flexible duct in walls, ceilings, or other concealed spaces. Keep the exhaust duct as straight and short as possible. Secure joints with duct tape. Do not use screws. Do not use plastic flexible duct. Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer operation. Exhaust systems longer than recommended can extend drying times, affect machine operations, and collect lint. The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper. The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should point down. Never install a screen over the exhaust outlet. To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch. If the exhaust duct must run through an unheated area, the duct should be insulated and slope slightly down towards the exhaust hood to reduce condensation and lint buildup. Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before cleaning. Check frequently to make sure the exhaust hood damper opens and closes freely. Check once per month, and clean at least once per year. Note: If your clothes are not getting dry, then check the ducting for obstructions. Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building, gas vent, or any other common duct or chimney. This could create a fire hazard from the lint expelled by the dryer.

ELECTRIC AND GAS DRYER

Weather Hood Type Recommended Use only for short-run installation 4” (10 .16 cm) 2.5” (6.35 cm) No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*

24.4 m (80 ft.)

12.4 m (41 ft.)

22.6 m (74 ft.)

10.1 m (33 ft.)

20.7 m (68 ft.)

11.2 m (37 ft.)

18.9 m (62 ft.)

8.8 m (29 ft.)

17.4 m (57 ft.)

10.1 m (33 ft.)

15.5 m (51 ft.)

7.6 m (25 ft.)

14.3 m (47 ft.)

9.0 m (29 ft.)

12.5 m (41 ft.)

6.5 m (21 ft.)

• Do not use non-metallic flexible ducts. 14_ Installing your dryer If the new dryer is installed into an existing exhaust system you must make sure:
• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To inspect and clean all lint buildup from inside the existing duct.
• The duct is not dented or crushed.
• The exhaust hood damper opens and closes freely. The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than 0. This can be measured with the dryer running with a manometer at the point where the exhaust duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference. WARNING Remove the door from all discarded appliances to avoid the danger of a child being trapped and suffocating. LOCATION CONSIDERATIONS The dryer should be located where there is enough space at the front for loading the dryer, and enough space behind for the exhaust system. This dryer is factory-ready for the rear exhaust option. To exhaust out the bottom, right or the left, use the accessory exhaust kit. Instructions are included with the kit. Make sure the room in which the dryer is located has enough fresh air. The dryer must be located where there are no air-flow obstruction. For gas dryers, adequate clearance must be maintained as noted on the data plate to ensure adequate air for combustion and the proper dryer operation. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A dryer produces combustible lint. The area around the dryer should be kept lint-free.

ALCOVE OR CLOSET INSTALLATIONS

The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or closet. No other fuel-burning appliance should be installed in the same closet as the dryer.

WARNING: To reduce the risk of fire, this dryer must be exhausted to the outside. Refer to “Exhausting”

section on page 16. Minimum clearances between the dryer and adjacent walls or other surfaces are: 2” in front, 17” on top, 1” on either side, and 5” at the back. The front of the closet must have two unobstructed air openings for a combined minimum total area of 72 in² with a minimum clearance of 3” at the top and bottom. A slatted door with equivalent space clearances is acceptable. Installing your dryer _15 Installing your dryer

MOBILE HOME INSTALLATIONS

The installation of the dryer in a mobile home must conform to the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 3280 {formerly the Federal Standards for Mobile Home Construction and Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).

• When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
• Locate an area with adequate fresh air.
• A minimum unobstructed space of 72 in² (465 cm²) is required.
• Call 1-800-SAMSUNG for information on purchasing the Floor Anchoring Kit as an accessory.
• All mobile home installations must be exhausted to the outside with the exhaust duct termination securely fastened to the mobile home structure, using materials that will not combust.
• The exhaust duct may not terminate underneath the mobile home.
• Refer to the following “Exhausting” section for more information. EXHAUSTING The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a building. Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room. See “Ducting requirements” in installing your dryer section for the maximum duct length and number of bends.

All dryers must be exhausted to the outside. The duct must not be assembled with screws or other fastening means that extend into the duct and catch lint. The required exhaust duct is 4 inches (102 mm) in diameter. The total length of flexible metal duct shall not exceed 2.4 m (7.8 ft.). In the United States:

Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Ducts, Subject 2158A, shall be used. In Canada:

Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer. Outside the U.S. and Canada:

Refer to the local codes. WARNING WARNING The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or closet. NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT. If your existing ductwork is plastic, non-metal, or combustible, replace it with metal. Use only a metal exhaust duct that is non-flammable to ensure containment of the exhaust air, heat, and lint. 16_ Installing your dryer THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA). Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician. A 1/2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8” (1 cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off valve be installed within 6” of your dryer. Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor. Additionally, a 1/8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge connection, must be installed immediately upstream of your dryer’s gas supply connection. Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system. DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas Association (CGA in Canada).

• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation. GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner. There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION

INSTRUCTIONS Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be installed in the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the connector may not be longer than 3’ (36”).

• Gas leaks may occur in your system, creating a dangerous situation. Gas leaks may not be detected by smell alone. WARNING •
• Gas suppliers recommend that you purchase and install a UL-approved gas detector.
• Install and use it in accordance with the manufacturer’s instructions. Installing your dryer _17 Installing your dryer ELECTRICAL REQUIREMENTS The wiring diagram is located on the plate below the control panel. WARNING

The improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer - if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician. To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical services for your dryer. All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and local codes and ordinances. GROUNDING This dryer must be grounded. In the event of a malfunction or breakdown, the grounding the product will reduce the risk of electrical shock by providing a path of least resistance for the electrical current. Gas models WARNING Your dryer has a cord with an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician. Never connect the ground wire to the plastic plumbing lines, gas lines, or hot water pipes. Electric models WARNING Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug. The cord is sold separately. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician. If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dryer. 18_ Installing your dryer ELECTRICAL CONNECTIONS Before operating or testing, follow all grounding instructions in the “Grounding” section on page 18. An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD. Gas models – U.S. and Canada A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is required. Electric models – U.S. only Most U.S. dryers require a 120/240 volt, 60 Hz AC approved electrical service. Some require 120/208 volt, 60 Hz approved electrical service. The electric service requirements can be found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOT provided with U.S. electric model dryers. WARNING RISK OF ELECTRIC SHOCK: When local codes allow, the electrical supply of the dryer may be connected by means of a new power supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for 4 wire receptacles, NEMA type 14-30R.) Electric models – Canada Only

A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required. All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle. In Canada, you may not convert a dryer to 208 volts. Installing your dryer _19 Installing your dryer

CONNECTING THE INLET HOSE

Method 1 The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses.

1. If space permits, attach the brass female end of the “Y”

connector to the cold water faucet.

2. Turn the cold water faucet off.

3. Attach the straight end of long hose to the “Y’ connector.

4. Using pliers, tighten the coupling with an additional twothirds turn.

Do not overtighten, as this may damage the coupling.

5. Attach the angled end of long hoses to fill the valve at the

bottom of the dryer’s rear frame. Screw on the coupling by hand until it is seated on the fill valve connector.

6. Using the pliers, tighten the coupling with an additional twothirds turn.

Y-Connector Water Hose Duct Exhaust Frame (back) Do not overtighten, as this may damage the coupling.

7. Check that the water faucets are on.

8. Check for leaks around the “Y” connector, faucets and

hoses. Water Hose 20_ Installing your dryer Method 2 The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses. Short hose (Inlet to cold water)

1. If the “Y” connector cannot be attached directly to the cold

water faucet, the short hose must be used.

2. Turn the cold water faucet off.

3. Attach the short inlet hose to the cold water faucet.

Screw on the coupling by hand until it is seated on the faucet.

4. Using the pliers, tighten the coupling with an additional twothirds turn.

“Y” connector Long hose Do not overtighten, as this may damage the coupling.

5. Attach the ‘Y” connector to the brass male end of the small

hose. Screw on the coupling by hand until it is seated on the connector.

6. Using the pliers, tighten the coupling with an additional twothirds turn.

Duct Exhaust Frame (back) Do not overtighten, as this may damage the coupling.

7. Attach the angled end of long hoses to the fill valve at the

bottom of the dryer rear frame. Screw on the coupling by hand until it is seated on the fill valve connector.

8. Using pliers, tighten the coupling with an additional twothirds turn.

Water Hose Do not overtighten, as this may damage the coupling.

9. Check that the water faucets are on.

10. Check for leaks around the “Y” connector, faucets and

hoses. Installing your dryer _21 Installing your dryer

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer where you purchased your dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864). INSTALLATION For the proper installation, we recommend that you hire a qualified installer. To install

1. Move your dryer to an appropriate location for the

installation. Consider installing the dryer and washer sideby-side, to allow access to the gas, electrical, and exhaust connections. Place two of the carton cushion-tops on the floor. Tip your dryer on its side so it lies across both cushiontops.

2. Set your dryer back in an upright position.

3. To ensure that the dryer provides the optimal drying

performance, it must be level. To minimize vibrations, noise, and unwanted movement, the floor must be a perfectly level, solid surface. Level To set the dryer to the same height as the washer, fully retract the leveling feet by turning them counterclockwise, then loosen the legs by turning them clockwise. Leveling feet Retract fully Then loosen Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

4. Review the “Exhausting” section on page 16 before installing the exhaust system. Install the

ductwork from your dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer. DO NOT use sheet metal screws when assembling the ducting. These joints should be taped. Never use plastic flexible exhaust material. Tip for tight installations: install a section of the exhaust system onto your dryer before putting it in place. Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the back of the unit in dryer cabinet. 22_ Installing your dryer

5. Review the “Electrical requirements” section on page 18.

BEFORE OPERATING OR TESTING, follow the grounding instructions in the “Grounding” section on page 18. U.S. MODELS: RISK OF ELECTRIC SHOCK - All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. If the 4-wire system is used, the dryer frame cannot be grounded to the neutral conductor at the terminal block. Refer to the following instructions for 3 and 4-WIRE SYSTEM CONNECTIONS. Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near the terminal block. A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure they are tight. Use a 3/8” (1 cm) deep well socket.

6. Review the “Gas requirements” section on page 17. Remove the pipe thread protective

cap. Apply a pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections. The pipe joint compound must be resistant to the actions of any liquefied petroleum gas. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4” (1.9 cm) female thread end of a flexible connector to the 3/8” (1 cm) male threaded end on the dryer. Securely tighten the gas line fitting over the threads. Turn on the gas supply. Check all gas connections for leaks using a soap solution. If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks. Installing your dryer _23 Installing your dryer 3-WIRE system connections

1. Loosen or remove the center terminal block screw.

2. Connect the neutral wire (white or center wire) of the power cord to the center, silver-colored

terminal screw of the terminal block. Tighten the screw.

3. Connect the other wires to the outer terminal block screws. Tighten the screws.

4. Tighten the strain relief screws.

5. Insert the tab of the terminal block cover into your dryer’s rear panel slot.

6. Secure the cover with a hold-down screw.

External ground connector

Neutral grounding wire (green/yellow)

Center silver-colored terminal block screw

Neutral wire (white or center wire)

If converting from a 4-wire electrical system to a 3-wire, the ground strap must be reconnected to the terminal block support to ground the dryer frame to the neutral conductor. 4-WIRE system connections

1. Remove the center terminal block screw.

2. Connect the ground wire (green or unwrapped) of the power cord to the external ground

3. Connect the neutral wire (white or center wire) of the power cord and the appliance ground

wire (green with yellow stripes) under the central screw of the terminal block.

4. Connect the other wires to the outer terminal block screws. Tighten the screws.

5. Tighten the strain relief screws.

6. Insert the tab of the terminal block cover into your dryer’s rear panel slot.

7. Secure the cover with a hold-down screw.

External ground connector

Green or bare copper wire of the power cord

Center silver-colored terminal block screw

Grounding wire (green/yellow)

Neutral wire (white or center wire) /4 in. (1.9 cm) UL-listed strain relief

8. With a level, check your dryer and make the necessary adjustments to the leveling legs.

9. At this time, make sure all gas connections (on gas models), exhaust and electrical

connections are complete. Plug in your dryer, and check its operation by using the checklist below.

10. (GAS MODELS ONLY)

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. In order to confirm the gas ignition, check the exhaust for heat. 24_ Installing your dryer

FINAL INSTALLATION CHECKLIST

the dryer is plugged into an electrical outlet and is properly grounded. The exhaust ductwork is hooked up and the joints are taped. A plastic flexible duct is NOT used. Use rigid or stiff-walled flexible metal vent material. The dryer is level and is sitting firmly on the floor. Gas models – the gas is turned on with no gas leaks. Start your dryer to confirm that it runs, heats, and shuts off.

DRYER EXHAUST TIPS

A plastic or non-metal flexible duct presents a potential fire hazard. WARNING

1. Make sure your dryer is installed properly so it exhausts air

easily. Wall Dryer Duct Exhaust

2. Use a 4” diameter rigid metal duct. Tape all joints, including

at the dryer. Never use lint-trapping screws.

3. Keep ducts as straight as possible.

4. Clean all old ducts before installing your new dryer. Be sure

the vent flap opens and closes freely. Inspect and clean the exhaust system annually. Don’t let a poor exhaust system slow the drying process by:

Restricting your dryer with a poor exhaust system.

Using a plastic, thin foil, or non-metal flexible duct.

Unnecessarily using long ducts that have many elbows.

Allowing dented or clogged ducts and vent. Installing your dryer _25 Installing your dryer DOOR REVERSAL

1. Unplug the power cord.

2. Remove two door hinge screws.

3. Lift the door and remove it.

4. Remove two screws from the frame front.

5. Remove the two screws from the opposite side of the door

6. Remove the two screws from the holder lever.

7. Reassemble the two screws on the inside holes.

8. Remove a screw from the door hinge.

The screw is for pre-fixing the door to the frame front. 26_ Installing your dryer

9. Reassemble the screw in the other hole.

10. Place the door on the other side and reattach it to the dryer.

11. Reattach the holder lever.

12. Reattach the screws in the remaining holes.

Installing your dryer _27 Installing your dryer SETTING UP YOUR DRYER FOR THE FIRST TIME When you turn on your dryer for the first time, the intro animation, which shows the Samsung logo and plays each time you turn on the dryer, appears on the LCD panel. After the animation plays, you are guided through the initial setup procedure. The setup procedure lets you set your dryer preferences and consists of the following 5 steps:

1. Choosing your language

2. Setting the current date

3. Setting the current time

Precautions for using the LCD panel

If you touch the LCD panel while wearing rubber gloves, it may not operate properly. If you touch the LCD panel with wet hands, it may not operate properly or may malfunction. If the LCD panel is wet, it may malfunction. Choosing your language

1. Tap the language you want to use for the

controls, instructions and descriptions shown in the LCD panel. There are 4 available languages: English, Español (Spanish), Français (French) and Portuguese.

2. Tap the Next button when done.

Setting the current date

1. Tap the up and down arrows to set the date.

Tap the left and right arrows at the bottom of the screen to move to other calendar months.

2. Tap the Next button when done.

Setting your current time

1. Set the desired time by tapping on the up and

2. Tap the Next button when done.

28_ Installing your dryer After completing the initial setup, you can access each step and change your preferences any time using the Settings control located at the bottom right of the Cycle Selection screen displayed in the LCD panel. For example, If you want to set the time again... Tap the Settings at the bottom right of the Cycle Selection screen. Tap the Time & Language at the Setting screen. Tap the Change button under the Time. Tap the up and down arrows to change to the desired time. Tap the OK button. You can view and change the settings of the Language and Date through the same steps above. Installing your dryer _29 Drying a load of laundry With your new Samsung Dryer, the hardest part of doing laundry will be deciding which load to dry first. WARNING To reduce the risk of fire, electric shock, or injury to persons,read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

DRYING FOR THE FIRST TIME

Before drying laundry for the first time, you must run a complete empty cycle (i.e. no laundry).

1. Press the Power button.

2. Press the Start/Pause button.

The dryer runs the Normal cycle. This is the factory default cycle the washer will run until you select another cycle. This first empty cycle removes any water that might be left over in the machine from the manufacturer’s test run. BASIC INSTRUCTIONS

1. Load your laundry into the dryer.

WARNING Do not overload the dryer. To determine the load capacity for each type of laundry, refer to the “Cycle chart” section on page Make sure that laundry is not caught in the door.

Close the door until it latches. Turn the power on. Select the appropriate cycle and its options in the LCD panel. The selected cycle and its selected options light up and the estimated cycle time appears at the top right of the LCD panel.

6. Press the Start/Pause button.

Do not touch the door glass while your dryer is running. It may be hot. 30_ Drying a load of laundry Select the cycle you want to use for your laundry. The Cycle pane contains a list of cycles that you can scroll down or up. To view more cycles, drag from the bottom to the along the Cycle pane.

• For more information on the cycles you can select in the Cycle pane, refer to the “Available cycles” section on page 32.
• For more information, refer to the “Drying your laundry using the cycle selection screen” section on page 36. Displays the currently selected options for the selected cycle and allows you to change them. There are four options, Dry level, Temperature, Time, and Extras. For more information on the options you can select in the Option pane, refer to the “Available options” section on page 33.

STATUS PANE Consists of three sections: Cycle time, Eco bar and Actions.

Displays the estimated amount of time the selected cycle and its selected options will take to complete.

Displays the energy efficiency of the selected cycle by showing the estimated environmental friendliness of the selected cycle and its selected options on a scale.

ACTIONS SECTION Provides the following additional controls that allow you to carry out additional actions and view and configure other settings: Smart Control, Save as My Cycles, Delay Start, Child Lock, Light, and Settings. For more information on the additional controls you can use in the Actions section, refer to the “Available actions” section on page 34. Drying a load of laundry _31 Drying a load of laundry Available cycles The preset cycles listed in the Cycle pane of the Cycle Selection screen can be categorized in the following three groups. Sensor Dry cycles Your dryer automatically determines the optimal duration required to dry your laundry. Because you don’t need to set the the duration, the duration controls are unavailable on the Control Panel. Manual Dry cycles You can manually set the duration, but your dryer automatically determines the necessary dry level (Damp Dry, Less Dry, Normal Dry, More dry, and Very Dry). Because you don’t need to set the dry level, the dry level controls are unavailable on the Control Panel. Steam cycles The dryer automatically sets the duration and dry level appropriate for the laundry you are drying. You can change the time, if necessary. Sensor Dry cycles Eco Normal The eco Normal cycle reduces energy usage by up to 15% compared to the Normal Dry course. It adjusts the cycle time and temperature for increased efficiency. Normal The Normal cycle is for most fabrics including cotton, underwear and linen. Heavy Duty The Heavy Duty cycle provides high temperature for a heavy fabrics such as jeans, corduroy or work clothes. Perm Press The Perm Press cycle is for wrinkle-free cottons, synthetic fabric, knitwear and permanent press fabrics. Delicates The Delicates cycle is for heat-sensitive items. This cycle uses a low drying temperature. Active wear The active Wear cycle is for exercise wear and outdoor wear such as sports jerseys, training pants, water-repellent jackets and other performance clothing. Thick fabrics like a zipper or velcro closure of a jacket, or training socks may not be completely dried. Bedding PLUS The Bedding PLUS cycle is for bulky items such as blankets, sheets and comforters. Sanitize The Sanitize cycle sanitizes garments at high temperatures and keeps your bedding and curtains clean. The Wool cycle is for machine washable and tumble dryable woolen items only. The load should be under 3 pounds, The wool cycle of this machine has been approved by Woolmark company for Total-Easy-Care Wool products, M0913(DV457E*), M1007(DV457G*). Wool Manual Dry cycles Time Dry The Time Dry cycle allows you to select a cycle time in minutes. Quick Dry The Quick Dry cycle provides a 30 minute drying cycle. Air Fluff The Air Fluff cycle tumbles the load at room temperature. 32_ Drying a load of laundry Steam cycles The Refresh cycle is best for smoothing out wrinkles and reducing odors in loads of one to four items. Wrinkle Away The Wrinkle Away cycle removes wrinkles from clothes stored in closets, etc. It provides wrinkle release via optimized steam care. You can change the drying time. (Minimum time : 20 minutes) For best results, load no more than 3 items. Available options You can view the currently selected options for the selected cycle and change them in the Option pane of the Cycle Selection screen. There are four options, Dry level, Temperature, Time, and Extras. Dry level Tap this option to change the currently selected dry level setting. The available dry level settings are Damp dry, Less dry, Normal dry, More dry, and Very dry. However, depending on the selected cycle, some of these options will be disabled. Temperature Tap this option to change the currently selected temperature setting. The available temperature settings are Extra Low, Low, Med Low, Medium, and High. However, depending on the selected cycle, some of these options will be disabled. Time Tap this option to change the currently selected time setting. The available time settings are Automatic, 20 min, 30 min, 40 min, 50 min, and 60 min. The Time option cannot be changed in the Sensor Dry cycles and Steam cycles. You can set the Time option in the Manual Dry cycles only. Extras Tap this option to add extra cycles to or remove extra cycles from the selected cycle. The available extra cycles are Rack dry, Wrinkle prevent, and Mixed load bell. However, depending on the selected cycle, some of these extra cycles will be disabled. Tap each enabled extra cycle to add it to or remove it from the selected cycle. Rack Dry - Rack Dry is available in the Time Dry cycle. the temperature is only set to Extra Low. RACK DRY is for items, such as washable sweaters and lingerie that should dry flat and and also can be used with items such as stuffed toys that should not be tumbled. Wrinkle prevent - Wrinkle Prevent provides approximately 180 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. The load is dry, and can be removed at any time during the Wrinkle Prevent cycle. Mixed load bell - The mixed load bell that notifies you when the average dry level in a load is damp dry (80 % dried).This lets you take garments that you don’t want fully dried or that dry quickly out of the dryer early while letting others continue to dry. You can select this function in all Sensor Dry cycles except Wool, Sanitize, and Active Wear. The dry level selections are limited to Normal Dry, More Dry, and Very Dry. Drying a load of laundry _33 Drying a load of laundry Available actions You can carry out additional actions and view and configure other settings using the controls provided in the Actions section of the Cycle Selection screen. There are six controls, Smart Control, Save as My Cycles, Delay Start, Child Lock, Light, and Settings. Smart Control (Elec. Model Only) Tap this control to turn the Smart Control function on or off. When this function is turned on, you can control the dryer using your mobile phone. Turning the Smart Control function on changes the icon from

Any action you perform on your dryer will turn off the Smart Control Function. (Opening the door, tapping the LCD panel, pushing buttons, etc.) Smart Monitor (Gas Model Only) Tap this control to turn the Smart Monitor function on or off. When this function is turned on, you can monitor the drying process and be notified when the cycle is complete. Turning the Smart Monitor function on changes the icon from

Save as My Cycles Tap this control ( ) to save the currently selected cycle and its options as a My Cycle. Save your favorite cycle including the drying level, temperature, time, and extras options. You can save up to 3 My Cycles. For more information, refer to the “Using the My Cycle function” section on page 38. Delay Start Tap this control to delay the start of the selected cycle by setting a specific start time. If the dryer recognizes that the Smart Grid is available, the options for turning variable energy use on or off are accessible. When the Delay Start function is turned on, the icon changes from For more information, refer to the “Using the Delay Start function” section on page 39.

Child Lock Activate and deactivate the Child Lock function using this control.

Tap this control to activate the deactivated Child Lock function (

• Hold down this control for 6 seconds to deactivate the activated Child Lock function ( For detailed information on the Child Lock function, refer to the “Using the Child Lock function” section on page 40. 34_ Drying a load of laundry Light Tap this control to turn the light inside the drum on or off. Turning the light on changes the icon from

For more information, refer to the “Turning the Light On/Off” section on page 41. Settings Tap this control ( ) to navigate to the Settings screen where you can configure the dryer according to your preferences. The Settings screen provides the following options: Display & Sound Tap this control to change the LCD brightness level and sound volume of the dryer. The LCD brightness has 5 levels from Level 1 to Level 5. The sound volume has 5 levels from Mute to Level 4. For more information, refer to the “Controlling the sound volume” section on page 41 and the “Controlling the brightness level” section on page 42. Tap this control to change the current date and time of the dryer and the LCD language. Network Tap this control to configure your Wi-Fi network, turn it on or off, view the health of your Wi-Fi network connectivity and/or update the networking software. After your Wi-Fi network is configured, while it is turned on and its status is good, you can control some functions of your dryer using your mobile phone if the Samsung Smart Washer/Dryer App is installed on the phone. Open Source License Notice This device uses open source software. Open Source Licenses are available in the product menu. Tab “Settings > Network > Software Update > Legal Information” on the device for more details. Energy Efficiency Tap this control to view the current average energy efficiency of your dryer, which is determined by your energy usage. For more information, refer to the “Viewing the Energy Efficiency” section on page 42. Smart Grid Tap this control to control and save energy and money by adjusting the smart grid settings. For more information, refer to the “Using the Smart Grid” section on page 43. Drying a load of laundry _35 Drying a load of laundry DRYING YOUR LAUNDRY USING THE CYCLE SELECTION SCREEN Loading the dryer properly

Place only one load in your dryer at a time. Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remaining damp at the end of a drying cycle. Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency. Overloading restricts the tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics. Overloading may cause the dryer door to open while drying. WARNING Drying your laundry using the Cycle Selection screen

1. Load your dryer loosely - DO NOT overload.

2. Close the door.

3. Press the Power button.

4. In the Cycle Selection screen, select the

appropriate cycle: Eco Normal, Normal, Heavy Duty, Perm Press, Delicates, Active Wear, Bedding PLUS, Sanitize, Wool, Time Dry, Quick Dry, Air Fluff, Refresh and Wrinkle Away. Select the cycle according to the kind of laundry items you intend to dry.

• Scroll down or up the Cycle pane and tap a cycle.
• The Option pane shows a description of the selected cycle and the options of the currently selected cycle. 36_ Drying a load of laundry

5. Tap the appropriate option button to control the

drying level, temperature, time, and extras. Depending on each cycle group or cycle, some of the options can be disabled.

• The Dry level option cannot be changed in the Manual Dry cycles and Steam cycles. When you tap the Dry level option, the Dry level buttons are disabled.
• The Time option cannot be changed in the Sensor Dry cycles and the only Refresh of Steam cycles. It is automatically set to Automatic in both cycle groups. When you tap the Time option, the time buttons are disabled. See the figure above, right.
• You can set the Time option in Manual Dry cycles (Air Fluff , Quick Dry, and Time Dry) only. Tap a pre-existing time button or tap the up / down arrows to change the time from the automatically set times in the Manual Dry cycles.
• The Extras settings can only be turned On or Off. Tap the left arrow ( ) if you want to return to the Cycle pane and select a different cycle.

6. Press the Start/Pause button to start the load.

The Cycle Status screen is displayed on the LCD panel. Press the Power button to cancel the cycle and turn off your dryer. WARNING Do not place anything on top of your dryer while it is running. When the cycle is finished: After the total cycle has finished, the Cycle complete screen is displayed. It shows the cycle name and a summary review of its phases, and allows you to start a new load.

1. Open the door.

2. Remove the laundry.

Drying a load of laundry _37 Drying a load of laundry Using the My Cycle function The My Cycle function allows you to activate your custom drying settings (drying level, temperature, time and extras) with one button convenience. You can save up to 3 My Cycles. Saving a My Cycle Follow the steps below to save your favourite custom dry cycle as a My Cycle.

1. We will assume that there is no saved My

Cycle. In this case, when you tap the My Cycle button in the Cycle Selection screen, it will expand and show a list of 3 None buttons (None1 to None3), as shown in the right figure.

2. Select a cycle and its options, such as drying

level, temperature, time, and extras, in the Cycle Selection screen. Refer to the “Cycle chart” section on page 65 for available option settings with the each cycle.

3. Tap the Save As My Cycles button located at

the right center of the Cycle Selection screen.

4. Select the My Cycle you want to overwrite

with the selected cycle and its options. In this example, select My Cycle 1: None. Then tap the Next button.

5. The Save as new name screen is displayed.

Enter the name you want to give the My Cycle. In this example, enter “J’s Wash”. Then tap the Save button.

6. A summary of the My Cycle that will overwrite

the existing one (None1 in this example) is displayed, as shown in the figure right. Tap the OK button.

7. The My Cycle “None1” is changed to “J’s

Wash” in the My Cycle list of the Cycle Selection screen. 38_ Drying a load of laundry Starting a My Cycle Follow the steps below to start a My Cycle to dry your laundry.

1. Tap the My Cycle button in the Cycle Selection screen. It will expand and show a list of 3

2. Tap the desired My Cycle button.

3. Press the Start/Pause button to start the load.

Using the Delay Start function By activating the Delay Start function, you can set your dryer to start a load automatically at a later specific time. Activating Follow the steps below to activate the Delay Start function.

1. Tap the Delay Start Off (

) button located at the bottom right of the Cycle Selection screen. The Delay Start screen is displayed.

2. Tap the up / down arrows to set the time.

3. If the Smart Grid function is available, you can allow your dryer to find the most energy

efficient time (also called the most eco-friendly time) to run your load within the range around the time you set.

4. Press the Start/Pause button to activate the Delay Start function with the options you set.

Tap the Cancel button to cancel the function.

5. You will be returned to the Cycle Selection screen.

You will see that the Delay Start OFF (

) button is changed to the Delay Start ON ) button. Deactivating Follow the steps below to deactivate the Delay Start function.

Tap the Delay Start ON ( ) button located at the bottom right of the Cycle Selection screen. The Delay Start function is deactivated and the button changes to the Delay Start OFF

) button. Drying a load of laundry _39 Drying a load of laundry Using the Child Lock function The Child Lock function allows you to lock the buttons so that the dry cycle you’ve chosen can’t be changed. CAUTION Child Lock is a function to prevent children or the infirm from accidently operating the dryer and injuring themselves. If a child enters the dryer, the child may become trapped and suffocate. WARNING CAUTION Although the Child Lock function is activated, you must keep an eye on children so that they do not operate your dryer. Activating Follow the steps below to activate the Child Lock function.

Hold down The Child Lock button ( ) for 3 seconds. Then, The Child Lock Function is activated with pop-up “Child Lock ON”, and the button changes from ( ) to (

Deactivating Follow the steps below to deactivate the Child Lock function.

Hold down The Child Lock button ( ) for 3 seconds. The Child Lock Function is deactivated with pop-up “Child Lock Off”, and the button changes from ( ) to (

When the Child Lock function is activated, only the Child Lock button works. The Child Lock function remains on even after you turn the power off and back on or disconnect and then reconnect the power cord. CAUTION To add laundry when the Child Lock function is activated, you have to first pause or deactivate the Child Lock function. When the Child Lock function is activated, the screen does not change visually (no dimming or greying out). If you tap a button or any part of the screen, a tooltip reminder that the Child Lock function is turned on is displayed. 40_ Drying a load of laundry Turning the Light On/Off You can turn the light on/off at any time. Tap the Light OFF ( Status screen. ) button located at the bottom right of the Cycle Selection or Cycle The light is turned on immediately and the button changes to the Light ON ( ) button. Turning off Tap the Light ON ( Light OFF ( ) button. The light is turned off immediately and the button changes to the ) button. Controlling the sound volume You can control the volume of the sound interactions of your dryer. There are 5 volume levels from Mute to Level 4. Even if the power is turned on and off repeatedly, the setting is retained. Follow the steps below to control the volume level.

1. Tap the Settings button in the Cycle

2. Tap the Display & Sound button in the

3. Tap the Volume section.

4. Tap the desired volume level button.

5. Tap the OK button to apply the changes.

Drying a load of laundry _41 Drying a load of laundry Controlling the brightness level You can control the brightness level of the LCD panel. There are 5 brightness levels from Level 1 to Level 5. Even if the power is turned on and off repeatedly, the setting is retained. Follow the steps below to control the volume level.

1. Tap the Settings button in the Cycle

2. Tap the Display & Sound button in the

3. Tap the Brightness section.

4. Tap the desired brightness level button.

5. Tap the OK button to apply the changes.

Viewing the Energy Efficiency You can view the overall energy efficiency of your drying operations or behavior. The energy efficiency is determined based on energy usage. Follow the steps below to view the overall energy efficiency.

1. Tap the Settings button in the Cycle

2. Tap the Energy Efficiency button in the

3. Tap the More... button to view the average

energy use for the last 12 months.

4. Tap the OK or Cancel button to return to the

Settings screen. 42_ Drying a load of laundry Using the Smart Grid If your energy supplier introduces Smart Grid which means that consumers be provided with timely information and options for controlling energy use, the Smart Grid functions below will be visible and ready to be used. You can view the current energy use level of your neighborhood in the Smart Grid State section of the Smart Grid screen. There are 5 Smart Grid energy use states or levels from Level 0 to Level 4. The higher the level, the closer your neighborhood is to a blackout. You can also view and change the Override Time. The Override Time is the amount of time that your Dryer will ignore Smart Grid signals to temporarily curtail energy use and continue to use a full complement of energy. This lets you override Smart Grid signals to cut energy use if, for example, you need to dry a load of wash right away. When the Smart Grid is available for your neighborhood, the Description, Smart Grid State and Override sections are displayed in the Smart Grid screen. Viewing your neighborhood’s current energy level Follow the steps below to view our neigborhood’s current energy level on the smart grid.

1. Tap the Settings button at the bottom right of the Cycle Selection screen.

The Settings screen is displayed.

2. Tap the Smart Grid button in the Settings screen.

3. Tap the Smart grid state section to view detailed information on the current energy level.

4. Tap the OK or Cancel button to return to the Settings screen.

Drying a load of laundry _43 Drying a load of laundry Viewing and changing the Override Time Follow the steps below to view and change the override time.

1. Tap the Settings button at the bottom right of

the Cycle Selection screen.

2. The Settings screen is displayed.

3. Tap the Smart Grid button in the Settings

4. Tap the Override section.

5. Tap the desired override time.

6. Tap the OK button to apply the changes.

7. You are returned to the Settings screen.

When the Smart Grid is unavailable for your neighborhood, the description in the figure, right, is displayed in the Smart Grid screen.

When the Smart Grid function is unavailable because of a problem with your power utility, the description as shown in the figure, right, is displayed in the Smart Grid screen. 44_ Drying a load of laundry

1. Open the dryer door.

2. Position the drying rack in the tumbler, placing

the front lip of the drying rack on the top of the lint filter.

3. Place the rear legs in the two recessed areas

of the dryer’s back wall and push the middle of the drying rack down to fix it in place.

4. Place the items to be dried on the rack, leaving

space between them so air can circulate.

5. Close the dryer door.

6. Tap the Time Dry button in the Cycle pane

of the Cycle Selection screen. Note that the Rack Dry option is only available in the Time Dry cycle.

7. Tap the Extras section in the Option pane.

8. Tap the Rack Dry button in the Extras section.

9. Select the time according to the moisture and

10. Tap the OK button to apply the changes.

11. Press the Start/Pause button to start drying.

To dry items made from materials that are vulnerable to heat such as foam rubber, plastic and rubber, use the Air Fluff cycle. If you dry these kinds of items by applying heat, the product may be damaged or a fire may occur as a result. Never use the drying rack with any cycle other than the Rack Dry cycle. WARNING

CHECKING THE FILTER

Checking the filter The filter check notification pops up before the cycle you’ve set begins, reminding you to check the dryer’s filter. Cleaning the filter Clean the filter to shorten drying time and operate the dryer with greater energy efficiency. Do not operate your dryer without the filter in place. Drying a load of laundry _45 Drying a load of laundry VENT SENSOR Your Samsung dryer is equipped with a Vent Sensor, which detects and notifies you when it is time to clean the ductwork. Keep your dryer safe and efficient by cleaning the ducts when prompted. The Vent Sensor detects any duct blockages You can figure out whether there is a duct blockage from the message below the process bar. Level Message Status Solution

No message The ductwork is free from blockages.

Check for vent blockage after cycle completes. When a part of the duct or the lint filter is blocked by lint or a foreign object. When the resistance is high because the duct is too long or bent. Check the duct connection, shorten the duct, or straighten it if necessary. Check the lint filter or the duct and clean it if necessary.

Vent is blocked. Do not continue without checking vent.1) When the duct is blocked by lint or a foreign object. When the resistance is very high because the duct is too long or bent excessively. Check the duct connection, shorten the duct, or straighten it if necessary. Check the lint filter or the duct and clean it as soon as possible.

In the LEVEL 2 state, this message is displayed for 3 hours after the completion of the cycle. (If the wrinkle prevention function is activated, this message is displayed for up to 3 hours.) If the power button is pressed or the door is opened, the power is immediately turned off. For more information about the duct installation, please refer to the “Ducting requirements” section on page 14.

• Although the dryer is available even if the blockage message is displayed, the drying time may be extended.
• If the LEVEL 1 message is displayed the first time the dryer is run after installation, check the connection and clean the duct. If the LEVEL 1 message appears even after you have checked and cleaned the ducts, this may indicate that there are some restrictions of the duct due to the length, condition, etc.. If this occurs, you can use the dryer normally and no countermeasures need to be taken. However, the drying time may be extended or the drying performance may be degraded 46_ Drying a load of laundry Using your mobile phone You can receive notifications and control your dryer from your mobile phone. To do this, you need to do the following. Setup a Wi-Fi network for your dryer Turn on the Wi-Fi networking function of your dryer Download and run the mobile app, Samsung Smart Washer/Dryer App Use the mobile app, Samsung Smart Washer/Dryer App No wired or wireless router (AP) is provided when you purchase your washer. The washer supports the Wi-Fi encryption protocols, WEP, TKIP and TKIP AES. It does not support connecting to a wired or wireless router (AP) that uses a Wi-Fi encryption protocol other than these. CAUTION

If a wireless router (or Access Point) is not WPS authenticated, a connection failure might occur. If a wireless router that is not WPS authenticated is connected wirelessly to an air conditioner, the Wi-Fi connections of other previously connected units might be disconnected. If this appliance is installed in a building where no wireless router (AP) is installed for that floor, the network connectivity may be degraded. If this appliance is installed in a location such as inside a utility closet made from metal or reinforced concrete, the network connectivity may be degraded. If this appliance or the wireless router (AP) is installed near a microwave or drier, the network connectivity may be degraded due to interference. If the wireless router (AP) is a non-certified product, this appliance may not connect to the network. This appliance does not support the wireless networking protocols 802.11n and 802.11a. This product does not contain a wireless router. CONFIGURING YOUR DRYER’S NETWORK SETTINGS AND

CONNECTING TO YOUR NETWORK

To configure your washer’s Wi-Fi settings and connect your washer to your network, follow the procedures below. Configuring the IP address settings Follow the procedure below to configure the IP address settings of your dryer for a Wi-Fi network.

1. Tap the Settings button in the Cycle

2. Tap the Network menu in the Settings screen.

3. Tap the Wi-Fi network section.

4. Tap the Configure button.

5. Tap the IP Address button next to the network

you want to configure.

6. Tap the Automatic button to have your dryer

configure the IP address settings automatically, and then go to Step 11. If you need to configure the IP address and other settings manually, go to Step 7.

7. Tap the User Config button to configure the IP address settings manually.

8. Tap the IP address field.

9. Enter an IP address and then tap the OK button.

10. Repeat steps 8 and 9 for the Subnet mask, Gateway, and DNS fields.

11. Tap the OK button in the Settings screen.

Using your mobile phone _47 Using your mobile phone Connecting your dryer to the network Follow the procedure below to connect your dryer to a Wi-Fi network.

1. Tap the Settings button in the Cycle Selection screen.

2. Tap the Network menu in the Settings screen.

3. Tap the Wi-Fi network section.

4. Tap the Configure button.

5. Tap the name of the network to which you want to connect your dryer.

6. Enter your network password and then tap the OK button.

7. The dryer searches for the network. The Connect to Wi-Fi screen is displayed to show the

8. If the network is found, the “Connection has been successfully established” message is

displayed for 1 second. Then you are returned to the Network List screen. A check mark appears to the left of the selected network.

9. If the network is not found, the message “Connection failed” is displayed.

Tap the Retry button to reattempt the connection. Tap the Cancel or OK button to return to the Network List screen TURNING ON THE WI-FI NETWORKING FUNCTION OF YOUR DRYER Follow the procedure below to turn on the Wi-Fi networking function of your dryer.

1. Tap the Settings button in the Cycle

2. Tap the Network menu in the Settings screen.

3. Tap the Wi-Fi status section.

4. Tap the On button.

5. Tap the left arrow (

Settings screen. ) button to return to the 48_ Using your mobile phone

HOW TO UPDATE THE SOFTWARE

1. Touch settings.

2. Touch Network.

3. If an update is available, the version number will

be displayed under Software update. Touch the version number.

4. Touch Update.

• To see if an update is available, follow Steps 1 through 3.
• When you run the update function, the LCD displays the update progress bar and announces that the product will be restarted when the update is completed.
• If the power cord of the product is unplugged, the AP power is cut, the download fails, or you press the Cancel button while the update file is being downloaded, the file is discarded. The version prior to the update is maintained.
• If the download progress of the update file does not change for 10 minutes, a connection error message appears.
• If you run the update function, and the file is already up-to-date (if the FIRMWARE CODE is the same), a message stating this appears. Using your mobile phone _49 Using your mobile phone DOWNLOADING AND RUNNING THE MOBILE APP, SAMSUNG

SMART WASHER/DRYER APP

Follow the procedure below to download and run the mobile app, Samsung Smart Washer/Dryer App.

1. Download the Samsung Smart Washer/Dryer App into your mobile phone from the

Android market. You can skip this step if the app has been already downloaded into your mobile phone.

2. Tap the Samsung Smart Washer/Dryer App icon on your

mobile phone to run the app. The initial screen is displayed.

3. The Home screen is displayed. It shows that your mobile

phone is not yet connected to your dryer.

4. Tap the Indoor control or Outdoor control button.

50_ Using your mobile phone

5. Tap the Search button.

The Samsung Smart Washer/Dryer App searches for your dryer through your Wi-Fi network.

6. The Devices screen is displayed. A list of available dryers is

shown on the screen.

7. The progress screen is displayed while the Samsung Smart

Washer/Dryer App tries to connect to your dryer. Connecting may take a minute or two.

USING THE MOBILE APP

After you dryer has been connected, you can perform the following operations using the Samsung Smart Washer/Dryer App.

• Disconnect the connection
• Start a new dry (including receiving notifications and controlling your dryer) Disconnecting the connection Follow the procedure below to disconnect the connection to your dryer.

Tap the Disconnect button. Using your mobile phone _51 Using your mobile phone Starting a new load Follow the procedure below to start a new dryer load from your mobile app.

1. Tap the Start New Load button.

The Choose cycle screen is displayed. On your dryer, you must tap the Smart Control button to turn on the Smart Control function.

2. Select the cycle you want, and then tap the Start button.

3. The cycle status including cycle progress and estimated

finish time are shown on the screen. If you want to pause the cycle, tap the Pause button. 52_ Using your mobile phone

4. When the cycle is completed, the message “Cycle complete”

and a summary review of all the phases are shown.

5. Tap the Dismiss button to return to the Home screen.

Registering your dryer

1. Access Samsung Smart appliance

website. (http://www.samsungsmartappliance.com)

2. Enter your User ID and Password to log in.

If you don’t have an account, press “Create a Samsung account” and fill in the form to become a member.

3. Select “My page” “My page”.

4. Select “Add device”.

Using your mobile phone _53 Using your mobile phone

5. Find the MAC number on your dryer and

enter it into the device page. On your dryer:

1) Tap “Settings” on Home.

2) Tap “Network”.

3) Tap “Wi-Fi Network”.

4) Tap “Configure”.

5) Record the MAC number at the top of

the screen. On the device page on your PC:

6) Enter the 12 digit MAC address in the

“mac address for the device” field.

6. Click “Certify device”.

7. Tap the Smart Control Button.

8. When certify device checking window

appears click the “Ok”. If the dryer you are registering is already registered by other users, a window appears asking whether you want to delete the usage authority of the existing users or not.

9. After the registration of the dryer is

completed, you can check the registered dryer on the device information list. 54_ Using your mobile phone OVERVIEW OF WI-FI SETTINGS AND AP CONNECTION SCREENS The first screen after entering the setup Select this to turn the Wi-Fi on Select ON Select this to select the AP Select this to search for the AP Searching for APs Select an AP (Refer to the MAC address) Enter the password for the AP and select OK Connecting to the AP When the connection with the AP is established, √ is displayed The connection status information is displayed The first screen after booting up The Wi-Fi connection status information icon is displayed at the top right of the Home screen. Move to the Home screen Home screen Using your mobile phone _55 Care and cleaning CONTROL PANEL Clean with a soft, damp cloth. Do not use abrasive substances. Do not spray cleaner directly onto the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately. TUMBLER Remove any stains from the tumbler caused by crayon, ink, fabric dye (from new items such as towels or jeans) and so on with an all-purpose cleaner. Tumble old towels or rags to remove any remaining stain or cleaning substance. Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

STAINLESS STEEL TUMBLER

To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces. Remove the cleaner residue and dry with a clean cloth. DRYER EXTERIOR Clean with a soft, damp cloth. Do not use abrasive substances. Protect the surface from sharp objects. Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or in a separate storage box. This may scratch or damage the top cover of the dryer. Since the entire dryer has a high-gloss finish, the surface can be scratched or damaged. Therefore, avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

Should be inspected and cleaned yearly to maintain the optimum performance. The outside exhaust hood should be cleaned more frequently to ensure proper operation. 56_ Care and cleaning Special laundry tips

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer’s instructions for drying special items. If the care label instructions are not available, use the following information as a guide.

Follow the care label instructions or dry on the bedding. Make sure the item is thoroughly dry before using or storing it. May require repositioning to ensure that it dries evenly. Blankets

Use the Normal cycle and dry only one blanket at a time for best tumbling action. Make sure the item is thoroughly dry before using or storing it.

Curtains & Draperies

Use the Perm Press cycle and the Low or Extra Low temperature to help minimize wrinkling. Dry these in small loads for best results and remove as soon as possible. Cloth Diapers

Use the Normal cycle and the High temperature settings for soft, fluffy diapers. Down–filled Items (jackets, sleeping bags, comforters, etc.)

Use the Normal cycle and the Low or Extra Low temperature setting. Adding a couple of dry towels shortens the drying time and absorbs moisture. Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)

DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat). WARNING - Drying a rubber item with heat may damage it or become a fire hazard. Pillows

Use the Normal cycle. Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item. DO NOT heat dry kapok or foam pillows in the dryer. Use the Air Fluff cycle only.

Plastics (shower curtains, outdoor furniture covers, etc.)

Bedspreads & Comforters Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra Low temperature settings depending on the care label instructions. THINGS TO AVOID PUTTING IN THE DRYER:

• Fiberglass items (curtains, draperies, etc.).
• Woolens, unless recommended on the label.
• Vegetable or cooking oil-soaked items. Special laundry tips _57 Troubleshooting

CHECK THESE POINTS IF YOUR DRYER…

PROBLEM SOLUTION Doesn’t run.

Make sure the door is properly latched. Be sure the power cord is plugged into a live electrical outlet. Check the home’s circuit breaker and fuses. Press the Start/Pause button again if the door is opened during the cycle. Doesn’t heat.

Check your home’s circuit breaker and fuses. Select a heat setting other than Air Fluff. On a gas dryer, check that the gas supply is on. Clean the lint filter and exhaust duct. The dryer may have moved into the cool-down phase of the cycle. Doesn’t dry.

Check all of the above, plus... Be sure the exhaust hood outside the home can open and close freely. Check the exhaust system for lint buildup. The ducting should be inspected and cleaned annually. Use a 4” rigid metal exhaust duct. Do not overload. 1 wash load = 1 dryer load. Sort heavy items from lightweight items. Large, bulky items such as blankets or comforters may require repositioning to ensure that they dry evenly. Check that the washer is draining properly to extract adequate water from the load. The load may be too small to tumble properly. Add a few towels.

Check the load for objects such as coins, loose buttons, nails, etc. Remove immediately. It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle. Be sure the dryer is properly level as outlined in the installation instruction. It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system. Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the Very Dry setting if necessary. If one heavy item is dried with a lightweight load, such as one towel with several sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results. Household odors from painting, varnishing, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler, and exhausts it outside. When these odors linger in the air, ventilate the room completely before using the dryer. 58_ Troubleshooting Shuts off before the load is dry

Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle. Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that are lint trappers(for example, a pair of black linen pants). Divide larger loads into smaller loads for drying. Check pockets thoroughly before washing and drying clothes. Garments still wrinkled after Wrinkle-Care

Small loads of 1 to 4 items work best. Load fewer garments. Load similar-type garments. Odors remain in clothing after Refresh.

Fabrics having strong odors should be washed in a normal cycle. Water drips from the nozzle when Steam-Care starts

This is steam condensation. The dripping water will stop after a short time. Sprayed water is not visible during Steam-Care

Sprayed water is difficult to see when the door is closed.

06 TROUBLESHOOTING Lint on clothes The dryer load is too small. Add more items or a few towels and restart the cycle. The dryer load is too large. Remove some items and restart the dryer. INFORMATION CODES Samsung’s Smart Care, an automatic error-monitoring system, detects and diagnoses problems at an early stage and provides a quick and easy solution through LCD navigation. When your dryer has a problem, the notification screen will show the information and solution to help you better understand what is occurring with your dryer and how to solve the problem. Information codes may be displayed to help you better understand what is occurring with your Dryer. ERROR DISPLAY TRIGGER ACTION TAKEN

The thermistor resistance is very low or high. Clean the screen or vent. If the problem continues, call for service. tE3 The resistance of the thermistor for the vent blockage detection is very low or very high. Clean the screen or vent If the problem continues, call for service.

Invalid heating Temp in running the dryer Call for service.

Running the dryer with door open Clean the door and then restart. If the problem continues, call for service. Troubleshooting _59 Troubleshooting ERROR DISPLAY TRIGGER ACTION TAKEN

Invalid door state for more than 256 milliseconds. Call for service. bE2 Invalid state of key circuit short for 30 secs Make sure a button is NOT being pressed continuously. Try restarting the cycle. If the problem continue, call for service.

Invalid power source Frequency Try restarting the cycle. If the problem continues, call for service.

Electronic Control Problem (Over Voltage Error) Call for service.

Electronic Control Problem (Communication Error) Call for service.

Invalid state of Eeprom communication Call for service. AE4 A communication error between the Wi-Fi PBA and the MAIN PBA Call customer service. AE3 A communication error between the DR Modem and the MAIN PBA Call customer service. AE5 A communication error between the LCD PBA and the MAIN PBA Call customer service. For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG) 60_ Troubleshooting The washer or dryer is not found in the smartphone app.

There are more than one washer or dryer in the house. Do I have to install an AP for each of them?

How can I check if the AP is out of order?

06 TROUBLESHOOTING The washer or dryer can’t find • the AP (access point).

Check the power status of the access point (AP). Check if the smartphone is connected with Wi-Fi. Check if the Wi-Fi function of the washer or dryer is turned on. To refresh the screen, press “Configure” again. If the AP is installed too far away from the washer or dryer, the strength of the Wi-Fi signal may be weak. In this case, move the AP closer to the washer or dryer. Check the power status of the AP. Check if the Wi-Fi function of the washer or dryer is turned on. To refresh the screen, press “Configure” again. If the AP is installed too far away from the washer or dryer, the strength of the Wi-Fi signal may be weak. In this case, move the AP closer to the washer or dryer. Ensure that the number of the displayed antenna bars is at least 3. If the strength of the AP is low, the washer or dryer may not find it. Use a high performance AP if available. You can install only one AP. I you want to one AP for each of the washer and dryer, select the corresponding AP for each of the products in the “Smart Washer” app. When both a washer and dryer are installed, they can be controlled through one AP. Since the washer or dryer is controlled through the AP from the inside or outside of the house, we recommend a high performance AP. Use an AP with Wi-Fi a certification mark. Since an AP with 2 or more antennas provides better performance, we recommend purchasing a wireless AP with 2 or more antennas. Connect to the AP on a smartphone and check if you can connect to the Internet. If you can connect to the Internet, the AP is normal. Check if the LEDs on the AP are blinking. If all the LEDs are turned off, it indicates that the power is turned off. If the AP doesn’t seem to be working properly, request after-sales service. I do not have a PC. Can I use the indoor and outdoor control features?

If the Internet can be accessed inside of the house, the feature is available. However, you have to sign up on the Samsung web site and register the product. How many users can control a washer or dryer?

Multiple users can control the washer or dryer only if the “Smart Washer” app is authenticated, Troubleshooting _61 Where are the proper place to install a washer or dryer?

Since a washer or dryer is heavy and connected with water, it should be installed in the proper place. Installing the AP near the washer or dryer is recommended. You can check the signal strength through the setup screen of the washer or dryer or a smartphone. Since the performance is seriously affected by a door or steel wall, install the product in an open place. If there is door in front of the installed product, open the door when using the product. Do not place an object maden with steel or glass in front of the front LCD of the washer since it blocks the radio signal. Note that the radio signal may be weaken or interfered and the communication with the smartphone may fail when a microwave oven is used in the house. Install the washer or dryer so that the front of the product faces the AP if available. How can I connect the washer or dryer with a smartphone stably?

When the signal strenth that is displayed on the LCE of the washer or dryer is weak, the control may fail. Check the mark as follows or measure the signal strength.

• At least 3 antenna bars should be displayed on the LCD of the washer or dryer.
• At least 3 antenna bars for the Wi-Fi connection should be displayed on the smartphone.
• When the signal strenth is measured with a smartphone app that shows the Wi-Fi signal strength, the signal strength should be stronger than -65 dBm. (E.g. -60 dBm and -50 dBm are stronger than -65 dBm.) What should I have to do when the number of the antenna bars that are displayed on the LCD of the washer or dryer is 1?

When the signal strenth that is displayed on the LCE of the washer or dryer is weak, the control may fail. In this case, take the following measures for normal operation.

• Move the AP closer to the washer or dryer. (At least 3 antenna bars should be dislayed in the network setup of the washer for proper operation.)
• Since old AP may provide lower performance, use new one if available.
• Stand the antenna of the AP if available so that the radio signal is more easily propagated. 62_ Troubleshooting Warning Symbols for Laundering Normal Line Dry/ Hang to Dry Do Not Wash Do Not Tumble Dry High No Steam (added to iron) Hot Medium Do Not Iron Warm Low Cold Any Heat Dry Clean No Heat/Air Do Not Dry Clean Water Temperature* Bleach Any Bleach (when needed) Iron-Dry or Steam Temperatures 07 APPENDIX The following symbols provide garment care directions. The care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundry problems. Dryclean Line Dry/ Hang to Dry Only Non-Chlorine (color-safe) Bleach (when needed) High Drip Dry Tumble Dry Cycle Medium Dry Flat Low Normal Permanent Press/ Wrinkle Resistant/ Wrinkle Control Gentle/ Delicates

• Water Temperature: The dot symbols represent the appropriate wash water temperatures for various items. The temperature range for Hot is 105-125 °F (41-52 °C), for Warm 85-105 °F (29-41 °C) and for Cold 60-85 °F (16-29 °C). (The wash water temperature must be a minimum of 60 °F (16 °C) for detergent activation and effective cleaning.) Appendix _63 Appendix

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

DECLARATION OF CONFORMITY

This appliance complies with UL2158. SPECIFICATIONS

TYPE DIMENSIONS WEIGHT HEATER RATING WATER PRESSURE C. Depth with door open 90° 51.65” (131.2 cm) D. Depth CYCLE CHART (: factory setting, : selectable ) CYCLE Manual Dry Steam Cycles MAXIMUM AMOUNT Cottons, Work clothes, Linen, Mixed loads Heavy Duty Heavy fabrics such as jean, Corduroys, Heavy work clothes Perm Press Shirts, Synthetic fabrics, Knits, Wrinkle-free cottons, Permanent Bedding Plus Bulky items such as blankets, Sheets, Comforters, Pillows Delicates Underwear, Blouses, Lingerie Sanitize Bedding, Curtains, Children` clothing +Eco Normal Cottons, Work clothes, Linen Wool For machine washable and tumble dryable wool only (Maximum amount : 3lb) Active Wear Water-repellent wear, performance clothes, Sports wear (Maximum amount : 4lb) Air Fluff Form, Rubber, Plastic Quick Dry Small loads Time Dry Any load Wrinkle Away Shirts, Trouser, Blouses Refresh Shirts, Trouser, Comforter, Pillows 07 APPENDIX Sensor Dry RECOMMENDED ITEMS Normal FUNCTIONS CYCLE Sensor Dry Manual Dry Steam Cycles Sensor Dry Level OPTIONS Temp. Control High Medium Medium Low Low Extra Low Time Wrinkle Prevent Delay Start Normal Normal dry

Heavy Duty Normal dry

Perm Press Normal dry

Bedding Plus Normal dry

Delicates Normal dry Sanitize Very dry (No change)

+Eco Normal Normal dry (No change)*

(DV457G)* Wool Normal dry (No change) Active Wear Normal dry (No change) Air Fluff

• is only Gas model Load Size Recommendations Large load Medium load Small load Fill the drum to about ¾ full. Do not add items over this level as they need to tumble freely. Fill the drum to about ½ full. Fill the drum with 3~5 items, not more than ¼ full. For best results, follow the load size recommendations for each drying cycle. Appendix _65 Warranty (U.S.A) SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year All Parts and Labor, Two (2) Years Control Board Parts This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. 66_ Warranty Except as set forth herein, there are no warranties on this product either express or implied, and samsung disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding on samsung. Samsung shall not be liable for loss of revenue or profits, failure to realize savings or thter benefits, or any other special, incidental or consequential damages caused by the use, misuse, or inability to use this product, regardless of the legal theory on which the claim is based, and even if samsung has been advised of the possibility of such damages. Nor shall recovery of any kind against samsung be greater in amount than the purchase price of the product sold by samsung and causing the alleged damage. Without limiting the foregoing, purchaser assumes all risk and liability for loss, damage, or injury to purchaser and purchaser’s property and to others and their property arising out of the use, misuse, or inability to use this product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660 1-800-SAMSUNG(726-7864) www.samsung.com Warranty _67 Warranty (CANADA) SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year part and labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. 68_ Warranty EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada 1-800-SAMSUNG (726-7864) www.samsung.com/ca www.samsung.com/ca_fr (French) Warranty _69 QUESTIONS OR COMMENTS? COUNTRY CALL Code No. DC68-02836E-01_EN Normal Grand rendement

Conector a tierra externo

Cable neutro (cable blanco o central)

Conector a tierra externo

Cable neutro (cable blanco o central)
