USER MANUAL WF218ANW SAMSUNG

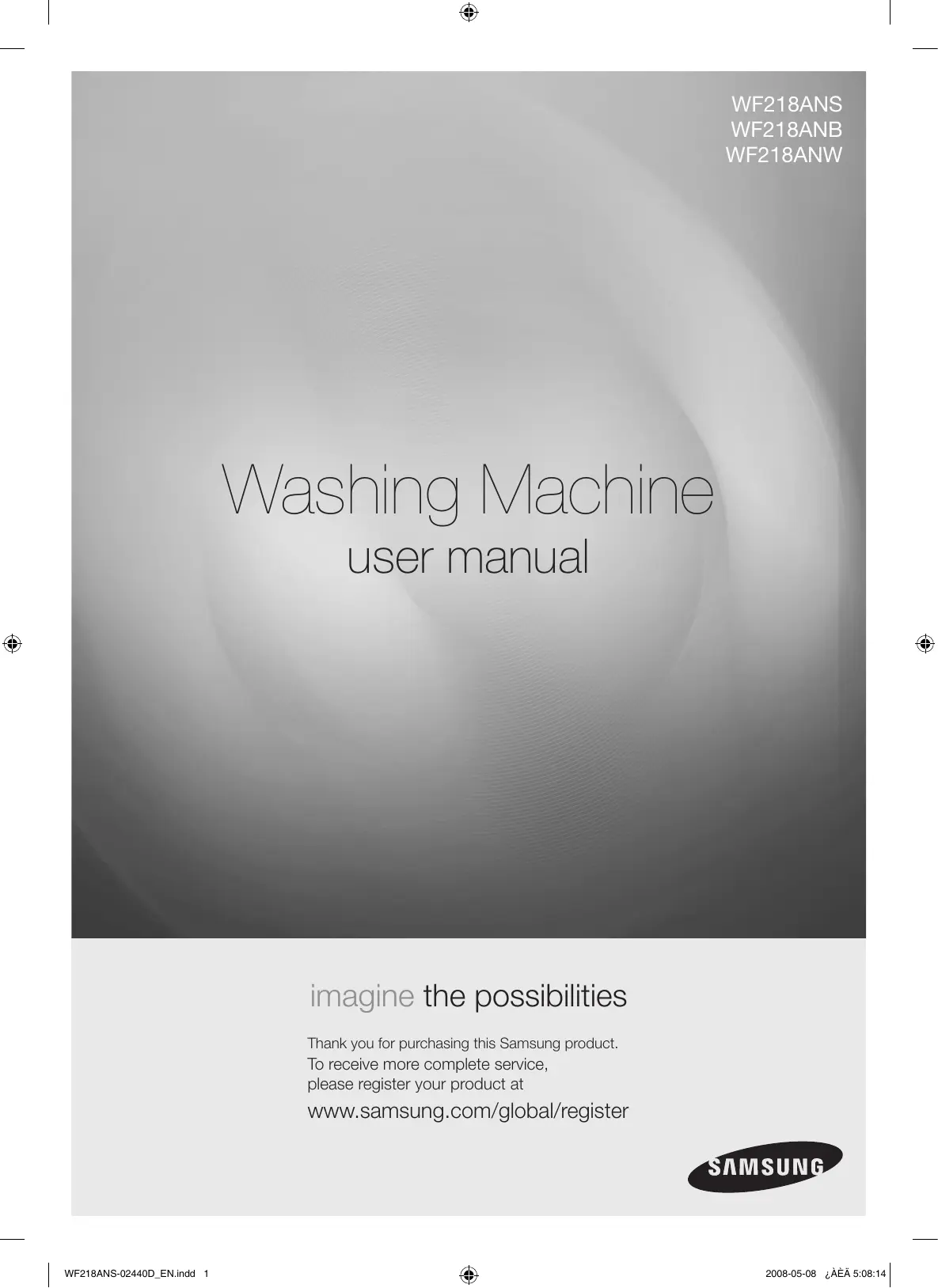

WF218ANS WF218ANB WF218ANW Washing Machine user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register WF218ANS-02440D_EN.indd 1 2008-05-08 ¿ÀÈÄ 5:08:14 features of your new washer

1. Extra Large Capacity

Even bulky garments and blankets get super clean. The large capacity leaves enough room for a more thorough, cleaner wash.

2. Direct Drive Inverter Motor

The power to handle anything! Our direct-drive inverter motor delivers power right to the washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates a higher spin speed of 1,150rpms for more effective, quiet operation. The washer also has fewer moving parts.

3. Woolmark Certified

The machine wash wool cycle on the Samsung machines has been tested and passed the required Woolmark Company specification for machine washable wool products. Fabrics should be washed according to the instructions on the garment label as specified by Woolmark and Samsung.

4. Pedestal with Storage Drawers (Model No : WE357A7W/S/R/L/G/

An optional 15” pedestal is available to raise the washer for easier loading and unloading. It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent

5. Stacking (Model No : SK-3A1/XAA , SK-4A/XAA , SK-5A/XAA)

Samsung washers and dryers can be stacked to maximize usable space. An optional stacking kit is available for purchase from your Samsung retailer. <Pedestal with Storage Drawers> <Stacking> 2_ Features of your new washer WF218ANS-02440D_EN.indd 2 2008-05-08 ¿ÀÈÄ 5:08:14 safety information Congratulations on your new Samsung Washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your Washer’s many benefits and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your Washer.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

WARNING CAUTION CAUTION Hazards or unsafe practices that may result in severe personal injury or death. Hazards or unsafe practices that may result in minor personal injury or property damage. To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions: Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicity. Unplug the pwer plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Read all instructions before using the appliance. With any equipment using electricity and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and be careful when using it. Install and store your washer inside, away from exposure to weather. Install and level your washer on a floor that can support its weight. Your washer must be properly grounded. Never plug it into an ungrounded outlet. See page 7 for more information on grounding your washer. Safety information _3 WF218ANS-02440D_EN.indd 3 2008-05-08 ¿ÀÈÄ 5:08:14 To reduce the risk of fire or explosion: WARNING

Do not wash items that have been washed, soaked, or treated with gasoline, dry cleaning solvents, or other flammable or explosive substances. They give off vapors that could ignite or explode. Rinse by hand any material that has been exposed to cleaning solvent or other flammable liquids or solids before putting in your washer. Be sure that all traces of such liquids, solids, and fumes have been removed. Dangerous substances include acetone, denatured alcohol, gasoline, kerosene, certain liquid household cleaners and spot removers, turpentine, waxes, and wax removers.

Do not put gasoline, dry cleaning solvents, or other flammable or explosive substances into the washer.

Under certain conditions, hydrogen gas may be produced in a hot water system–such as your hot water heater-- that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If your hot water system has not been used for two weeks or more, turn on all hot water faucets in your home, and let the water flow for several minutes before using your washer. This will release any hydrogen gas build–up. Since hydrogen gas is flammable, do not smoke or light an open flame during this time. Unplug the power cord before servicing your washer. Do not reach into the appliance when the tumbler is moving. WARNING Do not let children play on or in your washer. The washer door isn’t easily opened from the inside, and a child could be seriously injured if trapped inside. Do not tamper with the controls. Do not repair, replace, or service any part of your washer yourself unless you fully understand the recommended user–repair instructions and have the skills to carry them out. Work done by an unauthorized person may void your warranty. Store laundry detergents and other laundry supplies in a cool, dry place out of children’s reach. Do not wash or dry items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself. CAUTION Do not use chlorine bleach, ammonia, or acids (such as vinegar or rust remover) in the same wash. Hazardous fumes can form. Do not machine wash fiberglass materials. Small particles can stick to fabrics washed in subsequent loads and cause skin irritation. WARNING Before disposing of your washer, remove the door so that children or small animals cannot get trapped inside. Do not sit on top of your Washer. Inlet hoses are subject to damage and deterioration over time. Check the hoses periodically for bulges, kinks, cuts, wear or leaks, and replace them every five years. Ensure pockets are free from small irregularly shaped hard objects or foreign materials, such as coins, knives, pins, etc. These objects could damage your washer. Do not wash clothing with large buckles, buttons, or other heavy metal. 4_ Safety information WF218ANS-02440D_EN.indd 4 2008-05-08 ¿ÀÈÄ 5:08:15 contents

Unpacking your washer

Overview of your washer

Location considerations

Important note to installer

Overview of the control panel

Cleaning the exterior

Cleaning the interior

Cleaning the dispensers

Cleaning the debris filter

Helping the environment

Declaration of conformity

Unpack your Washer and inspect it for shipping damage. Make sure you have received all of the items shown below. If your Washer was damaged during shipping, or you do not have all of the items, contact 1-800-SAMSUNG(7267864).

OVERVIEW OF YOUR WASHER

Hot water supply hose Cold water supply hose Detergent drawer Control panel Door Drain Hose Adjustable legs ( use for the Upper Bolt Hole ) Wrench Bolt hole covers Hose guide Rubber Washers Water Supply Hose 6_ Installing your washer WF218ANS-02440D_EN.indd 6 2008-05-08 ¿ÀÈÄ 5:08:17

Individual branch circuit serving only your Washer is recommended.

Your Washer is equipped with a power cord. NEVER USE AN EXTENSION CORD. CAUTION Grounding ELECTRICAL GROUNDING IS REQUIRED ON THIS APPLIANCE. This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet. WARNING 01 Installing your washer

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance – if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

IMPORTANT SAFETY PRECAUTIONS

To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance. CAUTION NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT WATER PIPES. Water To correctly fill your Washer in the proper amount of time, water pressure of 20 – 120 psi is required. Water pressure less than 20 psi may cause water valve failure, ,or may not allow the water valve to shut off completely. Or, it may extend the fill time beyond what your Washer controls allow, resulting in your Washer turning off. A time limit is built into the controls in the event of an internal hose becoming loose and flooding your home. The water faucets must be within 4 feet/122cm of the back of your Washer for the inlet hoses provided with your Washer. Accessory inlet hoses are available in various lengths up to 10 feet/305cm for faucets that are further away from the back of your Washer. To avoid the possibility of water damage:

Have water faucets easily accessible

Turn off faucets when the washer is not in use.

Periodically check that there is no leakage from the water inlet hose fittings. CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS. WARNING Installing your washer _7 WF218ANS-02440D_EN.indd 7 2008-05-08 ¿ÀÈÄ 5:08:17 installing your washer Drain facility The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory. Flooring For best performance, your Washer must be installed on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting and soft tile surfaces are contributing factors in vibration and may cause your washer to move slightly during the spin cycle. Never install your washer on a platform or weakly supported structure. Location considerations Do not install your washer in areas where water may freeze, since your washer will always maintain some water in its water valve, pump, and hose areas. This can cause damage the belts, the pump, hoses and other components. Operating temperature should be above 60°F/16°C. Alcove or closet installation MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS: Sides – 1 in / 25 mm Top – 17 in / 432 mm Rear – 4 in / 102 mm Closet Front – 2 in / 51 mm If the washer and dryer are installed together, the closet front must have at least 72 in² or 465 cm² of an unobstructed air opening. Your washer alone does not require a specific air opening. 8_ Installing your washer WF218ANS-02440D_EN.indd 8 2008-05-08 ¿ÀÈÄ 5:08:17

IMPORTANT NOTE TO INSTALLER

Please read the following instructions carefully before installing your Washer. These instructions should be retained for future reference. We recommend you hire a professional for installation of this washer. 01 Installing your washer STEP 1 Selecting a Location Before you install your washer, make sure the location:

Has a hard, level surface

Is away from direct sunlight

Has adequate ventilation

Is away from heat sources such as oil or gas

Has enough space so that your Washer need not stand on its power cord

Doesn’t have any carpeting that will obstruct ventilation openings. STEP 2 Removing the Shipping Bolts Before using your Washer, you must remove the four shipping bolts from the back of the unit.

1. Loosen all the bolts with the supplied wrench.

2. Slide the bolt and spacer up and remove the bolt with

the spacer through the hole in the rear wall of your washer. Repeat for each bolt.

3. Fill the holes with the supplied plastic covers.

4. Keep the shipping bolts and spacers for future use.

STEP 3 Installing your Washer

1. Place the drain hose in the drain facility. Be

sure an airtight connection is NOT made between the drain hose and the standpipe. The standpipe must be at least 18 in or 46 cm high. Caution must always be exercised to avoid collapsing or damaging the drain hose. For best results, the drain hose should not be restricted in any way – by elbows, couplings, or excessive lengths. For situations where the drain hose cannot be conveniently elevated to at least 18 in or 46 cm, the drain hose must be supported. Laundry tub Stand pipe Hose retainer 96” Max 18” Min 96” Max 18” Min Tie strap Installing your washer _9 WF218ANS-02440D_EN.indd 9 2008-05-08 ¿ÀÈÄ 5:08:18 installing your washer

2. Insert new rubber washer (supplied) into each end of the

inlet hoses. Firmly seat the washers in the couplings.

3. Check the inlet hose to ensure a washer is inside each fill

hose. Thread the inlet hoses to the HOT and COLD faucet connections. On the other end of the hose, check for one rubber washer per hose and install each fill hose to the water valve. Make sure the hose with the Hot printed line is attached to the HOT faucet. Tighten by hand until snug, then two-thirds of a turn with pliers. Cold For correct water use, connect both HOT and COLD water valves. If either or both are not connected, an “nF” (no fill) Cold printed error can occur. Hot Rubber washer Hot printed

4. Turn on the “HOT” and “COLD “water supply and check all

connections at the water valve and the faucet for leaks.

5. Plug the power cord into a 3-Prong, well grounded 120 volt

60 Hz approved electrical outlet protected by a 15-amp fuse or comparable circuit breaker. Your washer is grounded through the third prong of the power cord when plugged into a three-prong grounded receptacle.

6. Slide your washer into position.

7. Level your washer by turning the leveling legs in or out as

necessary by hand or the wrench included with your washer. When your washer is level, tighten the nuts using the wrench or (-) driver. Your Washer must be leveled on all four sides. A carpenter’s level should be used on all four corners of your Washer. It’s a good idea after the first dozen washes to recheck your washer’s levelness. Avoid the damage to the legs, Do not move the Washer unless the Lockingnuts are fastened to the bottom of the Washer. 10_ Installing your washer WF218ANS-02440D_EN.indd 10 2008-05-08 ¿ÀÈÄ 5:08:22 operating instructions

You can fill the tub with dry, unfolded clothes; but DO NOT OVERLOAD the tub.

Overloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or wrinkling of the load.

Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with similar lightweight items.

When washing big bulky items or a few smaller items that don’t fill the tub completely – a rug, a pillow, stuffed toys, or one or two sweaters, for example – add a few towels to improve tumbling and spin performance. During the spin cycle, the washer may add additional water to redistribute the excessive unbalance inside the drum.

When washing heavily soiled loads, not overloading your Washer is very important to assure good cleaning results.

2. Wait for the Door Lock light to go out (5 seconds)

3. Add the item, close the door, and press the Start/Pause Button.

After a 10-second pause, the cycle will resume. To ensure thorough cleaning, add items within five minutes of starting the wash cycle. GETTING STARTED

1. Load your Washer.

3. Add detergent and additives to the dispenser (see pages 15~16).

4. Select the appropriate cycle and options for the load (see pages 12~14).

5. Press the Start/Pause Button.

6. The Wash Indicator light will illuminate.

7. The estimated cycle time will appear in the display.

The time may fluctuate to better indicate the time remaining in the cycle. The actual time required for a cycle may differ from the estimated time in the display depending on the water pressure, water temperature, detergent, and laundry.

8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a

When the cycle is complete, the Door Lock light will go out and “End” will appear in the display.

DO NOT attempt to open the door until the Door Lock light is off. To add a forgotten item, see “Loading your Washer” section. (page 11)

When your Washer is restarted after a pause, expect a delay of up to 15 seconds before the cycle continues.

Pressing Power cancels the cycle and stops your washer.

The Wash, Rinse and Spin indicator lights will illuminate during those portions of the cycle. Operating instructions _11 WF218ANS-02440D_EN.indd 11 2008-05-08 ¿ÀÈÄ 5:08:22 washing a load of laundry

Temperature selection button

Soil Level selection button

Signal selection button

Displays the remaining cycle time, all cycle information, and error messages. Press the button repeatedly to cycle through the different water temperature options. Hot/Cold - Whites and heavily soiled, colorfast items. Warm/Warm - Colorfast items. When warm rinse is selected, only the final rinse will be warm. The other rinses will be cold to conserve energy. Warm/Cold - Moderately soiled, colorfast items; most wrinkle-free items. Cold/Cold - Brightly colored, very lightly soiled items. Press the button repeatedly to cycle through the different spin speed options. High - Use for underwear, t-shirts, jeans and sturdy cottons. Medium - Use for jeans, wrinkle-free or wash-and-wear items and synthetics. Low - Use for delicate items needing a slow spin speed. No Spin - Drains your Washer without spinning. Use for extremely delicate items that cannot tolerate any spin. Press the button to select the Soil Level/washing time. Heavy - For heavily soiled loads. Normal - For moderately soiled loads. This setting is best for most loads. Light - For lightly soiled loads. Press the button to increase or decrease the end of cycle signal volume or turn off the signal. Press these buttons to select different cycle options.

Select Cycle Option Delay Start - Any cycle can be delayed for up to 24 hours in one-hour increments. Displayed hour indicates the time at which the wash will be started. Extra Wash - Add additional time to the wash for better stain removal. Extra Rinse - Add an additional rinse at the end of the cycle to more thoroughly remove laundry additives and perfumes. 12_ Washing a load of laundry WF218ANS-02440D_EN.indd 12 2008-05-08 ¿ÀÈÄ 5:08:23 Select the appropriate cycle for the type of load. This will determine the tumble pattern and spin speed for the cycle. To minimize wrinkling of laundry, select the Perm Press cycle. Heavy Duty - For sturdy, colorfast fabrics and heavily soiled garments. Whites - For white fabrics with or without bleach. Wool - For machine-washable wool. Loads should be under 8 pounds.

Cycle Selector The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine, M0509. Delicates - For sheer fabrics, bras, lingerie silk, and other handwash-only fabrics. For best results, use liquid detergent. 03 Washing a load of laundry Normal - For most fabrics including cottons, linens, and normally soiled garments. Perm Press - For wash-and-wear, synthetic fabrics, and lightly to normally soiled garments. Towels - For bath towels, washcloths and mats. Sanitize - For heavily soiled, colorfast garments. This cycle heats the water to 150°F to eliminate bacteria. If Pause is selected during the heating portion of the Sanitize Cycle, your Washer door will remain locked for your safety. Spin Only - Provides a spin to remove more water. Rinse + Spin - Use for loads that need rinsing only or to add rinse-added fabric softener to a load.

Start/Pause selection button Press to pause and restart programs.

Power button Press once to turn your washer on, press again to turn your washer off. If the washer is left on for more than 10 minutes without any buttons being touched, the power automatically turns off. Child lock A function that prevents children from playing with your washer. ACTIVATING/DEACTIVATING If you want to activate/deactivate the Child Lock function, press the Soil Level and Signal buttons at the same time for 3 seconds. How It Works:

1. “Child Lock” can be activated while your Washer is running.

2. Once you activate “Child Lock”, all controls (except for the Power button) will be locked

until you deactivate “Child Lock”.

3. The Child Lock button will be lit while it is in effect.

When buttons, other than the Power button, do not respond, please check if the “Child Lock” function is on. Garment+ You can add or take out laundry items even after the wash has started, as long as the “Garment+” light is on. Pushing the Start/Pause button unlocks the door, unless the water is too hot or if there is too much water in your Washer. If you are able to unlock the door and wish to continue the wash cycle, close the door and press the Start/Pause button. Washing a load of laundry _13 WF218ANS-02440D_EN.indd 13 2008-05-08 ¿ÀÈÄ 5:08:24 washing a load of laundry DETERGENT USE Your Washer is designed to use high efficiency (HE) detergents.

For best cleaning results, efficiency detergents such as Tide HE, Wisk HE, Cheer HE or Gain HE*. High efficiency detergents contain suds suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more efficiently and cleaning is maximized. WARNING Regular detergent is NOT recommended. Please use only HE detergents. Reducing the amount of detergent may reduce the quality of cleaning. It is important to pre–treat stains, sort carefully by color and soil level, and avoid overloading.

• Brand names are trademarks of their respective manufacturers. FEATURES Automatic dispenser Your Washer has separate compartments for dispensing detergent and color-safe bleach, chlorine bleach, and fabric softener. All laundry additives are added to their respective compartments before starting your Washer. The automatic dispenser MUST ALWAYS be in place before starting your Washer. Detergent compartment Detergent selector DO NOT open the automatic dispenser when your Washer is running. To use:

1. Pull out the dispenser drawer on the left side of the control

2. Add recommended quantity of additive to the appropriate

compartments with laundry additives, and be careful not to overfill or spill.

3. Slide the dispenser drawer carefully and completely back

into the compartment. Detergent compartment

1. Pour the recommended amount of laundry detergent directly into the detergent compartment

before starting your Washer.

2. If color-safe bleach is to be used, it should be added with detergent to the detergent

When adding color-safe bleach with detergent, it is best if both laundry products are in the same form – granular or liquid. If using liquid detergent, lower the detergent selector and add the detergent to the detergent compartment. 14_ Washing a load of laundry WF218ANS-02440D_EN.indd 14 2008-05-08 ¿ÀÈÄ 5:08:25 Bleach compartment Fabric Softener compartment (Liquid chlorine bleach only)

1. Add chlorine bleach to the bleach compartment.

DO NOT exceed the MAX FILL line. 03 Washing a load of laundry Bleach compartment

2. Avoid splashing or over–filling the compartment.

3. Your Washer automatically dispenses bleach into the tub at

the appropriate time.

4. The dispenser automatically dilutes liquid chlorine bleach

before it reaches the wash load.

Never pour undiluted liquid chlorine bleach directly onto the load or into the tub. It is a powerful chemical and can cause fabric damage, such as weakening of the fibers or color loss, if not used properly.

If you prefer to use color–safe, non–chlorine bleach, add it to the appropriate detergent compartment. DO NOT pour color–safe bleach into the Bleach compartment. Fabric softener compartment

1. Pour the recommended amount of liquid fabric softener into the softener compartment.

For smaller loads, use less than one capful.

2. Fabric softener should be diluted with water until it reaches MAX FILL in the compartment.

3. The dispenser automatically releases liquid fabric softener at the proper time during the rinse

Use the softener compartment ONLY for liquid fabric softeners.

DO NOT use the Downy Ball* in Fabric softener Compartment with this Washer. It will not add fabric softener at the appropriate time. Use the detergent Compartment.

Brand names are trademarks of their respective manufacturers. Washing a load of laundry _15 WF218ANS-02440D_EN.indd 15 2008-05-08 ¿ÀÈÄ 5:08:25 maintaining your washer

CLEANING THE EXTERIOR

Turn off the water faucets after finishing the day’s washing. This will shut off the water supply to your Washer and prevent the unlikely possibility of damage from escaping water. Leave the door open to allow the inside of your Washer to dry out. Use a soft cloth to wipe up all detergent, bleach or other spills as they occur. Clean the following as recommended: Control Panel – Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly on the panel. Cabinet – Clean with soap and water.

CLEANING THE INTERIOR

Clean the interior of your Washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your Washer as a result of washing clothes. Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your Washer or laundry. Hard water deposits may be removed, if needed. Use a cleaner labeled “Washer safe”.

CLEANING THE DISPENSERS

The Automatic Dispenser may need to be cleaned periodically due to laundry additive buildup.

1. Press the release lever on the inside of the dispenser and pull out.

2. Remove the Siphon Cap from the fabric softener and bleach

3. Wash all of the parts under running water.

4. Clean the dispenser recess with a soft brush.

5. Reinsert the Siphon Cap, and push it firmly into place.

6. Push the dispenser back into place.

7. Run a Rinse & Spin cycle without any load in your Washer.

Washers can be damaged if water is not removed from hoses and internal components before storage. Prepare your Washer for storage as follows:

Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your Washer through the cycle without a load.

Turn the water faucets off and disconnect the inlet hoses.

Unplug your Washer from the electrical outlet and leave your Washer door open to let air circulate inside the tumbler.

If your Washer has been stored in below–freezing temperatures, allow time for any leftover water in your Washer to thaw out before use. 16_ Maintaining your washer WF218ANS-02440D_EN.indd 16 2008-05-08 ¿ÀÈÄ 5:08:26

CLEANING THE DEBRIS FILTER

We recommend cleaning the debris filter when water does not drain well or the “ND” error message is displayed.

2. Unscrew the drain cap by turning it counterclockwise.

04 Maintaining your washer

1. Open the filter cover by pressing and pulling the handle of

the filter cover with your finger. Step 1 Step 2

3. Hold the cap on the end of the drain tube and

slowly pull it out about 6inches (15cm) and drain off all the water.

4. Remove the debris filter cap.

5. Wash any dirt or other material from the debris filter. Make sure

the drain pump propeller behind the debris filter is not blocked.

6. Replace the debris filter cap.

7. Replace the filter cover

8. Close up the opening of drain tube with cap.

9. Don’t insert the drain tube in the hole

Maintaining your washer _17 WF218ANS-02440D_EN.indd 17 2008-05-08 ¿ÀÈÄ 5:08:29 troubleshooting

CHECK THESE POINTS IF YOUR WASHER…

PROBLEM SOLUTION will not start..

Make sure the door is firmly closed.

Make sure your Washer is plugged in.

Make sure the water source faucets are open.

Make sure to press the Start/Pause Button to start your Washer.

Make sure the Child Lock is not activated; see page 14.

Before your Washer starts to fill, it will make a series of clicking noises to check the door lock and do a quick drain.

Turn both faucets on fully.

Make sure the door is tightly closed.

Straighten the water inlet hoses.

Disconnect hoses and clean screens. Hose filter screens may be plugged. has no water or not enough water..

Open and close the door, then press the Start/Pause Button. has detergent remains in the automatic dispenser after the wash cycle is complete.

Make sure your Washer is running with sufficient water pressure.

Make sure the Detergent Selector dial is in the upper position when using granular detergent. vibrates or is too noisy.

Make sure your Washer is set on a level surface. If the surface is not level, adjust your Washer feet to level the appliance.

Make sure that the shipping bolts are removed.

Make sure your Washer is not touching any other object.

Make sure the laundry load is balanced.

Plug the power cord into a live electrical outlet.

Close the door and press the Start/Pause Button to start your Washer. For your safety, your Washer will not tumble or spin unless the door is closed.

Before your Washer starts to fill, it will make a series of clicking noises to check the door lock and do a quick drain.

There may be a pause or soak period in the cycle. Wait briefly and it may start.

Check the screens on the inlet hoses at the faucets for obstructions. Clean the screens periodically. stops 18_ Troubleshooting WF218ANS-02440D_EN.indd 18 2008-05-08 ¿ÀÈÄ 5:08:29 fills with the wrong temperature water. does not drain and/or spin. Turn both faucets on fully.

Make sure the temperature selection is correct.

Make sure the hoses are connected to the correct faucets. Flush water lines.

Check the water heater. It should be set to deliver a minimum 120° F (49° C) hot water at the tap. Also check the water heater capacity and recovery rate.

Disconnect the hoses and clean the screens. The hose filter screens may be plugged.

As your Washer is filling, the water temperature may change as the automatic temperature control feature checks incoming water temperature. This is normal.

While your Washer is filling, you may notice just hot and/or just cold water going through the dispenser when cold or warm wash temperatures are selected. This is a normal function of the automatic temperature control feature as your Washer determines the temperature of the water.

Press the Start/Pause Button to stop your Washer.

Your Washer door will remain locked during the heating portion of the Sanitize Cycle

It may take a few moments for the door lock mechanism to disengage.

Straighten the drain hoses. Eliminate kinked hoses. If there is a drain restriction, call for service.

Close the door and press the Start/Pause Button. For your safety, your Washer will not tumble or spin unless the door is closed. load is too wet at the end of • the cycle.

leaks water. has excessive suds. 05 Troubleshooting door locked or will not open.

Use the High or Extra High spin speed. Use high efficiency detergent to reduce over–sudsing.

Load is too small. Very small loads (one or two items) may become unbalanced and not spin out completely.

Make sure the door is firmly closed.

Make sure all hose connections are tight.

Make sure the end of the drain hose is correctly inserted and secured to the drainage system.

Use high efficiency detergent to prevent over–sudsing.

Use high efficiency detergent to prevent over-sudsing.

Reduce the detergent amount for soft water, small or lightly soiled loads.

Non-HE detergent is NOT recommended. Troubleshooting _19 WF218ANS-02440D_EN.indd 19 2008-05-08 ¿ÀÈÄ 5:08:29 troubleshooting INFORMATION CODES Information codes may be displayed to help you better understand what is occurring with your Washer. CODE SYMBOL MEANING SOLUTION Unbalanced load prevented your Washer from spinning. Redistribute the load, press the Start/Pause Button. Door is unlocked when Washer is running. Press the Power button to turn off your Washer, then restart the cycle. If the code reappears, call for service. Door is open when Washer is running. Close the door tightly and restart the cycle. Your Washer failed to lock the door. Close the door tightly and restart the cycle. Water temperature control problem. Call for service. If the code reappears, call for service. If the code reappears, call for service. (Heater Control problem) Your Washer has tried to fill but has not reached the proper water level. Call for service. The door will not unlock. Make sure the door is firmly closed. Push the Power button to turn off your Washer, then turn it on again. If the code reappears, call for service. Motor not running properly. Restart the cycle pressing the Start/Pause Button. If the code reappears, call for service. Your washer is not draining. Before calling for service, check the following.

1) Turn off the unit and turn it on again.

It can also mean that the unit senses a small clog while draining. 2) Select only the Spin Cycle.

3) Press the Start/Pause to drain the water.

If it still does not drain, call for service. Your Washer has tried to fill but was unsuccessful. Make sure the water faucets are open all the way. Check for kinked hoses. Check the inlet screens on the fill hoses. Problem with control. Call for service. Electric service was lost when Washer was running. Restart the cycle by pressing the Start/Pause Button. A fault is detected in the water level sensor. Call for service Jammed Key. Call for service Motor speed sensor problem. Restart the cycle. If the code reappears, call for service. 20_ Troubleshooting WF218ANS-02440D_EN.indd 20 2008-05-08 ¿ÀÈÄ 5:08:33 Temperature sensor problem. Restart the cycle. If the code reappears, call for service. High current detected. Restart the cycle. If the code reappears, call for service. 05 Troubleshooting High/Low voltage detected. Restart the cycle. If the code reappears, call for service. Too many suds are detected during the washing session. To prevent it, cut down on detergents. The unit is put on hold until the suds are reduced. Then, the unit will go back to the operation. When it finishes washing, End and Sd codes will blink in turn. For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG) Troubleshooting _21 WF218ANS-02440D_EN.indd 21 2008-05-08 ¿ÀÈÄ 5:08:34 appendix

The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. Wash Cycle Special Instructions Warning Symbols for Laundering Normal Line Dry/ Hang to Dry Do Not Wash Permanent Press / Wrinkle Resistant / Wrinkle Control Drip Dry Do Not Wring Gentle/Delicates Dry Flat Do Not Bleach Hand Wash Heat Setting Do Not Tumble Dry High No Steam (added to iron) Hot Medium Do Not Iron Warm Low Cold Any Heat Dry Clean No Heat/Air Do Not Dry Clean Water Temperature** Bleach Any Bleach (when needed) Iron-Dry or Steam Temperatures Dryclean Line Dry/ Hang to Dry Only Non-Chlorine (color-safe) Bleach (when needed) High Drip Dry Tumble Dry Cycle Medium Dry Flat Low For machine-washable wool. Loads should be under 8 pounds. Normal Permanent Press/ Wrinkle Resistant/ Wrinkle Control Gentle/ Delicates ** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 105° - 125° F/ 41° - 52°C, for Warm 85° - 105° F/29° - 41° C and for Cold 60° - 85° F/16° - 29° C. (Wash water temperature must be a minimum of 60° F/16°C for detergent activation and effective cleaning.) The clothes Washer may not ensure these temperatures because the actual water temperatures entering your Washer are dependent on water heater settings and regional water supply temperatures. For example, cold water entering the home in the northern states during winter may be 40° F/4° C which is too cold for effective cleaning. The water temperature in this situation will need to be adjusted by selecting a warm setting, adding some hot water to the MAX FILL line or using your Washer’s heating option, if available. 22_ Appendix WF218ANS-02440D_EN.indd 22 2008-05-08 ¿ÀÈÄ 5:08:34

HELPING THE ENVIRONMENT

Your Washer is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions.

Use stain removal products and bleaches before the wash cycle only when necessary.

Save water and electricity by only washing full loads (the exact amount depends upon the program used). 06 Appendix

DECLARATION OF CONFORMITY

Rinse + Spin Temp Spin Soil Level H/C: Hot/Cold W/W: Warm/Warm W/C: Warm/Cold H: High M: Medium L: Low NS: No Spin H: Heavy N: Normal L: Light 06 Appendix FUNCTIONS

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts & Labour This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. 26_ Warranty WF218ANS-02440D_EN.indd 26 2008-05-08 ¿ÀÈÄ 5:08:39 EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from province to province. To obtain warranty service, please contact SAMSUNG at: SAMSUNG ELECTRONICS CANADA, INC. – CUSTOMER SERVICE 55 STANDISH COURT
