USER MANUAL R-760BK SHARP

MANUEL TILBEREDNING/MANUEL OPTØNING

Viser for KJØKKENUR Viser for KJØKKENUR Viser for VEKTTINING

MANUELL TILBEREDNING / MANUELL TINING

MANUAALINEN KYPSENNYS/ MANUAALINEN SULATUS

MUUT HELPOT TOIMINNOT

• Ulko kuori & lamppuun käsiksi pääsy:Älä koskaan poista ulkokuorta. Se on erittäin vaarallista sisäisten korkeajännitteisten osien vuoksi. Niihin ei saa koskea, koska se voi olla hengenvaarallista. Uuni ei ole varustettu lampun luukulla. Jos lamppu lakkaa toimimasta, älä yritä vaihtaa sitä itse, vaan ota yhteyttä SHARP-huoltooon. FI-26 User_manual_R760_WEST.indb 26 2016-07-26 22:25:38 VIANMÄÄRITYS VIANMÄÄRITYSTAULUKKO KYSYMYS VASTAUS Ilmavirta kiertää luukun ympärillä. Kun uuni toimii, ilma kiertää sisäosassa. Ovi ei muodosta ilmatiivistä tiivistettä, joten ilmaa voi karata luukusta Uuniin muodostuu kondenssivettä, joka voi tippua luukusta. Normaalisti uunin sisäosa on viileämpi kuin kypsennettävä ruoka, joten tuotettu höyry tiivistyy kylmempään pintaan. Höyryn määrä riippuu kypsennettävän ruoan sisältämästä veden määrästä. Jotkut ruoat, kuten perunat, sisältävät paljon kosteutta. Luukun oveen jääneen kondenssiveden pitäisi poistua muutaman tunnin kuluttua. Välähdykset tai valokaaret Valokaaria syntyy, kun metallinen esine tulee uunin sisäuunin sisäosasta kypsennyk- osan lähelle kypsennyksen aikana. sen aikana. Tämä saattaa karhentaa sisäosan pintaa, mutta ei vaurioita uunia. Kipinöivät perunat. Varmista, että kaikki "silmät" on poistettu perunoista ja että ne on pistelty. Aseta suoraan alustalle tai lämmönkestävään vuokaan tai vastaavaan. Näyttö on valaistu, mutta Tarkista, että luukku on suljettu kunnolla. säätöpaneeli ei toimi painettaessa. Uuni kypsentää liian hitaasti. Varmista, että oikea teho on valittu. Uuni pitää ääntä. Mikroaaltoenergia sykkii PÄÄLLE ja POIS kypsennyksen/sulatuksen aikana. Ulkokuori on kuuma. Ulkokuori saattaa kuumeta - pidä lapset etäällä. FI-27 User_manual_R760_WEST.indb 27 2016-07-26 22:25:38 User_manual_R760_WEST.indb 28 2016-07-26 22:25:39 Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products. A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by members states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch. B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the takeback of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal. GB-1 User_manual_R760_WEST.indb 1 2016-07-26 22:25:39

: 230-240V, 50Hz single phase : 1400W : 900W (IEC 60705) : less than 1.0W : 2450MHz*(Group 2/Class B) : 489 x 288 x 351 : 340 x 197 x 338 : 23 litres*** : 262 x 262 : approx. 14.6kg : 20W/230V This product fulfils the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments. GB-3 User_manual_R760_WEST.indb 3 2016-07-26 22:25:39 SPECIFICATIONS ** The depth does not include the door opening handle. *** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less. AS PART OF A POLICY OF CONTINUOUS IMPROVEMENT, WE RESERVE THE RIGHT TO ALTER DESIGN AND SPECIFICATIONS WITHOUT NOTICE.

OVEN AND ACCESSORIES

4. Door safety latches

6. Door seals and sealing surfaces

10. Power supply cord

ACCESSORIES: Check to make sure the following accessories are provided:

• For use of the rack, refer to the grilling sections on page GB-19. Never touch the grill when it is hot. NOTE: When you order accessories, please mention two items: part name and model name to your dealer or SHARP authorised service agent. GB-4 User_manual_R760_WEST.indb 4 2016-07-26 22:25:41 CONTROL PANEL 1.DIGITAL DISPLAY and INDICATORS MICROWAVE indicator GRILL indicator

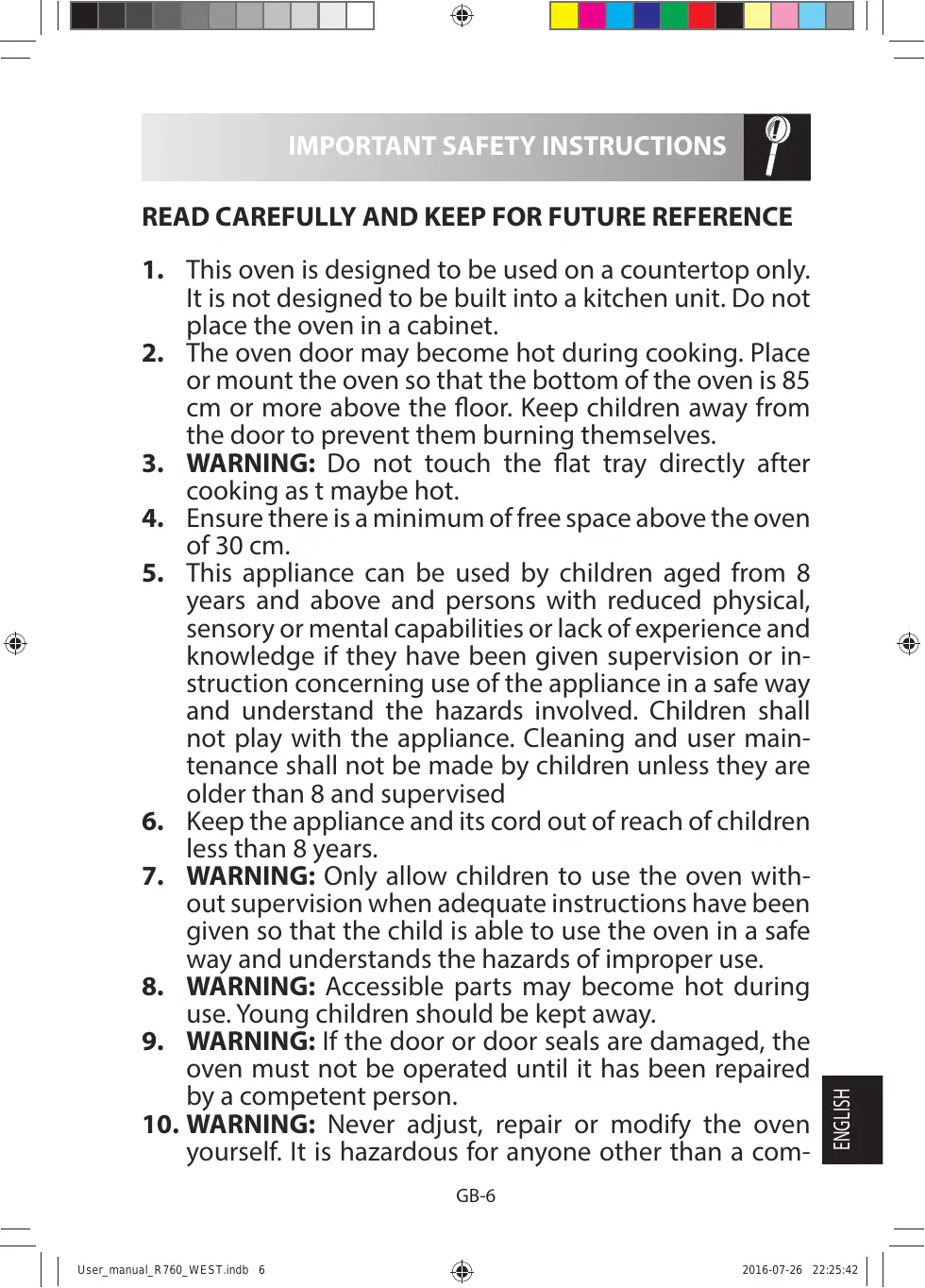

1. This oven is designed to be used on a countertop only.

It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet.

2. The oven door may become hot during cooking. Place

or mount the oven so that the bottom of the oven is 85 cm or more above the floor. Keep children away from the door to prevent them burning themselves.

3. WARNING: Do not touch the flat tray directly after

cooking as t maybe hot.

4. Ensure there is a minimum of free space above the oven

5. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised

6. Keep the appliance and its cord out of reach of children

7. WARNING: Only allow children to use the oven without supervision when adequate instructions have been

given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

8. WARNING: Accessible parts may become hot during

use. Young children should be kept away.

9. WARNING: If the door or door seals are damaged, the

oven must not be operated until it has been repaired by a competent person.

10. WARNING: Never adjust, repair or modify the oven

yourself. It is hazardous for anyone other than a com- ENGLISH READ CAREFULLY AND KEEP FOR FUTURE REFERENCE GB-6 User_manual_R760_WEST.indb 6 2016-07-26 22:25:42

IMPORTANT SAFETY INSTRUCTIONS

petent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

11. If the power supply cord of this appliance is damaged,

it must be replaced with a special cord. The exchange must be made by an authorised SHARP service agent.

12. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

13. Microwave heating of beverages can result in delayed

eruptive boiling, therefore care must be taken when handling the container.

14. Do not cook eggs in their shells, and whole hard boiled

eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

15. Utensils should be checked to ensure that they are

suitable for use in the oven. See page GB-25. Use only microwave safe containers and utensils on microwave modes.

16. The contents of feeding bottles and baby food jars must

be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

17. The door, outer cabinet, oven cavity, dishes, accessories

and especially the grill heating elements will become very hot during operation.

18. Care should be taken to avoid touching these areas.

To prevent burns, always use thick oven gloves. Before cleaning make sure they are not hot. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

19. If smoke is emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames. GB-7 User_manual_R760_WEST.indb 7 2016-07-26 22:25:42

20. Clean the oven at regular intervals and remove any

21. Failure to maintain the oven in a clean condition could

lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the glass on the oven door since they can scratch the surface, which may result in shattering of the glass.

23. Steam cleaner is not to be used.

24. See instructions for cleaning door seals, cavities and

adjacent parts on page GB-24.

25. This appliance is intended to be used in household and

similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - farm houses; - bed and breakfast type environments.

26. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid

touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

27. During use the appliance becomes hot. Care should be

taken to avoid touching heating elements inside the oven.

28. Accessible parts may become hot during use. Young

children should be kept away. To avoid the danger of fire:

1. The microwave oven should not be left unattended

during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire. ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

2. The electrical outlet must be readily accessible so that

the unit can be unplugged easily in an emergency.

3. The AC power supply must be 230-240V~,50Hz.

4. A separate circuit serving only this appliance should be

5. Do not place the oven in areas where heat is generated.

For example, close to a conventional oven.

6. Do not install the oven in an area of high humidity or

where moisture may collect.

7. Do not store or use the oven outdoors.

8. Clean the waveguide cover, the oven cavity, the turntable

and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

9. Do not place flammable materials near the oven or

ventilation openings.

10. Do not block the ventilation openings.

11. Remove all metallic seals, wire twists, etc., from food and

food packages. Arcing on metallic surfaces may cause a fire.

12. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil

13. To make popcorn, use only special microwave popcorn

14. Do not store food or any other items inside the oven.

15. Check the settings after you start the oven to ensure

the oven is operating as desired.

16. To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar

or fat content, for example, sausage rolls, pies or Christmas pudding.

17. See the corresponding hints in the operation manual.

GB-9 User_manual_R760_WEST.indb 9 2016-07-26 22:25:42 To avoid the possibility of injury

Do not operate the oven if it is damaged or malfunctioning. Check the following before use: a) The door; make sure the door closes properly and ensure it is not misaligned or warped. b) The hinges and safety door latches; check to make sure they are not broken or loose. c) The door seals and sealing surfaces; ensure that they have not been damaged. d) Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged.

2. Do not operate the oven with the door open or alter

the door safety latches in any way.

3. Do not operate the oven if there is an object between

the door seals and sealing surfaces.

4. Do not allow grease or dirt to build up on the door seals

and adjacent parts. Clean the oven at regular intervals and remove any food deposits. Follow the instructions for “Care and Cleaning’’ on page GB-24.

5. Individuals with PACEMAKERS should check with their

doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens. To avoid the possibility of electric shock

1. Under no circumstances should you remove the outer

2. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn

off and unplug the oven immediately, and call an authorised SHARP service agent.

3. Do not immerse the power supply cord or plug in water

or any other liquid.

4. Do not let the power supply cord hang over the edge of

a table or work surface.

5. Keep the power supply cord away from heated surfaces,

including the rear of the oven. 6. Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent. To avoid the possibility of explosion and sudden boiling:

1. Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build

up of pressure even after the oven has been turned off.

2. Take care when microwaving liquids. Use a wide

mouthed container to allow bubbles to escape. Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns. To prevent sudden eruption of boiling liquid and possible scalding:

1. Do not use excessive amount of time.

2. Stir liquid prior to heating/reheating.

3. It is advisable to insert a glass rod or similar utensil

(not metal) into the liquid whilst reheating.

4. Let liquid stand for at least 20 seconds in the oven at

the end of cooking time to prevent delayed eruptive boiling.

3. Pierce the skin of such foods as potatoes, sausages and

fruit before cooking, or they may explode. To avoid the possibility of burns

1. Use pot holders or oven gloves when removing food

from the oven to prevent burns.

2. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid

GB-11 User_manual_R760_WEST.indb 11 2016-07-26 22:25:42 steam burns and eruption of boiling.

3. To avoid burns, always test food temperature and

stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.

4. Always stand back from the oven door when opening it

to avoid burns from escaping steam and heat.

5. Slice stuffed baked foods after heating to release steam

and avoid burns. To avoid misuse by children

1. Do not lean or swing on the oven door.

2. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. selfheating materials) designed to make food crisp, as they may be extra hot. Other warnings

1. Never modify the oven in any way.

2. Do not move the oven while it is in operation.

3. This oven is for home food preparation only and may

only be used for cooking food. It is not suitable for commercial or laboratory use. To promote trouble free use of your oven and avoid damage:

1. Never operate the oven when it is empty except where

recommended in the operation manual. Doing so may damage the oven.

2. When using a browning dish or selfheating material,

always place a heatresistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specifi ed in the dish’s instructions must not be exceeded. ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

3. Do not use metal utensils, which reflect microwaves

and may cause electrical arcing. Use only the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

4. Do not place anything on the outer cabinet during operation.

NOTE: If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction. BUILT-IN KIT No built-in kit is available for this oven. This oven is designed to be used on a countertop only. GB-13 User_manual_R760_WEST.indb 13 2016-07-26 22:25:42 INSTALLATION

1. Remove all packing materials from the inside of the oven

cavity and remove any protective film found on the microwave oven cabinet surface. Check the oven carefully for any signs of damage.

2. Place the oven on a secure, level surface, strong enough

to take the oven weight, plus the heaviest item likely to be cooked in the oven. Do not place the oven in a cabinet.

3. Select a level surface that provides enough open space

for the intake and/or outlet vents. The rear surface of appliance shall be placed against a wall.

• A minimum space of 20cm is required between the oven and any adjacent walls.
• Leave a minimum space of 30cm above the oven.
• Do not remove the feet from the bottom of the oven.
• Blocking the intake and/or outlet openings can damage the oven.
• Place the oven as far away from radios and TV as possible. Operation of the microwave oven may cause interference to your radio or TV reception. 0 cm 30 cm 20 cm 20 cm

4. The oven door may become hot during cooking. Place

or mount the oven so that the bottom of the oven is 85cm or more above the floor. Keep children away from the door to prevent them burning themselves.

5. Securely connect the plug of the oven to a standard

earthed (grounded) household electrical outlet.

WARNING: Do not place the oven where heat, moisture or

ENGLISH min 85 cm GB-14 User_manual_R760_WEST.indb 14 2016-07-26 22:25:42 INSTALLATION high humidity are generated, (for example, near or above a conventional oven) or near combustible materials (for example, curtains). Do not block or obstruct air vent openings. Do not place objects on top of the oven. ELECTRICAL CONNECTION

• Do not allow water to come into contact with the power supply cord or plug.
• Insert the plug properly into the socket.
• Do not connect other appliances to the same socket using an adaptor plug.
• If the power supply cord is damaged, it must be replaced by a Sharp approved service facility or a similarly qualified person to avoid a hazard.
• When removing the plug from the socket always grip the plug, never the cord as this may damage the power supply cord and the connections inside the plug.
• If the plug fitted to your oven is a rewireable type and in the event of the socket outlet in your home not being compatible with the plug supplied, remove the plug properly (do not cut off ).
• If the plug fitted to your oven is a nonrewirable type and in the event of the socket outlet in your home not being compatible with the plug supplied, cut-off the mains plug.

WARNING: THIS APPLIANCE MUST BE EARTHED

GB-15 User_manual_R760_WEST.indb 15 2016-07-26 22:25:42 BEFORE OPERATION Plug in the oven. The oven display will display: “1:00” and “ ” , an audible signal will sound once. This model has a clock function and the oven uses less than 1.0W in stand by mode. To set the clock, see below.

Your oven has a digital clock feature, you can choose to set the clock time in 24 or 12 hour cycle in stand by mode.

3. After choosing the hour cycle, press number keys ‘’ 10Min’’, ‘’1Min’’ , ‘’10Sec’’ to input the

clock time . 4. Press the KITCHEN TIMER/SET CLOCK key once to start the clock. The icon ‘’:’’ of thedigital time will flash on the display and the clock indicator “ ” will disappear. NOTES:

• In the process of clock setting, if the STOP/CLEAR key is pressed, the oven will go back to the former setting.
• If the electrical power supply to your microwave oven is interrupted, the display will intermittently show „1:00” after the power is reinstated. If this occurs during cooking, the programme will be erased. You can use the kitchen timer function, in instances where microwave cooking is not involved for example to time boiled eggs cooked on conventional hob or to monitor the standing time for cooked/defrosted food. Example: To set the timer for 5 minutes.

3. Press the START/ 4. Check the display.

QUICK START (The display EN TIMER/ ‘’1Min’’, ‘’10Sec’’ key to start the will count down SET CLOCK to input time . timer. through the prokeyonce,the grammed time icon ‘’:’’ will flash and the indicator and the clock will flash) indicator “ ”will illuminate. When the timer arrives at 0:00, an audible signal will sound twice and the LCD will then display the time of day. You can enter any time up to 99 minutes 50 seconds. To cancel the KITCH EN TIMER whilst counting down, simply press the STOP/CLEAR key. NOTE: The KITCHEN TIMER function cannot be used whilst cooking. ENGLISH

Your microwave oven has 6 power levels. To set the power level follow the instruction below. To set the power level LCD dispaly

• Press the MICRO POWER key once, P100 will be displayed and at the same time the microwave indicator ‘’ ’’ will illuminate on the display.
• Press the MICRO POWER key to change the power level until the display indicates the desired level.
• Press the number keys ‘’ 10Min’’, ‘’1Min’’ , ‘’10Sec’’ to enter the cooking time and then press the START/QUICK START key to start the oven.
• To check the power level during cooking, press the MICRO POWER key, the current power level will be displayed for 4 seconds. The oven will continue to count down although the display will show the power level
• In stand by mode, press the number keys ‘’10Min”, ‘’1Min”, ‘’10Sec” directly, the default power level is P100. Generally the following recommendations apply: P100 - (HIGH output = 900W) used for fast cooking or reheating e.g. for casseroles, hot beverages, vegetables etc. P80 - (MEDIUM HIGH output = 720W) used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as sponge cakes. At this reduced setting, the food will cook evenly without over cooking at the sides. P60 - (MEDIUM output = 540W) for dense foods which require a long cooking time when cooked conventionally, e.g. beef casserole, it is advisable to use this power setting to ensure the meat will be tender. Microwave Power HIGH = 100 % MEDIUM HIGH = 80 % MEDIUM = 60 % MEDIUM LOW = 40 % LOW = 20 % P40 - (MEDIUM LOW output = 360W) Defrost setting to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard. P20 - (LOW output = 180 W ) Fo r gentle defrosting, e.g. cream gateaux or pastry. P00 - For cooling down the cavity temperature. GB-17 User_manual_R760_WEST.indb 17 2016-07-26 22:25:42 MANUAL OPERATION Opening the door: To open the oven door, pull the door handle. Starting the oven: Depending on the food type and the required end results, either place food into a suitable container, then place the container onto the plate, alternatively place foods directly onto the plate. Close the door and press the START/QUICK START key after selecting the desired cooking mode. Once the cooking programme has been set if the START/QUICK START key is not pressed in 20 seconds , the setting will be cancelled. The START/QUICK START key must be pressed to continue cooking if the door is opened during cooking. An audible signal will sound once when pressing the button, if inefficiently pressed there will be no sound. Use the STOP/CLEAR key to:

1. Erase a mistake during programming.

2. Stop the oven temporarily during cooking.

3. Cancel a programme during cooking, press the STOP/CLEAR key twice.

4. To set and to cancel the child lock (refer to page GB-18).

MICROWAVE COOKING Your oven can be programmed for up to 99 minutes 50 seconds (99:50). NOTE:

• When the oven starts, the oven lamp will illuminate.
• If the door is opened during cooking/defrosting to stir or turn over food, the cooking time on the display will stop automatically. The cooking/defrosting time starts to count down again when the door is closed and the START/QUICK START key is pressed. ENGLISH The input unit of cooking (defrosting) time Cooking Time Increasing Unit varies from 10 seconds to 10 minutes. 0-1 minute 10 seconds 1-10 minutes 1 minute It depends on the total length of the cook10-99 minutes 10 minutes ing (defrosting) time as shown on the table.

MANUAL COOKING/MANUAL DEFROSTING

• Enter the cooking time and use the microwave power levels P100 to P20 to cook or defrost (refer to page GB-17).
• Stir or turn the food, where possible, 2 - 3 times during cooking.
• After cooking, cover the food and leave to stand, where recommended.
• After defrosting, cover the food in foil and leave to stand until thoroughly defrosted. Example: To cook for 2 minutes and 30 seconds on P80 (80%) microwave power.

1. Press the MICRO 2. Press the MICRO 3. Press the number 4. Press the START/

POWER key. P100 POWER key to keys ”10Min”, QUICK START will be displayed. select the power ”1Min”, ”10Sec”, key to start level for P80 to input the cookcooking. (The ing time. display will count down through the programmed cooking time.) GB-18 User_manual_R760_WEST.indb 18 2016-07-26 22:25:42 MICROWAVE COOKING

• When cooking/defrosting is complete, the time of day will reappear on the display, if the clock has been set.
• If you wish to know the power level during cooking, press the MICRO POWER key. The current power level will displayed for 3 seconds.

GRILL COOKING/MICRO+GRILL COOKING

The grill at the top of the oven cavity has one power setting only. Use the rack for grilling small items of food such as bacon, gammon and teacakes. Food can be placed either directly onto the rack, or into a flan dish/heat-resistant plate on the rack. Example: To grill for 20 minutes, using GRILL key.

1. Press GRILL button once. 2. Press the ”10Min”,

”1Min”, ”10Sec” to set up “Grl”will be displayed. required heating time.

3. Press the START/QUICK

START key to start the grilling. (The display will count down through the programmed grilling time.) The grill power 100% for 5 minutes, then truns to 60% until cooking finish.

1. MICRO+GRILL COOKING

MICRO+GRILL combines microwave power with the grill. MICRO+GRILL means to cook by microwave power and grill power alternately. The combination of microwave power with the grill reduces cooking time and provides a crisp, brown finish. There are 2 choices for the combination: COMBINATION 1 (Display: Co-1) Microwave cooks for 8 sec then stops for 2 sec,while grill cooks for 18 sec then stops for 5 sec,that makes one cycle. COMBINATION 2 (Display: Co-2) Microwave cooks for 13 sec then stops for 5 sec,while grill cooks for 10 sec then stops for 5 sec,that makes one cycle. Example: To cook for 20 minutes, using MICRO+GRILL with Co-1.

1. Press MICRO+GRILL

button once and then “Co-1” will be displayed.

2. Press the ”10Min”, ”1Min”, 3. Press the START/QUICK

”10Sec” to set up reSTARTkey to start the quired heating time. cooking. (The display will count down through the programmed grilling time.) GB-19 User_manual_R760_WEST.indb 19 2016-07-26 22:25:43

GRILL COOKING/MICRO+GRILL COOKING

NOTES for GRILL and MICRO+GRILL COOKING:

• It is not necessary to preheat the grill.
• You may detect smoke or a burning smell when using the grill for the first time. This is normal and not a sign that the oven malfunctioned. To avoid this problem when first using the oven, heat the oven without food for 20 minutes on grill. IMPORTANT: During operation, to allow smoke or smells to disperse open a window or switch the kitchen ventilation on.

The door, outer cabinet, oven cavity and accessories will become very hot during operation. To prevent burns, always use thick oven gloves.

OTHER CONVENIENT FUNCTIONS

b. To cancel the CHILD LOCK: In the stand-by mode, press STOP/CLEAR key for 3 seconds. There will be a long “beep” denoting that the lock is released. ENGLISH

With this function, you can preset the program and the microwave oven will start to work according to the program automatically later.

• In standy by mode, set your desired cooking program.
• Press the DELAY TIMER key once, the time of the day will display and the delay timer indicator will illuminate.
• Press the number keys “10Min”, ”1Min”, “1Sec” to set the time when you want to start the program.
• Press the START/QUICK START key, once the clock reach the preset time, the system will start the preset program automatically. NOTE:
• In delay timer state, press the DELAY TIMER key once, the preset cooking time will be diaplayed for 5 seconds. You can press STOP/CLEAR key to cancel the delay timer function.
• Quick start, time defrost and weight defrost can not use the delay timer function.

Direct start You can directly start cooking on P100 microwave power level for 30 seconds by pressing the START/QUICK START key. The cooking process will start immediately and each time the button is pressed this will increase the cooking time by 30 sec. NOTE: The cooking time may be extended to a maximum of 10 minutes.

Use to prevent unsupervised operation of the oven by children. a. To set the CHILD LOCK: In the stand-by mode, press STOP/CLEAR key for 3 seconds. There will be a long beep denoting entering the children-lock state and the indicator will illuminate together with the current clock time. If the clock has not been set the display status will be as follows: GB-20 User_manual_R760_WEST.indb 20 2016-07-26 22:25:43

WEIGHT DEFROST FUNCTION

WEIGHT DEFROST The microwave oven is pre-programmed with a timer and power levels so that foods such as pork, beef and chicken can be easily defrosted. The weight range for this is from 100g – 1800g in 100g steps. Follow the example below for guidance on how to operate this function. Example: To defrost a meat joint weighing 1.2kg using WEIGHT DEFROST. Place the meat in a fan dish or alternatively on a microwave oven defrost rack on the glass plate.

1. Press the WEIGHT DEFROST key once.

2. Enter the desired

weight by p ressing the until the display shows:

3. Press the START/QUICK

START key to start defrosting. (The display will count down through defrosting time) NOTE:

• Before freezing foods, ensure food is fresh and of good quality.
• If necessary, shield small areas of meat or poultry with flat pieces of aluminium foil. This will prevent the areas from becoming warm during defrosting. Ensure the foil does not touch the oven walls.
• Food weight should be rounded up to the nearest 100g, for example, 650g to 700g.
• After defrosting for half of the total time, the system will pause and bleep to remind you to turn the food over to ensure even defrosting. When this is complete, press START/QUICK START key to resume defrosting.

TIME DEFROST FUNCTION

TIME DEFROST This function quickly defrosts food while enabling you to choose a suitable defrost period, depending on the food type. Follow the example below for guidance on how to operate this function. The time range is 0:10 – 99:50. Example: To defrost food for 10 minutes.

1. Press the TIME DEFROST 2. Enter the cooking time by 3. Press the START/QUICK

START key to start defrosting. key. pressing the number keys (The display will count down ”10Min”, ”1Min”, ”10Sec” through defrosting time) until the display shows:10 :00. Notes for Time Defrost:

• The preset microwave power level can not be changed.
• Before freezing foods, ensure food is fresh and of good quality.
• If necessry, shield small areas of meat or poultry with flat pieces of aluminium foil. This will prevent the areas from becoming warm during defrosting. Ensure the foil does not touch the oven walls.
• After defrosting for one third of the total time, the system will pause and bleep to remind you to turn the food over to ensure even defrosting. When this is complete, press START/QUICK START key to resume defrosting. GB-21 User_manual_R760_WEST.indb 21 2016-07-26 22:25:43

The AUTO MENU programmes automatically calculates the correct cooking mode and cooking time of foods (details on pages GB-22, GB-23). Follow the example below for guidance on how to operate this function. Example:To cook 0.3kg rice using Auto Cook RICE.

1. Press the RICE key once

2. Press the RICE key again

to select the desired auto and again until the demenu. sired weight is displayed

3. Press the START/QUICK

START key to start cooking NOTE:

• For additional auto menu programs (auto menu chart on pages GB-22, GB-23), please use to select.
• For food weighting more or less than the weights/quantities given in the AUTO MENU chart on pages GB-22, GB-23 cook by manual operation.

DISPLAY Beverages Jacket Potatoes Vegetables Pizza Rice

AUTO MENU DISPLAY Grilled chicken pieces Popcorn Auto Reheat Soup Grilled steak Grilled bacon Grilled pork chops Grilled fish pieces

Important Information about Microwave Popcorn Feature:

1. When selecting 0.1 kg of popcorn, it is suggested that you fold down a

triangle on each corner of the bag before cooking. Refer to the picture at right.

2. If/when the popcorn bag expands and no longer rotates properly,

please press STOP/CLEAR key once and open the oven door and adjust the bag position to ensure even cooking.

2. Make sure that mild soap or water does not

penetrate the small vents in the walls which may cause damage to the oven.

3. Do not use spray cleaners

on the oven interior. Keep the waveguide cover clean at all times. The waveguide cover is constructed from a fragile material and should be cleaned with care (follow the cleaning instructions above). NOTE: Excessive soaking may cause disintegration of the waveguide cover. The waveguide cover is a consumable part and without regular cleaning, will need to be replaced. Door To remove all traces of dirt, regularly clean both sides of the door, the door seals and adjacent parts with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass oven door since they can scratch the surface, which may result in shattering of the glass. NOTE: A steam cleaner should not be used. Glass flat tray To remove all traces of dirt, regularly clean the glass flat tray with a soft, damp cloth while the glass flat tray is not so hot. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass flat tray. Cleaning tip - For easier cleaning of your oven: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% for 10 -12 minutes. Wipe the oven clean using a soft, dry cloth. ENGLISH

OVEN AT REGULAR INTERVALS AND REMOVE

ANY FOOD DEPOSITS - Keep the oven clean, or the oven could lead to a deterioration of the surface. This could adversely affect the life of the appliance and possibly result in a hazardous situation. Oven exterior The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel. Control panel Open the door before cleaning to de-activate the control panel. Care should be taken in cleaning the control panel. Use a cloth damp with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner. Oven Interior

1. For cleaning, wipe any splatters or spills with a

soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover. GB-24 User_manual_R760_WEST.indb 24 2016-07-26 22:25:43 SUITABLE OVENWARE To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety of cookware can be used as listed below. Cookware Aluminium foil Foil containers Microwave Comments Safe

Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specifi ed by the manufacturer, e.g. Microfoil ®, follow instructions carefully.

Always follow the manufacturers instructions. Do not exceed heating time given. Be very careful as these dishes become very hot.

Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration. Glassware e.g. Pyrex®

Care should be taken if using fine glassware as it can break or crack if heated suddenly. Metal

It is not recommended to use metal cookware as it will arc, which can lead to fire. Plastic/Polystyrene e.g fast food containers

Care must be taken as some containers warp, melt or discolour at high temperatures. Cling film

It should not touch the food and must be pierced to let the steam escape. Freezer/Roasting bags

Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal ‘arcing’. Paper - plates, cups and kitchen paper

Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire. Straw and wooden containers

Always attend the oven when using these materials as overheating may cause fire. Recycled paper and newspaper

May contain extracts of metal which will cause ‘arcing’ and may lead to fire. Browning dishes China and ceramics

When heating food in plastic or paper containers, monitor the oven due to the possibility of ignition. GB-25 User_manual_R760_WEST.indb 25 2016-07-26 22:25:44 TROUBLESHOOTING If you think the oven is not working properly there are some simple checks you can carry out yourself before calling an engineer. This will help prevent unnecessary service calls if the fault is something simple. Follow this simple check below: Place half a cup of water on the turntable and close the door. Programme the oven to cook for 1 minute using 100% microwave power.

1. Does the oven lamp come on when it is cooking?

2. Does the microwave stirrer rotate?

3. Does the cooling fan work? (Check by placing your hand above the air vent openings.)

4. After 1 minute does the audible signal sound?

5. Is the water in the cup hot?

If you answer “NO” to any question first check that the oven is plugged in properly and the fuse has not blown. If there is no fault with either, check against the troubleshooting chart below.

WARNING: Never adjust, repair or modify the oven yourself. It is hazardous for

anyone other than SHARP trained engineer to carry out servicing or repairs. This is important as it may involve the removal of covers that provide protection against microwave energy. ENGLISH

• The door seal stops microwave leakage during oven operation, but does not form an airtight seal. It is normal to see drops of water, light or feel warm air around the oven door. Food with a high moisture content will release steam and cause condensation inside the door which may drip from the oven.
• Repairs and Modifications: Do not attempt to operate the oven if it is not working properly.
• Outer Cabinet & Lamp Access: Never remove the outer cabinet. This is very dangerous due to high voltage parts inside which must never be touched, as this could be fatal. Your oven is not fitted with a lamp access cover. If the lamp fails, do not attempt to replace the lamp yourself, call a SHARP approved service facility. GB-26 User_manual_R760_WEST.indb 26 2016-07-26 22:25:44 TROUBLESHOOTING TROUBLESHOOTING CHART QUERY ANSWER Draught circulates around the door. When the oven is working, air circulates within the cavity. The door does not form an airtight seal so air may escape from the door. Condensation forms in the The oven cavity will normally be colder than the food beoven, and may drip from the ing cooked, and so steam produced when cooking will condoor. dense on the colder surface. The amount of steam produced depends on the water content of the food being cooked. Some foods, such as potatoes have a high moisture content. Condensation trapped in the door glass should clear after a few hours. Flashing or arcing from within the cavity when cooking. Arcing will occur when a metallic object comes into close proximity to the oven cavity during cooking. This may possibly roughen the surface of the cavity, but would not otherwise damage the oven. Arcing potatoes. Ensure all „eyes” are removed from the potatoes and that they have been pierced, place directly onto the turntable or in a heat resistant flan dish or similar. The display is lit but the control panel will not work when pressed. Check the door is closed properly. Oven cooks too slowly. Ensure correct power level has been selected. Oven makes a noise. The microwave energy pulses ON and OFF during cooking/ defrosting. Outer cabinet is hot. The cabinet may become warm to the touch - keep children away. GB-27 User_manual_R760_WEST.indb 27 2016-07-26 22:25:44 User_manual_R760_WEST.indb 28 2016-07-26 22:25:44 User_manual_R760_WEST.indb 29 2016-07-26 22:25:44 CALLING FOR SERVICE
