USER MANUAL PLCH206 PROLINE

Fruit (droog of in siroop), eiwit, rundvlees (rauw), hele kip, lam (rauw), fruitcakes

4/3/2022 12:01 PM IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE. Warnings • This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “CLEANING AND MAINTENANCE” in EN page 54. • The appliance shall not be exposed to rain. • WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. • WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • WARNING: Do not damage the refrigerant circuit. • WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal. INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal. For installation, servicing: Appliance should be placed on a horizontal surface and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage. Warning; Risk of fire / flammable materials. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the following instructions:

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

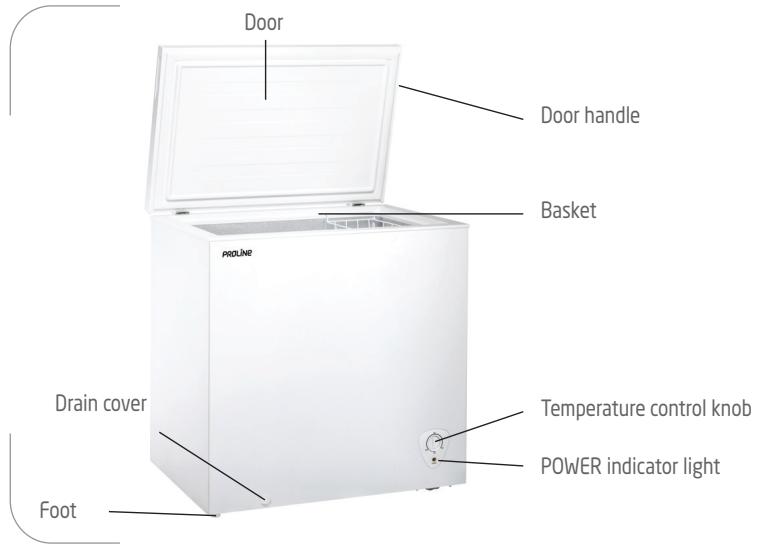

Safety Precautions • The plug must be accessible when the freezer is in position. • Turn off and unplug the freezer from the mains socket when not in operation and before cleaning. Remove food and basket before cleaning. • Never unplug the freezer by pulling the cord. Grip the plug firmly and pull it out. • Place the freezer in a dry place – avoid areas of high moisture or humidity. • Keep the freezer out of direct sunlight. • Do not place the freezer near stoves, fires or heaters. • Do not use electrical appliances in the freezer. • Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • Effervescent drinks should not be stored in the freezer. • Never use the base, doors etc. to stand on or as supports. • Frozen food must not be refrozen once it has been thawed out.

45 PLCH206 IB.indd 45

Do not consume ice popsicles or ice cubes straight from the freezer as this can cause ice burn to the mouth and lips. The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

BEFORE INSTALLING THE APPLIANCE Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

47 PLCH206 IB.indd 47

4/3/2022 12:01 PM INSTALLATION Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. Adjust the feet to keep the freezer level.

AMBIENT TEMPERATUE This appliance is designed to operate in ambient temperature between 10°C and 43°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18°C and food spoilage may occur.

POWER FAILURE If there is a power failure during the storage of frozen foods, keep the door closed. Frozen food should not be affected if the power failure lasts for less than 23 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

48 PLCH206 IB.indd 48

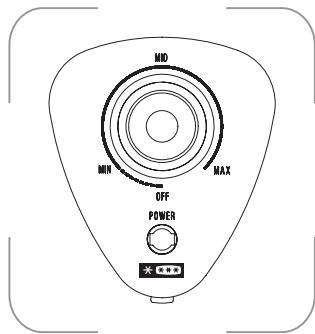

4/3/2022 12:01 PM USING YOUR FREEZER Before placing food in the appliance • Remove all packaging. • Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature. • Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust. Adjusting the temperature The appliance is controlled with a temperature control knob located on its outside wall. Adjust the control knob as desired to suit your individual preference. 1. Plug the freezer in the mains socket. • The POWER indicator light will illuminate.

2. Adjust the temperature control knob to the desired position between MIN (cold) and MAX (coldest). 3. OFF is OFF setting – The appliance will stop working. NOTE: When you use the appliance for the first time or after defrosting, adjust the contro knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting. Moving your appliance AIf the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. • Turn off the appliance and unplug it from the mains socket. Also remove all mobile parts (basket, accessories, etc.) or fix them into the appliance to avoid any shock. • Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

49 PLCH206 IB.indd 49

4/3/2022 12:01 PM Freezing and storing food Using the freezer • To store deep-frozen food • To make ice cubes • To freeze food Note: Ensure that the freezer door has been closed properly. Purchasing frozen food • Packaging must not be damaged. • Use by the ‘use by/best before/best by/’ date. • If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer. Storing frozen food Store at -18°C or colder. Avoid opening the freezer door unnecessarily. A storage basket is provided for the organisation of odd-shaped items. To reach other packages in the freezer, slide the basket aside or lift it out. . Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen •

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. . The following foods are not suitable for freezing:

50 PLCH206 IB.indd 50

4/3/2022 12:01 PM Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging. 1. Place food in packaging. 2. Remove air. 3. Seal the wrapping. 4. Label packaging with contents and dates of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food

Bacon, casseroles, milk

Bread, ice cream, sausages, pies, prepared shellfish, oily fish

Non-oily fish, shellfish, pizza, scones and muffins

Ham, cakes, biscuits, beef and lamb chops, poultry pieces

Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)

Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes

Never forget: • When you freeze fresh foods with a ‘use by/best before/best by/’ date, you must freeze them before this date expires. • Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. • Once defrosted, food should be consumed quickly.

51 PLCH206 IB.indd 51

4/3/2022 12:01 PM Making ice cubes Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer. If the ice cube tray is stuck to the freezer, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water. Operating noises Normal noises • Motors are running. • Refrigerant is flowing through the tubing. Energy saving tips • The freezer should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight. • Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. • Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer. • Freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient. • Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

52 PLCH206 IB.indd 52

4/3/2022 12:01 PM DEFROSTING It is recommended that the freezer is defrosted periodically or when the thickness of the frost is more than 3 mm. 1. Unplug the appliance from the mains supply. 2. Open the door and remove all the frozen food and wrap in thick blankets or layers of paper to keep them cold. 3. Remove the drain plug located at the bottom inside the freezer and then remove the drain cover at the front of the freezer. Collect all defrost water on a tray. Use a scraper to remove ice. - Important ! Never use sharp metal tools to scrape off frost as you could damage the appliance. 4. After defrosting is finished, clean the inside of the appliance. 5. Refit the drain plug and cover in place and plug the appliance back to the mains socket. 6. Place the food back into the freezer and set the temperature to the desired setting.

53 PLCH206 IB.indd 53

4/3/2022 12:01 PM CLEANING AND MAINTENANCE • • • • • • • •

Upon installation of your new appliance, it is recommended to clean it thoroughly. Turn the temperature control to “OFF”, unplug the freezer, remove the food and storage basket. Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. Wash the storage basket with a damp cloth in warm soapy water. Rinse thoroughly. Be sure to keep the door gasket (seal) clean to keep the appliance run efficiently. Clean the outside of the freezer with a slightly damp cloth. Dry the interior and exterior with a soft cloth. It is recommended to clean the freezer each time it is defrosted to help keep the freezer run efficiently.

54 PLCH206 IB.indd 54

4/3/2022 12:01 PM TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service. Warning ! Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product.. Problem

Freezer is not operating.

Inadequate refrigeration

The door will not close properly.

Solution Check that the freezer is plugged into the mains socket properly and that the outlet is switched on. Try adjusting the temperature control knob to a colder position. Check that the freezer is placed on a level surface. • Turn the temperature control knob to a colder setting and allow several hours for the temperature to stabilize. • Door is kept open too long or is opened too frequently. Warm air enters the freezer every time the door is opened. Open the door less often. • Check that the door is closed completely. • Ensure that the door gasket does not seal properly. • A large amount of warm or hot food might have been stored recently. Wait until the freezer has reached its set temperature. • Check that the freezer is on a level surface. • Check that the gasket is not dirty. • Check that the storage basket is in position..

55 PLCH206 IB.indd 55

Wine storage appliance:

Other refrigerating appliance:

Energy efficiency class

C Annual energy consumption (kWh/a)

Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Compartment Volume 3 (dm or l)

Recommended temperature setting for optimised food storage (°C)

Freezing capacity (kg/24 h)

0-star or ice-making

Variable temperature compartment

56 PLCH206 IB.indd 56

4/3/2022 12:01 PM For 4-star compartments Fast freeze facility

no For wine storage appliances

Number of standard wine bottles

Light source parameters (a) : Type of light source

Energy efficiency class

Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class: • Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’. • Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’. • Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. • Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C This refrigerating appliance is not intended to be used as a built-in appliance. To find the model information in the product database: Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1122277

57 PLCH206 IB.indd 57

4/3/2022 12:01 PM Rated voltage and frequency

Insulation blowing gas

4/3/2022 12:01 PM REPAIR AND SPARE PARTS SERVICE Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at : www.darty.com 0978 970 970 24 heures / 24 7 jours / 7 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France www.vandenborre.be 02 334 00 00 8h – 18h Lundi à Samedi Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium

59 PLCH206 IB.indd 59

4/3/2022 12:01 PM DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 04/03/2022

Title EMCD irective (EMC) LowV oltage Directive( LVD) Eco design requirements fore nergy-related products (ErP)
