USER MANUAL QP6510/20 ONEBLADE PRO PHILIPS

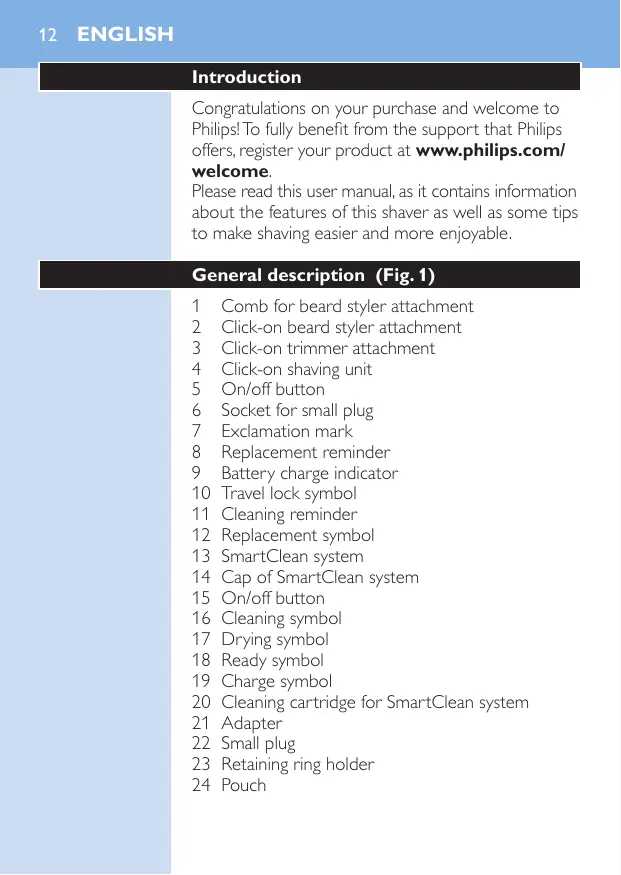

ENGLISH Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome. Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable. General description (Fig. 1)

Comb for beard styler attachment Click-on beard styler attachment Click-on trimmer attachment Click-on shaving unit On/off button Socket for small plug Exclamation mark Replacement reminder Battery charge indicator Travel lock symbol Cleaning reminder Replacement symbol SmartClean system Cap of SmartClean system On/off button Cleaning symbol Drying symbol Ready symbol Charge symbol Cleaning cartridge for SmartClean system Adapter Small plug Retaining ring holder Pouch ENGLISH 13 Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance. Important Read this user manual carefully before you use the shaver and the SmartClean system. Save this user manual for future reference. Danger -- Keep the adapter dry. Warning -- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. -- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. -- Always unplug the shaver before you clean it under the tap. Caution -- Never immerse the SmartClean system in water nor rinse it under the tap. -- Never use water hotter than 80°C to rinse the shaver. -- Do not use the shaver, SmartClean system, adapter or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter or part with one of the original type.

ENGLISH -- Only use the SmartClean system with the original cleaning cartridge. -- Always place the SmartClean system on a stable, level and horizontal surface to prevent leakage. -- Always make sure that the cartridge compartment is closed before you use the SmartClean system to clean or charge the shaver. -- When the SmartClean system is ready for use, do not move it to prevent leakage of cleaning fluid. -- The SmartClean system thoroughly cleans but does not disinfect your shaver, therefore do not share the shaver with others. -- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. -- Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver. Compliance with standards -- This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly. -- The shaver and the SmartClean system comply with all applicable standards and regulations regarding exposure to electromagnetic fields. General -- The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts. -- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts. -- Maximum noise level: Lc = 69dB(A) ENGLISH 15 The display Note: Before you use the shaver for the first time, remove the protective foil from the display. -- S91XX/S90XX Charging -- Charging takes approx. 1 hour. Note:This appliance can only be used cordlessly. -- Quick charge: When you connect the appliance to the mains, it produces a sound. Then the lights of the battery charge indicator light up one after the other continuously. When the shaver contains enough energy for one shave, the bottom light of the battery charge indicator starts to flash slowly. -- If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes white and then lights up white continuously. Then the second light flashes and then lights up continuously, and so on until the shaver is fully charged. Battery fully charged Note:This appliance can only be used cordlessly. Note:When the battery is full, the display switches off automatically after 30 minutes.When you press the on/off button during or after charging, you hear a sound to indicate that the shaver is still connected to the mains.

ENGLISH -- When the battery is fully charged, all lights of the battery charge indicator light up white continuously. Battery low -- When the battery is almost empty, the bottom light flashes orange and you hear a sound. Remaining battery capacity -- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously. Cleaning reminder For optimal shaving performance, we advise you to clean the shaver after every use. -- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver. Travel lock You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident. ENGLISH 17 Activating the travel lock 1 Press the on/off button for 3 seconds to enter the travel lock mode. ,, While you activate the travel lock, the travel lock symbol lights up white continuously. When the travel lock is activated, the shaver produces a sound and the travel lock symbol flashes. Deactivating the travel lock 1 Press the on/off button for 3 seconds. ,, The travel lock symbol flashes and then lights up continuously. The shaver is now ready for use again. Note:You can also deactivate the travel lock by connecting the appliance to the mains. Replacing shaving heads For maximum shaving performance, we advise you to replace the shaving heads every two years. -- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up white continuously and the arrows flash white. You hear a beep to indicate you have to replace the shaving heads. Note: After replacing the shaving heads, you need to reset the shaver by pressing the on/off button for 7 seconds.

ENGLISH Exclamation mark Blocked shaving heads -- If the shaving heads are blocked, the exclamation mark lights up orange continuously. The replacement reminder and the cleaning reminder flash white alternately and you hear a sound. In this case, the motor cannot run because the shaving heads are soiled or damaged. -- When this happens, you have to clean the shaving heads or replace them. Overheating -- If the appliance overheats during charging, the exclamation mark flashes orange. -- When this happens, the shaver automatically switches off. Charging continues once the appliance is back to the normal temperature. Charging Charging takes approx. 1 hour. A fully charged shaver has a shaving time of up to 50 minutes. Note:You cannot use the appliance while charging. Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty . ENGLISH 19 Charging with the adapter 1 Make sure the appliance is switched off. 2 Insert the small plug into the appliance (1) and put the adapter in the wall socket (2). Charging in the SmartClean system (specific types only) 1 Put the small plug in the SmartClean system. 2 Put the adapter in the wall socket. 3 Press the top cap to be able to place the shaver in the holder (‘click’). 4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system. 5 Place the shaver in the holder (1), tilt the shaver backwards (2) and press down the top cap to connect the shaver (‘click’) (3). Note:The battery symbol flashes slowly to indicate the appliance is charging.

ENGLISH Using the shaver Shaving Skin adaptation period Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver. Tip:To ensure the best result, we advise you to pre-trim your beard if you have not shaved for 3 days or longer. Note:This appliance can only be used cordlessly. 1 Press the on/off button once to switch on the shaver. ,, The display lights up for a few seconds. 2 Move the shaving heads over your skin in circular movements. -- Do not make straight movements. 3 Press the on/off button once to switch off the shaver. ,, The display lights up for a few seconds and then shows the remaining battery charge. Wet shaving You can also use this shaver on a wet face with shaving foam or shaving gel. To shave with shaving foam or shaving gel, follow the steps below: ENGLISH 21 1 Apply some water to your skin. 2 Apply shaving foam or shaving gel to your skin. 3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin. 4 Press the on/off button once to switch on the shaver. 5 Move the shaving heads over your skin in circular movements. Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin. 6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’). Note: Make sure you rinse all foam or shaving gel off the shaver.

ENGLISH Using the click-on attachments Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance. Using the trimmer attachment You can use the trimmer attachment to groom your sideburns and moustache. 1 Pull the shaving unit straight off the appliance. Note: Do not twist the shaving unit while you pull it off the appliance. 2 Insert the lug of the trimmer attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance (‘click’). 3 Press the on/off button once to switch on the appliance. ,, The display lights up for a few seconds. 4 You can now start trimming. 5 Press the on/off button once to switch off the appliance. ,, The display lights up for a few seconds to show the remaining battery charge. 6 Pull the trimmer attachment straight off the appliance. Note: Do not twist the trimmer attachment while you pull it off the appliance. 7 Insert the lug of the shaving unit into the slot in the top of the appliance. Then press down the shaving unit to attach it to the appliance (‘click’). ENGLISH 23 Using the beard styler attachment 1 Make sure the appliance is switched off. 2 Pull the shaving unit straight off the appliance. Note: Do not twist the shaving unit while you pull it off the appliance. 3 Insert the lug of the beard styler attachment into the slot in the top of the appliance. Then press down the beard styler attachment to attach it to the appliance (‘click’). Using the beard styler attachment with comb You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm. 1 Slide the comb straight into the guiding grooves on both sides of the beard styler attachment (‘click’). 2 Press the length selector and then push it to the left or right to select the desired hair length setting. 3 Press the on/off button once to switch on the appliance. 4 You can now start styling your beard.

ENGLISH Using the beard styler attachment without comb You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline. 1 Pull the comb off the beard styler attachment. Note: Grab the comb in the centre to pull it off the beard styler attachment. Do not pull at the sides of the comb. 2 Press the on/off button once to switch on the appliance. 3 You can now start contouring your beard, moustache, sideburns or neckline. Cleaning and maintenance Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance. Cleaning the shaver in the SmartClean system The SmartClean system comes in two types. The features available on your SmartClean system may differ per type: -- SmartClean system Basic has one phase: the rinsing phase. -- SmartClean system Plus has two phases: the rinsing phase and the drying phase. ENGLISH 25 Preparing the SmartClean system for use Do not tilt the SmartClean to prevent leakage. Note: Hold the SmartClean while you prepare it for use. 1 Put the small plug in the back of the SmartClean system. 2 Put the adapter in the wall socket. 3 Press the button on the side of the SmartClean system (1) and lift the top part of the SmartClean system (2). 4 Pull the seal off the cleaning cartridge. 5 Place the cleaning cartridge in the SmartClean system. 6 Push the top part of the SmartClean system back down (‘click’).

ENGLISH Using the SmartClean system Always make sure to shake excess water off the shaver before you place it in the SmartClean. 1 Press the top cap to be able to place the shaver in the holder (‘click’). 2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system. 3 Place the shaver in the holder (1), tilt the shaver backwards (2) and press down the top cap to connect the shaver (‘click’) (3). ,, The battery symbol starts to flash, which indicates that the shaver is charging. 4 Press the on/off button on the SmartClean system to start the cleaning program. ,, During the rinsing phase, the rinsing symbol will flash. Note:The rinsing phase takes approx. 10 minutes. ENGLISH 27 ,, SmartClean systems Plus only: During the drying phase, the drying symbol will flash. Note:The drying phase takes approx. 4 hours. ,, When the cleaning program has been completed, the ready symbol lights up continuously. ,, The battery symbol lights up continuously to indicate that the shaver is fully charged. Note: Charging takes approx. 1 hour. Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the rinsing or drying symbol stops flashing. Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts. Note: 30 minutes after the cleaning program and charging have been completed, the SmartClean switches off automatically. Replacing the cartridge of the SmartClean System -- Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the result. 1 Press the button on the side of the SmartClean system (1) and lift the top part of the SmartClean system (2).

ENGLISH 2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge. You can simply pour the cleaning fluid down the sink. 3 Throw away the empty cleaning cartridge. 4 Unpack the new cleaning cartridge and pull the seal off the cartridge. 5 Place the new cleaning cartridge in the SmartClean system. 6 Push the top part of the SmartClean system back down (‘click’). Cleaning the shaver under the tap Clean the shaver after every shave for optimal shaving performance. Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt. Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads. 1 Rinse the shaving unit under a warm tap for some time. ENGLISH 29 2 Pull the shaving head holder off the bottom part of the shaving unit. 3 Rinse the shaving head holder under a warm tap. 4 Carefully shake off excess water and let the shaving head holder dry. 5 Reattach the shaving head holder to the bottom part of the shaving unit (‘click’). Thorough cleaning method Make sure the appliance is switched off. 1 Pull the shaving head holder off the bottom part of the shaving unit. 2 Place the retaining ring holder on the retaining ring (1), turn it anticlockwise (2) and lift it off the shaving head (3). Remove the retaining ring from the retaining ring holder and repeat this process for the other retaining rings. 3 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard. Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

ENGLISH 4 Clean the cutter and guard under the tap. 5 After cleaning, place the cutter back into the guard. 6 Put the shaving heads back into the shaving head holder. Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder. 7 Place the retaining ring holder on the retaining ring (1), place it on the shaving head (2) and turn it clockwise (3) to reattach the retaining ring. Repeat this process for the other retaining rings. Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage. 8 Reattach the shaving head holder to the bottom part of the shaving unit. ENGLISH 31 Cleaning the click-on attachments Cleaning the trimmer attachment Clean the trimmer attachment every time you have used it. 1 Switch on the appliance with the trimmer attachment attached. 2 Rinse the trimmer attachment under a hot tap for some time. 3 Carefully shake off excess water and let the trimmer attachment dry. 4 After cleaning, switch off the appliance. Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months. Cleaning the beard styler attachment Clean the beard styler attachment every time you have used it. 1 Pull the comb off the beard styler attachment. 2 Rinse the beard styler attachment and the comb separately under a hot tap for some time. 3 Carefully shake off excess water and let the beard styler attachment and comb dry. 4 Lubricate the teeth with a drop of sewing machine oil every six months.

ENGLISH Storage 1 Store the shaver in the pouch supplied. Note:We advise you to let the shaver dry before you store it in the pouch. Replacement Replacing the shaving heads For maximum shaving performance, we advise you to replace the shaving heads every two years. Replacement reminder The shaving unit symbol lights up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away. Only replace the shaving heads with original SH90 Philips shaving heads. 1 The shaving unit symbol lights up continuously, the arrows flash white and you hear a beep when you switch off the shaver . 2 Pull the shaving head holder off the bottom part of the shaving unit. 3 Place the retaining ring holder on the retaining ring (1), turn it anticlockwise (2) and lift it off the shaving head (3). Remove the retaining ring from the retaining ring holder and repeat this process for the other retaining rings. ENGLISH 33 4 Remove the shavings heads from the shaving head holder and throw them away. 5 Place new shaving heads in the holder. Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder. 6 Place the retaining ring holder on the retaining ring (1), place it on the shaving head (2) and turn it clockwise (3) to reattach the retaining ring. Repeat this process for the other retaining rings. Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage. 7 Reattach the shaving head holder to the bottom part of the shaving unit. 8 To reset the shaver, press and hold the on/off button for approx. 7 seconds. Wait until you hear two beeps.

ENGLISH Ordering accessories To buy accessories or spare parts, visit www.shop.philips.com/service. or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). The following parts are available: -- HQ8505 adapter -- SH90 Philips shaving heads -- HQ110 Philips Shaving Head Cleaning Spray -- RQ111 Philips beard styler attachment -- RQ585 Philips cleansing brush attachment -- RQ560/RQ563 Philips cleansing brush heads -- JC301/JC302/JC303/JC304/JC305 cleaning cartridge Shaving heads -- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH90 Philips shaving heads. Recycling -- This symbol on a product means that the product is covered by European Directive 2012/19/EU. -- This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2006/66/EC which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery. ENGLISH 35 -- Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health. Removing the rechargeable shaver battery Note:We strongly advise you to have a professional remove the rechargeable battery. Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it. Be careful, the battery strips are sharp. 1 Insert the screwdriver into the slot between the front and back panel in the bottom of the appliance. Remove the back panel. 2 Remove the front panel. 3 Unscrew the two screws at the top of the inner panel and remove the inner panel. 4 Remove the rechargeable battery with a screwdriver. Guarantee and support If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

ENGLISH Guarantee restrictions The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear. Troubleshooting This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country. Problem Possible cause Solution The shaver does not work when I press the on/off button. The shaver it still attached to the mains. For safety reasons, the shaver can only be used cordlessly. Unplug the shaver and press the on/off button to switch on the shaver. The rechargeable battery is empty. Recharge the battery (see chapter ‘Charging’). The travel lock is activated. Press the on/off button for 3 seconds to deactivate the travel lock. The shaving heads are damaged or worn. Replace the shaving heads (see chapter ‘Replacement’). The shaver does not shave as well as it used to. ENGLISH 37 Problem Possible cause Solution Hairs or dirt obstruct Clean the shaving heads the shaving heads. (see chapter ‘Cleaning and maintenance’). Clean the shaver thoroughly before you continue shaving (see chapter ‘Cleaning and maintenance’). I replaced the shaving heads, but the replacement reminder is still showing. You have not reset the shaver. This symbol is A shaving a replacement head symbol reminder. has suddenly appeared on the display. An exclamation mark has suddenly appeared on the display while charging. The shaver is overheated. Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’). Replace the shaving heads (see chapter ‘Replacement’). Disconnect the shaver from the mains for approx. 10 minutes.

ENGLISH Problem Possible cause An exclamation The shaving heads are soiled or mark, damaged. replacement reminder and the cleaning reminder have suddenly appeared on the display. Solution Replace (see chapter ‘Replacement’) or clean the shaving heads (see chapter ‘Cleaning and maintenance’). Water is leaking from the bottom of the shaver. During cleaning, water may collect between the inner body and the outer shell of the shaver. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver. The SmartClean system does not work when I press the on/off button. The SmartClean system is not connected to the mains. Put the small plug in SmartClean system and put the adapter in the wall socket. The shaver is not entirely clean after I clean it in the SmartClean system. You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver. Press down the top cap (‘click’) to ensure a proper connection between the shaver and the SmartClean system. The cleaning cartridge needs replacement. Replace the cleaning cartridge (see chapter ‘Cleaning and maintenance’). ENGLISH 39 Problem The shaver is not fully charged after I charge it in the SmartClean system. Possible cause Solution The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge. Place a new cleaning cartridge in the SmartClean system (see chapter ‘Cleaning and maintenance’). You have used another cleaning fluid than the original Philips cleaning cartridge. Only use the Philips cleaning cartridge. The drain of the cleaning cartridge might be blocked. Push the hairs down the drain with a toothpick. You have not placed the shaver in the SmartClean system properly. Press down the top cap (‘click’) to ensure a proper connection between the shaver and the SmartClean system.
