USER MANUAL LE POSH 178 LOGICOM

User Guide Logicom mobile phone L-195/L-195J 17

Photo representative only

Declaration of conformity

0700 We, LOGICOM (Logicom – 55 rue de Lisbonne – Paris 8ème – 75008 Paris) declare that the LOGICOM L-195/L-195J mobile phone complies with the essential requirements of the Directive R&TTE 1999/05/EC applicable to the following European standards: EN 61000-3-3:2013 EN 55024:2010 EN 62479:2010 EN 50360:2001+A1:2012 EN 62209-1:2006 EN 62209-2:2010 EN 50566:2013 EN 62471:2008 EN 62133:2013 RoHS 2011/65/EU, REACH No 1907/2006, ErP 2009/125/EC The manufacturer shall not be held responsible for modifications made by the user or any resultant consequences which could affect the conformity of the product with the CE marking. Any unauthorised modification of the product voids this declaration of conformity. EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 301 489-1 V1.9.2:2011 EN 301 489-7 V1.3.1:2005 EN 301 489-17 V2.2.1:2012 EN 300 328 V1.8.1:2012 EN 301 511 V9.0.2:2003 EN 55022:2010/AC:2011 EN 61000-3-2:2014

Product certified by the laboratory: PHOENIX TESTLAB GMBH Köningswinkel 10 32825 Blomberg Germany Laboratory number notified: 0700

Paris, 14 January 2016. Bernard Bessis President

Introduction Thank you for choosing this Pan digital mobile phone with colour screen. Read this manual in order to fully understand and use your GSM mobile phone. You will appreciate its features and just how easy it is to use. The Pan mobile phone with colour screen is designed for a GSM network environment. This is a dual-Sim Stand-by phone, but it is impossible to use the second SIM card when a call is in progress with the first SIM card. In addition to the traditional call functions, the Pan phone also offers many functions, each as practical as the others: contacts, messages, audio and video player, camera and camcorder, games, Bluethooth, an alarm, a calculator, the date and time, auto power-up and power-down, etc. This phone is the ideal accessory for your professional as well as leisure activities. As such, all of its functions meet your needs. The colour screen phone complies with the mobile telephone requirements and is certified by the competent authorities. The company reserves the right to modify the content of this manual without notice.

Please read before using Precautions for use concerning batteries  Do not dismantle, open or shred the elements or batteries.  Do not expose the elements or batteries to heat or flame. Do not store in direct sunlight.  Do not short-circuit and item or a battery. Do not store elements or batteries haphazardly in a box or drawer; they can short circuit each other or be short circuited by other metal objects.  Do not take an element or battery out of its original packaging until it is needed for use.  Do not subject the accumulators to mechanical impact.  If an element is found to be leaking, do not allow the liquid to come into contact with the skin or eyes. If this occurs, rinse the affected zone with plenty of water and seek medical attention.  Do not use a charger other than the one specifically provided for use with the device.  Do not mix items of different manufacture, capacity, size or type inside a device.  Children should be monitored when they are using a battery.  Seek medical attention immediately if an element or battery is swallowed.  Always purchase the battery that is recommended by the manufacturer of the device for the equipment.  Keep the elements and batteries clean and dry.  Wipe the terminals of the elements or batteries, if they become dirty, with a clean dry cloth.  The storage batteries and elements must be charged before use. Always use a suitable charger and refer to the manufacturer's instructions or to the device manual concerning the correct charging instructions.  Do not leave a battery charging for an extended period of time when it is not being used.  After extended periods of storage, it may be necessary to charge and discharge the storage batteries or elements several times, in order to obtain maximum performance.  Retain the original documentation concerning the product, for later reference.  Use the storage battery or element only in the application for which it is intended.  If possible, remove the battery from the equipment when it is not in use.  Dispose of the battery properly.

Package contents 1 x Phone 1 x Charger 1 x USB cable 1 x User guide 20

NOTE: The packaging materials, such as the adhesive tape, plastic film, string and labels, are not part of this product. 1.6 Installing SIM card and memory card 1.6.1 SIM card First, insert a valid SIM card into your phone before using it. The SIM card is supplied by the network operator. All of the information pertaining to the network connection is saved in the chip of the SIM card, such as the contacts, phone numbers and SMS for contacts in the directory. You can extract the SIM card from your phone and insert it into any other mobile phone (new mobile phones automatically read SIM cards). In order to prevent losing or damaging the information saved on the SIM card, do not touch the metal contacts, and keep the card away from any source of electricity or magnetic field. If the SIM card is damaged, you cannot use the telephone in a normal manner. Recommendation: Make sure the telephone is turned off before removing the SIM card from it. A SIM card cannot be inserted or removed when the phone is connected to an external power supply. There is a risk of damage to the SIM card and the phone. 1.6.2 Inserting and removing the SIM card The metal contact surface of the SIM card can be scratched easily. Remove the SIM card from its support carefully before installing it.  Turn off the phone, remove the back cover, battery or any other external power supply.  Insert the normal side (without angled edge) of the SIM card into the cavity provided for this purpose, with the metal contacts facing downwards. Insert the second SIM car in the same way.  To remove the SIM card, pull it directly outwards and remove it completely. Recommendation: This manual does not provide any additional information on inserting the second SIM card. Refer to the general instructions for inserting a SIM card. If you insert only one SIM card, some of the options on the menu will not be available. 21

1.6.3 Memory card Insert the card into the memory card reader and gently press on the card in order to insert it correctly. Tip: If the memory card does not work, check that it is inserted correctly and also check the metal contact points. 1.7 Battery 1.7.1 Installing the battery  Remove the back cover from the phone.  Place the end of the battery that has the metal contacts against the battery connector.  Gently push the battery down and press on the other end of it to snap it in. Tip: Do not force the battery connector as it can be damaged. Keep the battery away from any source of flame. Follow local laws as well as regulations for disposing of used batteries. Check the serial number of the charger before charging the mobile phone. Use only a battery, charger and accessories that have been approved for use with this phone model. The use of other types of batteries, chargers and accessories may invalidate certification and or warranty conditions for the equipment and may be dangerous. Return the waste and used batteries to the supplier or a recycling site.

WARNING: The battery may explode if you replace it with a model that is not compatible. Dispose of used batteries according to the instructions. 1.7.2 Charging Connect the charger to the port provided for this purpose and located under the phone. After connecting the charger, the battery strength indicator located in the upper right-corner of the screen scrolls, showing that the phone is charging. When the indicator is full and the scrolling stops, the battery is charged. Disconnect the charger. When the level of charge is insufficient, a warning message is displayed, and the charge indicator appears empty. When the battery level gets too low, the phone turns off automatically. Do not leave the battery at a low 22

charge level too long, as this will damage it and alter its lifetime. Do not charge the battery too long. Tip: To guarantee normal operation of your phone, use the intended charger. 1.8 Security password  PIN code The PIN code (Personal Identification Number) is used to prevent illegal use of your SIM card. Generally, PIN code and SIM card are provided together. If you input the PIN code incorrectly three times in succession, input the PUK code to unlock the SIM card. Contact your network operator for more information.  PIN 2 code: Input your PIN 2 code to use certain services such as a service call. If you input the PIN2 code incorrectly three times in succession, input the PUK2 code to unlock the SIM card. Contact your network operator for more information.  PUK code To change the locked PIN code, input the PUK (Personal Unlock Key) code. Usually PUK2 code and SIM card are provided together. Otherwise, contact your network operator. If you enter an incorrect PUK code ten times in succession, the SIM card can no longer be used. Please contact your network operator to purchase a new card. The PUK code cannot be changed. If you lose the code, contact your service provider.  PUK2 code When you change the locked PIN2 code, input the PUK2 code. If you enter an incorrect PUK2 code ten times in succession, the functions that require the PIN2 code will not be able to be used. Please contact your network operator to purchase a new card. The PUK2 code cannot be changed. If you lose the code, contact your service provider.

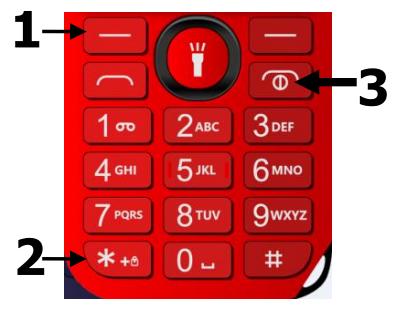

To Lock/Unlock the keyboard, press the menu key (1) then the star key (2): To Turn on/Turn off the phone, press the On/Off key (3) for a long time:

2 10. Contacts 2 You can save a phone number in the memory of the phone or in the SIM cards.  Add a new contact: Create a new contact  View: View detailed information on the contact  Send a text message: Send a message to the contact  Dial: Call the contact  Edit Edit the contact's information  Delete: Delete the selected contact  Copy: Copy the contact to the phone or to the SIM card  Contact settings: Edit additional numbers / Overview of the capacity of the SIM cards and of the phone 11. message 11.1. Compose a message Compose a new message, insert a number and other 11.2. Inbox All messages received are saved in this inbox. 11.3. Draft box This function allows you to retrieve the SMS that you have saved. 11.4. Outbox Outbox holds the messages that failed to be sent.

11.5. Sent messages This function allows you to save all of the messages that have been sent successfully. 11.6. SMS settings Allows you to change the default message parameters and to consult the message memory. 12. Call centre This function allows you to view the recent call journal and to change the call settings. 12.1. Call History  Missed calls: See the number of the missed calls  Calls made: See the recent list of various calls made  Received calls: See the recent list of various calls received  All Calls: View all calls made, received and missed  Delete call journals: Delete the selected calls  Call time View the duration of the last call, dialled and received calls 12.2. Call settings  SIM call settings: Change the functions for call waiting, call diverting, call limiting and line switching  Advanced settings Change the functions for automatic redial, call time recall and answer mode 13. Settings 13.1. User profiles User profiles allow you to define the operation of your phone when a call or message is received and to configure the sound for keys, among other things. You can customise these profiles or keep their default configuration according to your needs. Select and customise the profiles adequately according to the situation. The various modes available are General, Silent, Meeting, Outdoor, Headphone. 13.2. Phone settings  Date and time: Configure the date and time of the device, as well as how they are displayed 25

On/Off power scheduling: Configuring auto-off for the device Language: Configuring the language of the device Preferred input methods: Configuring the preferred text input method Display:  Wallpaper: Define a picture as the default wallpaper  Auto lock Define the duration for keyboard auto-lock  Date and time display Activate or deactivate the date and time on the screen  Special keys: Define shortcuts for the four directional buttons  Flight mode: Activate or deactivate the flight mode  Various settings: Adjust the screen brightness and the duration of the backlight 13.3. Safety settings  SIM safety  PIN lock: Activate or Deactivate the PIN code. If PIN code verification is activated, you must input your PIN code each time the phone is started.  Change PIN: Change PIN  Change PIN2: Change PIN2  Phone security: Lock the phone with a password. The phone's initial password is 1234.  Locking the keyboard with the power key: Activate or Deactivate the keyboard locking function with the power key 13.4. Double SIM settings: Activate SIM1 only/SIM2 only/ Dual-SIM mode 13.5. Connectivity  Bluetooth: Makes it possible to configure SIM 1 and 2.  Power: Activate or Deactivate the Bluetooth function.  Visibility: Activate or Deactivate Bluetooth visibility.  My device: Search for compatible Bluetooth equipment  Change the device name: View and change the Bluetooth name Note: To minimize exposure to electromagnetic fields, we recommend deactivating the Bluetooth when you are not using it.

 Data connection SIM: Choose the SIM card for the data connection 26

 Data count: Choose the settings for mobile data 13.6. Restoring the settings This function allows you to restore factory-set settings. The default password for setting reinitialisation is "1234". 14. Multimedia 14.1. Video recorder Press the central button to record a video Options:  Change camera: Switch from video to picture taking mode  Camcorder settings: Set the anti-flicker setting to 50Hz or 60Hz  Video settings: Set the video quality  Storage: Allows you to store data on the phone or on the memory card 14.2. Picture viewer  View: Go to the photo album  Send: Send a photo using Bluetooth  Use as: Define the selected picture as a wallpaper or boot picture  Rename: Renames selected file  Delete: Allows you to delete selected picture  Storage: Allows you to view the photos in the phone or in the SIM card  Picture information: Allows you to view the details of the pictures

Playing audio Button Left and right directional buttons Up directional button Down directional button Central Button Star and pound key Play video Button Left and right directional buttons

Function Press once to go to the previous or next title Press continuously to rewind or fast forward in the title Press to repeat a track or an album Press to activate random play Press to play/pause the title Press to increase/decrease the volume

Up directional button Down directional button Central Button Star and pound key

Function Press once to go to the previous or next title Press continuously to rewind or fast forward in the title Press to switch to full screen mode Press to stop playing Press to play/pause the title Press to increase/decrease the volume

14.5. FM radio  List of channels: Select, delete and edit saved stations  Manual input: Allows you to search and save stations by frequency  Auto search and save: Automatically searches for and saves channels  Settings: The background music allows you to go back to the main interface and continue listening to the radio. 28

14.6. Sound recorder This function allows you to record and listen to your audio recordings. Interrupted recordings are automatically saved and can be found in the list of files. 15. Internet: select SIM1/SIM2 to access the corresponding menus 16. Camera: Press the central button to take pictures Options:  Switch to the camcorder: Switches from photo taking mode to video mode  Pictures: Go to the photo album  Camcorder Settings: Allows you to adjust the settings for anti-flicker, scene mode, white balance and timer  Photo settings: Allows you to set the picture size and quality  Effect settings: Allows you to select a photo effect  Storage: Allows you to store data on the phone or on the memory card  Restore default settings: This function allows you to restore factory-set settings for the camera 17. Applications  File manager: Allows you to browse through the files on the phone and on the external memory  Alarm: Alarm settings  Calendar: Displays the full date  Calculator: Allows the phone to be used for simple calculations  Electric torch: Allows you to activate/deactivate the electric torch 18. Playing Games  Nin ja Climb: Launches the Nin ja Climb game  Top Gun: Launches the Top Gun game  Game settings: Makes it possible to activate the audio and set the volume for games

Recycling The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life. The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimize the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Product disposal instructions for residential users: If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local recycling procedures. For more information please contact your local authority or the retailer where the product was purchased. Product disposal instructions for business users: Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.

Warning on using the phone while driving In France, in accordance with Article R412-6-1 of the French highway code, drivers are not permitted to use hand-held phones whilst the vehicle is moving. The penalty for non-compliance with this article is a fine and a three point penalty on your driving licence. The use of a hands-free kit is permitted. However, Article R412-6 of the French highway code provides for a fine without licence penalty points if the driver is not in a position to carry out required manoeuvres comfortably and without delay when using his hands-free kit whilst driving. NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in your country of origin before travelling.

Listening safety  Before using the earphones, check that the volume is not set to maximum to prevent hearing loss.  The high volume settings are intended for individuals with reduced hearing capacity and not for those with normal hearing.  Do not use the earphones while driving.  Adjust the volume so that you can hear the sounds around you.  In order to prevent potential hearing damage, do not listen at high volumes for an extended period.  Listening to a portable audio player at high volumes can damage your hearing and lead to hearing impairment (deafness, ringing ears, tinnitus hyperacusis). In order to prevent these risks it is recommended not to use the device at full volume; use must not exceed one hour per day.  This product complies with the EN 60950-1:2006/A12:2011 standard "Information technology equipment - Safety - Part 1: General requirements" in accordance with the order of 25 July 2013 implementing Article L. 5232-1 of the French public health code concerning portable audio players.  Do not use pre-amplified or amplified models of headphones or earphones (i.e. with individual volume control and/or self-powered by batteries), as they do not ensure adherence to the maximum volume.

Electromagnetic waves safety information (SAR) Your device is designed to not exceed the radio wave limits recommended by the European authorities. These limits include safety margins to ensure the protection of all persons regardless of their age or health. The SAR (specific absorption rate) of mobile phones quantifies the maximum level of exposure of the user to electromagnetic waves, for aural use. French legislation stipulates that the SAR must not exceed 2 W/kg averaged over 10g of tissue. The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests. The actual value of the SAR during use of the phone is lower than this level. The value of the SAR of the phone can vary according to the following factors: how far/close the phone is to a relay antenna, use of accessories and others. The maximum SAR level of your device is given in the following table: Position

Body (Clearance of 0 cm)

The body SAR value is tested at a distance of 0 cm. NOTE: The SAR value may vary, depending on national reporting and testing requirements and the network band. NOTE:  Do not use your mobile phone in certain locations such as aircraft, hospitals, service stations and professional garages or while driving a vehicle. The electromagnetic waves from the mobile phone can disrupt the performance of electronic devices used in these locations. We recommend that you switch off your phone or switch it to flight mode in these locations to avoid interference.  If you use an electronic implant (pacemaker, insulin pump, neurostimulation, etc.). Maintain a distance of 15 cm between the mobile phone and your electronic implant.  When using an earphone, pregnant women should keep the phone away from their abdomen and teenagers should keep the phone away from their lower abdomen. Advice to reduce the level of exposure to radiation:  Please use your mobile phone where reception is good to reduce the quantity of radiation received (avoid using in an underground car park or when travelling (train or car)).  A reception icon indicates the quality of reception on your phone. A 4-bar display means that reception is good .  In order to limit exposure to radiation, we recommend using an earphone kit.  In order to limit the detrimental consequences of prolonged exposure to radiation, we recommend that adolescents keep the phone away from their lower abdomen, and that pregnant women keep the phone away from their abdomen.

The warranty scope of application If you encounter a problem: A contact form and complete FAQ are available in the support section of our website: www.logicom-europe.com An interactive vocal server is also available. It includes the information available in the FAQ section of our website at the following number: +33 (0)1 48 63 67 94 Made in PRC © 2015 Logicom SA. If none of this has helped you to solve your problem, please contact your reseller. For security reasons, only our technical department is authorized to make repairs. As a result, we do not sell any spare parts. The LOGICOM supplier warranty is valid for normal use of the device as defined in the instructions. This warranty excludes damage caused by external circumstances. Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection against heat, humidity, or freezing temperatures. The warranty is applicable only in metropolitan France.   

The warranty does not cover user guides, applications, adjustments, content, or any form of data. The warranty does not cover normal wear of the product. (Screens, batteries, and camera) The warranty does not cover damage to the product caused by improper use, including damage caused by objects, pressure, or dropping.  The warranty does not cover use of the product that does not comply with the precautions for use outlined in the user guide.  The warranty does not cover damage caused to the product by another connected product or simultaneously used product, or by a n accessory or software not provided by Logicom.  The warranty does not cover all damage caused to the battery.  The warranty does not cover the product or its accessories if it has been disassembled or modified in any way.  The warranty does not cover products that cannot be identified by their serial or IMEI numbers. If this information has been removed, erased, modified, or rendered illegible, the warranty is void.  The warranty does not cover damage caused to the product by exposure to moisture, to extreme heat or cold, to corrosion, to oxidation, or to any form of liquid.  The warranty does not cover damage to the SIM reader(s) or to the MicroSD reader. The legal warranty for hidden defects applies in compliance with Articles 1641 et seq. of the French Civil Code.
