USER MANUAL G4203 SCU MIELE

Operating instructions

It is essential to read the operating and installation instructions before installing or using the machine, to avoid the risk of accident or damage to the machine. Downloaded from www.Manualslib.com manuals search engine

Guide to the appliance Guide to the appliance

1 Upper spray arm (not visible)

8 Four height adjustable screw feet

2 Cutlery tray (depending on model)

9 Filter combination

3 Upper basket 4 Water feed for middle spray arm

10 Salt reservoir 11 Dual compartment detergent dispenser

12 Rinse aid reservoir (with dosage selector)

19 Child safety lock

5 Downloaded from www.Manualslib.com manuals search engine

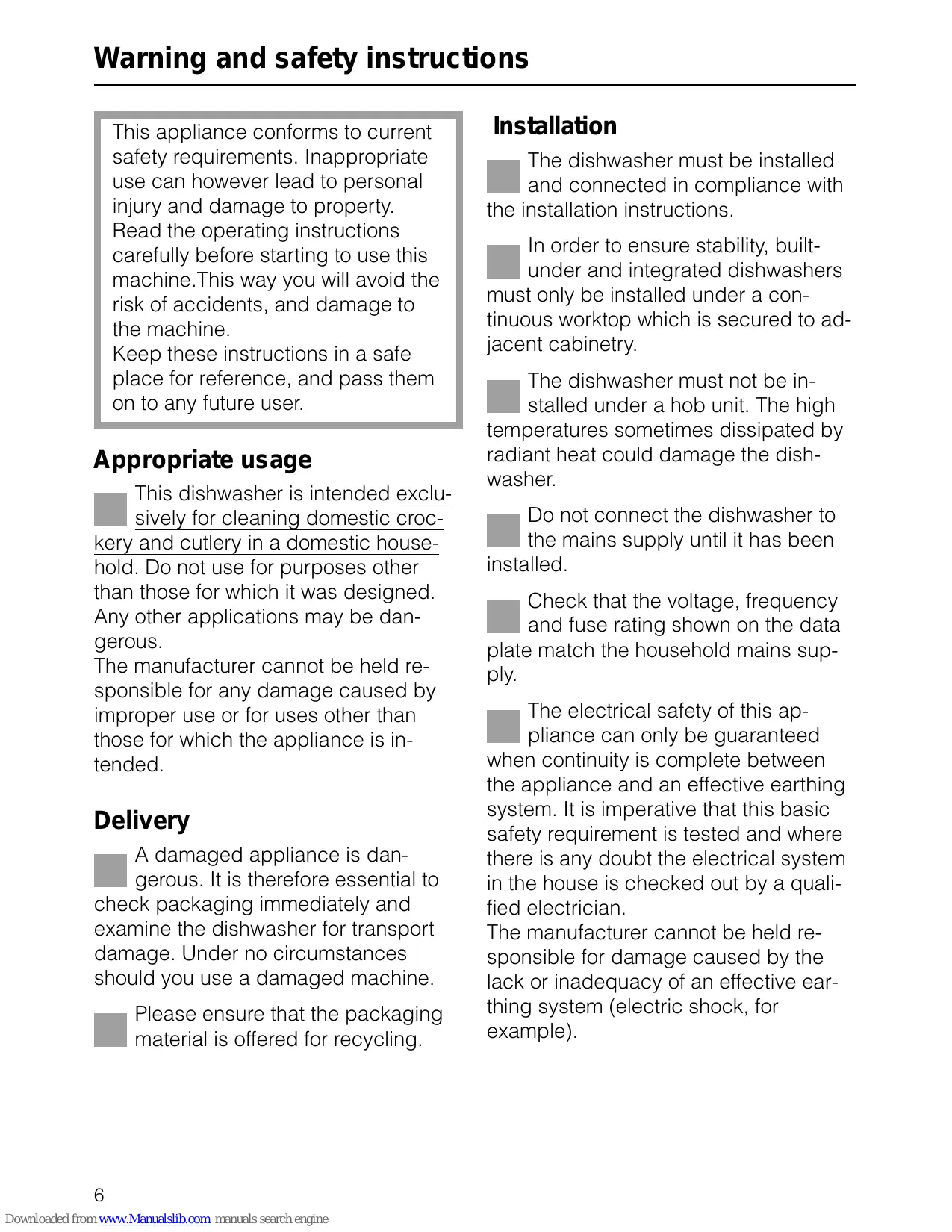

Warning and safety instructions Warning and safety instructions This appliance conforms to current safety requirements. Inappropriate use can however lead to personal injury and damage to property. Read the operating instructions carefully before starting to use this machine.This way you will avoid the risk of accidents, and damage to the machine. Keep these instructions in a safe place for reference, and pass them on to any future user.

Appropriate usage This dishwasher is intended exclusively for cleaning domestic crockery and cutlery in a domestic household. Do not use for purposes other than those for which it was designed. Any other applications may be dangerous. The manufacturer cannot be held responsible for any damage caused by improper use or for uses other than those for which the appliance is intended.

Delivery A damaged appliance is dangerous. It is therefore essential to check packaging immediately and examine the dishwasher for transport damage. Under no circumstances should you use a damaged machine. Please ensure that the packaging material is offered for recycling.

6 Downloaded from www.Manualslib.com manuals search engine

Installation The dishwasher must be installed and connected in compliance with the installation instructions. In order to ensure stability, builtunder and integrated dishwashers must only be installed under a continuous worktop which is secured to adjacent cabinetry. The dishwasher must not be installed under a hob unit. The high temperatures sometimes dissipated by radiant heat could damage the dishwasher. Do not connect the dishwasher to the mains supply until it has been installed. Check that the voltage, frequency and fuse rating shown on the data plate match the household mains supply. The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system. It is imperative that this basic safety requirement is tested and where there is any doubt the electrical system in the house is checked out by a qualified electrician. The manufacturer cannot be held responsible for damage caused by the lack or inadequacy of an effective earthing system (electric shock, for example).

Warning and safety instructions A damaged appliance is dangerous. Switch off at the mains and call your Miele supplier or the Miele Service Department. With the “Waterproof system” the plastic housing of the water inlet connection contains an electrical component. The housing must therefore not be dipped in water. Never cut the water inlet hose, even if it is too long. There are live wires in this hose. For safety reasons do not operate this appliance on an extension cable. (Danger of overheating).

Daily use Do not use solvents in the dishwasher. Danger of explosion. Water in the dishwasher must not be used as drinking water. Avoid inhalation of powder detergents. Dishwasher detergents contain irritant or corrosive ingredients. They can cause burning in the mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled.

In an appliance with a cutlery basket (depending on model) cutlery is cleaned and dried more efficiently if placed in the basket with the handles downwards. However, to avoid the risk of injury place cutlery with sharp points with the handles upwards. Only use detergents formulated for domestic dishwashers. Do not use washing-up liquid. Only use rinse aid formulated for domestic dishwashers. Only use special coarse grained dishwasher salt for reactivation, as other salts may contain insoluble additives which can impair the functioning of the softener. Plastic items which cannot withstand being washed in hot water, such as disposable plastic containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.

Do not sit or lean on the opened door. This could cause the dishwasher to tip and be damaged and you could get injured.

7 Downloaded from www.Manualslib.com manuals search engine

Warning and safety instructions Take care on dishwashers with a visible heater element Do not touch the heating element during or directly after the end of a programme, you could burn yourself. Some plastic items could melt or catch fire if they were to come into contact with the heating element. Therefore always place plastic items or any other items which may not be completely heat resistant in the upper basket and ensure they cannot drop down onto the heater element. Any items which are too small to be lodged securely in the upper basket should not be cleaned in the dishwasher.

Safety with children Do not let small children play with the dishwasher and its controls or operate it. There is a danger that children playing might shut themselves in the dishwasher. Keep children away from detergents. Dishwasher detergents contain irritant or corrosive ingredients. They can cause burning in the mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if your child has swallowed or inhaled detergent.

To avoid the danger of children coming into contact with the dishwasher detergent: Only add detergent just before starting the programme and close the door, activating the child safety lock (depending on model). Keep children away from the dishwasher when the door is open. There could be detergent residues in the appliance. To ensure children do not come into contact with detergent: For models with the “Delay start” option make sure the dispenser is dry before adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly dispersed. If the door is open at the end of a programme, children may come into contact with this residue.

To avoid machine and material damage Do not fill the rinse aid reservoir with powder or liquid detergent. This will cause serious damage to the reservoir. Inadvertently filling the salt reservoir with powder or liquid dishwasher detergent always leads to serious damage to the water softener. Do not use commercial or industrial detergents as these may damage material and there is a risk of severe chemical reaction.

8 Downloaded from www.Manualslib.com manuals search engine

Warning and safety instructions The Miele Waterproof System offers protection from water damage, provided the following conditions are met: – The dishwasher is correctly installed and plumbed in. – The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary. – The stopcock has been turned off when the machine is not used for a longer period of time (e.g. during holidays).

Disposal of your old machine When disposing of an old dishwasher first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative (2 crossslotted screws), so that children cannot accidentally shut themselves in. Make appropriate arrangements for the safe disposal of the appliance. The manufacturer cannot be held responsible for any damage caused by non-observance of the warning and safety instructions.

In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the appliance guarantee.

Repairs and maintenance Repairs may only be carried out by suitably qualified and competent engineers in accordance with local and national safety regulations. Repairs by unqualified persons could be dangerous. Always disconnect the appliance from the electrical supply for maintenance work (switch off at wall socket and remove the plug, or remove the screw out fuse in countries where this is applicable).

9 Downloaded from www.Manualslib.com manuals search engine

Caring for the environment Caring for the environment

Disposal of the packing material The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled. Rather than just throwing these materials away, please ensure they are offered for recycling.

Disposal of your old appliance Old appliances contain materials which can be recycled. Please contact your local authorities or scrap merchant about potential recycling schemes, before disposing of the appliance. Ensure that the appliance presents no danger to children while being stored for disposal. See the appropriate section in the Warning and Safety instructions.

Energy saving washing This dishwasher is exceptionally economical in its use of water and electricity. You can make the most of your appliance by following these tips: If your household water system is suitable, this dishwasher can be connected to a hot water supply, for further economies. Although all stages of the wash then take place with hot water, savings are made in: – the use of primary energy – costs – programme running time. If, however, your water is heated by electricity we would still recommend connection to cold water. For most economical dishwashing make full use of the baskets without overloading the dishwasher. Choose the programme to suit the type of crockery being washed and the degree of soiling. Select the Economy 45ºC programme for energy-saving dishwashing. Use the correct amounts of detergent. Use only 2/3 of the given dosage if baskets are only half full. The drying heat can be switched off, shortening the length of the programme and saving energy. The load then dries to a large extent in its own heat (see “Additional options and functions”)

10 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Before using for the first time

Before using the machine for the first time you require: – approx. 2 litres of water, – approx. 2 kg dishwasher reactivation salt, – domestic dishwasher detergent, – rinse aid formulated for domestic dishwashers.

Every dishwasher is tested at the factory. There will be residual water in the machine from this test. It is not an indication that the machine has been previously used.

11 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time To open the door

Child safety lock The yellow key for the child safety lock is on one of the spikes at the front of the upper basket. Remove the key before switching on the dishwasher and keep it in a safe place away from the dishwasher.

Press the release catch inside the door grip and pull forward. If the door is opened during operation all functions are automatically interrupted.

To close the door Push the baskets right in. Lift the door and push until it clicks into position.

If you wish to prevent children opening the dishwasher door during operation use the key provided to turn the lock to the required setting. Horizontal setting: The door is locked. Vertical setting: The door can be opened.

12 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Water softener In order to achieve good cleaning results, the dishwasher needs to operate with soft water. Hard water results in the build-up of calcium deposits on crockery and in the dishwasher. Hence if mains water hardness is above 4 °d (0.7 mmol/l), the water should be softened. This takes place automatically in the integrated water softener. – The water softener must be filled with dishwasher salt for reactivation. – The water softener must be set to correspond to the water hardness in your area. – Your local water authority will advise you on the highest level of water hardness in your area.

If the hardness of your local supply is constantly lower than 4 °d (= 0.7 mmol/l), you do not need to add dishwasher salt. The water softener must, however, still be programmed to correspond to the water hardness level in your area. Where the water hardness fluctuates e.g. between 8 - 17 °d (1.4 - 3.1 mmol/l), always set the machine to the higher value (17 °d in this example). In the case of a fault, it will help the service technician if you know the hardness of your local water supply. Enter the water hardness below: °d

13 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Programming and setting the water hardness level The water hardness level of your water supply must be programmed into the machine using the programme selector. The water hardness level selector in the wash cabinet is then also set to the water hardness level in your area. Programming the machine to the water hardness level Switch the appliance off with “On/Off” button. Turn the programme selector to “Stop”. Press the “Start” button in and whilst doing so at the same time switch the dishwasher on using the “On/Off” button. Release the “Start” button again within two seconds. The “Salt” indicator light will start flashing. Note: If a different indicator light is on or flashing, the process must be repeated. Exception: The “Rinse aid” indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.

Turn the programme selector to the position that corresponds to your water hardness level (see chart below). Programme selector setting

The dishwasher is set at the factory for a hardness level of 22 - 35 °d (4.0 - 6.3 mmol/l). Example: For a water hardness level of 20 °d. Turn the programme selector to the 6 o’clock position.

14 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Press the “Start” button. The “Start” indicator light will come on. Turn the programme selector to the “Stop” position. Switch the appliance off by pressing the “On/Off” button. The water hardness level is now stored in memory. Setting the water hardness level selector in the wash cabinet The water hardness level selector in the wash cabinet must be set according to the table below. Setting the selector to the correct setting will help minimise the effects of the wash process on glass surfaces. Too high a setting will lead to poor cleaning results and an increase in water spots left on crockery and cutlery. Use a screwdriver to take the cover off the water hardness level selector in the wash cabinet.

Use a coin or screwdriver to adjust the water hardness level selector in the wash cabinet. There is a click as each setting is reached. °d

Selector setting (level)

The water hardness selector is set at the factory to setting “1”. Example: For a water hardness level of 6 °d. Turn the water hardness level selector to setting 3 (1 - 7 °d). Replace the cover on the water hardness level selector.

15 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Checking the programmed water hardness level Switch the appliance off by pressing the “On/Off” button. Turn the programme selector to the “Stop” position. Press the “Start” button in and whilst doing so at the same time switch the dishwasher on using the “On/Off” button. Release the “Start” button again within two seconds. The “Salt” indicator light will start flashing. Note: If a different indicator light is on or flashing, the process must be repeated. Exception: The “Rinse aid” indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing. Click the programme selector from the “Universal 55°” (1 o’clock) as far as the 8 o’clock positon. When the programme selector is at the position which corresponds to the water hardness setting already programmed, the “Start” indicator light will come on (see chart “Programming and setting the water hardness level”). Turn the programme selector to the “Stop” position. Switch the appliance off with the “On/Off” button.

16 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Filling the salt reservoir Important. Before filling the salt reservoir with dishwasher salt for the first time, you must fill it with approx. 2 litres of water to enable the salt to dissolve. Once the dishwasher has been used, there is always sufficient water in the reservoir.

Inadvertently filling the salt reservoir with powder or liquid dishwasher detergent always causes serious damage to the water softener. Make sure that you have picked up the right packet of dishwasher salt before filling the salt reservoir.

Please only use special coarse grained dishwasher salt for reactivation, as other salts may contain insoluble additives which can impair the functioning of the softener.

Remove the lower basket and unscrew the salt reservoir cap. Fill the reservoir with approx. 2 litres of water (first use).

Place the funnel provided over the salt reservoir and carefully fill with salt. The salt reservoir holds approx. 2 kg of salt. As the salt reservoir is filled, displaced water will overflow. Clean any excess salt from around the reservoir opening and then screw the cap on again firmly. Run the Pre-wash programme immediately to remove any traces of salt water from the cabinet.

17 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Salt indicator

The salt indicator light comes on to notify you that the reservoir is empty.

The salt indicator light will also come on if the water used is very soft (below 4 °d / 0.7 mmol). In this case the reservoir should not be filled with salt. The indicator light will remain lit and should be ignored. (See “After sales service” for definition of “PC”).

The reservoir should then be refilled with dishwasher salt for reactivation. ( See: Filling the salt reservoir) After the reservoir has been filled, the water softener is automatically reactivated the next time the dishwasher is run. The salt indicator light may still be illuminated during this process. It will go out once the salt concentration has reached the correct level.

18 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Rinse aid

Rinse aid is necessary to ensure water does not cling and leave marks on crockery during the drying phase. Rinse aid is poured into the storage reservoir and the amount set is dispensed automatically. Make sure you have added rinse aid before using the dishwasher for the first time. Inadvertently filling the rinse aid reservoir with powder or liquid dishwasher detergent always causes serious damage to the reservoir. Only pour rinse aid formulated for domestic dishwashers into the reservoir.

Press the button in the direction of the arrow until the flap springs open.

Alternatively it is possible to use – Household vinegar with a max. 5% acid content Do not use vinegar with a higher acid content (e.g. vinegar essence 25% acid). This must not be used as its use would damage the dishwasher. or – Liquid citric acid up to 50% acid content. The resulting rinsing and drying quality will not, however, be as good as when rinse aid is used.

19 Downloaded from www.Manualslib.com manuals search engine

Before using for the first time Rinse aid indicator The Rinse aid indicator light on the fascia comes on when the rinse aid reservoir needs to be replenished.

Add rinse aid only until it is visible on the surface of the filter in the opening. The rinse aid reservoir holds approx. 130 ml. Close the flap firmly so that it clicks into place. Otherwise water would enter the rinse aid reservoir during a programme. Wipe up any spilled rinse aid. This prevents over-foaming occuring during the next programme.

20 Downloaded from www.Manualslib.com manuals search engine

When the light comes on the reservoir still contains sufficient rinse aid for 2 - 3 programmes. Add rinse aid in plenty of time.

Before using for the first time Setting the rinse aid dosage

The dosage selector has settings from 1-6. It is set to 3 at the factory (see arrow). Approx. 3 ml of rinse aid are then used per programme. This is a recommended setting. If spots appear on crockery and glassware: Use a higher setting. If clouding or smearing appears on crockery and glassware: Use a lower setting.

21 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Loading the dishwasher

Note Remove coarse food residues from crockery. There is no need to rinse items under running water. Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher. Ash does not dissolve and is distributed in the wash cabinet. Wax, sand, lubricating grease and paint cause damage to the dishwasher. Crockery can be loaded anywhere in the baskets, but the following notes should be observed: Do not place crockery and cutlery inside other pieces where they may be concealed. Load the crockery so that water can access all surfaces. This ensures that it is properly cleaned. Make sure that all items are securely positioned. Hollow items such as cups, glasses, pans, etc. must be inverted in the basket. Tall, narrow, hollow items, e.g. champagne glasses, should be placed in the centre of the basket to ensure better water coverage.

22 Downloaded from www.Manualslib.com manuals search engine

Deep-based items should be placed at an angle so that water can run off them freely. The spray arms must not be blocked by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms. Make sure that small items do not fall through the holders in the baskets. Small items, e.g. lids, should therefore be placed in the cutlery tray or cutlery basket. Some foodstuffs may contain natural dyes, e.g. carrots, tomatoes or ketchup. Plastic items in the dishwasher may discolour if large quantities of these foodstuffs find their way into the appliance on the crockery. The stability of plastic items is not affected by this discolouration.

When the dishwasher is being loaded food and drink residue may drip onto the sides of the dishwasher door. These surfaces do not belong to the wash cabinet and are not accessed by water from the spray arms. Food residue should therefore be wiped away before the dishwasher door is closed.

Loading the dishwasher Loading examples

To make room for tall items raise the rack upwards. For small, lightweight, delicate items such as cups, saucers, glasses, dessert bowls, etc. as well as plastic items which are heat-resistant. Flat saucepans or casserole dishes can also be placed in the upper basket.

Positioning rail (depending on model)

The positioning rail can be flipped over to the middle of the basket for easy sorting and removing of crockery. Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket.

23 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Adjusting the upper basket (depending on model) In order to gain more space for taller pieces of crockery in the bottom or upper basket, the upper basket can be adjusted on three levels with 2 cm between each level. The upper basket can also be set at an angle with one side high, and the other side low. Ensure however, that the basket can be inserted smoothly into the cabinet.

Depending on the setting of the upper basket, the following plate dimensions can be accommodated. Dishwashers with cutlery tray Upper basket level Top Middle Bottom

Plate Ø in cm Upper Lower basket basket 15.5 30 17.5 28 19.5 26

Pull out the upper basket. Dishwashers with cutlery basket without adjustment to upper basket Plate Ø in upper basket: 23 cm Plate Ø in lower basket: 28 cm

Pull upwards on the levers at either side of the upper basket. Adjust the basket to the desired height. Then push the levers securely back down into position.

24 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Lower basket

For larger and heavier items such as plates, serving platters, saucepans, bowls, etc. Small items such as saucers can also be placed in the lower basket. Do not place thin, delicate glassware in the lower basket unless a special basket with glassware insert is installed.

The stay at the front of the upper basket determines the max. height permissible for items placed in the lower basket to ensure they do not impede the movement of the middle spray arm.

Dishwashers with a cutlery tray

Dishwashers with a cutlery basket

25 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Bottle holder (depending on model)

The bottle holder, e.g. for milk and baby bottles, can be inserted into the lower basket as shown in the illustration. If placed anywhere else, water will not be able to access the bottles properly, and cleaning results will be impaired.

Dishwashers with a cutlery basket

Unsorted cutlery should be placed in the cutlery basket with the handles facing downwards to ensure optimum spray water access. However, to avoid the risk of injury cutlery with sharp points should be placed with the handles upwards. Place small spoons in the individual slots to either side of the cutlery basket.

26 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Spoon inserts for the cutlery basket Use the inserts supplied when washing heavily soiled spoons, e.g. tablespoons and serving spoons. The inserts separate the spoons to allow a space between them so that they can be more easily accessed by water.

Insert the spoons with the handles facing downwards, using only every other slot.

If required, place an insert onto the front and rear of the cutlery basket. To remove the inserts: Press the engaged hooks inwards (use a spoon handle if necessary) and remove the insert by pulling it upwards.

27 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Dishwashers with a cutlery tray (SC)

For best results cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc. This makes unloading much easier. Longer items such as soup ladles, cake slices, mixing spoons and long knives should be placed lengthwise in the indentation in the middle of the cutlery tray.

Place the handles between the holders. Spoon heads should be placed in contact with at least one of the serrated retainers on the base of the cutlery tray to ensure that water runs off them freely.

The upper spray arm must not be blocked by items which are too big (e. g. cake slices) The cutlery tray insert is removable.

Spoons with round or oval handles should be placed with the heads in the holders as this prevents them slipping.

28 Downloaded from www.Manualslib.com manuals search engine

Loading the dishwasher Items not suitable for dishwashers: – Wooden cutlery and crockery or items with wooden parts: these may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.

We recommend: – When purchasing new crockery and cutlery, make sure they are dishwasher-proof. – There are no standard guidelines for washing glassware. When in doubt, wash by hand.

– Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.

– If delicate glassware is washed in the dishwasher ensure that only very low temperatures are used (see programme chart). This will reduce the risk of clouding.

– Plastic items which are not heat resistant may lose shape.

– Copper, brass, tin and aluminium items may discolour or become matt. – Items with colours painted over a glaze may fade after many washes. – Clouding may occur on glasses after frequent washing. Do not wash glassware containing lead crystal in a dishwasher.

Silverware previously cleaned with a silver polish may still be damp or spotted at the end of a programme, where water has not run off smoothly. It may need rubbing dry with a soft cloth. Silver treated in a silver immersion dip is usually dry at the end of a programme but may discolour. Aluminium components (e. g. a grease filter) must not be cleaned with caustic alkaline commercial or industrial cleaning agents. These may damage material, or in extreme cases, cause severe chemical reaction. See section “Adding detergent” for information on suitable detergents.

29 Downloaded from www.Manualslib.com manuals search engine

Operating the dishwasher Operating the dishwasher

Adding detergent Only use detergents formulated for domestic dishwashers. Do not use washing up liquid. You can use conventional powder detergent, tablets or liquid dishwasher detergent.

There are currently three types of detergent on the market: 1. Detergents containing phosphates and chlorine. 2. Detergents containing phosphates but chlorine-free. 3. Phosphate-free and chlorine-free detergents.

Put powder or liquid detergent into the dispenser compartment.

Type 3 detergents are more environmentally friendly, however:

Detergent tablets should only be put into compartment II if this is recommended by the manufacturer. If the manufacturer recommends inserting tablets in the cutlery basket do not do so. Instead place them on the inside of the door or directly into the wash cabinet. The tablets will then dissolve completely.

Phosphate-free detergent reacts more sensitively to water hardness than detergent containing phosphates. This may influence cleaning results. The following problems may occur: – Increased etching in the form of a bluish sheen on the surface of glassware – Discolouration of silverware – Colours painted over a glaze may fade. Appearances of this nature are generally caused by the detergent used and are not attributable to any malfunctioning of the dishwasher itself.

Detergent manufacturers give the required amount of detergent for a particular programme on their packaging. Use at least 30 ml of detergent for a full load in the following programmes: – Normal programme, – Universal programme, – Universal plus programme, – Economy 45º C programme. If the manufacturer recommends a larger amount of detergent, use the amount recommended. Please note Failure to dispense the recommended amount of detergent may impair cleaning results.

30 Downloaded from www.Manualslib.com manuals search engine

Preventative measures: – Try out a phosphate-free detergent from another manufacturer. – Change to a detergent containing phosphates (type 2), or, if available, to a detergent containing both phosphates and chlorine (type 1). – Programme the water hardness selector one setting higher than recommended for your supply hardness (see chart in “Before using for the first time”). Softer water is then provided.

Operating the dishwasher The bleaching effect of chlorine-free detergents is lower than that of detergents containing chlorine. This may result in increased tea stains or discolouration on plastic items. Appearances of this nature are generally caused by the detergent used and are not attributable to any malfunctioning of the dishwasher itself. Preventative measures: – Increase the amount of detergent used for a greater bleaching effect. – If available, change to a detergent containing chlorine (type 1). Should you experience difficulties when using these types of products, please contact the detergent manufacturer’s advisory service.

Warning: Avoid inhalation of powder detergents. Dishwasher detergents contain irritant or corrosive ingredients. They can cause burning in the mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled. Keep children away from detergents and from the dishwasher when the door is open. There could still be detergent residues in the cabinet. To avoid the danger of children coming into contact with the dishwasher detergent only add detergent just before starting the programme and close the door, activating the child safety lock. To achieve optimum results distribute the required amount of detergent, depending on the type of detergent and the programme selected, proportionally between compartments I and II of the dispenser. It is essential to follow the instructions given in the programme chart at the end of the operating instructions.

31 Downloaded from www.Manualslib.com manuals search engine

Operating the dishwasher For information Compartment I holds max. 25 ml. Compartment II holds max. 80 ml. There are markings in compartment II to assist with dispensing. The marks indicate a level of approx. 20, 25, 30 ml when the door is open in a horizontal position.

Press the opening catch on the detergent dispenser. The flap will spring open. The flap is always open at the end of a programme.

Add the required amount of detergent and close the flap. Ensure that the detergent package is properly sealed after use. Otherwise the detergent can lose its effectiveness.

32 Downloaded from www.Manualslib.com manuals search engine

Operating the dishwasher Operating the dishwasher

Programme selection Choose your programme according to the type of load and how dirty it is. In most cases this will be a Normal Programme, a Universal Programme or a Universal Plus Programme. These programmes are ideally suited to everyday mixed loads with varying degrees of soiling. The different programmes and their uses are described in the programme chart at the end of this booklet.

33 Downloaded from www.Manualslib.com manuals search engine

Operating the dishwasher

Switching on Check whether the spray arms can rotate freely. Close the door. Open the stopcock (if it is closed). Press the “On/Off” button (14). The “Start” indicator light (16) comes on.

Starting a programme When selecting a programme, refer to the programme chart at the end of the operating instructions. Turn the programme selector (17) clockwise or anti-clockwise to the required programme. Press the “Start” button (16). The programme cycle begins. The “Start” indicator light (16) goes out and the “Wash/Rinse” indicator light (15) comes on.

34 Downloaded from www.Manualslib.com manuals search engine

Do not finish a programme prematurely. Important programme stages (e. g. reactivating the water softener) could be omitted.

Programme sequence indicator lights (15) The “Wash/Rinse” indicator light comes on in the Pre-wash, Main wash, Interim rinse and Final rinse stages of a programme. The “Drying” indicator light comes on during the Drying stage of a programme. The “End” indicator light comes on when the programme has finished.

Operating the dishwasher At the end of a programme

A programme has finished when the “End” indicator light comes on in the programme sequence display (15).

At the end of a programme:

The dishwasher can now be opened and unloaded (see “Unloading the dishwasher”). Do not touch the heating element during or directly after the end of a programme. You could burn yourself. For safety’s sake it is advisable to always switch the dishwasher off if you do not wish to start another programme immediately.

Turn the programme selector (17) to “Stop” The “End” indicator light (15) goes out and the “Start” indicator light (16) comes on. Press and release the “On/Off” button (14). The “Start” indicator light (16) goes out. The dishwasher continues to use electricity until switched off using the “On/Off” button. If the dishwasher is not to be used for a longer period of time, e. g. whilst on holiday, it is recommended that the stopcock is turned off.

35 Downloaded from www.Manualslib.com manuals search engine

Operating the dishwasher Interrupting a programme

Changing a programme

A programme is interrupted as soon as the door is opened. If the door is closed again, the programme will continue from the point it was at before the door was opened.

A programme can be changed at any time.

Warning: Water in the dishwasher may be hot. Danger of scalding! Only open the door if absolutely necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. 20 secs. This will enable the temperature in the wash cabinet to settle. Close the door firmly making sure that it clicks into place.

Do not touch the heating element during or directly after the end of a programme. You could burn yourself.

36 Downloaded from www.Manualslib.com manuals search engine

Turn the programme selector to the new programme. The new programme will start from the point the other programme was at when the programme was changed. If, when changing a programme, you turn the programme selector past the Stop position, e. g. from “Economy 45°” to “Universal 55°”, and the programme selector is on the Stop position for longer than one second, the programme initially selected will be cancelled (the “Wash/Rinse” indicator light (15) goes out and the “Start” (16) indicator light comes on). This also happens if the programme selector stands for longer than one second between “Universal 65°” and “Pre-wash”. The newly selected programme then starts from the beginning and you will have to press the “Start” button to commence the programme.

Operating the dishwasher Drying heat In all programmes the drying process is assisted by the heating element. Drying heat is set as activated at the factory. The heating elements can be switched off during drying if wished, in which case the programme running time will be reduced by approx. 2 minutes and energy savings of approx. 0.1 kWh electricity made. The dishes are then dried with residual heat. Open the dishwasher door at the end of a programme to allow the dishes to dry better.

Activation/Deactivation of drying heat Switch the appliance off with the “On/Off” button.

Turn the programme selector to the “Normal 55°” position. – If the “Start” indicator light does not come on: Drying heat is switched on. – If the “Start” indicator light comes on: Drying heat is switched off. Press the “Start” button to change the setting. Depending on the previous setting the “Start” indicator light will either come on or go out. Turn the programme selector to the “Stop” position. Switch the appliance off with the “On/Off” button. The change is now stored in memory.

Turn the programme selector to the “Stop” position. Press the “Start” button in and whilst doing so at the same time switch the dishwasher on using the “On/Off” button. Release the “Start” button again within two seconds. The “Salt” indicator light will start flashing. Note: If a different indicator light is on or flashing, the process must be repeated. Exception: The “Rinse aid” indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.

37 Downloaded from www.Manualslib.com manuals search engine

Operating the dishwasher Unloading the dishwasher Dishes tend to break and chip more easily when they are hot. Allow the dishes to cool until they are comfortable enough to handle before unloading them. If you open the door fully after switching off, the dishes will cool much faster. First unload the lower basket, then the upper basket and cutlery tray (depending on model). This will prevent water drops from the upper basket and cutlery tray from falling onto the dishes in the lower basket.

38 Downloaded from www.Manualslib.com manuals search engine

Cleaning and care Cleaning and care Check your dishwasher regularly (approx. every 4 - 6 months). This way faults and problems can be avoided. The dishwasher must not be used without all the filters in place.

Cleaning the filters in the wash cabinet The filter combination in the base of the wash cabinet retains coarse soil from the suds solution, thus preventing it accessing the circulation system and reentering the cabinet through the spray arms.

Turn the handle anti-clockwise to release the filter combination.

Collection of coarse soil may cause the filters to clog. Check the filter combination regularly (every 4 - 6 months) and clean if necessary. Switch the dishwasher off beforehand.

Lift the filter combination out of the machine. Remove any coarse particles and rinse the filter under running water. Use a nylon brush if necessary.

39 Downloaded from www.Manualslib.com manuals search engine

To clean the underside of the filter, the flap must be opened: Pull back the yellow clip to do this. Rinse all parts under running water, using a nylon brush if necessary. Then close the flap so that the clip engages.

Important: After cleaning make sure that the clip has properly engaged.

40 Downloaded from www.Manualslib.com manuals search engine

Replace the filter combination so that it lies flat in the base of the wash cabinet. Secure the filter by turning the handle in a clockwise direction.

Cleaning and care Cleaning the spray arms

Remove the lower basket.

Particles of food can get stuck in the spray arm jets. The spray arms should therefore be inspected and cleaned regularly (approx. every 4 - 6 months). Switch the dishwasher off beforehand. Remove the spray arms as follows: Take out the cutlery tray (if your dishwasher is fitted with one). Press the top spray arm upwards to engage the inner ratchet. Then unscrew the spray arm.

Lift up the middle spray arm b to engage the ratchet. Then unscrew the spray arm c.

Pull the lower spray arm firmly upwards to remove it.

Use a pointed object to push food particles into the spray arm jets. Rinse thoroughly under running water. Replace the spray arms and check that they rotate freely.

41 Downloaded from www.Manualslib.com manuals search engine

Cleaning and care Cleaning the wash cabinet The wash cabinet is largely self-cleaning, provided that the correct amount of detergent is always used. If however there are lime scale or grease deposits in the cabinet these can be removed with a proprietary dishwasher cleaner.

Cleaning the door and the door seal Wipe the door seals regularly with a damp cloth to remove food deposits. Wipe food and drink residue from the sides of the dishwasher door. These areas are not part of the wash cabinet and are therefore not accessed by water from the spray arms.

Cleaning the control panel (fascia) This should only be wiped with a damp cloth or suitable cleaning agent designed for use on plastic. Do not use abrasive cleaning agents, glass cleaning agents or allpurpose cleaners. Because of their chemical composition they could cause serious damage to plastic surfaces.

Cleaning the door panel Clean using a suitable cleaning agent. Panels made from wood should only be cleaned using a damp chamois leather and then dried with a soft cloth. Do not use any cleaning agents containing ammonia or thinners. They could damage surfaces.

42 Downloaded from www.Manualslib.com manuals search engine

Problem solving guide Problem solving guide With the aid of the following guide, minor problems can be easily corrected without calling in a Miele service technician, thus saving you both time and money. You should, however, note the following: Repairs should only be carried out by a suitably qualified and trained person in accordance with local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage the machine.

The “Start” indicator light does not come on after the machine has been switched on using the “On/Off” button.

The door is not properly closed. The machine is not plugged in. The fuse is defective or has tripped. The programme selector is at the “Stop” position.

Close the door firmly.

The fuse has tripped.

Replace the fuse (U.K. fuse rating = 13 A).

The dishwasher does not start, after the “Start” button has been pressed; the “Start” indicator light comes on The dishwasher stops during a programme

Insert the plug. Replace the fuse (U.K. fuse rating = 13 A). – Turn the programme selector to the required programme, – Press the “Start” button.

43 Downloaded from www.Manualslib.com manuals search engine

Problem solving guide Problem

The indicator light “Inlet/Outlet” is flashing and the programme does not continue

Water intake is restricted.

Water outlet is restricted. Water remains in the wash cabinet at the end of a programme.

44 Downloaded from www.Manualslib.com manuals search engine

Remedy Before rectifying the problem you must: – Turn the programme selector to the “Stop” position. – Switch the dishwasher off using the “On/Off” button. – Open the stopcock fully. – Check the water inlet filter and clean if necessary, see “Cleaning the water inlet filter”. – Check the water level and if necessary increase the water intake time, see “Increasing the water intake time”. – Clean the filter combination, see “Cleaning and Care”. – Clean the drain pump. – Clean the non-return valve, see “Cleaning the drain pump and non-return valve”. – Remove any kink in the drain hose.

The “End” and “Start” indicator lights flash simultaneously

There may be a technical fault.

– Turn the programme selector to the “Stop” position. – Switch the dishwasher off using the “On/Off” button. After a few seconds: – Switch the dishwasher on using the “On/Off” button. – Turn the programme selector to the required programme. – Press the “Start” button. If the indicator lights flash again, there is a technical fault. – Call the Miele Service Department. Despite the problem the dishwasher can be used in all programmes, however the water will not heat up.

45 Downloaded from www.Manualslib.com manuals search engine

Problem solving guide Problem

Knocking noise in the wash cabinet

The spray arm is knocking against an item in the basket.

A whistling noise is heard during the programme

Knocking noise in the water pipes

Dishes and glasses are not dry or are flecked

46 Downloaded from www.Manualslib.com manuals search engine

Interrupt the programme, rearrange items which are obstructing the spray arms. Interrupt the programme, Items of crockery are rearrange the items of insecure in the wash crockery. cabinet. The axial face seal of the This is not a problem. Try out other detergents. circulation pump Consult the Miele Service sometimes makes a whistling noise. This may Department if the noise is be caused by detergent. permanent. This has no influence on This may be caused by dishwasher function. If in the on-site installation or doubt contact a suitably the cross-section of the qualified plumber. piping. The rinse-aid amount set Increase the dosage or may be insufficient, or the replenish the reservoir, rinse-aid reservoir empty. see “Before using for the first time”. The water hardness level Set the selector to a selector in the wash lower setting, See cabinet is set too high. “Programming and setting the water hardness level”. Crockery was taken out Leave it in for longer, see of the cabinet too soon. “Operating the dishwasher” Drying heat is switched Switch the “Drying heat” off. option back on, see “Operating the dishwasher”

Problem solving guide Problem

The dishes are not clean The dishes were not loaded correctly. Dishes were placed inside other pieces, water could not access all surfaces. The outlet of the water intake pipe for the middle spray arm was covered. An insufficient amount of water flowed into the middle spray arm. The programme was not powerful enough.

Not enough detergent was dispensed. Tall items are blocking the path of the spray arms. The spray arm jets are blocked. The filter combination in the base of the wash cabinet is not clean or is not correctly fitted. This may cause the spray arms jets to get blocked. The drain pump or nonreturn valve may be blocked. Too little water in the wash cabinet.

Remedy See notes in “Loading the dishwasher”.

Make sure that dishes inserted in the rear section of the upper basket do not cover the pipe outlet. Select a more intensive programme see “Programme chart” at the end of these operating instructions. Use more detergent, see “Operating the dishwasher”. Rearrange items so that the spray arms can rotate freely. Clean the spray arm jets, see “Cleaning and care”. Clean and/or replace the filter combination correctly. Clean the spray arm jets, see “Cleaning and care”. Clean the drain pump and the non-return valve, see section on this. Check the water level and if necessary increase the water intake time, see sections on these.

47 Downloaded from www.Manualslib.com manuals search engine

Problem solving guide Problem

The wash temperature of the selected programme was too low. The bleaching effect of the detergent used is too low. White residue is visible Not enough rinse aid was on cutlery and crockery, used. clouding occurs on There is no salt in the salt glassware; film can be reservoir. wiped off

Tea or lipstick stains have not been completely removed

Smearing appears on glassware and cutlery, there is a bluish sheen on the surface of glassware; film can be wiped off Glassware is dull and discoloured; film cannot be wiped off

The salt reservoir cap was not correctly screwed on. The level at which the water softener is programmed is too low. Phosphate-free detergent was used. The rinse aid dosage is set too high.

The water hardness selector in the wash cabinet is incorrectly set.

Glassware is not dishwasherproof. The surfaces are affected.

48 Downloaded from www.Manualslib.com manuals search engine

Remedy Select a programme with a higher wash temperature. Use detergent containing chlorine. Increase the dosage, see “Before using for the first time”. Add reactivation salt, see “Before using for the first time”. Replace it making sure it screws back on correctly. Adjust to a higher setting, see “Before using for the first time”. Try detergent containing phosphate. Reduce the dosage, see “Before using for the first time”.

Set it to the correct setting, see “Before using for the first time”. There is no remedy for already damaged glassware. There is no remedy. Purchase glassware which is dishwasherproof.

Problem solving guide Problem

Plastic items are discoloured

Natural dyes e. g. from carrots, tomatoes or ketchup may be the cause. The amount of detergent used or its bleaching effect was not sufficient to deal with natural dyes. The salt reservoir cap has not been screwed on properly. The affected items are not corrosion resistant.

Use detergent containing chlorine. Use more detergent, see “Operating the dishwasher”. Discolouration is irreversible.

There are rust stains on cutlery

The detergent dispenser lid cannot be closed properly

Clogged detergent residue is blocking the catch.

Screw the cap on firmly.

There is no remedy. Purchase cutlery which is dishwasher-proof. Remove the residue.

Detergent residue is left The dispenser was still damp when detergent in the dispenser at the was added. end of a programme

Make sure the dispenser is dry before adding detergent.

Water remains in the wash cabinet at the end of a programme

Before rectifying the problem: – Turn the programme selector to the “Stop” position. – Switch the dishwasher off using the “On/Off” button. Clean the filter combination, see “Cleaning and Care”. Clean the drain pump and the non-return valve see appropriate section. Remove the kink.

The filter combination in the wash cabinet is clogged. The drain pump or the non-return valve may be blocked. The drain hose is kinked.

49 Downloaded from www.Manualslib.com manuals search engine

Solving problems Solving problems

Cleaning the water inlet filter A filter is incorporated in the screw connection of the valve on the water inlet hose. The filter must be cleaned when dirty, otherwise insufficient water flows into the wash cabinet (see “Checking the water level”). The plastic housing of the water connection contains an electrical component. It must not be dipped in water. Recommendation

Carefully remove the rubber seal.

If the mains water contains a large number of insoluble substances, we recommend fitting a large-area filter in the connection between the stopcock and the water inlet hose threaded union. This filter is available from the Miele Spares Dept.

Withdraw the filter using pointed pliers and rinse clean under running water.

Cleaning the filter: Disconnect the dishwasher from the mains supply (switch off at the mains socket, pull out the plug , switch off the appropriate circuit at the fuse box or withdraw the mains fuse). Turn off the stopcock. Unscrew the inlet hose.

50 Downloaded from www.Manualslib.com manuals search engine

Replace the filter and seal, making sure they are sitting correctly. Screw back into place on the water inlet, taking care that it is not crossthreaded. Turn on the stopcock gradually to test for leaks. If there is a leak, screw the connections on more tightly, making sure the threads do not cross.

Solving problems Checking the water level If the water pressure (flow rate at the take-off point) is less than 1.0 bar, too little water will flow into the wash cabinet and the dishes will not be cleaned properly. To check whether sufficient water flows into the wash cabinet: Turn on the stopcock fully. Run the “Pre-wash” programme (without crockery) once to get water flowing throughout the machine. Start the “Pre-wash” programme again. After approx. three minutes open the door and remove the bottom basket from the machine.

The water level is correct when the water level (dimension “X”), is at least 4 mm above the coarse filter in the middle of the filter combination. If it measures less, then either the water inlet filter must be cleaned (see previous page) or the water intake time increased (see following page).

51 Downloaded from www.Manualslib.com manuals search engine

Solving problems Increasing the water intake time If the water pressure is lower than 1.0 bar, too little water will flow into the wash cabinet (see “Checking the water level”). In this case the water intake time must be increased. Proceed as follows: Switch the dishwasher off using the “On/Off” button. Turn the programme selector to “Stop”. Press the “Start” button in and whilst doing so at the same time switch the dishwasher on using the “On/Off” button. Release the “Start” button again within two seconds. The “Salt” indicator light will start flashing Note: If a different indicator light is on or flashing, the process must be repeated. Exception: The “Rinse aid” indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.

52 Downloaded from www.Manualslib.com manuals search engine

Turn the programme selector to the “Economy 45°” setting. – If the “Start” indicator light does not come on, then the water intake time is set to the standard time, – If the “Start” indicator light comes on: then the water intake time is set to increased intake time. Press the “Start” button to change the setting. Depending on the previous setting, the “Start” indicator light will either come on or remain switched off. Turn the programme selector to the “Stop” position. Switch the dishwasher off using the “On/Off” button. The modified water intake time is now stored in memory.

Solving problems Cleaning the drain pump and non-return valve If the water has not been pumped away at the end of a programme the drain pump or the non-return valve might be blocked. They are, however, easy to clean. Watch out for glass or bone splinters which could cause injury. Take the filter combination out of the wash cabinet (see “Cleaning and care”, “Cleaning the filters in the wash cabinet”). Scoop the water out of the cabinet using a suitable container.

Raise the locking clamp for the nonreturn valve.

53 Downloaded from www.Manualslib.com manuals search engine

Lift up the non-return valve and rinse well under running water. Remove all extraneous objects from the non-return valve.

The drain pump is situated under the non-return valve (see arrow). Remove all extraneous objects from the drain pump (watch out for glass or bone splinters which are particularly difficult to detect and could cause injury). Turn the drain pump impeller by hand to check that there are no more obstructions. Carefully replace the non-return valve and secure it with the locking clamp.

54 Downloaded from www.Manualslib.com manuals search engine

After sales service After sales service Should you still have any difficulties, please contact: – Your Miele Dealer or

Programme update function - PC The programme update function enables new developments in programme technology to be programmed into your machine by a service technician.

– The Miele Service Department See back cover for addresses. Please quote the model type and number of your appliance. This information can be found on the data plate at the top of the door.

Please note that telephone calls may be monitored and recorded to improve our service. When, for example, technological developments offer advanced modifications to your existing programme cycles a service technician will be able to input these into your machine controls via the indicator light marked PC (Programme Correction). Miele will provide information on programme updates when such developments become available.

55 Downloaded from www.Manualslib.com manuals search engine

Special accessories Special accessories

To make the most of your dishwasher You would like...

... to wash bottles, e. g. milk or baby bottles

... to wash long-stemmed glassware

... a glassware insert for the upper basket

56 Downloaded from www.Manualslib.com manuals search engine

Comparison tests Comparison tests Test standard: Programme tested:

IEC 436 / DIN 44990 / prEN 50242 Universal Plus 55 ° Programme with best cleaning and drying results and for noise emissions

Standard programme for Energy label:

Amount of detergent:

If using a detergent containing chlorine: 5 g in compartment I and 25 g in compartment II. If using a chlorine-free detergent: 30 g only in compartment II.

Rinse aid dispensing:

Setting 3 (approx. 3 ml, set at factory)

Water hardness level selector:

Dishwashers with cutlery basket Spoon inserts:

Fit the two inserts on top of the cutlery basket, (see section on loading the dishwasher, spoon inserts) Place six spoons at intervals in each insert.

57 Downloaded from www.Manualslib.com manuals search engine

Comparison tests Dishwashers with cutlery tray

Cutlery tray 58 Downloaded from www.Manualslib.com manuals search engine

Transport Transport Should you ever need to move the dishwasher, e.g. when moving house, note the following: – Empty the dishwasher, – Secure any loose parts, e. g. hoses, cables, cutlery baskets, – Transport the dishwasher in the upright position. If unavoidable it may be transported on its back. Do not transport it on its side or on the door as residual water still in the machine will leak out of it. This residual water could get into the electronic unit and cause a fault.

containing chlorine 2) Compartment I (Pre-wash)

Compart ment II (Wash cycle)

for normal everyday loads

as Universal 55 °, but with longer wash time for heavily soiled loads, also suitable for chlorine-free detergents as Universal 55 °, but at a higher temperature for stubborn dried on particles for normal everyday loads, also suitable for chlorine-free detergents for normal everyday loads, energy saving programme for rinsing crockery to avoid smells, if a complete cycle is not yet needed

The dispensing method will depend on the type of detergent being used. 1) Use this ratio for: – detergent which is chlorine and phosphate free – detergent which is chlorine free but contains phosphates – liquid dishwasher detergent In this instance the whole amount is placed in compartment II. 2) Use this ratio for: – powder detergent which contains chlorine and phosphates (but not liquid detergent) Divide the total amount, as shown, between compartment I and compartment II. When washing a full load in the Normal Programme, the Universal Programme, the Universal Plus Programme or the Economy Programme at least 30 ml of detergent are required. If the detergent manufacturer recommends using more than this you should dispense the amount they suggest. 3) Standard programme for comparison tests (see section “Comparison tests”) 4) Standard programme for Energy label

X X X N.B. Data obtained from a machine tested in Germany.

Height built-in Width Width of building in recess Depth Depth with door open Weight: Freestanding model Freestanding SC model # U- and i- models U- and i- models SC# Voltage Rated load Fuse rating Test marks Water pressure (flow pressure) Hot water connection Delivery head Drainage length Connection cable Capacity # SC = Dishwasher with cutlery tray

62 Downloaded from www.Manualslib.com manuals search engine

approx. 60 kg approx. 62 kg approx. 52 kg approx. 54 kg

see data plate at the top of the door

VDE, Radio and television suppressed 1.0 - 10 bar pressure max. 60 °C max. 1 m max. 4 m approx. 1.7 m 12 place settings

63 Downloaded from www.Manualslib.com manuals search engine

Alteration rights reserved/ (G640/G641/G642/G644) / 000

This paper consists of cellulose which has been bleached without the use of chlorine . Downloaded from www.Manualslib.com manuals search engine
