USER MANUAL TASSIMO TAS5542 BOSCH

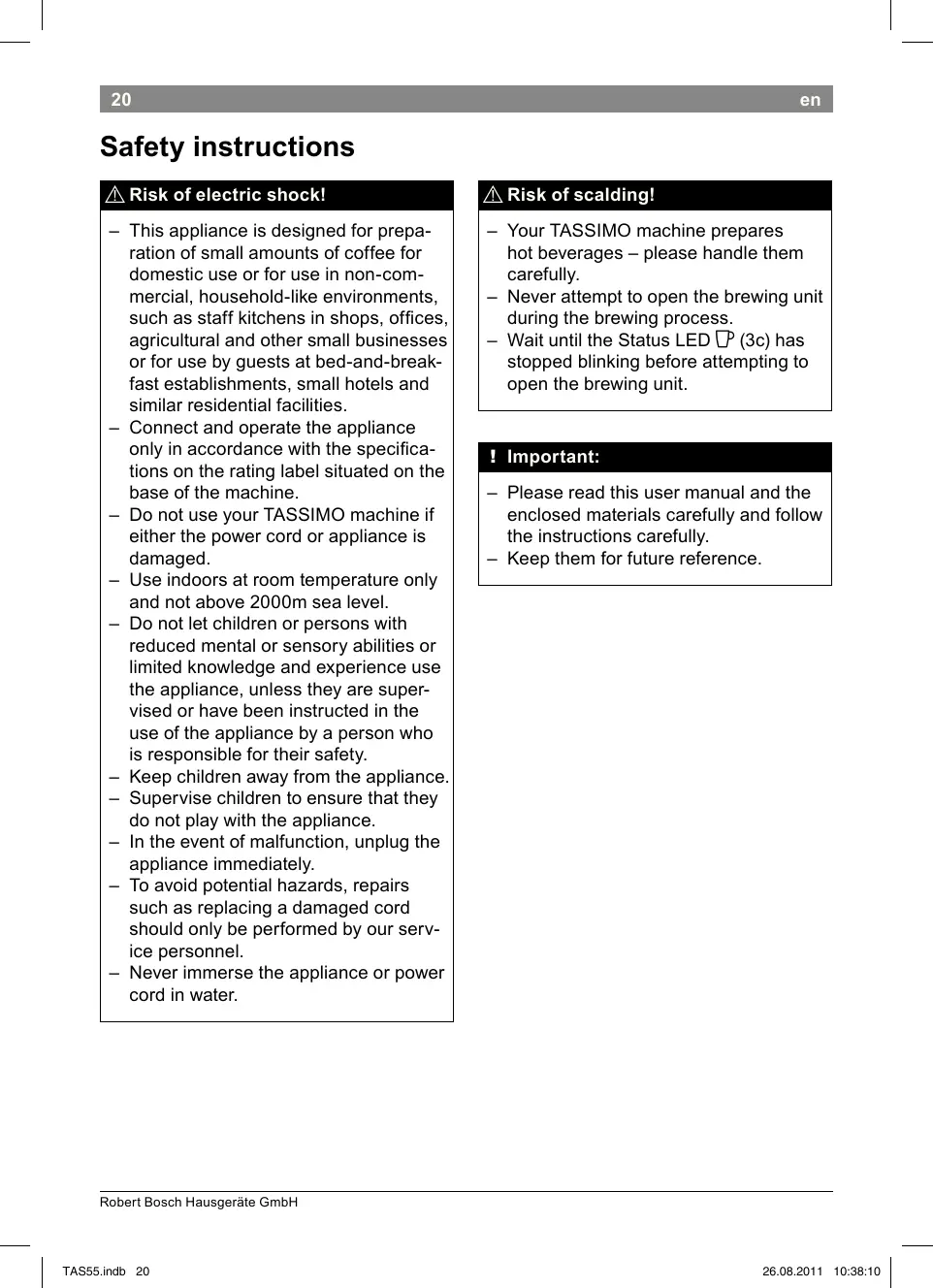

– This appliance is designed for prepa­ ration of small amounts of coffee for domestic use or for use in non­com­ mercial, household­like environments, such as staff kitchens in shops, ofices, agricultural and other small businesses or for use by guests at bed­and­break­ fast establishments, small hotels and similar residential facilities. – Connect and operate the appliance only in accordance with the speciica­ tions on the rating label situated on the base of the machine. – Do not use your TASSIMO machine if either the power cord or appliance is damaged. – Use indoors at room temperature only and not above 2000m sea level. – Do not let children or persons with reduced mental or sensory abilities or limited knowledge and experience use the appliance, unless they are super­ vised or have been instructed in the use of the appliance by a person who is responsible for their safety. – Keep children away from the appliance. – Supervise children to ensure that they do not play with the appliance. – In the event of malfunction, unplug the appliance immediately. – To avoid potential hazards, repairs such as replacing a damaged cord should only be performed by our serv­ ice personnel. – Never immerse the appliance or power cord in water. – Your TASSIMO machine prepares hot beverages – please handle them carefully. – Never attempt to open the brewing unit during the brewing process. – Wait until the Status LED F (3c) has stopped blinking before attempting to open the brewing unit. !! Important: – Please read this user manual and the enclosed materials carefully and follow the instructions carefully. – Keep them for future reference.

• Thank you for choosing a TASSIMO machine. With TASSIMO, you can enjoy your favourite drink at any time. Aromatic coffee, strong espresso, tasty caffé crema, creamy cappuccino or latte macchiato, or even a cup of tea or hot chocolate: they’re all waiting for you at the push of a button. Your TASSIMO machine works exclusively with specially developed capsules known as TASSIMO T DISCs. When you insert the T DISC, the machine automatically reads the bar code printed on the label. This con­ tains exact details of the amount of water needed, as well as the brewing time and temperature required to prepare the chosen beverage. T DISCs are specially designed for use with the TASSIMO brewing system and offer perfect enjoyment, cup after cup. To ensure long­term enjoyment, please only use the T DISCs specially developed for the TASSIMO machine. Table!of!contents Safety instructions p. 20
• Your TASSIMO machine at a glance p. 21
• First use of your TASSIMO machine p. 22
• BRITA MAXTRA water iltration system p. 24
• Controls and Displays p. 26
• Cup size p. 27
• How to use your TASSIMO machine p. 28
• Maintenance and day to day care p. 30
• Descaling p. 32
• Disposal p. 35
• Troubleshooting p. 35
• Guarantee p. 184
• TASSIMO careline p. 188

Your!TASSIMO!machine! at!a!glance Before reading further, please open the folded diagram page at the start of the manual out to the left. ! 1 ON!/!OFF!switch 2 Start!/!Stop!button a Drink adjustment button + b Drink adjustment button – 3 Indicators a + LED b − LED c Status LED F d Fill water tank T e Descale required ' f BRITA cartridge replacement indicator 4 Brewing!unit a Handle b T DISC holder c T DISC piercing unit d Drink outlet e T DISC barcode reading window 5 Removable!water!tank a Float b Fill mark for descaling solution c Filter cartridge holder d BRITA MAXTRA ilter cartridge 6 Storage!compartment a Service T DISC b Short instructions for cleaning / descaling 7 Cup!stand a Drip tray b Height adjustment with drip grate i Note: We recommend that you store the Service T DISC and the cleaning / descaling programme short instructions in the compartment (6) provided at the back of the appliance. 09/2011 TAS55.indb 21

26.08.2011 10:38:10

!First!use!of!your!TASSIMO!machine min. 200 ml

Insert the power plug into a wall outlet.

Remove the water tank, rinse it and the ilter cartridge holder (5c) thoroughly under running water, and ill it up to the max mark with cool fresh water.

Replace the water tank by slanting it slightly and returning it to its original position until it clicks into place.

Remove the Service T DISC (6a) from its compartment (6) at the back of the appliance.

Turn the machine on by pressing the ON / OFF switch (1). The display elements will light up briely.

Select a large cup (minimum capacity 8 oz / 200 ml) and place it on the cup stand (7). 1.! Open the brewing unit by lifting the handle (4a) and then pushing the brewing unit up. 2.! Place the Service T DISC (6a) on the T DISC holder (4b) with the barcode facing down. Make sure that the lap of the T DISC is centred in the slot in the front.

3.! Close the brewing unit by irst bringing it down. 4.! Then push the handle (4a) irmly to the machine, until you hear an audible click.

5.! Press the Start / Stop button (2) to start the cleaning process. 6.! When the cleaning process is complete, empty the cup and return it under the drink outlet. !! Important: 4!x

– Please!complete!steps!5!and!6!four! times!to!ensure!the!machine!is! cleaned!and!prepared!for!the!next! steps. 7.! Open the brewing unit, remove the Service T DISC and store it in the compartment (6) at the back of the machine.

The next step involves installing the BRITA MAXTRA water ilter system that came with your machine. Please follow the instructions on the next pages. 09/2011 TAS55.indb 23

26.08.2011 10:38:12

!BRITA!!MAXTRA!water!i!ltration!system Only!BRITA!!MAXTRA!water!i!ltration! system!cartridges!may!be!used!in! TASSIMO!machines.! BRITA MAXTRA ilter cartridges (5d) are available from various retailers or directly from the Bosch Customer Service Department (see page 186 for contact information).

To operate your machine with a new ilter cartridge (5d), proceed as follows:

Preparing!and!inserting!BRITA!!MAXTRA! i!lter!cartridge 1.! Remove the ilter cartridge (5d) from its protective wrap. 2.! Immerse the ilter cartridge (5d) in cold tap water and move it gently back and forth to remove any air bubbles (about 5 seconds).

3.! Remove the ilter cartridge holder (5c) from the water tank and insert the ilter cartridge (5d) into the appropriate chamber of the ilter cartridge holder (5c) until it snaps into place with an audible click.

4.! Hold the ilter cartridge holder (5c) un­ der the tap, ill it with fresh, cold water and let the water run through the ilter cartridge (5d). Repeat this procedure three times. 3!x

5.! Now place the ilter cartridge holder (5c) with the ilter cartridge (5d) into the empty water tank and ill the tank with fresh water to the max mark. !! Important: – Always remove the ilter cartridge holder (5c) with the ilter cartridge (5d) before running the descaling programme. !Activate!BRITA!Filter!cartridge!replace! indicator For maximum ilter performance and anti­ scale protection, the BRITA MAXTRA ilter cartridge (5d) should be replaced every eight weeks. The BRITA cartridge replacement indicator (3f) on the top of the machine uses bars to indicate when the ilter cartridge (5d) should be replaced with a new one. To activate the BRITA ilter cartridge replace­ ment indicator (3f), press and hold the Start button until all four bars appear on the dis­ play and blink twice. The blinking dot in the lower right corner indicates that the ilter cartridge replace­ ment indicator (3f) is activated. All four bars should be visible. From this moment on, one bar disappears every two weeks. When no bars are visible after eight weeks and the arrow is blinking, replace the ilter cartridge (5d). To remove the ilter cartridge (5d), simply pull it out by its tab. To prepare a new ilter cartridge (5d), follow the instructions in the section titled “Preparing and inserting BRITA MAXTRA ilter cartridge” and reset the BRITA ilter cartridge replacement indicator (3f), by pressing and holding the Start button. i Note: Your TASSIMO machine is now ready for use. i Note: It’s a good idea to purchase a new ilter cartridge (5d) when the replacement indicator shows only one bar. BRITA MAXTRA ilter cartridges (5d) are available from various retailers or directly from the Bosch Customer Service Department (see page 186 for contact information). 09/2011 TAS55.indb 25

26.08.2011 10:38:14

Controls!and!Displays (see the illustration at the beginning of this instruction manual) ON!/!OFF!switch!(1) The ON / OFF switch is the main power switch for the machine. You use it to turn on your TASSIMO machine or turn it off completely. i Note: To save even more energy, the appliance should be switched off after each use. Start!/!Stop!button!(2) The Start / Stop button is used to start and interrupt the brewing, cleaning and descaling processes. Drink!adjustment!buttons! +! !(2a)!and!-! !(2b) You use the drink adjustment buttons to adjust the size of the drink you are preparing. 2a! !Makes!a!larger!/!longer!drink (milder lavour) 2b! !Makes!a!smaller!/!shorter!drink! (stronger lavour) + LED!(3a)!and!− LED!(3b) These LEDs light up when the T DISC has been detected. The + and − LEDs light up individually according to whether a bigger or smaller drink has been selected and lash during the brewing process. Status!LED!F (3c) The status LED indicates four machine conditions: – Steady yellow: Machine is in standby mode – Blinking yellow: Machine is in the process of brewing a drink / cleaning / descaling – Steady red: Error mode (for example, if the barcode was not recognized) – Dimmed, yellow light: Power save mode !! Risk!of!scalding! – Wait until the Status LED F (3c) has stopped blinking before attempting to open the brewing unit. Fill!water!tank!T!(3d) This indicator lights up when the removable water tank needs to be reilled or is not in place. Descale!required!Q!(3e) This indicator lights up or blinks when your TASSIMO machine must be descaled. i Note: Always descale your TASSIMO machine in accordance with the instructions provided under “Descaling” on page 32. BRITA!ilter!cartridge!replacement! indicator!(3f) This indicator reminds you that it is time to replace the BRITA MAXTRA ilter cartridge (5d). !Cup!size To use cups of different sizes in accord­ ance with your beverage selection, you can adjust the cup stand of your TASSIMO machine. To adjust the height setting for small cups, turn the control handle (7b) left to right until it clicks into place. For large cups or glasses, the cup stand can be removed completely. To remove lift up the front of the cup stand and tilt towards the back. Notes: – To ensure the best possible beverage quality and avoid splashing, always use the highest cup stand position. – To avoid spillage, select the appropriate cup size for each type of beverage. The recommended cup size is indicated on the original T DISC outer packaging.

09/2011 TAS55.indb 27

26.08.2011 10:38:15

!How!to!use!your!TASSIMO!machine !! Important: – For optimum results, ill the tank only with cool, fresh, non­carbonated water each day. Do not use chemically soft­ ened water. i Note: Make sure that your TASSIMO machine has been set up for use as described in the section titled “First use of your TASSIMO machine” on page 22. 1.! Open the brewing unit by lifting the handle (4a) and then pushing the brewing unit up.

To prepare your favourite beverage, proceed as follows: ► Turn the TASSIMO machine on by pressing the ON / OFF switch (1). ► Place a suitable cup on the stand (7) according to the type of beverage. Adjust the height of the cup stand, if necessary, or remove it altogether for large cups or glasses. ► Always set the cup stand as high as possible.

2.! Select a beverage T DISC and insert it into the T DISC holder (4b) with the printed side down. Make sure that the lap of the T DISC is located in the slot in the front. 3.! Close the brewing unit by irst bringing it down and then pushing the handle (4a) irmly to the machine.

When the T DISC has been detected, the + / − LEDs light up. The machine is now ready to brew your beverage.

4.! To brew your beverage with the recommended settings as deined in the T DISC bar code, go straight to Step 5.

You have the option to adjust the beverage!quantity to your taste with the drink adjustment buttons: drink!adjustment!button!+! (2a): larger / longer drink for a milder lavour drink!adjustment!button!-! (2b): smaller / shorter drink for a stronger lavour

If drink adjustment was chosen, either the + or − LED will light up until you start the brewing proces. 5.! Press the Start / Stop button (2) once to start the brewing process. ¡ Risk!of!scalding! – Never attempt to open the brewing unit during the brewing process. – Keep in mind that the beverages are very hot when dispensed.

The status LED F (3c) and (if selected) the + or − LED blinks, while the machine is brewing.

If you want a larger beverage, you can add more water immediately after the brewing process by pressing and holding the Start / Stop button (2) or the (2a). drink adjustment button +

i Note: There may be short pauses during the brewing process. This is to achieve the optimal lavour extraction. If you don’t prepare any other beverages, your machine automatically switches to power­save mode. To save even more electricity, we recom­ mend turning your TASSIMO machine off with the ON / OFF switch (1) after each use. Where!to!buy!T!DISCs Your TASSIMO appliance works only with specially developed capsules known as TASSIMO T DISCs. You can buy these T DISCs at various retailers, or online at www.tassimo.com. T!DISC!storage T DISCs may be stored in their own pack­ aging or in other containers of your choice. They should be stored in a cool, dry place. It is not necessary to store T DISCs in the refrigerator. Do not keep them in the freezer. Provided the outer packaging is intact, T DISCs may be used until the best­ before date which is printed on the outer package. Once outer foil packaging is removed, use T DISCs within 6 weeks. 6.! When the brewing process is complete, the status LED F (3c) stops blinking. Your beverage is now ready. You can sit back and enjoy it or prepare another beverage. 09/2011 TAS55.indb 29

26.08.2011 10:38:16

!Maintenance!and!day!to!day!care ¡ Risk!of!electric!shock! – Switch off and unplug the appliance before cleaning. – Never immerse the appliance in water. – Do not use a steam cleaner. Clean your TASSIMO machine regularly to ensure that it continues to produce beverages of the best possible quality. If the appliance has been unused for a long time, run the cleaning process with the Service T DISC several times to ensure that the drinks it produces are of its normal high quality (see “First use of your TASSIMO machine”). Never use vinegar or vinegar­based products, scouring agents or chemically softened water.

1.! Clean the brewing system regularly with a soft, damp cloth, especially the T DISC barcode scanner (4e) and the area around the clamp, so that the T DISC barcode can be scanned properly. 2.! Wipe the outside of the appliance with a soft, damp cloth.

3.! Rinse out the water tank (5) and the ilter cartridge holder (5c) by hand and with water only; do not place them in the dishwasher. 4.! All parts of the cup stand (7) are dishwasher­safe.

5.! Remove the T DISC holder (4b) and the piercing unit (4c). Also remove the drink outlet (4d) by pushing it up. It is recommended to clean these parts regularly, otherwise the drink outlet could become blocked, possibly causing leakage or reduced drink sizes. ► All these parts can also be cleaned in the dishwasher. ► When preparing a number of drinks one after another, the piercing unit may be manually cleaned quickly and easily under running water. !! Important: – The piercing unit and the drink outlet can be very hot immediately after brewing. – After use, we recommend that the Service T DISC be stored in its compartment (6) at the back of the appliance. – The drink outlet (4d) must be put back in place after cleaning. i Note: If you prepare beverages containing milk or cocoa, we recommend cleaning the brewing unit more frequently by using the Service T DISC as described in the section titled “First use of your TASSIMO machine”. 09/2011 TAS55.indb 31

26.08.2011 10:38:17

!Descaling !! Important: – If you have very hard water, notice an unusual amount of steam or if the beverage size is not what it should be, descale the machine before the Q LED comes on. – Although the enclosed BRITA MAXTRA ilter system reduces the amount of lime in the water signii ­ cantly, it does not eliminate the need for regular descaling. – Do not drink any of the liquids used for descaling. – Never use vinegar or vinegar­based products. – Always remove the ilter cartridge holder (5c) with the ilter cartridge (5d) before running the descaling programme. – Never interrupt the descaling programme. Your TASSIMO machine must be descaled regularly, because heating water creates limescale which accumulates in the machine over time. When descaling is needed, the machine indicates this by activating the “Descale required” ' LED (3e). When this LED lights up, you should descale your machine immediately. Not doing so may result in machine not functioning properly and beverage quality deteriorating. If you have not descaled the machine after another 30 T DISCs, the indicator starts to blink. Special!descaling!agents!can!be! obtained!from!www.tassimo.com,!the! Bosch!customer!service!department! (article!no.!310967,!for!contact!details,! see!page!186)!or!from!your!retailer.

Running!the!descaling!programme 1.! Remove the water tank from your TASSIMO machine and take out the ilter cartridge holder (5c) with the ilter cartridge (5d).

2.! Remove the Service T DISC from the compartment (6) at the back of the machine. 3.! Fill the water tank up to the descaling mark (0,5 l) and add the descaling agent in accordance with the manufacturer’s instructions. i Note: If you have hard water, increase the amount of the descaling agent. 4.! Replace the water tank by slanting it slightly and returning it to its original position until it clicks into place.

5.! Place a container with a capacity of at least 500 ml under the drink outlet. 6.! Open the brewing unit by lifting the handle (4a) and then pushing the brewing unit up. Place the Service T DISC on the T DISC holder (4b) with the barcode facing down. Make sure that the lap of the T DISC is located in the slot in the front. ► Close the brewing unit by irst bringing it down and then pushing the handle (4a) irmly to the machine, until you hear an audible click. 7.! Press and hold the Start / Stop button (2) for at!least!5!seconds to start the descaling programme. ► Release the Start / Stop button after 5 seconds; the machine will run the descaling cycle automatically. This is indicated by the Status LED F and “Descale required” LED ' blinking. 5 sec. 20 min !! Important: – The descaling programme runs for about 20!minutes. i Note: The descaling solution is pumped through the machine in intervals and then runs into the container until the water tank is almost empty. A small amount of liquid is always left in the tank. 09/2011 TAS55.indb 33

26.08.2011 10:38:19

8.! When the Status LED F and “Descale required” LED ' stop blinking, the descaling process is complete. Empty the receiving container and return it under the drink outlet. ► Rinse the water tank thoroughly and ill up to the max mark with fresh water. ► Replace it back onto your TASSIMO machine.

9.! Open and close the brewing unit (Leave the Service T DISC in the T DISC carrier).

10.!Press the Start / Stop button (2) briely to run the cleaning cycle. 11.!When the cleaning process is complete, empty the cup and return it under the drink outlet. !! Important: 4!x – Please!complete!steps!10!and!11! four!times. Your TASSIMO machine has now been properly descaled and cleaned.

12.!Now open the brewing unit, remove the Service T DISC and store it in the com­ partment (6) at the back of the machine. 13.!Now place the ilter cartridge holder (5c) with the ilter cartridge (5d) into the empty water tank and ill the tank with fresh water to the max mark. i Note: Your TASSIMO machine is ready for use again. Disposal

This appliance is labelled in accordance with the European Directive 2002 /96 /EG relating to waste electrical and electronic equipment – WEEE. The directive provides the framework for the EU­wide take­back and disposal of end­of­life appliances. Please ask your retailer about current disposal facilities. !! Important: – Bosch only manufactures the TASSIMO machine. It therefore does not guarantee the availability of TASSIMO T DISCS. – To ind out where to purchase beverage T DISCS go to www.tassimo.com All rights reserved. Troubleshooting The following table provides solutions for problems and glitches that may arise as you use your TASSIMO machine. If you do not ind a solution for your speciic problem, or the problem persists after troubleshoot­ ing please contact our customer service department. 09/2011 TAS55.indb 35

26.08.2011 10:38:20

Problem Appliance not working; no symbols light up. Machine brews but no drink dispensed. Drink size smaller than usual. More steam than usual. The appliance does not recognise the inserted T DISC and remains in stand­by mode or the Status LED F lights up red.

Possible!cause Solution There is no power supply. Check that the appliance is prop­ erly plugged into the power supply. The water tank is not Make sure that the water tank is correctly positioned. positioned correctly. The water tank was Start a cleaning cycle with the removed during the brew­ Service T DISC. ing process or there is air in the system. The loat in the water Clean the water tank and ensure tank is stuck. the loat can move. Not enough water in the Fill the water tank after the drink water tank. has inished dispensing and press the start / stop button to inish the drink. The appliance needs Descale the appliance (for details descaling. see “Descaling”). The appliance needs Descale the appliance (for details descaling. see “Descaling”). No T DISC inserted. Check if T DISC has been inserted. The barcode could not be Clean the T DISC barcode reading detected. window and try again or smooth the barcode on the T DISC out with your thumb. Use another T DISC. The brewing system is not properly closed. The quality of the foam / crema has deteriorated. The drink outlet is clogged or dirty. The appliance needs descaling. If problems persist contact the TASSIMO careline 08 00 032 88 33 (UK only) Clean the brewing system thor­ oughly, especially in the area of the clamp. Remove the drink outlet from the brewing unit and detach the pierc­ ing unit. After cleaning everything thoroughly, reassemble the parts and replace them in the brewing unit. Clean the brewing unit with the Service T DISC. Descale the appliance (for details see “Descaling”).

Problem Brewing unit cannot be securely closed.

Possible!cause T DISC Piercing unit or T DISC holder is not properly inserted. The T DISC is not in­ serted properly. Solution Insert T DISC holder or T DISC piercing unit properly. Re­insert the T DISC and make sure it is properly positioned. The brewing unit is not properly closed. Water dripping from the brewing unit. Water on the surface under the cup stand. The Service T DISC is damaged or lost. T “Fill water tank” lights Push the handle down until it snaps into place with an audible click. Clean the brewing system thor­ oughly, especially in the area of the clamp. The T DISC is damaged Stop the brewing process. Wait or leaky. until the machine is cooled down before removing the T DISC and then clean the brewing unit The piercing unit is Check to ensure that the piercing either not inserted or not unit is inserted properly. inserted properly. Water from Condensation may occur and is not condensation. a fault. Remove it by wiping with a cloth. The Service T DISC is Check the storage compartment required for the cleaning for the Service T DISC at the back cycle and the descaling of the appliance. cycle. The Service T DISC can be ordered from Bosch customer service (Product No. 624088). See page 186 for contact information. The loat in the water Clean the water tank and ensure tank is stuck. that the loat can move. up even though there is suficient water in the tank. Even soft water contains Descale the appliance. ' “Descale required” Special descaling agents can lights up even though you small amounts of dis­ solved lime. be obtained from www.tassimo. are using soft water. com, the Bosch customer service department (article no. 310967, for contact details, see page 186) or from your retailer. Filter cartridge change Please proceed as de­ If ilter cartridge change indicator indicator is not working scribed on page 25. is still not working, please contact anymore. TASSIMO careline 08 00 032 88 33 (UK only). More Customer Service information is available online at www.tassimo.com 09/2011 TAS55.indb 37

26.08.2011 10:38:20

en! Guarantee The guarantee conditions for this appliance are as deined by our representative in the country in which it is sold. Details regard­ ing these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Oficinas Centrales Polígono Malpica, Calle D Parcela 96 A 50016 Zaragoza FR France BSH Electroménager S.A.S. 50 rue Ardoin – BP 47 93401 SAINT-OUEN cedex Service interventions: Tel.: 01 40 10 42 15 Service Pièces Détachées et Accessoires: 0 892 698 009 (0,34 € TTC/mn) Service Consommateurs: 0 892 698 010 (0,34 € TTC/mn) mailto:soa-bosch-consommateurs @bshg.com www.bosch-home.fr GB Great Britain BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.bosch-home.cu.uk or call Tel.: 0844 892 8979* *Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply. TASSIMO!careline For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO: Phone: 0800!0328833 (UK only. Calls made from a mobile phone might be charged) Mail: Freepost SWC3320, Cheltenham, GL50 3ZZ Kraft Foods Ireland, Malahide Road, Coolock, Dublin 5
