USER MANUAL TOUCH POWAKADDY

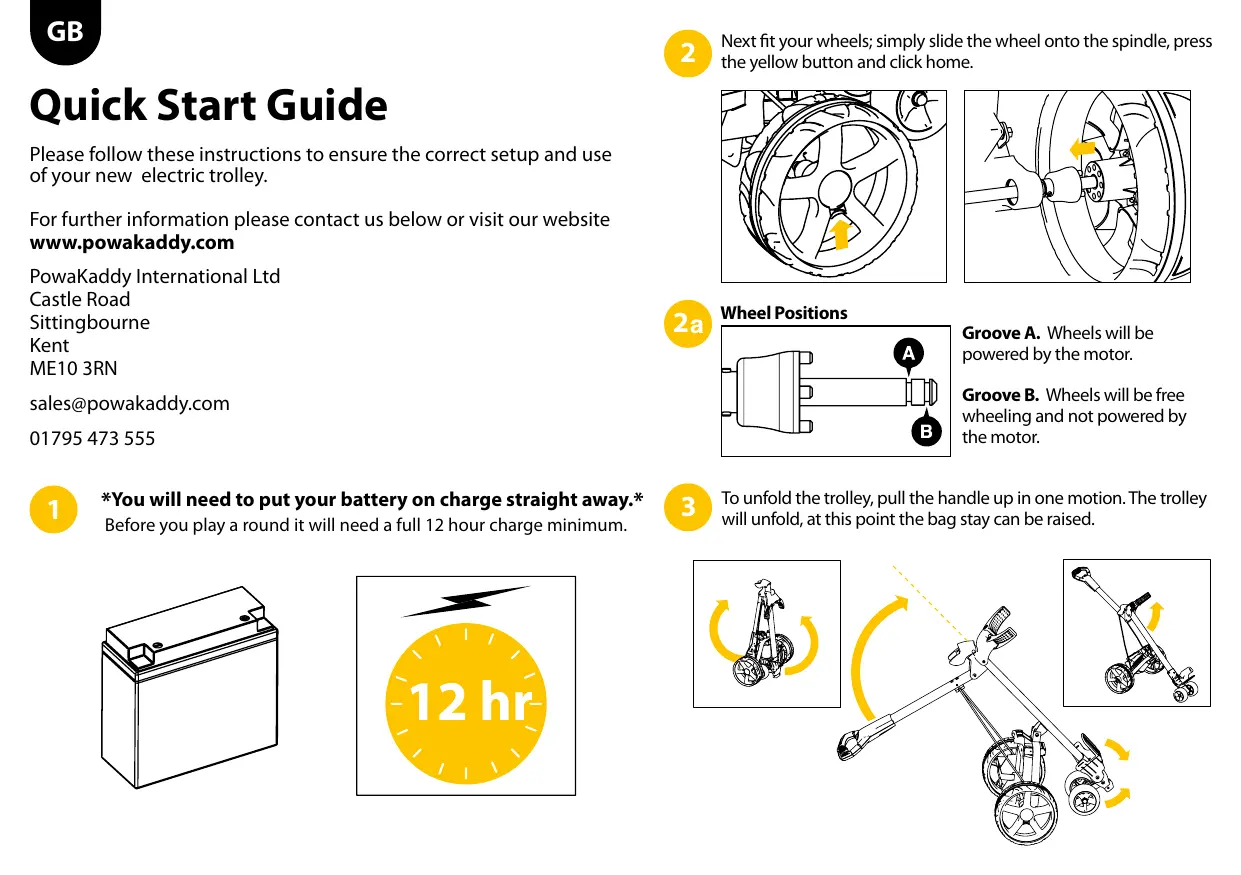

Next fit your wheels; simply slide the wheel onto the spindle, press the yellow button and click home. Quick Start Guide Please follow these instructions to ensure the correct setup and use of your new electric trolley. For further information please contact us below or visit our website www.powakaddy.com PowaKaddy International Ltd Castle Road Sittingbourne Kent ME10 3RN

*You will need to put your battery on charge straight away.* Before you play a round it will need a full 12 hour charge minimum. Groove A. Wheels will be powered by the motor. Groove B. Wheels will be free wheeling and not powered by the motor. sales@powakaddy.com

To unfold the trolley, pull the handle up in one motion. The trolley will unfold, at this point the bag stay can be raised.

The handle can be set at two heights. Ensure the latch (Fig A.) has sprung into position to lock the handle at the correct height.

Next place your battery in position shown below and connect.

Turn on the trolley by pressing the power button located on the right side of the handle tube.

To start the trolley pull back all the way on the handle, the trolley is now ready to go. Move the handle forward to increase the speed of the trolley and pull back to decrease. To open the front wheels simply open the bag stay as shown below. The front wheels will automatically move into position. Troubleshooting Guide

Problem: My trolley doesn’t start Problem: My trolley doesn’t run straight Solution Solution 1:1. Ensure the switch is turned on. 4:1. Remove any mud or debris clogging the wheel mechanism. 1:2. Check your battery is fully charged and connected correctly. 4:2. The front wheel alignment can be adjusted using a standard 3mm Hex key also known as an ‘Allen Key’ (included). 1:3. Pull the handle all the way back to the “stop” position and push it forward again. 1:4. Check all the external leads are connected. If the above doesn’t solve the problem contact your nearest service agent.

Problem: My trolley will not stop Solution There are two hex screws visible by the lower bag stay, one each side, which when tightened or loosened angle the front wheels left to right. 4:2:1. To angle the wheels right loosen the left screw clockwise and then tighten the right screw anti-clockwise. 4:2:2. To angle the wheels left loosen the right screw clockwise and then tighten the left screw anti-clockwise. 2:1. Pull the handle all the way back to the “stop” position. If this does not correct the problem, turn the trolley off via the switch, or disconnect the battery and contact your nearest service agent.

Problem: The lower bag stay gear mechanism is jammed or does not operate Solution 3:1. Remove any mud or debris clogging the wheel mechanism. If the above doesn’t solve the problem contact your nearest service agent. If the above doesn’t solve the problem contact your nearest service agent. To find your nearest service agent visit www.powakaddy.com

® PGA is a registered trademark of The Professional Golfers’ Association Limited “Touch ‘n’ Go” technology is under license from Necessitas Limited, Patent Number GB2443732. International patents pending.
