Cooker Hood - Cookology - Free user manual and instructions

Product Type	Cooker Hood (Range Hood)
Brand	Cookology
Model Numbers	BUGL520BK/A+, BUGL520WH/A+, BUGL750BK/A+, BUGL750WH/A+, BUGL900BK/A+, BUGL900WH/A+
Available Sizes	52 cm, 75 cm, 90 cm
Installation Type	Under cabinet (built-in)
Extraction Type	Ducted (vent outside) with V-flap
Control Type	Touch control
Fan Speeds	3 speeds: low, mid, high
Timer	9-minute auto shut-off
Lighting	LED lamp, 2 x 1.5 W, DC 12V
Minimum Distance from Hob	65 cm for gas appliances; 65-75 cm recommended
Cabinet Cut-out Dimensions	500 x 275 mm (52 cm), 730 x 275 mm (75 cm), 880 x 275 mm (90 cm)
Power Supply	220-240 V ~ 50 Hz (standard)
Grease Filters	Washable metal mesh filters
Carbon Filter	Optional (not supplied), replace every 3-6 months
Cleaning	Regular cleaning of stainless steel and control panel
Safety Features	Heat-resistant surfaces, safe installation requirements
Warranty Registration	Register online at www.Cookology.com
Manufacturer	Cookology Limited, Ground floor, 71 Lower Baggot Street, Dublin 2, D02 P593, Ireland

Frequently Asked Questions - Cooker Hood Cookology

How do I use the timer function?

Press the Timer button while the hood is working. The default run time is 9 minutes, and the LED display counts down from 9 to 0. When the timer reaches 0, the hood will automatically switch off and the lamp will extinguish. Press the Timer button again to cancel the timer.

How often should I clean the grease filters?

The grease filters should be cleaned regularly, especially when cooking frequently. Soak them in warm water with a mild detergent for about 3 minutes, then gently brush with a soft brush. Allow them to dry naturally out of direct sunlight. Cleaning and maintenance should be done with the appliance cold and disconnected from the power supply.

What is the minimum distance between the hob and the cooker hood?

The minimum distance between the supporting surface for cooking vessels and the lowest part of the cooker hood must be at least 65 cm when installed above a gas appliance. For best performance, the recommended distance is 65-75 cm.

Why is the motor not working but the light is on?

This usually indicates the fan switch is turned off or faulty. Check if the fan switch is in the correct position. If the switch is on and the motor still does not run, the fan switch or motor may be faulty and you should contact the service center for assistance.

How do I replace the LED bulbs?

First, switch off the appliance and unplug it. Unscrew the 4 screws on the outer glass frame panel, then pull out the light wire and switch wire to remove the panel. Unscrew the screws on the light bracket and replace the lights with identical ones (max 2 x 1.5 W, DC 12V). Reassemble in reverse order. Use gloves or a cloth while handling the bulbs to avoid damage.

Do I need a carbon filter?

The carbon filter is optional and not supplied with the hood. It is used to trap odors in recirculation mode (if the hood is not vented outside). If you use the hood in extraction mode (vented outside), you do not need it. When attached, replace it every 3 to 6 months depending on cooking habits.

Can I use a steam cleaner to clean the cooker hood?

No, a steam cleaner should not be used. It can damage the appliance. Instead, clean the external surfaces with a soft cloth and warm soapy water, and use a specialized stainless steel cleaner for stainless steel parts. Avoid harsh chemicals and abrasive products.

What should I do if there is oil leakage?

Oil leakage is often caused by the one-way valve and the outlet not being tightly sealed, or by a loose connection between the chimney and cover. Take down the one-way valve and seal it with sealant. For chimney leaks, take down the chimney and seal it properly.

How do I install the V-flap?

Mount the two half-parts of the V-flap into the body of the hood. Orient the pin of each half-part to the top, and insert the axis into the holes on the body. Repeat for the second half-part. Ensure the V-flap is secure before installation.

How do I register my warranty?

You can register the warranty for this product online at www.Cookology.com. Follow the instructions on the website to complete the registration process.

USER MANUAL Cooker Hood Cookology

COOKOLOGY

BUGL520BK/A+ BUGL520WH/A+

BUGL750BK/A+ BUGL750WH/A+

BUGL900BK/A+ BUGL900WH/A+

Cooker Hood

Instruction Manual

52cm

75cm/90cm

Please register the warranty for this product on www.Cookology.com

Content

1....Safety instructions
2....Installation
3....Start using your cooker hood
4....Troubleshooting
5....Maintenance and cleaning
6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product.

The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Cooker hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a cooker hood or other cooking

fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
● All installation work must be carried out by a competent person or qualified electrician.
● Please dispose of the packing material carefully. Children are vulnerable to it.
● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

- If the voltage rating of the lamp is less than the rated voltage of the appliance, the voltage rating of the lamp shall also be marked on or near the lamp holder.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
  ● Children should be supervised to ensure that they do not play with the appliance.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Always to do:

●Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There is a fire risk if cleaning is not carried out in accordance with the instructions.
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
● Regarding the information about how the appliance is to be fixed to its support, please refer to Operation section, the Installation procedures in this manual.
● Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the

room must not exceed 4 Pa(4 x 10 ^-5 bar).

● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.

● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6;
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.

INSTALLATION

1. The cooker hood should be placed at a distance of 65-75cm from the cooking surface for the best effect.

1. Drill a hole in the cabinet, with hole wide 500*275 (mm) for model 52cm, 730*275 (mm) for model 75cm, 880*275 (mm) for model 90cm. Refer to pic 1. Make sure the hole edge to the cupboard edge at least 35mm distance.

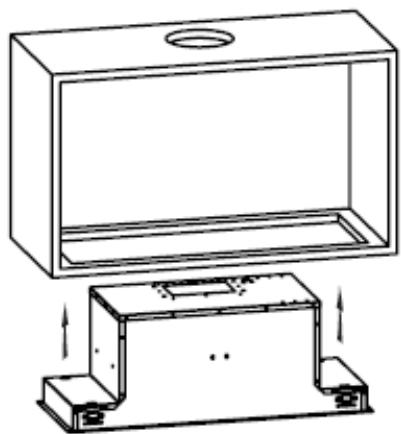

3. Put the hood into the

cabinet, tighten up the screws by screwdriver, and make sure the hood was fixed. See pic 2.

Tighten up the screws anticlockwise direction 52cm

Pic 2

Pic 2
75cm

1. Fix the expansion pipe on the outlet with cable tie. Note: the expansion pipe is not included in the product. See pic 3.

Pic 3

WARNING:

For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Touch control

Timer

Lamp

Speed

Power

1. Press the "Power" button, the button control the "on" & "off" of the hood.
2. Press the button "Speed" time after time, the motor runs as low / mid / high / low / mid..., the speed runs circularly; and the LED display will indicate as 1-2-3-1-2... circularly.
3. Press "Lamp" button, the light is on, press this button again, the light is off. Please note the Lamp is not under control of the on/off button.
4. When the hood is working, if press the “Timer” button, the hood will go into the status of acquiescent working (acquiescent time is 9mins), and then, LED display will be shown 9.8.7.6 ...decreasing by 1, when time is up, the hood will be off automatically and the lamp will extinguish. If pressing “Timer” button, the hood will go in or go out “Timer” function.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Mains power cable is loose or disconnected	Refit mains power cable to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken or faulty bulbs	Replace bulbs as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source

when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may

be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps:
• Angle the filter into the slots at the back of the hood.
• Push the button on the handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon filters, please remove power to the unit.

2. Press the filter lock and remove the mesh filter.

3. Turn the carbon filter on both side of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.

4. Place the mesh filter.
5. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note:

• Before changing the lights, make sure that the appliance is turned off and unplugged.
• Protect against danger when changing lights, such as wearing gloves.

Changing the lights:

1. Switch off the appliance and unplug it.

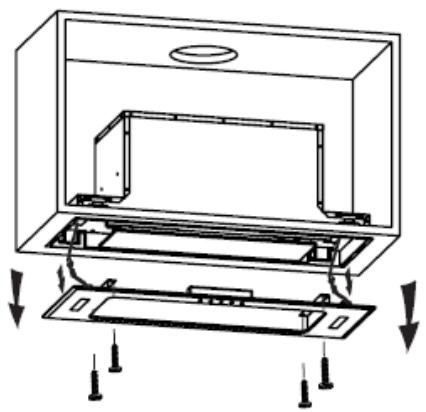

2. Unscrew the 4 screws on the outer glass frame panel by screwdriver.
3. Pull out the light wire and switch wire, take down the outer glass frame panel.
4. Unscrew the screws on the light bracket and replace the lights.

5. Apply the reverse procedure to install the light back.

6. ILCOS D code for this lamp is: DSS-1.5/65-S-120/33

7. LED modules -rectangle LED lamp
8. Max wattage: 2 × 1.5 W
   – Voltage range: DC 12V
9. Dimensions:

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.

Please register the warranty for this product on www.Cookology.com

Cookology Limited

Ground floor, 71 Lower Baggot Street, Dublin 2, D02 P593

The Wright Buy Ltd

Unit 2 Piperell Way, Haverhill, Suffolk, CB9 8QW, United Kingdom
