1. Before You Begin

What Is Included

• COLORdash Batten-Quad 6
Power Cable
2 Trunnions
- Warranty Card
- Quick Reference Guide

Claims

Carefully unpack the product immediately and check the box to make sure all the parts are in the package and are in good condition.

If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Convention	Meaning
1~512	A range of values in the text
50/60	A set of mutually exclusive values in the text
	A button on the product's control panel
Settings	A product function or a menu option
MENU>Settings	A sequence of menu options
1~10	A range of menu values from which to choose in a menu
Yes/No	A set of two mutually exclusive menu options in a menu
ON	A unique value to be entered or selected in a menu

Symbols

Symbols		Meaning
		Critical installation, configuration, or operation information.Failure to comply with this information may cause the product not to work, damage third-party equipment, or cause harm to the operator.
		Important installation or configuration information. Failure to comply with this information may keep the product from working.
		Useful information.

The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol.

Product at a Glance

Use on Dimmer	X	Auto Programs	P
Outdoor Use	X	Auto-Ranging Power Supply	P
Sound Activated	X	Replaceable Fuse	P
DMX	P	User Serviceable	X
Master/Slave	P	Duty Cycle	X

Safety Notes

Personal Safety

Mounting and Rigging

Power and Wiring

Operation

Expected LED Lifespan

Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product.

This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

All applicable local codes and regulations apply to proper installation of this product.

• Avoid direct eye exposure to the light source while the product is on.
  • Always disconnect this product from its power source before servicing.
  • Always connect this product to a grounded circuit to avoid the risk of electrocution.
• Do not touch this product's housing during operation because it may be very hot.
• Do not operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• Make sure there are no flammable materials close to this product while it is operating.
• When hanging this product, always secure to a fastening device using a safety cable.
• Always make sure you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product's specification label.
• Never connect this product to a dimmer pack or rheostat.
• Never disconnect this product by pulling or tugging on the power cable.
• Do not operate this product if you see damage on the housing, lenses, or cables. Have the damaged parts replaced by an authorized technician at once.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• Do not cover the ventilation slots when operating to avoid internal overheating.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at a higher temperature.
• In case of a serious operating problem, stop using this product immediately!

In the unlikely event that your Chauvet product may require service, contact Chauvet Technical Support.

LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal, single-LED conditions. For this reason, using clustered LEDs at their fullest intensity significantly reduces the LEDs' lifespan. Under normal conditions, this lifespan can be 40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs' lifespan.

2. Introduction Product Description

The COLORdash Batten-Quad 6 is a high-power quad color RGBA LED-based linear wash light. It consists of a rectangular housing with 6 quad-colored LEDs arranged in a single row. It comes with a hanging bracket and adjustable side brackets for floor mounting.

Features

• 4-, 6-, 10-, 24-, or 28-channel quad-colored LED wash product

- Operating modes:

4-channel: RGBA
- 6-channel: RGBA, dimmer, strobe
• 10-channel: RGBA, dimmer, strobe, macro, auto, dim mode, auto speed
• 24-channel: RGBA control per quad-color LED
• 28-channel: RGBA per pixel, dimmer, strobe, auto, auto speed

• Silent, flicker-free operation
• Individual pixel control
• Neutrik® powerCON® connectors
• Maintain pixel pitch end to end or stacking
  • 16-bit dimming with selectable dimming curves
• All metal construction for added durability

Product Overview

Front View

Rear View

Side View

End View

Product Dimensions

3. Setup

AC Power

Each COLORdash Batten-Quad 6 has an auto-ranging power supply that works with an input voltage range of 100\~240 VAC, 50/60 Hz. To determine the power requirements for each COLORdash Batten-Quad 6, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

The listed current rating indicates the maximum current draw during normal operation. For more information, download Sizing Circuit Breakers from the Chauvet website: www.chauvetprofessional.com.

- Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

AC Plug

The COLORdash Batten-Quad 6 comes with a power input cord terminated with an IEC connector on one end and an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no plug or you need to change the Edison plug, use the table below to wire the new plug.

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow or Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

Make sure to disconnect the product's power cord before replacing a blown fuse. Always replace with a fuse of the same type and rating.

Fuse Replacement

1. Disconnect the product from power.
2. Using a Flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (T2 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.

Power Linking

The COLORdash Batten-Quad 6 supports power linking. You can power link up to 17 products at 120 VAC, 30 products at 208 VAC, or 33 products at 230 VAC.

This product comes with a power input cord. This product does not come with a power linking cable; however, a power linking cable is available as an option.

DMX Linking

You can link the COLORdash Batten-Quad 6 to a DMX controller using a standard DMX serial connection. If using other DMX compatible products with the COLORdash Batten-Quad 6, you can control each individually with a single DMX controller.

DMX Modes

The COLORdash Batten-Quad 6 uses the standard DMX data connection for the 4-, 6-, 10-, 24-, and 28-channel DMX modes.

• Refer to the Introduction chapter for a brief description of these modes.
- Refer to the Operation chapter to learn how to configure the COLORdash Batten-Quad 6 to work in these modes.
- The DMX Values section will provide you with detailed information regarding the DMX modes.

Master/Slave Connectivity

The Master/Slave mode allows a COLORdash Batten-Quad 6 (the “master product”) to control one or more COLORdash Batten-Quad 6 products (the “slave products”) without a DMX controller. One COLORdash Batten-Quad 6 becomes the master product when running an Auto or Fixed program, or by being in Manual mode.

You must configure each slave product's control panel to operate in SLAVE mode. During Master/Slave operation, the slave products will operate in unison with the master product.

DO NOT connect a DMX controller to products operating in Master/Slave mode. The DMX controller signals may interfere with the signals from the master product.

The Operation chapter of this manual provides detailed instructions on how to configure the Master and Slave products.

If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com.

Mounting

Before mounting this product, read and follow the Safety Notes. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/.

Orientation

Always mount this product in a safe position and make sure there is adequate room for ventilation, configuration, and maintenance.

Rigging

The COLORdash Batten-Quad 6 consists of a double-bracketed yoke and the body of the product Chauvet recommends using the following general guidelines when mounting.

• When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.
• Make sure to mount this product away from any flammable material as indicated in the Safety Notes.
• Never mount in places where rain, high humidity, extreme temperature changes, or restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can support the product's weight. Refer to the Technical Specifications chart for the weight-bearing requirements of this product.
• When hanging this product, always secure to a fastening device using a safety cable.

Procedure

The COLORdash Batten-Quad 6 comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply your own mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product.

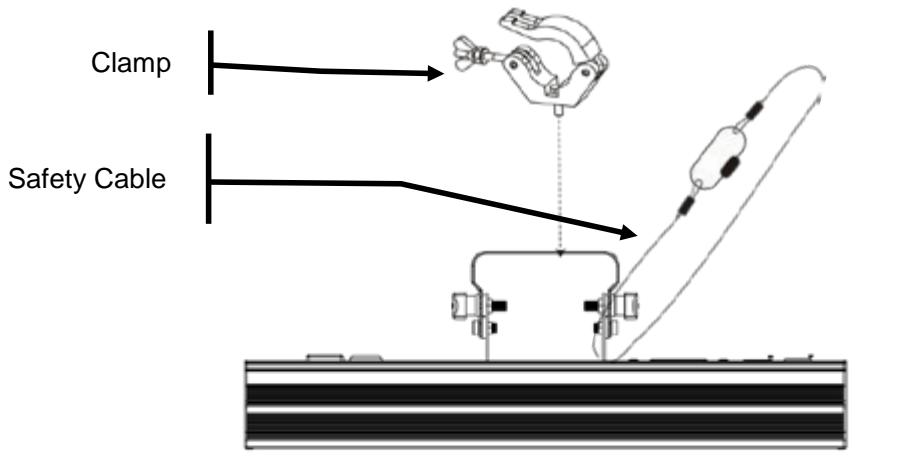

Product Mounting Diagram

Overhead Mounting

Floor Mounting

4. Operation

Control Panel Description

Button	Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value in to the current function
	Navigates upward through the menu list and increases the numeric value when in a function
	Navigates downward through the menu list and decreases the numeric value when in a function

Control Options

You can set the COLORdash Batten-Quad 6 start address in the 001\~512 DMX range. This enables control of up to 18 products in the 28-channel 28 Ch personality.

Programming

Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.

• To go to the desired main level, press repeatedly until the option shows on the display. Press to select. This will take you to the first programming level for that option.
• To select an option or value within the current programming level, press or until the option shows on the display. Press to select. In this case, if there is another programming level, you will see that first option, or you will see the selected value.
• Press repeatedly to exit to the previous main level.

DMX Personality

This setting allows you to choose a particular DMX personality.

1. Go to the Channel main level.
2. Select the desired personality (4 Ch, 6 Ch, 10 Ch, 24 Ch, or 28 Ch).
3. See the DMX Values section for the highest starting address you can select for each personality.
4. Make sure that the starting addresses on the various products do not overlap due to the new personality setting.

DMX Control

In this mode, each product will respond to a unique starting address from the DMX controller. All products with the same starting address will respond in unison.

1. Select a DMX personality as shown in DMX Personality.

2. Set the running mode:

a. Go to the M&S Mode main level.
b. Select Slave.

1. Set the starting address:

a. Go to Address main level.
b. Select the starting address (001\~509).

The highest recommended starting address for each DMX mode are as follows:

DMX Mode	DMX Address
4 Ch	509
6 Ch	507
10 Ch	503
24 Ch	489
28 Ch	485

Static Color

The Static Color mode allows for permanent RGBA color mixing without a DMX controller.

1. Go to the Static main level.
2. Select the Fix C.

a. Choose desired color combination.

1. Select the Manu C

a. Select Color (RGBA)
b. Select the desired color value (000\~255).
c. Repeat for the other colors.

Auto Programs

Auto programs allow for dynamic RGBA color mixing without a DMX controller.

1. Go to AUTO Main Level.
2. Select the desired auto (Auto. 01\~12).
3. Select Speed.
4. Choose the desired speed value (000\~100).

Auto Test

You cannot edit any of the auto programs (AUTO 01\~12).

This option allows you to test all the LEDs on the COLORdash Batten-Quad 6.

1. Go to Info Main Level.
2. Select Auto > Test.

Master/Slave

The Master/Slave mode allows a group of COLORdash Batten-Quad 6s (the slave products) to simultaneously duplicate the output of another COLORdash Batten-Quad 6 (the master product) without a DMX controller.

1. Set each of the slave products:

a. Go to M&S Mode.
b. Select Slave.

1. Set the master product:

a. Go to M&S Mode.
b. Select Master.

c. Select an Auto or Static program as explained in Auto Programs.

• The master product is the one that runs a program whether in Auto, or Static Color mode.
• Do not connect a DMX controller to the products configured for Master/Slave operation. The DMX controller may interfere with signals from the master product.
• The master product should be the first product in the daisy chain.

Dimmer Curves

This setting determines how fast the output of the COLORdash Batten-Quad 6 changes when you modify the values of the Red, Green, Blue, White, and Dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

1. Go to the Dimmer Mode main level.
2. Select a dimmer curve (OFF, DIM1, DIM2, or DIM3).

OFF: The output is proportional (linear) to the Dimmer and RGBA channel values.

DIM1\~3: The output follows the Dimmer and RGBA channel values based on the corresponding dimmer curve, being DIM1 the fastest and DIM3 the slowest.

Software Information

This option shows what version of software the COLORdash Batten-Quad 6 is running.

1. Go to the Info main level.
2. Select Version. (the version number will show on the screen)

Fixture Hours

This option shows the total amount of hours the COLORdash Batten-Quad 6 has been turned on.

1. Go to the Info main level.
2. Select FixHours (the hours will show on the screen).

Backlight

This setting allows you to set the amount of time the backlight on the COLORdash Batten-Quad 6 stays on after the last button is pressed on the control panel.

1. Go to the BackLite main level.
2. Select On, 10S, 20S, or 30S.
3. Press .

White Balance

This setting allows you to select the white color shown by the COLORdash Batten-Quad 6 when the DMX controller's Red, Green, and Blue faders are set to "255."

1. Go to the White Balance main level.
2. Select a color (R, G, or B).
3. Select a color value (125\~255).
4. Repeat for the other colors.

When selecting White Balance, you will only be able to define the values of Red, Green, and Blue.

The values of Red, Green, and Blue configured from White Balance will define the color temperature shown when the RGB faders are set to “255.”

Menu Map

Main Level	Programming Levels					Description
Auto	Auto 1~12		Speed		0~100	5 automatic programs
Static	Fix C		R			Red
			G			Green
			B			Blue
			A			Amber
			GB			Green/Blue
			RB			Red/Blue
			RG			Red/Green
			RGB			Red/Green/Blue
			RA			Red/Amber
			GA			Green/Amber
			BA			Blue/Amber
			RGA			Red/Green/Amber
			RBA			Red/Blue/Amber
			GBA			Green/Blue/Amber
			RGBA			Red/Green/Blue/Amber
	Manu C	R	Value		0~255	Combine red, green, blue, and amber to make a custom color
		G
		B
		A
Dim Mode	Off					No dimmer
	DIM 1~3					Dimmer curve
BackLite	10S					Turns off backlight after 10 sec of inactivity
	20S					Turns off backlight after 20 sec of inactivity
	30S					Turns off backlight after 30 sec of inactivity
	On					Display backlight always on
Info	Auto		Test			Turns on all LEDs in sequence for testing
	FixHours					Shows total product hours
	Version					Shows installed software version
Address	001~509					Selects DMX address
Channel	4 Ch					4-channel: R/G/B/A control
	6 Ch					6-channel: R/G/B/A, dimmer, strobe
	10 Ch					10-channel: R/G/B/A dimmer, strobe, color macro, auto, dimmer speed, auto speed
	24 CH					24-channel: R/G/B/A per quad-color LED
	28 Ch					28-channel: R/G/B/A per quad-color LED, dimmer, strobe, auto, auto speed
M&S Mode	Master					DMX mode
	Slave					Slave mode
White Balance	R	Value		125~255		Sets red LED maximum value
	G					Sets green LED maximum value
	B					Sets blue LED maximum value

DMX Values
28-Ch

Channel	Function	Value	Percent/Setting
1	Red 1	000 ó 255	0~100%
2	Green 1	000 ó 255	0~100%
3	Blue 1	000 ó 255	0~100%
4	Amber 1	000 ó 255	0~100%
5	Red 2	000 ó 255	0~100%
6	Green 2	000 ó 255	0~100%
7	Blue 2	000 ó 255	0~100%
8	Amber 2	000 ó 255	0~100%
9	Red 3	000 ó 255	0~100%
10	Green 3	000 ó 255	0~100%
11	Blue 3	000 ó 255	0~100%
12	Amber 3	000 ó 255	0~100%
13	Red 4	000 ó 255	0~100%
14	Green 4	000 ó 255	0~100%
15	Blue 4	000 ó 255	0~100%
16	Amber 4	000 ó 255	0~100%
17	Red 5	000 ó 255	0~100%
18	Green 5	000 ó 255	0~100%
19	Blue 5	000 ó 255	0~100%
20	Amber 5	000 ó 255	0~100%
21	Red 6	000 ó 255	0~100%
22	Green 6	000 ó 255	0~100%
23	Blue 6	000 ó 255	0~100%
24	Amber 6	000 ó 255	0~100%
25	Auto Programs	000 ó 010	No Function
		011 ó 030	Auto 1
		031 ó 050	Auto 2
		051 ó 070	Auto 3
		071 ó 090	Auto 4
		091 ó 110	Auto 5
		111 ó 130	Auto 6
		131 ó 150	Auto 7
		151 ó 170	Auto 8
		171 ó 190	Auto 9
		191 ó 210	Auto 10
		211 ó 230	Auto 11
		231 ó 250	Auto 12
		251 ó 255	Random Auto
26	Auto Speed	000 ó 255	Slow to Fast
27	Dimmer	000 ó 255	0~100%
28	Strobe	000 ó 010	No Function
		011 ó 255	Slow to Fast

DMX Values (cont.)

24-Ch	Channel	Function	Value	Percent/Setting
	1	Red 1	000 ♂ 255	0~100%
	2	Green 1	000 ♂ 255	0~100%
	3	Blue 1	000 ♂ 255	0~100%
	4	Amber 1	000 ♂ 255	0~100%
	5	Red 2	000 ♂ 255	0~100%
	6	Green 2	000 ♂ 255	0~100%
	7	Blue 2	000 ♂ 255	0~100%
	8	Amber 2	000 ♂ 255	0~100%
	9	Red 3	000 ♂ 255	0~100%
	10	Green 3	000 ♂ 255	0~100%
	11	Blue 3	000 ♂ 255	0~100%
	12	Amber 3	000 ♂ 255	0~100%
	13	Red 4	000 ♂ 255	0~100%
	14	Green 4	000 ♂ 255	0~100%
	15	Blue 4	000 ♂ 255	0~100%
	16	Amber 4	000 ♂ 255	0~100%
	17	Red 5	000 ♂ 255	0~100%
	18	Green 5	000 ♂ 255	0~100%
	19	Blue 5	000 ♂ 255	0~100%
	20	Amber 5	000 ♂ 255	0~100%
	21	Red 6	000 ♂ 255	0~100%
	22	Green 6	000 ♂ 255	0~100%
	23	Blue 6	000 ♂ 255	0~100%
	24	Amber 6	000 ♂ 255	0~100%

COLORdash Batten-Quad 6 Sections for DMX Control

Display Position

4-Ch	Channel	Function	Value	Percent/Setting
	1	Red	000 ♂ 255	0~100%
	2	Green	000 ♂ 255	0~100%
	3	Blue	000 ♂ 255	0~100%
	4	Amber	000 ♂ 255	0~100%
10-Ch	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 ó 255	0~100%
	2	Red	000 ó 255	0~100%
	3	Green	000 ó 255	0~100%
	4	Blue	000 ó 255	0~100%
	5	Amber	000 ó 255	0~100%
	6	Strobe	000 ó 010011 ó 255	No FunctionSlow to Fast
	7	Color Macro + White Balance	000 ó 010011 ó 030031 ó 050051 ó 070071 ó 090091 ó 110111 ó 130131 ó 150151 ó 170171 ó 200201 ó 205206 ó 210211 ó 215216 ó 220221 ó 225226 ó 230231 ó 235236 ó 240241 ó 245246 ó 250251 ó 255	No FunctionR: 100% G: 0~100% B: 0R: 100%~0 G: 100% B: 0R: 0 G: 100%~0 B: 100%R: 0~100% G: 0 B: 100%R: 100% G: 0 B: 100%R: 100% G: 0~100% B: 0~100%R: 100%~0 G: 100%~0 B: 100%R: 100% G: 100% B: 100% A: 100%White 1White 2White 3White 4White 5White 6White 7White 8White 9White 10White 11
	8	Auto Programs	000 ó 051052 ó 101102 ó 152153 ó 203204 ó 254255	No FunctionAuto 1Auto 2Auto 3Auto 4Auto 5
	9	Auto Speed	000 ó 255	Slow to Fast
	10	Dimmer Speed	000 ó 051052 ó 101102 ó 152153 ó 203204 ó 255	Preset dimmer speed from display menuLinear dimmerNonlinear dimming curve 1 (fastest)Nonlinear dimming curve 2Nonlinear dimming curve 3 (slowest)

6-Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ♂ 255	0~100%
2	Red	000 ♂ 255	0~100%
3	Green	000 ♂ 255	0~100%
4	Blue	000 ♂ 255	0~100%
5	Amber	000 ♂ 255	0~100%
6	Strobe	000 ♂ 010011 ♂ 255	No FunctionSlow to Fast

5. Technical Information

Product Maintenance

To maintain optimum performance and minimize wear, you should clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency.

As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. This can lead to reduced light source life and increased mechanical wear.

To clean your product:

1. Unplug the product from power.
2. Wait until the product has cooled.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external vents and accessible internal components.
4. Clean all external surfaces with a mild solution of non-ammonia glass cleaner or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
6. Wipe any dirt or grime to the outside edges of the lens surface.
7. Gently polish the lens surfaces until they are free of haze and lint.

Returns

Always dry the external surfaces thoroughly and carefully after cleaning them.

You must send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags.

Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.

Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number.

DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.

Once you have received the RMA number, include the following information on a piece of paper inside the box:

• Your name
• Your address
• Your phone number
  The RMA number
  • A brief description of the problem(s)

Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer's responsibility. FedEx packing or double-boxing are recommended.

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Technical Specifications

Dimensions and Weight	Length	Width	Height	Weight
	22 in (560 mm)	2.6 in (65 mm)	6.46 in (164 mm)	5 lbs (2.3 kg)
	Note: Dimensions in inches rounded to the nearest decimal digit.
Electrical	Power Supply Type	Range		Voltage Selection
	Switching (internal)	100~240 V, 50/60 Hz		Auto-ranging
	Parameter	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz
	Consumption	90 W	94 W	96 W
	Operating	.76 A	.45 A	.41 A
	Power linking current (products)	13.6 A(17 products)	13.6 A(30 products)	13.6 A(33 products)
	Fuse/Breaker	T 2 A, 250 V	T 2 A, 250 V	T 2 A, 250 V
	Power I/O	U.S./Worldwide		Europe
	Power input connector	Neutrik® powerCON®A		Neutrik® powerCON®A
	Power output connector	Neutrik® powerCON®B		Neutrik® powerCON®B
	Power cord plug	Edison (U.S.)		Local plug
Light Source	Type	Power		Lifespan
	Quad-colored LEDs	5 W		50,000 hours
	Color	Quantity		Current
	Red	6		499 mA
	Green	6		480 mA
	Blue	6		468 mA
	Amber	6		500 mA
Photometrics	Parameter	Standard Optics
	Illuminance @ 5 m	390.7 lux
	Beam angle	17°
	Field angle	33°
Thermal	Max. External Temperature	Cooling System
	104 °F (40 °C)	Convection
DMX	I/O Connectors	Connector Type		Channel Range
	3- and 5-pin XLR	Sockets		4, 6, 10, 24, 28
Ordering	Product Name	Item Code		Item Number
	COLORdash Batten-Quad 6	03030613		781462209612

Contact Us

WORLD HEADQUARTERS - Chauvet

General Information

Address: 5200 NW 108th Avenue

Sunrise, FL 33351

Voice: [phone]

Fax: [phone]

Toll free: [phone]

UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.

General Information

Address: Unit 1C

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: [phone]

Fax: [phone]

MEXICO - Chauvet Mexico

General Information

Address: Av. Santa Ana 30

Parque Industrial Lerma

Lerma, Mexico C.P. 52000

Voice: [phone]

CHAUVET EUROPE - Chauvet Europe BVBA

General Information

Address: Stokstraat 18

9770 Kruishoutem

Belgium

Voice: [phone]

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record.

Follow their instructions to request support or to return a product. Visit our website for contact details.

Technical Support

Voice: [phone] (Press 4)

Fax: [phone]

Email: [e-mail]

World Wide Web www.chauvetlighting.com

Technical Support

Email: [e-mail]

World Wide Web www.chauvetlighting.co.uk

Technical Support

Email: [e-mail]

World Wide Web www.chauvet.com.mx

Technical Support

Email: [e-mail]

World Wide Web www.chauvetlighting.eu

UL 1573

CSA C22.2 No. 166

E113093
