| Product Type | Integrated Amplifier |
| Brand | Gryphon Audio |
| Model | Diablo 333 |
| Output Power | 2 x 333W @ 8Ω, 2 x 666W @ 4Ω, 2 x 1100W @ 2Ω |
| Frequency Response | 0.1 Hz - 350 kHz (-3dB) |
| Output Impedance | 0.015Ω |
| Power Supply Capacity | 2 x 68,000µF |
| Gain | +38 dB |
| Inputs | 2 balanced XLR, 2 single-ended RCA (Tape In) |
| Outputs | Tape Out, Sub Out (buffered), Speaker Binding Posts |
| Volume Control | Microprocessor-controlled 43-step relay attenuator |
| Display | 4.3" TFT capacitive touch screen |
| Remote Control | Yes, Philips RC-5 system 16 codes |
| Dimensions (W x D x H) | 468 mm x 472 mm x 245 mm (18.4 x 18.6 x 9.66 in) |
| Net Weight | 50.6 kg (112 lb) |
| AC Voltage Range | 110-120V or 220-240V (not changeable) |
| Power Consumption | ≤0.5W (standby), approx 180W (idle) |
| Optional Modules | PS3 Phono Stage, DAC3 D/A module |
| Warranty | 3 years from date of purchase |
| Care and Maintenance | Clean with damp or dry microfiber cloth; avoid spirits and paper tissue |
| Safety | No user serviceable parts; refer service to qualified personnel |
Frequently Asked Questions - Diablo 333 Gryphon Audio
User questions about Diablo 333 Gryphon Audio
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audio Amplifier in PDF format for free! Find your manual Diablo 333 - Gryphon Audio and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Diablo 333 by Gryphon Audio.
USER MANUAL Diablo 333 Gryphon Audio
THE GRYPHON
Gryphon Diablo 333
Integrated amplifier
Owner's Manual
Table of Contents
Introduction ...... 3
Creating an Icon ....4
The Man behind the Brand ....5
Foundation for Excellence ....6
The Gryphon Diablo 333 ....8
Placement 10
AC voltage 10
Care and Maintenance 10
Choice of Cables 11
Unpacking and Setup 12
Burn-in and Warm-up 13
Main Switch 13
User Instructions ....14
Menu Activated Functions ...... 16
Rear Panel....19
Remote Control....21
Remote Codes 22
Remote Control Battery 22
Features 23
Specifications 24
Dimensions.... 25
Error Handling and Indication 26
PS3 Phono Stage Module 27
PS3 Installation 27
PS3 Set-up menu 28
PS3 Rear Panel and Load Setting...... 29
PS3 Features and Specifications .... 30
PS3 Phono wiring 1-2 .... 31
PS3 Phono wiring 3-4.... 32
Warranty & Support 33
IMPORTANT SAFETY INSTRUCTIONS..... 34
Notes 35
The Gryphon Name
The Gryphon moniker and symbol is an appropriate image for the brand, inspired by Greek mythology, part eagle, part lion, the perfect union of grace and agility with power and authority.
Gryphon Audio Designs is quite simply "The ultimate choice for the enthusiast who wants the sound with no frills other than the luxury imparted by the fit, feel and finish."
(Hi-Fi News & Record Review magazine, UK)
The Gryphon Genetic Code
The Gryphon DNA has been defined by one writer as:
"A code of perfectionism, the likes of which I've only ever seen at the Bugatti atelier in Alsace or at the great watch houses in Switzerland. It is the result of not accepting the notion of compromise, on any level."
(Ken Kessler, audio critic)
At the very core of this genetic code lies what one critic described as Rasmussen's
"Subversion of traditional hi-fi styling"
(HiFi Choice magazine, UK)
with designs “...so clean and simple, yet elaborate.”
(Positivefeedback.com, USA)
Similar sentiments echo around the world.
Creating an Icon
In virtually every category of consumer goods - fashion, automobiles, furniture, wine, watches, etc. - there exists a revered top tier of luxury and excellence, a small yet celebrated, High End segment populated by innovative designers who pursue perfection with little concern for production economies, practicality, or cost.
The essence of these “aspirational brands” is consistent: aesthetic beauty, advanced technologies, superior performance, and extravagant build quality combine to achieve unsurpassed levels of fit, feel, finish and function. As a result, all of these offerings are the very best that they can possibly be, for the discerning few who can appreciate and afford them.
While many of these marques are familiar to luxury consumers, others are known only to a limited group of cognoscenti. Curiously, High End audio systems remain a mystery to many affluent connoisseurs. This lack of enthusiasm can be explained by products whose awkward functionality or poor cosmetics clash with the refined aesthetic sensibilities of potential owners.
As for aesthetics, the sculptural beauty of Gryphon components, combined with their extraordinary fit and finish, elevates fine audio componentry to objects of worship at home in the finest domestic spaces.
For the uninitiated, who mistakenly assume that they are unable to distinguish finer musical nuances as reproduced by High End audio systems, even the briefest audition proves that most individuals can discern and appreciate the “you-are-there” realism offered by fine High End home entertainment equipment. Rest assured: if you’re passionate about music, the illusion that the listener can be transported to the performance venue is addictive.
The fortunate few with the means to acquire the ultimate in-home entertainment owe it to themselves to experience the life-changing difference which a Gryphon audio system delivers.
The Man behind the Brand
After 33 years at Gryphon Audio Designs, Flemming Erik Rasmussen retired from the company he founded in 1985 to devote himself to his favorite pastimes including his first love, painting.
Rasmussen's audio career was purely serendipitous. After earning a degree in painting and graphic arts at Denmark's Aarhus Art Academy, he taught painting and photography before becoming chief designer of textiles and imprints for Scandinavia's largest sportswear company, then resigned to form 2R Marketing, which quickly became Denmark's leading High End audio distributor, later founding Gryphon as an offshoot of that compar
The first product, the now legendary Gryphon Head Amp, was developed for Flemming's personal use; however, demand generated by rave reviews and “audiophile buzz” led to the formal establishment of Gryphon Audio Designs as a separate corporate entity.
The legendary Gryphon Head Amp
Following the immediate success of the Gryphon brand, distribution was phased out in 1993 so that Rasmussen could dedicate his efforts entirely to Gryphon.
Rasmussen's background in fine arts and industrial design infused every Gryphon product with distinctive, luxuriant styling. His elegant, uniquely Scandinavian black-on-black designs were the original “Nordic Noir,” long before TV crime dramas appropriated the term. His legacy is palpable in the visual aesthetic of current Gryphon chassis, as well as the ethos of quality and performance embodied in all Gryphon products.
Foundation for Excellence: Gryphon Design Fundamentals
Thanks to state-of-the-art technical equipment and some of the finest minds in audio engineering, the Gryphon brand continues to define the highest standards of subjective and technical excellence. Common to all Gryphon components, these design fundamentals have proven essential for achieving ultimate performance:
Utilized in every Gryphon product, our dual mono configuration eliminates any possibility of crosstalk or other inter-channel interference and provides infinite channel separation which augments the ability to create space, focus, depth and transparency.
Because the electrical power in your home can fluctuate wildly in terms of voltage, noise and distortion, Gryphon incorporates heavily regulated multi-stage power supplies that act as effective mains conditioning filters. Displays and control circuits are fed by separate power supplies to isolate any digital noise artifacts and effectively prevents them from contaminating the analog signal path.
While the printed circuit boards in most audio products utilize conductor traces a mere 35 µ m thick, Gryphon employs 70 µ m or thicker PCB traces of the highest purity copper. (The conductor traces used for high all current circuits in the Gryphon Apex Power Amplifiers are an astounding 105 µ m thick!)
Beginning with our very first product, “The Head Amp,” all Gryphon products have featured extremely wide frequency bandwidth, because the ability to accurately reproduce infra-sonic and ultra-sonic frequencies ensures linear phase across the audible frequency range, for superior spatial performance. The implementation of circuits with wideband frequency response is a painstaking endeavour in which physical component layout and grounding pattern of the circuit boards are crucial to the attainment of superior sonic performance with no loss of inherent stability. Wideband frequency response ensures high slew rate - essential to the realistic recreation of the ultra-fast transients which routinely occur in live music - and is crucial in recreating the harmonic envelope of acoustic instruments.
All Gryphon designs are realized with none or an absolute minimum of negative global feedback which, when present in large amounts, can actually increase transient intermodulation distortion. With the exception of the Antileon series of power amplifiers (which utilize a minimum amount of negative global feedback) all Gryphon amplifiers are designed with zero negative global feedback.
THE
GRYPHON
Gryphon's research into the detrimental effects of magnetically induced distorted (MID) has led to the elimination of magnetizable materials wherever possible. To eliminate the effects of stray magnetic fields, non-magnetic materials are employed throughout every Gryphon product, with the unavoidable exception of the transformer shield box.
The mechanical design and assembly methods of the enclosure are carefully calculated to ensure minimal chassis resonance, either through the use of high mass mechanical grounding or decoupling. Vibration-sensitive components, capacitors in particular, are thus guaranteed a non-resonant environment which, in turn, provides a solid foundation for optimal electrical performance.
Gryphon's artistically wrought, massive chassis offers a vibration-proof environment for the sensitive electronics inside and provides crucial shielding from a polluted world of low- and high-frequency radio waves, power-line radiation and other electrical interference. Our obsessive attention to such issues enables the relaxing, open and transparent Gryphon sound.
Unique, non-intrusive protection circuitry offers reliable, fuss-free protection without compromising signal purity and signal path simplicity.
In the interest of ultimate fidelity and signal purity, tone controls and other superfluous circuitry have been banished from the signal path. The ground path has been carefully laid out in order to achieve superior sonic performance with no loss of stability. Component layout is designed to ensure the shortest conceivable signal path.
Exhaustive investigation precedes the selection of every component part and many bespoke, proprietary components are custom-built exclusively for Gryphon. And because what is left out is just as important as what goes in, an absolute minimum of internal wiring is included.
By lavishing attention on each aspect of the circuit and fully understanding the purpose and behaviour of every single part of the whole, our designers can optimize performance in each section before moving on to the next step. This ensures simplicity, a short signal path and a unity of purpose towards a single, well-defined goal: musical purity.
The Gryphon Diablo 333
Improving upon perfection and thereby surpassing the legendary Diablo 300 was no simple feat: introduced at High End Munich 2015, the Diablo 300 established a new benchmark in Integrated Amplifier performance. With unanimous praise from the High End press and thousands of units sold, Diablo 300 has maintained its “Best-in-Class” status for nearly a decade, repeatedly besting newer and more expensive competitors.
Over the past eight years, however, new component technologies and intensive engineering research have suggested areas for improvement. Circuit highlights from Gryphon's flagship Power-, and Preamplifiers; the Apex and Commander, have "Trickled-Down" to the Diablo 333, which boasts ten percent more output power than its legendary predecessor. New ultra-fast, low-capacitance pre-driver transistors deliver both enhanced musicality and superior measured performance.
One look at the Diablo 333 and the Gryphon DNA is obvious: the triangular display panel with 4.3" TFT capacitive touch screen evokes the aesthetic created by Gryphon Founder Flemming Rasmussen for Apex and Commander, as do custom-made chassis spikes which enhance both mechanical integrity and visual harmony. Also developed for Apex, Gryphon's bespoke binding posts are also found on the Diablo 333 rear panel. Sculpted from a block of aluminum, the remote handset in same style as the Commander handset complements the exquisite looks of the Diablo 333. An intuitive menu structure enhances the user interface while a USB 2.0 socket on the rear panel simplifies firmware updates.
The Diablo 333 can be outfitted with optional Phono Stage- and DAC modules which have been designed specifically for the Diablo 333 amplifier and future models.
The optional PS3 MM/MC Phono Stage module features True Dual Mono Class-A coupled topology from input to output. No global negative feedback and discrete balanced circuitry featuring matched transistor arrays. The balanced inputs features gold-plated Neutrik XLR input sockets. Moving Coil or Moving Magnet mode is set via the Diablo 333 menu. MC load impedance can be set externally on rear panel switches.
The optional DAC3 D/A module incorporate the latest High-Performance Sabre ES9039PRO DAC. Seven user-selectable PCM digital roll-off filters are included, as are a full assortment of USB, AES/EBU, S/PDIF and TOSLINK inputs. The DAC3 USB input is compatible with all current Digital Audio Formats.
Placement
Do not place your Gryphon component on or near any source of heat such as power amplifiers. Do not place any object on the top covering the ventilation holes or heat sinks of your Gryphon component. Do not place it in an enclosed space such as a cabinet, unless ample ventilation is provided. Failure to observe guidelines may result in overheating.
AC voltage
Your Gryphon unit is especially made for the AC voltage of the country to which it has been shipped. If the voltage of your Gryphon has been changed, the warranty is void and the product may be unsafe or malfunction. Correct AC polarity contributes greatly to optimum performance. If you are not using a three-pin, non-reversible power plug, please experiment with the orientation of the plug for optimum performance.
Care and Maintenance
Gryphon products are handcrafted by individuals who take great pride in the high level of fit and finish which we achieve. To maintain your Gryphon components in pristine condition, please follow these simple instructions. Metal surfaces may be cleaned with a damp cloth or dry microfiber cloth. Some products made for treatment of vinyl interiors in cars may be useful. Test the product on a non-visible surface before using any fluids. Fingerprints may be removed with a damp cloth or dry microfiber cloth. In order to avoid damage to your Gryphon's finish, do NOT use spirits or paper tissue.
Choice of Cables
Gryphon's basic philosophy is one of sonic neutrality. We prefer to leave interpretation to the musicians and singers. Therefore, you should not need a cable with a particular “sound” of its own to balance or “equalize” your system. Unfortunately, in some circles, cables have become an acceptable equalizer in the High-End audio industry.
Take the advice of your authorized Gryphon dealer in selecting interconnects and loudspeaker cables for your Gryphon equipment and for that matter power cords as well. After all, we are listening to current “converted” into music!
Naturally, Gryphon's own range of interconnects, loudspeaker cables and power cords are used in the development of Gryphon products. Gryphon cables are designed for ultimate neutrality and resolution. They are extremely revealing and will allow the ultimate quality of your Gryphon system or any fine audio components to come through clearly and undiminished.
All Gryphon amplifiers are designed and manufactured with an extreme bandwidth and in some cases the wrong choice of speaker cable can become an issue and will create potential problems in the collaboration between the amplifier and the speakers, with the speaker cable as an interactive factor. Gryphon recommends that no speaker cable on a Gryphon amplifier should be with a coaxial design, active shielding or special boxes that will add-on different types of filtrations. A speaker cable with a coaxial design or with active shielding will in most cases have a much lower bandwidth than the amplifier and therefore the amplifier will be met with a too high capacitive load and might cause oscillation of the amplifier. There is no need to actively add filtration on an analogue amplifier. It doesn't serve the final reproduction of the music any good.
Gryphon recommends using speaker cables with a low capacitance and a wide bandwidth in order to match the specs of the amplifier's bandwidth and output impedance. There is no need to add more “negative” filtration to the system as Gryphon is striving to have the finest level of tonal balance and neutrality. Choose your cables with the highest level of attention to the actual parameters of the cable design (e.g. cable geometry, capacitance, bandwidth, insulation, conductor material and connectors) and aim for low capacitance, low resistance and sonic neutrality.
THE GRYPHON
Unpacking and Setup
Please refer to separate Setup instruction document included with your unit. You can also find this document on our website.
SAFETY INSTRUCTIONS
Hazardous live AC power! Please find important safety instructions on p. 36
Burn-in and Warm-up
Your Gryphon unit has been thoroughly tested and burned-in before shipping; however, performance will continue to improve during the first 40 – 50 hours of normal use. After this period, optimum performance will be reached approximately 45 minutes after turn-on.
Mains Switch
The main ON/OFF switch on the Diablo 333 amplifier is located on the bottom panel, near the front. Engaging the power switch will illuminate the ON/STB (Standby) indicator on the Diablo 333 amplifier front display.
If the ON/STB (Standby) symbol flashes red continuously in STB mode; this indicates wrong / defective AC mains voltage. Please disconnect the Diablo 333 from AC power and contact your Authorized Gryphon Dealer or Distributor.
User Instructions
ON/STB touch Button:
Touch the ON/STB (Standby) symbol to turn the Diablo 333 ON and again to engage to standby mode. When the amplifier is ON, the symbol turns green. (A red symbol indicates STB)
Display View Modes:
The Gryphon Diablo 333 has two display view modes: "Simple View" and "Operation View". After the start up sequence completes the Diablo 333 will enter "Simple View" mode. Right after touching the display area, the Diablo 333 display will enter "Operation View" mode. The Display will return to "Simple View" mode after 10 seconds if not being operated at the display panel. Setting can be altered in the menu.
Simple View Mode:
In "Simple View" mode, the selected input and the volume level are displayed with a large font to make them easily readable from the listening position.
Operation View Mode:
In "Operation View" mode, it is possible to operate the Diablo 333 via the touch display.
VOLUME
The Diablo 333 amplifier uses a unique volume control. It is not a digital device, but a discrete solution based on fixed resistors in an ultra-short signal path involving a very small number of relays selected for perfect function and “sonic invisibility.” This technology can sometimes - depending on the material played - make a very small clicking noise when used. This is not a sign that anything is wrong and is normal.
Use the up/down arrows to adjust the volume for desired listening level. The minimum level is 0 and the default maximum level is 42. The start-up and maximum level can be set in the menu. See the description under “Menu Activated Functions”.
MUTE
When the volume level is above 0, use this function to immediately mute the signal. Mute is indicated with a cross over the actual level.
INPUT SELECT
Use these touch buttons to select the desired input. More inputs will be available with optional module installed.
The names for each input can be customized using the Menu. See the description under "Menu Activated Functions".
MONITOR
Touch the “MONITOR” button to activate Tape Monitor. Tape Monitor is used to listen to a tape recorder, while the signal from the selected input is still present at the TAPE OUT output. If the recorder has a source/monitor function, this switch may be used to listen to the tape as it is being recorded. When selected, the display shows a filled MONITOR touch button. If an AV INPUT or INPUT4 is activated, the MONITOR function is not accessible. In these two cases the MONITOR touch button is hidden.”
MENU
Touch the "MENU" button to enter the Main Menu
Menu Activated Functions
MAIN MENU:
Select any of the menu items or press EXIT to leave the menu.
"Phono Stage" menu available only with optional PS3 module installed.
In the following section, each menu item will be described in detail:
START VOLUME:
Use the "Up" and "Down" arrows to adjust the desired start volume. The next time the Diablo 333 is powered up, the volume will be set to the value of Start Volume.
MAX VOLUME:
Use the “Up” and “Down” arrows to adjust the desired Max Volume.
DISPLAY:
Select fixed display intensity in four levels 25, 50, 75 or 100%.
Alternatively select SIMPLE VIEW ON or OFF.
"AUTO DIM" when the Diablo 333 display is in "Operation View" mode, the display intensity will be 100% . In "Simple View" mode, the display will be 100% when the Diablo 333 is operated from the remote control and after 20 seconds the intensity will lower to 25% , rendering the display unobtrusive and prolonging its lifespan.
"AUTO OFF" when the Diablo 333 display is in "Operation View" mode, the display intensity will be 100% . In "Simple View" mode, the display will be 100% when the Diablo 333 is operated from the remote control and after 20 seconds the display will switch off. This will prolong the lifespan of the display. Any operation of the Diablo 333 will turn the display on again.
IR SOURCE:
It is possible to connect an external active IR receiver to the rear panel of the Diablo 333. To use this option; select Rear Panel IR Connector.
INPUT LEVEL MATCH:
This option enables individually trimming the gain level of each input to maintain consistent volume when switching between sources.
Select the desired input and use the arrows up and down to adjust the level from 0 - +8dB.
Display showing optional Phono Stage installed.

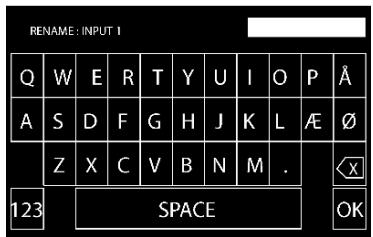

NAME INPUT:
Select the desired input and press Edit Name.
Use the QWERTY keyboard to enter the new input name and press "OK" to confirm. The input name can have a maximum of 8 characters.
AV INPUT:
This option allows you to use either Input 2 (balanced) or Input 3 (single-ended) on the Diablo 333 as a Power Amp input for a source (e.g. Home Theater Processors) with its own volume control. The signal from the selected input will be amplified with fixed gain (Default gain 30dB, + Input Level Match setting: 0 - +8dB). It is thus not possible to set the level with the volume control.
RESTORE SETTINGS:
This option allows for resetting all settings to default, per below:
Start Volume: 0
Max Volume: 42
IR Source: Front Panel IR Sensor
Input Level Match: 0dB for all inputs
Input Names for Input 1-4: INPUT1-INPUT4
Input name for Phono input: PHONO
AV Input: None
Display mode: Auto Dim
Simple View ON
MM/MC setting is not changed.

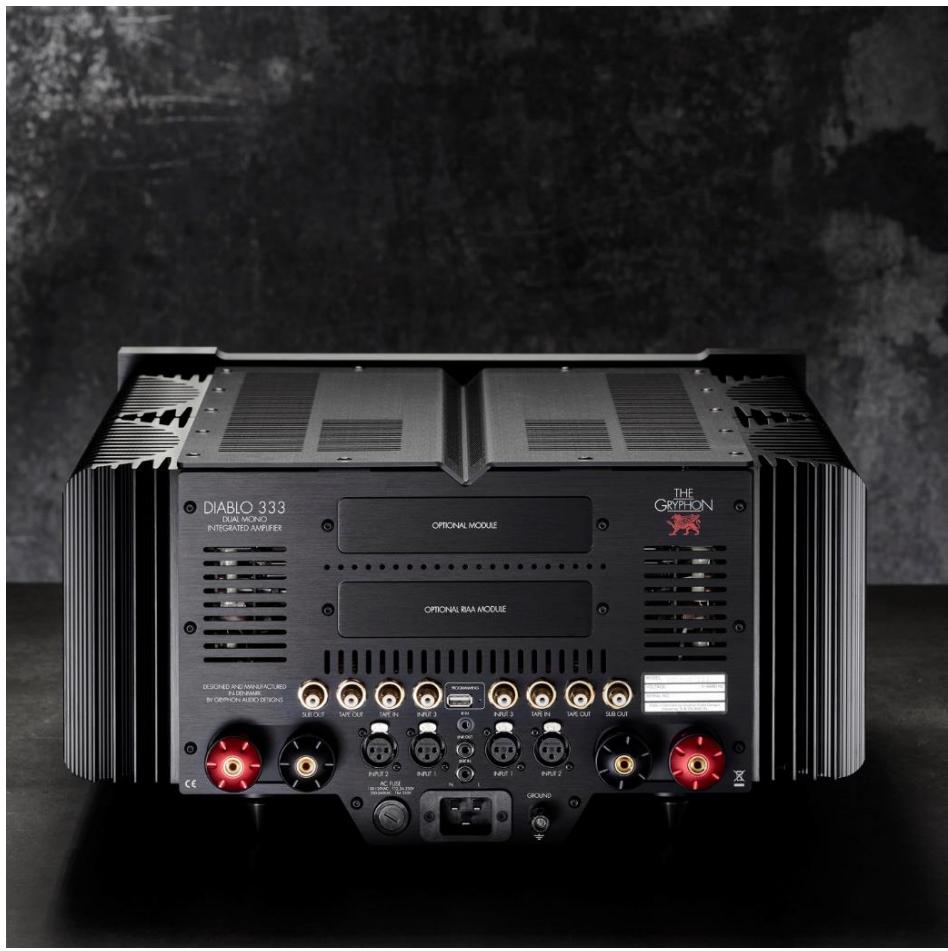

Diablo 333 Rear Panel
INPUT 1 - INPUT 2
Balanced XLR inputs to connect balanced sources.
INPUT 3 - INPUT 4 (TAPE IN)
Single-ended RCA inputs to connect single-ended sources. INPUT 4 is also a dedicated "Tape Input".
TAPE OUT
Single-ended RCA outputs which feed fixed level signal from the selected input source.
Please also see description of the MONITOR function for further information related to “TAPE IN” and “TAPE OUT”.
SUB OUT
These single-ended RCA outputs allow you to connect an active subwoofer or a second power amplifier. The SUB OUT output is buffered using a high-grade Op-Amp. The signal is full range - no low pass filtering. Completely separated left and right channel signals.
USB
The USB port is solely used for possible future Diablo 333 firmware updates.
Instructions how to perform a firmware update, will be conveyed if a firmware update is released.
IR
The IR input enables connection of an external active IR receiver. One 3.5mm mini-jack labeled IR-INPUT is available for a stereo plug connection. The tip of the connected stereo mini-jack plug will be provided with +5VDC (max. 100mA). IR-signal on the middle ring and GND on the mini-jack sleeve.
GROUND
Binding post for chassis ground.
Mains input sockets
One IEC appliance C20 inlet (for power cords with IEC C19 receptacle)
AC FUSE holders and fuse values:
110-120Vac: T12.5A / 250V 220-240Vac: T8A / 250V
Balanced Connections
All Gryphon products follow the AES standard for balanced connections:
- Ground 2. Positive 3. Negative
Gryphon recommends the use of dedicated, balanced XLR interconnect cables.
Avoid the use of RCA-to-XLR adaptors as they will degrade system performance.
Remote Control
ON/STB
Places the Diablo 333 "ON" or in "STB" (Standby)
MONITOR
Tape Monitor is used to listen to a tape recorder. If the recorder has a source/monitor function, this switch may be used to listen to the tape as it is being recorded. When selected, the display shows a filled white dot next to the MONITOR button.
MUTE
When the volume level is above 0, use this function to immediately mute the signal. Mute is indicated on the display with a filled white dot and a cross over the actual level.
DISPLAY
This remote button toggles through the different display intensity options. The selected option will show in the display. After 5 seconds, the display will return to normal.
VOLUME Up and Down
Raises and lowers the Diablo 333 volume setting.
INPUT Up and Down
Enables user to toggle between inputs.
INPUT 1 – 4 and PHONO
The numbered buttons from 1 to 4 are used to directly select the desired input. The PHONO button directly select the phono input from the optional PS3 Phono Stage module.
DAC3 module, direct INPUT selection
If a DAC3 module is installed, the five digital inputs buttons are used to directly select the desired input: USB, AES/EBU, S/PDIF1, S/PDIF2 and TOSLINK.
DAC3 module remote functions
FILTER button: toggles between the digital filters.
DSD LP button: toggles the DSD format analog low pass filter ON/OFF.
0/-6dB button: if -6dB is chosen, the output level from all digital inputs is lowered -6dB.
Remote Codes
The Gryphon Diablo 333 amplifier remote control uses the Philips RC-5 standard for infrared communication.
The following RC-5, system 16 codes are used for the Gryphon Diablo 333 amplifier:
ON/STB 12 Direct Analog Input Select
MUTE ....13 INPUT 1 ....1
VOL UP ......16 INPUT 2 ...... 2
VOL DOWN: 17 INPUT 3 3
INPUT UP....32 INPUT 4....4
INPUT DOWN....33 PHONO....5
MONITOR......21
DISPLAY 15
DAC3 & Digital Input codes
DAC3 FILTER....50 USB ....6
DAC3 DSD LP 48 AES/EBU
DAC3 0/-6dB....36 S/PDIFT....8
S/PDIF2 9
TOSLINK......0
Remote Control Battery
The remote control uses a single LR2450 / CR2450 coin cell battery.
Please replace the battery if the red indicator doesn't light up when pressing a button:
Carefully remove the screws holding the rear panel of the remote control using a 2mm hex socket screwdriver or Allen key.
Remove the rear panel and carefully slide the small battery drawer forward to release the battery.
Observe the orientation of the battery and replace with the new battery.
Features
• True Dual Mono configuration.
• Zero global negative feedback.
- Microprocessor-controlled 43-step true balanced relay volume attenuator for best sonic performance featuring only 1-2 resistors in series with signal at all levels.
- Local Shunt regulators for best noise suppression.
- Ten high power output transistors each channel.
• Ultra-fast, low-capacitance pre-driver transistors.
• Polypropylene capacitors for local power supply decoupling.
• Optional PS3 MM/MC phono stage module.
- Optional DAC3 module with one USB, two S/PDIF, one AES/EBU and one optical input.
• Ultra-short signal path.
• Minimal internal wiring.
• Four-layer printed circuit boards with 70μ copper on all layers.
• Dual Mono Holmgren toroidal transformer.
• PCB-mounted sockets eliminate wiring and shorten signal path.
• Gold-plated Neutrik XLR sockets for two balanced sources.
• Gold-plated phono sockets with Teflon insulation for two inputs and two outputs.
• Gold-plated Gryphon custom-built binding posts.
- Fixed-level AV input for uncompromising integration with surround preamplifier.
- Input level match.
- 4.3" TFT capacitive touch screen with 4mm hardened glass in front.
- Intuitive menu structure.
• 12Vdc link input and output.
• Infrared Receiver input via input on rear panel.
- Firmware upgradeable via USB 2.0 socket on rear panel.
• Non-invasive protection system.
• Infrared remote control.
• EU CE approval.
• Standby power consumption < 0.5W.
• Designed and built in Denmark.
• Exterior design by Flemming E. Rasmussen.
• Electronics design by Tom Møller.
Specifications
• 2x333W@8Ω, 2x666W@4Ω, 2x1100W@2Ω
• Output impedance: 0,015Ω
• Bandwidth (-3dB): 0,1Hz to 350 kHz
• Power Supply Capacity: 2 x 68.000uF
Gain: +38dB
• SUB output gain: +12dB
• Input Impedance, balanced (20-20000Hz): 50KΩ
• Input Impedance, single ended (20-20000Hz): 30KΩ
• Power consumption: ≤ 0.5W (standby), approx. 180W (idle)
- AC voltage range: 110-120V OR 220-240V – not changeable.
• Operating ambient temperature range: 15 - 30°C / 59 - 86°F
- MENU-controlled functions:
Volume Max Level
Volume Start Level
Display Intensity: (100%-75%-50%-25%, Auto Dim and Auto OFF)
Infrared source (Front or Rear Panel)
Input Level Match
Input Naming
Dedicate Input 2 (XLR) or Input 3 (RCA) to Volume-Bypass AV-input
Restore Settings
Phono Stage MM/MC selection (optional)
DAC level and filter settings (optional)
• Outer dimensions, W x D x H: 468mm x 472mm x 245mm
18.4in x 18.6in x 9.66in
• Net weight: 50,6kg – 112lb
• Shipping weight: 67,0kg – 148lb
Please also see following page
Note: Specifications can be changed without notice.
Error Indication & Handling
AMPLIER SHUTDOWN DUE TO:
PLEASE CYCLE POWER AND RESTART
Two different error situations can be detected and indicated:
When excessive heat is detected in one or both channels, the Diablo 333 will mute, and the amplifier will go into stand-by mode. Normal operation can resume when the temperature is within safe operating limits.
If a DC/HF error is detected in one or both channels, the Diablo 333 will mute, and the amplifier will go into stand-by mode.
Next time the Diablo 333 is turned on after an error has occurred, the error indication display is shown. The error(s) which has been detected will be indicated with red background color.
The Diablo 333 analog amplifier stages are not turned on while this error indication display is shown.
The error indication display is shown until the Diablo 333 is turned off or brought into stand-by mode.
Next time the Diablo 333 is turned on, normal startup sequence is performed and if no error is detected during this sequence, the Diablo 333 is ready to use.
If an error(s) is persistent after two power cycles, please contact your local dealer for technical help.
Optional PS3 Phono Stage Module
Gryphon Audio Designs has consistently offered unwavering support to the LP format with high performance phono stages as optional modules for installation in preamplifiers and integrated amplifiers at all price points across our product range.
Based on the legendary Legato phono stage, the Gryphon PS3 MM/MC Phono Stage Module is a true balanced dual-mono design for enhanced channel separation, capable of extracting every musical detail for ultimate realism.
The PS3 offers an extended range of MC cartridge load impedance options accessible through the rear panel and fully balanced signal handling.
The PS3 module can be optionally added to the Diablo 333, with more to come.
PS3 Installation
Installation must be performed by authorized dealers or technicians only.
Unauthorized installation might void warranty.
SAFETY INSTRUCTIONS, Diablo 333
Hazardous live AC power! Please find important safety instructions on p. 36
Optional PS3 Phono Stage Module
SET-UP MENU
Select the PHONO STAGE sub-menu to select between MM (Moving Magnet) and MC (Moving Coil) mode.
Changing setting will alter the total gain through the PS3 module. During the change, internal electrical circuit needs to settle in, taking app. 25 seconds. A progress bar will appear until this period is timed out and normal function can proceed.
Please refer to Menu Activated Functions for Phono Stage Input Level Match and Input Naming.
Optional PS3 Phono Stage Module
INPUT LEFT - INPUT RIGHT
Balanced XLR inputs to connect balanced phono cartridges.
Avoid the use of RCA-to-XLR adaptors as they will degrade system performance.
MC (Moving Coil) Load setting switches no. 1-8
Set the desired MC load in both sides according to the table below.
Figure 1: Example 100 Ω
Figure 2: Example 300 Ω
| SW1 | SW2 | SW3 | SW4 | SW5 | SW6 | SW7 | SW8 | RLOAD Ω |
| ON | ON | ON | ON | ON | ON | ON | 20 | |
| ON | ON | ON | ON | 30 | ||||
| ON | 40 | |||||||
| ON | ON | ON | ON | 50 | ||||
| ON | ON | ON | 60 | |||||
| ON | ON | ON | ON | ON | 85 | |||
| ON | ON | ON | 100 | |||||
| ON | ON | ON | 120 | |||||
| ON | 150 | |||||||
| ON | ON | 210 | ||||||
| ON | 300 | |||||||
| ON | 500 | |||||||
| ON | 750 | |||||||
| ON | 1000 | |||||||
| 1600 |
Features:
• True Dual Mono Class A topology with no global negative feedback.
• Discrete build balanced topology.
- Designed to fully exploit the inherently balanced nature of the phono cartridge.
• MC load impedance can be set externally with rear panel switches.
- Changeable MM/MC setting via Gryphon Diablo 333 menu.
• Polypropylene capacitors used in RIAA correction stages.
- Matched Low Noise High Speed transistors in differential stages.
• DC-coupled topology from input to output
• One gold plated Neutrik XLR balanced input socket.
- Ultra-short signal path with minimal internal/external wiring.
- Low noise +/- 23VDC regulated voltage supplies for excellent analogue THD and noise suppression.
- Four-layer printed circuit board with 70μm copper traces.
- Totally electrical and mechanical separated left and right channel for optimal channel separation.
• Designed and built in Denmark.
Specifications:
• Gain: MC: 64dB
- MM: 42dB
- Impedance settings: MC: 20Ω to 1600Ω ref. to table.
• MM: 47KΩ // 220pF
• Signal to Noise ratio: MC: (Input 2.5 mV, 1 kHz): >72 dB
• MM: (Input 100 mV, 1 kHz): >84 dB
• Maximum input voltage: MC: Input 7mV,
• MM: input 100mV
- Net weight: 1.15kg – 2.5lb
Note: Specifications can be changed without notice.
WARNING: Exceeding the maximum input voltage can lead to damage of the PS3 module
1 Hardwiring (to solder terminals)
*Note: colors and position of the pins might differ. Please refer to the documentation for your cartridge.
2 Wiring from SME 5-pin to XLR cables
3 Wiring RCA to XLR cables
4 Wiring single ended to XLR cables
Please note that we strongly recommend to re-wire to balanced wiring as shown in the other examples.
Single-ended cabling prevents taking advantage of having both a balanced source and input.
Warranty & Support
The Gryphon Diablo 333 amplifier is warranted against failures arising through faulty workmanship and materials for a period of 3 years from date of purchase. The warranty is not transferable.
This warranty is only valid in the country where the product was purchased.
All claims under this warranty must be made to the distributor in the buyers' country by returning the unit securely packed in the original box with all accessories, postage/freight prepaid and insured. The unit will be repaired or replaced at no charge for parts and labor.
This warranty will be void if the serial number of the unit has been defaced or removed.
No user serviceable parts inside. This warranty will be void if the unit has been repaired or modified by non-authorized Gryphon dealers or distributors. Optional modules must be installed by authorized dealers and distributors only.
This warranty does not cover damage due to misuse, accident or neglect.
This warranty is not valid if the operation voltage of the product has been changed.
The distributor or manufacturer, Gryphon Audio Designs, Denmark, retains the exclusive right to make such judgement on the basis of inspection.
The retailer, distributor or manufacturer of the Gryphon shall not be liable for consequential damage arising from the use, misuse or failure of this product, including injuries to persons or property.
Please do not directly contact Gryphon for repair, warranty issues or technical questions. Our local representatives are competent and happy to help you.
To qualify for this warranty; you must register your purchase online at gryphon-audio.com.
| Notes | |
| Gryphon Model: | |
| Serial No.: | |
| Date of Purchase: | |
| Dealer: | |
| Country: | |
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a damp or dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
US power plugs (NEMA5-15) only: A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped
Do not open the equipment to reduce the risk of electrical shock. Refer all disassembling to qualified service personnel.
WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
To completely disconnect this equipment from the mains, disconnect the power supply cord plugs from the receptacle.
The mains plug of the power supply cords shall remain readily operable.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
ATTENTION! RISQUE DE CHOC! ÉLECTRIQUE PAS OUVRIR!
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Remote Control Battery
WARNING
Danger of explosion
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
WARNING
Chemical burn hazard
If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Notes
- THE GRYPHON
- GRYPHON DIABLO
- INTEGRATED AMPLIFIER
- TABLE OF CONTENTS
- THE GRYPHON NAME
- THE GRYPHON GENETIC CODE
- CREATING AN ICON
- THE MAN BEHIND THE BRAND
- FOUNDATION FOR EXCELLENCE: GRYPHON DESIGN FUNDAMENTALS
- THE GRYPHON DIABLO
- PLACEMENT
- AC VOLTAGE
- CARE AND MAINTENANCE
- CHOICE OF CABLES
- UNPACKING AND SETUP
- SAFETY INSTRUCTIONS
- BURN-IN AND WARM-UP
- MAINS SWITCH
- USER INSTRUCTIONS
- ON/STB TOUCH BUTTON
- DISPLAY VIEW MODES
- SIMPLE VIEW MODE
- OPERATION VIEW MODE
- VOLUME
- MUTE
- INPUT SELECT
- MONITOR
- MENU
- MENU ACTIVATED FUNCTIONS
- MAIN MENU
- START VOLUME
- MAX VOLUME
- DISPLAY
- IR SOURCE
- INPUT LEVEL MATCH
- NAME INPUT
- AV INPUT
- RESTORE SETTINGS
- DIABLO 333 REAR PANEL
- INPUT 1 - INPUT
- INPUT 3 - INPUT 4 (TAPE IN)
- TAPE OUT
- SUB OUT
- USB
- IR
- GROUND
- MAINS INPUT SOCKETS
- BALANCED CONNECTIONS
- REMOTE CONTROL
- ON/STB
- VOLUME UP AND DOWN
- INPUT UP AND DOWN
- INPUT 1 – 4 AND PHONO
- DAC3 MODULE, DIRECT INPUT SELECTION
- DAC3 MODULE REMOTE FUNCTIONS
- REMOTE CODES
- DAC3 & DIGITAL INPUT CODES
- REMOTE CONTROL BATTERY
- FEATURES
- SPECIFICATIONS
- ERROR INDICATION & HANDLING
- OPTIONAL PS3 PHONO STAGE MODULE
- PS3 INSTALLATION
- SET-UP MENU
- INPUT LEFT - INPUT RIGHT
- MC (MOVING COIL) LOAD SETTING SWITCHES NO
- HARDWIRING (TO SOLDER TERMINALS)
- WIRING FROM SME 5-PIN TO XLR CABLES
- WIRING RCA TO XLR CABLES
- WIRING SINGLE ENDED TO XLR CABLES
- WARRANTY & SUPPORT
- IMPORTANT SAFETY INSTRUCTIONS
- WARNING
- DANGER OF EXPLOSION
- CHEMICAL BURN HAZARD
- NOTES
Brand : Gryphon Audio
Model : Diablo 333
Category : Audio Amplifier
