Product type	Warm white LED Fresnel / light projector
Brand	Chauvet Professional
Model	OVATION F-95WW
Power supply	Auto-ranging 100-240 VAC, 50/60 Hz
Power consumption	108 W (120 V), 110 W (230 V)
Weight	13.4 lb (6.1 kg)
Dimensions (L x W x H)	12.8 x 11 x 15.2 in (325 x 279 x 389 mm)
Light source	9 x 10 W warm white LEDs, 100,000-hour lifespan
Color	Warm white
Beam angle	11° to 60°
Field angle	21° to 83°
Zoom range	21° to 83° (manual zoom control)
DMX channels	1, 2 or 3 depending on personality
DMX connectors	3- and 5-pin XLR input and output
Dimming	16-bit smooth fades, selectable dimmer curves and speeds
Strobe	Built-in strobe and effects in 3-channel mode
Power linking	Up to 15 units at 120 V, 25 at 208 V, 28 at 230 V
Mounting	Any orientation, bracket with 13-mm holes, safety cable required
Cooling system	Fan-assisted convection, max ambient temperature 113 °F (45 °C)
IP rating	IP20 (indoor use only)
Replaceable fuse	T 3.15 A, 250 V
Control options	DMX, master/slave, menu control, manual dimmer knob
Maintenance	Clean at least twice a month with non-ammonia glass cleaner or isopropyl alcohol
Included accessories	powerCON power cord, gel frame, warranty card, quick reference guide
Certifications	UL 1573, CSA C22.2 No. 166

Frequently Asked Questions - OVATION F-95WW Chauvet Professional

How do I control the OVATION F-95WW?

You can control it via DMX, master/slave mode, or manually using the control panel and dimmer knob. It supports 1-, 2- and 3-channel DMX personalities, so you can choose the DMX mode that suits your needs.

What DMX personalities are available?

The OVATION F-95WW offers three personalities: UNO (1-channel), DOS (2-channel), and STD.P (3-channel). UNO controls only the dimmer, DOS adds fine dimmer, and STD.P adds strobe control. You can set the personality in the SET > PERS menu.

Can the OVATION F-95WW be used outdoors?

No, it is rated IP20 and is intended for indoor use only. Do not expose it to rain or moisture to avoid fire or shock hazards.

How do I replace the fuse?

Disconnect the product from power, then use a Phillips #2 screwdriver to unscrew the fuse holder cap. Replace the blown fuse with a T 3.15 A, 250 V fuse of the same type and rating, then screw the cap back on and reconnect power.

How many units can I power link?

You can power link up to 15 units at 120 V, 25 units at 208 V, or 28 units at 230 V. This is based on the power linking current ratings.

How do I clean the OVATION F-95WW?

Unplug the product and wait until it reaches room temperature. Use a vacuum or dry compressed air to remove dust from vents, then clean external surfaces with a mild non-ammonia glass cleaner or isopropyl alcohol applied to a soft lint-free cloth. Polish lens surfaces gently until clean.

How does the control panel lock work?

You can activate the control panel lock in the KEY menu. Once activated, after 30 seconds of inactivity or at power-on, you must enter the passcode (default sequence: UP, DOWN, LEFT, RIGHT, ENTER) to access the controls. This prevents unauthorized changes.

How do I set up master/slave mode?

Configure slaves in the RUN menu with the SLAV option and connect them in a daisy chain from the master's DMX output. Set the master in the SET > MCON menu to MAST. Do not connect a DMX controller to slaves, as it may interfere.

How do I adjust the zoom?

The OVATION F-95WW has a manual zoom range from 21° to 83°. Locate the zoom adjustment knobs on either side of the fixture and turn them to increase or decrease the zoom angle.

What are the performance power output options?

In the PERF menu, you can choose LIVE (balances fan and power), STDO (limits power to maintain cooling), or POWER (allows full power while using fan). These options control LED cooling and output performance.

USER MANUAL OVATION F-95WW Chauvet Professional

OVATION

F-95WW

User Manual

CHAUVET

PROFESSIONAL

Edition Notes	The OVATION F-95WW User Manual Rev. 6 covers the description, safety precautions, installation, programming, operation, and maintenance of the OVATION F-95WW. Chauvet released this edition of the OVATION F-95WW User Manual in June 2017.
Trademarks	CHAUVET, the Chauvet logo and OVATION F-95WW are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
Copyright Notice	The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet.© Copyright 2017 Chauvet & Sons, LLC. All rights reserved.Electronically published by Chauvet in the United States of America.
Manual Use	Chauvet authorizes its customers to download and print this manual for professional information purposes only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this manual or its content for any other purpose without written consent from Chauvet.
Document Printing	For better results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4 paper (210 x 297 mm), configure your printer to scale the content accordingly.
Intended Audience	Any person in charge of installing, operating, and/or maintaining this product should completely read through the guide that shipped with the product, as well as this manual, before installing, operating, or maintaining this product.
Disclaimer	Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions..
Document Revision	The OVATION F-95WW User Manual Rev. 6 supersedes all previous versions of this manual. Discard any older versions of this manual and replace with this version. Go to www.chauvetprofessional.com for the latest version.

Table of Contents

1. Before You Begin .... 1

What is Included 1

Claims....1

Manual Conventions .... 1

Symbols 1

Product at a Glance....1

Safety Notes 2

Personal Safety....2

Mounting and Rigging 2

Power and Wiring....2

Operation 2

Expected LED Lifespan 2

2. Introduction ...... 3

Description....3

Features....3

Overview 4

Dimensions 5

3. Setup....6

AC Power....6

AC Plug....6

Fuse Replacement....6

6

Power Linking 7

DMX Linking....7

DMX Modes 7

Master/Slave Connectivity....7

Mounting 8

Orientation 8

Rigging....8

4. Operation....9

Control Panel Description....9

Control Options....9

Programming 9

Menu Map....10

DMX Values....11

DMX Personality 11

DMX Control....11

Loss of Signal Setting 11

Dimmer - Menu Control....12

Dimmer - Manual Control....12

Dimmer Speeds 12

Dimmer Curves 12

Control Panel Lock....12

Passcode 12

Menu Access Lock....12

Reset....13

Performance Power Output Options 13

Manual Zoom Control....13

Master/Slave Mode 13

5. Technical Information ....14

Product Maintenance....14

Technical Specifications .... 15

Photometrics Chart 16

Returns 17

Contact Us....18

1. Before You Begin

What is Included

• OVATION F-95WW
• Neutrik® powerCON® power cord
  • Gel Frame (6.25 in/159 mm accessories)
• Warranty Card
• Quick Reference Guide

Claims

Carefully unpack the product immediately and check the box to make sure all the parts are in the package and are in good condition.

If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Manual Conventions

Convention	Meaning
1–512	A range of values in the text
50/60	A set of mutually exclusive values in the text
	A button on the product's control panel
Settings	A product function or a menu option
MENU>Settings	A sequence of menu options
1–10	A range of menu values from which to choose in a menu
Yes/No	A set of two mutually exclusive menu options in a menu
ON	A unique value to be entered or selected in a menu

Symbols

Symbols		Meaning
		Critical installation, configuration, or operation information.Failure to comply with this information may cause the product not to work, damage third-party equipment, or cause harm to the operator.
		Important installation or configuration information. Failure to comply with this information may keep the product from working.
		Useful information.

The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol.

Product at a Glance

Use on Dimmer	X	Auto Programs	X
Outdoor Use	X	Auto-Ranging Power Supply	P
Sound-Active	X	Replaceable Fuse	P
DMX	P	User-Serviceable	X
Master/Slave	P	Duty Cycle	X

Safety Notes

Personal Safety

Mounting and Rigging

Power and Wiring

Operation

Expected LED Lifespan

Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product.

This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

All applicable local codes and regulations apply to proper installation of this product.

• Avoid direct eye exposure to the light source while the product is on.
  • Always disconnect this product from its power source before servicing.
  • Always connect this product to a grounded circuit to avoid the risk of electrocution.
• Do not touch this product's housing during operation because it may be very hot.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Make sure there are no flammable materials close to this product while it is operating.
• When hanging this product, always secure to a fastening device using a safety cable.
• Always make sure you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product's specification label.
• Never connect this product to a dimmer pack or rheostat.
• Never disconnect this product by pulling or tugging on the power cable.
• Do not operate this product if you see damage on the housing, lenses, or cables. Have the damaged parts replaced by an authorized technician at once.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• Do not cover the ventilation slots when operating to avoid internal overheating.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature.
• In case of a serious operating problem, stop using this product immediately!

In the unlikely event that your Chauvet product may require service, contact Chauvet Technical Support.

LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal, single-LED conditions. For this reason, using clustered LEDs at their fullest intensity significantly reduces the LEDs' lifespan. Under normal conditions, this lifespan can be 90,000 to 100,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs' lifespan.

2. Introduction

Description

The OVATION F-95WW is a warm white LED wash product featuring a compact and lightweight design that delivers a beautiful soft flat field with high-quality glass optics. Its massive zoom range of 21° to 83° and beautifully soft, warm white wash make it a versatile Fresnel. Virtually quiet operation and smooth dimming control make it ideal for any theatrical and/or studio application.

Features

• Warm white LED Fresnel
• Operating modes:

• 1-channel (UNO): dimmer control
• 2-channel (DOS): dimmer and fine dimmer control
• 3-channel (STD.P): dimmer, fine dimmer, and strobe control

• 16-bit dimming for smooth fades
- Flat, even field of light
- Virtually silent operation
- Simple and complex DMX channel profiles for programming versatility
- Manually controlled variable zoom angle between 21° and 83°
• 3- and 5-pin XLR data input and output connectors

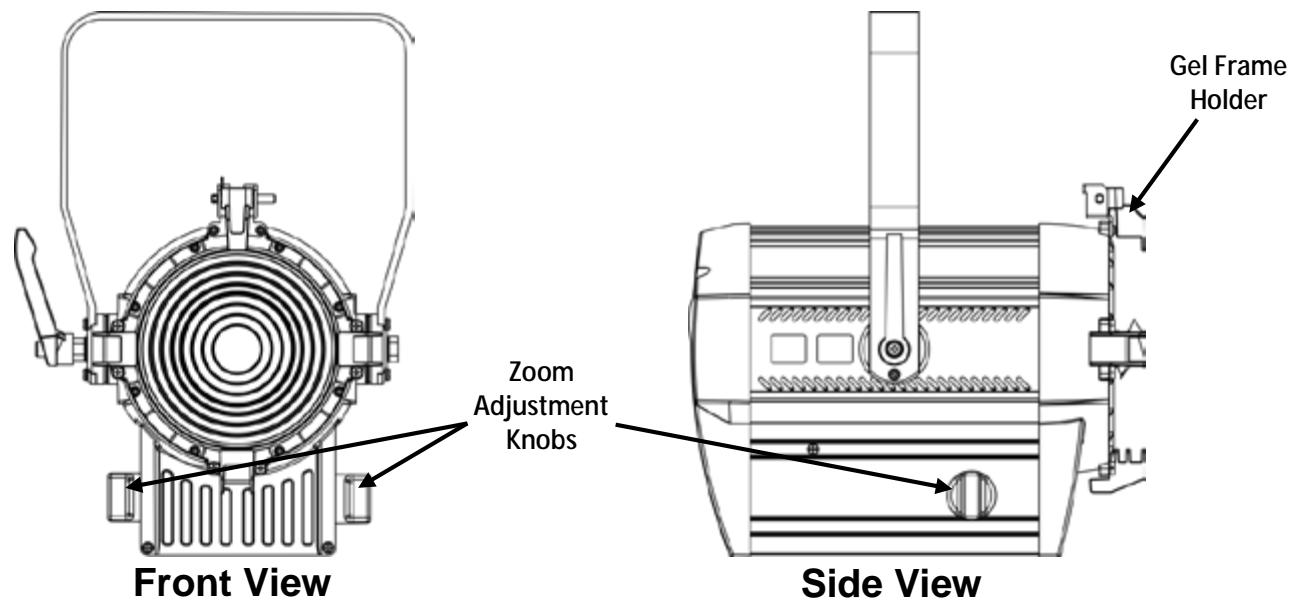

Overview

Dimensions

3. Setup

AC Power

Each OVATION F-95WW has an auto-ranging power supply that works with an input voltage range of 100\~240 VAC, 50/60 Hz. To determine the power requirements for each OVATION F-95WW, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website www.chauvetprofessional.com.

- Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

AC Plug

The OVATION F-95WW comes with a power input cord terminated with a Neutrik® powerCON® A connector on one end and an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no plug, or if you need to change the Edison plug, use the table below to wire the new plug to the power input cord.

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow or Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

Fuse Replacement

Make sure to disconnect the product's power cord before replacing a blown fuse.

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (T 3.15 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.

Always replace the blown fuse with another of the same type and rating.

Power Linking

The OVATION F-95WW supports power linking. You can power link up to 15 units on 120 V; up to 25 units on 208 V; or up to 28 units on 230 V.

This product comes with a Neutrik® powerCON® input power cord. This product does not come with a power linking cable; however, a power linking cable is available as an option.

DMX Linking

You can link the OVATION F-95WW to a DMX controller using a standard DMX serial connection. If using other DMX-compatible products with the OVATION F-95WW, you can control each individually with a single DMX controller.

DMX Modes

The OVATION F-95WW uses the standard DMX data connection for the 1-, 2- and 3-channel DMX modes.

• Refer to the Introduction chapter for a brief description of these modes.
- Refer to the Operation chapter to learn how to configure the OVATION F-95WW to work in these modes.
- The DMX Values section provides you with detailed information regarding the DMX modes.

Master/Slave Connectivity

The Master/Slave mode allows a single OVATION F-95WW (the “master”) to control the actions of one or more OVATION F-95WW units (the “slaves”) without the need of a DMX controller to control the slaves. Once set and connected, the slaves will operate in unison with the master. For instructions on connecting and configuring this product, see Master/Slave Mode.

DO NOT connect a DMX controller to products operating in Slave mode. The DMX controller signals may interfere with the signals from the master product.

The Operation section of this manual provides detailed instructions on how to configure the master and slaves.

If you are not familiar with or need more information about DMX standards, master/slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com.

Mounting

Before mounting this product, read and follow the Safety Notes. For our CHAUVET® Professional line of mounting clamps, go to http://trusst.com/products/.

Orientation

Always mount this product in a safe position. The OVATION F-95WW may be mounted in any position; however, make sure there is adequate room for ventilation, configuration, and maintenance.

Rigging

Chauvet recommends using the following general guidelines when mounting this product.

• When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.
• Make sure to mount this product away from any flammable material as indicated in the Safety Notes.
• Never mount in places where rain, high humidity, extreme temperature changes, or restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can support the product's weight. See the Technical Specifications for the weight-bearing requirements of this product.
• When hanging this product, always secure to a fastening device using a safety cable.

Procedure

The OVATION F-95WW comes with a hanging/mounting bracket to which you can attach mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product where necessary.

4. Operation

Control Panel Description

Button	Function
	Exits from the current menu or function
	Activates the currently displayed menu option or sets the selected value in the current function
	Scrolls up the list of menu options or increases the numeric value when in a function
	Scrolls down the list of menu options or decreases the numeric value when in a function

Control Options Programming

You can set the starting address of the OVATION F-95WW in the 001–512 DMX range. This enables control of up to 170 products in the 3-channel STD.P personality.

Refer to the Menu Map for a description of your programming options. The menu map shows the main level and a variable number of programming levels for each option.

• Press repeatedly to go to the desired main level. Press to select the main level and go to the first programming level for that option.
• Press or to scroll through the options or values within the current programming level. When the desired option shows on the display, press to select the option. If there are deeper programming levels, those options will show on the display.
• Press repeatedly to exit to the previous level.

Menu Map

Main Level	Programming Levels				Description
DIM	D.000-D.100				Selects the amount of light output (0-100%)
RUN	DMX				Receives DMX signals from the DMX controller
	SLAV				Receives DMX signals from the master
ADDR	D.001-D.512				Sets the DMX starting address
SET	KEY		OFF		Sets to key lock (passcode mode)
			ON
	DIMX		OFF		Selects dimmer speeds from fast (DIM1) to slow (DIM4) or OFF
			DIM1
			DIM2
			DIM3
			DIM4
	CURV		OFF		Selects dimmer curves from small (CV1) to large (CV3) or OFF
			CV1
			CV2
			CV3
	REST	****(Enter Passcode)	REST	OK	Resets the fixture to factory defaults
	PERS		UNO		1-channel DMX personality
			DOS		2-channel DMX personality
			STD.P		3-channel DMX personality
	SLCK		OFF		Sets menu-level access lock
			ON
	DERR		BLAK		Blacks out fixture upon loss of DMX signals
			SAVE		Continues with last command upon loss of DMX signals
	PERF		LIVE		Maintains LED cooling by balancing fan and power output level
			STDO		Maintains LED cooling by limiting power output level
			POWR		Maintains LED cooling by using fan and allowing full power output
	MCON		SELF		No DMX signals are sent through DMX output
			MAST		Sends DMX signals to OVATION F-95WW slaves

DMX Values

UNO	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 ♂ 255	0–100%

DOS	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 ó 255	0–100%
	2	Dimmer Fine	000 ó 255	0–100%

STD.P	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 ó 255	0–100%
	2	Dimmer Fine	000 ó 255	0–100%
	3	Strobe	000 ó 009	No function
			010 ó 099	Strobe (slow to fast)
			100 ó 109	No function
			110 ó 179	Lighting effect
			180 ó 189	No function
			190 ó 255	Random strobe

DMX Personality

Set the DMX personality as follows.

1. Go to the SET main level.
2. Select the PERS programming level.
3. Select the desired personality: UNO (1-channel), DOS (2-channel), or STD.P (3-channel).

DMX Control

• See the DMX Control section for the highest starting address you can select for each personality.
• Make sure that the starting addresses on the various products do not overlap due to the new personality setting.

DMX Control allows you to assign each product to a unique starting address on the DMX controller. All products with the same starting address will respond in unison.

1. Select a DMX personality.

2. Set the running mode:

3. Go to the RUN main level.
   Select DMX.

Note: For information on the SLAV option, see Master/Slave Mode.

1. Set the starting address:

2. Go to the ADDR main level.

3. Select the starting address D.001–D.512.

The highest recommended starting address for each DMX mode is as follows:

Loss of Signal Setting

DMX Mode	DMX Address	DMX Mode	DMX Address	DMX Mode	DMX Address
UNO	512	DOS	511	STD.P	510

This setting controls how the product responds when the DMX signal is lost.

1. Go to the SET main level.

2. Select the DERR programming level.

3. Select BLAK to turn off the LEDs when the signal is lost.

4. Select SAVE to use the last command programmed when the signal is lost.

Dimmer - Menu Control

To adjust the light output of the OVATION F-95WW, select the dimmer setting as follows.

1. Go to the DIM main level.
2. Select the desired dimmer setting D.000–D.100 (0–100% light output).

Dimmer - Manual Control

Manually adjust the light output by using the dimmer adjustment knob, as follows.

1. Press the dimmer adjustment knob above the display twice.
2. Select the desired dimmer setting D.000–D.100 (0–100% light output) by turning the knob clockwise (value increases) or counter-clockwise (value decreases).
3. When using the dimmer adjustment knob, the lowest dimmer value stops at D.000 and the highest dimmer value stops at D.100.
4. During manual dimmer control, you can also use or , which will cycle through all the dimmer values.
   • After 30 seconds of dimmer adjustment knob inactivity, M. appears on the display.

Dimmer Speeds

Select the dimmer speed of the OVATION F-95WW by selecting the DIMX programming level.

1. Go to the SET main level.
2. Select the DIMX programming level.
3. Select a dimmer speed DIM1–DIM4 (fast to slow) or OFF (linear output).

Dimmer Curves

When selecting DIM1–DIM4, the output will correspond to the dimmer curve option selected under the dimmer curves programming level (CURV).

Select the dimmer curve of the OVATION F-95WW by selecting the CURV programming level. These options simulate the dimmer curve of an incandescent lighting product.

1. Go to the SET main level.
2. Select the CURV programming level.
3. Select a dimmer curve CV1–CV3 (small to large) or OFF (linear output).

Control Panel Lock

This setting enables you to activate or deactivate the control panel lock, which keeps non-authorized personnel from changing the product's settings.

1. Go to the KEY main level.
2. Select either ON (activate) or OFF (deactivate).

Passcode

When the control panel lock is activated, after 30 seconds of control panel inactivity or after turning on the product, the product will prompt you to enter the passcode.

After being prompted to enter the passcode:

• Press , , , , .
  Note: Asterisks (*) appear on the display when entering the passcode.

Menu Access Lock

This setting enables you to activate or deactivate the menu access lock. Activating the menu access lock prevents non-authorized personnel from making any changes to the programming levels under the SET main level.

1. Go to the SET main level.
2. Go to the SLCK programming level.
3. Select either ON (activate) or OFF (deactivate).

When the menu access lock is activated, in order to access the SET programming levels, the product will prompt you to enter the passcode. Enter the passcode as described in Passcode.

Reset To reset the OVATION F-95WW to the factory default settings, follow the instructions below.

1. Go to the SET main level.
2. Select the REST programming level and then the display becomes blank. Enter the passcode as described in Passcode. After successfully entering the passcode, REST blinks on the display during the reset process.
3. OK appears on the display when finished.

Performance Power Output Options

The OVATION F-95WW offers three power output options during the cooling of the fixture's LEDs.

1. Go to the SET main level.
2. Select the PERF programming level.
3. Select from the following options:
4. Select LIVE to cool the LEDs by balancing the use of the fan and the power output level.
5. Select STDO to cool the LEDs by maintaining the use of the fan and limiting the power output level.
6. Select POWER to cool the LEDs by maintaining the use of the fan and allowing full power output.

Manual Zoom Control

The OVATION F-95WW has a 21° to 83° manually controlled zoom range. Adjust the zoom angle as follows.

- Locate the zoom adjustment knobs on either side of the OVATION F-95WW and turn the knobs to increase or decrease the zoom angle.

Master/Slave Mode

The Master/Slave mode allows a single OVATION F-95WW (the “master”) to control the actions of one or more OVATION F-95WW units (the “slaves”) without the need of a DMX controller to control the slaves. The master will be set to operate in Master mode (MAST), while the slaves will be set to operate in Slave mode (SLAV). Once set and connected, the slaves will operate in unison with the master.

Configure the units as indicated below.

The Slaves:

1. Go to the RUN main level.
2. Select SLAV.
3. Connect the DMX input of the first slave to the DMX output of the master.
4. Connect the DMX input of the subsequent slaves to the DMX output of the previous slave.
5. Finish setting and connecting all the slaves.

The Master:

1. Go to the SET main level.
2. Select the MCON programming level.
3. Select MAST.
   Note: If you select SELF, no DMX signals are sent to the slaves.
4. Make the master the first product in the DMX daisy chain.
5. Control the master using the DMX controller and the slaves will operate in unison.

Do not connect a DMX controller to the products configured for slave operation. The DMX controller may interfere with signals from the master.

5. Technical Information

Product Maintenance

Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source's life and mechanical wear. To maintain optimum performance and minimize wear, clean this product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.

To clean your product, follow the instructions below.

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external vents and components.
4. Clean all external surfaces with a mild solution of non-ammonia glass cleaner or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
6. Wipe any dirt or grime to the outside edges of the lens surface.
7. Gently polish the lens surfaces until they are free of haze and lint.

Always dry the external surfaces thoroughly and carefully after cleaning them.

Technical Specifications

Dimensions and Weight	Length	Width	Height	Weight
	12.8 in (325 mm)	11 in (279 mm)	15.2 in (389 mm)	13.4 lb (6.1 kg)
Power	Note: Dimensions in inches rounded to the nearest decimal digit.
	Power Supply Type	Range		Voltage Selection
	Switching (internal)	100 to 240 VAC, 50/60 Hz		Auto-ranging
	Parameter	120 V, 60 Hz		230 V, 50 Hz
	Consumption	108 W		110 W
	Operating current	0.89 A		0.48 A
	Power linking current (units)	13.6 A (15 units)		13.6 A (28 units)
	Fuse	T 3.15 A, 250 V		T 3.15 A, 250 V
Light Source	Power I/O	U.S./Worldwide		Europe
	Power input connector	Neutrik® powerCON® A		Neutrik® powerCON® A
	Power output connector	Neutrik® powerCON® B		Neutrik® powerCON® B
	Power cord plug	Edison (U.S.)		Local plug
	Type	Power		Lifespan
	LED	10 W		100,000 hours
	Color	Quantity		Current
	Warm White	9		2.8 A
Photo Optic	Parameter
	Illuminance @ 5 m (11°)	1,430 lx
	Illuminance @ 5 m (60°)	133 lx
	Beam angle	11° to 60°
	Field angle	21° to 83°
	Zoom angle	21° to 83°
Thermal	Max. External Temperature	Cooling System
	113 °F (45 °C)	Fan-Assisted Convection
DMX	I/O Connectors	Connector Type		Channel Range
	3- and 5-pin XLR	Sockets		1, 2 or 3
Ordering	Product Name	Item Code		UPC Number
	OVATION F-95WW	01030721		781462210694

UL 1573

CSA C22.2 No. 166

E113093

Photometrics Chart

	Narrow		Zoomable Light Source 11°~60°		Wide
Distance	Beam Diameter	Field Diameter	Footca		ptcandle	Beam Diameter	Field Diameter
15 ft	2.89 ft	5.56 ft	15		15	17.32 ft	26.54 ft
20 ft	3.85 ft	7.41 ft	8		8	23.09 ft	35.39 ft
30 ft	5.78 ft	11.12 ft	4		4	34.64 ft	53.08 ft
40 ft	7.70 ft	14.83 ft	2		2	46.19 ft	70.78 ft
50 ft	9.63 ft	18.53 ft	1		1	57.74 ft	88.47 ft
75 ft	14.44 ft	27.80 ft	1		1	86.60 ft	132.71 ft
100 ft	19.26 ft	37.07 ft	1		0	115.47 ft	176.95 ft
125 ft	24.07 ft	46.33 ft	1		0	144.34 ft	221.18 ft
150 ft	28.89 ft	55.60 ft	1		0	173.21 ft	265.42 ft

	Narrow			Zoomable Light Source 11°~60°		Wide
Distance	Beam Diameter	Field Diameter	Lux		Lux	Beam Diameter	Field Diameter
1 m	0.19 m	0.37 m	35,75		3,325	1.15 m	1.77 m
2 m	0.39 m	0.74 m	8,93		831	2.31 m	3.54 m
5 m	0.96 m	1.85 m	1,43		133	5.77 m	8.85 m
8 m	1.54 m	2.97 m	55		52	9.24 m	14.16 m
10 m	1.93 m	3.71 m	35		33	11.55 m	17.69 m
15 m	2.89 m	5.56 m	15		15	17.32 m	26.54 m
20 m	3.85 m	7.41 m	8		8	23.09 m	35.39 m
25 m	4.81 m	9.27 m	5		5	28.87 m	44.24 m
30 m	5.78 m	11.12 m	4		4	34.64 m	53.08 m

Returns

You must send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags.

Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.

Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number.

DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.

Once you have received the RMA number, include the following information on a piece of paper inside the box:

• Your name
• Your address
• Your phone number
• RMA number
  • A brief description of the problem(s)

Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer's responsibility. FedEx packing or double-boxing is recommended.

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Contact Us

USA WORLD HEADQUARTERS

General Information – Chauvet

Address: 5200 NW 108th Avenue

Sunrise, FL 33351

Voice: [phone]

Fax: [phone]

Toll free: [phone]

Technical Support

Voice: [phone]

Fax: [phone]

Email: [e-mail]

World Wide Web www.chauvetlighting.com

EUROPE

General Information - Chauvet Europe BVBA

Address: Stokstraat 18

9770 Kruishoutem

Belgium

Voice: [phone]

Technical Support

Email: [e-mail]

World Wide Web www.chauvetlighting.eu

General Information - Chauvet Europe Ltd.

Address: Unit 1C

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: [phone]

Fax: [phone]

Technical Support

Email: [e-mail]

World Wide Web www.chauvetlighting.co.uk

MEXICO

General Information - Chauvet Mexico

Address: Av. de las Partidas 34, 3-B

(Entrance by Calle 2)

Zona Industrial Lerma

Lerma, Edo. de México, CP 52000

Voice: [phone]

Technical Support

Email: [e-mail]

World Wide Web www.chauvet.com.mx

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.
