Product Type	Phono Preamplifier
Brand	Cyrus Audio
Model	Phono X
Compatibility	Moving Magnet (MM) and Moving Coil (MC) cartridges
Dimensions (W x H x D)	215 x 75 x 365 mm
Weight	3.1 kg
Chassis Material	Die cast chassis
Power Consumption	9 W
Mains Voltage	110-120 V or 220-240 V (see rear panel)
MC Input Sensitivity	390 µV
MC Input Impedance	Switchable 10 Ω, 100 Ω, 1 kΩ
MM Input Sensitivity	5 mV
MM Input Impedance	47 kΩ
Output Voltage	370 mV
Output Impedance	47 Ω
Frequency Response	±0.2 dB (20 Hz – 20 kHz, RIAA/IEC)
Total Harmonic Distortion	0.01% (both MM and MC inputs)
Signal-to-Noise Ratio (MM)	-92 dBA
Signal-to-Noise Ratio (MC)	-84 dBA
Playback Equalisation	Selectable RIAA or IEC
Inputs	1 x MM, 1 x MC, ground terminals
Outputs	1 x Preamplifier output, MC-Bus connections
External Power Supply	PSX-R connector for upgraded performance
Cleaning Instructions	Disconnect power and wipe with a damp cloth; do not use liquid or aerosol cleaners
Safety Compliance	CE, FCC, cCSAus

Frequently Asked Questions - Phono X Cyrus Audio

How do I connect a turntable with a moving magnet (MM) cartridge?

Connect the turntable to the Moving Magnet Input (③ on the rear panel). Ensure the cartridge is a regular MM type or a high-output MC recommended for MM input.

How do I connect a turntable with a moving coil (MC) cartridge?

Connect the turntable to the Moving Coil Input (② on the rear panel). Use the MC Loading Switch (①) to set the load impedance (10Ω, 100Ω, or 1kΩ) as recommended by your cartridge.

What is the MC loading switch for?

The MC loading switch adjusts the load impedance for your moving coil cartridge. Settings of 10Ω, 100Ω, and 1kΩ are available, with optional capacitance loading (1nF) for cartridges that require it.

How do I select between RIAA and IEC equalization?

Press the IEC key (③ on the front panel) to select IEC response. When the indicator above the key is lit, IEC is active; when unlit, traditional RIAA response is used.

Why is there no sound coming from my speakers?

Check that the Phono X and system are not in Standby, the correct input (MC or MM) is selected, all system amplifiers are powered on, and the volume is not at minimum. Verify connections.

Why do I hear a hum or interference?

Hum is often caused by a poor tone arm ground connection. Ensure the turntable's grounding wire is connected to the appropriate ground terminal (⑨) on the Phono X. Interference from appliances may also cause hum; reposition equipment.

Can I use the PSX-R external power supply with the Phono X?

Yes, the PSX-R is an optional external regulated power supply that plugs into the PSX-R connector (⑥) on the rear panel, powering analogue sections with a clean DC source.

How do I set up the MC-Bus connection with my Cyrus amplifier?

Connect the Phono X to the recommended AUX input of your Cyrus amplifier and use the MC-Bus connections (⑤) to enable automatic switching. Refer to your amplifier handbook for details.

What is the recommended way to clean the Phono X?

Disconnect the product from the mains before cleaning. Use a damp cloth to wipe the exterior. Do not use liquid or aerosol cleaners.

What should I do if the unit is not operating properly?

First, disconnect the power and carefully check all connections. If problems persist, consult the troubleshooting guide in the manual or contact your Cyrus dealer.

USER MANUAL Phono X Cyrus Audio

Cyrus Phono X

User Instructions

Fig 1

Fig 2

IMPORTANT! Read before operating this equipment!

CAUTION: The exclamation mark is to draw your attention to important instructions and safety procedures in this manual.

ATTENTION: The lightning flash warns you of the risk of electrical shock presented by components inside this product. Unauthorised personnel must not open this unit.

WARNING: To reduce the risk of electrical shock do not remove any unit covers or panels. There are no user serviceable parts in this product.

WARNING: To reduce the risk of electric shock, do not expose this equipment to rain or moisture.

HEED WARNINGS: All warnings on the product and in the operating instructions should be adhered to.

READ ALL THE INSTRUCTIONS: All the safety and operating instructions should be read before the product is operated.

RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference.

FOLLOW INSTRUCTIONS: All operating and use instructions should be followed.

CLEANING: Unplug this product from the mains before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

WATER AND MOISTURE: Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement; or near a swimming pool and the like. The product must not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product.

HEAT: The product should be situated away from heat sources such as radiators, stoves, or any other products (including amplifiers) that produce heat.

VENTILATION: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

OBJECT OR LIQUID ENTRY: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

ATTACHMENTS: Do not use attachments not recommended by the product manufacturer as they may cause hazards.

MOVING THE PRODUCT: A product and cart combination should be moved with care. Sudden stops, excessive force, and uneven surfaces may cause the product and cart to overturn.

POWER SOURCES: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

OVERLOADING: Never overload wall outlets, extension cords, or integral convenience receptacles. This can result in an increased risk of fire or electric shock.

POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

NAKED FLAMES: No naked flame sources, such as candles, must be placed on this product.

LIGHTNING: For added protection for this product during a lightning storm, or when it is left unattended or unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

CAUTION! POLARISED CONNECTOR (CANADA and USA):

To prevent electrical shock, match wide blade of plug to wide slot, fully insert. Do not alter or remove this plug if it does not fit your mains power socket. Have a suitable socket installed by a competent electrician.

POWER SUPPLY: (Refer to Fig.1)

The moulded IEC connector of the AC cord supplied plugs into the power inlet ⑦ on the rear of the unit. The mains fuse ⑧ is on the rear panel next to the power switch. It must only be replaced as follows:

U.K. / Europe 230V

T100mAL/250V 20mm

N. America 115V

T200mAL/250V 20mm

The mains supply requirement for your Cyrus Phono X is marked on a label on the rear panel. Before connecting, check that this voltage is the same as your mains supply.

230V Products:

Voltage Range

220V-240V

115V Products:

Voltage Range

110V-120V

If you move to an area with a different mains voltage, contact your local Cyrus distributor to have your product converted.

NOTE FOR UK CUSTOMERS:

The Phono X is supplied with a power cable terminated by a fused 13A mains plug. This plug should not be removed but if it is removed, dispose of it safely and do not re-use it. To connect a new 13A plug, proceed as follows: Connect the brown wire to the terminal marked L or coloured red. Connect the blue wire to the terminal marked N or coloured black. The internal plug fuse should be 5A.

SERVICING:

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

CONDITIONS REQUIRING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• When the power supply cord or plug is damaged.
  • If liquid has been spilled, or objects have fallen into the product.
  • If the product has been exposed to rain or water.
  • If the product has been dropped or damaged in any way.
• If the product does not operate normally by following the operating instructions. (Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage requiring extensive work by a qualified technician to restore the product to its normal operation).
• When the product exhibits a distinct change in performance.

REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used replacements specified by the manufacturer or have the same characteristics as the original part. Unauthorised substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

PRODUCT SERVICE CENTRES

For product service or technical advice, contact only authorised Cyrus service centres. The Cyrus distributors are listed at the end of this instruction manual.

Welcome to the world of Cyrus!

Congratulations on your choice of Cyrus Hi-fi products. Our state-of-the-art design technology and outstanding quality of manufacture has won countless awards around the world. We are confident that you will derive great pleasure from owning a product from one of the most recognised and respected manufacturers of hi-fi equipment.

Please read these instructions carefully before commencing installation. They provide full guidance to help you install your Phono X safely and correctly.

Preparations for Installation

Before installing the Phono X check that the following items are included in the accessory box.

• Warranty Card (back cover of this instruction manual)
- Power Cable
• 2 x Phono leads for MC-BUS connection

After removing these items, please retain the packaging.

Install the Phono X in a well ventilated location away from sources of high temperature, dust or humidity. Never stand the Phono X under another unit or on any surface likely to obstruct its cooling or ventilation.

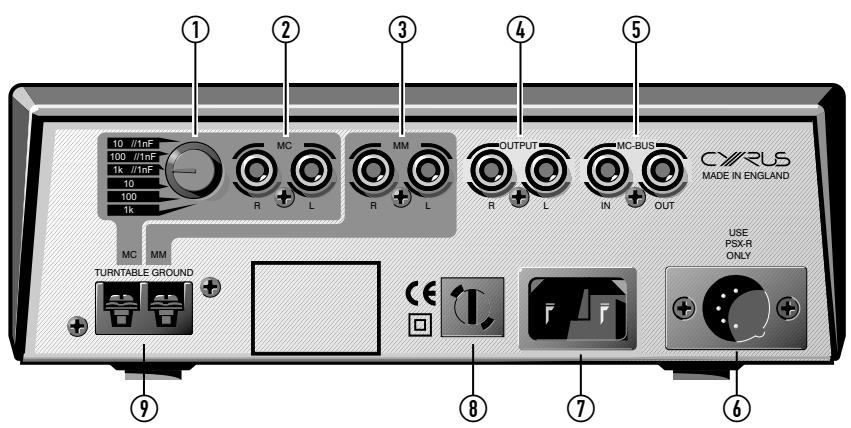

INSTALLATION (Refer to Fig 1):

Key to the rear panel drawing:

1.	MC Loading Switch	6.	PSX-R Connector
2.	Moving Coil Input	7.	Power Inlet
3.	Moving Magnet Input	8.	Mains Fuseholder
4.	Preamplifier Output	9	Ground terminals
5.	MC-bus Connections

Connecting a Turntable

The Phono X accepts Moving Coil and Moving Magnet cartridge inputs.

If you have two turntables, one equipped with a MM and one with an MC cartridge, both can be connected at the same time.

Before connecting a turntable to the Phono X, check the specification of the cartridge which is fitted, then connect the turntable to the correct input of the Phono X by referring to the following paragraphs.

Moving Magnet Input:

The MM input ③ accepts:

• Regular moving magnet cartridges
- High output moving coil cartridges (where MM input is recommended by the cartridge manufacturer)
• Low output MC cartridges connected via step-up transformers

Moving Coil Input:

The MC Input ② accepts:

• Low-output moving coil cartridges.

Your Phono X is provided with a loading switch ① so that you can set the correct load impedance for your MC cartridge. Three settings are available, 10Ω, 100Ω and 1KΩ. Unless your cartridge instructions recommend a lower value, we suggest you use the 1KΩ setting.

Some MC cartridges are load sensitive and may also require a capacitance load to control high frequency response peaks. Each load setting is therefore available with or without a 1nF shunt capacitor. The shunt settings occupy the last three positions on the switch. Use capacitance loading only if your cartridge instructions specifically advise its use.

Shorting plugs

The Phono X is supplied with two shorting phono plugs. When using only one input, insert these plugs into the unused input.

Note: These plugs must be used only as described above.

Ground Connections

Most turntables include a separate grounding wire.

There are three grounding systems in common use:

1. The motor and tone arm grounds are connected to a common ground wire. Connect this wire to either the MM or MC ground terminal ⑨, depending on the cartridge used.
2. There are two ground wires, one from the motor and one from the tone arm. Connect both wires to the appropriate ground terminal on the Phono X.
3. There is no separate ground wire. Some units use the signal cable outer return for turntable and tone arm grounds. Though not best practice, the method is acceptable. No separate ground connection will be necessary.

Some cartridges link a negative signal pin to the metal shield. This link may make contact with the tone arm metalwork and cause a hum loop. If you think this is the case with your turntable, ask your dealer before you remove the link.

If you have an amplifier that requires a mains earth, do not use the MM or MC ground terminals of the Phono X for this purpose. Use an appropriate ground terminal on the ancillary equipment.

Output Connections

Connect the output sockets ④ of the Phono X to a line level (AUX) input on your pre-amplifier. When connecting the Phono X to a Cyrus amplifier, the AUX input labelled AU, AU1 or AUX/PH is recommended.

All signal connections should be via high quality audio interconnects. The convention for phono connections is Right Channel RED, Left Channel WHITE or BLACK.

External Regulated Power Supply - PSX-R

The PSX-R is a unique DC power supply which will upgrade the sonic performance of your Phono X. When a Phono X & PSX-R combination is installed, analogue and signal related sections of the Phono X are powered from this clean, stable power source while other requirements are supplied internally. This ensures complete isolation of control circuits and sensitive analogue sections reducing AC mains-borne noise and power supply ripple.

To connect the PSX-R to the Phono X plug the connector on the umbilical cord of the PSX-R into the Multi-Pole socket on the rear of the Phono X ⑥. You will need a mains supply for both units.

OPERATION (Refer to fig 2)

Key to the front panel drawing:

1. Standby Switch
   4 MM Input selector
2. Standby Light
3. MC Input selector
4. IEC Switch

Power Control

The mains power to the Phono X should normally be left on unless left unattended for a long period when the mains power at the wall socket should be switched off or the product disconnected from the AC supply. When power is applied, the Standby key ① is used for power control. The Standby light ② shows red when the Phono X is in Standby and green when operational.

Selecting an Input

Depress the MC ⑤ or MM key ④ to select the appropriate input. The red indicator above the selected input key will turn on.

Playback Equalisation

The Phono X offers the choice of traditional RIAA playback response or the newer IEC response. For most systems built from quality audio components, Cyrus recommends the original RIAA response. If your turntable is prone to feedback or rumble and/or your loudspeakers have extended bass response, switching to the IEC setting will help to reduce bass noise and distortion. The IEC response is also useful to reduce large cone excursions due to warps.

1. Press the IEC key ③ to select IEC response.

The red indicator above the key will turn on. When the IEC indicator is not lit, RIAA response is selected.

Mc-Bus System Connection (Optional)

This feature is usable if you own a Cyrus amplifier. By connecting the Phono X to the recommended AUX input of your amplifier and setting up MC-Bus connection for the system, the amplifier will switch on the Phono X whenever the AUX input is selected. Refer to the relevant amplifier handbook for MC-Bus wiring instructions.

If preferred, the MC-Bus response of the Phono X can be reconfigured to always switch on with the amplifier, regardless of which input is selected. This may be useful if the Phono X is connected to an input other than AUX. To change the MC-Bus response, follow this sequence:-

1. Set the Phono X to Standby.
2. Press the IEC key ③. and hold it down for two seconds, the indicator above the IEC key will flash.
3. Take the Phono X in and out of Standby to register this setting.

To restore normal operation:

1. Repeat Steps 1 & 2 above, the IEC indicator will flash twice.
2. Take the Phono X in and out of Standby to register this setting.

TROUBLESHOOTING GUIDE

If your Phono X is not operating properly, disconnect the power and carefully check all connections using the notes in this handbook. If problems persist, the checklists below may help.

If you are in any doubt, consult your dealer.

No sound
Phono X and/or system in Standby	Bring unit/system out of Standby
Incorrect input selected	Select correct input
System amplifiers are not powered	Switch on all system amplifiers
System volume is set to minimum	Adjust volume level
No sound from one loudspeaker
BAL control at extreme limit	Centralise Balance
Does your speaker have fuses?	Check speaker, replace fuses
Poor/faulty cartridge, interconnects	Check connections, replace
Muffled Sound or Distortion
MM cartridge connected to MC Input	Check, rectify
Stylus is worn, misaligned or dirty	Check, rectify, reset tracking force
Tone arm ground connection poor	Check, rectify
If the problem persistsInterchange left and right channels at the Phono X input. If the missing channel switches, there is a problem with the cartridge or interconnect.
Volume level is too low
MC cartridge in MM input	Check, rectify
Hum or interference is present in the background
Tone arm ground connection poor	Check, rectify
Interference, e.g. from appliances, computers, mains transformers	Reposition turntable and/or Phono X, have appliances suppressed

SPECIFICATIONS

Power Supply

Voltage:......As plate on rear of unit

Power consumption 9W

EMC & Safety Compliance (230V)......CE

EMC & Safety Compliance (115V)...... FCC, cCSAus

Enclosure

Dimensions (WxHxD).... 215 x 75 x 365mm

Weight....3.1Kg

Material ..... Die cast chassis

Audio Performance

MC Input

Input Sensitivity (Nom.)	390μV
Input Impedance (Switchable)	1kΩ, 100Ω, 10Ω
Output Headroom (ref. 500μV input, 1kHz)	28dB
Channel Balance	+/-0.2dB
Crosstalk (20kHz, 500μV input)	-80dB
S/N ratio, A-weighted (ref. 500μV input, I/P shorted)	-84dBA
THD (ref. 500μV input)	0.01%

MM Input

Input Sensitivity (Nom.)	5mV
Input Impedance	47kΩ
Overall Gain	37.5dB
Output Headroom (ref. 5mV input, 1kHz)	27dB
Channel Balance	+/-0.1dB
Crosstalk (20kHz, 5mV input)	-90dB
S/N ratio, A-weighted (ref. 5mV input, I/P shorted)	-92dBA
THD (ref. 5mV input)	0.01%

Output

Output Voltage (Nom.)	370mV
Frequency Response (RIAA/IEC curve, 20Hz – 20kHz)	±0.2dB
Output Impedance	47Ω

Ermine Business Park, Huntingdon, PE29 6XY

Tel: [phone], Fax: [phone]

E-mail: [e-mail] Internet: www.cyrusaudio.com

AUSTRALIA: Crestmore Pty Ltd

PO Box 199, North Turramurra, NSW 2074

Tel: [phone] Fax: [phone]

Email: [e-mail]

AUSTRIA: Cyrus Audio

Ermine Business Park, Huntingdon, PE29 6XY, England.

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

BELGIUM: Limit Group BVBA

Pierre Corneliskaai 17, 9300 Aalst, Belgium

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

CANADA: Europroducts Marketing Ltd

720 Sixth St Suite 386, New Westminster, BC V3L 3C5

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

DENMARK: SAS Scandinavia

HC Jeppensens Alle 6, DK2670 Mosede.

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

FINLAND: La Gamma Syntesis OY

Karajapolku 13, 14300 Renko

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

FRANCE: Audio Marketing Services

1 Rue Jean Perrin, Le Blanc Mesnil, Paris, 93150

Tel: [phone], Fax: [phone]

Email: [e-mail]

GERMANY: Cyrus Audio

Ermine Business Park, Huntingdon, PE29 6XY, England.

Tel: [phone]

E-mail: [e-mail]

GREECE: Orbilux Hellas

29km National Road, Athens-Lamia, 190 14 Afidnes

Tel: [phone]

E-mail: [e-mail]

HOLLAND: TES Nederland BV

Coenecoop 81A, 2741 PH, Waddinxveen

Tel: [phone], Fax: [phone]

Email: [e-mail]

HONG KONG: Sound Concepts

Room 704, Yee Kuk Ind Ctre, 555 Yee Kuk St, Cheung Sha Wan, Kowloon, Hong Kong.

Tel: [phone], Fax: [phone]

E-mail: [e-mail]

ICELAND: Radiobaer EHF

Armula 38, PO Box 8933, 128 Reykjavik

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

IRELAND: Audio Vision Import Ltd

Acoustic House, John F Kennedy Drive, Nass Road, Dublin 12

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

ISRAEL: AL Audio

PO Box 26, Raanana 4301

Tel: [phone] Fax: [phone]

ITALY: GTO Srl

Via Castelle 48, 40068, San Lazzaro di Savena

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

KOREA: Zen Audio

49, 4F Kukje-Elec center, Seocho Dong, Seocho Gu, Seoul.

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

NEW ZEALAND: Crestmore Pty Ltd

Unit A4, 1066 Great South Road, Mt. Wellington, Auckland

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

NORWAY: SAS Scandinavia

Industrivej 30, Brondby, DK 2605, Denmark

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

POLAND: Intrada SC

Ul Szewska 18A, 61-760 Poznan

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

PORTUGAL: Diper CAF Lda

Rua Veloso Salgado 971-C, 4450 Leca Palmeira

Tel: +351 22 Fax: [phone]

E-mail: [e-mail]

PRINCIPALITY OF ANDORRA: Ischia

C/Les Boigues S/N Ed Racel, Escaldes - Engordany

Tel: [phone] or Fax: [phone]

E-mail: [e-mail]

RUSSIA: NEXT Company

Granatniy per 3-2, Moscow, 103889

Tel: [phone] or 3109 Fax: [phone]

E-mail: [e-mail]

SINGAPORE: Asia Sound Equipment(s) Pte Ltd

1 Coleman Street, #4-49/62 The Adelphi, 179803

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

SWEDEN: SAS Scandinavia

Industrivej 30, Brondby, DK 2605, Denmark

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

SWITZERLAND: Montana Audio Systems GmbH

Allmendstrasse 14, CH 8320, Fehraltorf

Tel: [phone] Fax: [phone]

Email: [e-mail]

UKRAINE: Leater

102 Gorkogo St, Office 2, 03150 Kiev

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

USA: The Sound Organisation

11140 Petal St, Suite 350, Dallas, TX75238

Tel: [phone] Fax: [phone]

Email: [e-mail]
