Product type	Professional cosmetic bed
Brand	Physa
Model	PHYSA CAPUA (variants: BLACK, WHITE, POWDER PINK, GRAY, CREAM)
Intended use	Beauty salons, spas, wellness centers, clinics
Dimensions (length × width)	180 × 58 cm
Adjustable height	Minimum 54 cm, maximum 78 cm (depending on version)
Net weight	Approximately 40 to 41 kg (depending on version)
Maximum load	200 kg (safety recommendation: 150 kg)
Height adjustment mechanism	Pedal hydraulic pump
Tilt function	Backrest adjustable via support bar
Power supply	None (manual operation)
Cleaning	Slightly damp soft cloth, non-corrosive products
Maintenance	Regular checks, inspection before each use
Safety	Do not exceed the maximum load, keep out of reach of children
Included accessories	Screws, nuts, washers, springs, assembly wrenches
Repairability	Repairs only by the manufacturer's after-sales service
Spare parts	Use only original parts
Environment	Recycle in accordance with local regulations
Use	Indoor only, on a flat and stable surface
Ambient conditions	Max temperature 45 °C, max relative humidity 85%
Assembly	Recommended for two people, tools not provided
Standards	Compliant with applicable safety standards

Frequently Asked Questions - PHYSA CAPUA Physa

How do I adjust the height of the PHYSA CAPUA bed?

To raise the bed, press the pump pedal halfway down several times. To lower it, press the pedal fully and hold it down for a few seconds. The height can be adjusted continuously using the hydraulic system.

What is the maximum load supported by this cosmetic bed?

The stated maximum load is 200 kg. However, for safety reasons, it is recommended not to exceed 150 kg to avoid any risk of tipping or sagging. Regularly check the stability of the bed.

Is this bed suitable for home use?

This bed was designed for professional use in beauty salons, spas, and clinics. It can be used at home, but you must follow the safety instructions, particularly the maximum load and installation on a flat and stable surface.

How do I maintain and clean the bed?

Clean the surface with a slightly damp soft cloth and a non-corrosive product. Never spray water directly on the device. After cleaning, dry all parts thoroughly. Regularly check the screws and hydraulic mechanism for any play or damage.

What should I do if the hydraulic pump no longer works?

If the pump stops responding, contact the manufacturer's after-sales service. Do not attempt to repair it yourself. Only a certified technician can replace the pump or defective parts using original parts.

Is the bed delivered assembled?

The bed is delivered as a kit with pre-assembled parts and an accessory kit including screws, nuts, washers, and keys. Assembly is simple, and it is recommended that two people install and set up the bed.

What accessories are provided with the bed?

The box contains short and long screws, nuts, washers, springs, a flat wrench, and a hex key. Some elements are pre-assembled on the bed and pump.

Is this product a medical device?

No, this cosmetic bed does not fall within the scope of Regulation (EU) 2017/745 on medical devices. It is intended for the comfort of clients during aesthetic treatments, not for diagnosis or medical treatment.

How do I secure the bed during use?

Before each use, check for damage, the stability of the frame, and the proper functioning of the pump. Never sit on the leg rest. Keep children and unauthorized persons at a distance. Respect the maximum load and the flat installation surface.

What are the recommended operating conditions?

Use the bed indoors, on a flat, clean, and dry floor. The ambient temperature must not exceed 45 °C and the relative humidity must remain below 85%. Keep the bed away from heat sources and excessive humidity.

USER MANUAL PHYSA CAPUA Physa

A- Kopfstütze

B- Liege (Teil A)

C- Armlehne

D- Liege (Teil B)

E- Stützstange

F- Stützfuß

G- Stützbügel

H- Pumpenabdeckung

I- Hydraulikpumpe

J- Pumpenpedal

1.

1.

4.

1.

6.

7.

Hinweise

9.

1.

12.

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

1. Technical data

Parameter description	Parameter value
Product name	Beauty bed
Model	PHYSA CAPUA BLACK	PHYSA CAPUA WHITE	PHYSA ARDEA WHITE
Bed dimensions [lenght x width ; cm]	180 x 58
Weight [kg]	40.65	40.9	40.15
Max load [kg]	200
Min. Height [cm]	67		54
Max. Height [cm]	78		66

Parameter description	Parameter value
Product name	Beauty bed
Model	PHYSA CAPUA POWDER PINK	PHYSA CAPUA GRAY	PHYSA CAPUA CREAM
Bed imensions [lenght x width ; cm]	180 x 58
Weight [kg]	40.8	41.25	40.3
Max load [kg]	200
Min. Height [cm]	66
Max. Height [cm]	76

2. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated

with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

2.1. Legend

Icon	Description
	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Hand crush hazard!
	Only use indoors.

PLEASE NOTE! DRAWINGS IN THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY AND IN SOME DETAILS MAY DIFFER FROM THE ACTUAL PRODUCT.

3. Usage safety

ATTENTION! READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR EVEN DEATH.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Beauty bed

3.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.

c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
e) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
f) Keep packaging elements and small assembly parts in a place not available to children.
g) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

REMEMBER! WHEN USING THE DEVICE, PROTECT CHILDREN AND OTHER BYSTANDERS.

3.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
e) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
g) Do not put your hands or other items inside the device while it is in use!
h) Inadequate tightening of adjustment mechanisms (such as screws or knobs) may result in sudden movement or loss of positional stability, risking injury to the client or practitioner.

3.3. Safe device use

a) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

b) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
c) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
d) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
e) Clean the device regularly to prevent stubborn grime from accumulating.
f) The specified vibrations emission was measured using standard measurement methods. Vibrations emissions may change if the device is used in different surroundings.
g) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
h) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
i) Keep the device away from sources of fire and heat.
j) Exceeding the maximum permissible user weight can damage the product.
k) Improper assembly or use on uneven surfaces may lead to bed instability, potentially causing tipping or collapsing.
I) Do not over-extend the bed or the weight of the person should not exceed 150 kg, which will create the risk of falls or tipping the chair, and its occupant over, resulting in injury.

ATTENTION! DESPITE THE SAFE DESIGN OF THE DEVICE AND ITS PROTECTIVE FEATURES, AND DESPITE THE USE OF ADDITIONAL ELEMENTS PROTECTING THE OPERATOR, THERE IS STILL A SLIGHT RISK OF ACCIDENT OR INJURY WHEN USING THE DEVICE. STAY ALERT AND USE COMMON SENSE WHEN USING THE DEVICE.

4. Use guidelines

The product is designed for use in professional environments, such as beauty salons, spas, wellness centres, and clinics, to provide ergonomic support and comfort for clients during various treatments.

This product is outside the scope of REGULATION (EU) 2017/745 for medical devices. It has not been designed as a medical device.

The user is liable for any damage resulting from unintended use of the device.

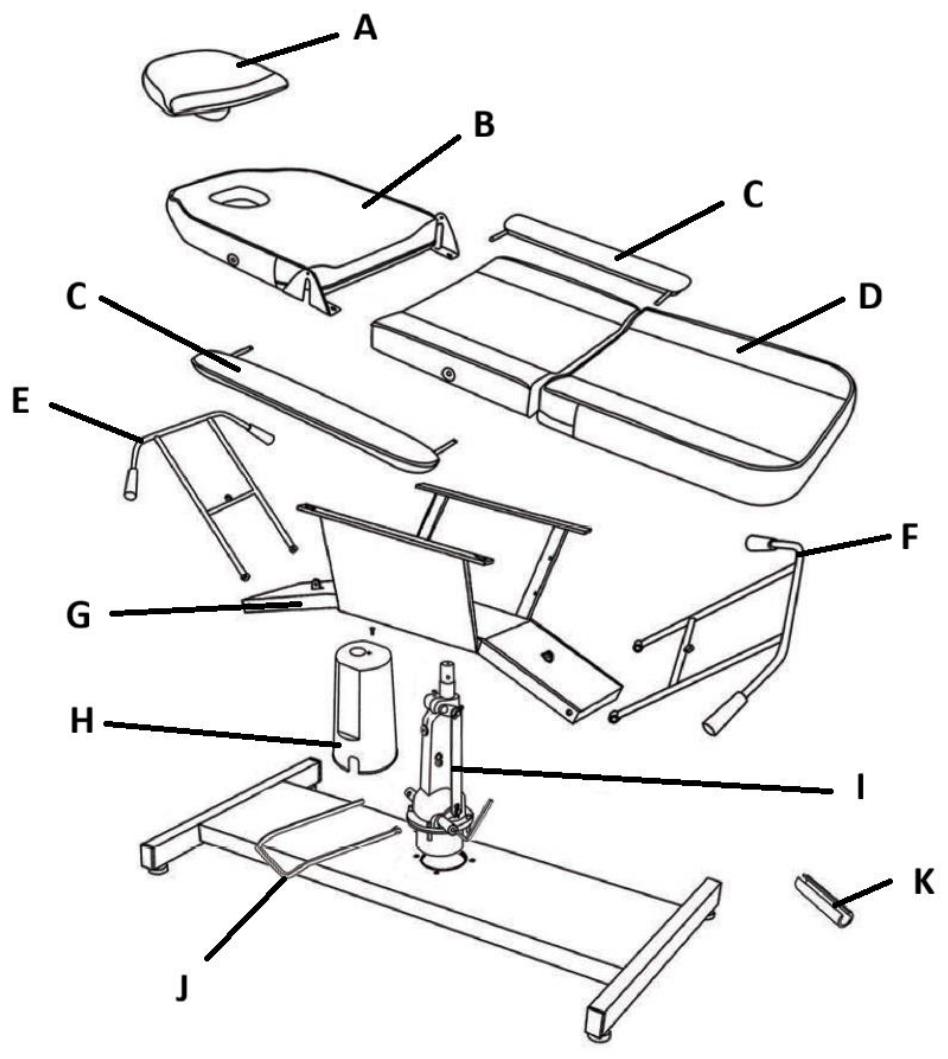

4.1. Device description

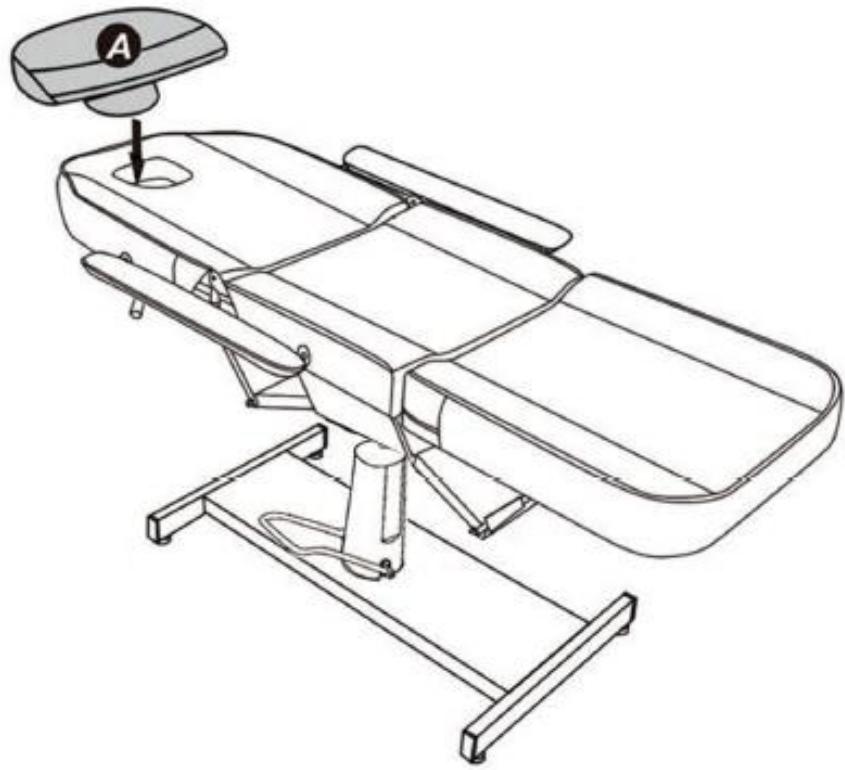

A- Headrest

B- Bed (Part A)

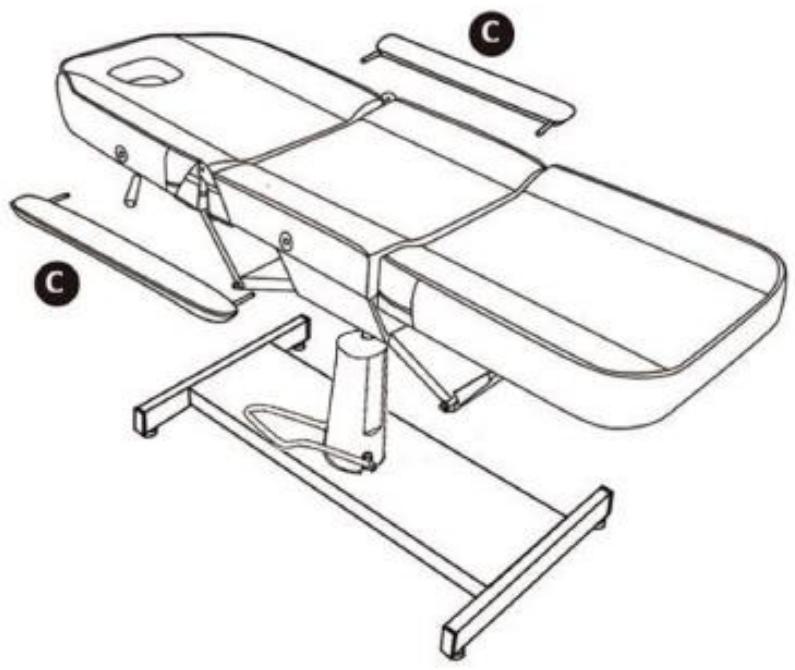

C- Armrest

D- Bed (Part B)

E- Supporting bar

F- Supporting leg

G- Supporting iron

H- Pump cover

I- Hydraulic pump

J- Pump pedal

K- Pin for pump

4.2. Preparing for use

4.2.1. Appliance location

The ambient temperature must not exceed 45° C, and the relative humidity should not exceed 85%. Keep the device away from any hot surfaces. The device should always be used when positioned on an even, stable, clean, and dry surface, and be out of the reach of children and persons with limited mental and sensory functions.

4.3. Assembling the device

Note: It is helpful to have two people install and turn the chair upright after installation.

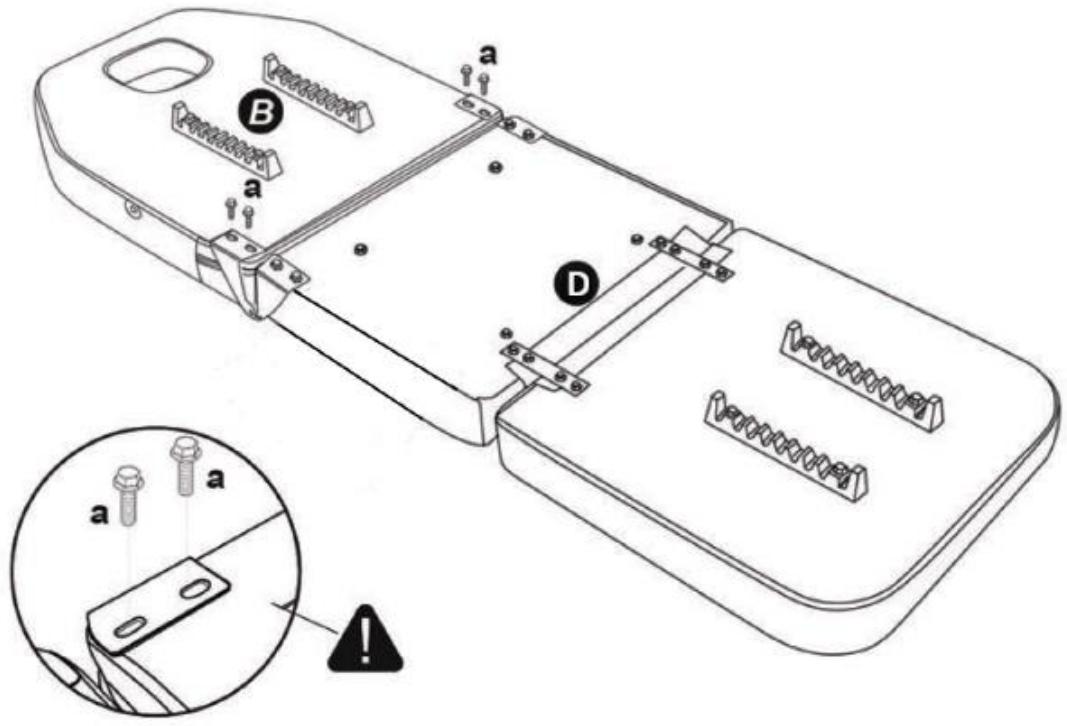

4.3.1. Preassembled fitting parts (shown in section 4.3.3. Installation diagram)

Parts Code	Description	Quantity
a	Preassembled on D - Bed (Part B)	12
b	Preassembled on I - Hydraulic pump	2

4.3.2. Accessory kit (shown in section 4.3.3. Installation diagram)

Parts Code	Illustration	Description	Quantity
1		Short Screws	1
2		Long Screws	4
3		Nuts	4
4		Washers	4
5		Springs	2
6		Wrench	1
7		Hex Wrench	1

4.3.3. Tools required (Not included)

Wrench, rubber mallet, Phillips screwdriver, and a sturdy box.

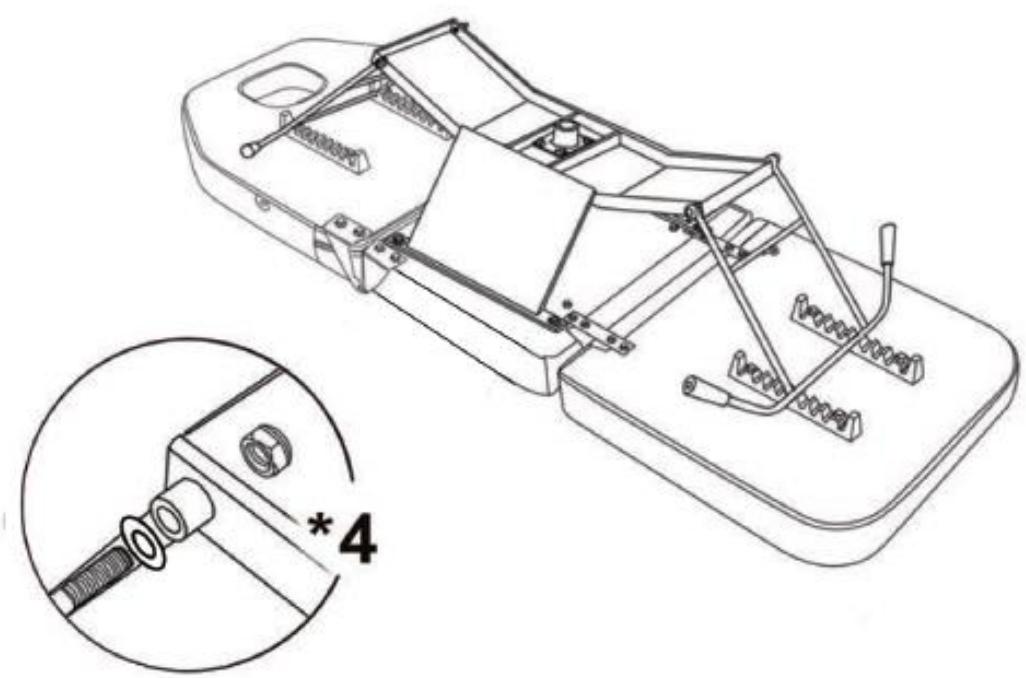

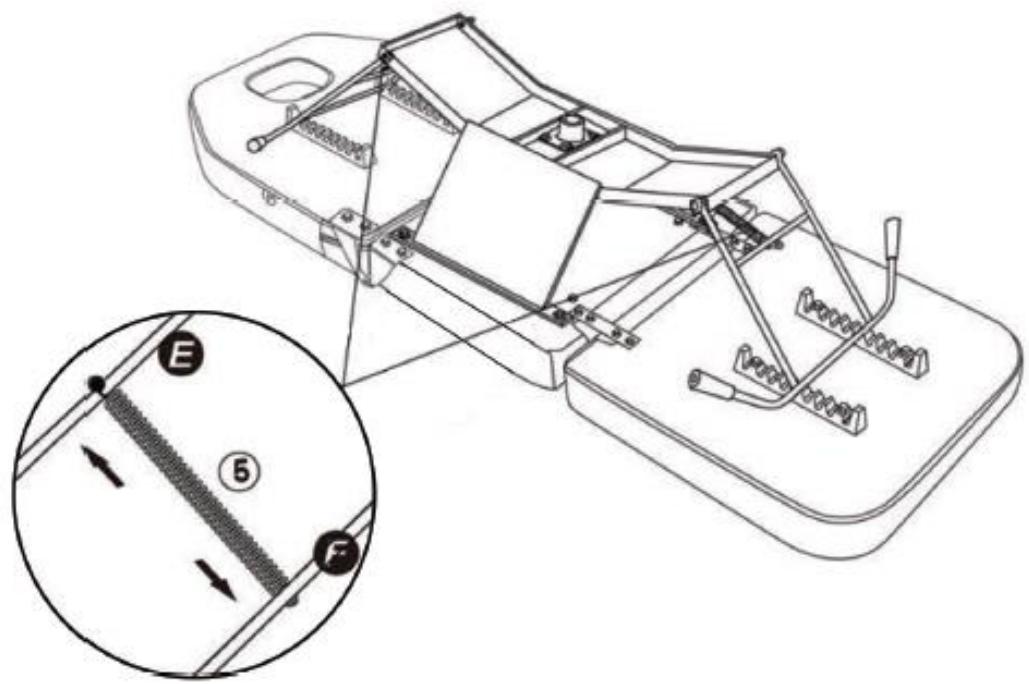

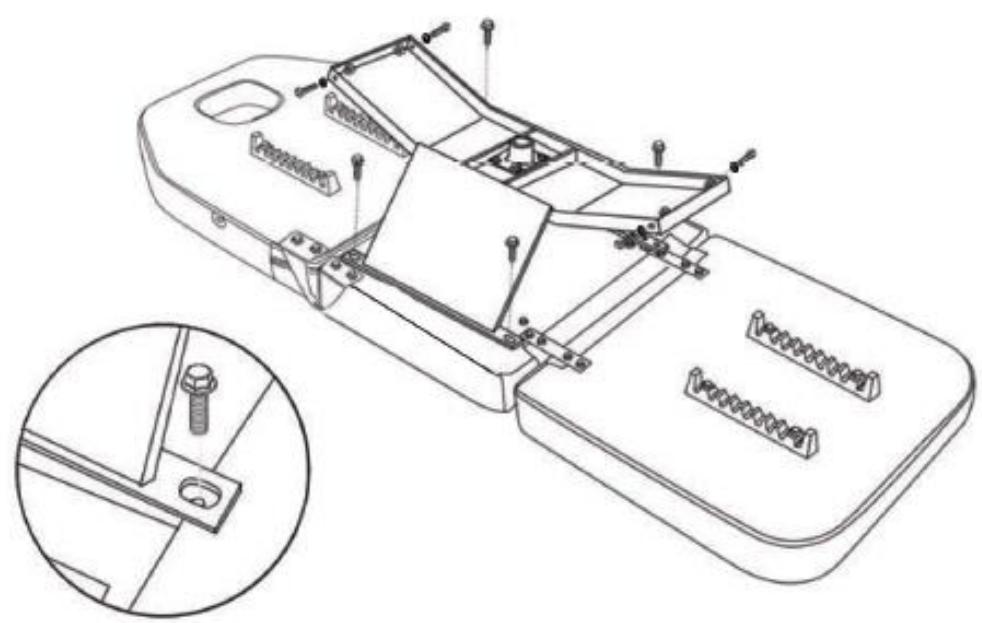

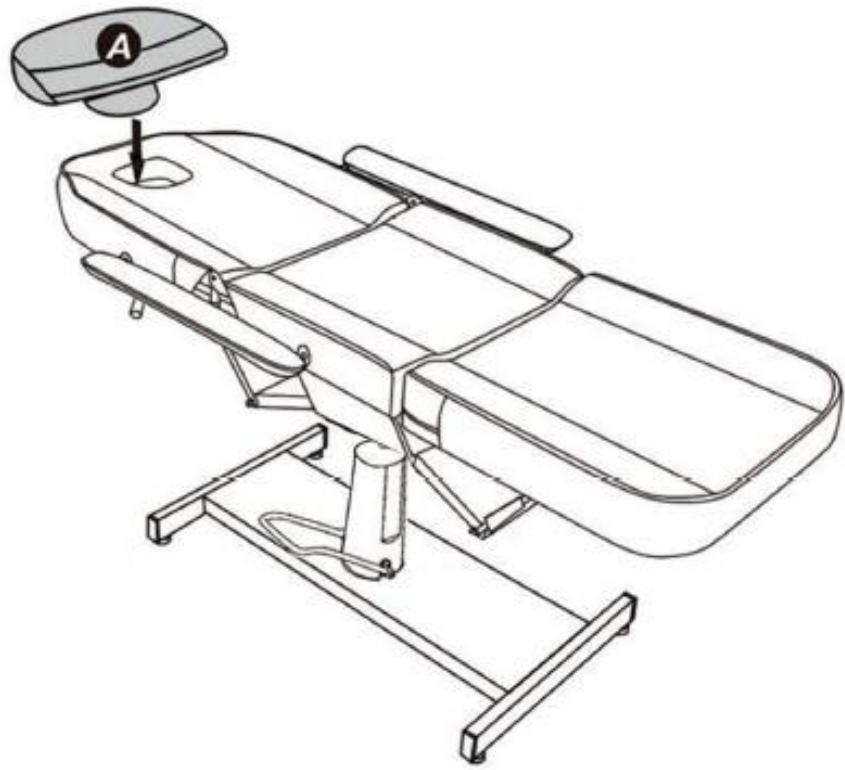

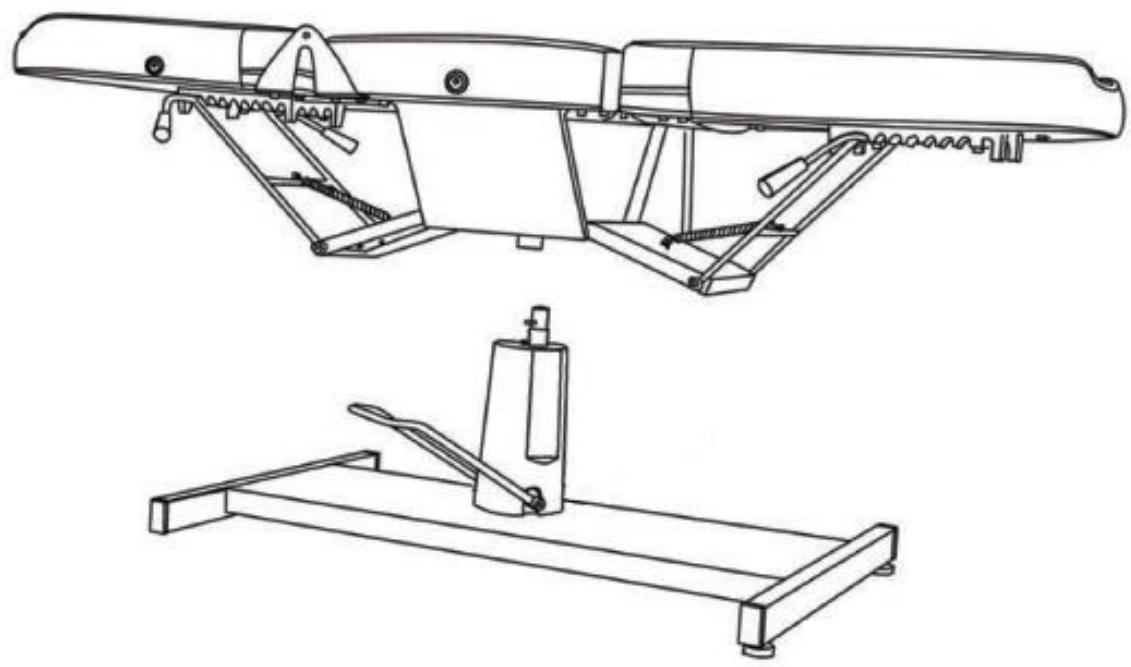

4.3.4. Installation diagram

1.

1.

1.

4.

1.

6.

7.

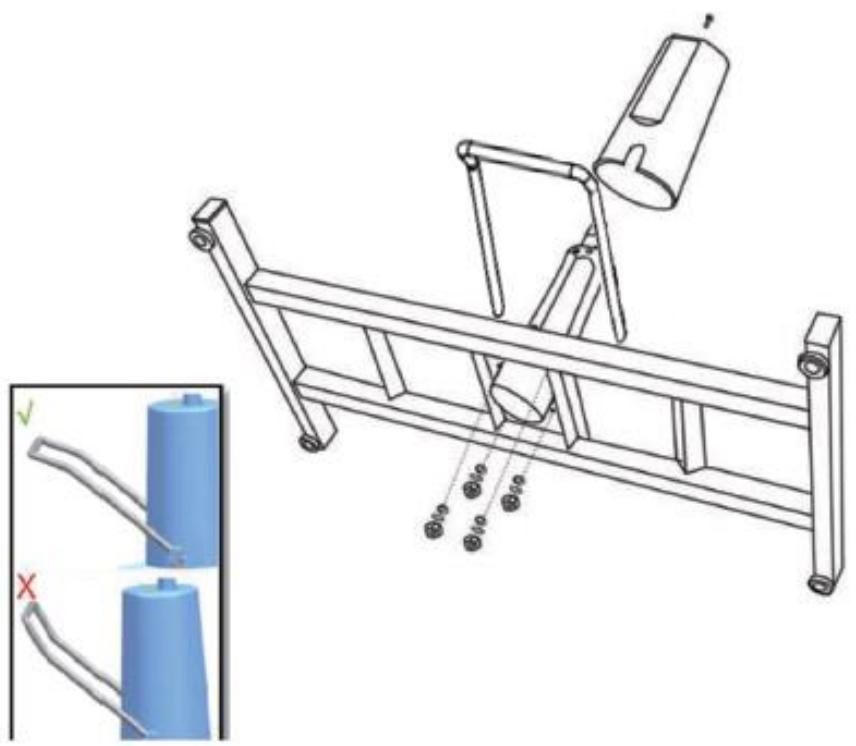

Insert the small end of the pin into the pump to enhance the stability of the bed.

8.

Tips:

To unlock: Step down and rotate 360°.

To lock: Lift up and rotate 360°.

To raise the bed height: Press the pump pedal halfway down several times.

To lower the bed height: Press the pump pedal fully down and hold it for a few seconds.

9.

The bed frame can be secured by inserting and tightening a short screw (M10*25) to enhance stability.

10.

1.

12.

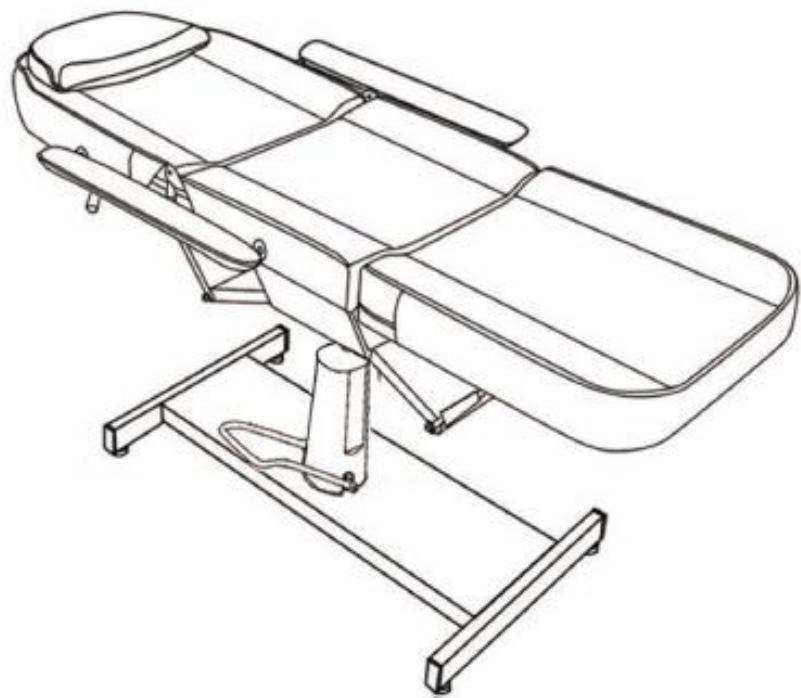

4.4. Device use

Control the supporting bar and supporting leg to adjust the angle of your beauty bed. Following the diagram shown below.

NOTICE! Do not sit on the legrest, or the bed frame will be damaged.

4.5. Cleaning and maintenance

4.5.1. General instructions

a) Use only non-corrosive cleaners to clean the surface.
b) After cleaning the device, all parts should be dried completely before using it again.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) Do not spray the device with a water jet or submerge it in water.
e) Do not allow water to get inside the device through vents in the housing of the device.
f) The device must be regularly inspected to check its technical efficiency and spot any damage.
g) Use a soft, damp cloth for cleaning.
h) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
i) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
