R36XLTR10 - Uncategorized RYOBI - Free user manual and instructions

Brand	RYOBI
Model	R36XLTR10
Product type	Cordless line trimmer
Power source	36V rechargeable lithium-ion (uses two 18V RYOBI One+ batteries)
Cutting width	30 cm (12 in)
Line diameter	1.6 mm (0.065 in)
Line feeding	Automatic bump feed
Motor type	High-efficiency brushless motor
Speed	Variable speed up to 8,500 rpm
Shaft	Straight shaft with telescopic adjustment
Handle	Adjustable auxiliary handle with soft grip
Weight	3.5 kg (7.7 lbs) without batteries
Dimensions (L x H)	120 cm x 45 cm
Cutting head	Pivotable for edging
Safety features	Double switch protection, guard
Noise level	88 dB(A) K=3 dB
Vibration	≤ 2.5 m/s²
Maintenance	Easy-to-clean design; wipe after use
Spare parts	Replacement spool and line available
Battery compatibility	RYOBI One+ 18V batteries (two required, not included)
Usage	Ideal for trimming grass and weeds in medium-sized gardens

Frequently Asked Questions - R36XLTR10 RYOBI

What batteries are compatible with the RYOBI R36XLTR10 trimmer?

The trimmer runs on two RYOBI One+ 18V batteries connected in series to produce 36V. Any One+ lithium battery with a capacity of 2.0Ah or higher works, ensuring extended runtime. Batteries are not included.

How do I replace the cutting line on the R36XLTR10?

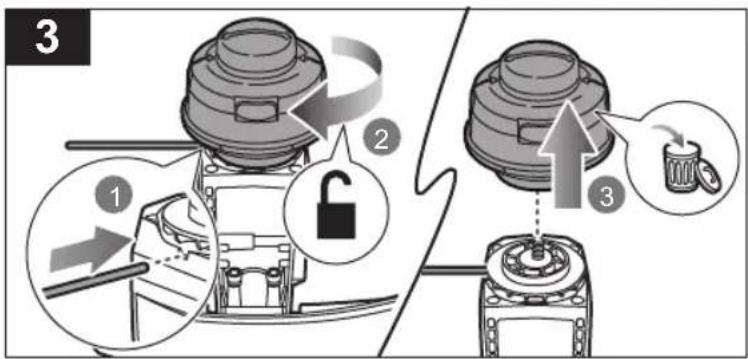

Press the release tabs on the spool cover, remove the empty spool. Insert the new line into the anchor holes and wind it in the direction indicated by the arrow. Then snap the spool back into place. Refer to the manual for detailed steps.

What line diameter should I use?

For optimal performance, use a 1.6 mm (0.065 in) diameter line. Thicker line may cause the motor to overload, while thinner line is less durable. Always use a quality nylon line from a trusted brand.

Can I adjust the cutting height?

Yes, the telescopic shaft and pivotable cutting head allow you to adjust the working height and angle. Loosen the locking collars, set your desired position, and tighten securely to match your height for comfortable operation.

Is the trimmer safe to use near fences or walls?

The trimmer includes a protective guard that helps deflect debris. However, you should guide the trimmer carefully near hard surfaces to avoid damaging the line and the device. Always keep the guard in place.

What safety precautions should I take before operation?

Wear safety goggles, long trousers, and closed shoes. Inspect the work area for stones, wires, and other objects. Ensure the battery is locked and the switch is in the 'off' position before inserting it.

How do I maintain the trimmer after use?

Use a dry cloth to wipe the exterior and remove grass debris. Check the air vents for blockages and periodically inspect the line spool. Do not use water or solvents.

Can I use the trimmer if the batteries are low?

When the power starts to drop, replace or recharge the batteries. Low voltage can reduce cutting efficiency and may strain the motor. It’s best to have a spare set of charged batteries.

What is the cutting width for this model?

The R36XLTR10 offers a generous 30 cm (12 in) cutting width, allowing you to finish your lawn edges and trim grass quickly, reducing operation time.

Where can I buy spare parts like the spool or line?

Genuine parts are available through authorized RYOBI dealers and online stores. Use the model number R36XLTR10 to search for compatible spools, lines, and guards.

USER MANUAL R36XLTR10 RYOBI

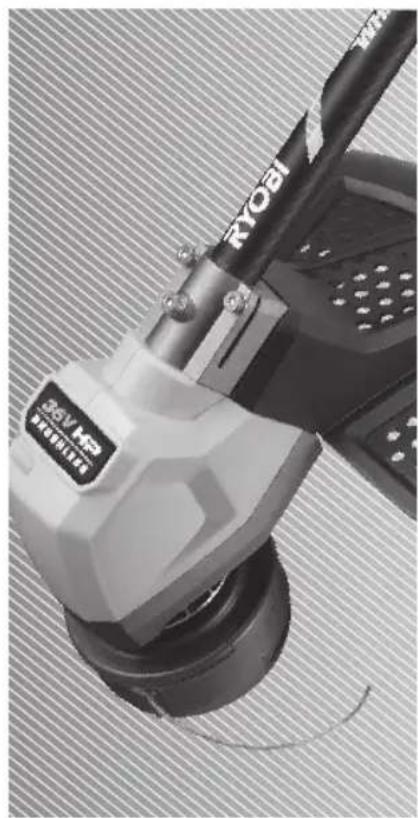

R36XLTR10

IMPORTANT!

It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.

Subject to technical modification.

Safety, performance, and dependability have been given top priority in the design of your cordless line trimmer.

INTENDED USE

The cordless line trimmer is intended for cutting long grass, pulpy weed, and similar vegetation at or about ground level.

The cutting plane should be approximately parallel to the ground surface when trimming and approximately vertical when edging. The cutting plane should be approximately parallel to the ground surface.

The product is intended for outdoor use only. For safety reasons, the product must be adequately controlled by a two-handed operation at all times.

The product is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions.

Do not use the product for any other purpose.

GENERAL PRODUCT SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
■ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep

cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

LINE TRIMMER SAFETY WARNINGS

• Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
  ■ Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.
  ■ Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
  ■ Before using the machine, always visually inspect to see that the cutter and the cutter assembly are not damaged. Damaged parts increase the risk of injury.
• Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
• Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
  ■ Wear eye protection and ear protection. Adequate protective equipment will reduce personal injury.
  ■ While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving cutter.
• Always wear clothing such as trousers that covers the operator's legs while operating the machine. Contact with the moving cutter or line may cause injury.
• Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury.
• Do not operate the machine above waist height. This helps prevent unintended cutter contact and enables better control of the machine in unexpected situations.
  ■ Exercise caution when operating the machine in wet grass. Walk; never run. This reduces the risk of slipping and falling which may result in personal injury.
• Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
• When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
• Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut or damaged by the line or cutter.

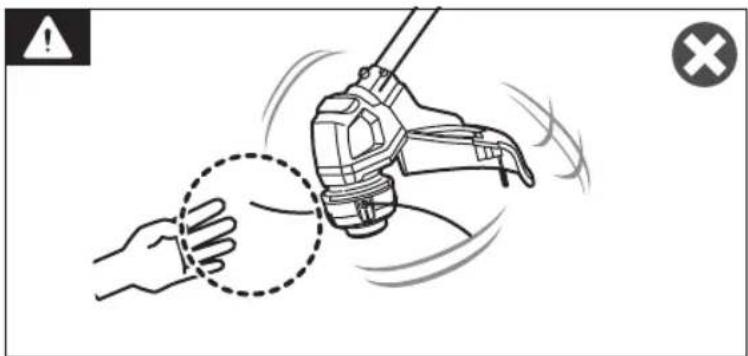

• Keep all parts of the body away from the moving trimmer cutter or line. Do not clear material from the machine until it has been disconnected from the power source. The moving trimmer cutter or line may result in serious personal injury.
• Carry the machine with the machine switched off and away from your body. Proper handling of the

machine will reduce the likelihood of accidental contact with a moving trimmer cutter or line.

■ Only use replacement cutting heads and trimmer cutters or lines specified by the manufacturer. Do not replace the trimmer cutters or lines with metal wires or blades. Incorrect replacement parts may cause loss of control, breakage and injury.

ADDITIONAL SAFETY WARNINGS

■ Before use and after any impact, check that there are no damaged parts on the product. Contact customer service for a defective switch or any part that is damaged or worn.

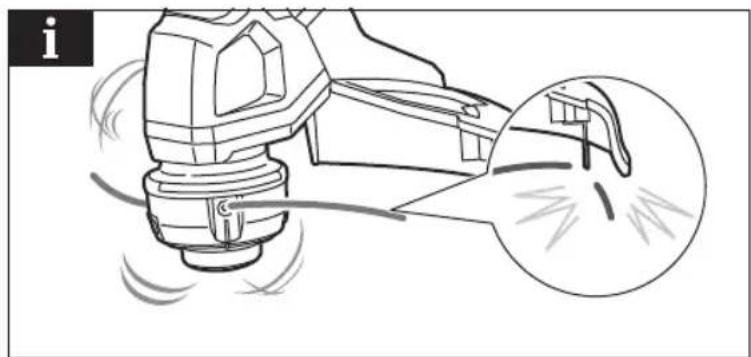

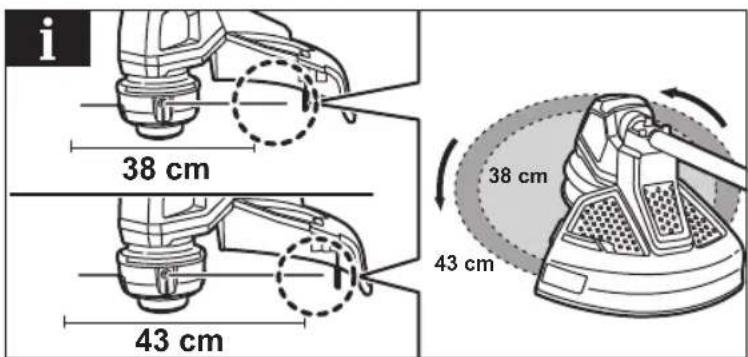

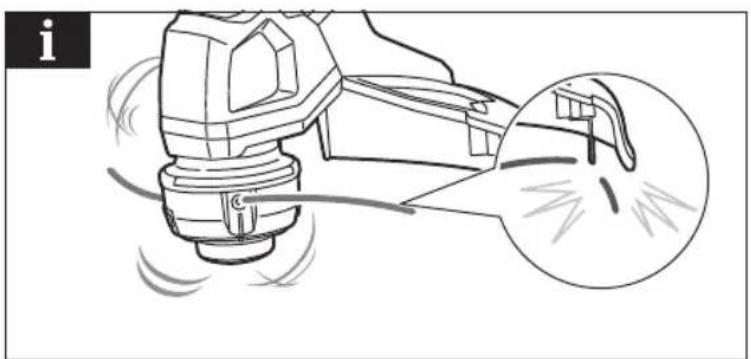

■ The small blade fitted to the safety guard is designed to trim the newly extended line to the correct length for safe and optimum performance. The blade is very sharp. Do not touch the blade, particularly when cleaning the product.
- Use only the manufacturer's replacement cutting line. Do not use any other cutting attachment.
■ Make sure that the cutting attachment is properly installed and securely fastened.
■ Never operate the product unless all guards, deflectors, and handles are properly and securely attached.

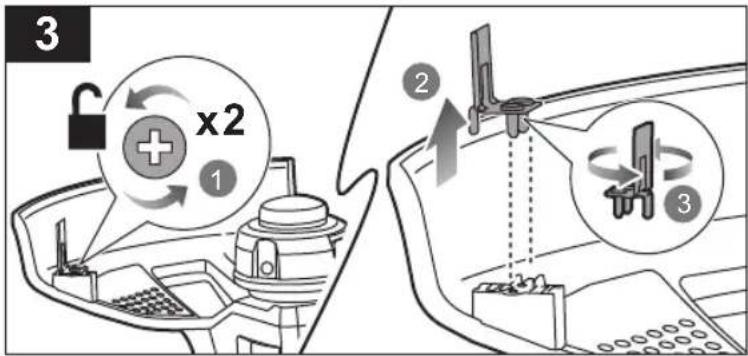

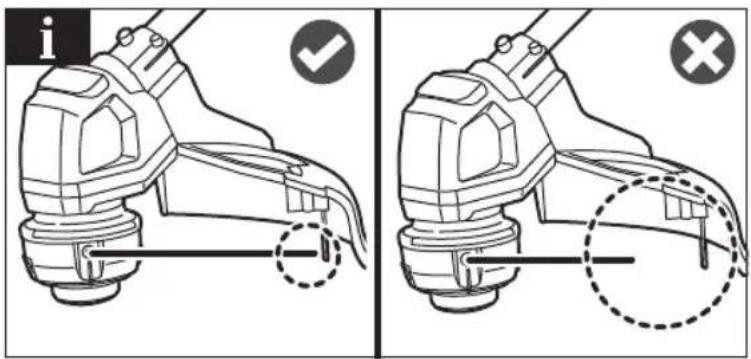

■ Ensure that the line cut-off blade in the safety guard is properly positioned and secured before each use.
- Keep the head attachment below waist level.
- Immediately power off the product and remove the battery pack in the event of an accident or a breakdown. Do not operate the product again and contact customer service.
■ To reduce the risk of injury associated with contacting moving parts, always power off the product and remove the battery pack. Allow both to cool down. Make sure that all moving parts have come to a complete stop:

• before servicing
  • before clearing a blockage
• before checking, cleaning, or working on the product
  • before changing accessories
• before inspecting the product after striking a foreign object
  • before leaving the product unattended
  • before performing maintenance
• whenever the product starts to vibrate abnormally

■ Ensure that all guards and handles are properly fitted and are in good condition.

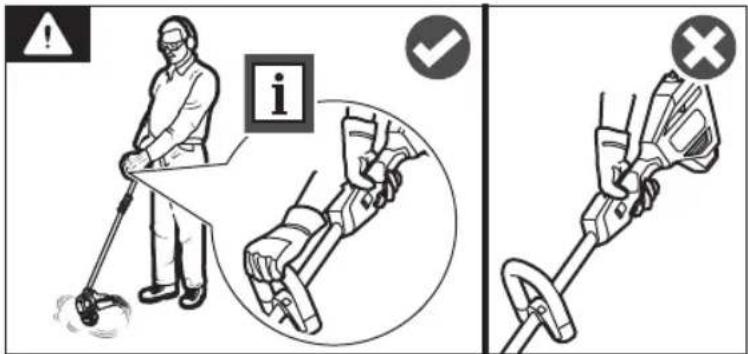

■ Hold the product by the designated handles, and restrict working time and exposure.
■ Beware of objects thrown by the cutting means. Remove debris like small stones, gravel, and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means.
■ Always ensure that the ventilation openings are kept clear of debris.
- Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.
■ Operate the product only in temperatures between 0 °C and 40 °C.

■ Store the product in a location where the ambient temperature is between 0 °C and 40 °C.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
- Charge the battery pack in a location where the ambient temperature is between 10 °C and 38 °C.
■ Store the battery pack in a location where the ambient temperature is between 0 °C and 40 °C.
■ Use the battery pack in a location where the ambient temperature is between 0 °C and 40 °C.

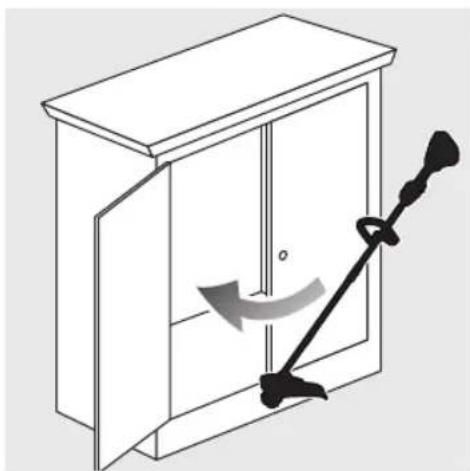

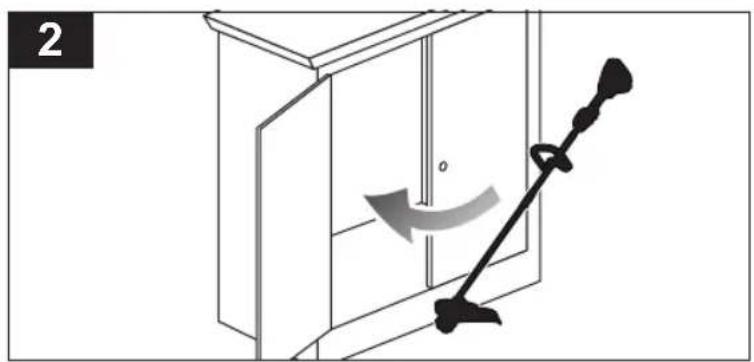

TRANSPORTATION AND STORAGE

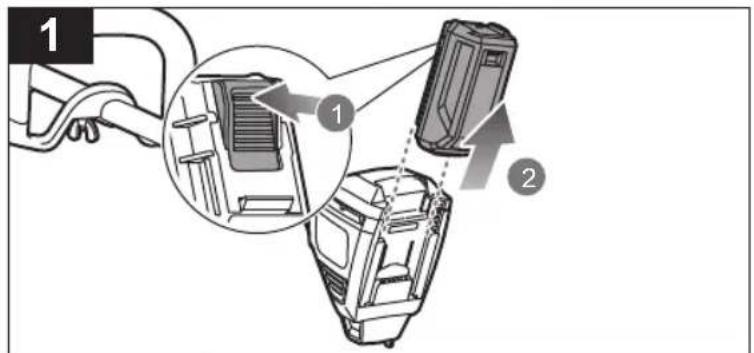

■ Power off the product, and remove the battery pack. Make sure that all moving parts have come to a complete stop. Allow the product and the battery pack to cool down before storing or transporting.
■ Remove all foreign materials from the product.
- Do not store or transport the product with the battery pack fitted. Remove the battery pack, and secure it separately. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery pack in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking.

Check with the forwarding company for further advice.

MAINTENANCE

• Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Power off the product, and remove the battery pack. Allow both to cool down. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task.
• You may make adjustments and repairs that are described in this manual. For other repairs, contact customer service.

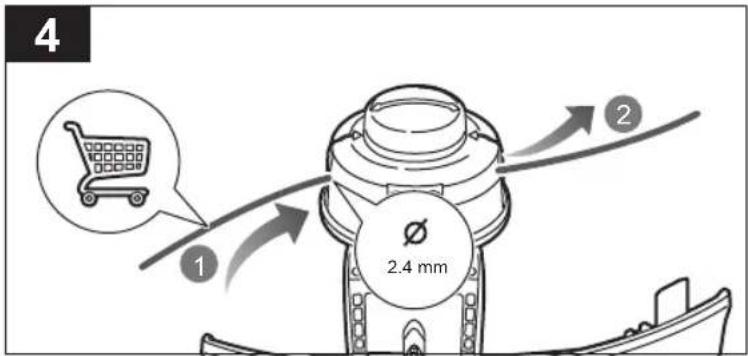

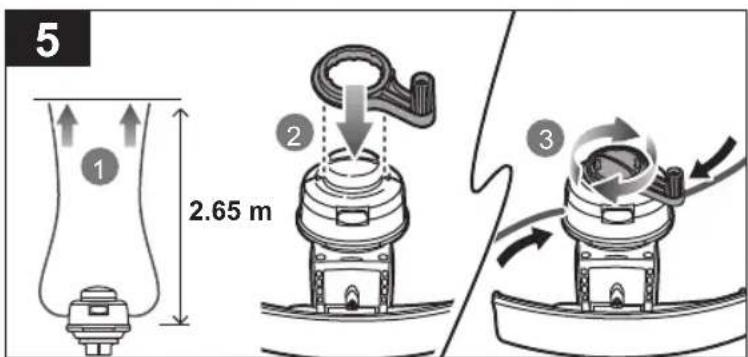

  For the replacement line, use only a nylon filament line of the diameter described in the specifications table of this manual.

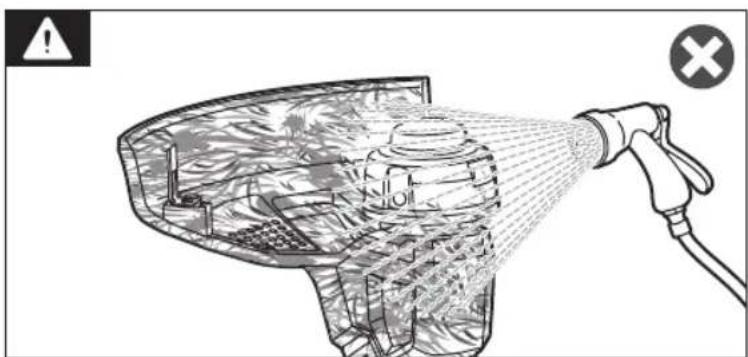

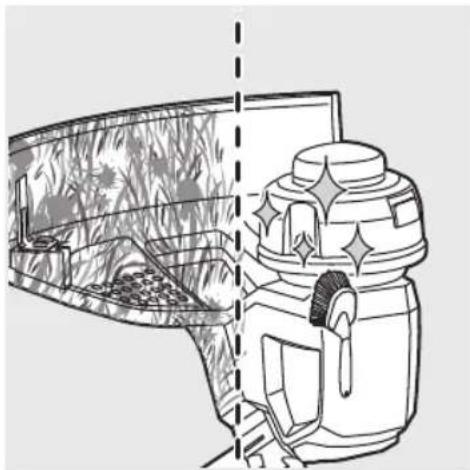

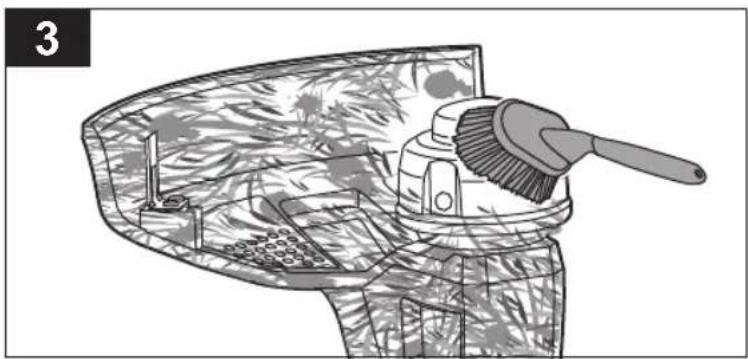

■ After each use, clean the plastic parts with a soft, dry cloth. For any sign of damage, contact customer service..
- Check all nuts, bolts, and screws before each use and at frequent intervals for proper tightness to ensure that the product is in safe working condition. For any sign of damage, contact customer service.
■ Contact customer service to replace damaged or unreadable labels.

SYMBOLS ON THE PRODUCT

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Do not expose the product to rain or damp conditions.

Wear eye and ear protection.

Wear non-slip, heavy-duty gloves.

Wear non-slip safety footwear when using the product.

Do not use metal blade(s) on the product.

Remove the battery pack before starting any work on the product.

Rotational direction and maximum speed of the shaft for the cutting attachment

Beware of thrown or flying objects. Keep all bystanders a safe distance away from the product.

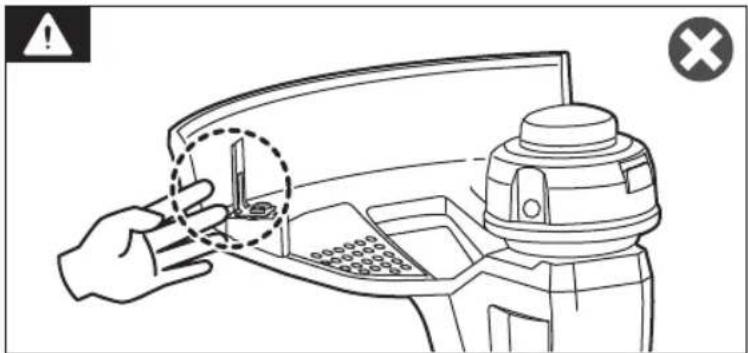

Keep hands away from the cut-off blade.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Guaranteed sound power level

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

SYMBOLS IN THIS MANUAL

Note

Warning

Parts or accessories sold separately

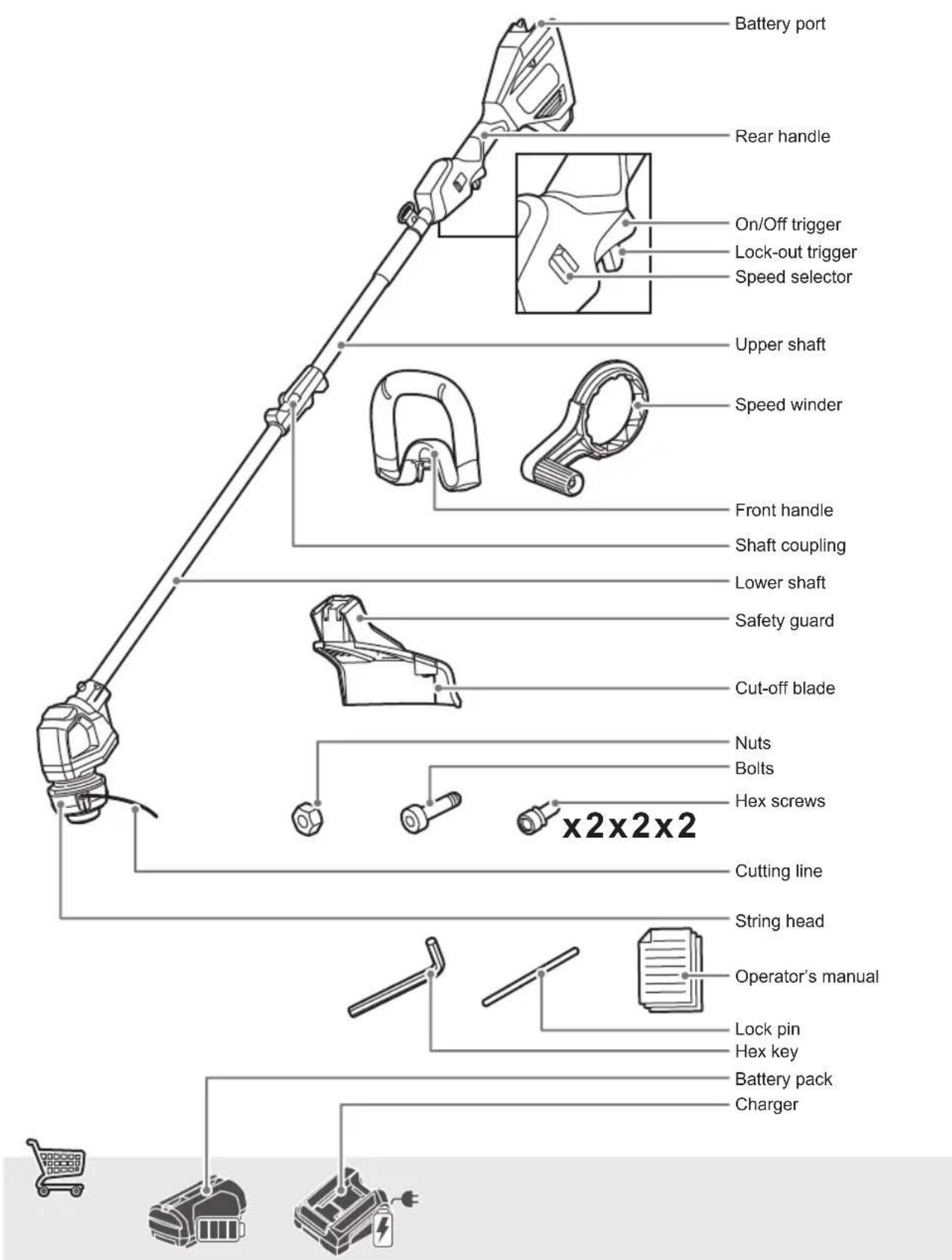

R36XLTR10

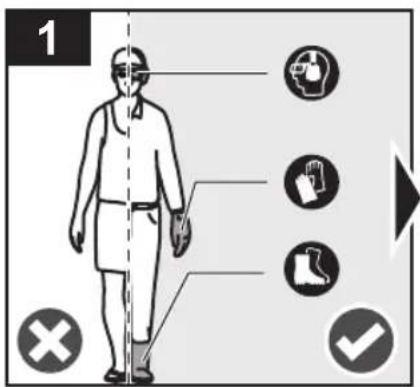

Always wear eye and ear protection, non-slip heavy-duty gloves, and substantial footwear while operating the product. Do not operate the product when barefoot or wearing open sandals.

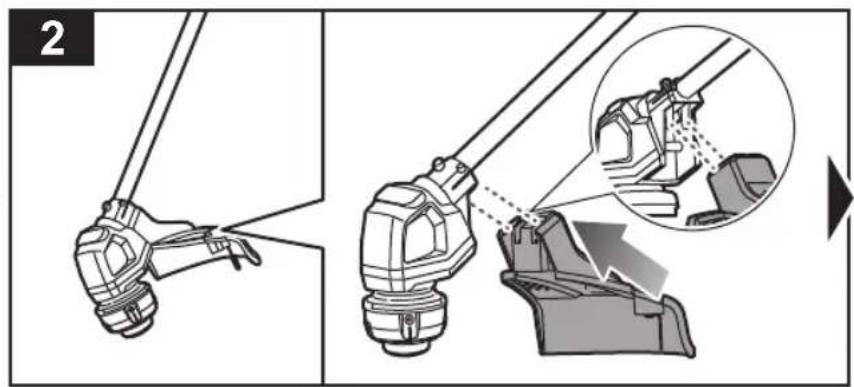

Insert the tabs on the trimmer head into the slots on the safety guard.

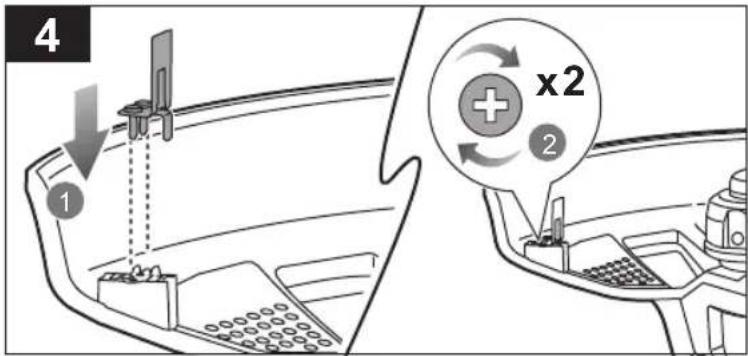

Insert the bolts into the bolt holes. Turn the bolts clockwise to secure the upper and lower shaft connection.

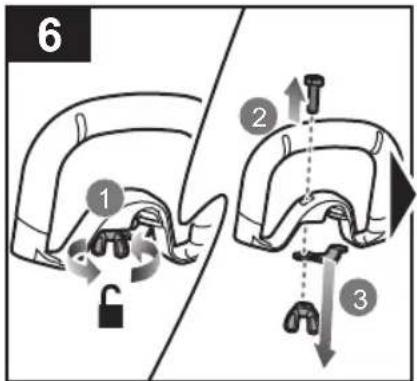

On the front handle, turn the wing nut counterclockwise to remove the wing nut, clamp, and bolt.

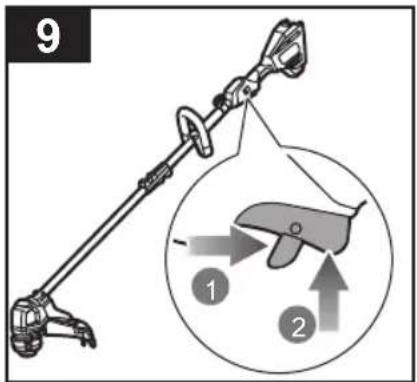

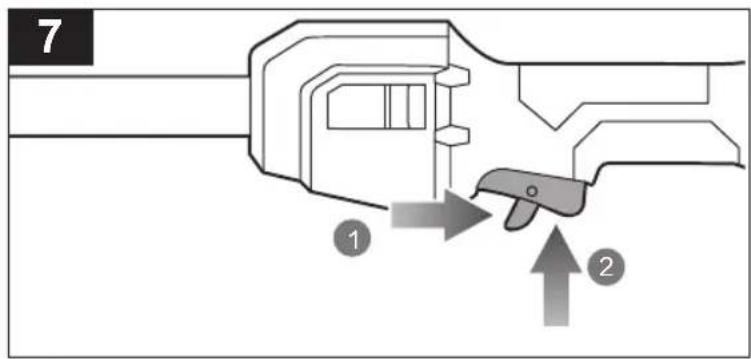

Press and hold the lock-out trigger, and squeeze the on/off trigger to power on the product.

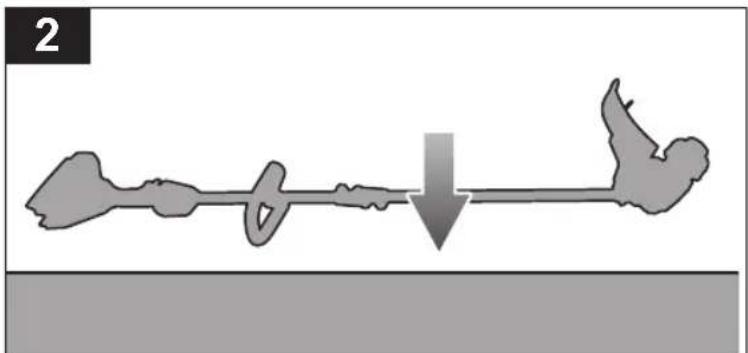

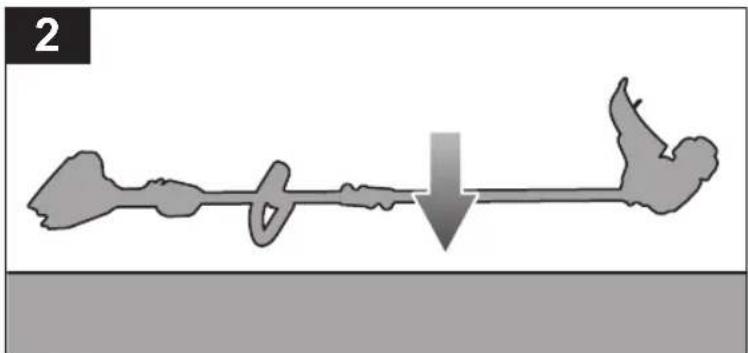

Place the product on a level surface. Position the product with the motor side down and the blade guard side up. Insert the hex screws into the mounting holes to hold the safety guard in place. Turn the hex screws clockwise to tighten and secure the safety guard.

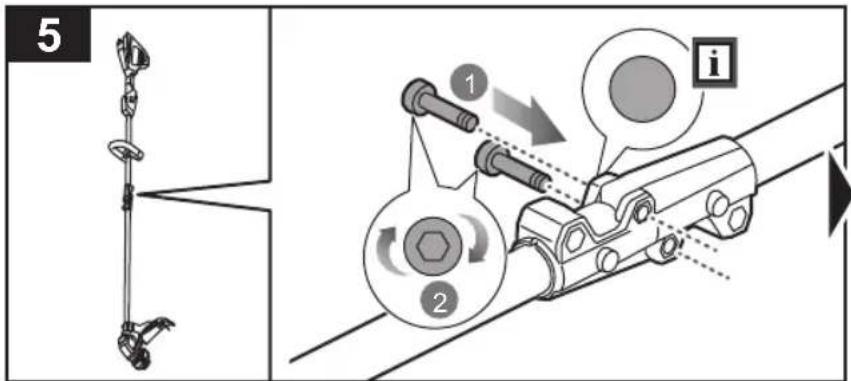

Insert the upper shaft into the lower shaft. Insert the nuts into the hex holes.

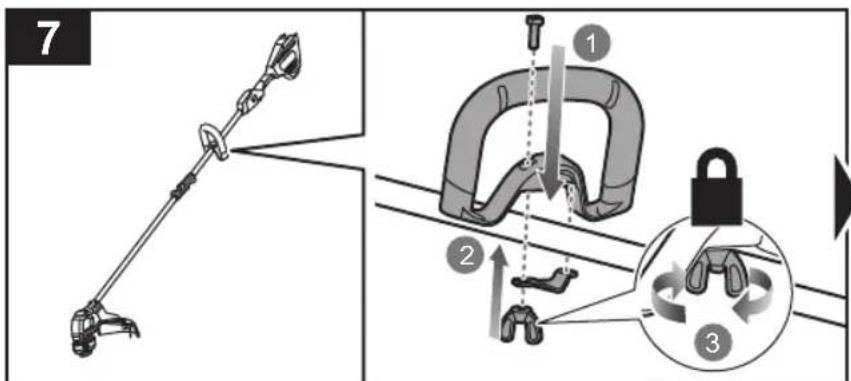

Attach the front handle to the upper shaft using the bolt, wing nut, and clamp. Turn the wing nut clockwise to tighten and secure the front handle.

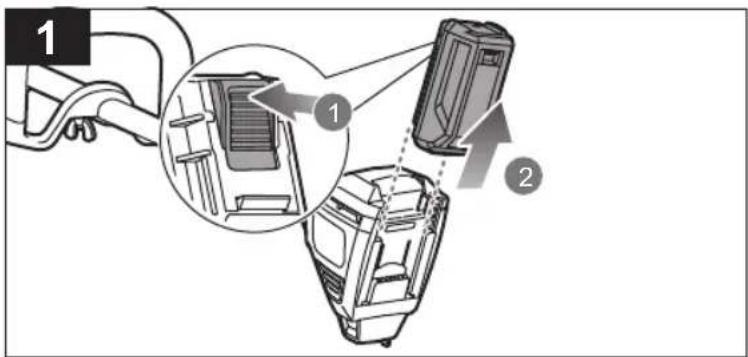

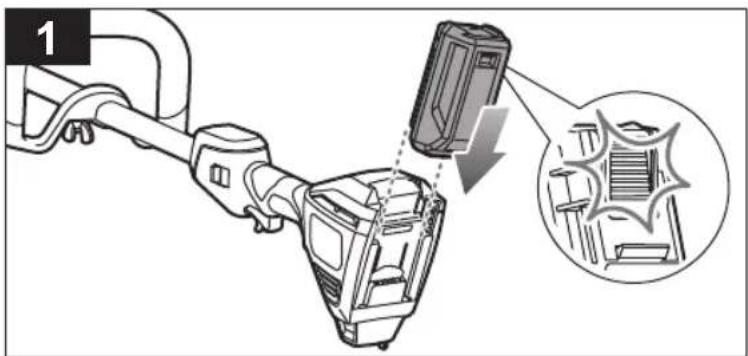

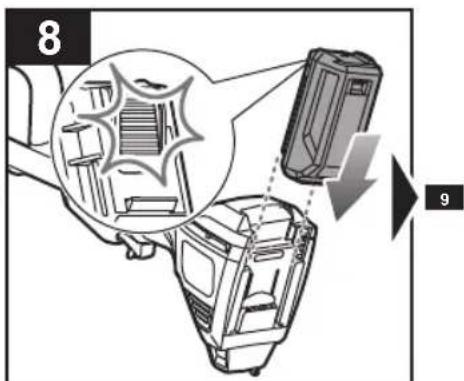

Insert the battery pack into the battery port until the latch clicks into place.

OPERATING THE PRODUCT

WARNING: For safety reasons, the product must be adequately controlled by a two-handed operation. Hold the product with one hand on the rear handle and the other hand on the front handle.

WARNING: Consider the environment in which you are working. Keep the working area free from wires, sticks, stones, and debris, which if struck by the cutter can become thrown objects.

WARNING: Exercise extreme caution when using the product. Keep hands and feet away from the cutting means at all times, especially when turning on the motor.

1. Insert the battery pack into the battery port until the latch clicks into place.
2. Use the speed selector of the product to adjust the speed from low to high.

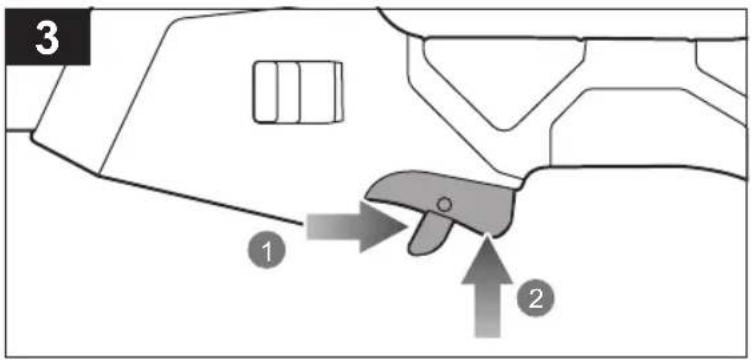

1. Press and hold the lock-out trigger, and squeeze the on/off trigger to power on the product.

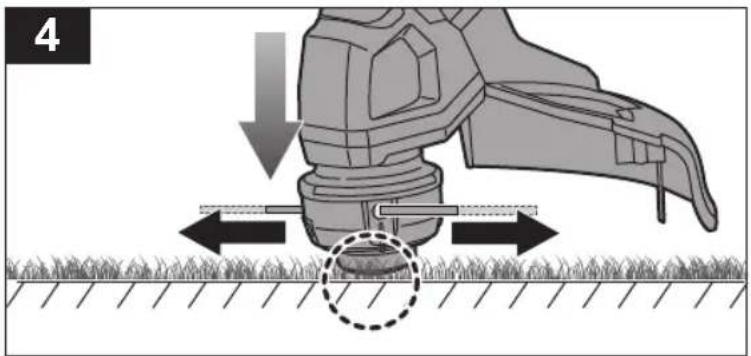

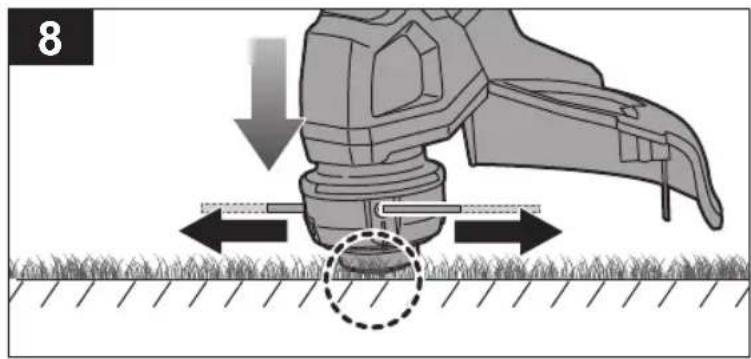

2. Tap the bump knob on the ground to advance the line. The line advances each time the head is tapped. Do not hold the bump knob onto the ground.

NOTE: Tap the bump knob only on grass to prevent damage to the bump knob.

NOTE: For safe and optimum performance, the cutting line should extend to the cut-off blade.

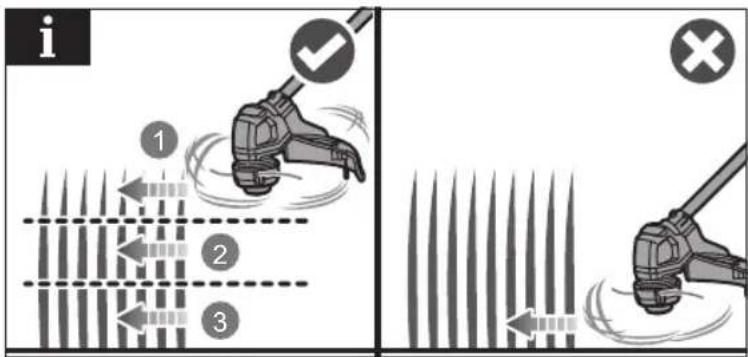

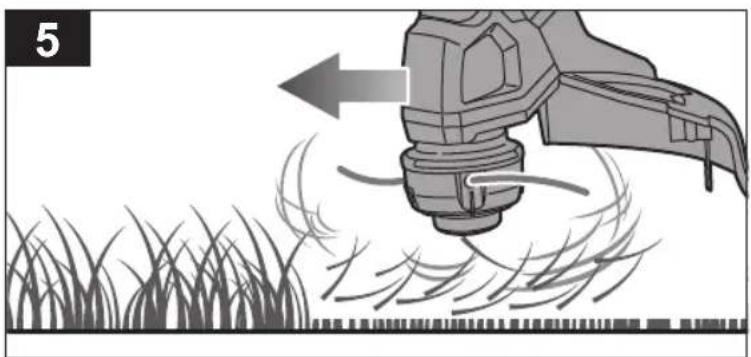

1. For cutting ease and safety, cut the grass from one direction.

NOTE: Cut tall grass from the top down. This prevents grass from wrapping around the shaft housing and bump head, which may cause damage from overheating.

NOTE: Cut grass from the right side to the left side for cutting ease and safety.

ADJUSTING THE CUTTING LINE

1. Press the battery latch and remove the battery pack.
2. Place the product on a level surface. Position the product with the motor side down and the safety guard side up.
3. Remove the screws on the line cut-off blade. Remove the blade. Rotate the blade 180°.
4. Install the blade. Tighten the screws to secure the blade in the new position.

NOTE: The cutting width of the line trimmer can be adjusted according to preference. A cutting width of 43 cm gets the job done faster but results in a lesser runtime.

REPLACING THE CUTTING LINE

1. Press the battery latch and remove the battery pack.
2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up.

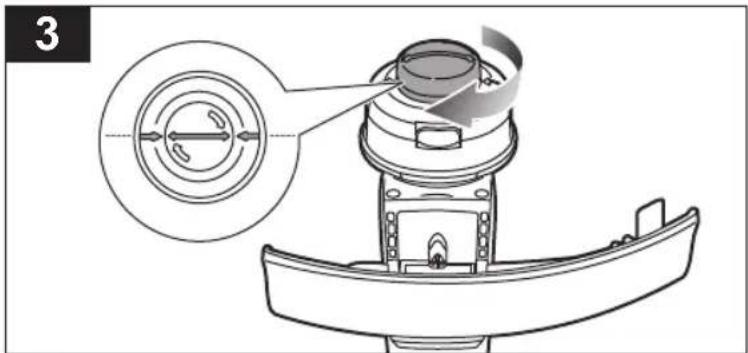

3. Rotate the bump knob on the string head until the line on the centre of the bump knob aligns with the arrows on the outer spool.
4. Use a 2.4 mm diameter line. Cut one piece of the line, approximately 3.0 m in length. Insert one end of the line through the eyelet on the side of the string head, and push the line until it comes out through the eyelet on the other side. Continue to push the line through the string head until the line is even in length on both sides.
5. Ensure that there are equal lengths of line on either side of the string head (max. 2.65 m per side). Rotate the bump knob with the speed winder to wind the line.

NOTE: The bump knob can also be rotated by hand.

NOTE: When reloading, the maximum line length should be 2.65 m of each side.

NOTE: Wind the line until approximately 12 cm remains protruding from the trimmer head.

1. Insert the battery pack into the battery port until the latch clicks into place.
2. Press and hold the lock-out trigger, and squeeze the on/off trigger to turn on the product.
3. Tap the bump knob on the ground to advance the line. The line advances each time the head is tapped. Do not hold the bump knob onto the ground.

NOTE: Tap the bump knob only on grass to prevent damage to the bump knob.

NOTE: The small blade fitted to the safety guard is designed to trim the newly extended line to the correct length for safe and optimum performance. The blade is very sharp. Do not touch the blade, particularly when cleaning the product.

REPLACING THE STRING HEAD

1. Press the battery latch and remove the battery pack.
2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up.
3. Align the slot on the string head assembly and string head, and insert the lock pin. Turn the string head clockwise to loosen and remove it.

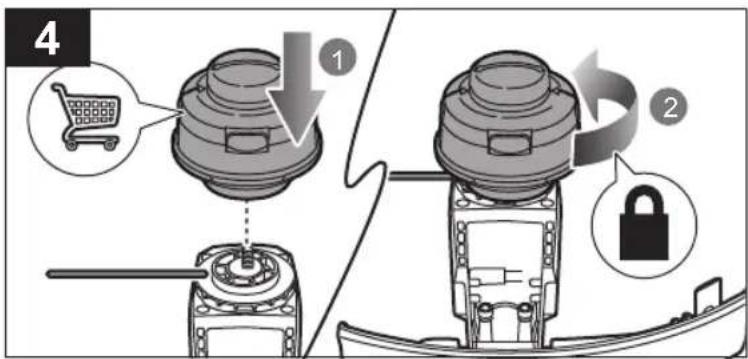

4. With the lock pin still inserted on the slot, install the new string head and turn it counterclockwise to tighten.
5. Remove the lock pin from the string head assembly.

CLEANING THE PRODUCT

1. Press the battery latch and remove the battery pack.
2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up.

WARNING: The blade is very sharp. Do not touch the blade, particularly when cleaning the product.

1. Clean the product with a soft, dry brush.

WARNING: Do not use water to clean the product.

STORING THE PRODUCT

NOTE: Clean the product before storing it.

1. Press the battery latch and remove the battery pack.
2. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.

PRODUCT SPECIFICATIONS

Cordless line trimmer according to grass trimmer requirements

Model R36XLTR10

Voltage 36 V d.c.

No-load speed

High speed 5500 min -1

Low speed 5000 min -1

Cutting capacity 38/43 cm

Cutting line diameter 2.4 mm

Weight

Without battery pack 4.2 kg

With a 6 Ah battery pack 6 kg

Vibration level (in accordance with IEC 62841-4-4)

Front handle a _h = 3.9 m/s²

Rear handle a _h = 2.9 m/s²

Uncertainty K _h = 1.5 m/s²

Noise emission level (in accordance with IEC 62841-4-4)

A-weighted sound pressure level L_pA = 78.9 dB(A)

Uncertainty K _pA=3.0\ dB

A-weighted sound power level L _WA = 92.4 dB(A)

Uncertainty K = 3.0 dB

L_WA + K_WA 96 dB(A)

BPL3626D2, BPL3650D2,

BPL3640D2, BPL3620D,

BPL3660D. BPL3690D.

BPL3612D, R36BTY2, R36BTY4,

R36BTY5, R36BTY6, R36BTY8,

R36BTY12

REPLACEMENT PARTS

Replacement head RAC1214

Replacement bump knob 530455002

Replacement 2.4 mm trimming line

RLTS3

NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.

⚠ WARNING! The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period.

An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

Imported by:

Techtronic Industries Australia Pty Ltd

31 Gilby Road, Mount Waverley, VIC 3149

Melbourne, Australia

Techtronic Industries N.Z. Limited

Unit C, 70 Business Parade South,

Highbrook, Auckland 2013, New Zealand

RYOBI is a trade mark of Ryobi Limited, and is used under license.
