Product Type	Wall-mounted cooker hood
Brand	Point
Model	POMA60PFIL
Width	60 cm
Height	40 cm (adjustable chimney)
Depth	50 cm
Weight	12 kg
Colour	Stainless steel
Power Supply	220-240 V ~ 50 Hz
Motor Power	220 W
Max Extraction Rate	450 m³/h
Number of Speeds	3
Control Type	Push buttons
Lighting	2 x 3 W LED
Noise Level (max)	65 dB
Filter Type	Aluminium grease filter + optional activated charcoal filter
Ducting Diameter	150 mm
Operation Modes	Extraction or recirculation
Energy Class	B
Installation	Wall-mounted, height adjustable
Maintenance	Washable grease filter, wipe surfaces with mild detergent
Safety Features	Overheat protection, anti-slip controls
Spare Parts	Grease filters, charcoal filters, LED lamps

Frequently Asked Questions - POMA60PFIL Point

How do I clean the grease filter on the Point POMA60PFIL?

Remove the aluminium grease filter and wash it with warm soapy water or in the dishwasher. Dry it thoroughly before reinstalling. Clean it at least once a month for optimal performance.

Can I use the cooker hood in recirculation mode without an external duct?

Yes, the POMA60PFIL can be used in recirculation mode. You must install an activated charcoal filter to absorb odours. The charcoal filter needs to be replaced every 3-6 months.

What is the correct installation height above an electric hob?

For electric hobs, install the hood at a minimum height of 65 cm from the cooking surface to ensure safe and efficient operation. For gas hobs, the minimum is 75 cm.

Why is the hood noisy at maximum speed?

The noise level at maximum speed is around 65 dB, which is normal. To reduce noise, use lower speeds for everyday cooking and reserve the highest speed for intense odours or steam.

How do I replace the LED lamp on the Point POMA60PFIL?

Make sure the hood is unplugged. Gently remove the lamp cover, disconnect the faulty LED module, and replace it with a compatible 3W LED module. Press the cover back into place and restore power.

Can the grease filter be washed in the dishwasher?

Yes, the aluminium grease filter is dishwasher-safe. Place it vertically in the dishwasher to allow proper rinsing. After washing, let it dry completely before putting it back.

What duct diameter is required for extraction mode?

The POMA60PFIL is designed for a 150 mm duct. Use rigid or flexible ducting of the same diameter to minimise air resistance and noise.

How often should I replace the activated charcoal filter?

Replace the charcoal filter every 3 to 6 months, depending on usage. Regular replacement is essential in recirculation mode to keep the air fresh and maintain motor efficiency.

Does the hood have an overheat protection function?

Yes, the motor includes a thermal overload cut-out. If the motor overheats, it automatically shuts off to prevent damage. Wait for it to cool down and then restart the hood.

What is the warranty period for the Point POMA60PFIL?

The Point POMA60PFIL comes with a standard manufacturer warranty of 2 years from the date of purchase. Keep your receipt or invoice for warranty claims.

USER MANUAL POMA60PFIL Point

1. This plasma filter can be applied to all hoods that can be used for re-circulation.
2. Connect the product with the attached plug.
3. The national legislation and building regulations regarding air emissions must be observed.
4. Ensure that the connection between the product and the hood is tight, or the product will not operate optimally.
5. Do NOT connect the product if the power cord is damaged.
6. The product has been designed for connection to a 150mm diameter exhaust.
7. When a hood is used for re-circulation of air and an exhaust into the open air has not been installed, it is important that the exhaust is not blocked or made smaller, as this will damage the hood, increase noise levels, and may reduce the extraction performance. It is also important that a non-return valve is not fitted.

A. Install the hood according to the requirements contained in the installation instructions for the hood.

1. Universal Socket;
2. Main power cable socket;
3. Indicator lamp;

INSTALLATION

NOTE: Neither an exhaust nor duct should be installed on the hood. Also, it is extremely important that a non-return valve is NOT mounted.

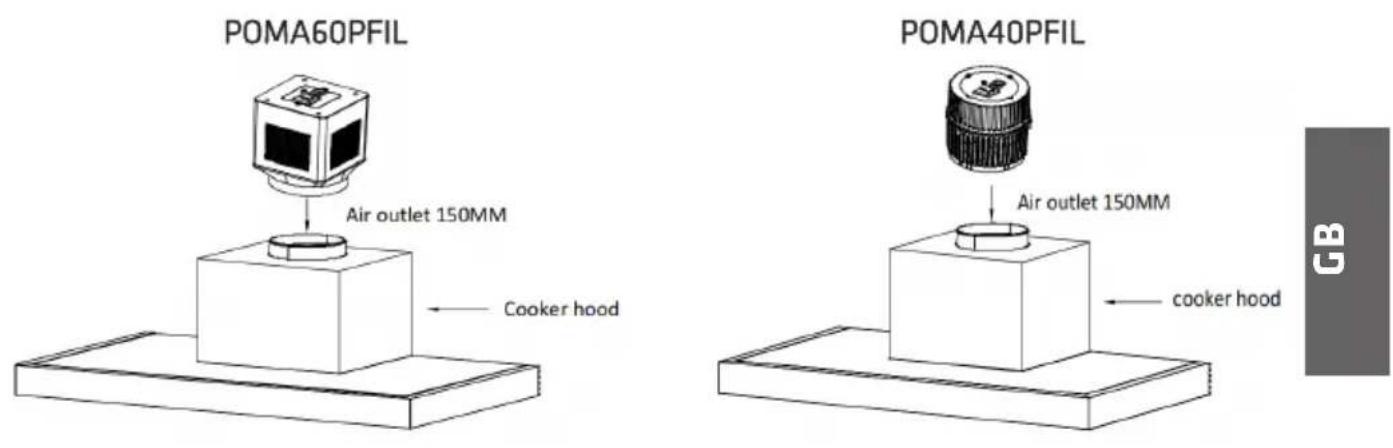

B. Attach the air inlet of the purifier (round opening) to the exhaust outlet of the cooker hood, as shown in the diagram.

C. Secure the Plasma using screws.

Note: POMA20CFIL without circuit, just fix it to the cooker hood to start the cooker hood for air purification.

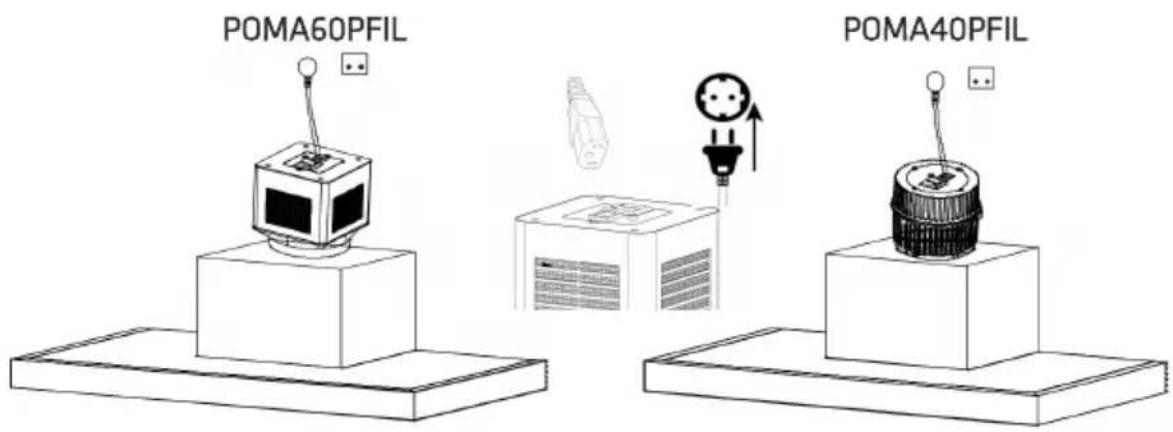

D. Connect the existing power cable from the cooker hood to the plasma filter universal socket.

E. Connect the main power cable (provided) from the plasma to the main power socket on the wall. Switch ON the cooker hood to activate the plasma. Air flow will pass through a sensor to activate the plasma automatically. It may take approximately 20 to 30 seconds to activate the plasma.
