USER MANUAL URC 8308 ONEFORALL

English UNIVERSAL ELECTRONICS INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.

Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands

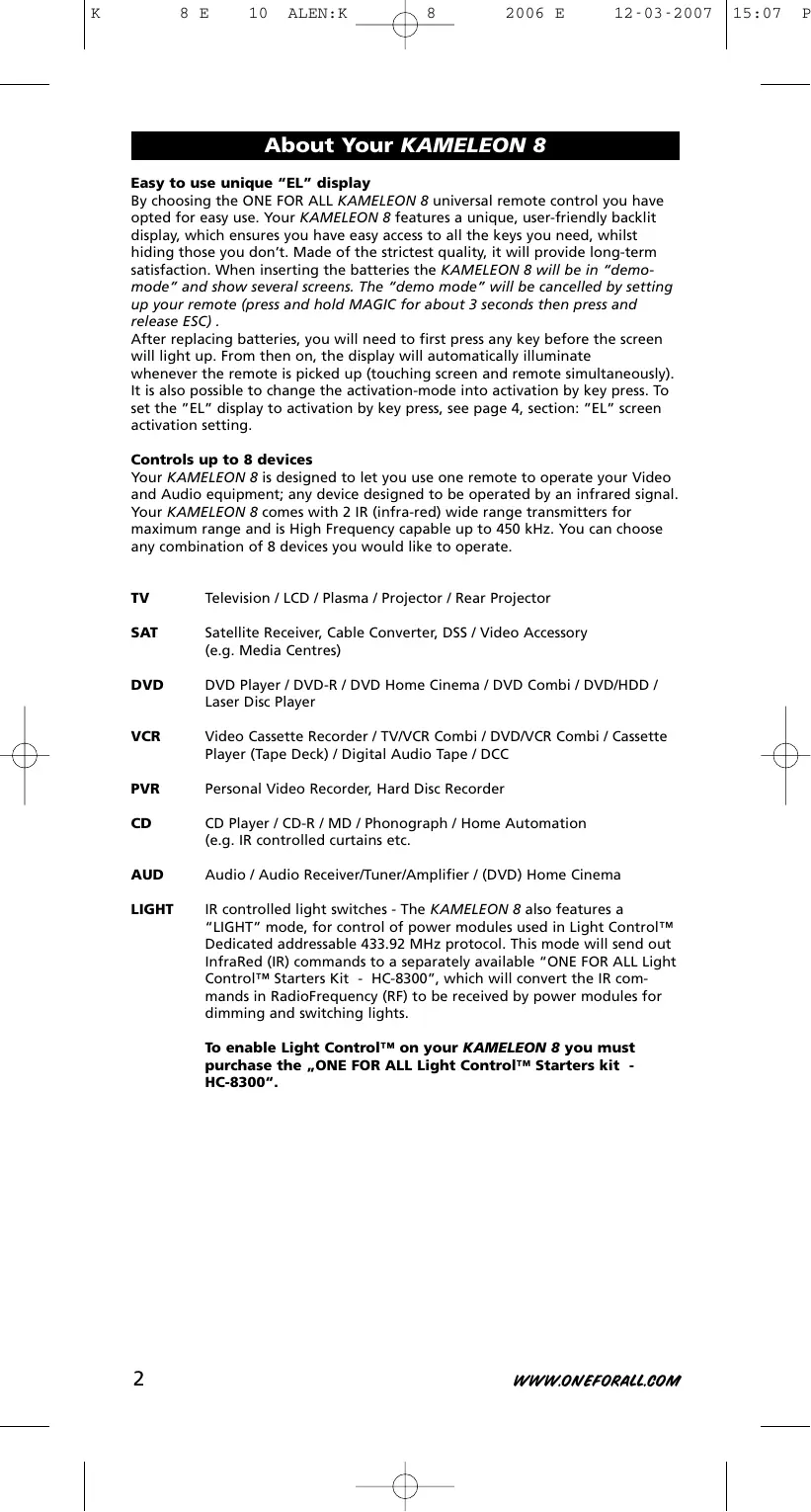

CBL VAC CD PHO MIS HOM AMP TUN CAS LDP DAT DVD PVR About Your KAMELEON 8

Easy to use unique “EL” display By choosing the ONE FOR ALL KAMELEON 8 universal remote control you have opted for easy use. Your KAMELEON 8 features a unique, user-friendly backlit display, which ensures you have easy access to all the keys you need, whilst hiding those you don’t. Made of the strictest quality, it will provide long-term satisfaction. When inserting the batteries the KAMELEON 8 will be in “demomode” and show several screens. The “demo mode” will be cancelled by setting up your remote (press and hold MAGIC for about 3 seconds then press and release ESC) . After replacing batteries, you will need to first press any key before the screen will light up. From then on, the display will automatically illuminate whenever the remote is picked up (touching screen and remote simultaneously). It is also possible to change the activation-mode into activation by key press. To set the ”EL” display to activation by key press, see page 4, section: ”EL” screen activation setting. Controls up to 8 devices Your KAMELEON 8 is designed to let you use one remote to operate your Video and Audio equipment; any device designed to be operated by an infrared signal. Your KAMELEON 8 comes with 2 IR (infra-red) wide range transmitters for maximum range and is High Frequency capable up to 450 kHz. You can choose any combination of 8 devices you would like to operate.

TV Television / LCD / Plasma / Projector / Rear Projector

SAT Satellite Receiver, Cable Converter, DSS / Video Accessory

(e.g. Media Centres)

DVD DVD Player / DVD-R / DVD Home Cinema / DVD Combi / DVD/HDD /

VCR Video Cassette Recorder / TV/VCR Combi / DVD/VCR Combi / Cassette

Player (Tape Deck) / Digital Audio Tape / DCC PVR Personal Video Recorder, Hard Disc Recorder

CD CD Player / CD-R / MD / Phonograph / Home Automation

(e.g. IR controlled curtains etc.

AUD Audio / Audio Receiver/Tuner/Amplifier / (DVD) Home Cinema

LIGHT IR controlled light switches - The KAMELEON 8 also features a

“LIGHT” mode, for control of power modules used in Light Control™ Dedicated addressable 433.92 MHz protocol. This mode will send out InfraRed (IR) commands to a separately available “ONE FOR ALL Light Control™ Starters Kit - HC-8300”, which will convert the IR commands in RadioFrequency (RF) to be received by power modules for dimming and switching lights. To enable Light Control™ on your KAMELEON 8 you must purchase the „ONE FOR ALL Light Control™ Starters kit HC-8300“.

P About Your KAMELEON 8

Learning feature The KAMELEON 8 comes equipped with the unique “learning feature”, which means that you can copy almost any function (max. ± 50) from your original (working) remote control onto your new KAMELEON 8 (See “Learning Feature” on page 15). This comes in handy, when after having setup your KAMELEON 8 you may find that some functions from your original remote are missing on your KAMELEON 8 key pad. Macros (sequence of commands) Your KAMELEON 8 comes with an easy-to-use Macro feature, allowing you to send several commands with the press of a single key (for example turning a few devices on or off). You can use for example the custom keys (I, II, III, IV) for this feature. Once you programmed a macro on one of these keys, the sequence will be performed in every mode. Code upgrade technology Your ONE FOR ALL KAMELEON 8 also offers a Code upgrade technology. This technology gives you the possibility to add codes to the memory. If your device uses a particular code which is not found in the KAMELEON 8 memory (using the “Direct code set up” on page 12 or the “Search Method” on page 13) you may use the ”Code Upgrade Technology” (see page 24). Thanks to this technology your KAMELEON 8 will never become obsolete.

Note: when inserting the batteries the KAMELEON 8 will be in “demo-mode (showing several screens). The KAMELEON 8 will go out of demo-mode automatically as you set it up. Your KAMELEON 8 requires 4 AAA/LR03 alkaline batteries. 1. Unscrew the battery door using a coin. 2. Insert the batteries with the positive end (+) upwards. 3. Replace the battery door back into position. Low Voltage Indicator As soon as the batteries run out of power the KAMELEON 8 will indicate this. The IR indicator will flash 5 times whenever you press a key and you cannot access programming mode. Please make sure to replace the batteries with 4 new AAA/LR03 alkaline batteries.

This product features an “EL” panel (Electro Luminescence technology) which is activated by touching screen and remote simultaneously to activation by keypress. In order to save battery life, the “EL” screen will stay illuminated for 8 seconds during normal use. One of the key features of the KAMELEON 8 is the “EL” display, which changes to suit the device you are controlling. The overview on page 6 will show you all the possible functions that you may obtain.

“EL” Screen activation setting

The KAMELEON 8 features an “EL” panel which is activated by touching screen and remote simultaneously or by keypress. It is possible to lock the KAMELEON 8 to one activation setting: 1.

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Now press 9 8 9. The IR Indicator will blink twice (or 4 times).

-> If the animated IR Indicator blinks twice the “EL” panel will be activated only by touching screen and remote simultaneously.

-> If the animated IR Indicator blinks four times the “EL” panel will be activated only by keypress. Simply perform these steps to lock the KAMELEON 8 to the activation setting that you prefer.

“EL” Screen brightness adjustment

To increase or decrease the brightness of the KAMELEON 8 “EL” screen: 1.

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

> To increase the brightness of the “EL” screen press and hold NEXT

> To decrease the brightness of the “EL” screen press and hold PREVIOUS.

Press ENTER to store the brightness setting and return to the setup screen OR press ESC to return to the previously set brightness level.

Increasing the brightness of the KAMELEON “EL” panel can decrease the battery life. Battery life varies from 3 - 12 months (depending on brightness setting and usage).

“EL” On time setting

To change the duration (default: 8 sec.) that the KAMELEON 8 “EL” screen will be ON, after each keypress during use of the remote (not programming mode):

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Press 9 7 8. The IR Indicator will blink twice.

Press 1, 2, 3, 4 or 5 (e.g. 1 = 4 seconds) depending on your choice, see table below. The animated IR Indicator will blink twice. Press ENTER to store the new EL on time setting and to return to the SETUP screen OR press ESC to return to the previously set EL on-time setting.

WWW.ONEFORALL.COM IR (infra-red) Indicator

The IR Indicator animates when IR is being “sent” or “received”. The KAMELEON 8 animated IR Indicator will show “outgoing IR” whenever a function key is pressed. When using the “Learning Procedure” or “Code Upgrade Procedure” the animated IR indicator will show “incoming IR”. Outgoing IR will be indicated by an “outside to inside” animation of the IR Indicator. Ingoing IR will be indicated by an “inside to outside” animation of the IR Indicator. The IR Indicator will give feedback when keys are pressed both during normal use and in programming mode (middle segment of the IR Indicator will blink).

The TV, SAT, DVD, VCR, PVR, CD, AUD and LIGHT keys select the device to be controlled. For example pressing the TV key allows the remote to control the functions of your Television, after pressing VCR you can operate your Video Recorder, after pressing the SAT key you can operate your Satellite Receiver or Cable Converter etc. (see page 2 for more details). After pressing a device (mode) key on your KAMELEON 8 the applicable device icon will animate, to show the currently activated mode. Pressing the device key will allow you to return to the main screen (TV, SAT and AUD modes). The KAMELEON 8 also features a “LIGHT” mode. Together with a separately available “ONE FOR ALL Light Control™ Starters Kit - HC-8300”, this allows you to dim and switch ON/OFF lights through-out your whole house.

MAGIC (in ”shifted” or ”programming” mode)

The MAGIC key is used to set up your KAMELEON 8 and to access special functions. If you press this key shortly, the screen will go into ”shifted” mode (for 10 seconds) which will give access to some secondary functions such as color, brightness and sleeptimer.

If you press the MAGIC key longer (about 3 seconds), the KAMELEON 8 will enter ”programming” mode. The screen will change to the “setup screen”. DEV SET

• Mode re-assignment

• To program missing functions

• To setup a key (I, II, III, IV) with a Sequence of

• “EL” Screen brightness adjustment

• To copy functions from your original working remote

• Deleting learned and Key Magic functions

• Volume punch through feature

• Variable EL On time (4 sec, 8 sec, 12 sec, 16 sec, 20 sec)

• Operational Reset • KAMELEON 8 - Timer • EL screen activation setting • Code Verification • Modem Upgrade

P SCROLL The SCROLL key gives you the possibility to move through the different screens (if applicable) within a certain mode during normal use and programming mode. This only applies to TV, SAT and AUD modes.

ENTER The ENTER key allows you to confirm your choice in programming mode.

POWER (in shifted mode; Sleeptimer)

The POWER key controls the same function as on your original remote.

In TV and SAT mode this key may feature the “Last Channel”, “Previous Program” or “Recall” function (depending on your original remote control). In VCR and DVD mode you will obtain the TIMER RECORD or TIMER ON/OFF function. In CD and AUD mode you will obtain the RANDOM (or shuffle) function.

PRESET / BACK In AUD mode, the PRESET key will change to the

PRESET/MENU screen allowing access to the PRESETS 1 - 9, 0 and +10 on the digits. In PVR and SAT menu mode you may use the “back” key to go to the previous menu screen.

In TV mode you will obtain the 16:9 (screen format) function. In VCR, DVD, AUD (main screen) and CD mode you will obtain the PROG (program) function.

TV/VCR / TV/SAT / TV/DVD In VCR mode you will obtain the TV/VCR function. In SAT mode you will obtain the TV/SAT function. In DVD mode you will obtain the TV/DVD function.

AUDIO / TUNE In DVD, SAT, PVR and AUD mode (main screen) you will obtain the “Audio” function. In AUD mode (preset/Menu screen) you will obtain the “TUNE –“ function.

INFO / CLEAR In SAT and PVR mode you can select the “info” function. In

CD, AUD (main screen) and DVD mode you will obtain the “clear” function.

P FAV / EDIT / SP/LP In SAT and PVR mode you will obtain the FAV (favourite) function. In DVD, CD and AUD mode you will obtain the

EDIT function to edit information. In VCR mode you will obtain the SP/LP (tape speed) function.

In SAT, PVR, DVD and AUD main mode you will obtain the SUBTITLE function. In AUD mode you will obtain the “TUNE +” function in the preset/Menu screen.

MENU Pressing this key will allow you to operate the Menu and in TV and AUD mode will also change the screen to the menu mode. The MENU key operates the same function it did on your original remote control.

EXIT The EXIT key will operate the same as on your original remote. To return to the main screen (TV, SAT and AUD mode) press the device key or use the SCROLL key.

DSP / GUIDE If available on your original remote, in AUD mode you will obtain the “DSP” function. In TV, SAT, DVD, VCR and PVR mode the “GUIDE” key will provide you the “guide” function, if available on your original remote control. In

TV mode the “GUIDE” key will change the screen to “menu mode screen”.

MUTE The Mute key operates the same function it did on your original remote control.

CH +/- (in shifted mode; brightness +/-)

These keys operate just as those on your original remote. In shifted TV mode (accessed by pressing MAGIC shortly and releasing it) these keys may provide you the brightness +/- function.

Directional keys (Up, Down, Left, Right)

If available on your original remote control, these keys will allow you to navigate through the menu. On some TV’s you may have to press CH+/- and VOL+/- keys OR the color keys (red, green, yellow, blue) to navigate through the menu, depending on your model of TV. In AUD main mode these keys will (if available on your original remote) allow you to adjust the CENTRE and REAR levels of your speaker(s). In AUD menu mode these keys will (if available on your original remote) allow you to navigate in the menu-screen.

P OK / SURROUND In menu mode this key will confirm your choice. On some devices you can confirm your menu option simply by pressing MENU. In AUD main mode this key will allow you to access the surround mode of your device (if available on your original remote).

VOL +/- (in shifted mode; colour +/-)

The volume keys operate just as those on your original remote. In shifted TV mode (accessed by pressing MAGIC shortly and releasing it) these keys may provide you the colour +/- function.

Number keys / INPUT (in prog. Mode; setup features)

The number (1 – 9, 0) keys provide functions just like your original remote. In AUD mode, the number (1 – 9, 0, -/—) keys may provide (if available on your original remote) an INPUT function (TUNER, CD etc.). If your original remote features a “function select” or “input select” function you may find this under the AV key. When in programming mode, the digit keys will display the various setup features.

-/-- / PPV If your original remote uses one/two digit input switching

(-/-- symbol), this function can be obtained by pressing the -/-- key. In SAT (menu screen) and PVR mode you will obtain the PPV function.

AV / HELP The AV key operates the same function it did on your original remote control. If your original television or video remote uses a 20 key, this function can be found by pressing the AV key. If your original satellite or PVR remote comes with a “help” function, you can obtain this pressing the HELP key. In AUD mode you will obtain the

“input source” function.

ESC This key only appears in programming mode and is used to return to the Setup screen or to exit programming mode.

Transport keys (PLAY, STOP etc.)

When in VCR, DVD, SAT (menu screen), PVR, CD or AUD mode; these keys operate the transport functions like PLAY, FF, REW, SKIP+/- (TRACK+/-) etc.of your device. To prevent accidental recording, the RECORD key must be pressed twice to start recording.

These keys are used to operate the main teletext functions. Of course, your Television must have teletext capability. For a more detailed explanation of teletext and fastext, please refer to the manual of your television. Remember, different televisions control teletext and fastext functions in different ways. Not all of the teletext functions may be available on your particular model.

EXPAND: Shows the top half of the teletext page in larger letters.

By pressing again, you can see the bottom half of the teletext page enlarged. To return to regular teletext viewing, press the EXPAND key again, or press the TEXT ON key, depending on your television. TEXT ON: In TV mode: once in text mode, pressing this key may switch to MIX or TURN OFF text, depending on your television. This function is also available in SAT mode. HOLD/STOP: Stops changing pages. MIX: Shows both text and TV picture. TEXT OFF: In TV mode: switches the television back to regular viewing mode. On some televisions this may be done by pressing the “TEXT ON” key several times. This function is also available in SAT mode. TEXT INDEX: This key will give you access to the index function within the text mode.

Custom keys (I, II, III, IV)

The custom keys are spare keys that give you the possibility to customize the KAMELEON 8 according to your original remote control using the “Learning feature” (see page 15) or ”Key Magic®” (see page 18). These keys are also ideal for use as “Macro keys” (see page 22).

Red / Green / Yellow / Blue

When accessing the text mode, the colour keys marked red, green, yellow and blue, allow you to access the fastext functions of your television. If on your original remote control these keys are used for Menu navigation, the KAMELEON 8 Fastext keys may operate the same.

P Setting up the KAMELEON 8

(How to set up the KAMELEON 8 to control your devices) Note: when inserting the batteries the KAMELEON 8 will be in “demomode (showing several screens). Just follow the next steps and the KAMELEON 8 will go out of demo-mode automatically. Example: To set up the KAMELEON 8 for your television: 1.

Make sure your television is switched ON (not on standby).

Find your device code in the codelist (pages 261 - 288). Codes are listed by device mode and brand name. The most popular code for each brand is listed first. If your brand is not listed at all in the code section, try the

Search Method on page 13.

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Press the DEV SET key.

Press and release the TV key to select the device type you like to setup.

Enter the first four-digit code (see codelist pages 261 288) using the number keys. The animated IR Indicator will blink twice.

Now, aim your KAMELEON 8 at your television and try the following keys to test if the KAMELEON 8 will work with your device;

CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

If your device is responding, press ENTER to save the code.

If your device does not respond, just enter the next code listed under you brand. If none of the codes listed for your brand operate your device, then try the Search Method described on page 13.

Press and keep ESC pressed for about 3 seconds to return to user mode (all keys for the device mode are displayed), OR press a device key to select the next device you like to setup.

Most TV’s do not switch back on pressing the POWER key, please try pressing “CHANNEL+” key to switch your TV back on.

Some codes are quite similar. If your device does not respond or is not functioning properly with one of the codes, try another code listed under your brand. To set up your other devices, follow the same instructions above, only press the appropriate device key during step 5. Remember to press the correct device key before operating your device. Only one device can be assigned to a device key.

To set up a second TV, VCR, SAT, PVR, CD, AUD or DVD (See page 19).

P Setting up the KAMELEON 8

Search Method --> If your device does not respond to the KAMELEON 8 after you have tried all the codes listed for your brand. --> If your brand is not listed at all. The Search Method allows you to scan through all the codes contained in the memory of the KAMELEON 8. Example: To search for your TV code: 1. Switch ON your Television (not on standby).

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Press and release the TV key to select the device type you like to setup.

Point the KAMELEON 8 at your Television. Now press

NEXT over and over, until your Television turns off (every time you press the NEXT key the KAMELEON 8 will send out a POWER signal from the next code contained in the memory). You may have to press NEXT many times (up to 150 times) so please be patient. Remember to keep pointing the KAMELEON 8 at your Television while pressing this key. (If you skip past a code, you can go to the previous code(s) by pressing the PREVIOUS key).

When your Television switches off, press the ENTER key to store the Code. The animated IR Indicator will light up twice.

Press ESC to return to the setup screen, or press a device key if you want to perform the Search Method for another device.

Press ESC again to return to user mode (all keys are displayed).

Turn your device (television) back on and try all the remote’s functions to ensure they are working properly. If you cannot control your Television properly, please continue the Search Method, you may be using the wrong Code.

During step 5, instead of POWER you can also press any other key displayed.

This will be the function sent for the next key presses of NEXT or PREVIOUS in step 6. If for example; during step 5 you press “2” instead of “POWER”, the KAMELEON 8 will send the “number 2” signal every time you press NEXT during step 6 (make sure your TV is switched to another channel). To search for your other devices, follow the same instructions above, only press the appropriate device key during step 4. If your Video’s original remote control does not have a POWER key, press PLAY instead of POWER during step 5. In the LIGHT-mode the Search Method does not work.

(To find out which code is currently programmed) If you have set up your KAMELEON 8 via the Search Method, you can blink back your code for future reference. Please note that the animated IR Indicator will indicate the 4 digits by animated blinks. Example: To blink out your television code: 1.

Press and hold down the MAGIC key (for about 3 seconds).

The screen will change to the setup screen.

Press 9 9 0, the animated IR Indicator will light up twice.

Press and release the TV key to select the device type you like to check the code for.

For the first digit of your four-digit code, press 1 and count the blinks of the animated IR Indicator. If there are no blinks, the digit is “0”.

For the second digit, press 2 and count the animated blinks.

If there are no blinks, the digit is “0”.

For the third digit, press 3 and count the animated blinks.

If there are no blinks, the digit is “0”.

For the fourth digit, press 4 and count the animated blinks.

If there are no blinks, the digit is “0”. Now you have found your four-digit code.

Press ENTER to return to the setup screen OR press a device key if you want to perform the blink out for another device.

Press and hold ESC (for about 3 seconds) to return to user mode.

You can perform steps 5 – 8 in any order and as many times as you want. So, if you lost count it is possible to blink back the corresponding number again

(e.g. if during step 6 you did not see exactly how many times the animated IR Indicator blinked just press “number 2” again and count again). To blink back the code for your other devices follow the instructions above, only press the appropriate device key during step 4.

Quick code Reference

Write down the codes for your devices in the boxes below for quick and easy reference.

■■■■ ■■■■ ■■■■ WWW.ONEFORALL.COM

(How to copy functions from your original working remote onto the KAMELEON 8) The KAMELEON 8 comes with a complete library of pre-programmed codes. After you have set up the KAMELEON 8 for your device, you may find that there are one or more keys that you had on the original remote control, which do not have a place on the KAMELEON 8 keypad. The KAMELEON 8 offers a special Learning feature that allows you to copy almost any function from your original remote control onto the keypad of the KAMELEON 8. Before you start: - Make sure your original remote is working correctly. - Make sure neither your KAMELEON 8, nor your original remote control is pointing at your device.

Example: To copy the “mono/stereo” function from your original TV remote control onto the ”I, II, III or IV”-key of your KAMELEON 8. 1.

Place the KAMELEON 8 and your original remote control on a flat surface. Make sure the ends which you normally point at your device are facing each other. Point the original remote to the front of the KAMELEON 8 (see picture below). Keep the remotes at a distance of 2 to 5 cm (0.8 to 2 inches).

Press and hold down the MAGIC key (for about

3 seconds). The screen will change to the setup screen.

Press the device key (Example: TV key) on the KAMELEON 8 remote to select the mode to which you want to place the learned function.

Press the key (Example: “I” key) on the KAMELEON 8 remote where you want to place the learned function. The IR Indicator will show “incoming IR” three times and then the display will switch off.

Press and hold the key that you want to copy (Example: mono/stereo) on your original remote control. The display switches back on and you will see two blinks to indicate successful learning operation.

If you want to copy other functions within the same mode, simply repeat steps 5 and 6 pressing the next key you want to copy by learning. If you want to copy another function in a different mode, simply continue with step 4 followed by steps 5 and 6.

Press ENTER to exit the learning mode and return to the setup screen OR press and hold ESC to return to the user screen.

P As soon as the display switches off in step 5 you need to press the key (in this example: the ”mono/stereo” key) on your original remote within

15 seconds. If no key is pressed while in learning mode, the remote will return to user mode after 30 seconds. During learning, keys such as (TV) menu, (TV) guide etc. will not change screen when pressed. If you learn a function on a key, the original KAMELEON 8 function automatically becomes shifted. Press the MAGIC key then the key to access it (this excludes the POWER, Channel and Volume keys). If you learned on a digit key, access the original function by pressing magic twice and then the digit. If you want to learn a function on a key that is not in the main screen, use the SCROLL key to change the screen. The learning feature is mode specific. Therefore you can place one learned function per mode on the same key. The KAMELEON 8 can learn approximately 50 functions. The amount of keys depends on the other programmed functions and on the remote to be learned from. You can replace a learned function by placing another learned function on top. Please make sure not to use the learning procedure when in direct sunlight or under incandescent lights. Make sure you are using new batteries before following the learning instructions. Upon changing the batteries, your learned functions will be retained.

It is also possible to place a function shifted on a key to maintain the original function. Example: to place the mono/stereo function shifted on the “red” key. To place the (e.g. mono/stereo) function shifted on the red key, simply follow steps 1-8 on page 15, only press ”MAGIC” then the ”red” key (instead of “I”) during step 5. To access the e.g. ”mono/stereo” function in this example; simply press ”MAGIC” and then the ”red” key.

If a Shifted Learned function is placed on the Channel and Volume keys then the “Colour & Brightness“ features will be sacrificed.

If you place a function shifted on a digit key (0 - 9) you need to press MAGIC twice then the digit key to access this shifted function.

To delete a “Key Magic function” or “learned function” from a certain key: Example: to delete a “Key Magic function” or “learned function” from the “I” key in TV mode: 1. 2. 3. 4. 5.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press IR DELETE. Press the corresponding device key (example TV). Press the corresponding function key (example “I”). Press ENTER to restore the original function OR press and hold ESC to return to the user screen. The original function (if present) of the KAMELEON 8 will be restored.

To delete a shifted “Key Magic function” or “learned function” from a certain key:

Example: To delete one single ”shifted” learned or Key Magic function, follow the steps below. Example: to delete the mono/stereo function learned shifted on the ”red” key in TV mode: 1. 2. 3. 4. 5. 6.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press IR DELETE. Press the corresponding device key (example TV). Press MAGIC. Press the corresponding function key (example “Red key”). Press ENTER to restore the original function OR press and hold ESC to return to the user screen. The original function (if present) of the KAMELEON 8 will be restored.

To delete all “Key Magic functions” or “learned functions” from a certain mode:

Example: to delete all “Key Magic function” or “learned functions” from the TV mode: 1. 2. 3. 4.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press IR DELETE. Press the corresponding device key (example TV). Press ENTER to restore the original function OR press and hold ESC to return to the user screen.

- The original function (if present) of the KAMELEON 8 will be restored.

The Operational Reset will erase all learned functions across all modes. It may also delete some other programmed functions like Key Magic or Macros. 1. 2. 3.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press OTHER. Press 9 8 0. The IR Indicator will blink four times and the remote will return to the setup screen.

Key Magic® (How to program missing functions) Key Magic® is an exclusive ONE FOR ALL feature. The design of the KAMELEON 8 ensures that many functions of your original remote control can be operated even those that do not have their own key on the KAMELEON 8 keypad. Frequently used functions can be assigned to a key of your choice using the Key Magic® feature of your KAMELEON 8. In order to program a certain function with Key Magic® you need to know the corresponding function code. As the function codes vary with different types of devices, they cannot be found in the manual. You can request your function codes through our consumer service help-line, by letter, fax or e-mail. All we need to know is: Brand and Model number of the device in question (for verification if you • are using the correct code). The 4-digit set-up code your device is working with. • • How the function was labeled on your original remote control. You can also visit our website (www.oneforall.com) to find an answer to your questions. Once you obtain(ed) your function code(s) from customer service, programming the code is easy: 1. 2. 3. 4. 5. 6.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press KEY MAGIC. Press the device key (TV, SAT, DVD, VCR, PVR, CD or AUD). Press the MAGIC key once. Enter the 5-digit function code (provided by customer service). Press the key to which the function will be assigned (if this key is located in a different screen than the main screen, use the SCROLL key to access the screen). The IR Indicator will blink twice and the screen will return to the Setup screen. Key Magic® functions are mode specific. To access the function you have programmed, press the device key first. Key Magic® can be assigned to any key EXCEPT the following: Device keys, ESC, ENTER, MAGIC key and the SCROLL key. Please note all the extended function codes you obtain from customer service for easy future reference. Keys such as (TV) menu, (TV) guide etc. will not change screen when pressed during Key Magic® programming.

EXTENDED FUNCTION REFERENCE

(first entry is an example): DEVICE TV

Mode re-assignment (How to set up two of the same devices on the KAMELEON 8) It is possible to change the mode of any device key. This is useful if you want to set up two of the same devices on the KAMELEON 8. The modified device key will display the applicable keys for the revised mode. The code can be set up using the “Direct set up” (p. 12) or “Search method” (p. 13). To change a device key, see the two examples below. Example 1; if you like to program a second TV on the DVD key. Example 2; if you like to program a second VCR on the SAT key.

To program a second Television on the DVD key (for example), you need to change the DVD key into a TV key, so press: (*)

The DVD key has now become a second TV key and will display the applicable keys for this mode.

Now enter the Set-Up code for your second TV by pressing:

To program a second Video Recorder on the SAT key (for example), you need to change the SAT key into a VCR key, so press: (*)

The SAT key has now become a second VCR key and will display the applicable keys for this mode.

Now enter the Set-Up code for your second VCR by pressing:

If you program a different device type on another key (e.g. second TV on the DVD key) the original device key icon will remain, but the displayed function keys will change to suit the new device mode. For example; if a second TV is programmed on the DVD key, TV-text functions will be displayed in DVD mode.

Resetting a Device key

Example: To reset the DVD key to its original mode, press: (*)

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

The animated IR Indicator will blink twice (the screen will change to the setup screen).

Volume Punch-Through This feature allows you to adjust the volume of a certain mode (e.g. TV mode) while being in a different mode (e.g. VCR). If for example you’re watching a programme on your Video, you can adjust the volume (a TV function) without first pressing the TV key. The chart below lists some of the possibilities: Last key pressed:

SAT DVD VCR PVR CD AUD LIGHT You can control:

: TV volume up and : TV volume up and : TV volume up and : TV volume up and : TV volume up and : TV volume up and : TV volume up and

down, down, down, down, down, down, down,

mute mute mute mute mute mute mute

Example: To punch through to AUD volume, being in any other mode

(e.g. VCR, SAT or DVD mode): 1. 2. 3.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press VOLUME. Then press the AUD key and the animated IR Indicator will blink twice and the remote will return to the setup screen.

Result: VOL+/- and MUTE wil be from AUD mode independent of the selected device mode.

To cancel the “Volume Punch Through” per mode:

Example: to cancel the “Volume Punch Through” for the VCR mode: 1. 2. 3. 4.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press VOLUME. Then press the VOL- ( ) key. Press VCR once. The IR Indicator will blink four times and the unit will return to the SETUP screen.

Result: being in VCR mode, you will be able to control VOL+/- and MUTE functions of your VCR (provided it has volume control).

To cancel the “Volume Punch Through” for all modes:

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen. Press VOLUME. Then press the VOL+ ( ) key and the IR Indicator will blink four times and the screen will return to the setup screen.

Result: In all modes the VOL+, VOL- and MUTE keys will now operate the original functions again.

Device Sleeptimer If your device has a “Sleeptimer” function built in, you can access this function with your KAMELEON 8 remote. To do so: 1.

Make sure your device is switched on.

Press the device key TV (or SAT, DVD, VCR, PVR, CD, AUD).

Point the KAMELEON 8 at your device and press and release the MAGIC key then press POWER. You should see the Sleeptimer activate on your device.

To increase the timer, simply press POWER again (within 10 seconds) until the timer gets to the desired time.

To deactivate the “Sleeptimer”, repeat steps 1 – 3 above. During step 3, continue pressing POWER again (within 10 seconds) until the timer indicates zero minutes.

Depending on how you used sleeptimer on the original remote, you might need to access sleeptimer in a different way (through menu for example).

The KAMELEON 8 – Timer function allows you to activate a <desired function> from a specific <device mode> within a <specific amount of minutes> (max. amount of timer is 60 minutes). -

The <desired function> can be an existing function within a specific mode, a

Macro, a Key Magic function or a Learned function.

Example: you want your TV to switch off after 45 minutes.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press 9 8 5 to enter the KAMELEON 8 –Timer programming mode.

The animated IR Indicator will blink twice.

Press TV to select the mode where the KAMELEON 8 – Timer function will come from. The animated IR Indicator will blink twice.

Press the POWER key to select the desired function. The animated IR Indicator will blink twice.

Now press 4 5 to enter the amount of minutes after which the <Desired function> needs to be activated (e.g. for 5 min. press 05, max. up to 60).

Press ENTER. The animated IR Indicator will blink twice and the KAMELEON

8– Timer function will be activated.

Invalid key presses during the programming of KAMELEON 8 - Timer will be ignored.

The <Desired function> can be any key except for Device keys, SCROLL, ESC, ENTER and MAGIC. While the KAMELEON 8 – Timer is running, the IR animation will light every 15 seconds. The KAMELEON 8 –Timer function is cancelled by setting up a new KAMELEON 8 – Timer function. If no key is pressed while setting up a KAMELEON 8 – Timer function, the remote will return to user mode after 30 seconds. The SCROLL key can be accessed any time during programming if applicable in the current device mode.

Macros (sequence of commands) Macros (direct) You can program your KAMELEON 8 to issue a sequence of commands at the press of one button. For example, you may want to turn off your TV, VCR and Satellite at the same time. Any sequence of commands you regularly use can be reduced to one key stroke for your convenience. A key that is programmed with a Macro works through all modes (provided it’s accessible in that mode). Therefore a Macro can best be set on either the I, II, III or IV key. However, you can install a Macro on any key (provided it’s accessible in that mode), except for the device keys (TV, SAT, DVD, VCR, PVR, CD, AUD and LIGHT), MAGIC, ESC, ENTER and the SCROLL key. Example: To set up a Macro that switches off your TV, VCR and SAT on the “I” key on your KAMELEON 8: 1.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press the device key (e.g. TV) to display all keys of the mode.

Then press the key to which the Macro will be assigned, in this case the “I” key.

Next press TV, POWER, VCR, POWER, SAT, POWER.

6. To store the Macro, press ENTER. The screen will return to the setup screen.

Result: Whenever you press the “I” key, the KAMELEON 8 will turn off your TV, VCR and Satellite receiver.

Each MACRO can consist of a maximum of 22 keystrokes.

To include a function from a particular screen in a mode, use the SCROLL key. Make sure that you program a Macro on a spare key that you don’t use in any mode. Once you program a Macro on a specific key, the sequence will work regardless of the mode (TV, SAT, DVD, VCR, PVR, CD, AUD or LIGHT) you are using (if the label is the same as the label on which the Macro was programmed). This means that the function picked on that specific key will be sacrificed. To avoid accidental recordings with the KAMELEON 8, you must press the RECORD key twice to begin recording. Please note that if you assign a Macro or Shifted Macro to the RECORD key, this will deactivate the double key press. Therefore we recommend not to assign a Macro to this key. If you had to hold down a key for a few seconds on the original remote control to get a function, this function may not work in a macro on your KAMELEON 8 remote. Keys such as (TV) menu, (TV) guide etc. will not change screen when pressed during Macro programming. Upon changing the batteries your Macro(s) will be retained. If you program a Macro on a key, the original function will become shifted (excluding POWER, CH+/- and VOL+/- keys). Press MAGIC then the key to access it. If you place a Macro on a digit key, access the original function by pressing MAGIC twice and then the digit key. You can replace a Macro by placing another Macro on top.

Shifted Macros It is also possible to place a shifted Macro on a key to maintain the original function. The MAGIC key can be used as “SHIFT-function”. Example: To set up a Shifted Macro that switches off your TV, VCR and SAT on the “RED” key on your KAMELEON 8: (so that you will keep the original function on the “RED” key).

SAT, POWER ENTER Now every time you press ”MAGIC”, then the ”red” key, the KAMELEON 8 will turn off your TV, VCR and Satellite.

If a Shifted Macro is placed on the POWER, CH+/- or VOL+/- keys, the

Sleeptimer and Colour/Brightness features will be sacrificed.

To erase a (direct) Macro from a key

Example: To erase the Macro from the “I” key, press: MAGIC*

ENTER To erase a (shifted) Macro

Example: To erase the Shifted Macro from the ”red” key press:

ENTER To erase all Macros in all modes

(*) Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Code Upgrade Technology Your KAMELEON 8 contains a unique feature, which allows new codes to be added simply by holding it to your telephone. In a matter of seconds, our magnetic coupling technology quickly and reliably transfers information to the KAMELEON 8 without complex plugs, adapters or attachments. This means, as you buy new products in the future, the KAMELEON 8 will never become obsolete.

(Upgrade your KAMELEON 8 remote…via your PC) 1.

Visit our website “www.oneforall.com”.

Select “Product support”.

Select “Universal Remote

Select the ONE FOR ALL remote you want to upgrade:

KAMELEON 8 (URC-8308).

Now you have entered our special Online Download section. From this point just follow the instructions on the screen for easy upgrade of your remote.

(Upgrade your KAMELEON 8 remote…via your phone) Alternatively ring our consumer help-line and one of our customer service representatives will assist you through the entire process of upgrading your KAMELEON 8. To ensure the process goes smoothly, here are a few steps to follow: 1.

Write down the brand name(s) and model number(s) of your device(s) in the space provided on the Consumer Service page before you call.

Ring our consumer help-line and explain which device(s) you would like added to your KAMELEON 8.

After our customer service agent records the brand name(s) and model number(s) of your device(s), he/she will lead you through the set up procedure and then will ask you to hold the KAMELEON 8 to the speaker portion of your telephone (see diagram below). In doing this, the information needed for your device is transferred through the telephone into your

KAMELEON 8 in a matter of seconds. Please note, cordless telephones, speaker telephones and mobile telephones are not recommended.

After your KAMELEON 8 has been upgraded by telephone, stay on the line. Our customer service agent will ensure that your

KAMELEON 8 is working properly with your device(s) and will answer any other questions you may have.

Colour & Brightness Depending on the functions of your original remote control, the KAMELEON 8 can operate the colour and brightness settings of your Television. To adjust the colour: Press the MAGIC key followed by Volume + (for colour +) or Volume - (for colour -). To adjust the brightness: Press the MAGIC key followed by Channel + (for brightness +) or Channel - (for brightness -). Depending on how you used colour and brightness on the original remote, you may need to access colour and brightness in a different way (through menu for example).

Problem & Solution Problem:

Your brand is not listed in the code section?

Try the search method on page 13.

The KAMELEON 8 does not operate your device(s)?

A) Try all the codes listed for your brand.

B) Try the search method on page 13.

The KAMELEON 8 is not performing commands properly?

You may be using the wrong code. Try repeating the Direct Set-Up using another code listed under your brand or start the search method over again to locate the proper code.

Problems changing channels?

Enter the program number exactly as you would on your original remote.

Video / PVR / DVD / CD / AUD not recording?

As a safety feature on your KAMELEON 8, you must press the Record key twice.

The KAMELEON 8 does not respond after pressing a key?

Make sure you are using new batteries and are aiming the KAMELEON 8 at your device.

Your original remote had a

You can find this function on the AV key.

Upon each key press, the IR indicator will blink 5 times?

Replace batteries with 4 fresh, new

“AAA/LR03” alkaline batteries.

You are not able to enter programming mode?

Replace batteries with 4 fresh, new

“AAA/LR03” alkaline batteries.

Customer Service If you still have questions about the operation of your ONE FOR ALL KAMELEON 8 universal remote and could not find the answer(s) in the Trouble-Shooting section (page 25), you may want to contact the customer service department for assistance. You may care to visit our Internet-site: www.oneforall.com Our internet-site has many advantages: - 24 hours access - no waiting time - page for Frequently Asked Questions - info about the ONE FOR ALL product range Before contacting us, by Fax, E-mail or Phone, make sure you have the required information available by filling in the table below. What do we need to know before you contact us: 1 That you have the ONE FOR ALL KAMELEON 8 URC-8308 (*) universal remote. 2 The date of purchase (//). 3 A list of your equipment/models: (see example below). Device

Type/model numbers can often be found in your equipment owner’s manual or on the factory plate behind the device.

When you call us you will be asked to enter a URC-number.

The URC-number of your KAMELEON 8 is 8308.

When calling with a mobile phone:

- You may be charged extra when calling us from; the UK or France. - You may not be able to contact us when calling from; Belgium, the Netherlands, Luxemburg, Greece, Portugal, Switzerland, Italy, Ireland or Austria.

Just send a blank message, you’ll get a form to be filled out as auto-reply.

P Personal Video Recorder, Hard Disc Recorder

CD CH +, CHVOL +, VOL MUTE POWER.

SAT, POWER ENTER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

The DVD key has now become a second TV key and will display the applicable keys for this mode.

SAT, VEILLE ENTER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

SAT, POWER ENTER Seleccione “Product Support”.

CANAL +, CANALVOLUME +, VOLUME MUTE POWER.

SAT, POWER ENTER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

Premete TV, POWER, VCR, POWER, SAT, POWER.

SAT, POWER ENTER Televisie / LCD / Plasma / Projector / Rear-projection

SAT Video Cassette Recorder / TV/VCR Combi / DVD/VCR Combi / Cassette

Speler (Tape Deck) / Digitale Audio Cassette / DCC PVR Personal Video Recorder, Hard Disc Recorder

• Apparaat instellen (Device Setup)

• Zoek methode (Search Method)

• Apparaatmodus veranderen (Mode re-assignment)

• Volume direct bediening

OTHER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

Daarna drukt u TV, POWER, VCR, POWER, SAT, POWER.

SAT, POWER ENTER Selecteer “Product support”.

Selecteer “Universal Remote

• Módok újrakiosztása

BE-KI, SAT, BE-KI BEVITEL

Personal Video Recorder, Hard Disc Recorder

CD Naciśnij OTHER (INNE).

Naciśnij OTHER (INNE).

CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER MENU

Naciśnij OTHER (INNE).

Naciśnij OTHER (INNE).

POWER ENTER TV, NAPÁJENÍ (POWER),

VCR, NAPÁJENÍ (POWER), SAT, NAPÁJENÍ (POWER)

ENTER TV A.R. Systems

0606 1163 0264 0556 0216 0433 0361 0556 0805 1505 0371 0745 0753 0163 0556 0216 0606 0648

0191 0218 0516 0548 0264 1037 1259

0556 0668 0412 0218 0282 0264 1982 1037 0418 0355 0163 0443

0516 0264 0371 0037 0556 0433 0362 1037 0648 0556 0009 0650 0556 0650

0109 0216 0486 0556 Aristona 0556 Arthur Martin 0163 ASA 0105 Asberg 0037 Asora 0009 Astra 0037 Asuka 0218 ATD 0698 Atlantic 0037 Atori 0009 Auchan 0163 Audiosonic 0009 0556 0370 Audioton 0486 Audioworld 0698 Autovox 0247 AVP 1908 AWA 0011 0412 0606 Axxent 0009 Axxon 0714 B&D 1217 Baird 0109 0208 Bang & Olufsen 0565 Barco 0163 Basic Line 0374 0556 0455 Bauer 0805 Baur 0009 0037 1505 Beaumark 0178 Beko 0714 0037 0606 Belson 1191 Bennett 0556 BenQ 1756 Beon 0037 Berthen 0668 Best 0370

0037 0346 0070 0556 0556 0216 0264 0282 0556 0216

0714 0715 0218 0486 0264

0035 0264 0412 0706 1908 0208 0433 0009 0714 0602 0631 0377 0473

0455 Accent 0009 Acer 1339 Adcom 0625 ADL 1217 Admiral 0093 0264 Adyson 0216 AEA 0037 AEG 1556 Agashi 0216 AGB 0516 Aiko 0009 0371 0191 Aim 0037 0208 Aiwa 0701 Akai 0361 0037 0035 0729 0715 0480 0178 1908 1935 Akashi 0860 Akiba 0218 0556 Akira 0418 Akito 0037 Akura 0037 0009 0714 Alaron 0216 Alba 0037 0009 0668 0247 1908 Alkos 0035 All-Tel 0865 Allstar 0037 Amplivision 0370 Amstrad 0009 0218 0412 1982 Anam 0037 Anam National 0037

0037 0556 0216 0108 0264 1376

0009 0339 0009 0535 0556

0218 0282 1037 0195 0512 0191 0361

0418 1037 0556 0715 0808 0894 0037 0556 0418

Edison Cosmel Crosley Crown

0247 0418 0264 0894 0820

0037 0556 0216 0009 0011 0036 0264 0037 0556

Digatron Digihome Digiline DigiLogic Digitex Digitor Digivision DigiX DiK Dixi DL

Europhon Evesham Excel Expert Exquisit

0037 0556 0247 0780 0037 0587

FairTec Family Life Fast Fenner Ferguson

0519 0037 0556 0394 0163 1137 1149 1037

1259 0706 Firstline 0362 0370 0163 0556 0218 0191 0610 0516 0361 0516 0163 0037 0556 0264

0556 0037 0361 0037 0264

0371 0070 0282 1909 0486 0370 0668

Forgestone Formenti FormentiPhoenix Fortress Fraba Friac Frontech

WWW.ONEFORALL.COM Fujimaro

0037 0037 0247 1248 0037 0163 0037 0037 1191 0037 1901 0374 0073 0193 0556 0108 1037 0163 0556 0216 0208 0163 0105 0346 0070 0480 0606 0037 0714 0247 0361 1363 0036 0163 0037 0455 1149 0193 0163 0216 0216 0093 0037 0009 0499 0247 0163 0865

0516 0163 0556 0216 0556 0556 0247 0556 0556 0009 0625 0109 0035 0361 0512 0371 0264 0346 0363 0037 0163 0411 1556 0808 0556 0163 1909 1037 1163 0208

0412 1908 0548 0287 0556 0516 0631 0473

0193 0361 0361 0343 0714 0715 0492 0418

Haier Halifax Hammerstein Hampton Hanimex Hanseatic

0706 0698 0264 0264 0216 0218 0037

0556 0653 0218 0650 0218 0216 0377

International Intervision

0216 Kaisui 0556 Kambrook

0163 0370 0074 0556 0411 0361 0247 0556 0610 0714 0163

0247 0037 1298 0820 0556 0361

0556 0556 0361 0200 0556

0519 0487 0247 0037 0371 0037 0371 0216 0480 0193 0610 0548 0346 0610

Innowert inotech Interactive

0753 0556 0037 0218 0216 1137

0370 0610 0411 0499 0556 0435 1908 0556 0247 0218 0556 0371 0714 0218 0641 0587 0894 0556 0556 0264

0216 0714 0370 0037 0163

Megatron MEI Melectronic

0108 0178 0556 Mitsuri General 0163 Mivar 0370 Monaco 0009 Morgan's 0037 Motorola 0093 MTC 0370 0361

0556 0714 0808 0519 0556 0512 1137 1908 1037 1437 1248 0880 1289

0037 0247 0480 0163 0361 0714 0178

0512 0105 0492 0287 0191

0361 0447 0195 0556 1533 0037 0556

0011 0355 0036 0371 0433 0443 0363 0455

TV Multibroadcast 0193

0037 0556 0486 0668 Multitec Multitech

Musikland MyCom Myryad NAD Naiko Nakimura Naonis Narita NAT National

Normerel Novak Novatronic NU-TEC Nurnberg Oceanic Odeon

New World Nicamagic Nikkai

Phonola Pilot Pioneer

Plantron Playsonic Policom

Poppy Portland Powerpoint PrandoniPrince Premier President Prima Princess Prinston Prinz Profex Profi Profitronic Proline

0556 0760 0556 0361 0486 0370 0037 0714 0109 0074 0282 0009 0374 0487

0037 0556 0335 0560 0343 0516 0361 0548 0650

0009 0011 0163 1982 0556 1163 0712 1037

Silva Schneider 1556 0036 0037 0455 0361 Silver

0339 0216 0009 0037 0108 0556 0170 0556 0556 0714 0374 0037 0352 0361 0163 1908

0361 1191 0556 0343 0218 0648 1982

0519 0247 0668 0714 0070

1037 0009 0036 1163 0714 0516

0362 0163 0411 0036 0264 0346

0455 1193 0516 1163 0556 0556

0216 0093 0036 0653 0200 0760

0516 0535 0200 0195 0328 0037 0556 0556 0587

0668 0487 0865 0361 0556 Sonawa 0218 Soniko 0037 Soniq 1467 Sonitron 0208 Sonneclair 0037 Sonoko 0037 0282 Sonolor 0208 0361 Sontec 0037 Sony 1505 0353 0093 Sound & Vision 0218 Soundesign 0178 Soundwave 0037 Soyea 0773 Spectra 0009 Ssangyong 0009 Staksonic 0009 Standard 0037 0009 Starlite 0009 0264 Stenway 0282 Stern 0163 0435 Stevison 1982 Strato 0037 Strong 1163 0556 Sunic Line 0037 Sunkai 0355 0037 Sunstar 0371 0264

0361 0516 1505 0556 1908 0282 0880 0178 1504

0370 0339 0556 0556 0009 0264 0163 0282 0556 1651 0036 0170 0374

0556 0487 0634 0216 1901 0163

Teleview Tempest Tennessee Tensai

Westinghouse 0216 Windsor 0668 Windstar 0282 Windy Sam 0556 Wintel 0714 World-ofVision 0880 1298 Worldview 0455 X-View 1191 Xenius 0634 XLogic 0698 Xoro 1196 Xrypton 0037 Yamaha 0650 Yamishi 0282 0556 Yokan 0037 Yoko 0037 0009 0247 Yorx 0218 Zanussi 0363 Zenith 1909 Zenor 0339 ZX 1908

0556 0036 0037 0556 0556 0556 0861 0519 0896 1556 0037 0556 1909 1037

1217 0556 1576 0455 0218 0037

0370 0247 0556 0556 0037 1037 0556 0105 0361 0370 0037 0163 0074 0668 0009 1437 0618 0556

Deitron Denko Diamant Diamond Digitor DSE Dual Dumont Durabrand Elbe Elcatech Elin Elsay Elta Emerson ESC EuroLine Fast Ferguson Fidelity Finlandia

Harwood HCM Hinari Hisawa Hischito Hitachi

0072 0072 0072 0352 0045 0042 0081 0278 0081 0072 0037 0000 0240 0240 0037 0081 0278 0278 0000 0072 0106 0048 0278 0352 0000 0067 0072 0037 0278 0106 0037 0038 0000 0352 0348 0072 0072 0278 0072 0037 1137 0348 0081 0240 0278 0072 0106 0048 0081

0081 0348 0000 0104 0072 0081 1562

Medion Melectronic Memorex Memphis Metronic Metz

Micormay 0348 Micromaxx 0348 Migros 0000 Mitsubishi 0043 0000 Multitec 0037 Multitech 0000 Murphy 0000 Myryad 0081 NAD 0104 Naiko 0642 National 1562 NEC 0038 0037 Neckermann 0081 Nesco 0072 Neufunk 0037 Nikkai 0072 Nokia 0104 0240 Nordmende 0320 NU-TEC 0348 Oceanic 0000 0104 Okano 0315 Onimax 0642 Orbit 0072 Orion 0352 Orson 0000 Osaki 0000 Osume 0072 Otto Versand 0081 Pace 0352 Pacific 0000 Palladium 0072 0348 Palsonic 0072 Panasonic 1562 Pathe Cinema 0043 Perdio 0000 Philco 0038

Loewe Logik Lumatron Lux May Luxor Magnavox

0104 0642 0278 0352 0000 0480 0240 0278 0072 0104 0637 0037 0278 0037 0104 0037 0348

0037 0038 0000 0037 0048

0226 0067 0040 0104 0278 1137

Ingersoll Inno Hit Interbuy Interfunk Internal International Intervision Irradio ITT ITT Nokia ITV JMB Joyce JVC Kaisui Kambrook Karcher Kendo

0278 0106 0315 0278 0048 0042 0081 0067 0048 0106 0081 0348 0072 0278

0432 0000 0642 0226 0836

Technics TechniSat Tedelex Telefunken Telestar Teletech Tenosal Tensai Tevion Texet Thomson Thorn ThornFerguson Tokai Tokiwa Topline Toshiba

Tradex Tredex Triad Uher Ultravox Unitech United

0072 0072 0348 0045 0352 0072 0081 0278 0278 0037 0278 0240 0348

0081 0352 0278 0642 Watson

Wharfedale World Yamishi Yokan Yoko Yoshita Zenith

Axil Axis B@ytronic Bauckhage Beko Bentley Walker Best Big Sat Black Diamond Blaupunkt Blue Sky Blue Star Boca Boston Brainwave British Sky Broadcasting Broco BSkyB BT Bubu Sat Bush

1457 1111 1412 1331 0455 1017 0369 1457 1284 0173 0713 1279 0132 0132 1214

0713 0847 1296 0713 1471 1811 1622 1046 0853

0642 0348 0072 0278 0072 0037 0072 0240 0072 0637 0348 0352

CGV Cherokee Chess Chili CityCom Clatronic Colombia Columbia Comag Condor Conia Connexions Conrad Contec Continental Edison Coship Crown Cryptovision Cyrus

1413 1323 1334 1718 1176 0818 1413 0132 0132 0132 1579 0369 1695 0369 0369 0394

GbSAT Gecco General Satellite GF Globo

1323 1473 1409 1767 0713 1129 1567 0369 1659

1083 0879 0720 0455 1162

Interstar iotronic ITT Nokia Jadeworld Jaeger

1043 1251 1626 1412 1429 1334 0200 0292 0853 1017 1631 1283 0394 1284 0455 0887 0455 0173 0847 1291 0879 0853 1622 1099 1100 0132 1294 1214 1011 1279 1232 1111 0442 1412 1284 1232 1214 1176 1225 0132 1011 1367 1176 1557 1429 1195 0292 0132 1017 0132 0455 0642 1334

Myryad Mysat NEC Neotion Netgem Neuf TV Neuhaus Neuling Neusat Neveling Nevir NextWave Nikko Noda Electronic Nokia Nordmende Nova OctalTV Okano Opentel Optex Optus Orbis Orbitech P/Sat Pace

0713 0299 0369 1075 0713 0455 0200 0856 1695 0642 1559 1659 0200 0713 1617 1334 1322 1322 0713 1232 0713 1161 1659 1017 0713 1704 1114 0853 1611 0879 1294 0442 1232 0394 1611 0879 1334 1099 0262 1232 0455 1175 1323 0853 1375 1111 0299

Sky XL SKY+ Skymaster Skymax skyplus SkySat SL SM Electronic Smart Soniq Sony SR Star Sat Starland Stream Strong

1916 1570 1293 1017 1206 0853

1083 0504 1334 1412 1317 1111 1075

Technosat Technosonic

1848 1412 1175 0713 1611 0200 1232 0713 0132 0713 0132 0713 1567 0847 0455 0132 0132 0713 1848 0125 1543 0853 1418 1300 0369 0713 0369 1283 0132 0455 1225 0455 1457 1227 1200 1099 0292 1322 1283 1206 1672

1251 1409 1200 1075 1334 1334 1412 1672 1200 1075 0299 1113 1232 1413

1043 1367 0713 1418 0442 1418 1099 1251 0455 1334 1232 1334 1622 0711 1900 0292 0820 0455 1672 0132 0200 0455 1206 1783 1446 0820 0200 1296 1113 1075 1429 0713 0132 0879 0200 1251 0173 1161 0173 0369 0200 1251 1161 1323 0125 1742 1457 1162 0818

Telewire Tevion Thomson

Zeta Technology Zinwell Zodiac

1230 Amstrad 1222 Auna 1269 Austar 0276 Canal Plus 0443 Comcrypt 0443 Filmnet 0443 Foxtel 1222 France Telecom 0817 freebox 1482 General Instrument 0276 Golden Channel 1110 HOT 1082 Humax 1813 HyperVision 0619 Jerrold 0276 Macab 0817 Madritel 1230 Matav 1082 MNet 0443 Motorola 0276 Multichoice 0019 Nokia 1569 Noos 0817 NTL 1060 Oak 0019 Ono 1068 Optus 0276 Pace 1068

1218 Pinnacle Systems

Meridian Micromega Mission Musical Fidelity Myryad NAD Naim

0157 0157 0157 0393 0157 0721 0000 0157

AMP Curtis Mathes 0300

Denon Pioneer Sony Yamaha

All-Tel Amitech Amstrad Anam Arcam Arena ASCOMTEC Audiolab Audiosonic Audioworld Balanced Audio Technology 1089 Bang & Olufsen 0799 Basic Line 1554 Belson 1389 Blue Sky 1390 Bose 1229 Bush 1089 0797 Cambridge Audio 1189 CCE 1352

1189 1269 1289 1772 1647

H&B Hanseatic Harman/ Kardon

0744 1625 1938 0744 0186 1625 1089 0609 1420 1089 0744 0744 1961 1390

MEI Melectronic Meridian Metz Micromaxx Micromega Microstar Mustek Mx Onda Myryad NAD Naim NEC Nikkai Nikkei Okano Omni Onkyo Optimus Orient Power Palladium Panasonic

0797 1390 0609 1089 1554 1420 1089 0797 1352 0744 1189 0320 1089 1250 1389 0744 0609 1772 1320 0186 0744 0797 1518 1765 1189 1673 1023 1269

Victor Voxson Waitec Watson Welltech Wharfedale Yamaha Yukai Zenith

1058 1558 1722 0609 1420 1189 0797

1658 1258 1454 1441 1112 1822 1882

1390 1308 1765 1554 1625 1389 1611 1154 1189 0744 1572 1390 1220 0744 1269 1390 0074 1420 1352 0797 0797 1772 0176 0712 1352 0744

0797 0609 1390 1609 1089 1189 1289

1331 1276 0186 1949 1815

0713 1571 AMW 0872 Ansonic 0759 Apex Digital 0672 Arena 0852 ASCOMTEC 1923 Asono 1224 ATACOM 1224 Audiosonic 1923 Audioworld 0790 Audix 1104 Autovox 0713 Auvio 0843 Avious 1165 AWA 0730 Axion 0730 Base 1451 Basic Line 0713 Baze 1165 BBK 0862 Bellagio 0872 Belson 1923 Best Buy 0857 Binatone 1923 Black Diamond 0713 Blaupunkt 0717 Blu:sens 1489 Blue Sky 0713 0651 BNI 1321 Boghe 1004 Boman 0788 Bose 2023 Brainwave 0770 Brandt 0651 Bush 0713 0730 0818 1165 1140 C-Tech 0768 Cambridge Audio 1109 Campomatic Digital 1051 CAT 0789 CCE 1917 Celestial 0672

1233 0695 0672 0843 0790

1115 0551 0695 0831 0879 1436 1832 1152

Electrohome Elfunk Elin Ellion Elta

0770 0850 0770 0850 0770 1151 1321

1446 0770 1228 0831 0714 0651 1115 0872 0833 0714 1036 0770 0723 0872 0872 0831 0818 0770 0490 0788 1321 0665 0651 1156 0713 0713 0717 1832 1005 0672 0831 0788 0705 0831 0790 0831 1730 0831 0730

Diamond Digihome DigiLogic digiRED Digitech Digitor Digitrex DiK Dinamic DiViDo DK digital DMTECH Dragon DSE Dual

Magnex Magnum Majestic Manhattan Marantz Mark Marquant Mastec

1436 1107 0705 0539 0713 0770 1006

0651 0884 0788 0713 1345 0730 0770 0831 0879 1006 0790 0831 0730 0571 0723 1695 0503 0539 0522 0831 0713 0705 0770 1165 0879 0713 0818 0665 0843 0730 0651 0831 0741 0770 1367 0869 1271 0665 0831 1923 1051

P&B Pacific Packard Bell Palladium Palsonic Panasonic Panda Papouw peeKTON Philips

Pointer Portland Powerpoint Prima Prinz Prism Pro2 Proline

Soundmaster Soundmax Spectra Standard

1224 1151 0788 0672 0768 0713 1367

0768 0872 0651 0898 Star Clusters 0768 StarLogic 1005 Starmedia 0818 Stevison 1367 Strong 0713 Sunfly 0857 Sunkai 0770 Sunstech 0831 Sunwood 0788 SuperDigital 1187 Supervision 0730 SVA 0672 Synn 0768 T.D.E. Systems 1156 Tandberg 0713 Tangent 1321 Targa 0741 Tatung 0770 Tchibo 0741 TCM 0741 Teac 0717 0768 0790 1165 TEC 0898 Technica 1367 Technics 0490 Technika 0770 1489 Technosonic 1051 Techwood 0713 Tedelex 1228 Telefunken 0790 1923 Teletech 0713 Tensai 0651 Tevion 0651 1227 0652 Theta Digital 0571 Thomson 0551 Tiny 1489 Tokai 0665 Tokiwa 0705 Tom-Tec 0789

0768 1228 0770 1056 0872 1489 0646 0872 1917 0591

1151 1416 1158 0652 0490 1104 1489 0741

1300 @Sky 1334 Amstrad 1175 1693 Arnion 1300 ASCI 1334 Astro 1100 Atlantic Telephone 1333 Aurora 1333 1433 Austar 1176 B@ytronic 1412 Brainwave 1214 British Sky Broadcasting 1175 BSkyB 1175 Bush 1645 CanalSatellite 1339 Chess 1334 CityCom 1176 Comag 1412 DigiFusion 1645 DigiQuest 1300 Dream Multimedia 1237 eMTech 1214 Fast 0897 1901 Finepass 1593 Foxtel 1176 1356 Galaxis 1176 GbSAT 1214 Gecco 1412 General Satellite 1176 Globo 1334 1412 Hanseatic 1100 HB 1214 HDT 1159 Hirschmann 1412 Homecast 1214 1680 Humax 1176 1427 1675 Hyundai 1159 ID Digital 1176 Imperial 1100 1334 Interstar 1214 Jaeger 1334 Jepssen 1214 Kaon 1300 Kathrein 1561 Kocmoc TB 1333 Kongque 1300 L&S Electronic 1334 Maximum 1334 Mediacom 1206 Medion 1334 1412 Multichoice 1333 1433 Neotion 1334

P Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands

UNIVERSAL ELECTRONICS INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.

Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands
