USER MANUAL URC 6230 ONEFORALL

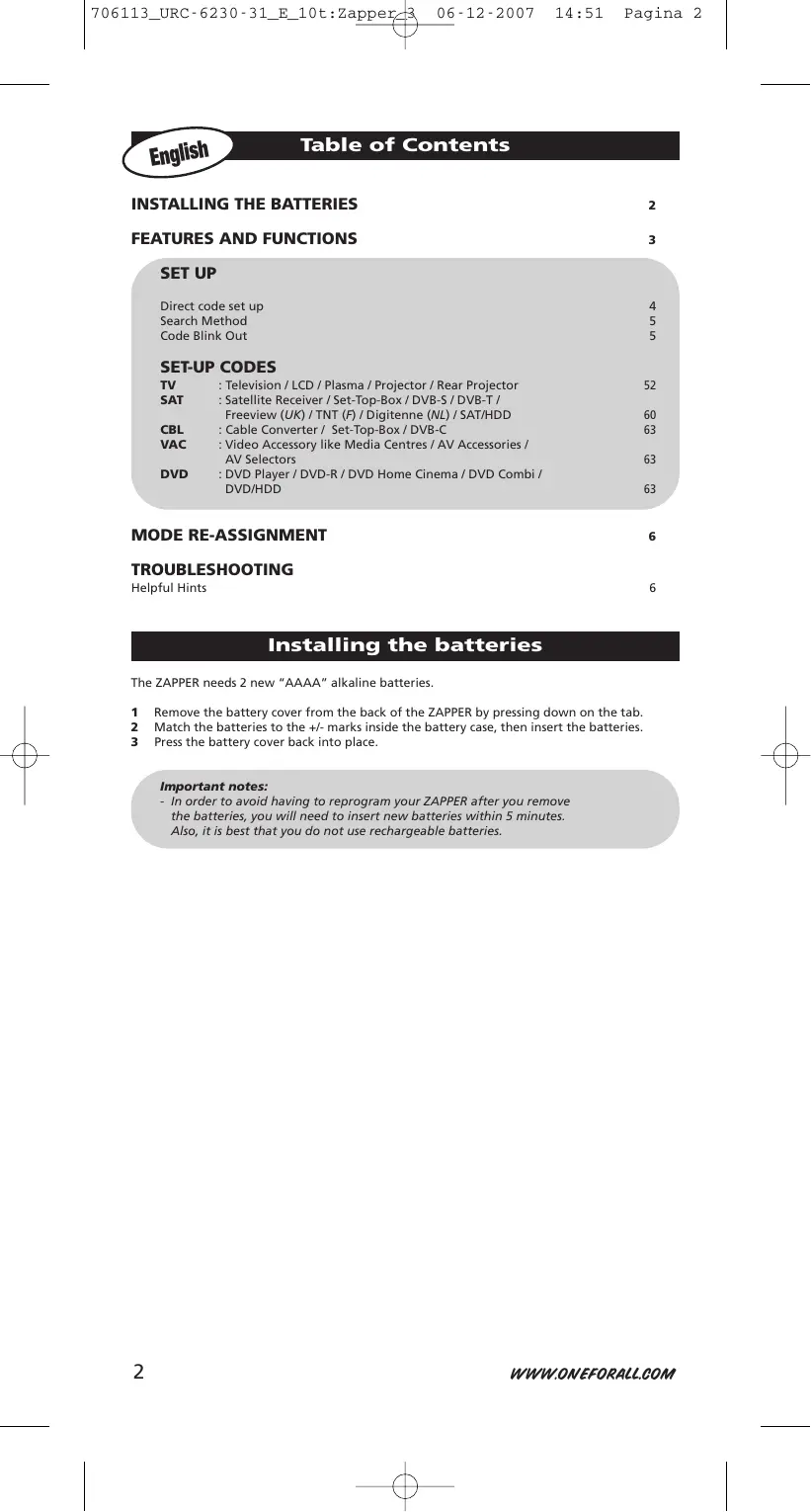

FEATURES AND FUNCTIONS

SET UP Direct code set up

Search Method Code Blink Out

SET-UP CODES TV SAT CBL VAC DVD

: Television / LCD / Plasma / Projector / Rear Projector

: Satellite Receiver / Set-Top-Box / DVB-S / DVB-T / Freeview (UK) / TNT (F) / Digitenne (NL) / SAT/HDD : Cable Converter / Set-Top-Box / DVB-C : Video Accessory like Media Centres / AV Accessories / AV Selectors : DVD Player / DVD-R / DVD Home Cinema / DVD Combi /

DVD/HDD MODE RE-ASSIGNMENT

TROUBLESHOOTING Helpful Hints

Installing the batteries

The ZAPPER needs 2 new “AAAA” alkaline batteries. 1 2 3

Remove the battery cover from the back of the ZAPPER by pressing down on the tab.

Match the batteries to the +/- marks inside the battery case, then insert the batteries. Press the battery cover back into place.

- In order to avoid having to reprogram your ZAPPER after you remove the batteries, you will need to insert new batteries within 5 minutes. Also, it is best that you do not use rechargeable batteries.

706113_URC-6230-31_E_10t:Zapper_3

Features and Functions

POWER (red LED – Light Emitting Diode)

The POWER key operates the same function it did on your original remote control. The LED underneath the POWER key will light up red whenever a key is pressed. Closed:

CHANNEL +/-, VOLUME+/- and MUTE The CH+/- and VOL+/- keys operate just as those on your original remote control.

UP, DOWN, LEFT, RIGHT and OK (mute)

The navigation keys (UP, DOWN, LEFT, RIGHT and OK) operate just as those on your original remote control. These keys are also used to set up your ZAPPER.

This key provides you the (16:9) wide screen view function, if available on your original remote).

MENU The MENU key controls the same function as it did on your original remote.

GUIDE In TV, DVD and/or SAT mode you will obtain the “Guide” function (if available on your original remote).

AV In TV mode you will obtain the AV / Input function. In VCR mode you will obtain the “TV/VCR” function, if available on your original remote. In DVD mode you will obtain the “TV/DVD” function, if available on your original remote. In DVD mode you will obtain the “TV/SAT” or “TV/DTV” function, if available on your original remote.

MAGIC The MAGIC key (= setup key) is used to set up your ZAPPER.

TRANSPORT keys (REW, PAUSE, PLAY etc.)

These keys operate the transport functions (PLAY,FF, REW etc.) of your device. To prevent accidental recording, the RECORD key must be pressed twice to start recording.

TV Television / LCD / Plasma / Projector / Rear Projector

DVD DVD Player / DVD-R / DVD Home Cinema / DVD Combi / DVD/HDD SAT Satellite Receiver, DVB-T, Cable Converter, DSS / Video Accessory (e.g.

Media Centres) Personal Video Recorder, Hard Disc Recorder

706113_URC-6230-31_E_10t:Zapper_3

SET UP Direct code set up

Example: To set up the ZAPPER for your Television follow the instructions below. 1

Make sure your TV is switched on (not on standby).

Find your Television code in the Set-Up Code section (page 52-66). Codes are listed by brand name. The most popular codes are listed first.

Open the flap to enable access to the MAGIC key.

Press and hold the MAGIC key until the LED blinks twice (The LED underneath the POWER key will blink once then twice).

Enter your 5-digit code according to the chart below.

The LED underneath the POWER key will blink twice.

Now, aim the ZAPPER at your Television and press POWER. If your

Television switches OFF, your ZAPPER should be ready to operate your device.

If the functions do not work properly, repeat steps 4 –7 using another code listed under your brand.

For example: To enter a Sony TV code 33121, you would press CHANNEL +,

CHANNEL +, VOLUME +, VOLUME -, VOLUME +. To set up your DVD player or Satellite Receiver please press the corresponding device key during step 4.

- Some codes are quite similar. If your television does not respond or is not functioning properly with one of the codes, follow steps 1-5 with each code listed for your brand. - If none of the codes listed for your brand operate your television, follow the Search Method described in the next section. The Search Method can be used even if your brand is not listed at all.

■■■■■ ■■■■■ WWW.ONEFORALL.COM

706113_URC-6230-31_E_10t:Zapper_3

If your Television does not respond to the ZAPPER after trying all the codes listed for your brand, try searching for your code. Example: to search for your TV code: 1

Make sure your TV is switched on (not on standby).

Open the flap to enable access to the MAGIC key.

Press and hold the MAGIC key until the LED blinks twice (The LED underneath the POWER key will blink once then twice).

Point the ZAPPER at your television. Next, alternate between POWER and CHANNEL until your Television turns OFF. You may have to press these keys many times (up to 150!), so please be patient. Remember, you must aim the ZAPPER at your device the entire time you are searching for your code.

When your device turns off, press and release MAGIC to store the code. The ZAPPER should now be ready to operate your Television. Turn your device back on and try all the remote’s functions to ensure they are working properly. If some of the ZAPPER’S commands are not operating correctly, try the search method again, you may be using the wrong code.

- To set up your DVD player or Satellite Receiver please press the corresponding device key during step 3.

Example: To blink out your TV code: 1

Open the flap to enable access to the MAGIC key.

Press and hold the MAGIC key until the red LED blinks twice

(the LED underneath the POWER key will blink once then twice).

For the first digit of your 5-digit code, press RIGHT and count the red blinks.

For the second digit, press LEFT and count the red blinks.

For the third digit, press UP and count the red blinks.

For the fourth digit, press DOWN and count the red blinks.

For the fifth digit, press OK (mute) and count the red blinks.

- To blink out the code you programmed for your DVD player or Satellite Receiver please press the corresponding device key during step 2.

706113_URC-6230-31_E_10t:Zapper_3

It is possible to change the mode of any device key. This is useful if you want to set up two of the same devices on the ZAPPER. The code can be set up using “Direct code set up” (page. 4) or “Search Method” (page. 5). To change a device key, see the example below. Example: to program a second television on the SAT key. 1

Open the flap to enable access to the MAGIC key.

Press and hold the MAGIC key until the LED blinks twice (The LED underneath the

POWER key will blink once then twice).

Press and release OK (mute) then DOWN then RIGHT. The LED underneath the POWER key will blink twice.

Press SAT. The LED underneath the POWER key will blink twice. The SAT key has now become a second TV key and can be used to program a second Television.

Your brand is not listed in the ZAPPER code section?

Try the search method.

The ZAPPER does not operate your device?

A) Try all the codes listed for your brand.

B) Try the search method.

The ZAPPER is not performing commands properly?

You may be using the wrong code. Try Direct Set-Up again trying each code listed under your brand or start the search method over again to locate the proper code.

You cannot reach channel 10 and above on your TV.

If your original remote did not have CHANNEL +/keys, the ZAPPER may not operate this function.

The ZAPPER does not respond after pressing a key?

Make sure you are using new batteries and are aiming the ZAPPER at your device.

LED does not blink when you press a key?

Replace batteries with 2 new “AAAA” alkaline batteries.

Just send a blank message, you’ll get auto-reply.

706113_URC-6230-31_E_10t:Zapper_3

INSTALLATION DES PILES

DVD Player / DVD-R / DVD Home Cinema / DVD Combi / DVD/HDD SAT RIGHT (DERECHA) = 1

CODICI IMPOSTAZIONE TV SAT CBL VAC DVD OK (mute) = 5

Televisie / LCD / Plasma / Projector / Rear-projector

■■■■■ ■■■■■ WWW.ONEFORALL.COM

706113_URC-6230-31_E_10t:Zapper_3

TV SAT CBL VAC DVD OK (mute) = 5

TV SAT CBL VAC DVD ZMĚNA PŘIŘAZENÍ REŽIMU

888 A.R. Systems Accent Accusound Acer Acoustic Solutions Action Acura Adcom Addison ADL Admiral

11233 13513 15322 13555 14421 11125 11233 15322 22531 31435

Caishi Canton Capsonic Carad Carena Carrefour Carver Cascade Casio Cathay CCE Celestial Centrex Centrum Centurion Century CGE Changcheng Changfei Changfeng Changhai Changhong Chengdu Chimei Ching Tai Chun Yun Chunfeng Chung Hsin ChungFeng Chunsun Cimline Cinema Cinex Citizen City Clarivox Clatronic

CMS CMS hightec Cobolt Combitech Concorde Condor Conia Conrac Conrad Conrowa Contec Continental Edison Cosmel Crosley Crown

23142 12444 13135 15531 24233 14421 11232 12251 11125 11233 11233 11233 22345 22221 24233 11233 11433 11355 12234 11112 14233 11125 13135 11125 22345 15124 11125 34242 11125 11125 11125 11524 14233 11125 11125 21253 21154 11331 11125 14244 11233 21435 12443 31355 24233 12442 12443 23142 41224 11125 11233 11125 14232 22115 22324 11233 11125 22114 11125 11132

11125 11433 11125 14532 21435 12424 34213 Crown Mustang 21253 CS Electronics 12442 CTC 12553 C-Tech 23152 CTX 35122 Curtis Mathes 11331 CWN 21221 Cybertron 12444 Cytronix 31254 D.Boss 32455 Daewoo 21125 11233 12444 12251 11524 33533 21253 Dainichi 12444 Daitsu 31143 Danichi 12444 Dansai 11233 11125 Dansette 14233 Dantax 13551 15522 Datsura 12424 Dawa 11125 Daytek 21354 31555 Dayton 11125

11233 15322 11351 11233 15322 11233 15322 15322 12443 22351 23142

12234 13455 15322 22352

12553 12553 14244 13551 11125 13135 13555 21232 13555 14233 22114 22351 11125 13135 22352 33121 13135 11232 12444 33322 11233 12553 12444 11125 25234

13551 13135 21154 34313

12553 14244 13135 23145 22351

13135 14233 21354 25251 12442 11232 12223 13135 11233 15322 12533 11233 12553 21433 15322 15522 21214

15322 11355 11233 14533 21253 13435

12234 13551 14244 21441 24233

21232 15322 12443 41213 31323 22541 21422 12442

11125 25133 41224 33454 21354

12442 12314 23121 23112 21435

11232 12443 12424 14532 34213 21435 21441 41224 11233 25423 21253 25423

21422 32112 13135 31555

13555 12424 22251 11233 15322 41224 Deitron 11233 Denko 13135 Denon 15412 Denver 11233 15433 Desmet 11233 Diamant 11233 Diamond 13135 12442 21253 DiBoss 11233 Digatron 11233 Digihome 25155 Digiline 11233 DigiLogic 11233 Digitex 22351 Digitor 11233 Digivision 13532 DigiX 23121 DiK 11233 Dixi 11125 12443 DL 23142 22541 DMTECH 41435 Domeos 21244 Domland 14145 Dongda 11125 Donghai 11125 Doric 13455 Dream Vision 34415 DSE 22532 DTS 11125 Dual 15145 13444 13513 21122 Dual Tec 12443 Dumont 11433 Dunai 15245 Durabrand 11233 Dux 11233 D-Vision 11233 DVX 23142 Dynatron 11233 e:max 31355 Easy Living 25554 Ecco 22154 ECE 11233 Edison-Minerva 14533 Elbe 14232 13243 15322 15142 Elbe-Sharp 15142 Elcit 11433 Elekta 11125 13223 Elfunk 25424 ELG 11233 Elin 11233 11521 11125 Elite 12444 Elta 11125 Emco 12553 Emerson 12314 11233 13223 13551 Emperor 13223 Enzer 22114 Erae 31552 Erres 11233 ESC 11233 Estèle 12234 Ether 11125 Etron 11112 22351 Eurofeel 13135 EuroLine 11233 Euroman 12442 12443 Europa 11233 Europhon 11233 15322 Evesham 25554 Evolution 35122 Excel 11233 Expert 12234 Exquisit 11233 Fagor 11233 FairTec 25342

21232 11245 22531 11353 12443

15254 12234 23142 13153 15142 25133 15552

15322 31355 15322 15322 21354 13552 23152 15322 15322

34313 11125 11433 11125 22411 22531 22351 34322 21422

15322 15322 22532 15322 11233 15322 12553 11433 22221 11233 15433 31534 31434 11233 24233

15245 13432 14145 25155

11233 15322 12234 25133 24233

12234 12314 15322 34213 15322 41523 15322 15322 15522 33222 21422 21354 15322 32455 22221 13533 14331 15531 13551 12234 11233 12444 12342 12443 13532 12553 15142 12234 11233 15322 13135 24233 15322 12442 15254 15322 13532 13455 12234 11233 15322 13135 12442 21435 15322 13532 12234

15322 15322 12443 11125 11233 15322 12234 12443 13135 11233 15322 13551 15322 15142 12234 12443 12553 12442 34445 15322 15322 12553 15322

706113_URC-6230-31_E_10t:Zapper_3

Feilang Feilu Feiyan Feiyue Fenner Ferguson

Flint Force Formenti FormentiPhoenix Fortress Fraba Friac

11125 11125 13135 11125 13555 11233 13431 21214 14344 41224 12234 15245 14233 12443 12424 12234 11233 15322 15142 11433 33322 15552 41523 11125 11125 12443 21435 41225 11353 25342 31552 12443 15245 13532 11233 11353 25155 11233 12442

11444 11233 11125 21221 Frontech 12553 12443 Fuchsware 22221 Fujimaro 22541 Fujitsu 21324 12234 15322 Fujitsu General 11125 Fujitsu Siemens 31254 22324 Funai 21244 33451 Furi 13135 Furichi 22531 Futronic 13135 Future 11233 Galaxi 11233 Galaxis 13551 Galeria 11125 Gateway 35122 GBC 12234 GE 13444 11525 Geant Casino 12234 GEC 11233 13455 Geloso 11125 General 11525 General Electric 13444 General Technic 11125 Genesis 11125 Genexxa 12234 14233 Gericom 22541 Gevalt 31552 G-Hanz 34322 Giant 12443 Goldfunk 21244 Goldhand 12442 GoldStar 11112 13551 15322 11525 21441 Gooding 14533 Goodmans 21125 11233 21435 13552 11125 13431 41211 32112 Gorenje 13551 GP 22114

Huanyu Huaqiang Huari Hugoson HYD Hygashi Hyper Hypersonic Hypson

12442 13135 13135 23141 32112 12443 11125 13532 11233 21435 41224 Hyundai 11233 15322 21354 13135 33533 Iberia 11233 ICE 12443 11125 Ices 12444 Ict 11233 iDEAL 33322 IISonic 32112 Iiyama 25443 Imperial 11233 13551 13532 Imperial Crown 11112 14233 Indesit 12533 Indiana 11233 InFocus 25235 Ingelen 12234 13532 Ingersoll 11125 Inno Hit 11125 15322 13223 Innova 11233 Innovation 15145 Innowert 22541 Inotech 22154 Interactive 11233 13413 11525 Interbuy 11125 15133 Interfunk 11233 11433 13551 Internal 11233 International 12442 Intervision 11233 13135 14532 12444 15322 Irradio 11125 12553 IRT 21354 Isukai 12444 14421 ITC 12443 ITS 11233 13135 ITT 12234 13455 13435 ITT Nokia 13532 14521 13435 ITV 13135 13555 JDV 41523 Jean 11232 JGC 34313 Jialicai 11125 Jinfeng 12424 Jinque 11125 Jinta 11125 Jinxing 11125 11233 JMB 11233 14344 JNC 41435 Jocel 21433 JTV 22251 Jubilee 15322 Juhua 13135 JVC 21214 15522 11444 Kaige 11125 Kaisui 12444 12443 Kambrook 14113 Kamp 12442 Kanghua 23152 Kangli 11112

13555 13135 14233 14233 25443

23141 11355 14244 13455 11125 21232

12443 21244 31222 22114 34322 33322 32112

14421 14532 22531 33222 23112 33223

12444 12442 15322 33534 12234 12553 15322 14232 12352 13135 13555

14533 15531 21435 11353 15142 11233 12444 12443 12553 25234 11233 31254 22351 15322 12234 14232 11233 15322 12234 13532 11525 15322

11433 15133 13532 13551 13135 12553

13552 11233 15322 13223 13552 12442 13532 15254 12424 15254 13455 15522 11233

11125 14521 14454 15531 12234 13452 15531 15322

15322 15245 13452 14454 12424 21122 12553

13135 12512 13135 13135 13135 15322 21125 41224 23112

14233 14233 21354 22352 13555 15322 34112

14233 11232 21324 21211 13135 11125 11233 13135

12444 14244 14233 13223 12442 15322 14421

WWW.ONEFORALL.COM Longjiang

41523 11233 13555 Lumatron 11233 13532 Lux May 11233 Luxor 25234 14543 12234 12443 LXI 12314 Madison 11233 Magnadyne 11433 12234 Magnafon 15142 Magnavox 11233 21422 Magnum 21154 21441 Mandor 13135 Manesth 11233 13245 Manhattan 11233 21244 22214 Maqma 34112 Marantz 11233 Marelli 11433 Mark 11233 13555 Mascom 33322 Master's 11233 Mastro 22221 Masuda 12444 11233 Matsui 11125 14533 12443 13245 14421 12351 41224 23121 Matsushita 21211 Matsuviama 15433 Maxam 13135 Maxdorf 22154 Maxim 41523 MCE 11125 Meck 23142 Medialine 41435 Mediator 11233 Medion 11233 22324 25133 25554 33322 Megas 15531 Megatron 12314 MEI 24233 Meile 13135 Melectronic 13452 11525 12443 14543 15322 12351 Memorex 11125 11331 Memphis 11353 Mercury 11112 13135 Mermaid 11233 Merritt 15254 Metronic 21111 Metz 15231 11433 12342 21244 MGA 12314 Micromaxx 11233 22324 Microstar 22324 MicroTEK 22351 13135 Mikomi 25155 Minato 11233 Minerva 11351 15315 11524 Minoka 14233 Mirai 34242 Mirror 41211 Mitsubishi 11524 11233 15231 32144 Mitsuri General 12234

12234 11125 15322 12443 11125 13532 13455 13452 21122

13533 13533 13135 15322 12533 12424 14454

Morgan's Motorola MTC

15322 12553 15142 15245 12442 11354 15322 11232 22221 22114 21435 11233 15322 31235 12443 15322 13135 12234 23112 32455 15322 24233 31143 12234 31254 15322 14233 33223 15322 12443 12442 11125 21435 21441 15322 11233 21354 13552 12443 11233 11232 13153 15142 12234 12342 24233

11125 15322 11132 11353 13552 14324 13455 13431 41242

Murphy Musikland MyCom Myryad NAD Naiko Nakimura Nanbao Nansheng Naonis Narita NAT National NEC

Neckermann 15322 12424 14344 15245 11251 21435 34242

New World Newave Nfren Nicam Nicamagic Nikkai Nikkei Nikko Nintaus Nobliko Nogamatic Nokia

Normerel Novak Novatronic Novita Nurnberg NU-TEC Oceanic

25234 21545 15322 14533 15231 12351 12342 12533 15142 11233 15322 15133 11444 12314 11433 11232 12533 15322 12424 24233

21244 11232 15142 11353 14233 15322 Osio 11233 Oso 12444 Osume 12223 11233 Otto Versand 11232 13444 15315 13455 13245 13223 Pace 41224 Pacific 11233 24233 Packard Bell 32455 Pael 12442 Palladium 13551 14232 33121 13455 12234 Palsonic 13135 12443 15322 25352 Panama 11125 11233 Panashiba 11112 Panasonic 21211 34132 12234 23152 11112 Panavision 11233 Panda 11125 14233 22221 Papouw 11233 Pathe Cinema 12234 13551 Pathe Marconi 11525 Pausa 11125 Peng Sheng 23142 Penney 11331 Perdio 11353 13223 Perfekt 11233 Philco 11433 11233 15145 Philex 12234 Philharmonic 12443 Philips 11233 11433 13555 12411 Phocus 31235 Phoenix 11233 12234 Phonola 11233 Pilot 15322 Pioneer 11132 12234 13551 15133 Pionier 13551 Pixxel 33215 Plantron 11233 Playsonic 21435 21441 Policom 11525 12234 15231 Polytron 13223 Poppy 11125 Portland 13555 Powerpoint 14533 23145 Prandoni-Prince 12553 Precision 12443 Premier 11125 President 22531 Prima 11125 Princess 21354 Prinston 24233 Prinz 11353 Profex 11125 Profi 11125 Profitronic 11233 Proline 11233 21125 32112

11233 13153 13555 Proton Provision

11353 15322 33121 15133 15322 12342 12512 13432

11233 11444 12351 13532 12553 15142

15231 15245 11525 11125 15145

14344 31355 14244 21435 12411 12553 15145 22154 14113 11112 31145 12443 15322

25133 15315 13413 12443 14233 12444 14244 34322 13135 12553

31331 12424 12533 22514 14232 12424 15124 21422 15322 12442

11233 13532 15142 12314 15322 12512 21354 23142

13444 15521 35122 31324 15322 11433 15322 11233 11233 21315 13444

12314 22153 33122 21435 13551 11353 11433 21433 11525 15322 13532

13552 12443 11125 12553 21244 24233 11112 11233 31355 21533 25342 11233 13555 11125 12424 12444 12553 11233 11355 15231 13455 12553 15322 13135 11125 11232 11525 15322 11233 11433 15322 11233 11125 14244 13135 11351 11232 11351 21111 15331 21315 12314 31143 31143 11233 11233 33322 13532 11233 11233 22541 31254 21435 11233 12234 11433 13135 12442 11233 22154 21422 11233 11125 14244 21244 41211 11433 11233 31552 11232 11233 21433 15433 14244 13551 15322 11525 13431 13532 21211 15531 31334 11125 11125 11132 12234 11233 33322 12234 14421 12234 13455 14521 22214 13431 15142 11125 21211

21244 21435 12442 11233 15322 12443 13135 13455 14244 13223 12234 14532 12314 11125 21145 15322 24233 21435 23112 15322 11433 15315 13455 14233 12512 13135 14233 21211 11132 13532 15245 12342 13413 12223 24233

33121 14233 15315 11232 11521 12351 13245

11351 11525 15133 12443 21244 12411 13452

15322 12443 15142 12553 11233 15322 12314 11233 15322 13551 14233 21154 21244 24233 12223 15513 22114 11331 11444 12314 13431 15544 13444 22114 22411

15322 15254 15322 15322 23112 32112 21125 15322 13135 13243 11233

24233 23113 33454 41225 13551 14232 13551 15322

25423 33533 12553 11353 14532

14244 21354 13135 15322 24233 11233 13223 15322 22345 23113 13135 11125 15322 22411 14233 11233 21111 13444 14554 21435 14421 15544

12444 13135 15322 21435 41242 25335

21354 12443 12442 21422 15522 13431 12234 15331 11433 15142 12352 15254 13223 22421 33452

13135 12443 15245 41523 15322 25234 21244 21433 24233 13532 15254 21253 15142 13435 12424 15552 21122 33322 31552 11232 11444 12314

706113_URC-6230-31_E_10t:Zapper_3

11233 21354 Sliding 22541 22311 SLX 21244 Smaragd 14533 S-Media 25443 Soemtron 22541 Solavox 12234 11233 Sonawa 12444 Songba 11125 Sonic 22114 Soniko 11233 Soniq 31254 Sonitron 12424 Sonneclair 11233 Sonoko 11125 13223 Sonolor 12234 13532 Sontec 11233 11125 Sony 33121 21211 11444 Sound & Vision 12444 Soundesign 12314 Soundwave 11233 Sowa 11331 Soyea 22154 Spectra 11125 Ssangyong 11125 Staksonic 11125 Standard 11125 24233 Starlite 11125 13135 Stenway 13223 Stern 12234 Stevison 41523 Strato 11233 Strong 25234 15322 Stylandia 12443 Sunic Line 11233 Sunkai 13352 15531 22541 Sunny 11233 Sunstar 13552 13135 Sunwatt 14421 Sunwood 11233 Superla 15142 Supersonic 11125 13135 SuperTech 11125 12444 Supervision 21354 Supra 12314 Susumu 12444 Sutron 11125 SVA 15433 22541 Svasa 22321 13135 Swissline 12553 Swisstec 33115 33541 22541 Sydney 12442 Synco 11232 Sysline 11233 Sytong 12442 T+A 14353 Tacico 12314 Tactus 13153 Tai Yi 11125 Taishan 11125 Tandberg 14232 13532 Tandy 12444 12553 Targa 31552 Tashiko 11232 12442 Tatung 33322 15322 12443 41224 25342 TCL 41242 21422 TCM 21435

22114 22321 22411 23121 31555 32113 31355

13532 11353 15254 15322

13551 15322 11233 12443 12424 13223 15322

15322 12223 11355 11233 15322

12444 12234 14233 12444 13135 33322 15322 25155

13555 11233 15322 14232 14331 13135 11125 24233 11233

13245 14421 12444 11233 15322 14533 11233 15322 11125 15322 12442 12424 22321 12442

12443 15322 21354 14421 11233 11233 15322

13555 11125 11233 13431 21354 13135 22321 14421 12424 21422 21354 12424 21422 33533 33534 33535 33134 23121 32112 12443 11331 11444 12314 15322 11125 13555 11525 12234 11353 12234 31143 12443 12234 11125 11353 13153 35122 34445 14233

11444 12443 15544 21211 12251 11232 15142 11132 31552 31355 21354

11331 15552 25554 33233

706113_URC-6230-31_E_10t:Zapper_3

13135 12443 11233 12424 34322

Westinghouse Wilson Windsor Windstar Windy Sam Wintel World-of-Vision Worldview Xenius Xiahua Xianghai Xiangyang Xiangyu Xihu Xinaghai Xingfu Xinghai Xingyu XLogic Xoro Xrypton X-View Yakumo Yamaha Yamishi Yingge Yokan Yoko Yonggu Yorx Yoshita Yousida Ytawaï Yuhang YU-MA-TU Zanussi Zenith Zenor Zhuhai Zonda ZX

23142 22531 15322 33322 21422 31355 34243

15322 21244 13223 15322 21435 23121 31254 14421 21125 11125 22154 11125 13135 11125 13135 14233 11125 13135 11125 21354 25352 11233 25342 33534 21211 13223 15322 11125 11233 11233 12444 12442 11125 12444 22411 11125 33222 11125 11233 12443 12314 13435 11125 21354 41224

24233 34313 23141 22541 31235 23113 25443 11251 21232 13135 14233 21354 14233 14233

25443 15322 33412 14421 12444 11233 12443 15322 12443 15322 13135 11125 13551 13435 12553

Brainwave British Sky Broadcasting Broco BSkyB BT Bubu Sat Bush BVV Cablecom Cambridge Canal Digital

Audioton Aurora Austar Avalon Axil Axis Axitronic B@ytronic Balmet Base Beko Belson Bentley Walker Best Best Buy Bestar Big Sat Black Diamond Blaupunkt Blue Sky Blue Star Boca

Continental Edison Coship Crown Cryptovision CS Cyrus Daeryung Daewoo

15534 23115 31125 14152 32423 24532 34112 32233 32423 34444 14421 34351 24143 13545 41544 12544 32423 31225 12254 21434 31215 12123 25523 12123 21343 22453 21434 22453 31252 21434 31225 34253 21343 41142 15112 33553 24252 22514 22514 32234 35452 31354 31425 34444 25312 13255 24411 15534 32234 14152 31543 14152 12123 12123 12123 25523 32234 13545 34351 14152 15523 12123 14145

32423 12544 14421 34122 12411 14152 31252 24532 DAK 41544 D-box 24535 Deltasat 24411 DGTEC 25543 Digatron 31245 Digenius 13255 Digiality 15523 DigiFusion 33422 Digihome 31225 DigiO2 42152 DigiQuest 32423 DigiSat 25523 Digisky 32423 DigitAll World 25513 DigiTurk 32322 Dilog 35221 DiPro 33244 DishTV 35221 Distratel 34415 Distrisat 12411 DMT 24411 DNR 21343 DNT 12411 Draco 32111 Dream Multimedia 25533

21143 32324 21143 23115 25312 34225 34451 41544 13545 13255

33415 25435 21224 34253 25311 34233 25311 34233 34544 21143 35332 31242

31435 35535 35533 15255 33343 11535 21434 34112 25523 11541 15523 14145 22344 15115 34451

32233 35533 15523 13545 11541 13545 15112

21454 33243 34122 34444 25232 34331 34151 34544 41315 31311 34122

706113_URC-6230-31_E_10t:Zapper_3

Hyundai i-CAN ID Digital

ILLUSION sat Image Imperial IndoVision Ingelen International Interstar Intertronic Intervision Inves iotronic ITT Nokia Jadeworld Jaeger Jazztel Jepssen JOK Kamm Kaon KaTelco Kathrein

35332 15523 15534 31245 Micro electronic 21434 Micro Technology 21434 Micromaxx 13255 13545 Microstar 24411 Microtec 21434 Mitsubishi 14421 Morgan's 12123 21434 25523 32233 Motorola 22522 32454 Muller 34351 Multichoice 23115 32324 41431 Mx Onda 34225 Myryad 12411 Mysat 21434 MySky 35511 34344 NEC 33543 Neom 41544 Neotion 31425 Netgem 31353 Neuf TV 31353 Neuhaus 15112 21343 Neuling 25523 12123 Neusat 21343 21434 Neveling 25232 Nevir 34225 Newton 14152 NextWave 24143 Nikko 12544 21434 Noda Electronic 34415 34421 Nokia 24535 25454 22514 31331 Nordmende 33532 14421 Normcast 41155 Nova 23115 41425 Octagon 14252 15534 OctalTV 31245 32315 Oggle 34421 Okano 12544 Omni 41544 Opentel 25523 32233 Optex 14145 31224 21434 33532 Optus 23115 22514 Orbis 31425 32233 Orbitech 24455 25351 12411 15112 11535 P/Sat 25523 Pace 14421 22453 31522 35511 31354 21451 32254 34443 Pacific 32111 31225 Packard Bell 24532 Palcom 13255 25232 Palladium 12544 14252 Palsat 15112 Panasat 23115 Panasonic 22453 31315 Panda 14421 15523 Patriot 12123 peeKTON 32423 Philips 11455 24535 22514 12124 31432 34253 12254 33224 34544 Phoenix 31154 Phonotrend 24143 25411 Pilotime 31435 Pino 31425 Pioneer 13415 22514 Planet 14152 Polytron 14145 14152 Portland 31252 Power Sky 31215 Predki 14252 Preisner 12123 12544 31542 Premiere 24535 21454 25351 24511 Primacom 24532 Proline 34225 Promax 14421 QNS 31543 32215 Quadral 13545 31354 Quelle 15523 11541 Radiola 12411 Radix 14152 24534 Rainbow 15534 RCA 31242 Rebox 25435 Red Star 13545 Regal 31112 RFT 15242 12411 Roadstar 21434 22514

24154 21454 14421 31332 14252 41431

34112 32234 25523 25353 24511 15242 14252 23133 34344 25311 12542 12411 22514

15112 14152 32215 14421 12254 35341 22344 14421 32315

24532 25312 21224 34443

Rover Rownsonic SAB Saba Sabre Sagem Samsung

Daytron DCE DEC Decca Denon Denver Denzel Diamond Digihome DigiLogic digiRED Digitech Digitor Digitrex DigiX DiK Dinamic Disney DiViDo DK digital DMTECH Dragon DSE DTS Dual Durabrand D-Vision DVX e:max EagleTec eBench E-Boda Eclipse E-Dem Electrohome Elenberg Elfunk Elin Ellion Elta Eltax Emerson Energy Sistem ENG Enzer EuroLine Ferguson Finlux Fintec Firstline Fisher Funai Futronic GE Germatic Giec Global Link Global Solutions Global Sphère Go Video GoldStar Goodmans

24241 22422 22344 22151 14541 22234 41254 21241 21212 22241 42152 21434 21434 21443 32252 24121 21253 35415 22422 22234 25454 21421 22422 22224 22422 34521 22255 22422 21521 42123 33113 24541 22144 25524 21435 25213 21454 21454 25455 22151 25514 22511 22151 22511 22151 25212 41145 22142 15442 33134 33352 21241 22151 22234 41125 21212 23125 22151 21253 21434 22255 41245 21351 24121 21443 24312 25452 25455

23154 22344 31352 32544 21253 22144 22112 21454 25213 22151 24541 34234 35423 24511 24115

22241 31152 25213 35415 21434 22224 32332 22422 31543 35423 31352

32252 22234 22241 24541 25524 24312 34251 34144 31352 21311 21421 22545 25514 22142 24121 24541 42152 25524 21311 34144 34521 23154 21434 21542 22112 33221 22545

41125 31543 21212 33221

Neovia Netway Neufunk Nevir Nexius Nikkai Nikkei Nintaus Nordmende Noriko Nowa NU-TEC Okano Omni Onkyo Oopla Optim Optimus Orava Orbit Orion Oritron P&B Pacific Packard Bell Palladium Palsonic Panasonic Panda Papouw Paramount Pictures peeKTON Philips

15153 22422 22113 21434 21421 22151 23115 21434 22344 21241 22444 31543 21521 34144 21212 31115 31115 22422 21542 22151 31543 22545 21542 34144 31152 32535 21241 22422 22241 41254 31115 24312 22422 22113 22444 25514 22113 35423 21113 25224 22444 15352 22344 22553 21351 23154 21212 22344 22241 22315 22422 21351 21253 14541 33415 21443 15224

24241 15235 33122 35452 Philo 31451 Pioneer 15352 15211 Play It 34144 Plu2 22511 Pointer 22151 Portland 22151 Powerpoint 22553 Prima 22142 Prima Electronic 22142 Prinston 32535 Prinz 22422 Prism 24122 Pro2 31451 ProCaster 24115 Proline 21212 21213 Proscan 15153 Proson 21434 Prosonic 22113 Provision 22344 32544 Pye 21152 QONIX 42123 Radionette 21542 Radiotone 21434 Raite 21241 RCA 15153 REC 22142 Red Star 22125 23154 32145 Redpoint 31115 Relisys 31453 Reoc 22144 Revoy 22442 Richmond 25524 Rimax 25212 Roadstar 21434 23154 35423

21213 22113 22523 32412

22112 21454 25454 41145 21343 31543 24115 21343 15442 41244

25514 15114 15211 25114 24122 25524 32412 25213 22144 22125 21434 22422 22215 21434 22513 35425 41224 41221 34134 22224

21152 31441 21311 35334 15114 25224 35121 21122 41441 21134 33352 32431

33134 21253 22241 24115 32524 21431 24121 41254 25234 41254 31352 21521 15235 24312 22545 42155 41222 21212 14541 22134 22151 22234 24241 41254 31451

706113_URC-6230-31_E_10t:Zapper_3

22553 15554 22125 22235 21212 22144 22125 25213 21542 31453 15354 22351 Sansui 21351 25213 42152 24312 Santosh 24541 Sanyo 21251 21434 Scan 21421 ScanMagic 21521 ScanSonic 22523 SCE 22235 Schaub Lorenz 22234 Schneider 22224 21421 21212 31543 Schöntech 21434 Schwaiger 22113 Scientific Labs 22144 Scott 21212 25524 Seeltech 25455 SEG 21434 23125 33221 Shanghai 21253 Sharp 21121 21351 Sherwood 21443 Shinco 21443 Siemssen 32123 Sigmatek 22523 Silva 22234 Silva Schneider 22422 SilverCrest 25213 Singer 21442 25213 Sinotec 22151 Sinudyne 25141 Sistemas 21253 Skymaster 21521 Skysonic 22142 Skyworth 23154 Sliding 24541 Slim Art 22151 Slim Devices 15224 SM Electronic 21521 Smart 21421 Sogo 32544 Sonashi 21442 Soniko 22234 Sony 34124 41522 42244 Sound Color 25524 Soundmaster 22144 Soundmax 22144 Soundwave 22224 Spectra 22553 Standard 21212 22422 Star Clusters 22144 StarLogic 24121 Starmedia 22344 Stevison 31543 Strato 32123 Strong 21434 Sunfly 22523 Sunkai 22151 Sunstech 33134 Sunwood 22234 Supervision 21521 Supratech 33134 SVA 21253 Sylvania 21311 Synn 22144 Tamashi 32145 Tandberg 21434 Tangent 31352 Targa 21542 Tatung 22151 Tchibo 21542 TCM 21542 Teac 21443 15352 15442 21311 TEC 23154 Technica 31543 Technics 14541

24115 15211 21443 21454 15312

14541 22144 22112 41125 41145

13254 22151 25514 35415

25514 22511 34521 22151 22422 22315 22545 21152

22215 15235 22234 21434 22241 41125 25513

21253 32145 33134 21241 22553

24232 42135 34144 32412 22144 25213 22134 41545

Theta Digital Thomson Tiny Tokai Tokiwa Tom-Tec Top Suxess Toshiba Tosumi TProgress TRANScontinents Transonic Tredex Trevi Trio TruVision TSM Umax United

21542 25455 23154 22422 41222 21542 22144 21454 22112 22144 24541 31115 33134 22144 25213 22142

21434 22422 15224 22153 24351 42151 41214 22535 25213 25213 25213 22144 22234 23154 25513 25213 25455 24121 25213 22511 22422 42123

Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands

706113_URC-6230-31_E_10t:Zapper_3

Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands
