SDW4523MS - Dishwasher SHARP - Free user manual and instructions
Find the device manual for free SDW4523MS SHARP in PDF.
| Type of product | Built-in dishwasher |
| Brand | Sharp |
| Model | SDW4523MS |
| Finish | Stainless steel |
| Capacity | 12 place settings |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Weight | 45 kg |
| Power supply | 220-240 V, 50 Hz, 2200 W |
| Energy efficiency class | A++ |
| Noise level | 49 dB(A) |
| Number of programs | 6 |
| Wash programs | Eco, Normal, Intensive, Quick, Glass, Rinse |
| Delay timer | 1-24 hours |
| Water consumption per cycle | 10.5 litres |
| Energy consumption per cycle | 0.93 kWh |
| Installation type | Under counter, fully integrated |
| Leak protection | Included |
| Child lock | Included |
| Adjustable racks | Foldable tines, adjustable upper basket |
| Maintenance | Clean filters and spray arms regularly |
| Spare parts availability | Available from Sharp authorized service centers |
Frequently Asked Questions - SDW4523MS SHARP
User questions about SDW4523MS SHARP
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dishwasher in PDF format for free! Find your manual SDW4523MS - SHARP and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SDW4523MS by SHARP.
USER MANUAL SDW4523MS SHARP
IMPORTANT SAFETY INSTRUCTIONS 4
APPEARANCE OVERVIEW 5
CONTROL PANEL 6
CONVENIENT FEATURES 7
GETTING STARTED 8-11
DISHWASHER CYCLE OPTIONS 12-13
CARE AND CLEANING 14-15
TROUBLESHOOTING 16-17
ERROR CODES 18
REGISTER YOUR PRODUCT
Registering your new product is easy and offers benefits that help you get the most out of your Sharp product including:
√ Convenience: If you ever need warranty support, your product information is already on file.
√ Communication: Stay up to date with important notifications and special offers from SHARP.
√ Support: Quickly access support content including Owner's Manuals, FAQ's, How-to Videos, and much more.
3 EASY WAYS TO REGISTER TODAY!
SCAN
Use the camera or QR code scanning application on your mobile device
ONLINE
Visit our sites to learn more about your product at sharpusa.com and sbl.sharpusa.com
CALL US
US 800-BE-SHARP
800-237-4277
Scan this QR Code on your mobile device Visit http://www.sharpusa.com/register
Contact a Sharp Advisor on the phone
PRODUCT SUPPORT
If you have questions about the setup or operation of your product, please refer to the corresponding section within this manual.
Additionally, visit www.sharpusa.com/support to access exclusive content about your product including:
→ FAQ's and How-To Videos
→ Find or Request Service
→ Extended Warranty Options
→ Downloads including the Installation Guide, Spec Sheet, and Owner's Manual
CONTACT US
If at any time you have questions or comments concerning your SHARP product, please contact the SHARP Customer Assistance Center. We are available to assist you through multiple contact methods for your convenience:
EMAIL
Available 24/7
US: sharpusa.com
CHAT ONLINE
CALL US
US 800-BE-SHARP
800-237-4277
See the Contact Us section on our sites U.S. | www.sharpusa.com/support Contact a Sharp Advisor on the phone
SHARP®
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION (“Sharp”) warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any cosmetic or appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service, or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described above on behalf of Sharp. The warranties described herein should be the sole and exclusive warranties granted by Sharp and should be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, should constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and should constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event should Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor should Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.
Your product model number & description
Model # SDW4523MS Dishwasher.
(Be sure to have this information available when you need service for your Product.)
Warranty period for this product:
One (1) year parts and labor, including in-home service.
Five (5) years parts only, racks and electronics controls.
Additional item(s) excluded from warranty coverage:
Commercial, non-residential, or use inconsistent with published installation and product operational instructions.
Service calls to your home to instruct how to use your dishwasher appliance, replace or repair house fuses or to correct house wiring, installation, or maintenance, damage to the product caused by delivery, accident, modifications, fire, floods or acts of God.
What to do to obtain service:
In-home service is provided for one (1) year from date of purchase. Service can be arranged by calling 1-800-BE-SHARP. Be sure to have Proof of Purchase, Model, and Serial Number available.
⚠ WARNING Follow the information in this manual to minimize the risk of fire, explosion, electric shock and to help prevent property damage or personal injury.
PROPER INSTALLATION
Install the dishwasher properly, as instructed in the included installation guide.
1 Water supply inlet temperature should be between 120° F and 149° F.
2 Dispose of the discarded appliance and packing material properly.
3 The dishwasher must be properly grounded to reduce the risk of electrical shock.
4 If there is any damage to the new dishwasher, contact the dealer. Do not attempt to repair or replace any part yourself.
WARNING
The manual does not cover every possible condition and situation that may occur.
1 Read all instructions before using the dishwasher.
2 Use the dishwasher only for intended functions as described in this manual.
3 Use only detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children.
4 When loading items to be washed:
- Load sharp items and knives so that they are not likely to damage the door seal and tub.
- Load sharp items and knives with the handles up to reduce the risk of injury.
5 Do not wash plastic items unless they are marked dishwasher safe. If not marked, check with manufacturer for recommendation. Items that are not dishwasher safe may melt and create a potential fire hazard.
6 If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.
7 Do not tamper with controls.
8 Do not operate the dishwasher unless all enclosure panels are in the proper place.
9 Do not touch the heating element during or immediately after use, especially if the sanitize option has been selected.
10 To reduce the risk of injury, do not allow children to play in or on a dishwasher.
11 Do not let children abuse, sit or stand on door or racks of the dishwasher.
12 Keep young children and infants away from dishwasher when it is in operation.
13 Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or longer. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, BEFORE USING DISHWASHER, turn on all hot water faucets and let water run from each for several minutes. This will release any accumulated hydrogen gas. Hydrogen gas is flammable. DO NOT smoke or use an open flame during this time.
14 Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
15 Do not use the dishwasher if it has a damaged power line or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electric shock.
16 Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SAVE THESE INSTRUCTIONS

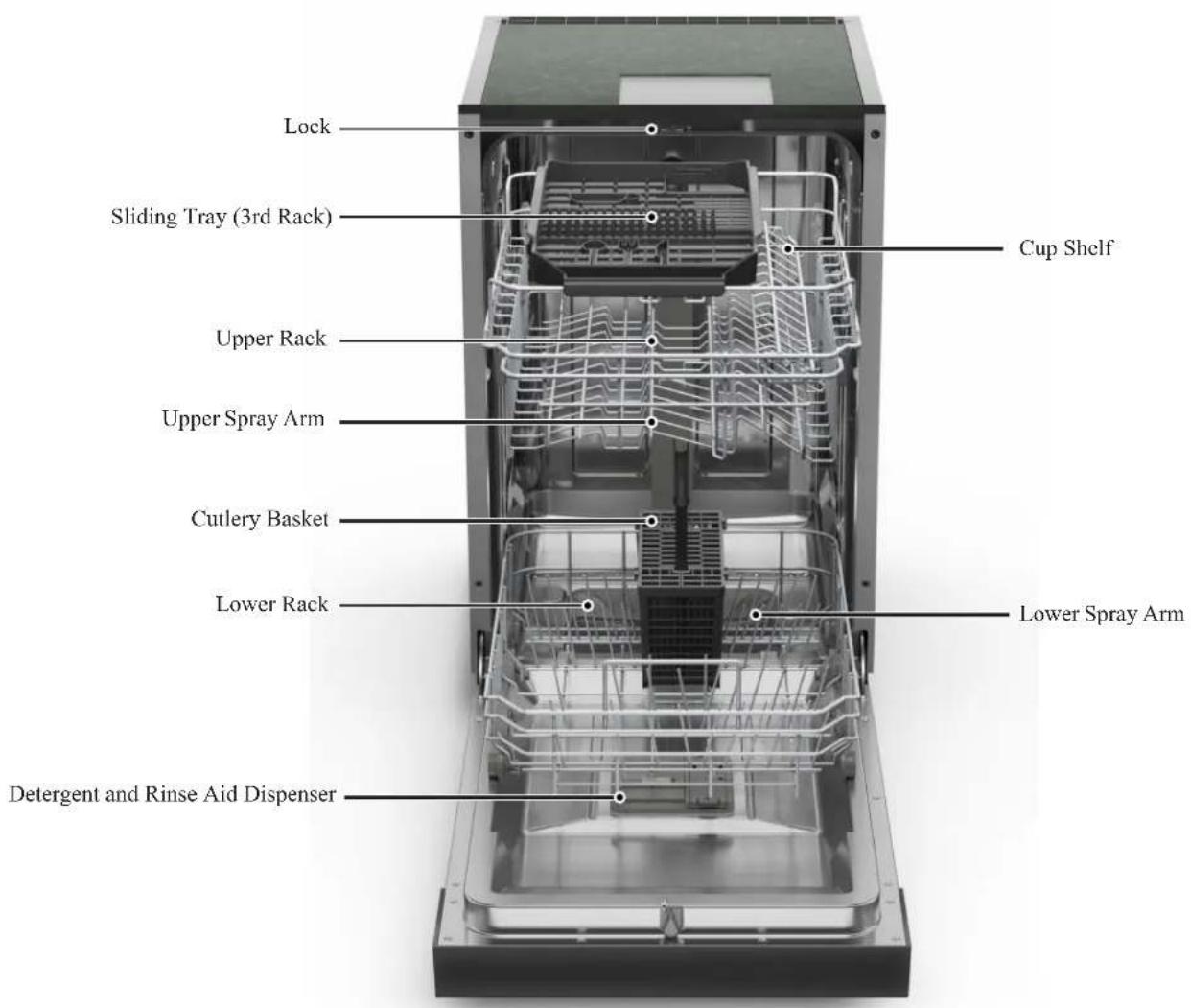

SPECIFICATIONS
| Capacity 8 place settings | |
| Dimension 17.7 x 22.7 x 31.1 inches (W x D x H) | |
| Power Supply 120 volts, 60 Hz | |
| Rated Power Usage Wash motor 100 W / Heater 1000 W | |
| Water Feed Pressure 5.8 ~ 145 psi (0.04 ~ MPa) | |
| Weight 93.7 lbs (Unpacked) | |
| Current (Amps) 9.14 A | |
| dB Specs 47 | |
OPERATIONS AND DISPLAYS
1 Power
Press this button to turn on or turn off the dishwasher.
2 Start/Cancel
Once the door is firmly closed, press Start/Pause to start operation after selecting the cycle and options or delay time settings.
3 Wash Cycle Selections
• Auto
Auto sensing wash, lightly, normally or heavily soiled crockery, with or without dried-on food.
- Heavy Duty
Heavy Duty cycle is for pots, pans, casseroles, and dinnerware with dried-on or baked on soil.
- Normal
Normal cycle with Heated Dry will completely wash and dry a full load of normally soiled dishes.
- Delicate
Delicate cycle is for items that need special care such as stemware or porcelain.
- Express
Express Wash cycle is for lightly soiled or well-rinsed dish loads.
- Rinse
Use for pre-rinsing dishes or glasses. This is only a rinse that keeps food from drying on your dishes and reduces odor buildup in your dishwasher until you are ready to wash a full load.
4 Options
Adaptive Option Indication
When a washing cycle is selected, default Option(s) are firmly lit. Also available Option(s) the selected washing cycle are dimly lit for your convenience.
- Half Load
When the load is about or less than half a typical load, use the Half Load function, which washes and dries with less water and energy.
• Hi Temp
When the "Hi Temp wash" function is selected, the temperature of the water will be maintained at 60°C (140°F) max.
- Sanitize
When the “Sanitize” function is selected, the temperature of water will be maintained at 69° C ( 156.2° F) max. The max temperature may not be reached if the incoming water temperature is not corrected. Certified residential dishwashers are not intended for licensed food establishments.
⚠ WARNING The sanitize option is available with "Auto" "Heavy" "Normal" and "Express" cycles.
- Auto Open
After washing, the door will open automatically to achieve better drying effect. (It can only be used with Auto, Heavy, Normal, Delicate, and Express).
Press and hold this button for 3 seconds to open or cancel this function. When the icon lights up, the function of Auto open is selected.
- Wash Zone
Press the button to select either upper basket or lower basket loaded, and the corresponding indicator will light up.
- Delay + / Delay --
To delay the start of a selected cycle, press the Delay Start pad until the desired delay time shows in the LED display. Each press of the button changes in a cycle of "00Hr\~08Hr > 12Hr > 16Hr > 20Hr > 24Hr > 00Hr."
Each button from 00Hr to 08Hr increases by 1 hour, and each button from 08Hr to 24Hr increases by 4 hours. To cancel the delay start option before the delay period is over, press the Start/Pause pad for 3-5 seconds.
- Child Lock
Press the button to lock all and prevent children from accidentally interacting with controls or settings.
5 Display Window
- Time Indicator
This displays the remaining hours and minutes of the running cycle, delayed hours, error codes, etc.
| 8:88 | To show the remaining program time and error code etc. |
| 88Hr | To show the delay time. |
| ---- | Status IndicatorTo roughly show the progress of program operation. |
| Rinse Aid IndicatorIf the icon is lit, the dishwasher is low on dishwasher rinse aid and requires a refill. | |
| Wash Zone-Upper Rack | |
| Wash Zone-Lower Rack |
H: 01-H:24
If the Delay Start option is selected, the number of delay start hours shows in the status window.
2:25-0:00
After the machine starts operation, the remaining time of the selected cycle will be shown in the window.
NOTE: The remaining time could suddenly increase or drop several minutes. This means the Smart Sensor has checked the soil level and determined if additional water fills are needed or if water fills can be deleted.
ERROR INDICATION
In certain situations which are critical to the machine's function and safe operation, the control shall shut down and indicate an error code (see Error Codes on page 19).
If Error codes are displayed, contact the dealer or services. They will be able to provide assistance in trouble shooting the problem and/or locate authorized service technician if needed.
CONVENIENT FEATURES
ADJUSTING UPPER RACK
The adjusting upper rack feature allows you to load taller items in either the upper or lower rack.
The upper rack can be adjusted 2" (5.08 cm).
Adjusting the clearance of the upper rack increases or decreases the clearance of the lower rack, as shown.
The upper dishwasher rack is designed for cups, glasses, small plates, bowls and plastic items marked dishwasher safe.
The upper rack can be easily adjusted 2" (5 cm) up or down to accommodate taller items in either in the upper or lower rack.
IMPORTANT:
- Remove all items before adjusting the rack. The rack must be empty.
To adjust the height of the upper rack, follow these steps:
1 Pull out the upper basket. | 2 Pull up on upper bascket to remove. |
3 Re-attach the upper basket to upper or lower rollers. | 4 Push in the upper basket. |
SMART WASH SYSTEM
Your dishwasher has Smart Wash System. This system can determine the type of cycle required to clean the dishes in the load with maximum efficiency. When a partial load of lightly soiled dishes is placed in the unit, a wash cycle similar to Express Wash will automatically be performed. When a full load of heavily soiled dishes is placed in the unit, Heavy Duty cycle will automatically be performed.
FILTER SYSTEM
Your dishwasher has a multiple filter system, which helps your dishwasher perform better using less water and less energy.
The filter system includes three filters that work in combination to separate dirty and clean water into different chambers.
AUTO DOOR OPENING
At the end of washing cycles, the door of the dishwasher will open automatically and leave a gap for air exchange, promoting washed items, even plastic dishes to achieve the best drying performance.
HOW YOUR DISHWASHER CLEANS
Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces.
The dishwasher fills with water, covering the filter area. Water is then pumped through the multiple filter system and spray arms. Separated soil particles go down the drain as the water is pumped out and replaced with clean water. The number of water fills will vary with the cycle being used.
BASIC OPERATIONS
1 Prepare and load dishes into the dishwasher.
2 Add detergent and, if needed, rinse aid.
3 Close the door firmly to latch.
4 Select the cycle. Press the corresponding button, and the cycle icon will be lit.
5 Select the options. Press the corresponding button, and the option icon will be lit.
6 To start, press the Start/Cancel button.
Your selections will only be activated when the door is firmly closed. Check and clean the filters regularly for best performance.
NOTE
The dishwasher is programmed to remember your last cycle so you do not have to reset each time. To start the dishwasher using the same cycle and options selected on the previous wash, simply press the Start/Cancel button.
DISH PREPARATION
Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove the remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups.
Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato-based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. If not operating the dishwasher immediately, it is best to rinse off dishes soiled with these types of foods.
If the dishwasher drains into a food disposer, be sure disposer is completely empty before starting dishwasher.
LOADING THE UPPER RACK
The features on your dishwasher rack may vary from the drawings shown.
8 place setting
IMPORTANT: Make sure the items loaded in the upper rack do not interfere with the rotation of the middle spray arm located beneath the upper rack. Check for interference by turning spray arm by hand.
- Place items so the open ends face downward for cleaning and draining.
- Load glasses and cups in upper rack only. The lower rack is not designed for glasses and cups. Damage can occur.
- Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage, water spots and poor cleaning.
- Small bowls, pans and other utensils can be placed in the top rack. Load bowls in the center section for best stability.
- China, crystal and other delicate items must not touch each other during dishwasher operation. Damage may occur.
- Load plastic items so the force of the spray does no move them during the cycle.
LOADING THE LOWER RACK
The lower rack is designed for plates, soup bowls, cookware and bakeware.
The adjustable upper rack allows you to load items up to 12.6" in height in the lower rack.
IMPORTANT: Items in the lower rack must be placed so that they do not interfere with the rotation of the spray arms, block the water inlet or keep the water spray from reaching the detergent dispenser.
8 place setting

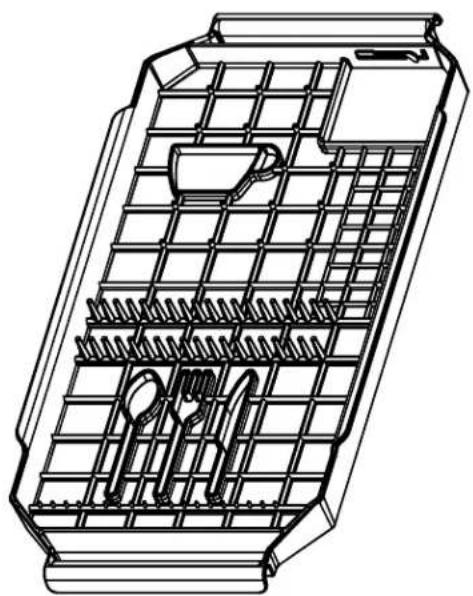

LOADING THE THIRD RACK
You can place the items in the cutlery rack randomly or in an orderly fashion.
LOADING THE SILVERWARE BASKET
The silverware basket can be divided into three separate modules that can be used in both upper and lower racks.
1 Spoons
3 Salad forks
5 Large spoons
2 Knives
4 Forks
6 Large forks
CAUTION
- Do not let any item extend through bottom.
- Be sure nothing protrudes through bottom of the silverware basket or rack that could block the lower spray arm.
● Always load sharp items (knives, skewers, etc.) pointing down.
FOR BEST RESULTS
- To avoid injury, load utensils such as knives and skewers with handles pointing up and sharp metal edges pointing down. Items such as forks and spoons may be loaded with handles pointing up or down, using separators to prevent the edges of the silverware from nesting.
- Place small items such as baby bottle caps, jar lids, corncob holders, etc. in the basket sections with hinged covers. Close the covers to hold small items in place.
- Unload or remove the baskets before unloading the racks to void water drops from falling on the silverware.
- When handles are up, mix items in each section of the baskets with some pointing up and some down to avoid nesting. Spray cannot reach nested items.
ADDING A DISH
To add or remove items after wash cycle starts:
1 Open door slightly and wait a few seconds until wash action stops before completely opening.
2 Add the item.
3 Close the door firmly to latch.
4 Press the Start/Cancel button.
CAUTION TO AVOID BURN INJURY: Slightly open door and wait until spray arms and wash action stop. Hot steam may exit the dishwasher or hot water may splash out of it. Failure to USE CAUTION may result in injury.
ADD DETERGENT
IMPORTANT:
- Use automatic dish washing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.
- Add detergent just before starting a cycle.
- Store detergent tightly closed in a cool, dry place. Fresh automatic dishwasher detergent results in better cleaning.
DETERGENT DISPENSER
1 Push the dispenser cover release catch to open the main wash detergent compartment.
NOTE: The flap is always open at the end of a dishwashing cycle.
2 Add the recommended amount of detergent to the detergent compartment.
3 Press down on the top of the cover to secure.
HOW MUCH DETERGENT TO USE
The amount of detergent to use depends on the soil level of your load, the type of detergent used and the hardness of your water.
- If you use too little detergent, dishes won't be clean.
- If you have soft water and use too much detergent, glassware will etch.
WATER HARDNESS
Water hardness varies depending on your water source. For the best results, your dishwasher is designed to operate with water that has a hardness of no more than 7 grains per gallon. Test kits are available from all major appliance parts retail outlets. If your water has a hardness over 8 grains per gallon, you may consider installing a water softener or regularly use an additive to enhance the performance of your detergent.
FILLING THE RINSE AID
Rinse aid greatly improves drying and reduces water spots and filming. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. The Heated Dry option will not perform as well without rinse aid. The Rinse Aid Dispenser, located next to the detergent dispenser, automatically releases a measured amount of rinse aid during the final rinse.
If spotting and poor drying are a problem, increase the amount of rinse aid dispensed by rotating the dial to a higher number. The dial is located under the dispenser cap.
If the rinse aid is low, the rinse aid light is illuminated at the beginning and end of the cycle indicating that it is time to refill.
Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month. Try to keep the reservoir full, but do not overfill.
RINSE AID DISPENSER
1 Lift up the end tab of rinse aid cover to open.
2 Fill the rinse aid dispenser with liquid rinse aid until fill. Do not overfill.
NOTE: Use the viewing port when filling the rinse aid reservoir.
⚠ WARNING Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle.
3 Press the rinse aid cover down firmly to close.
TO ADJUST THE RINSE AID SETTING
You can adjust the amount of the rinse aid released during the rinse aid according to the following steps:
1 Close the door and power on the dishwasher.
2 Within 60 seconds after step 1, press the Rinse Only button more than 5 seconds to enter into the setting mode, the rinse aid indicator will blink quickly.
3 Press the Rinse Only button to select the proper setting according to your using habits. The setting will change in the following sequence: d3 > d4 > d5 > d1 > d2 > d3.
4 Without any operation in 5 seconds or press the Power button to complete the setting and exit the setting mode.
CYCLE CHART
| PROGRAM DESCRIPTION OF CYCLE WATER (IN L/Gal) CYCLE | TIME (MIN) | ||
| AUTO | Pre-Wash | 9 - 17.7 L/2.4 - 4.7 Gal | 123 - 154 |
| Main Wash 113-140°F (45-60°C) | |||
| Rinse | |||
| Last Rinse 149°F (65°C) | |||
| Drying | |||
| HEAVY DUTY | Pre-Wash | 17.7 L/4.7 Gal 157 | |
| Pre-Wash | |||
| Main Wash 149°F (65°C) | |||
| Rinse | |||
| Rinse | |||
| Last Rinse 154°F (68°C) | |||
| Drying | |||
| NORMAL | Pre-Wash | 9~17.7L/2.4~4.7Gal | 118~149 |
| Main Wash 113-140°F (45-60°C) | |||
| Rinse | |||
| Last Rinse 149°F (65°C) | |||
| Drying | |||
| DELICATE | Pre-Wash | 15.9L/4.2Gal 116 | |
| Main Wash 122°F (50°C) | |||
| Rinse | |||
| Rinse | |||
| Last Rinse 143.6°F (62°C) | |||
| Drying | |||
| EXPRESS | Pre-Wash 131°F (55°C) | 12.8L/3.4Gal 60 | |
| Main Wash 140°F (60°C) | |||
| Rinse 131°F (55°C) | |||
| Last Rinse 154°F (68°C) | |||
| Drying | |||
| RINSE | Pre-Wash | 6.6L/1.7Gal 20 | |
| Pre-Wash | |||
CYCLE TIME WITH OPTIONS
| CYCLE TIME (MIN) | NULL HALF-LOAD HI-TEMP | SANITIZE | HI-TEMP + SANITIZE | ||
| AUTO 123-154 | 113-137 118-159 153 | -184 173-189 | |||
| HEAVY DUTY 157 | 130 162 182 187 | ||||
| NORMAL 118-149 | 108-139 113-129 148 | -179 168-184 | |||
| DELICATE | 116 | 100 | N.A. | N.A. | N.A. |
| EXPRESS WASH | 60 | 55 | N.A. | 120 | N.A. |
| RINSE ONLY | 20 | N.A. | N.A. | N.A. | N.A. |
WASH CYCLE SELECTIONS
Cycle times are approximate and will vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature, and, if it is not hot enough, the timer will be delayed for automatic water heating in the main wash of all cycles. This happens even when HI-TEMP WASH is selected as an even higher temperature will be guaranteed to handle heavier soil loads.
NOTE: The energy usage label is based on Normal cycle with Heated Dry option selected and with the upper rack in the raised position.
CLEANING THE DISHWASHER
EXTERIOR DOOR AND PANEL
1 Regularly clean the stainless steel door and handle with a soft cleaning cloth to remove any debris. Do not use appliance wax, polish, bleach or products containing chlorine to clean the stainless steel door.
2 Gently clean the control panel with a lightly dampened cloth.
STAINLESS STEEL INNER DOOR AND TUB
The tub is made of stainless steel; it will not rust or corrode if the dishwasher is scratched or dented. Do not clean the dishwasher interior until it has cooled. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause forming or create suds.
Clean any spots on the steel inner door and tub with a damp, nonabrasive cloth.
FILTER SYSTEM
The Cylinder Filter is designed to collect some big items such as broken glass, bones and pits. The Cylinder Filter needs to be cleaned to maximize wash performance.
WARNING
BURN HAZARD
Allow heating element to cool before cleaning the interior. Failure to do so can result in burns.
CLEANING THE FILTERS
Clean and check filters regularly for best performance.
1 Turn off the dishwasher.
2 Rotate the filter insert counterclockwise to unfasten and then detach the filter insert.
3 Remove the fine filter (flat, rectangular).
4 Remove any dirt or other remains from the filters, and then rinse them under running water.
5 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.
⚠️ CAUTION If the filter insert is not closed properly, its performance will be decreased.
CLEANING THE NOZZLES
If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break.
Lower Nozzle
1 Check whether the nozzle holes are clogged by food particles.
2 If cleaning is needed, remove the nozzle by pulling it upwards.
3 Clean the nozzle, and then push it back into place.
4 Check whether the nozzle is engaged correctly by rotating it by hand.
DOOR GASKET
Clean the door gasket with a damp cloth regularly to remove food particles.
AIR GAP
If there is an air gap installed with your dishwasher, make sure it is clean, so the dishwasher will drain properly.
Before cleaning the air gap, first turn off the dishwasher and lift off the cover. Remove the plastic cap and clean with a toothpick.
NOTE: Air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the air gap.
PROTECT AGAINST FREEZING
Your dishwasher should be properly protected from freezing when left in an unheated place. Have a qualified technician perform the steps listed below in this section.
TO DISCONNECT SERVICE
1 Turn off electrical power to the dishwasher at the supply source by moving fuses or tripping the circuit breaker.
2 Turn off the water supply.
3 Place a pan under the inlet valve. Disconnect water line from inlet valve and drain into pan.
4 Disconnect drain line from pump and drain water into pan.
TO RESTORE SERVICE
1 Reconnect the water, drain and electrical power supply.
2 Turn on water and electrical power supply.
3 Fill both detergent cups and run dishwasher through a heated wash cycle.
4 Check connections to make sure they do not leak.
BEFORE CALLING FOR SERVICE
| PROBLEM POSSIBLE CAUSE SOLUTION | ||
| Dishwasher won't start | Door may not be closed properly Ensure the door is properly closed | |
| Power supply or power line is not connected Ensure power supply is correctly connected | ||
| Delay Start option has been selected Refer to delay start section in this manual to reset | ||
| Child lock activated (selected models) | Refer to child lock section in this manual to deactivate the child lock | |
| Dishwasher beeps at the end of the cycle | Indicates the wash cycle is finished This is normal. | |
| Rinse aid light is on The rinse aid level is low Add rinse aid | ||
| Dishwasher operates too long | The dishwasher is connected to cold water | Make sure the dishwasher is connected to hot water supply |
| The cycle time will vary depending on the soil level of the dishes | When heavy soil is detected, the Auto and Normal cycles will automatically increase the cycle time | |
| The sanitize option is selected | When Sanitize option is selected, the cycle time will be increased to meet the sanitize temperature requirement | |
| Dishes are not clean enough | Water pressure is temporarily low Use dishwasher when the water pressure is normal | |
| The inlet water is low | Make sure the dishwasher is connected to the hot water supply. Try not to use the dishwasher when hot water is being used elsewhere in the house | |
| Dishes are loaded too close together Load the dishes again as the manual indicates | ||
| Improper use of detergent | Using fresh detergent, add the correct amount depending on the water hardness and the selected cycle | |
| The selected cycle is not suitable for food soil condition | Choose another cycle for longer washing time | |
| Spray arms are blocked by items Make sure the spray arm is rotated fully | ||
| Dishes are not dry enough | Rinse aid dispenser is empty Fill rinse aid dispenser or increase the amount of rinse aid | |
| Improper loading of dishes Load the dishes again as the manual indicates | ||
| The selected cycle did not include drying Choose the proper cycle with drying | ||
| Spots and filming on dishes | Water hardness is too high For extremely hard water, install a water softener | |
| Improper loading of dishes Load the dishes again as the manual indicates | ||
| Old or damp powder rinse aid is used | Use fresh rinse aid | |
| Rinse aid dispenser empty | Add rinse aid to the dispenser | |
| Water temperature is too low | For best results, water should be a minimum 120°F as it enters the dishwasher. | |
| Etching | Use of too much detergent Use less detergent if you have soft water etching | |
| The inlet water temperature exceeds 150°F | Lower the inlet water temperature | |
| Detergent left in dispenser cup | Detergent may be too old | Use fresh detergent |
| Spray arm is blocked | Load the dishes, making sure the spray arms are not blocked | |
| Detergent dispenser will not close Improper operation of the detergent cover | Add the detergent and rinse aid as indicated by the manual | |
| Water remains in the dishwasher | Previous cycle has not finished or has been interrupted | Select the proper cycle as indicated by the manual |
| Dishwasher does not drain properly | Drain is clogged | Check the air gap if it is installedMake sure the disposer is empty if the dishwasher is connected to the disposer |
| Drain hose is kinked | Be sure the drain hose is properly connected to the sink | |
| Suds in the tub | Improper detergent is used | Be sure to use only the automatic dishwasher detergent |
| Excessive suds caused by using the improper detergent | Make sure to use only the automatic dishwasher detergent | |
| Dishwasher leaks Dishwasher is not level Level the dishwasher (see the installation manual) | ||
| Black or gray marks on dishes Aluminum utensils have rubbed against dishes | Choose a higher cycleMake sure the inlet water temperature is no less than 120°F | |
| Stained tub interior | Coffee and tea soil Use a spot cleaner to remove the soil | |
| Reddish stain | Some tomato-based foods will cause this. Use of the rinse only cycle right after loading this will decrease the staining | |
| Noise | Detergent cup opening or drain pump sound This is normal | |
| A hard object has entered the wash module.When the object is ground up, the sound should stop | If the noise persists after a complete cycle, call for service | |
| Dishwasher won’t fill | Water valve is shut off Make sure water valve is open | |
| Door latch may not be properly seated Make sure the door is closed | ||
| Water pressure is too low | Verify a minimum of 5.8 psi water pressure is maintained during the filling operation. | |
If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.
| CHECK CODE DISPLAY POSSIBLE CAUSE | |
| E1 | The water supply pressure is low.The water supply valve is closed.The non-water switch is broken.The wash pump does not work.The main PBA has some problems. |
| E3 | The heater is broken.The thermistor doesn’t work normally.The main PBA has some problems. |
| E4 | The case brake fails to detect the pulse.The valve water is out of order.The overflow sensor is broken.There is a water leakage. |
| E6 | The Thermistor is broken.The main PBA fails to detect the pulse. |
| E7 | The Thermistor is broken.The main PBA fails to detect the pulse. |
| E8 | The main PBA or sub PBA is out of order.Breakage of distributary valve.The connecting wire harness is defective or damaged. |
| Ed | The main PBA or sub PBA is out of order.The communications connection for the main PBA or sub PBA is not properly connected. |
SHARP®
SHARP ELECTRONICS CORPORATION • 100 Paragon Drive • Montvale, New Jersey 07645 • USA 800-BE-SHARP (800-237-4277)
October 31st, 2024
- REGISTER YOUR PRODUCT
- EASY WAYS TO REGISTER TODAY
- PRODUCT SUPPORT
- CONTACT US
- SHARP®
- CONSUMER LIMITED WARRANTY
- PROPER INSTALLATION
- WARNING
- STATE OF CALIFORNIA PROPOSITION 65 WARNINGS
- SAVE THESE INSTRUCTIONS
- OPERATIONS AND DISPLAYS
- POWER
- START/CANCEL
- WASH CYCLE SELECTIONS
- AUTO
- HEAVY DUTY
- NORMAL
- DELICATE
- EXPRESS
- RINSE
- OPTIONS
- ADAPTIVE OPTION INDICATION
- HALF LOAD
- HI TEMP
- SANITIZE
- ⚠ WARNING THE SANITIZE OPTION IS AVAILABLE WITH "AUTO" "HEAVY" "NORMAL" AND "EXPRESS" CYCLES
- AUTO OPEN
- WASH ZONE
- DELAY + / DELAY
- CHILD LOCK
- DISPLAY WINDOW
- TIME INDICATOR
- ERROR INDICATION
- CONVENIENT FEATURES
- ADJUSTING UPPER RACK
- IMPORTANT
- SMART WASH SYSTEM
- FILTER SYSTEM
- AUTO DOOR OPENING
- HOW YOUR DISHWASHER CLEANS
- BASIC OPERATIONS
- NOTE
- DISH PREPARATION
- LOADING THE UPPER RACK
- LOADING THE LOWER RACK
- LOADING THE THIRD RACK
- LOADING THE SILVERWARE BASKET
- CAUTION
- FOR BEST RESULTS
- ADDING A DISH
- ADD DETERGENT
- DETERGENT DISPENSER
- HOW MUCH DETERGENT TO USE
- WATER HARDNESS
- FILLING THE RINSE AID
- RINSE AID DISPENSER
- TO ADJUST THE RINSE AID SETTING
- CLEANING THE DISHWASHER
- EXTERIOR DOOR AND PANEL
- STAINLESS STEEL INNER DOOR AND TUB
- BURN HAZARD
- CLEANING THE FILTERS
- CLEANING THE NOZZLES
- LOWER NOZZLE
- DOOR GASKET
- AIR GAP
- PROTECT AGAINST FREEZING
- TO DISCONNECT SERVICE
- TO RESTORE SERVICE
Brand : SHARP
Model : SDW4523MS
Category : Dishwasher
