USER MANUAL HC-930 REMINGTON

Professionally Styled Home Haircut Kit Use and Care Guide A Superior Cut Every Time IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be observed, including the following. Read all instructions before using this appliance. DANGER To reduce the risk of electric shock: ■ Do not reach for an appliance that has fallen into water. Unplug it immediately. ■ Do not use while bathing or in the shower. ■ Do not place or drop into water or other liquid. ■ Do not place or store this appliance where it can fall or be pulled into a tub or sink. ■ Except when charging, always unplug this appliance from the electrical outlet immediately after using. ■ Unplug this appliance before cleaning it. WARNING To reduce the risk of burns, fire, electric shock or injury to persons: ■ This appliance is for household use only.

■ An appliance should never be left unattended when it’s plugged in, except when charging a rechargeable appliance. ■ Close supervision is necessary when this appliance is used by, on, or near children or invalids. ■ Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Remington. ■ Keep the cord away from heated surfaces. ■ Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water. If any of these things happen, return the appliance to a Remington authorized service center for examination and repair. ■ Never drop or insert any object into any of the appliance’s openings. ■ Do not use outdoors or operate where aerosol (spray) products are being used, or where oxygen is being administered. ■ Always store this appliance and cord in a moisture-free area. Do not store it in temperatures exceeding 140°F (60°C) ■ Do not plug or unplug this appliance when your hands are wet. ■ Do not use an extension cord or a voltage converter with this appliance. ■ Do not wrap the cord around the appliance. ■ Always attach the plug to the appliance, then to the outlet. To disconnect, turn all controls to OFF, then remove plug from outlet. Detach removable power cords from appliances for storage. ■ Do not place this appliance on any surface while operating. ■ This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature. ■ Do not use this appliance with a damaged or broken cutting unit, as injury may occur. Always make certain blades are aligned properly. ■ This clipper is designed for use with 110-120 Volts AC, 60 HZ electrical outlets. Do not connect the clipper to a higher voltage than indicated, as it may result in personal injury and/or damage to the clipper. ■ This appliance does not contain any user-serviceable parts. Bring this appliance to an authorized service representative for service.

SAVE THESE INSTRUCTIONS

• Contents English p. 2
• Spanish p. 13
• French p. 25

Product Features (3) Congratulations on your purchase of one of the finest hair clippers available today. Your Remington® hair clipper is designed to perform dependably and efficiently for years, helping you maintain a range of hair styles. Part Unit:

1. Hair Clipper

2. Blade Guard

3. 1/8" Guide Comb

4. 1/4" Guide Comb

5. 3/8" Guide Comb

6. 1/2" Guide Comb

7. 5/8" Guide Comb

8. 3/4" Guide Comb

9. 7/8" Guide Comb

10. 1" Guide Comb

11. Left Ear Guide

12. Right Ear Guide

13. Barber's Comb

14. Styling Comb

15. Scissors

16. Barber's Cape

17. Sectioning Clips

18. Neck Brush

19. Cleaning Brush

20. Lubricating Oil

21. Instruction Book

22. Storage Case

23. Power Cord Adaptor

24. Personal Groomer

25. Beard Combs

26. Nose & Ear Trimmer

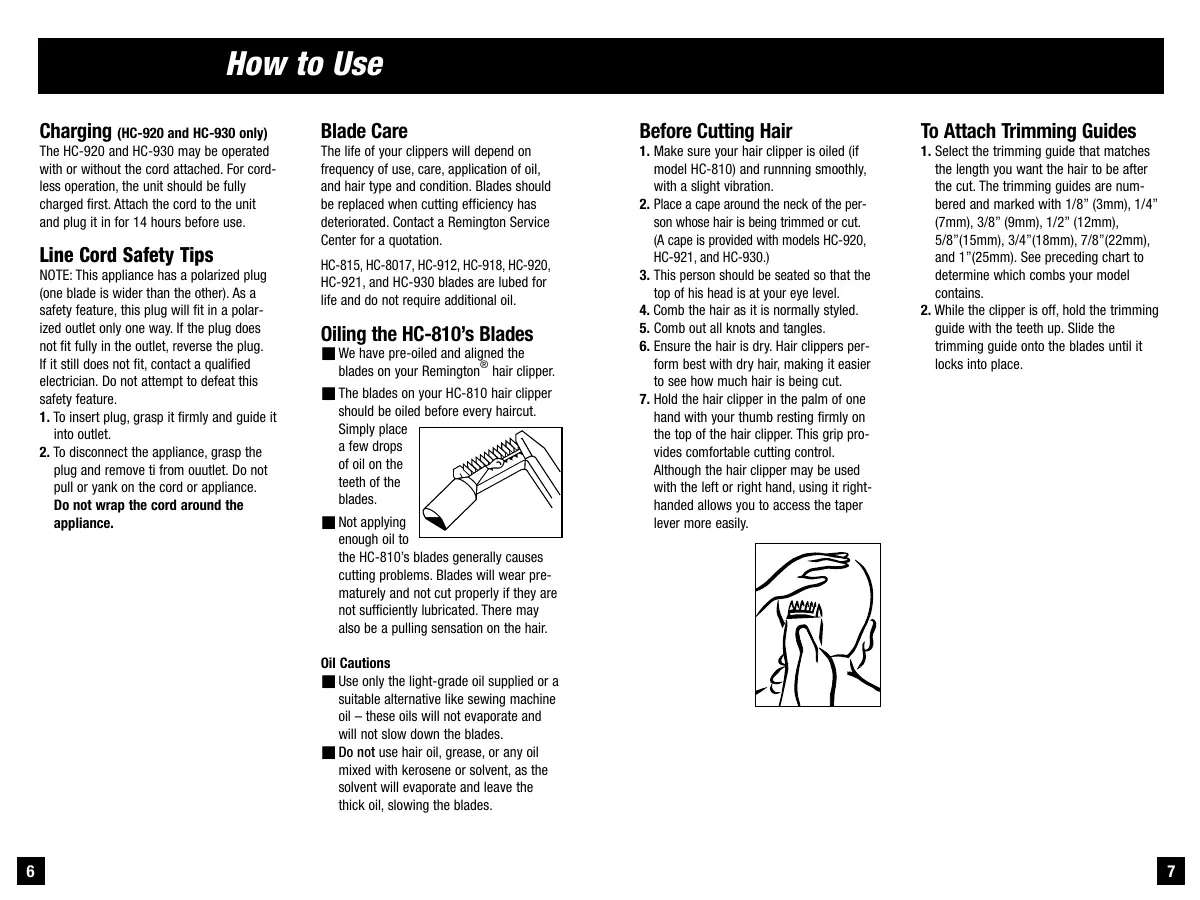

How to Use Charging (HC-920 and HC-930 only) Blade Care Before Cutting Hair To Attach Trimming Guides The HC-920 and HC-930 may be operated with or without the cord attached. For cordless operation, the unit should be fully charged first. Attach the cord to the unit and plug it in for 14 hours before use. The life of your clippers will depend on frequency of use, care, application of oil, and hair type and condition. Blades should be replaced when cutting efficiency has deteriorated. Contact a Remington Service Center for a quotation.

1. Make sure your hair clipper is oiled (if

model HC-810) and runnning smoothly, with a slight vibration.

2. Place a cape around the neck of the person whose hair is being trimmed or cut.

(A cape is provided with models HC-920, HC-921, and HC-930.)

3. This person should be seated so that the

top of his head is at your eye level.

4. Comb the hair as it is normally styled.

5. Comb out all knots and tangles.

6. Ensure the hair is dry. Hair clippers perform best with dry hair, making it easier

to see how much hair is being cut.

7. Hold the hair clipper in the palm of one

hand with your thumb resting firmly on the top of the hair clipper. This grip provides comfortable cutting control. Although the hair clipper may be used with the left or right hand, using it righthanded allows you to access the taper lever more easily.

1. Select the trimming guide that matches

the length you want the hair to be after the cut. The trimming guides are numbered and marked with 1/8” (3mm), 1/4” (7mm), 3/8” (9mm), 1/2” (12mm), 5/8”(15mm), 3/4”(18mm), 7/8”(22mm), and 1”(25mm). See preceding chart to determine which combs your model contains.

2. While the clipper is off, hold the trimming

guide with the teeth up. Slide the trimming guide onto the blades until it locks into place. Line Cord Safety Tips NOTE: This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

1. To insert plug, grasp it firmly and guide it

2. To disconnect the appliance, grasp the

plug and remove ti from ouutlet. Do not pull or yank on the cord or appliance. Do not wrap the cord around the appliance. HC-815, HC-8017, HC-912, HC-918, HC-920, HC-921, and HC-930 blades are lubed for life and do not require additional oil. Oiling the HC-810’s Blades ■ We have pre-oiled and aligned the

blades on your Remington hair clipper. ■ The blades on your HC-810 hair clipper should be oiled before every haircut. Simply place a few drops of oil on the teeth of the blades. ■ Not applying enough oil to the HC-810’s blades generally causes cutting problems. Blades will wear prematurely and not cut properly if they are not sufficiently lubricated. There may also be a pulling sensation on the hair. Oil Cautions ■ Use only the light-grade oil supplied or a suitable alternative like sewing machine oil – these oils will not evaporate and will not slow down the blades. ■ Do not use hair oil, grease, or any oil mixed with kerosene or solvent, as the solvent will evaporate and leave the thick oil, slowing the blades.

Usage Tips Giving a Comfortable, Even Cut Allow the clipper to cut through the hair without moving it too quickly. Moving the clipper too quickly may create a pulling sensation. Use short strokes when cutting, and initially use the longest trimming guide. You can always use a closer trimming guide later if you want a closer cut. How to Give a Haircut

1. Start at the back of the head. Holding the

clipper as shown, lightly stroke upward making sure you are taking off the desired amount of hair. Work your way up to the crown of the head in layers. When completed, comb the area to remove any loose hair and to determine whether you need any further cutting.

2. Repeat the same procedure for each side

of the head. Make sure the length of the hair is trimmed to the same length on both sides of the head.

3. To cut the hair

at the top of the head, hold the hair between your fingers and cut a small amount at a time. Cut from the front to the back.

4. If you have the HC-918, HC-920, HC-921,

HC-930, or HC-8017 remove the trimming guide and replace with either the left or right ear guide. The shorter guide teeth are designed to be toward the ear. Move the clipper from the front of the head to the back. This creates a tapered effect around the ear and back of the neck. To trim around the ears and short hairs at the nape of the neck with the HC-810 and HC-815, you must remove the trimming guide. Angle the clipper and lightly stroke around each ear to the back of the neck. Be careful not to touch the ears or to press too hard.

5. The final trim

can be made with the hair clipper or the included scissors. Make sure to check over the entire head for any uneven areas. For styled hair or giving quick trims, you may prefer using your hair clipper without the trimming guide.

6. The adjustable taper control lever allows

you to gradually change the closeness of your cut, either with or without a trimming guide. When the lever is fully forward the blades will give you the closest cut. Moving the lever gradually backward increases the cut length. Very short styles

1. Using the 1/2” (12mm) trimming guide,

hold the comb flat against the head and move the hair clipper from the back of the neck to the crown of the head.

2. Cut in a similar

manner from the side to the top of the head. Then cut from the front to the crown of the head.

3. If a “Flat Top” style is desired, then

remove the trimming guide and use the barber’s comb. Trim a little at a time until a flat look is achieved. Trimming Beards & Mustaches

1. Comb your

beard in the direction it grows.

2. Determine the

length you want the beard to remain, and fit the appropriate trimming guide. Remember the 1/8” (3mm) guide will give you the shortest beard while the 1/2” (12mm) or 1” (25mm) will give you the longest. If you want a longer beard you can use the barber’s comb as a trimming guide.

3. Start trimming under your chin and work

toward your ear and beard line. Cut in different directions for a uniform trim.

4. Lightly stroke the edge of your mustache

in a downward movement.

Disposal Battery Removal (HC-920 and HC-930) When your rechargeable clipper reaches the end of its useful life, the batteries must be removed from the clipper and recycled or disposed of properNi-Cd ly in accordance with CONTAINS NICKELCADMIUM BATTERY. your local and state

BATTERY MUST BE RECYCLED

OR DISPOSED OF PROPERLY. requirements. The following procedure should be followed for battery removal: ■ Make sure your clipper is unplugged from any outlets so you don’t risk an electric shock. ■ Remove the decorative plug from the back cover. ■ Using a small Phillips head screwdriver, remove the screw from the back of the clipper. ■ Pull or gently pry the clipper halves apart, exposing the batteries. ■ Remove batteries from unit. ■ Twist batteries to break wires. Wires may also be cut.

CAUTION: THESE NICKEL-CADMIUM

BATTERIES MUST BE RECYCLED

OR DISPOSED OF IN ACCORDANCE WITH

STATE AND LOCAL REGULATIONS. Do not burn or mutilate, as they may burst or release toxic materials. Do not shortcircuit, as this may cause burns. The EPA-certified RBRC ® Battery Recycling Seal on the nickel-cadmium (Ni-Cd) battery indicates Remington Products Company, L.L.C. is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC ® program provides a convenient alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream, which may be illegal in your area. Please call 1-800-8-BATTERYSM for information on Ni-Cd battery recycling and disposal bans/restriction in your area. Remington Products Company, L.L.C.’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources. Warranty Warranty Service In the U.S. and Canada, service is provided by our Company-owned Service Centers and more than 300 Authorized Service Dealers. For the address of your nearest authorized Service Dealer, contact us at 800-736-4648 (in U.S.), 888-277-6333 (in Canada), visit our website at www.remington-products.com or consult your local Yellow Pages under "Shaver-Electric-Repair." Remington and Precision are trademarks of Remington Corporation, L.L.C. in the U.S. Remington is a trademark of Remington Corporation, L.L.C. in Canada. © 2003 R.P.C, L.L.C. Job #G03-022 10/03 Part No.13494

U.S. customers may mail the product, postpaid, with a copy of the sales receipt and a letter explaining the problem, to this address: Remington Products Company, L.L.C. 60 Main St. Bridgeport, CT 06604 Attention: Service Department

KEEP ORIGINAL SALES RECEIPT AS PROOF

OF PURCHASE FOR WARRANTY PURPOSES. For questions or comments, contact us: Remington Products Company, L.L.C. 20 Constitution Boulevard South P.O. Box 884 Shelton, CT 06484-0884 Attn: Consumer Affairs 800-736-4648 www.remington-products.com Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604

MADE IN CHINA

Remington Products (Canada) Inc. 61 Amber Street Markham, Ontario L3R 3J7 Remington Products (Canada) Inc. 61 Amber Street. Markham, Ontario L3R 3J7 Attn: Customer Service 888-277-6333 www.remington-products.com

Performance Guarantee

Performance Guarantee Remington® Money-Back Offer If within 30 days after you have purchased your Remington® product, you are not satisfied with it and would like a refund, just return it, together with the sales receipt, to the retailer from whom it was purchased. Remington will reimburse all retailers who accept such appliances within 30 days from date of purchase. If you have any questions regarding this money-back guarantee, please call 800-736-4648 in the U.S. or 888-277-6333 in Canada. Limited Five-Year Warranty Remington® warrants that this product (excluding blade, comb attachments, and line cord) is free from defect in material and workmanship for five years after its original purchase date. If the product should become defective within the warranty period, Remington® will repair it or elect to replace it free of charge. We will return your product, shipping charges prepaid, if you do the following within five years of the purchase date:

1. Return the complete product in person

or by mail, postage paid, to a Remington Company-owned Service Center or Authorized Service Dealer.

2. Include the original purchase receipt

3. Include a description of the problem

4. Do not return the product to the store

that sold it to you.

This warranty does not cover products damaged by the following: ■ Accident, misuse, abuse or alteration of it ■ Servicing by unauthorized persons ■ Use with unauthorized accessories ■ Connecting it to incorrect current and voltage ■ Any other conditions beyond our control No responsibility, obligations, or liability is assumed for the installation or maintenance of this product.

REMINGTON® SHALL NOT BE RESPONSIBLE

FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. ALL IMPLIED

WARRANTIES INCLUDING BUT NOT LIMITED

TO IMPLIED WARRANTIES OF FITNESS AND

MERCHANTABILITY, ARE LIMITED IN

DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations and exclusions may not apply to you. U.S. residents: To order, contact us at 800-736-4648, visit us at www.remington-products.com, or visit your local retailer. Canadian residents: For any shaver accessory requirements, please call 800-268-6531 or write: Remington Products (Canada) Inc., P.O. Box 601, Postal Station "T," Dept. A-100, 3019 Dufferin St., Toronto, Ontario, Canada M6B3T7.

Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604 Remington Products (Canada) Inc. 61 Amber Street Markham, Ontario L3R 3J7

HECHO EN CHINA

Remington Products Company L.L.C. 20 Constitution Boulevard South P.O. Box 884 Shelton, CT 06484-0884 Attn: Consumer Affairs 800-736-4648

Lubrification des lames Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604 Remington Products (Canada) Inc. 61, rue Amber Markham (Ontario) L3R 3J7

FABRIQUÉ EN CHINE

Remington Products Company L.L.C. 20 Constitution Boulevard South P.O. Box 884 Shelton, CT 06484-0884 Attn: Consumer Affairs 800 736-4648 www.remington-products.com Remington Products (Canada) Inc. 61, rue Amber Markham (Ontario) L3R 3J7 Attention : Service à la clientèle 888 277-6333 www.remington-products.com

Remington Products Company, L.L.C., 60 Main Street, Bridgeport, CT 06604 Remington Products (Canada) Inc., 61 Amber Street, Markham (Ontario) L3R 3J7
