Product Type	Curved Gaming Monitor
Brand	MSI
Model	Optix MAG241CPUK
Screen Size	23.6 inches
Resolution	1920 x 1080 (Full HD)
Panel Type	VA (Vertical Alignment)
Curvature	1500R
Refresh Rate	144Hz
Response Time	1ms MPRT
Aspect Ratio	16:9
Brightness	250 cd/m² (typical)
Contrast Ratio	3000:1 (typical)
Viewing Angles	178° horizontal / 178° vertical
Connectivity	1x DisplayPort, 2x HDMI, 1x Audio-out
VESA Mounting	100 x 100 mm
Stand Features	Tilt adjustable
Weight (with stand)	Approx. 4.3 kg
Dimensions (WxHxD with stand)	Approx. 535 x 417 x 198 mm
Power Consumption	32W (typical), 0.5W standby
Key Features	AMD FreeSync, HDR Ready, Flicker-free, Anti-glare screen, Night Vision, Game Mode presets
Included Accessories	Power cable, DisplayPort cable, Quick start guide
Safety	Kensington lock slot, VESA mount support
Maintenance	Clean with a soft dry cloth; avoid aggressive solvents
Repairability	Replaceable stand and external power adapter; spare parts may vary by region

Frequently Asked Questions - Optix MAG241CPUK MSI

How do I set up the MSI Optix MAG241CPUK monitor?

Connect the DisplayPort or HDMI cable to your graphics card, attach the stand, plug in the power cable, and press the power button. Use the OSD joystick to select the input source.

How do I switch the monitor to 144Hz refresh rate?

Right-click your desktop, go to Display settings > Advanced display settings, and choose a 144Hz refresh rate from the drop-down menu. Ensure your GPU and cable support this speed.

How do I enable AMD FreeSync?

Open the OSD menu, navigate to Gaming > FreeSync, and set it to On. Also enable FreeSync in your AMD graphics driver to experience tear-free gameplay.

Why is my screen showing ghosting or artifacts?

Check if the response time is set to the fastest option. Reset the monitor to factory defaults and test with a different cable. Artifacts may indicate a damaged cable or outdated graphics driver.

How should I clean the curved screen safely?

Turn off the monitor and unplug it. Use a soft, dry microfiber cloth to wipe the screen. For stubborn stains, slightly dampen the cloth with distilled water. Avoid using alcohol, ammonia, or abrasive cleaners.

Can I mount this monitor on a wall?

Yes, it supports VESA 100x100 mm mounting. Use a compatible wall mount bracket and secure it to the back of the monitor after removing the stand.

What picture settings are best for gaming?

Use the FPS or RTS game mode in the OSD. Set brightness to your room lighting, contrast to 50-70%, and color temperature to Normal or Cool. Keep FreeSync enabled for smooth visuals.

How do I update the monitor firmware?

Download the latest firmware from the MSI support page, extract the file to a USB drive, connect it to the monitor's USB port (if available), and use the OSD to trigger the update. If not possible, contact MSI support.

The monitor turns off unexpectedly; what should I do?

Check if the ECO mode or power saving feature is enabled and disable it. Verify the power cable connection. Also, test the monitor with another power outlet. If the issue persists, the internal PSU may need service.

Is the MSI Optix MAG241CPUK compatible with VESA wall mounts?

Yes, it has a 100x100 mm VESA pattern. Use a certified mount designed for that size. The included stand is removable for installation.

USER MANUAL Optix MAG241CPUK MSI

Copyright and Trademarks Notice

Revision

Technical Support

Safety Instructions

CE Conformity

FCC-B Radio Frequency Interference Statement

WEEE Statement

Chemical Substances Information

RoHS Statement

Getting Started

Package Contents

Installing the Monitor Stand (Optional)

Adjusting the Monitor

Monitor Overview

Connecting the Monitor to PC

OSD Setup

Navi Key

OSD Setup via Navi Key

Appendix

Specifications

Preset Display Modes

Troubleshooting

Copyright and Trademarks Notice

Copyright © Micro-Star Int'l Co , Ltd All rights reserved The MSI logo used is a registered trademark of Micro-Star Int'l Co , Ltd All other marks and names mentioned may be trademarks of their respective owners No warranty as to accuracy or completeness is expressed or implied MSI reserves the right to make changes to this document without prior notice

Revision

Revision Date

V1 0 2019/06

Technical Support

If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance

Safety Instructions

Read the safety instructions carefully and thoroughly

All cautions and warnings on the device or user's manual should be noted

Refer servicing to qualified personnel only.

Keep the User's Guide that comes with the package for future reference

To prevent fire or shock hazard, keep this device away from humidity and high temperature

Lay this device on a reliable flat surface before setting it up.

Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the device to the power outlet. Do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet

Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.

The ventilator on the device is used for air convection and to prevent the device from overheating Do not cover the ventilator

Do not leave the device in an unconditioned environment with a storage temperature above 60°C or below -20°C , which may damage the device

NOTE: The maximum operating temperature is around 40° C

When cleaning the device, be sure to remove the power plug Use a piece of soft cloth rather than industrial chemical to clean the device Never pour any liquid into the opening; that could damage the device or cause electric shock

Place the power cord in a way that people are unlikely to step on it Do not place anything on the power cord

Always keep strong magnetic or electrical objects away from the device

If any of the following situations arises, get the device checked by service personnel:

The power cord or plug is damaged
- Liquid has penetrated into the device
The device has been exposed to moisture

The device does not work well or you can not get it work according to user's manual

The device has dropped and damaged
The device has obvious sign of breakage

Green Product Features

• Reduced energy consumption during use and stand-by
  Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
  ☐ Reduced solid waste production through take-back policy

Environmental Policy

The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products
Visit the MSI website and locate a nearby distributor for further recycling information
Users may also reach us at gpcontdev@msi com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products

★ Warning! Overuse of screens is likely to affect eyesight.
★ Recommendations:

1 Take a 10-minute break for every 30 minutes of screen time

2 Children under 2 years of age should have no screen time For children aged 2 years and over, screen time should be limited to less than one hour per day

CE Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/

EU) This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

■ Reorient or relocate the receiving antenna
■ Increase the separation between the equipment and receiver
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
■ Consult the dealer or an experienced radio/television technician for help

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits

This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation

MSI Computer Corp

901 Canada Court, City of Industry, CA 91748, USA

[phone]

www msi com

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://www msi com/html/ popup/csr/evmtprtt_pcm html

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

https://www msi com/html/popup/csr/cemm_jp html

https://tw msi com/html/ popup/csr_tw/cemm_jp html

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0–1 weight % and 0–01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule

Turkey EEE Regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine Restriction of Hazardous Substances

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity

IMPORTANT

• The illustrations are for reference only Your monitor may vary in appearance
- Do not use any sharp objects on the monitor

Package Contents

1. Monitor
2. Stand
3. Stand Base with Screw
4. Power Cord
5. HDMI Cable
6. DisplayPort Cable (Optional)
7. USB Upstream Cable (to enable the USB ports on the monitor)
8. Quick Start Guide
9. Warranty Card
10. User Manual

* Contact your place of purchase or local distributor if any of the items is damaged or missing.
* Package contents may vary by country.

Installing the Monitor Stand (Optional)

MAG241C/ MAG241CV/ MAG271C/ MAG271CV

1 Lay the monitor on a reliable flat surface.
2 Connect the base to the stand
3 Tighten the base screw to secure the base

MAG241CP/ MAG241CR/ MAG271CP/ MAG271CR

1 Fit the stand to the monitor
2 Connect the base to the stand
3 Tighten the base screw to secure the base

IMPORTANT

Place the monitor on a soft, protected surface to avoid scratching the display panel

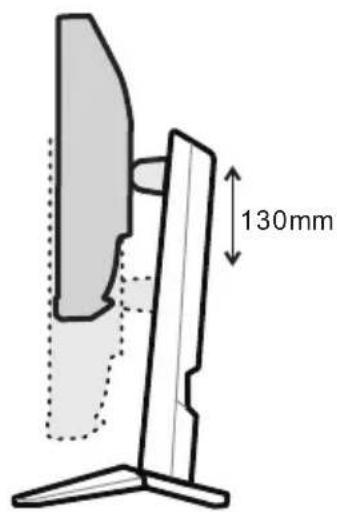

Adjusting the Monitor

This monitor is designed to maximize your viewing comfort with its adjustment capabilities such as tilt and lift

IMPORTANT

Avoid touching the display panel when adjusting the monitor

Optix MAG241CR
Optix MAG241CP
Optix MAG271CR
Optix MAG271CP

Optix MAG241C
Optix MAG241CR
Optix MAG241CP
Optix MAG241CV
Optix MAG271C
Optix MAG271CR
Optix MAG271CP
Optix MAG271CV

Monitor Overview

1 Power Button
2 Navi Key
3 HDMI Port HDMI™
4 HDMI Port HDMI™
5 DisplayPort
6 Headphone Jack
USB 2 0 Type A Downstream Port

USB 2 0 Type A Downstream Port

9 USB 2 0 Type B Upstream Port For USB Upstream Cable

IMPORTANT

Check the package for USB Upstream Cable and connect it to the PC and monitor Once this cable is connected, the USB Type A Downstream Ports on the monitor will be ready for use

10 Kensington Lock

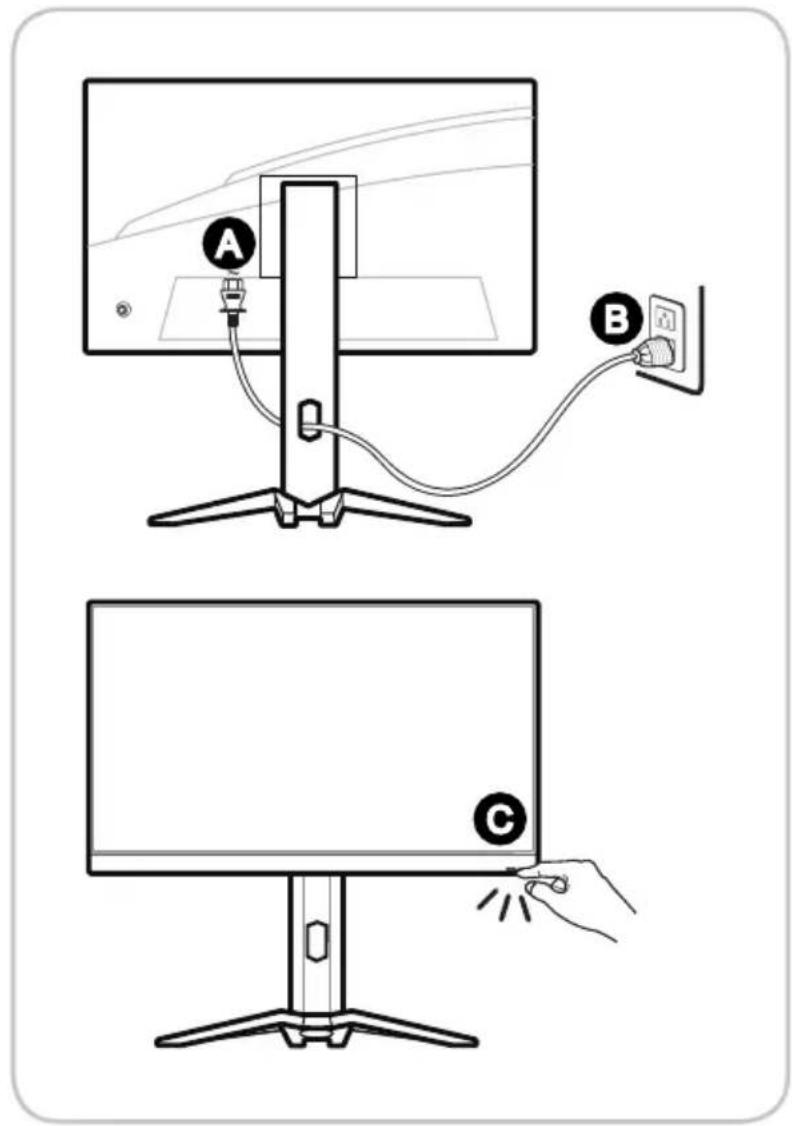

Connecting the Monitor to PC

1 Turn off your computer.
2 Connect the HDMI/DisplayPort cable from the monitor to your computer
3 Connect the power cord to the monitor power jack (Figure A)
4 Plug the power cord into the electrical outlet (Figure B)
5 Turn on the monitor (Figure C)
6 Select your Input Source at OSD menu and power on the computer

2

OSD Setup

This chapter provides you with essential information on OSD Setup

IMPORTANT

All information is subject to change without prior notice

Navi Key

The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu

The Navi Key default settings are as follows

Navi Key Hot Key(When OSD menu is OFF)		Basic Operations(When OSD menu is ON)
Middle Button OSD Main Menu ■ Entering submenus		■ Confirming a selection or setting

Navi Key Hot Key(When OSD menu is OFF)			Basic Operations(When OSD menu is ON)
Up Game Mode	■ Press Middle	Button to confirm selection and exit■ Press Up and Down Buttons to adjust■ Press Left Button to cancel preview and exit without applying mode effect.	■ Selecting function menus and items■ Allowing upward adjustment in function values
Down Screen Assistance	■ Press Middle	Button to confirm selection and exit■ Press Up and Down Buttons to adjust■ Press Left Button to cancel preview and exit	■ Selecting function menus and items■ Allowing downward adjustment in function values
Left Alarm Clock	■ Press Middle	Button to confirm selection and exit■ Press Up and Down Buttons to select■ Press Left Button to cancel preview and exit	■ Selecting function menus and items■ Exiting the current menu
Right Input Source	■ Press Middle	Button to confirm selection and exit■ Press Up and Down Buttons to select■ Press Left Button to exit	■ Selecting function menus and items■ Entering submenus

Users may enter the OSD Menu to customize their own Navi Key Hot Keys.

More Hot Key options are as below

Navi Key Hot Key Options Operations
Brightness ■ P		ave value and exit■ Press Up and Down Buttons to adjust■ Press Left Button to cancel preview and exit■ Brightness default for FHD is 80
Refresh Rate		to confirm selection and exit■ Press Right Button to turn on and Left Button to turn off the Refresh Rate.

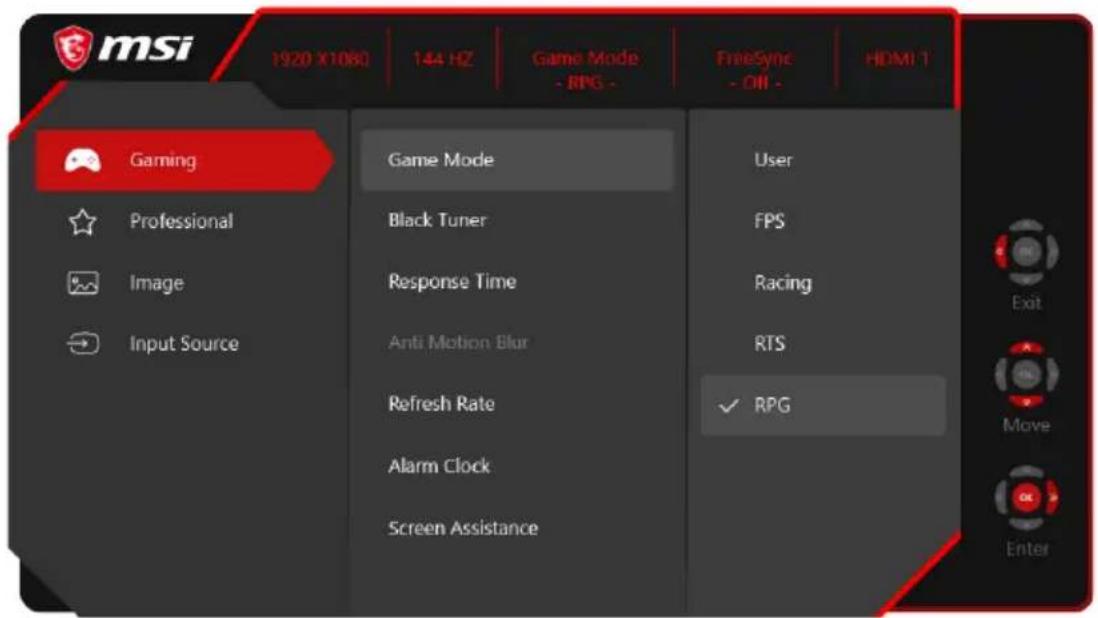

OSD Setup via Navi Key

Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences

GAMING

1st Level Menu 2nd/3rd Level Menu Description
Game Mode User	Default mode All items can be adjusted by users
	FPS All items can be adjusted, except for Black Tuner, Image Enhancement, Brightness and Contrast
	Racing All items can be adjusted, except for Brightness, Contrast and Image Enhancement
	RTS All items can be adjusted, except for Brightness, Contrast and Image Enhancement
	RPG All items can be adjusted, except for Brightness, Contrast, Black Tuner and Image Enhancement
	■ Use Up or Down Button to select and preview mode effects. ■ Press the Middle Button to confirm and apply your mode type.
Black Tuner 0-20	■ Use Up or Down Button to adjust the value ■ This function improves background brightness and is recommended for FPS games

1st Level Menu 2nd/3rd Level Menu Description
Response Time Normal ■ Users can adjust Response Time in any Mode■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled■ When Screen Refresh Rate is lower than 75HZ, “Fastest” will be grayed out■ This function is recommended for FPS and Racing games
Anti Motion Blur	(OFF)		■ Brightness cannot be adjusted when Anti Motion Blur is set to ON■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled■ When Screen Refresh Rate is lower than 75HZ, Anti Motion Blur cannot be enabled and Response Time cannot be set to Fastest■ When Anti Motion Blur is enabled, HDCR cannot be enabled and will be grayed out■ This function is recommended for cinema, FPS and Racing games■ When FreeSync is enabled, Anti Motion Blur will be grayed out
	(ON)
Refresh Rate	Location	Left Top	■ Users can adjust Refresh Rate in any Mode■ Default Refresh Rate Location is Left Bottom Location is adjustable in OSD Menu. Press the Middle Button to confirm and apply your Refresh Rate Location■ This monitor follows and works at the Operating System's preset Screen Refresh Rate
		Right Top
		Left Bottom
		Right Bottom
	OFF
	ON
Alarm Clock	Location	Left Top	■ Users can adjust Alarm Clock in any Mode■ After setting the time, press the Middle Button to activate the timer■ Default Alarm Clock Location is Left Top Users can select their own location
		Right Top
		Left Bottom
		Right Bottom
	OFF
	15:00 00:01~99:59
	30:00
	45:00
	60:00
Screen Assistance	None ■ Users can adjust Screen Assistance in any Mode■ Screen Assistance default is None
1st Level Menu	2nd/3rd Level Menu Description
FreeSync	(OFF)	■ FreeSync prevents screen tearing■ HDMI default is ON but grayed out (cannot be changed)■ DisplayPort default is ON and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate■ When FreeSync is enabled, Anti Motion Blur will be grayed out
	(ON)

▶ Professional

1st Level Menu 2nd Level Menu Description
Pro Mode User Default mode All items can be adjusted by users
	Reader All items can be adjusted, except for Brightness, Contrast and Eye Saver
	Cinema All items can be adjusted, except for Brightness, Contrast and Image Enhancement
	Designer All items can be adjusted, except for Black Tuner, Brightness and Contrast
	■ Use Up or Down Button to select and preview mode effects. ■ Press the Middle Button to confirm and apply your mode type.
Eye Saver	(OFF)	■ Eye Saver protects your eyes against blue light When enabled, Eye Saver adjusts the screen color temperature to a more yellow glow ■ Users can adjust Eye Saver in any Mode ■ When Pro Mode is set to Reader, it is mandatory to enable Eye Saver
	(ON)
HDCR	(OFF)	■ HDCR default is OFF Users can adjust HDCR in any Mode ■ HDCR enhances image quality by increasing the contrast of images ■ When HDCR is set to ON, Brightness will be grayed out ■ HDCR and Anti Motion Blur cannot be enabled simultaneously ■ When HDCR is enabled, Anti Motion Blur cannot be enabled and Response Time cannot be set to Fastest
	(ON)
Anti Motion Blur	(OFF)	■ Brightness cannot be adjusted when Anti Motion Blur is set to ON■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled■ When Screen Refresh Rate is lower than 75HZ, Anti Motion Blur cannot be enabled and Response Time cannot be set to Fastest■ When Anti Motion Blur is enabled, HDCR cannot be enabled and will be grayed out■ This function is recommended for cinema, FPS and Racing games■ When FreeSync is enabled, Anti Motion Blur will be grayed out
	(ON)
Image Enhancement	OFF ■ Image Enhancement enhances image edges to improve their acutance■ Users can adjust Image Enhancement in any Mode
	Weak
	Medium
	Strong
	Strongest


1st Level Menu 2nd/3rd Level Menu Description
Brightness 0-100 ■ Brightness default is 80		■ Users can adjust Brightness in User, RTS, RPG and Reader mode■ Brightness will be grayed out when Anti Motion Blur and HDCR are enabled
Contrast 0-100 ■ Contrast default is 80		■ Users can adjust Contrast in any Mode
Sharpness 0-5 ■ Sharpness default is 0 Users can adjustSharpness in any Mode■ Sharpness improves clarity and details of images
Color Temperature	Cool ■ Color Temperature default is Normal
	Normal
	Warm
	Customization R (0-100)

Input Source

1st Level Menu Description
HDMI1 Users can	adjust Input Source in any Mode
HDMI2
DP

Navi Key

1st Level Menu 2nd Level Menu Description
Up OFF ■ Up Button default is Game Mode
	Brightness	■ Down Button default is Screen Assistance■ Left Button default is Alarm Clock■ Right Button default is Input Source■ All Navi Key items can be adjusted via OSD Menu
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	Refresh Rate
Down OFF
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	Refresh Rate
Left OFF
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	Refresh Rate
Right OFF
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	Refresh Rate

Setti

1st Level Menu 2nd Level Menu Description
Language	繁體中文	■ Language factory default is English■ Users have to press the Middle Button to confirm and apply the Language setting■ Language is an independent setting Users' own language setting will override the factory defaultWhen users set Reset to Yes, Language will not be changed
	English
	Français
	Deutsch
	Italiano
	Español
	한국어
	日本語
	Русский
	Português
	简体中文
	ไทย
	Bahasa Indonesia
	हिन्दी
	Türkçe
	فارسی
	Tiếng Việt
	succall
	बांगा
	عَرَيْي
	(More languages coming soon)
Transparency 0~5	Transparency default is 0 Users can adjust Transparency in any Mode
OSD Time Out 5-30s OSD Time Out default is 20s Users can adjust OSD Time Out in any Mode
RGB LED OFF RGB LED default is On	Users can adjust RGB LED to On or Off (For MAG241CR and MAG271CR only).
	ON
Reset YES Users can Reset and restore settings to original OSD
			NO	Default in any Mode

A

Appendix

IMPORTANT

All information is subject to change without prior notice

Specifications

Model MAG241C		MAG241CV	MAG271CMAG271CV
Size 23 6 inch 27 inch
Curvature 1500R 1800R
Panel Type VA
Resolution 1920 x 1080@144Hz
Aspect Ratio 16:9
Brightness (nits) 300 (max)
Contrast Ratio 3000:1
Refresh Rate 144Hz
Response Time 1ms (MPRT)
Input Interface HDMI x2, DP x1
I/O ■ HDMI x2		■ Display Port x1■ USB 2 0 Type A x2 (Rear side)■ USB 2 0 Type B x1 (Rear side for PC to Monitor)■ Digital Audio Output x1
View Angles		178°(H), 178°(V)
DCI-P3/ sRGB		90%/ 115%	90%/ 115%
Surface Treatment		Anti-glare
Display Colors 16 7M
Power Type		Internal Power
Power Consumption (Typical)		45W	55W
Power Input		100~240Vac, 50~60Hz, 1.5A
Adjustment (Tilt)		-5° ~ 20°
Kensington Lock		Yes
VESA Mounting		■ Plate Type: 100 x 100 mm■ Screw Type: M4x10 mm► Thread Diameter: 4 mm► Thread Pitch: 0 7 mm► Thread Length: 10 mm
Dimension (W x H x D)		536 4 x 411 5 x 225 2 mm	612 0 x 451 8 x 225
Net Weight		4 2 kg (net), 6 4 kg (gross)	5 6 kg (net), 8 0 kg (gr
Environment	Operating	Temperature: 0°C to 40°CHumidity: 20% to 90%, non-condensingAltitude: 0 ~ 5000m
	Storage	Temperature: -20°C to 60°CHumidity: 10% to 90%, non-condensing

2 mm

Model MAG241CR	MAG241CP	MAG271CRMAG271CP
Size 23 6 inch 27 inch
Curvature 1500R 1800R
Panel Type VA
Resolution 1920 x 1080@144Hz
Aspect Ratio 16:9
Brightness (nits) 300 (max)
Contrast Ratio 3000:1
Refresh Rate 144Hz
Response Time 1ms (MPRT)
Input Interface HDMI x2, DP x1
I/O ■ HDMI x2	■ Display Port x1■ USB 2 0 Type A x2 (Rear side)■ USB 2 0 Type B x1 (Rear side for PC to Monitor)■ Digital Audio Output x1
View Angles	178°(H), 178°(V)
DCI-P3/ sRGB	90%/ 115%	90%/ 115%
Surface Treatment	Anti-glare
Display Colors 16 7M
Power Type	Internal Power
Power Consumption (Typical)	47W	57W
Power Input	100~240Vac, 50~60Hz, 1.5A
Adjustment (Tilt)	-5° ~ 20°
Adjustment (Height)	0 ~ 130mm
Kensington Lock	Yes
VESA Mounting	■ Plate Type: 100 x 100 mm■ Screw Type: M4x10 mm► Thread Diameter: 4 mm► Thread Pitch: 0 7 mm► Thread Length: 10 mm
Dimension (W x H x D)	536 4 x 531 2 x 231 2 mm (max)	612 0 x 560 0 x 266 5 mm
Net Weight	5 1 kg (net), 7 3 kg (gross)	6 4 kg (net), 9 1 kg (gr

Environment Operating Temperature: 0°C to 40°CHumidity: 20% to 90%, non-condensingAltitude: 0 ~ 5000m

Storage Temperature: -20°C to 60°CHumidity: 10% to 90%, non-condensing

LED Control Mystic light LED support RGB LED(MAG241CR/ MAG271CR)

Preset Display Modes

Standard Resolution		MAG241CMAG241CPMAG241CRMAG241CV	MAG271CMAG271CPMAG271CRMAG271CV
		HDMI / DP
VGA 640x480 @60Hz V
		640x480 @67Hz V
		640x480 @72Hz V
		640x480 @75Hz V
Dos-Mode 720x400@70Hz V
SVGA 800x600 @56Hz V
		800x600 @60Hz V
		800x600 @72Hz V
		800x600 @75Hz V
XGA 1024x768 @60Hz V
		1024x768 @70Hz V
		1024x768 @75Hz V
XGA+ 1152x864 @75Hz V
SXGA 1280x1024 @60Hz V
		1280x1024 @75Hz V
WXGA 1280x720 @60Hz V
VESA 1280x960 @60Hz V
SDTV 640x480P @60Hz V
		720x480P @60Hz V
		720x576P @50Hz V
		1440x480P @60HZ V
		1440x576P @50HZ V
HDTV 1280x720P @50Hz V
		1280x720P @60Hz V
		1920x1080P @50Hz V	V
		1920x1080P @60HZ V	V
WXGA+	1440x900 @60Hz V
WSXGA+	1680x1050 @60Hz V
Full HD	1920x1080 @60Hz V
	1920x1080 @120Hz V	V
	1920x1080 @144Hz V	V

Troubleshooting

The power LED is off.

■ Press the monitor power button again
■ Check if the monitor power cable is properly connected

No image

■ Check if the computer graphics card is properly installed
- Check if the computer and monitor are connected to electrical outlets and are turned on
■ Check if the monitor signal cable is properly connected
■ The computer may be in Standby mode Press any key to activate the monitor

The screen image is not properly sized or centered

Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display

No Plug & Play

■ Check if the monitor power cable is properly connected
■ Check if the monitor signal cable is properly connected
■ Check if the computer and graphics card are Plug & Play compatible

The icons, font or screen are fuzzy, blurry or have color problems

■ Avoid using any video extension cables
■ Adjust brightness and contrast
■ Adjust RGB color or tune color temperature
■ Check if the monitor signal cable is properly connected
■ Check for bent pins on the signal cable connector

The monitor starts flickering or shows waves.

■ Change the refresh rate to match the capabilities of your monitor
■ Update your graphics card drivers
- Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI)
