USER MANUAL HS 2631 CLATRONIC

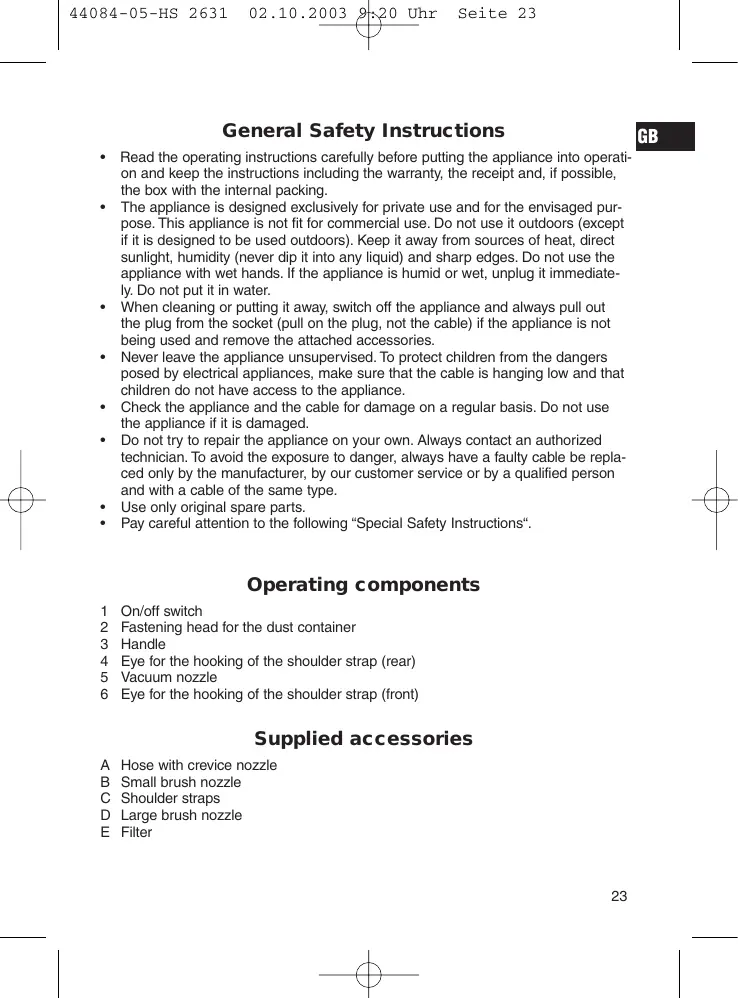

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water. When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories. Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance. Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged. Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type. Use only original spare parts. Pay careful attention to the following “Special Safety Instructions“.

On/off switch Fastening head for the dust container Handle Eye for the hooking of the shoulder strap (rear) Vacuum nozzle Eye for the hooking of the shoulder strap (front)

Hose with crevice nozzle Small brush nozzle Shoulder straps Large brush nozzle Filter

Operating components Supplied accessories

02.10.2003 9:20 Uhr

Seite 24 Putting the Appliance into Operation

Check whether the filter is inserted correctly on the front of the device. Open the vacuum with the fastener (2). Close the vacuum again by inserting the flap on the front in the relevant slot. Close the vacuum by locking into place the upper flap. Mount the desired accessory with or without the hose on the front of the vacuum. When using the hose make sure that the curved side is facing down. Connect the device to a duly installed 230V, 50Hz protective contact socket. To start the vacuuming, press only the On/Off (I/O) switch. Since the device has a removable and washable filter, there is no need to buy spare dust bags. Nozzles: Small brush nozzle: for the vacuuming of narrow surfaces and corners. Large brush nozzle: for the vacuuming of large surfaces. Hose with crevice nozzle: perfect for vacuuming the interior of cars. These nozzles are perfect for furniture, upholstery, frames and plenty more. Shoulder straps: Hook the ends of the shoulder strap with the snap-link in the eyes (4 and 6). Make sure that the shoulder straps are not wound up. The length of the shoulder strap can be adjusted with the buckle on the strap by simply pulling one side of the strap. Thanks to its light weight the hand vacuum can be hung without problems and used anywhere. Cleaning

1. Make sure that the vacuum is unplugged.

2. To clean the filter, press the button (2) to open the device.

3. Remove the filter and knock it. The filter can be cleaned under running water.

Do not use any aggressive or abrasive detergent. Make sure that the filter is perfectly dry.

4. Mount the dust container again and close the vacuum as described in "Putting

the Appliance into Operation". After use Always pull the plug out once you have finished using the vacuum. The vacuum can be stored vertically without wasting any space. This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice!

02.10.2003 9:20 Uhr

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt). Within the guarantee period we rectify faults to the machine free of charge which result from material or manufacturing faults, either by repairing the machine or, or our discretion, by replacement. Any such repair or replacement associated with the guarantee shall not cause the guarantee period to be extended, nor be deemed to be the start of a new guarantee period! Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase. Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer. Defects to the accessories do not entitle to the change of the appliance. These will be replaced free of charge. In this case do not send back the appliance. Just order the faulty accessory! Broken glass parts are replaced at the expense of the owner! Neither defects to consumables and wearing parts (e.g. motor pistons, kneading hooks, drive belts, spare remote controls, spare toothbrushes, saw blades, etc.) nor the cleaning, maintenance or change of wearing parts fall under this warranty and hence are subject to payment of costs! The warranty is terminated in case of handling on the part of Third parties. After the warranty Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
